Woodfast 430mm (17") Floor Drill Press 16mm Key Chuck 240V DP43016F *New Arrival*

WoodfastSKU: 8043828
Size: 430mm (17")
Price:
$0.00
Stock:
In stock (10 units), ready to be shipped

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

Bring professional drilling accuracy and reliability into your workshop with the Woodfast 430mm (17") Floor Drill Press (DP43016F). Designed for woodworkers, metalworkers, educational facilities, maintenance departments, and serious DIY users, this heavy-duty pedestal drill press delivers the power, precision, and durability required for everyday drilling applications.

Manufactured by Woodfast, a trusted machinery brand with a heritage dating back to 1941, the DP43016F combines proven engineering with modern safety features, making it an ideal choice for workshops seeking dependable performance and exceptional value.

Features

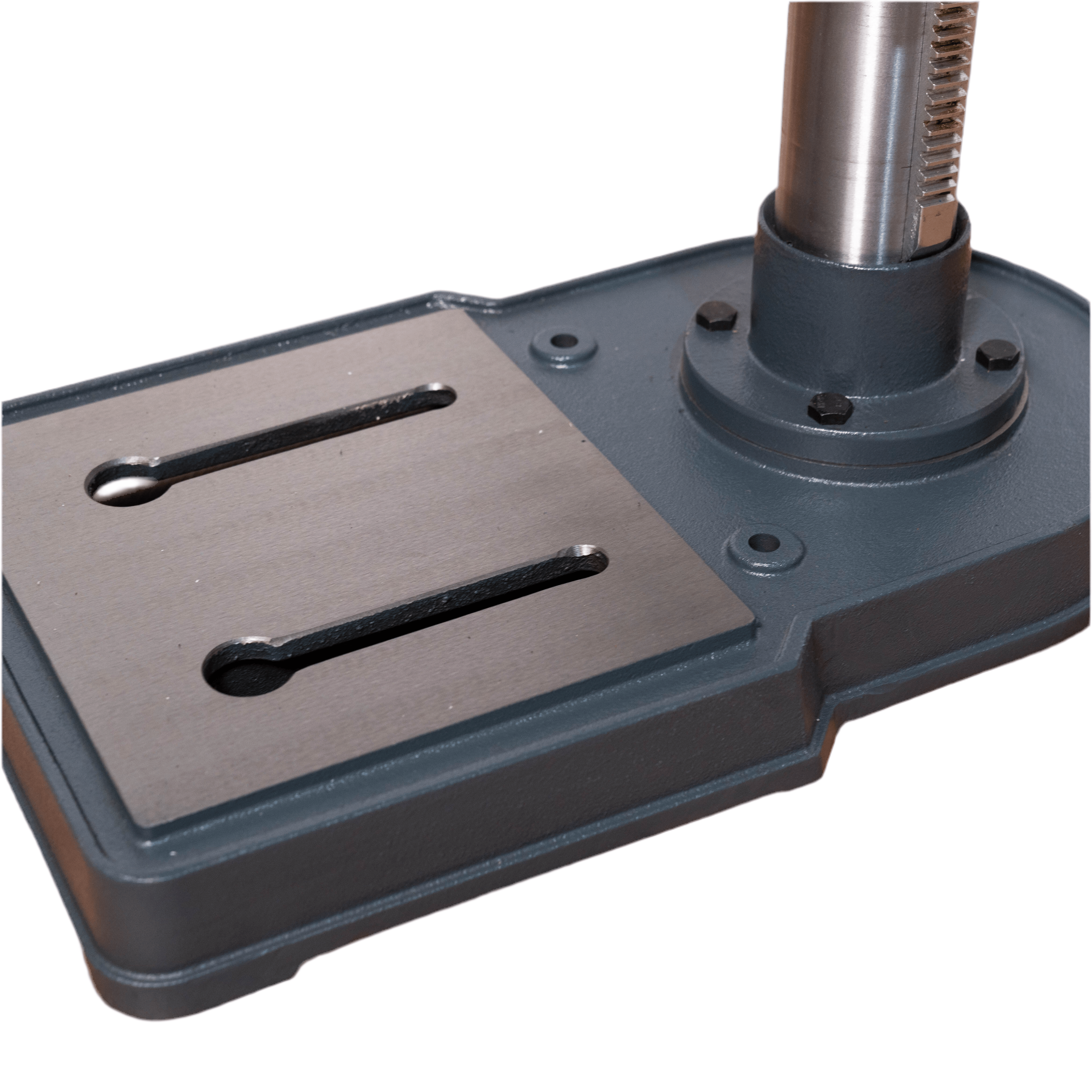

Heavy-Duty Floor Mount Design

The robust cast iron construction and floor-standing configuration provide excellent stability, reduced vibration, and greater drilling accuracy for larger workpieces.

16mm Key Chuck Capacity

Fitted with a quality 16mm keyed chuck to accommodate a wide range of drill bits and tooling for woodworking, metalworking, plastics, and general workshop applications.

Multi-Speed Belt Drive System

Offers a range of spindle speeds through a traditional belt and pulley arrangement, allowing users to select the appropriate speed for different materials and drill bit sizes.

Adjustable Drilling Depth Stop

Achieve accurate and repeatable drilling depths for production work, dowelling applications, and precision drilling tasks.

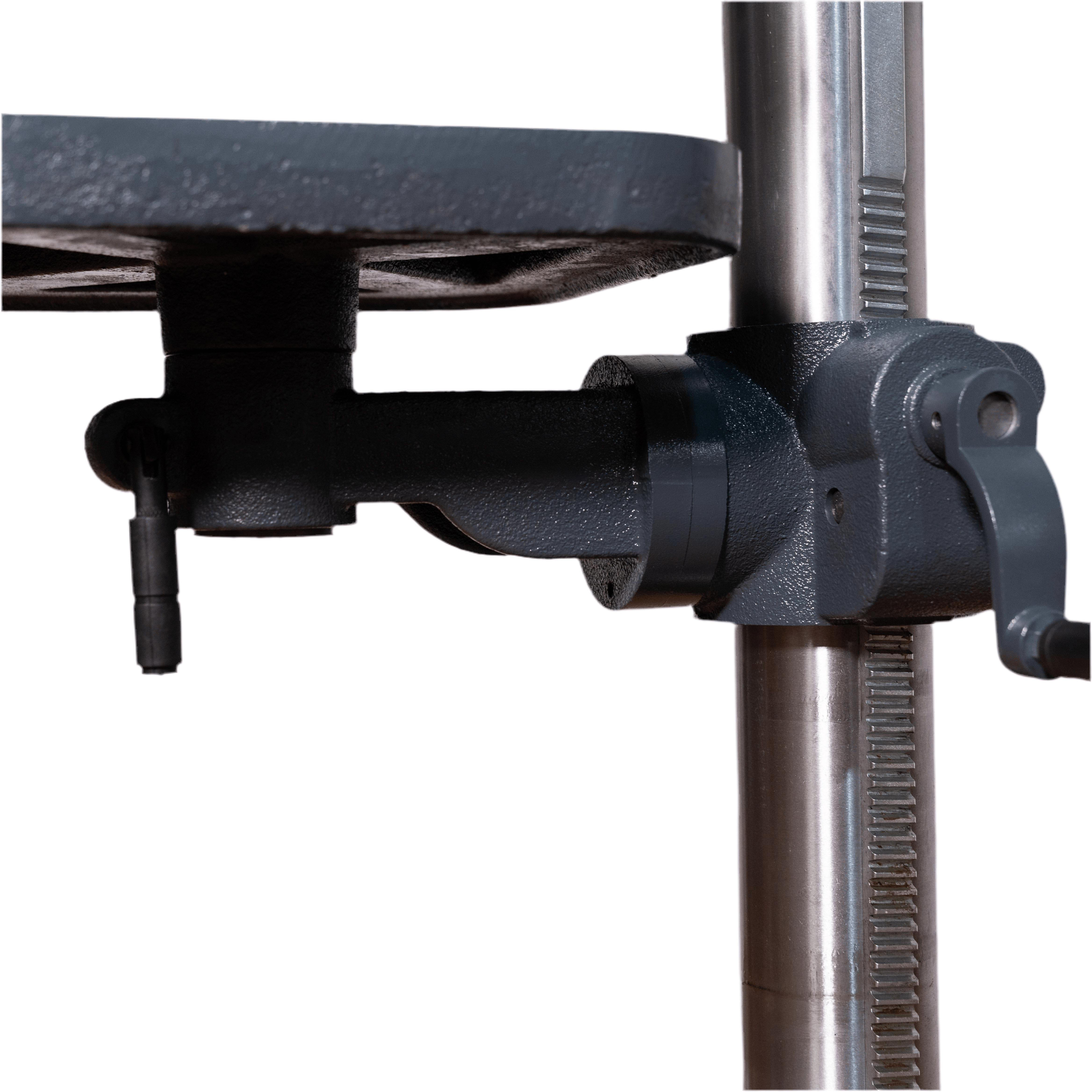

Rack & Pinion Table Height Adjustment

Quickly and easily raise or lower the work table to suit various workpiece sizes while maintaining excellent support and positioning.

Precision Ground Work Table

The adjustable cast iron table can be tilted and positioned to suit a wide variety of drilling operations.

CE-Compliant Chuck Guard with Safety Micro Switch

Provides enhanced operator protection by automatically disabling machine operation when the guard is opened.

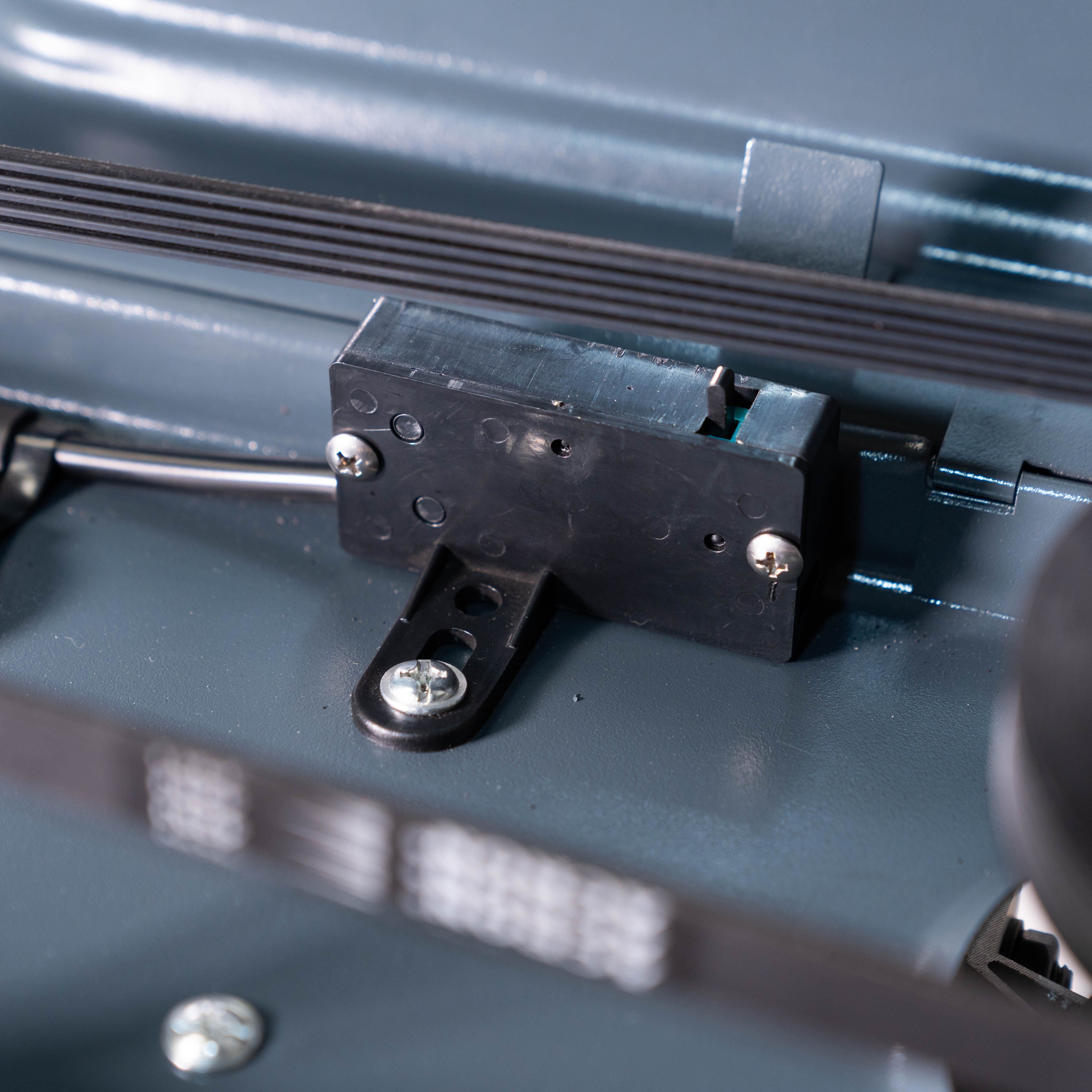

Safety Interlock Main Cover

A built-in micro switch prevents operation when the belt cover is open, helping ensure safe speed changes and maintenance procedures.

Latching Emergency Stop Button

Instantly stops machine operation in an emergency situation, providing additional workshop safety.

Separate On/Off Controls

Easy-to-use controls offer simple operation and improved accessibility during use.

Powerful 240V Operation

Runs from standard Australian single-phase power, making it suitable for home workshops, schools, and professional environments.

Why Choose the Woodfast DP43016F?

The DP43016F delivers the same heavy-duty build quality and drilling capacity as its electronic variable speed counterpart, while utilising a proven belt-drive speed selection system. This traditional design offers reliability, simplicity, lower maintenance requirements, and excellent value for workshops that do not require electronic speed adjustment.

Backed by over 80 years of manufacturing heritage, Woodfast machinery is trusted throughout Australia by tradespeople, educators, hobbyists, and industrial users alike.

Ideal Applications

  • Woodworking Workshops
  • Metalworking Workshops
  • School & Educational Training Facilities
  • Maintenance Departments
  • Furniture Manufacturing
  • Cabinet Making
  • DIY & Home Workshops
  • General Engineering Applications

Specifications

Specification Details
Model DP43016F
Type Floor Mounted Drill Press
Swing 430mm (17")
Chuck Capacity 16mm Key Chuck
Speed Control Belt Drive Multi-Speed
Power Supply 240V Single Phase
Table Adjustment Rack & Pinion Height Adjustment
Safety Features Chuck Guard Micro Switch, Cover Safety Switch, Emergency Stop
Application Wood, Metal, Plastic & General Workshop Use

Woodfast – Trusted Since 1941

For over eight decades, Woodfast has supplied Australian workshops with quality machinery designed to deliver performance, reliability, and long service life. The DP43016F Floor Drill Press continues this tradition, providing a dependable drilling solution for professionals and enthusiasts alike.

Order your Woodfast DP43016F Floor Drill Press today and experience the precision, strength, and reliability that have made Woodfast a trusted name in workshops across Australia.

Additional Information

Model
Type
Drill Press
SKU
8043828
Part Number
DP43016F-VS
Brand
Woodfast
Configuration
Configuration
The term "configuration" refers to the design or setup of a machine, specifically whether it is benchtop, pedestal, or portable style.Benchtop Configuration: Machines with a benchtop configuration are designed to be placed on a workbench or tabletop. These machines are typically compact and ideal for smaller workspaces or projects.Pedestal Configuration: Machines with a pedestal configuration are mounted on a sturdy pedestal or stand. This configuration provides stability and may offer additional height and accessibility for certain applications.Portable Configuration: Machines with a portable configuration are designed to be easily transported and used in various locations. These machines are lightweight and often feature handles or carrying cases for convenient portability.Understanding the configuration of a machine is important as it determines how it will fit into your workspace and how you will interact with it during operation.
Floor Standing
Technical - Main
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
1.5HP (1.11kW)
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
220V-240V / 50Hz
Chuck Taper
MT2
Chuck Capacity
16mm
Keyed / Keyless
Keyed
Mount
MT2 / B16
Chuck Capacity
16mm
Base Size
520 x 310mm
Table Size
315 x 315mm

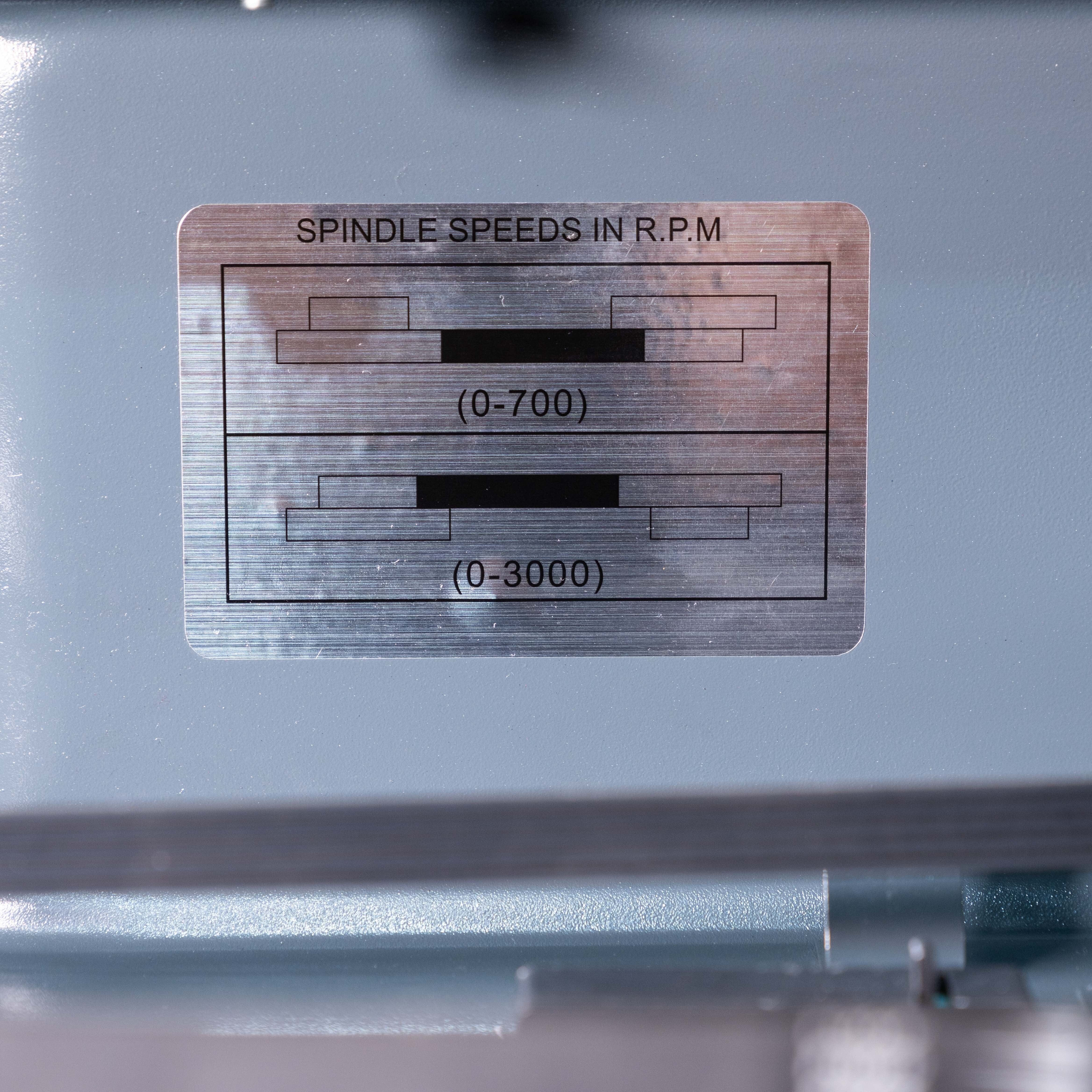

Speed Range
0-3000RPM
Technical - Spindle Moulder
Mechanical Speed
Mechanical Speed
Mechanical Speed refers to machines that use a mechanical system, such as belts and pulleys, to select from a set number of fixed speeds. Models like 12-speed or 16-speed require manual adjustment to change speeds. Unlike variable speed systems, which allow continuous speed adjustment via a dial or electronic control, mechanical speed models offer preset, reliable speed options for different applications.
Not Applicable - This unit has Electronic Variable Speed
Dimensions
Product Height
1630mm
Product Weight (Net Weight)
56kg
Country of Origin
Manufactured in
China
Designed, Researched & Developed in
Australia
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
LED Light
LED Light
The built-in LED light illuminates your work area, providing bright and focused lighting for enhanced visibility during drilling operations.

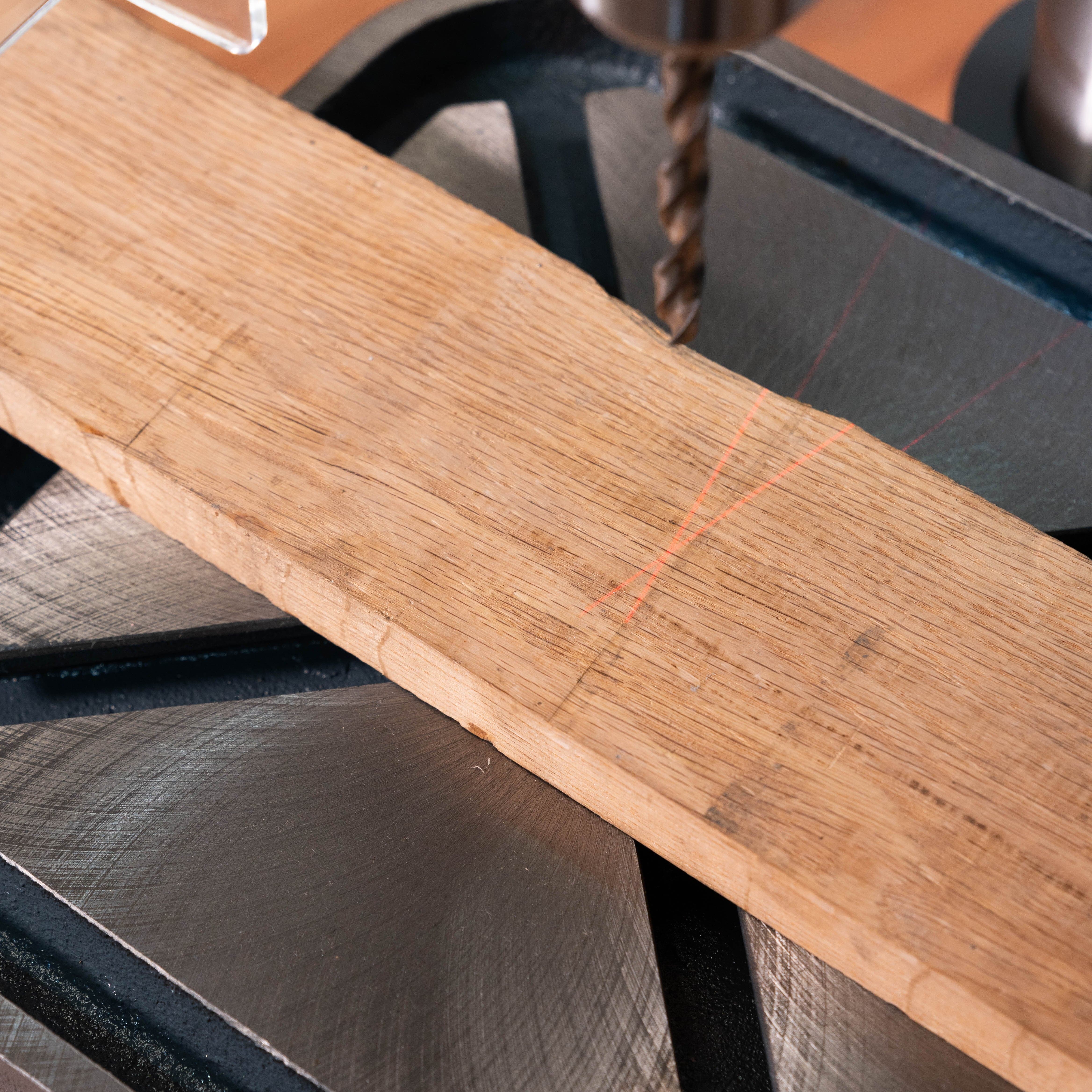

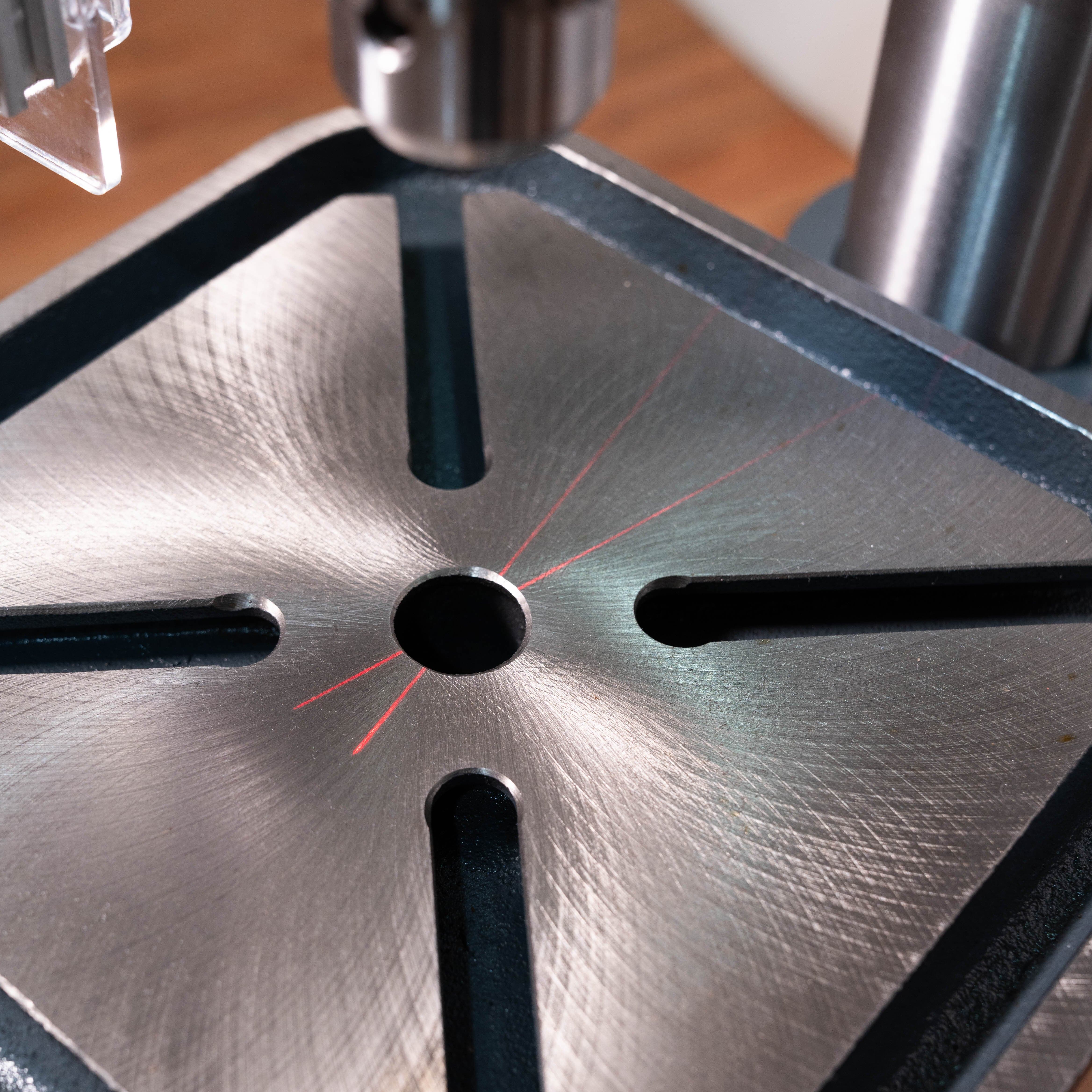

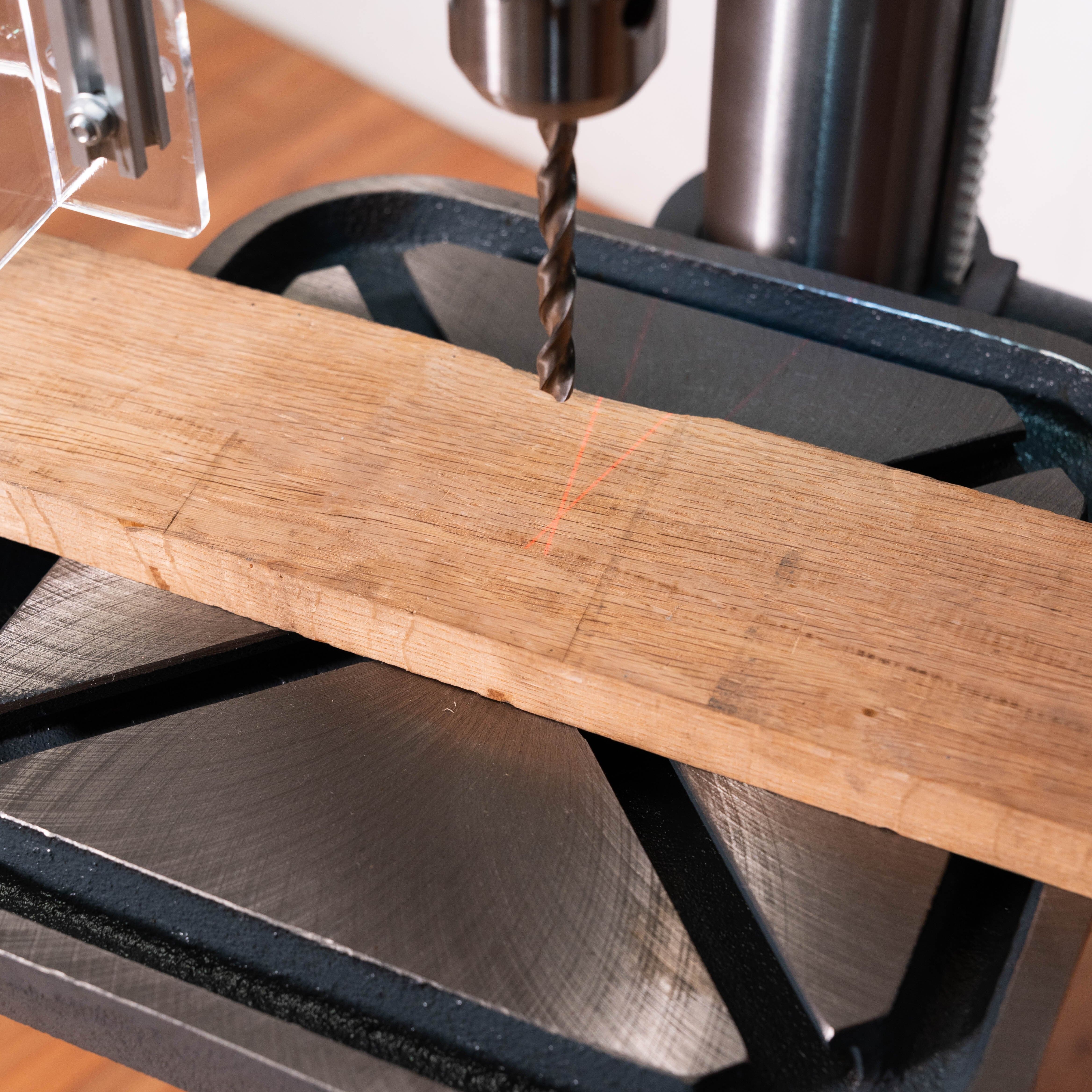

Laser Light
Laser Light
The integrated laser light feature provides precise alignment and accuracy every time.
