Status
Available
Description
Compact design
Stable temperature
It allows for 40% greater edge adhesion than conventional hot-melt coating.

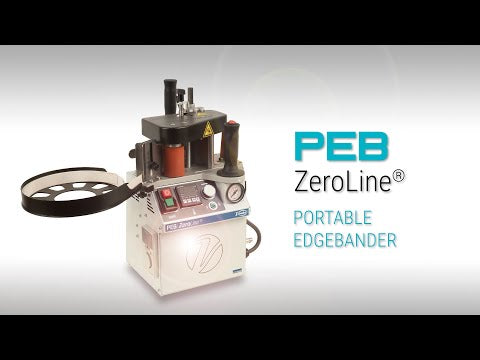

Portable edgebander equipped with Zeroline® hot air technology. Thanks to this technology, the joint between the panel and the edge is practically perfect, without glue line, providing a high quality finish.
Perfect finish on straight, round, shaped and inclined panels. Very practical for small or medium series thanks to its compact design, ease of use and quick adjustment.
Designed for PVC and ABS edges up to 2 mm thick with a co-extruded or post-treated active layer, which eliminates the need to clean a glue tank.
Possibility of edgebanding acrylic and lacquered panels.
Perfect finish on straight, round, shaped and inclined panels (0° - 50°).
The PEB Zeroline® works with low-pressure air. A high-performance compressed air system is not required.

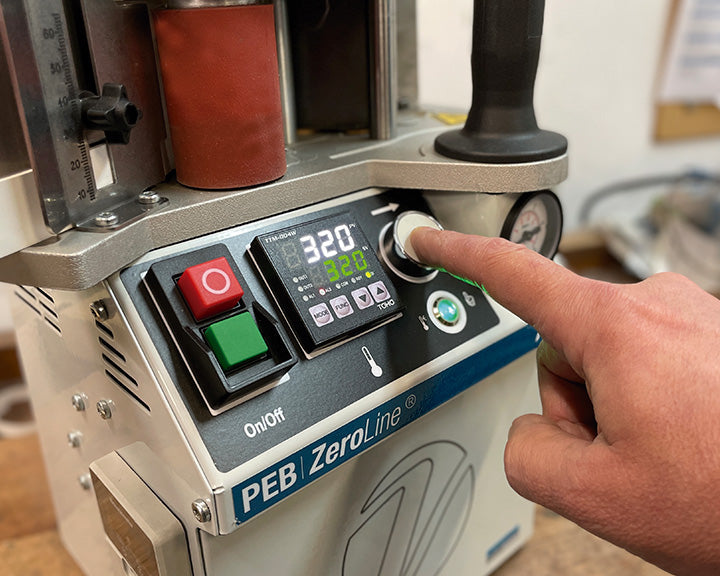

Equipped as standard with a working temperature indicator light and roll holder.
ZeroLine® is a registered trademark of Virutex
Edgebanders with hot air technology manage to fuse the edge to the panel, providing an excellent finish, thanks to the tiny layer of glue that separates both surfaces.
Specification
-
Inclination: 0°- 50°
- Internal Radius: 18mm
- Warm-up Time: 240Sec (4 Min.)
Optional Accessories
Additional Information
Model
Type
Portable Edgebander
SKU
8043663
Part Number
PEB ZEROLINE / 5000885
Brand
Virutex
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3400W
Air Connection
6 Bar
Edging Thickness
0.4-3mm
Edging Width
10-65mm
Feed Speed
1-3.3m/Min.
Material (Stock) - Maximum Thickness
10-62mm
Dimensions
Product Length
230mm
Product Width
212mm
Product Height
360mm
Product Weight (Net Weight)
11.5kg
Features
Standard Inclusions
Edgebander, Electric / Pneumatic supply hose with connection sockets, Edging Roll Holder Support, Auxiliary Roller for interior radius edge banding, Wooden Reusable Box with Carrying Handles
