Vacuum Press (Double Table) ROBO by Ribex

RibexSKU: 8600494

Price:
Sale price$39,507.00

Status

Available

Description

Vacuum Press (Double Table) ROBO by Ribex, Manufactured in Turkey

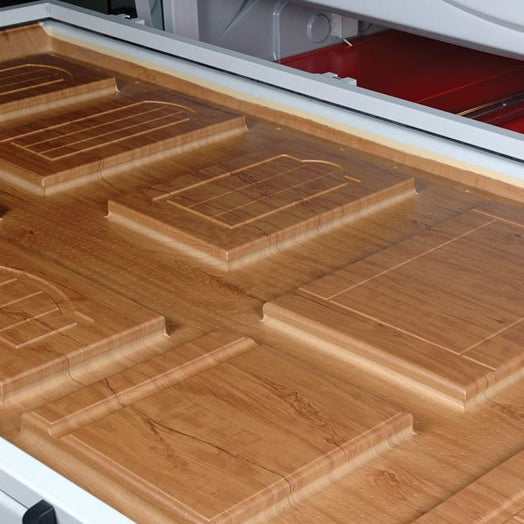

New generation RIBEX Vacuum Press Machines are used for flat or 3D lamination of pvc foils to MDF board, Chipwood, Plywood e.t.c and suitable for doors and cabinets, panels in kitchens, various furniture applications, in bathrooms and bedrooms. Process starts by heating cycle with high temperature quartz heating elements then gradually vacuum press cycle to finish foiling with negative suction pressure. Optional silicone membrane allows to also laminate veneers as well as the other laminating products onto the workpiece. Moreover this, ROBO has a unique full automatic touchscreen PLC system, cooling fans system boosting your production speed at your maximum limits.
Features:-
  • 4-5 Minutes Total Operating Time
  • Automatic Temperature Control
  • Double Table Selection
  • Low Cost Heating Elements
  • Ergonomic body design

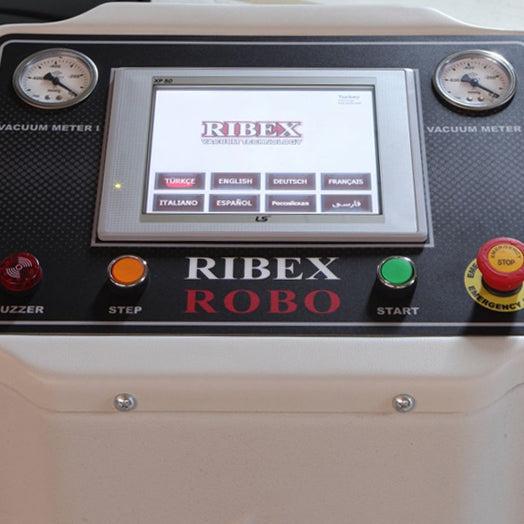

  • Full Automatic LG LS PLC System
  • CE, ISO 9001 certified products
  • Work table security sensors
  • Automatic temperature control
  • Options to Single or Dual table control
  • Short operation time
  • Independent vacuum and temperature system
  • Viewing window for viewing workpiece during operation
  • Manual setting and usage
  • Low-cost maintenance/repair
  • Low cost heater
  • Removable control table
  • Different language selection
  • Minimum wastage and saving from time
  • Thermofoil PVC stand
Specifications:-
  • Working Table Area: 2275x1230mm
  • Pump Motor Speed: 1450rpmPump Motor Speed: 1.5kw
  • Total Power: 47kw
  • Weight: 750kg
  • O/A Dimensions: 3000 x 3000 x 1400mm
Specifications:-
Table Frame Dimension : 2870 * 1440 mm
Table Usage Area : 2710 * 1230 mm
Maximum Working Thickness : 90 mm
Pump Motor Power : 2,2 Kw
Pump Motor Speed : 1450 d/dk
Pump Extraction Capacity : 105m ³ / h
Noise Limit : 68 Dba
Max Temprature : 200 ° C
Total Power : 26,5 Kw
Total Operation Time : 4 - 5 Min.
Average Weight Single Table : 1350 Kg
Average Weight Double Table : 1750 Kg
Dimensions Single Table (WxLxH) : 3400*3600*1850 mm
Dimensions Double Table (WxLxH) : 3400*5300*1850 mm
Options:-
  • Robo Magnetic System for support the workpiece on worktable
  • Divisible Table to use material economize.
  • Second table preparation for single table machines
  • Extra Thermofoil PVC stand
  • Silicone membrane unit
  • PLC controlling system

Additional Information

Model
Type
Vacuum Press
SKU
8600494
Part Number
RIBEX ROBO
Brand
Ribex
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz 3 Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP 2200W
Table Size
2710 x 1230mm
Dimensions
Product Length
3400 mm
Product Width
5300 mm
Product Height
1850 mm
Product Weight (Net Weight)
1750 kg
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected by Licensed Electrician)
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
