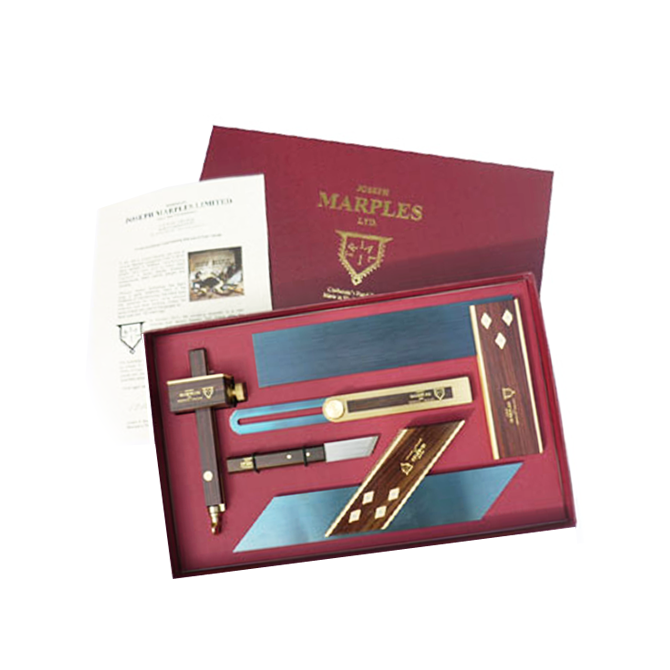

Trial 1 Range 9" 225mm Rosewood / Walnut Try Square T09 by Joseph Marples
Options:-
- Double Brass Faced Try square
- Double Faced Mitre square
- Full Brass Faced mortise gauge

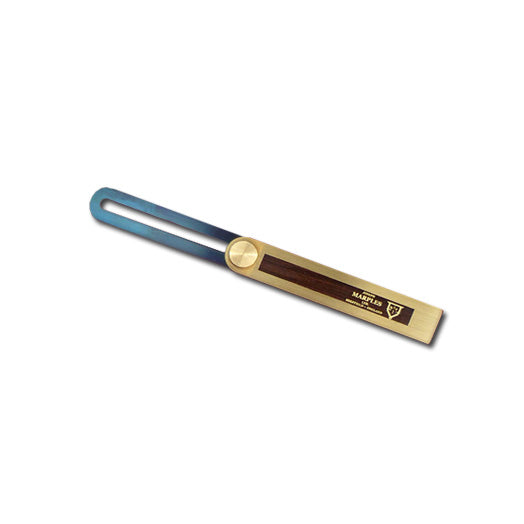

- Brass Faced Sliding Bevel
- Marking knives
The squares have 1/8th " thick machined brass on both the inside and outside faces, thus ensuring accuracy on the inside and outside edges. They have a chemically blacked spring steel blade, secured to the stock with brass diamond washers and steel rivets. The accuracy of the try squares is well within that required by BS3322.
The Screwslide mortise and Marking gauge has a full 1/8th inch thick brass face. The stock is locked on to the stem by brass knurled thumbscrew and protective pressure pad. The locking screw is set within a traditional brass protective shield. A screw slide gives fine and precise adjustment of the mortise pins and on the back of the stem is a single marking gauge pin.
