Status
Available
Description

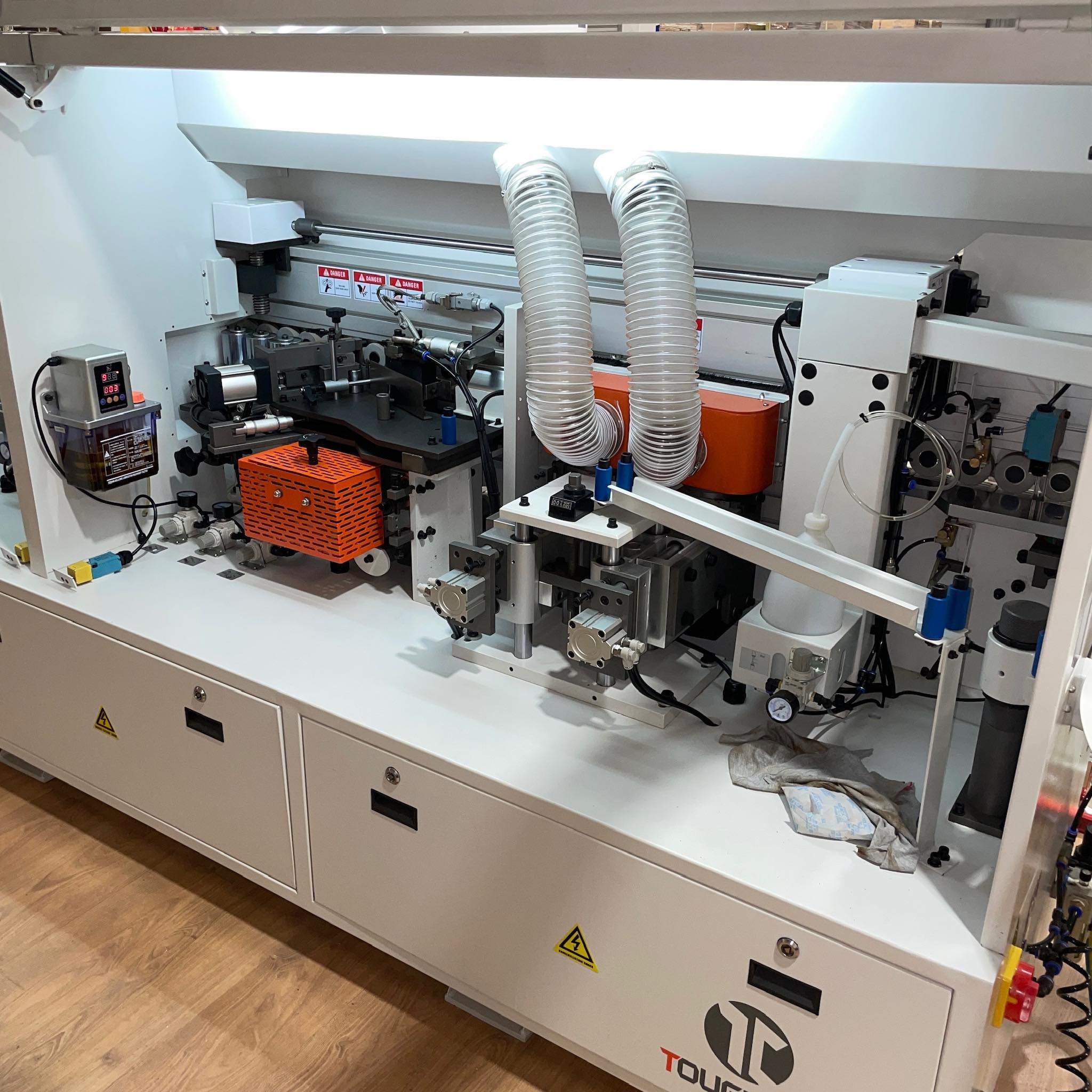

Toughcut Rutile is the ideal edgebander for companies that require flexibility and economic space. It offers consistent performance, superior reliability and is easy to use and uncomplicated. The solid machine chassis and heavy-duty units ensure the highest level of precision. An absolute highlight is the accuracy of the position setting of the individual units. It delivers the highest quality finished product.
Features
- Workpiece Infeed Stop

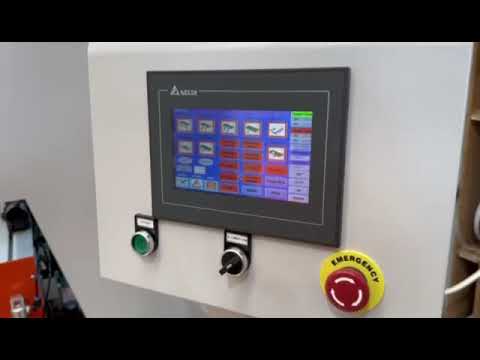

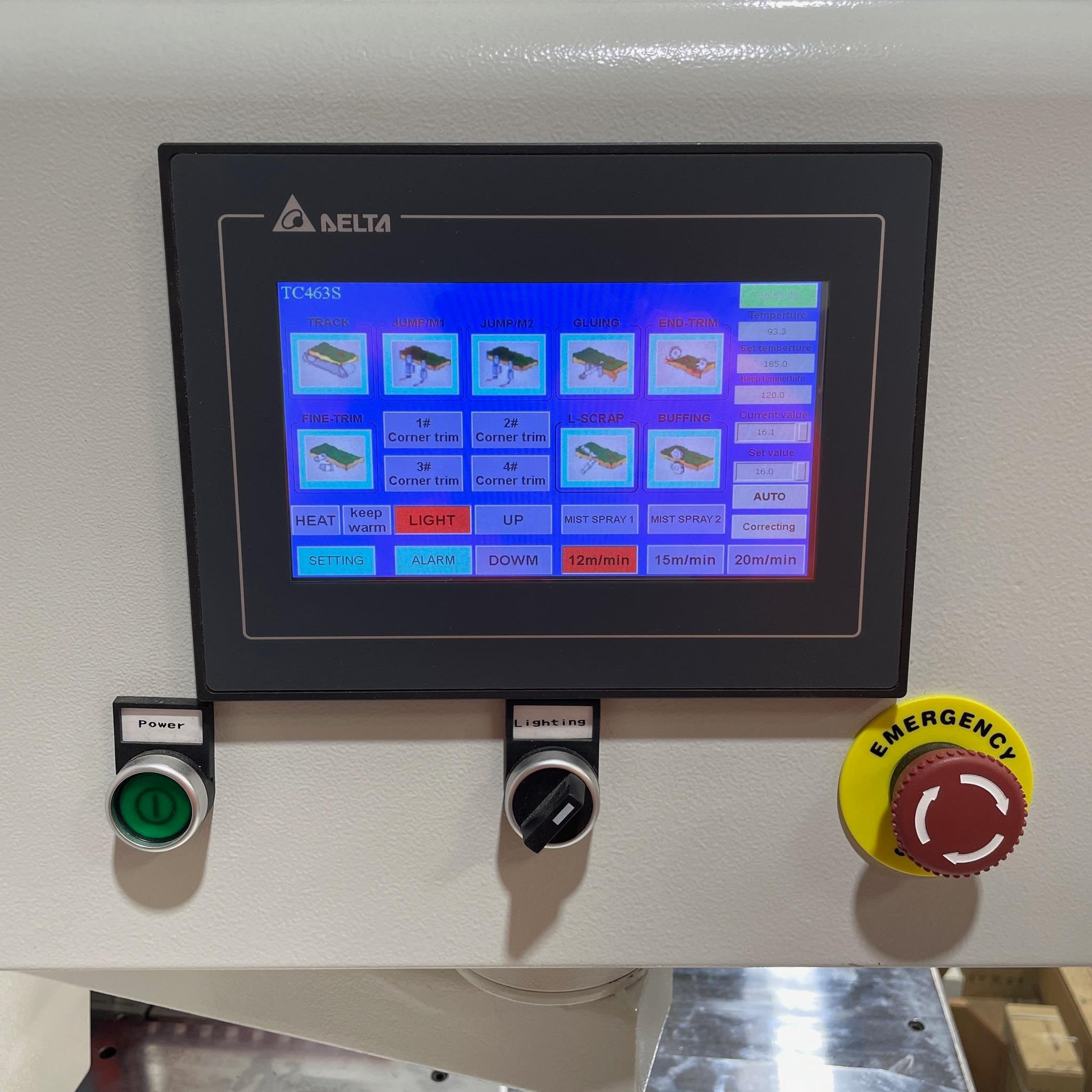

- Touch Screen Control

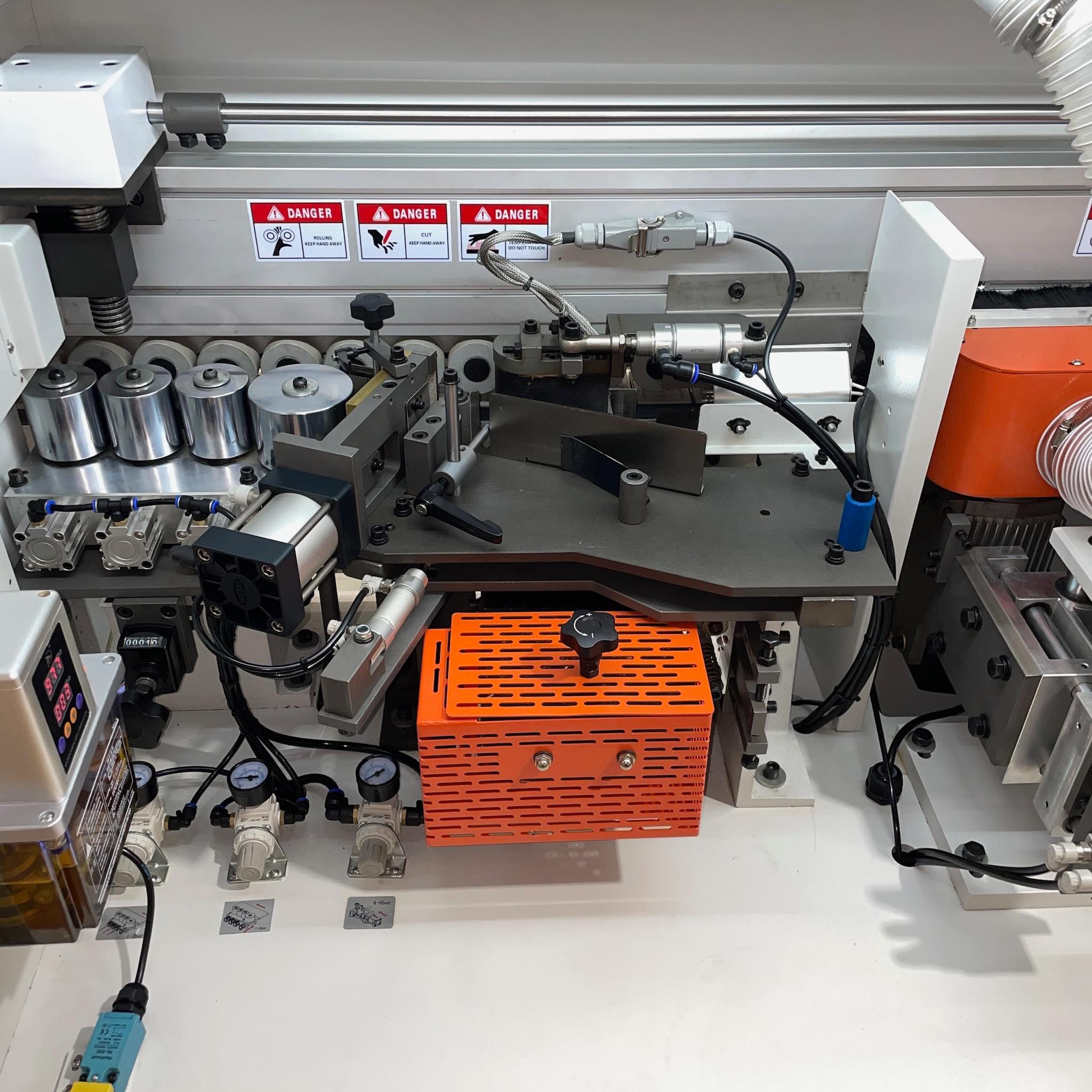

- Glue Application Unit
- Panel Feed System
- Safety Infeed Guard
- Manual Height Adjustment
- Glue Hopper - New 2025 Feature
Details
- Single Sided Feed
- Left to Right Hand Feed (Right to Left Hand Feed available via Special Order - Enquire Within)
Options
- Return Table - Sold Separately
Additional Information
Model
Type
Edgebander
SKU
904780
Part Number
RUTILE 500H 415V
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Air Delivery
6Bar
Edging Thickness
0.3-3mm
Feed Speed
12 / 15 / 18m/Min.
Material (Stock) - Minimum Length
150mm
Material (Stock) - Minimum Width
80mm
Material (Stock) - Maximum Thickness
10-60mm
Dimensions
Product Length
6662mm
Product Width
2161mm
Product Weight (Net Weight)
2185kg
Workshop (Site) Info
Air Delivery
6Bar
Dust Hose Inlet Diameter
150
Spare Parts / Consumables
Spare Parts / Consumables
- 20kg EVA Hot Melt Adhesive Pellets Unfilled in Translucent UNIBORD 625 by Unicol
- 4kg EVA Hot Melt Adhesive Pellets in Natural UNIBORD 636 by Unicol
- 5kg EVA Hot Melt Adhesive Pellets Unfilled in Translucent UNIBORD 625 by Unicol
- EVA Hot Melt Adhesive Pellets Lightly Filled UNIBORD 607M by Unicol
- EVA Hot Melt Adhesive Pellets UNIBORD 694 by Unicol
Packaging + Shipping
Shipping Length
6200mm
Shipping Width
900mm
Shipping Height
1550mm
Shipping Weight (Gross)
2685.48kg
