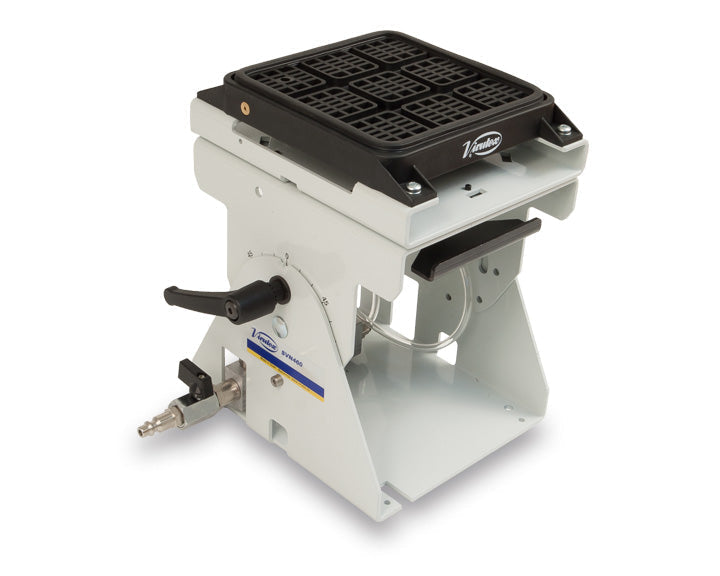

Virutex Pneumatic Tilting Rotating Fastening Clamp System SVN460

VirutexSKU: 8600480

Price:
Sale price$759.00
Stock:
In stock (11 units), ready to be shipped

Status

Available

Description

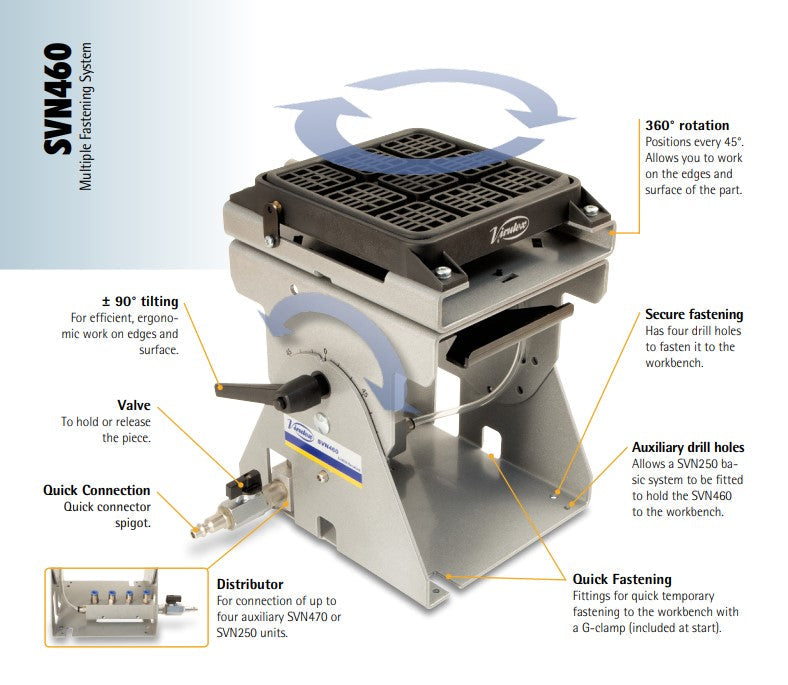

The SVN460 multiple fastening system consists of an SVN250 basic system fitted on a tilting and swivelling support. The SVN460 allows you to machine the edges and surface of the part without changing the grip. It includes an air distributor with four free sockets, which allows the connection of SVN250 or SVN470 auxiliary units, equipped with stopcock valve and quick connector to the pneumatic system. Also included in the equipment is a G-clamp for quick clamping of the SVN460 system to the workbench and a set of three rubber seals of different perimeters.

Specification

  • Holding Force (SVN450 / SVN470): 800g/cm2 at 6 Bar
  • Working Pressure (SVN450 / SVN470): 5.5-7 Bar
  • Air Consumption at 5.5 Bar (SVN450 / SVN470): 28l/Min.
  • Dimensions Suction Plate (All Models): 150 x 150mm

Additional Information

Model
Type
Pneumatic Clamping System
SKU
8600480
Part Number
SVN460
Barcode
8421752086340
Brand
Virutex
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Air / Pneumatic
Country of Origin
Manufactured in
Spain
Packaging + Shipping
Shipping Weight (Gross)
1.48kg
