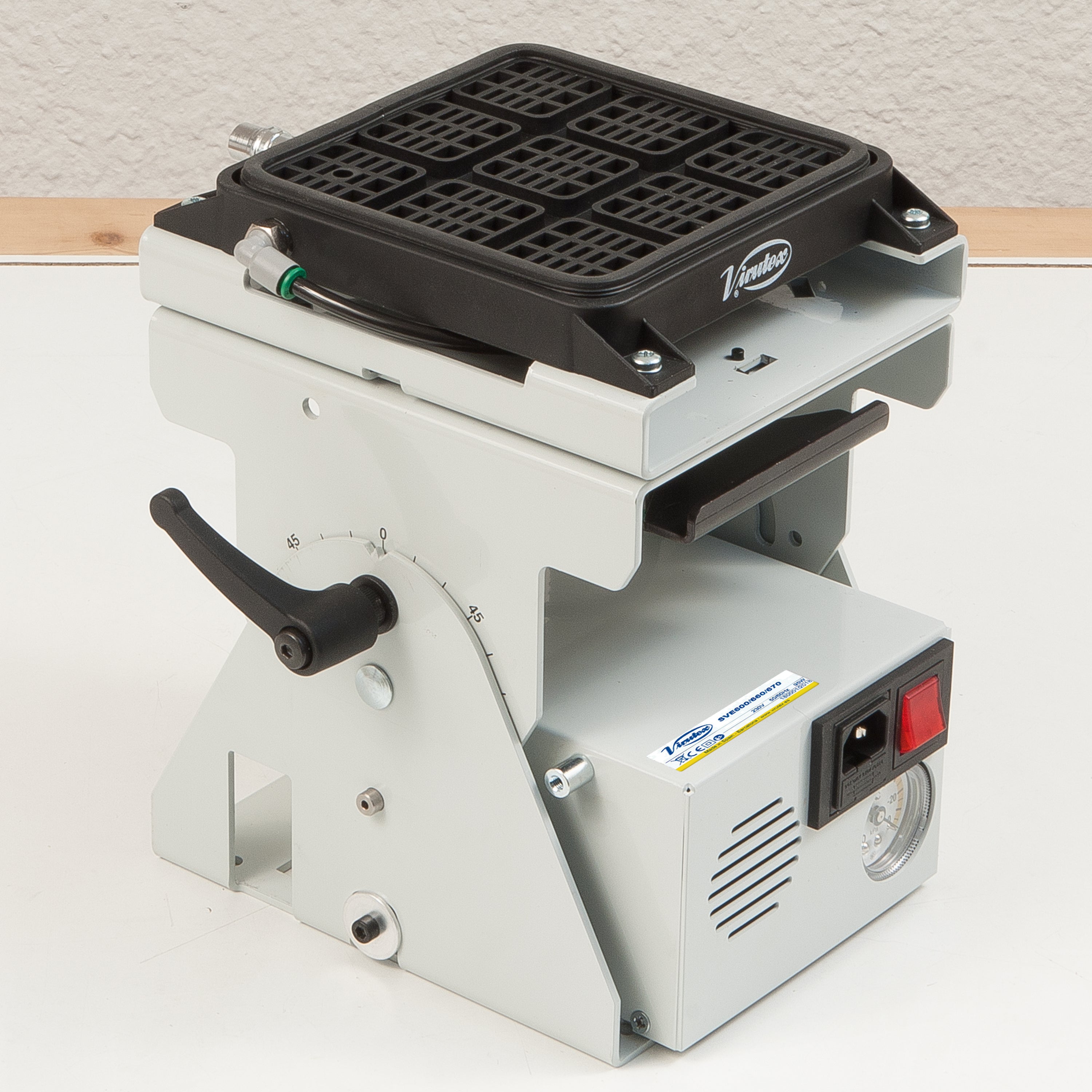

Tilting Fastening System SVE660 by Virutex

VirutexSKU: 8723589

Sale price$999.00




Designed for connection to the SVE600 vacuum electric fastening system included in the original.

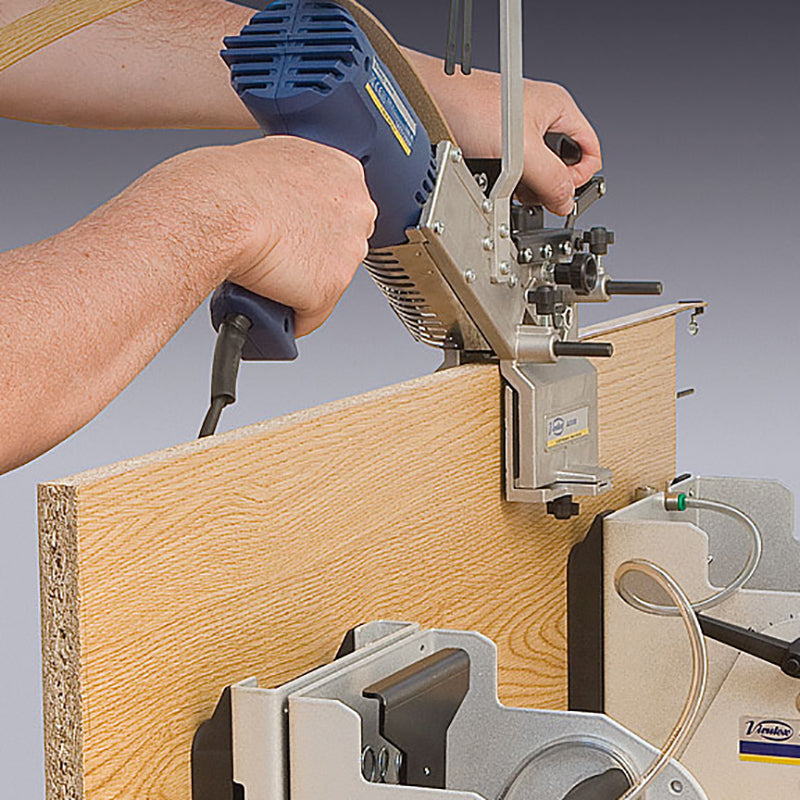

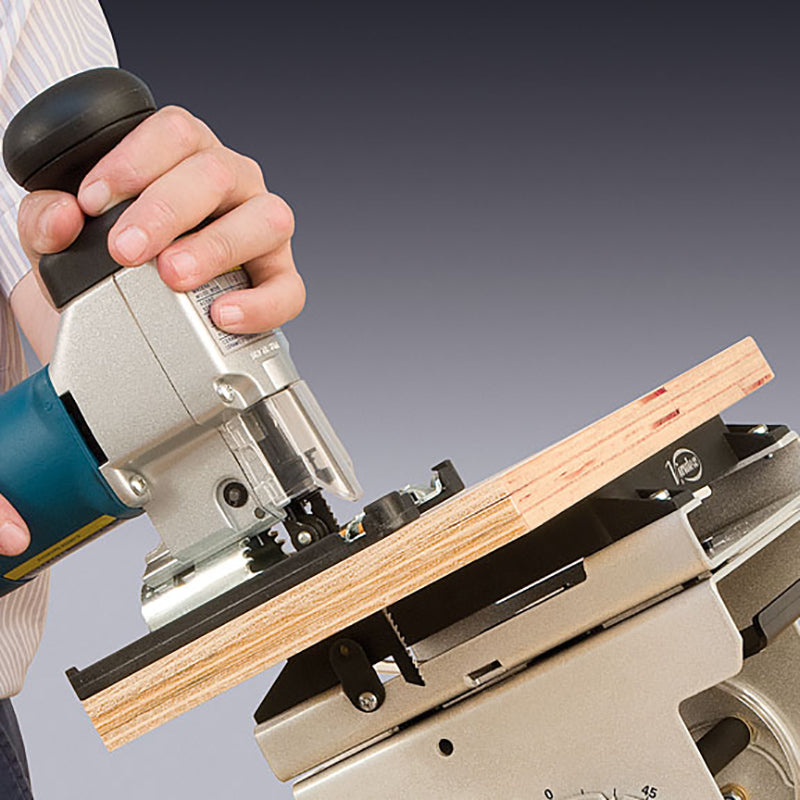

The multiple fastening systems SVN460 and SVE660 are formed by a basic system SVN250 (SVN450) or SVE350 (SVE660), mounted on a tilting and rotating support. They allow the machining of edges and face of the piece without changing clamping.
The SVN460 model incorporates an air distributor with four free outputs for the connection of auxiliary units SVN470 or SVN250, equipped with stopcock and quick connector to the pneumatic network.

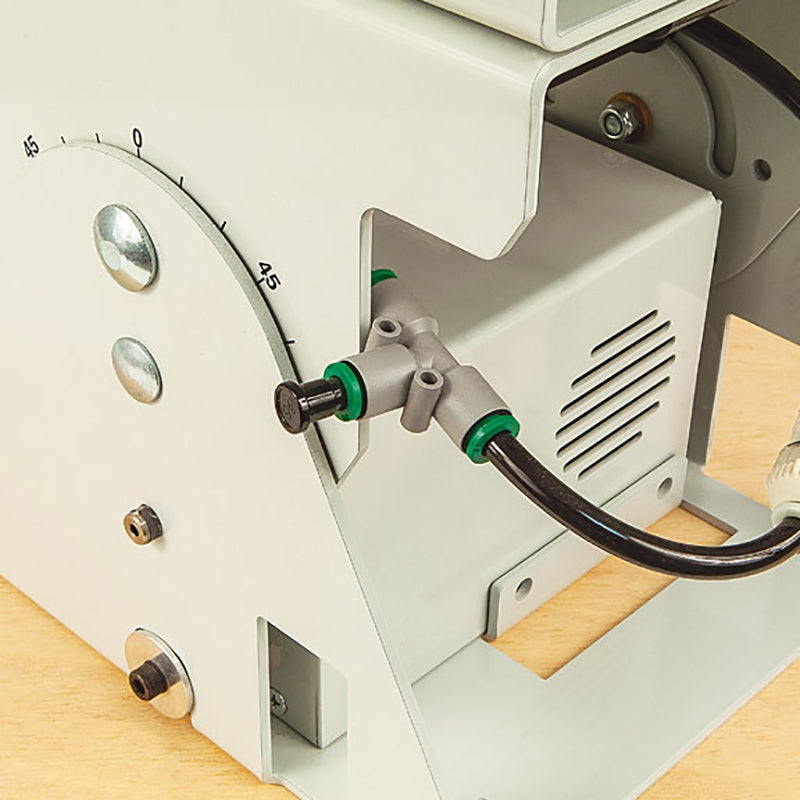

The SVE660 model has a free socket for the connection of auxiliary units such as SVE680 and SVE350. Both models include a tightening clamp for fastening to the workbench and a set of three rubber gaskets of different perimeter.

Additional Information
