Type
Circle Jig Template
SKU
55407
Part Number
PE60/6045673
Barcode
8421752036062
Brand
Virutex
Status
Available
Description

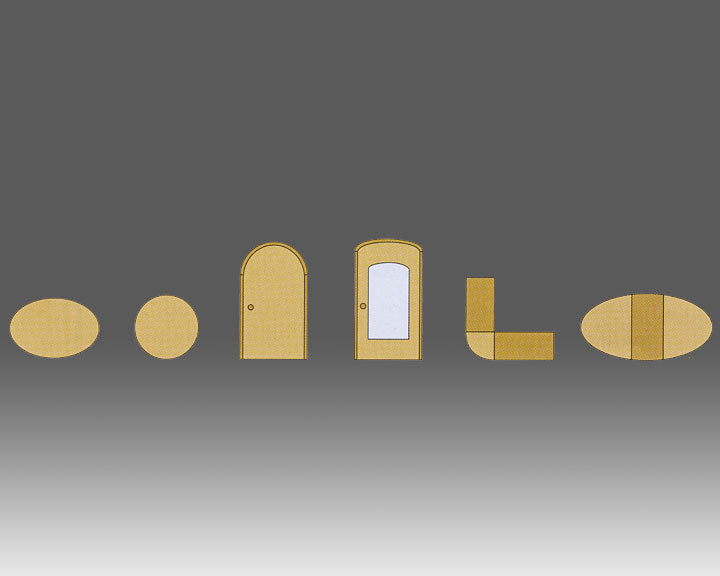

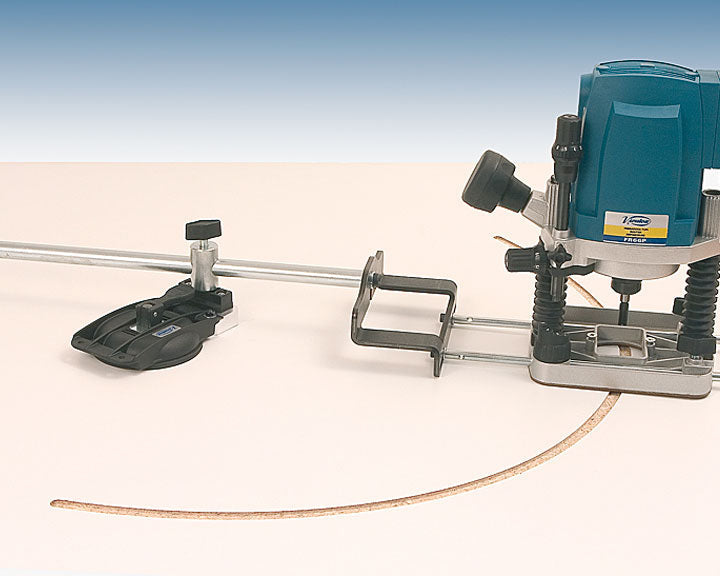

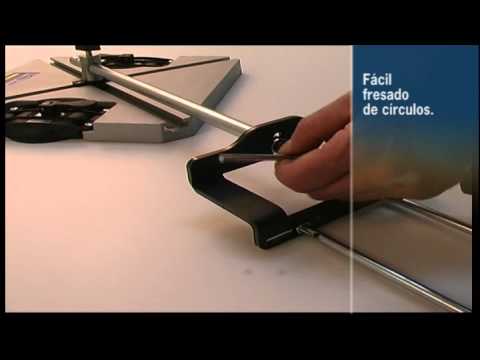

Multi radius template for trimming circular or elliptical forms. Ideal for manufacturing mirrors, windows, doors or any other decorative items by means of an elliptical or circular trimming. The use of the two guide supports (standard equipment) allows the elliptical trimming and the use of only one support allows the circular external trimming or moulding. The PE60 is also equipped with two suction pads for fixing it to the panel to be trimmed. Thanks to them it is possible to trim in an easy way without to perforate the surface. If it is not possible to use the suction pads there are several holes to fix the template by means of screws. Includes two rod guides Ø 8 mm for using with all the Virutex routers.
Features
- Ø Guides for using with routers: 8mm
- Maximum Circle / Ellipse Radius = 3200mm (3.2m)
- Minimum Circle / Ellipse Radius = 600mm
Options
- 6045714 Special coupling rods for FR292R
- 6045708 Set of coupling rods Ø 10mm
- 6045709 Set of coupling rods Ø 12mm
- 6045710 Set of two clamp screws
Additional Information
Model
Features
Standard Inclusions
Template for trimming ellipses and circles, two suction pads, extendable guide and coupling system plus rods Ø 8 mm for Virutex routers.
Packaging + Shipping
Shipping Weight (Gross)
10.48 kg
