Status
Available
Description

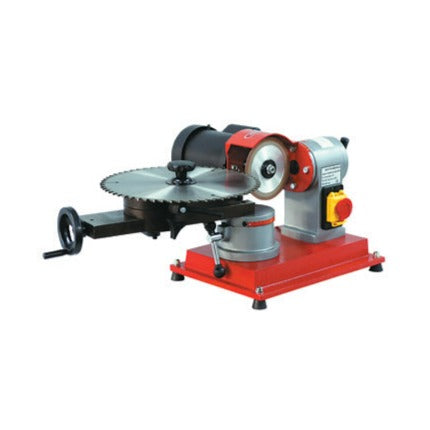

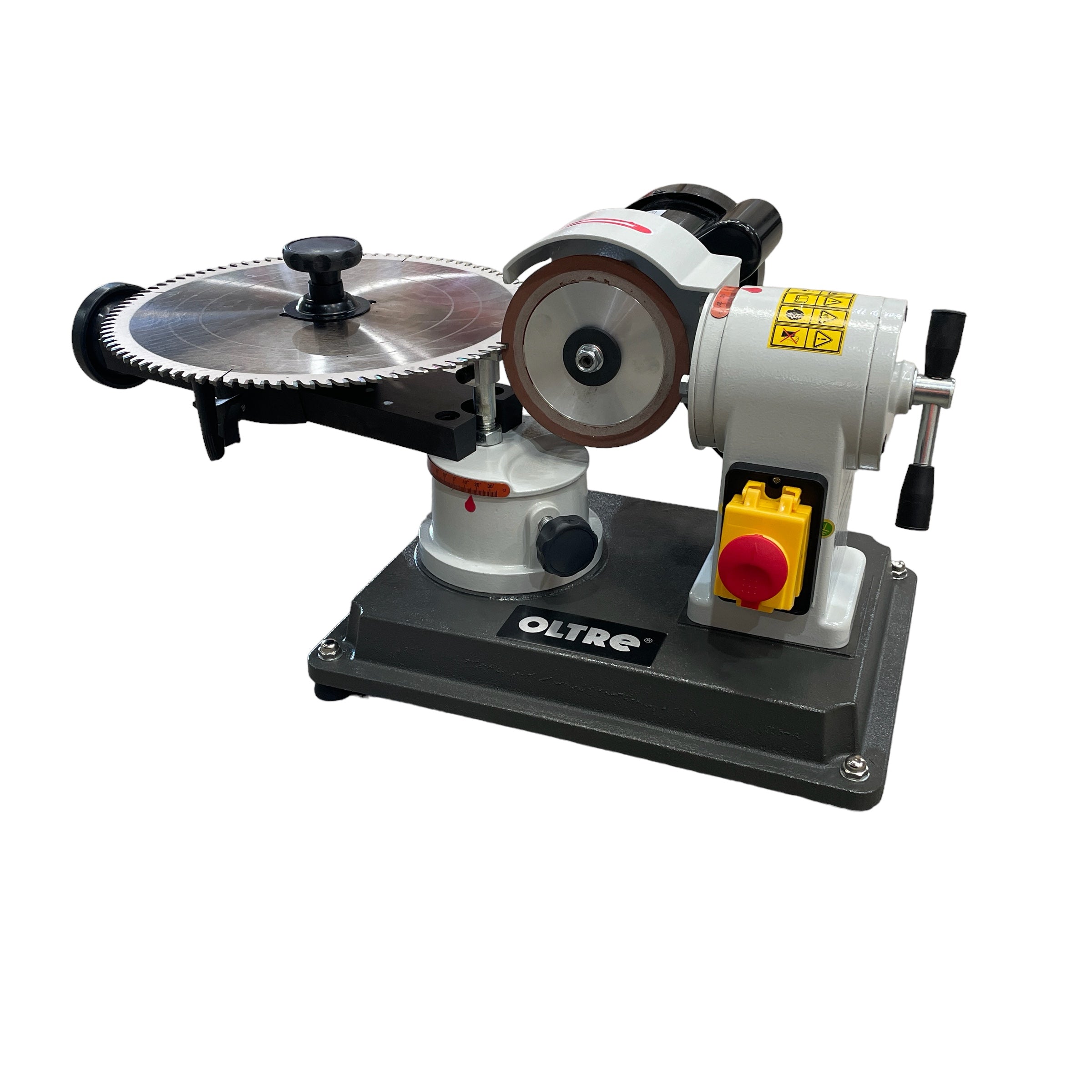

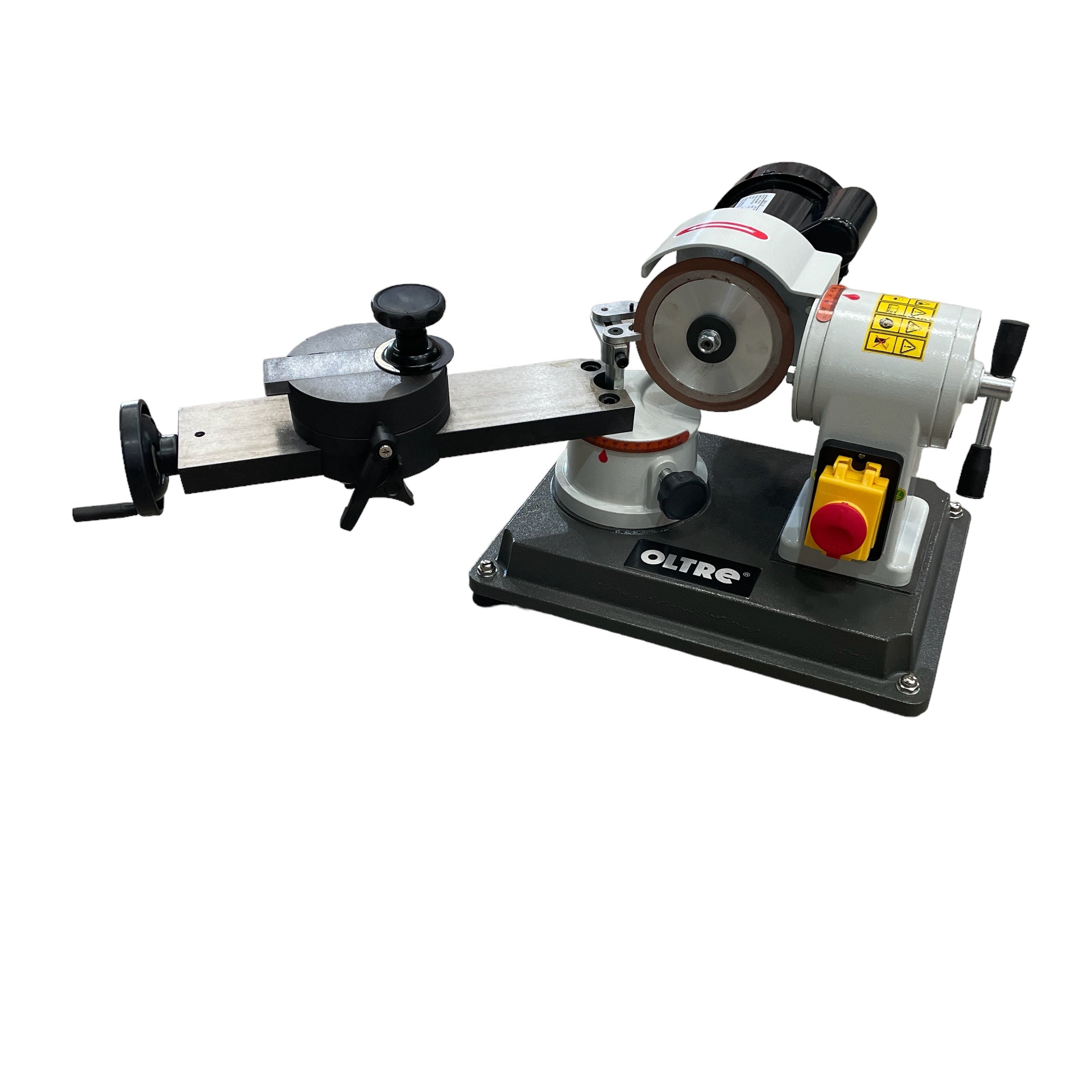

Benchtop style Saw Blade Sharpening Machine JMY8-70 by Oltre.
Features
- Grinding capacity for the blade diameter: 80 to 700mm
- Grinding / Tilting Capacity: Left and right 20 degrees

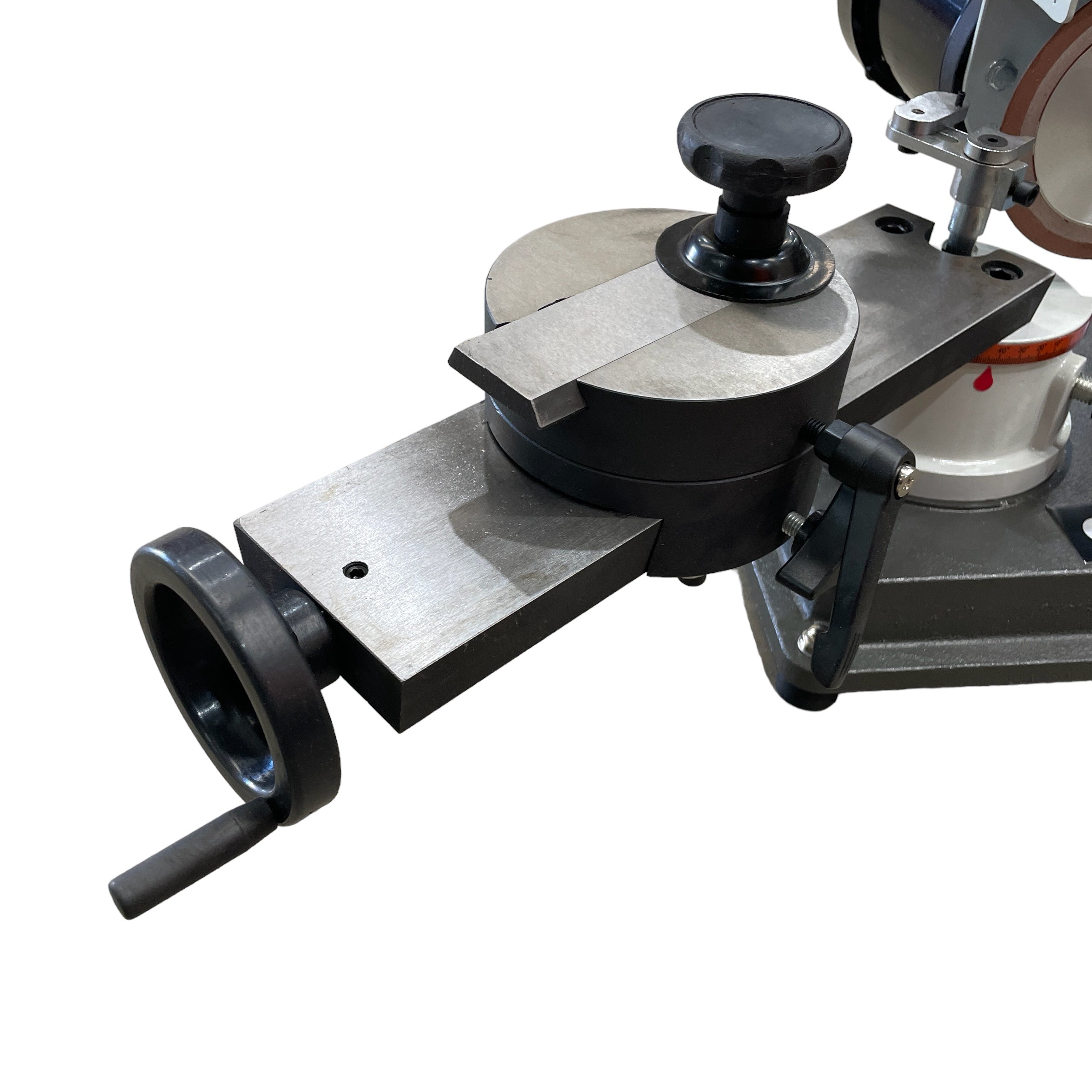

- Working table Rotary assembling angle:-
- Left 30 degrees
- Right 45 degrees

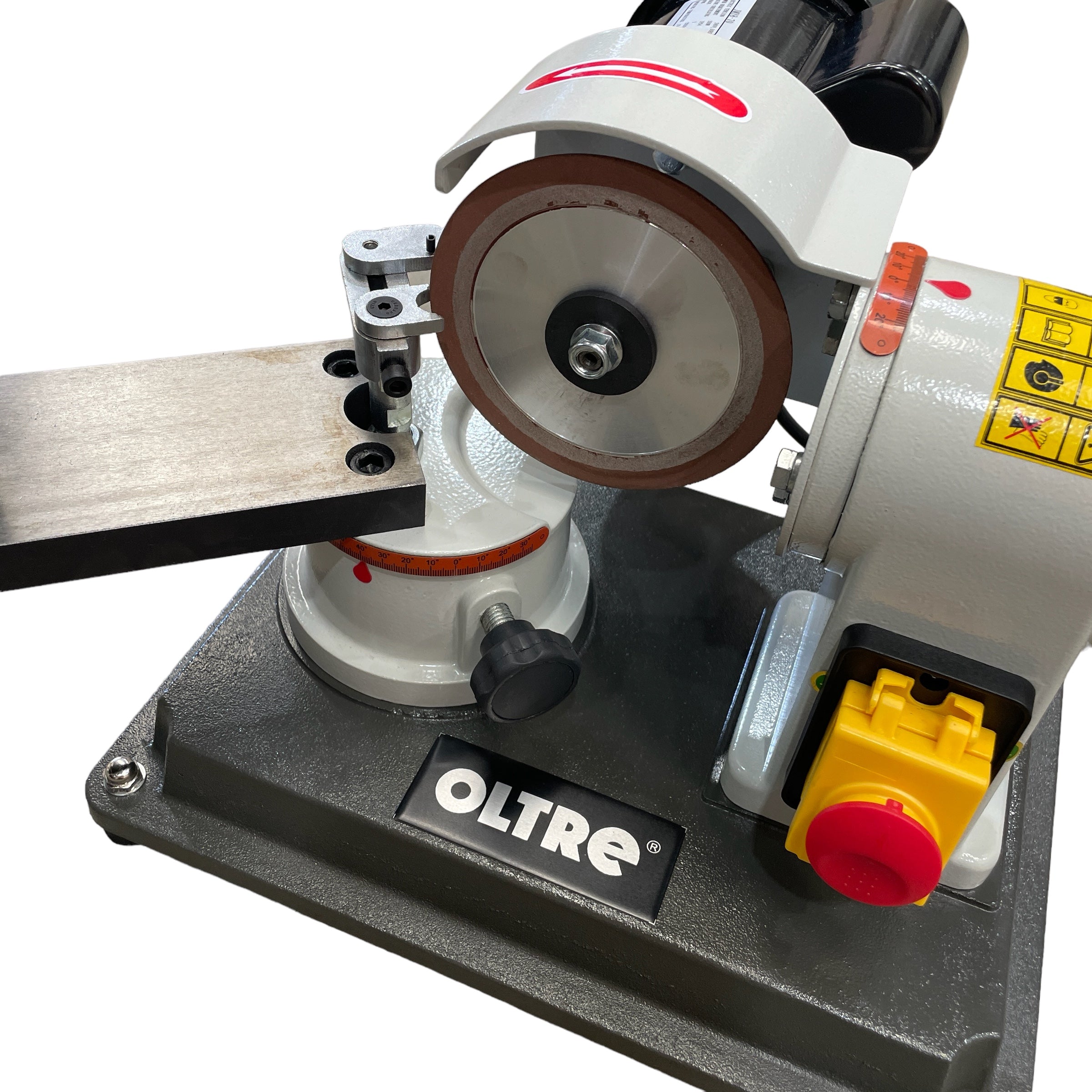

- Diameter of Diamond blade: 125mm

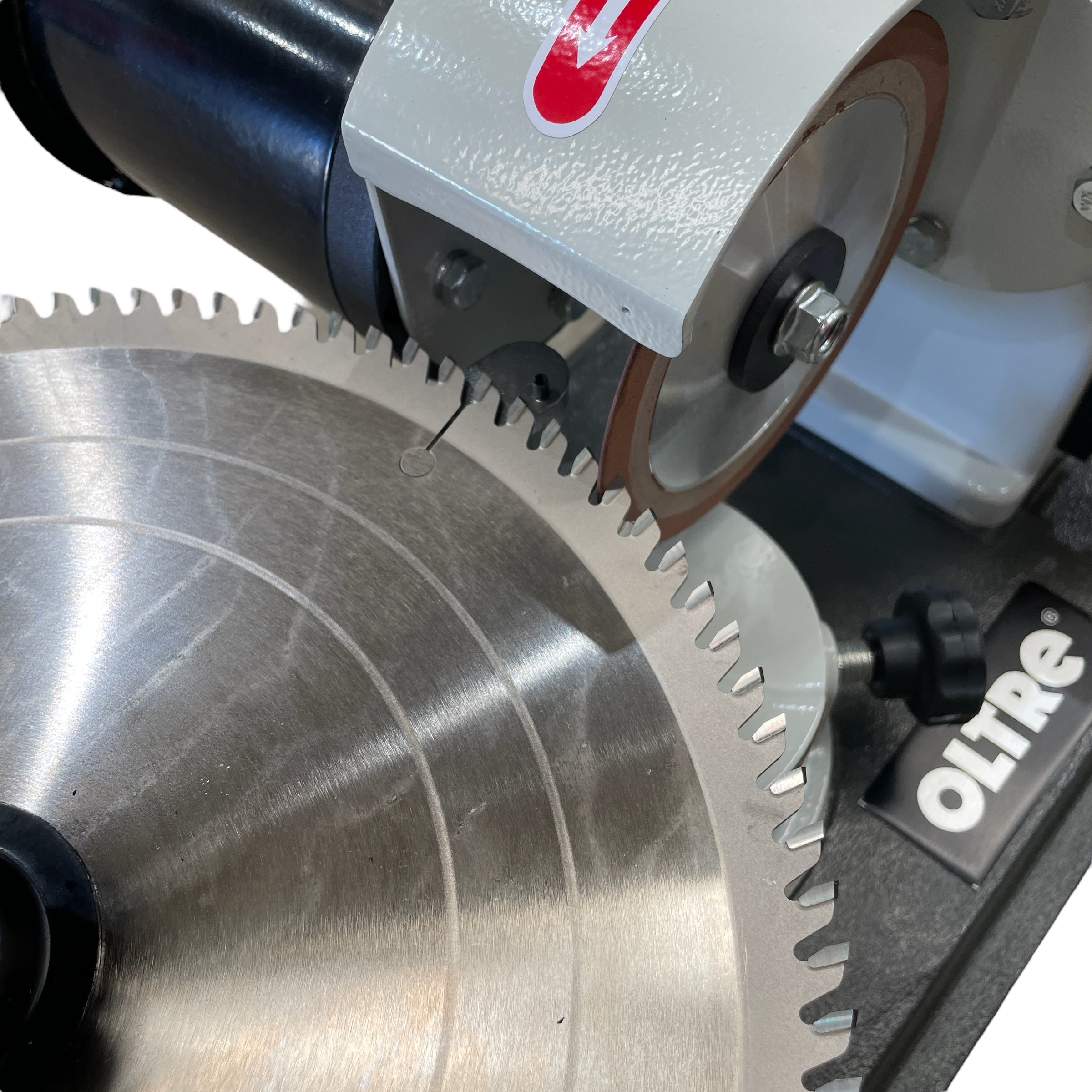

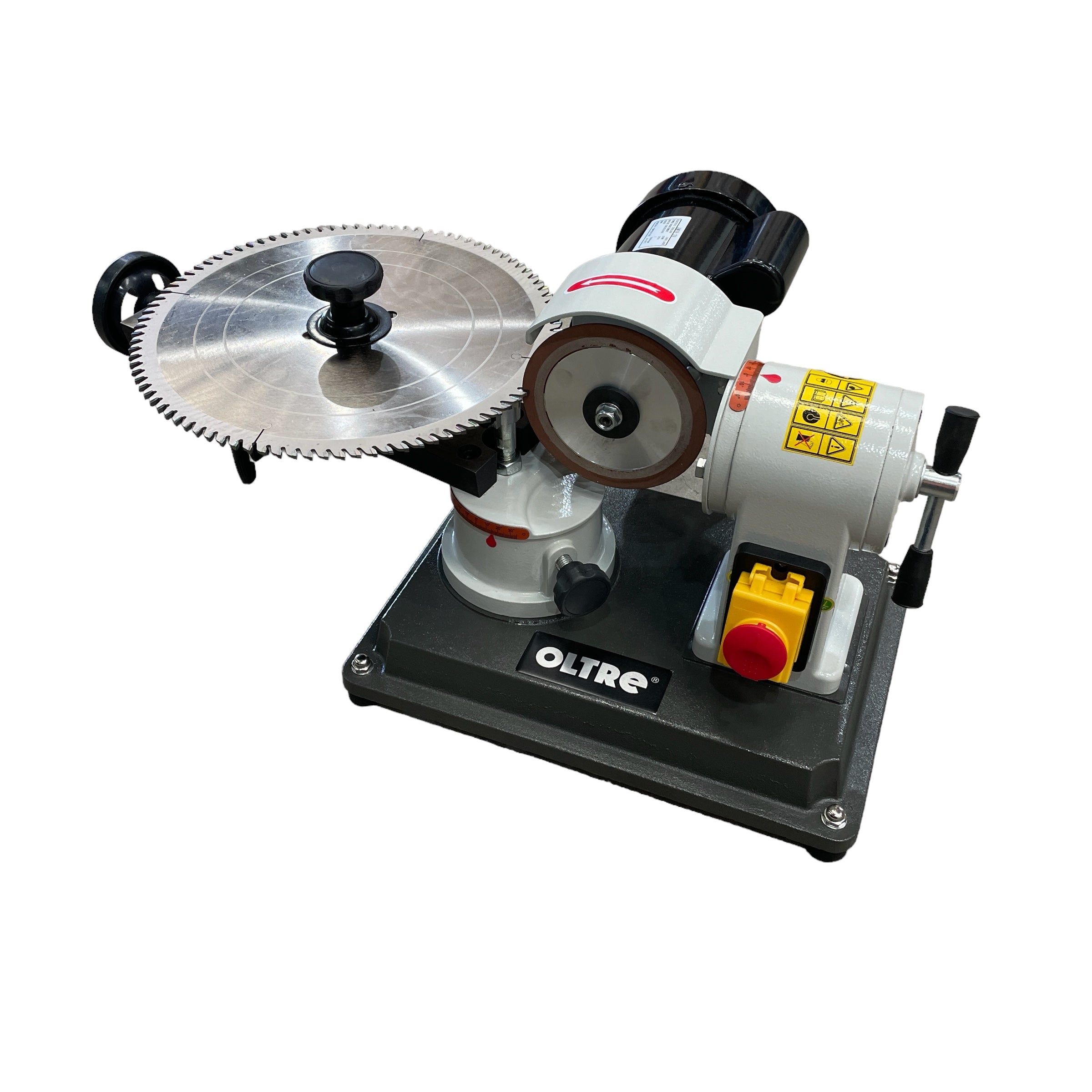

Saw Blade pictured is not included and only shown for reference purposes.
Additional Information
Model
Type
Saw Blade Sharpening Machine
SKU
8600313
Part Number
JMY8-70
Barcode
735745532348
Brand
Oltre
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase

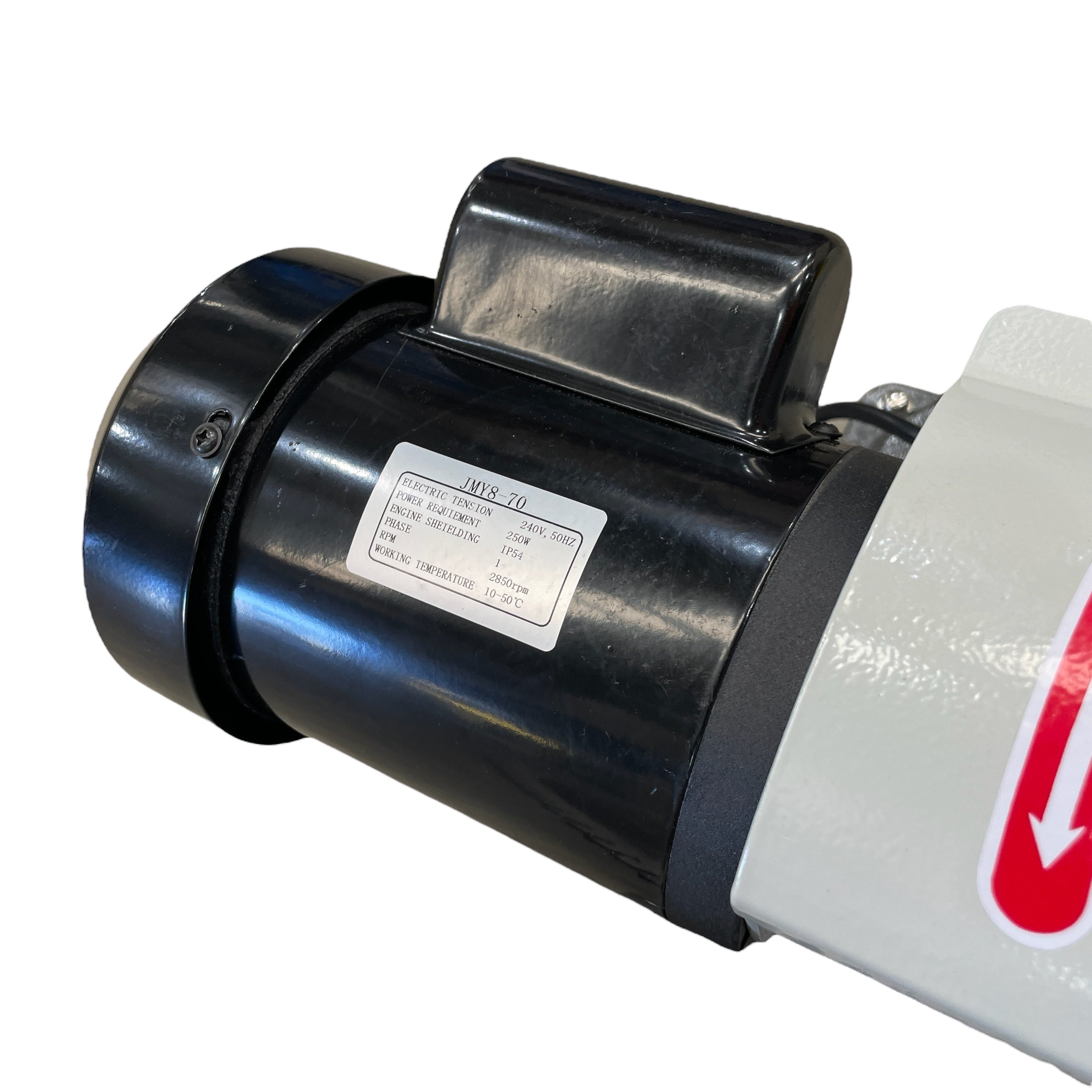

Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
0.33HP (250W)
Speed Range
2850RPM
Dimensions
Product Length
770mm
Product Width
430mm
Product Height
300mm
Features
Standard Inclusions

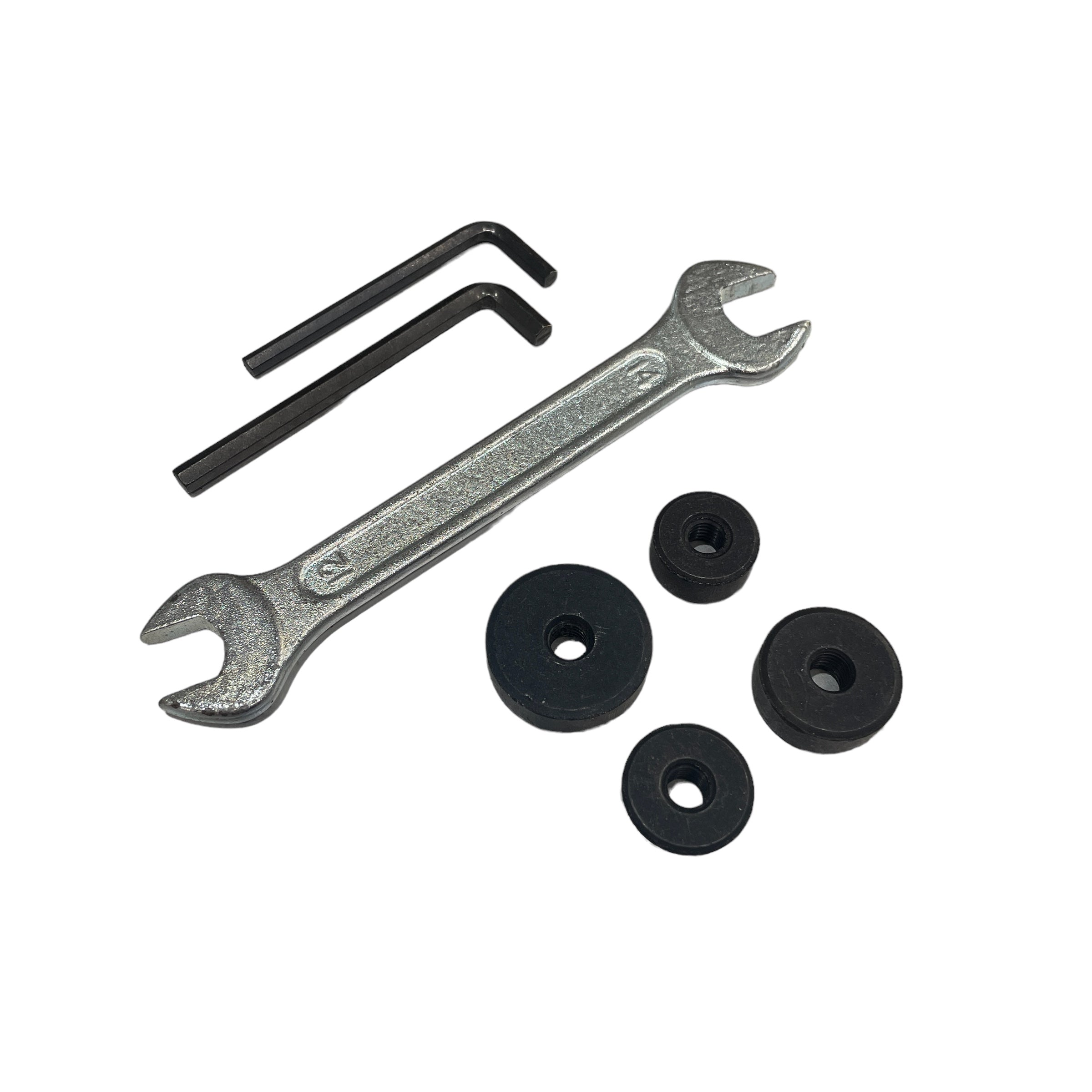

125mm Diamond Sharpening BladeBushes: 30mm, 25mm, 22.5mm, 20mm
Workshop (Site) Info
Electrical Connection

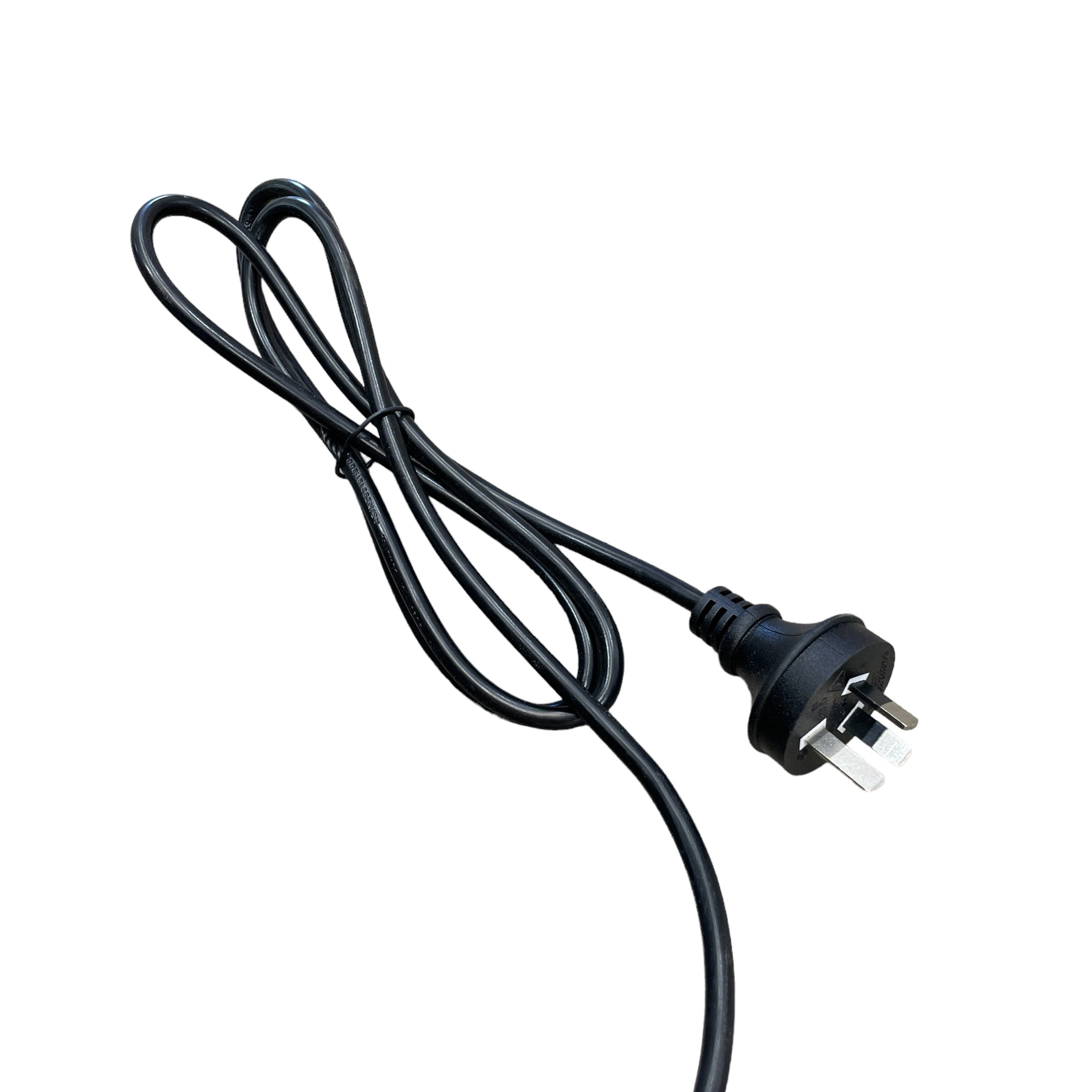

10Amp Plug & Lead
Packaging + Shipping
Shipping Length
430mm
Shipping Width
430mm
Shipping Height
350mm
Shipping Weight (Gross)
36.48kg
