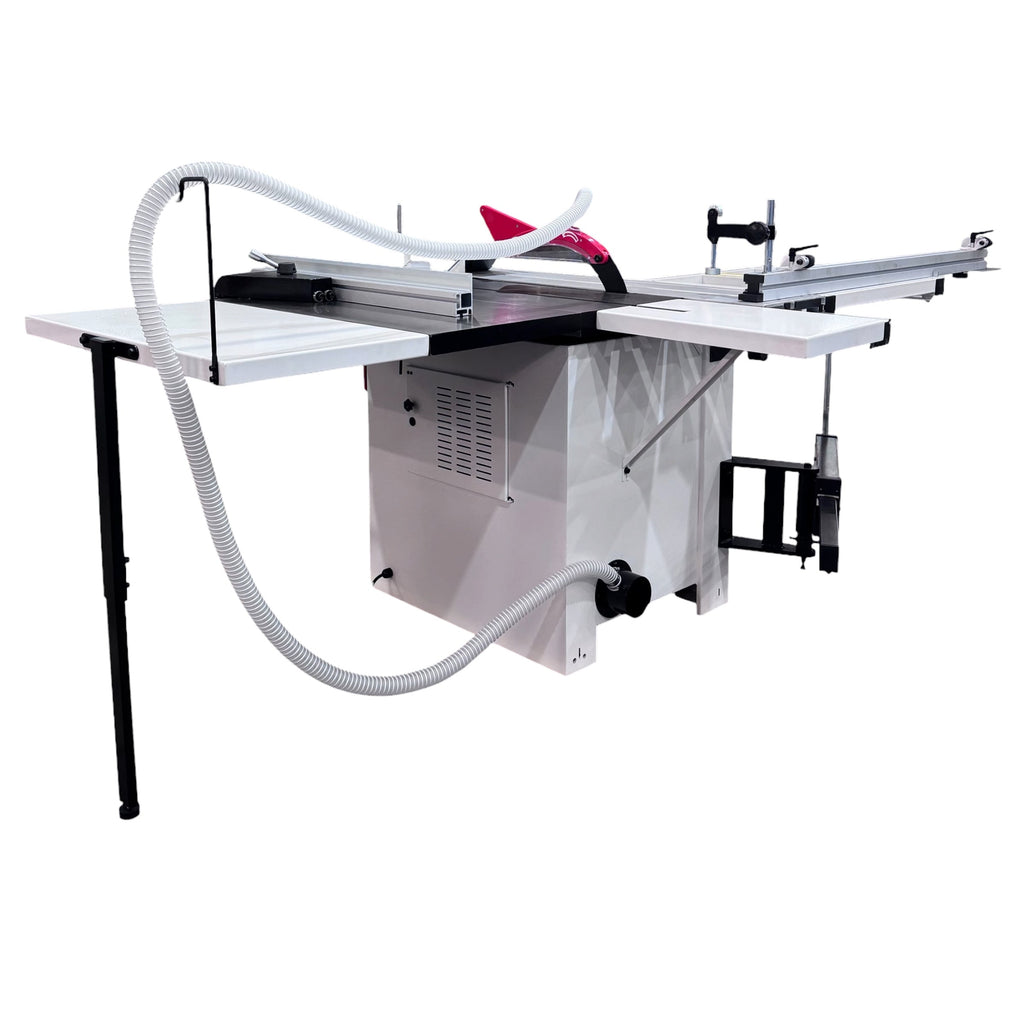

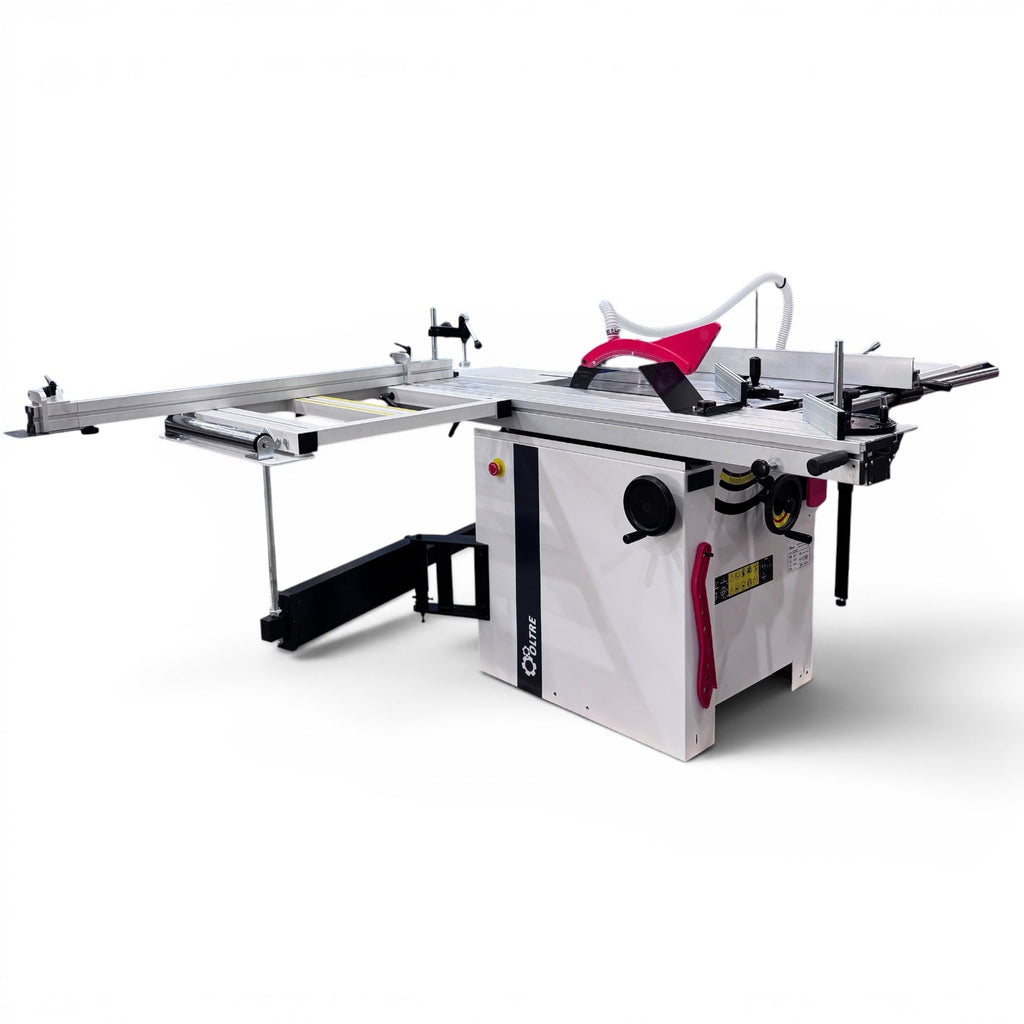

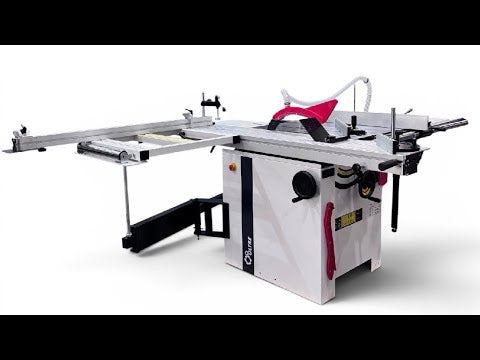

Oltre OT-PS-1216A Panel Saw – Reliable and Practical Panel Cutting Solution
The Oltre OT-PS-1216A Panel Saw is a dependable and cost-effective solution for workshops needing straightforward panel cutting capability. Designed for small operations, this machine provides consistent performance for everyday cutting tasks without the complexity or cost of high-end industrial systems.
Suitable for materials such as MDF, plywood, and particleboard, the OT-PS-1216A offers clean and accurate cuts when properly set up and maintained. Its solid construction and simple operating system make it a practical choice for businesses or hobbiest looking for an entry-level panel saw.
The machine features an easy-to-use cutting mechanism, basic adjustment controls, and essential safety components, allowing operators to work efficiently while maintaining control over the cutting process.
Key Features:
- Reliable performance for standard panel cutting tasks
- Suitable for MDF, plywood, and similar materials
- Simple operation with straightforward adjustments
- Solid construction for home or workshop use
- Cost-effective option for smaller businesses or startups
- Ideal as an entry-level

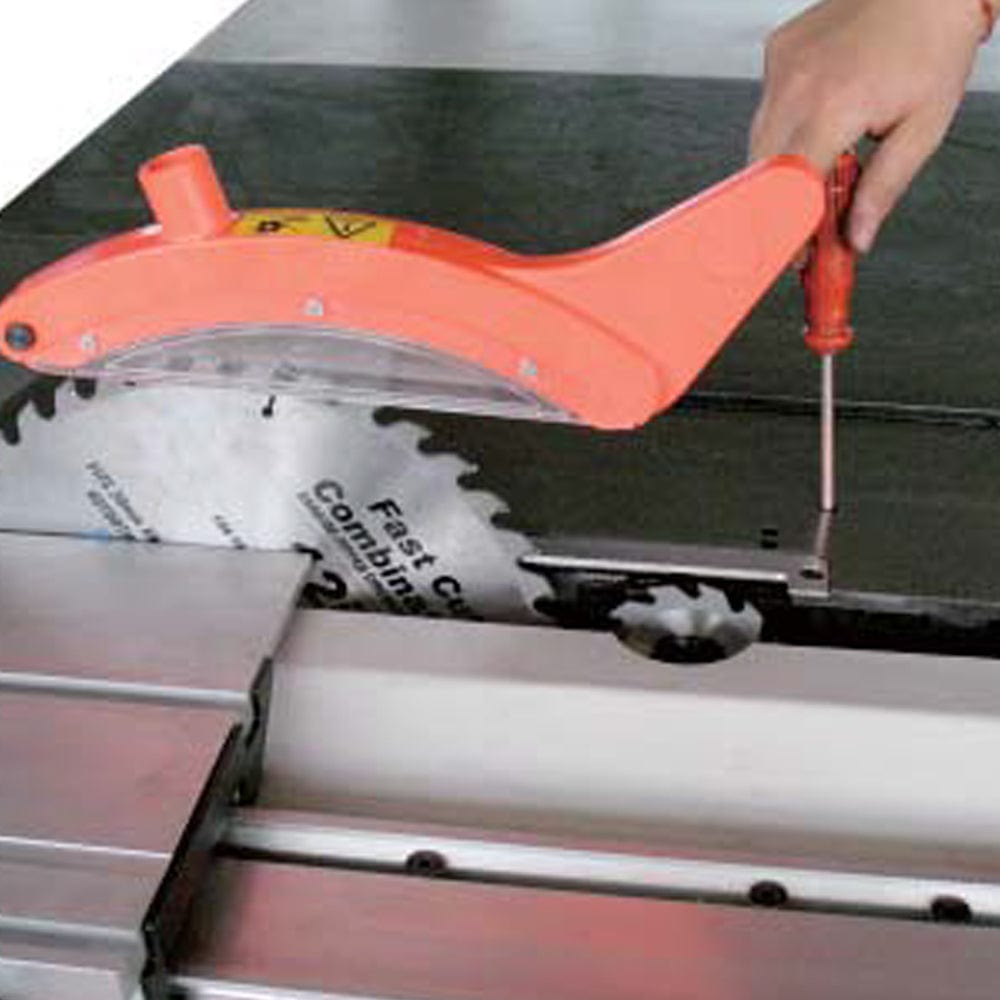

- Scoring saw blade
The Oltre OT-PS-1216A Panel Saw is a sensible choice for workshops that need a functional, no-frills machine to handle day-to-day cutting requirements.
Features

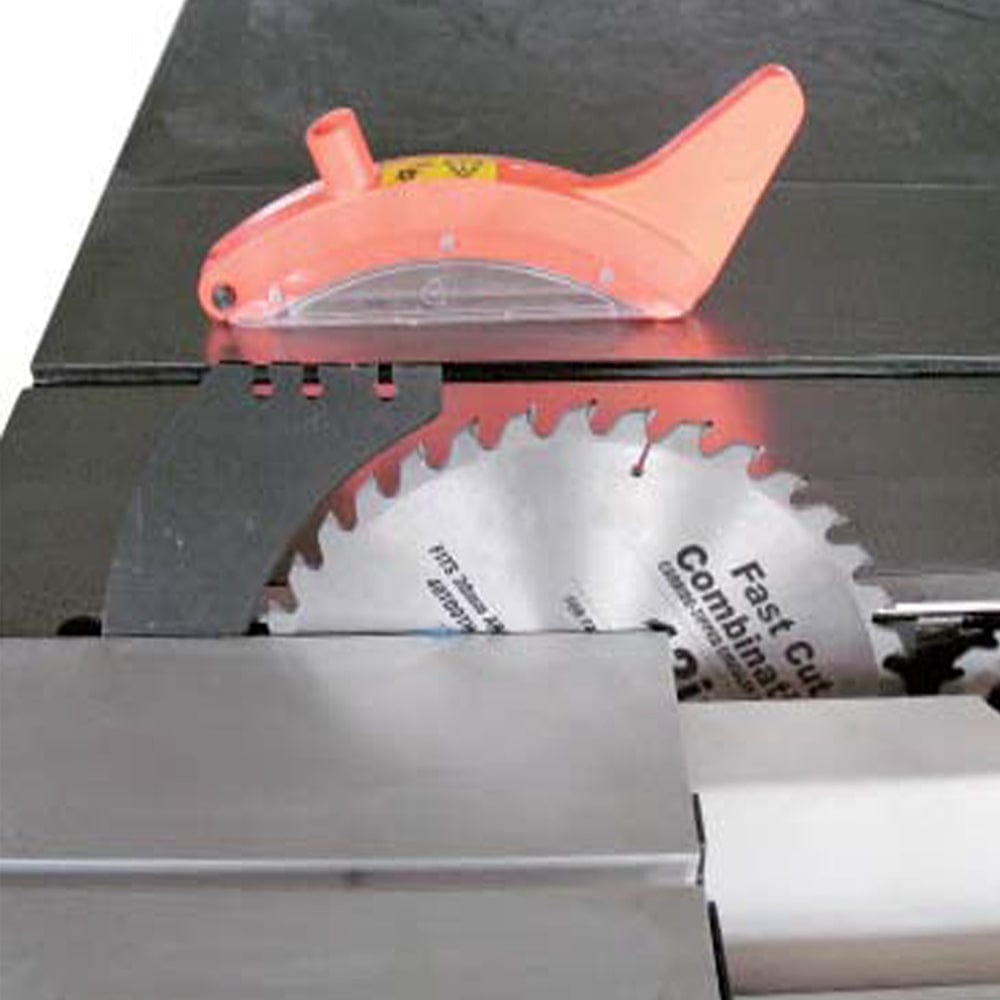

- Scoring Saw Blade for Clean and Chip Free Cuts

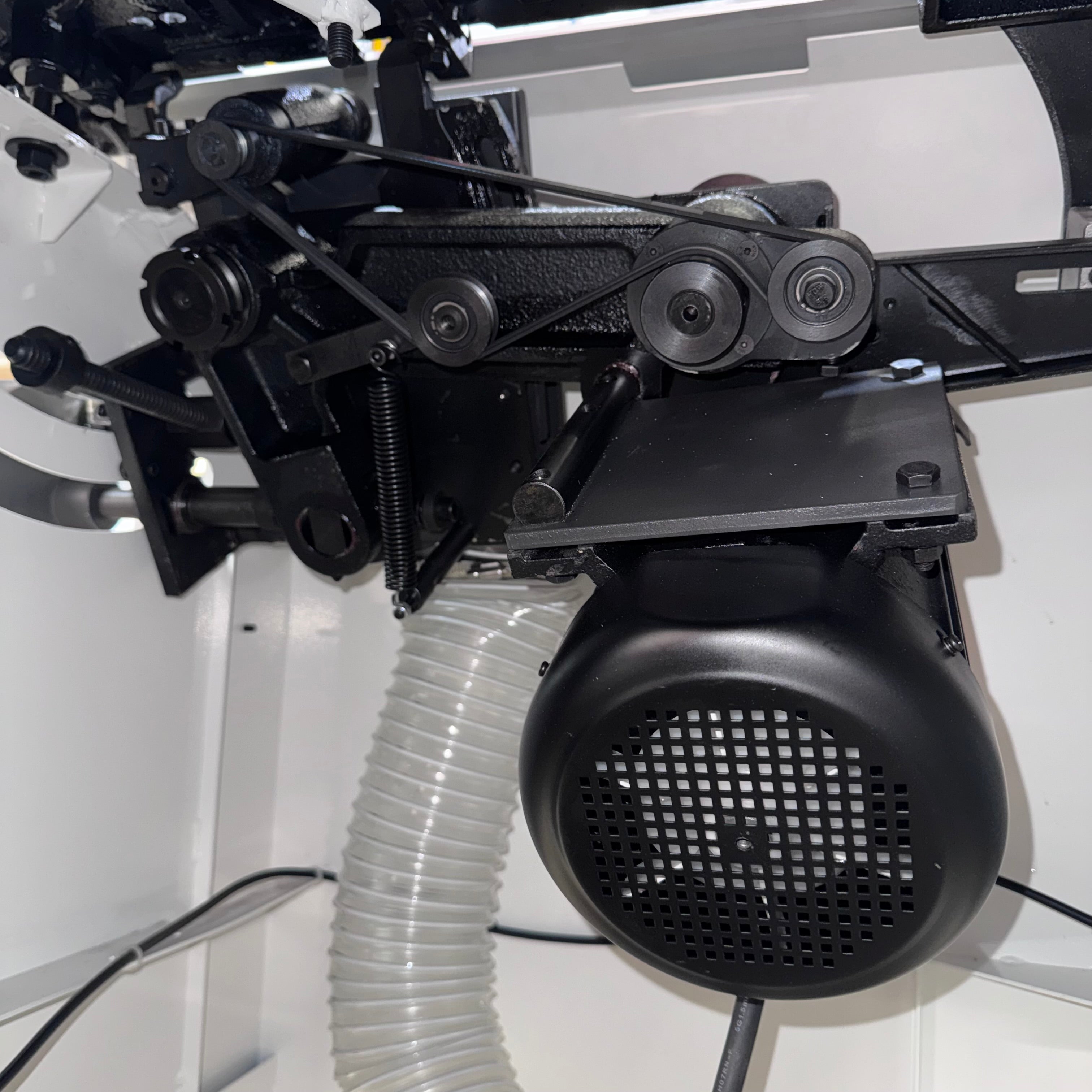

- Single motor operation - scoring saw is always on

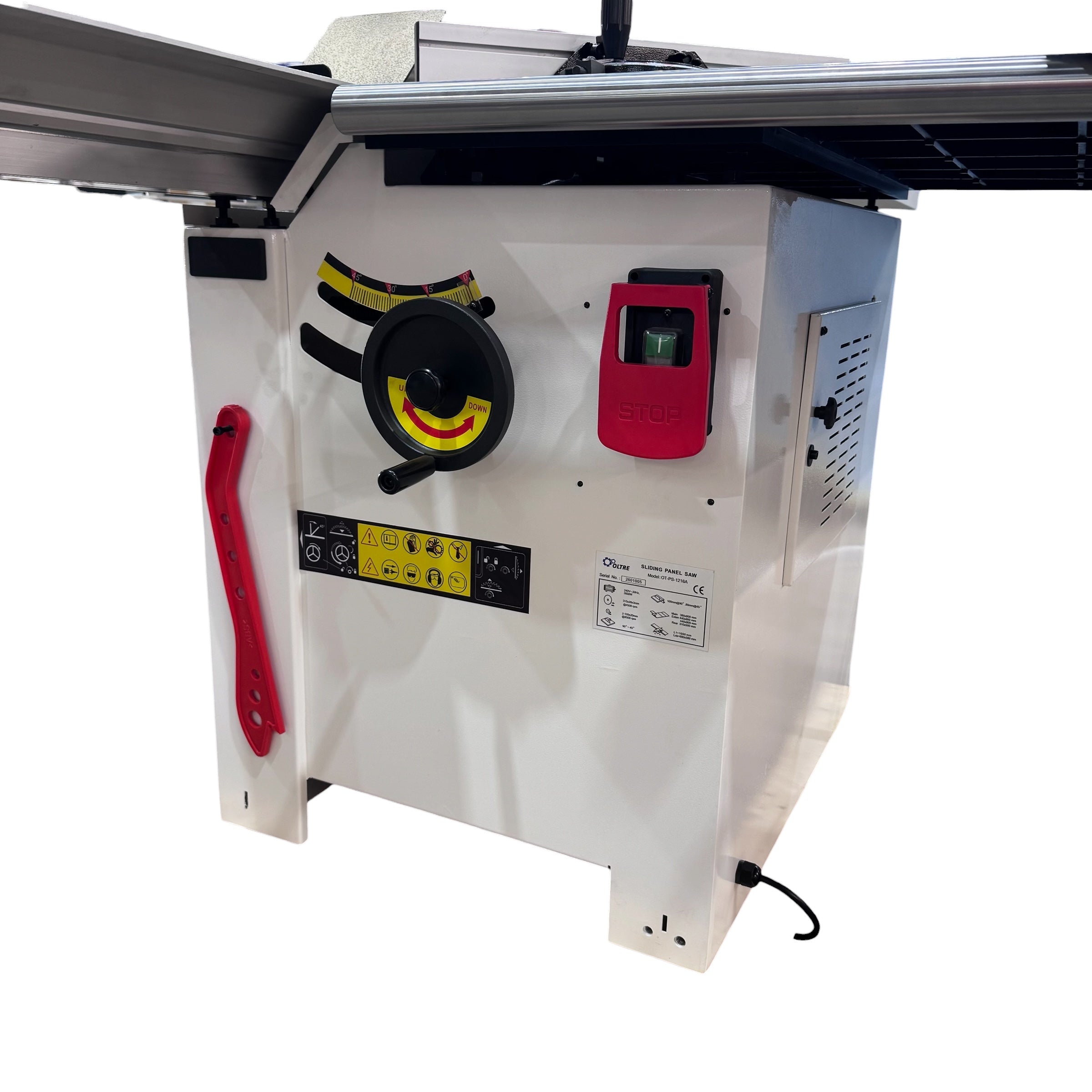

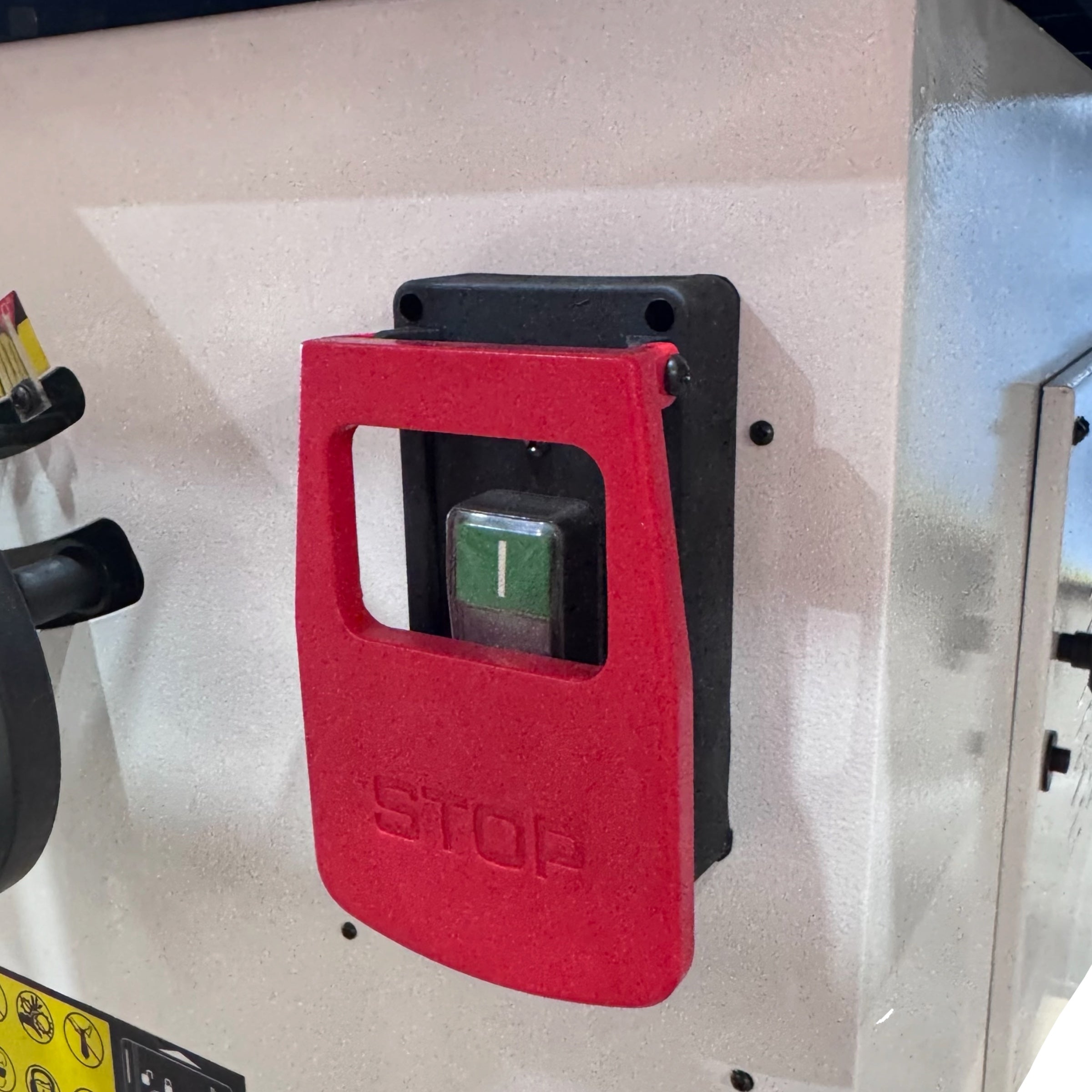

- Emergency Stop on the Front of the Machine

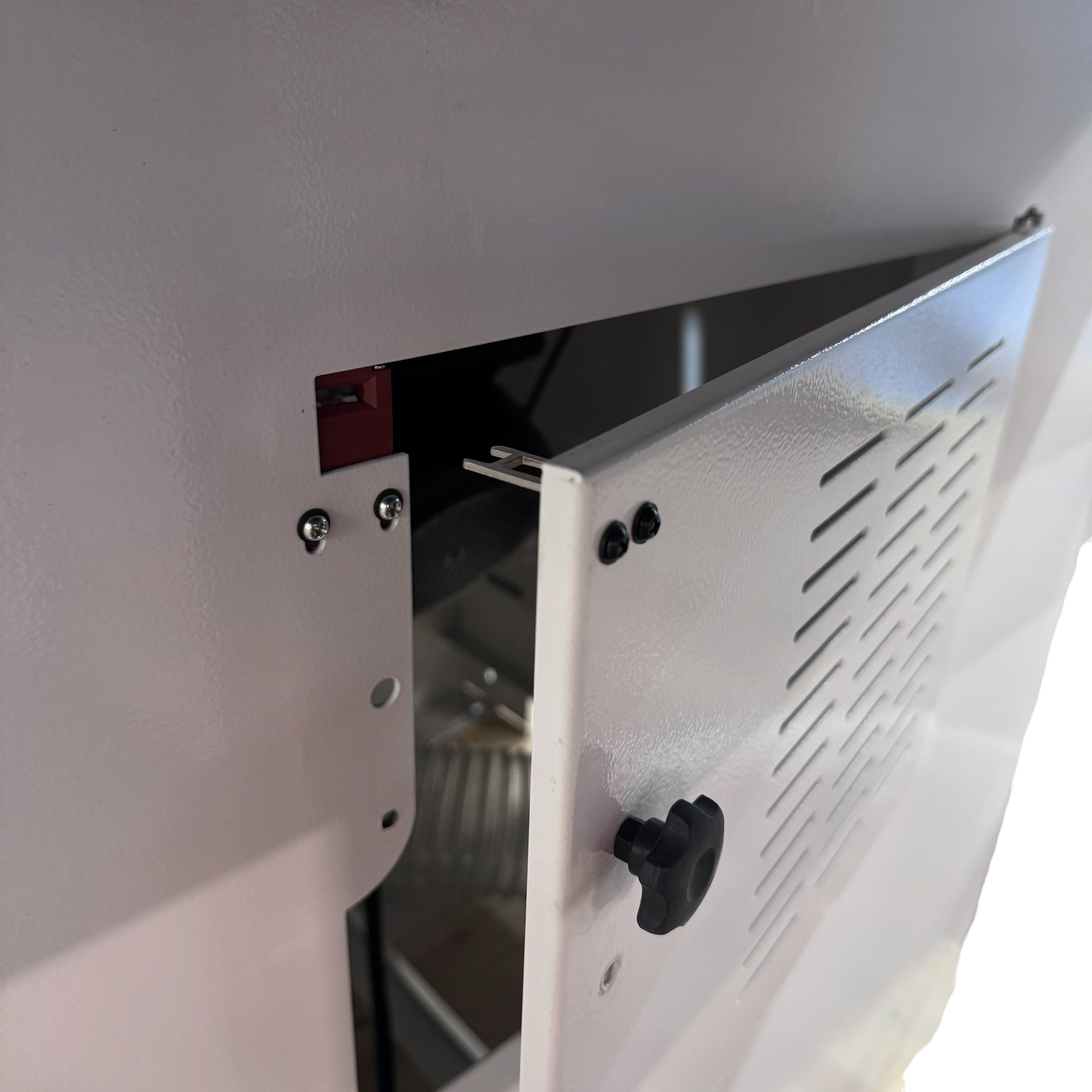

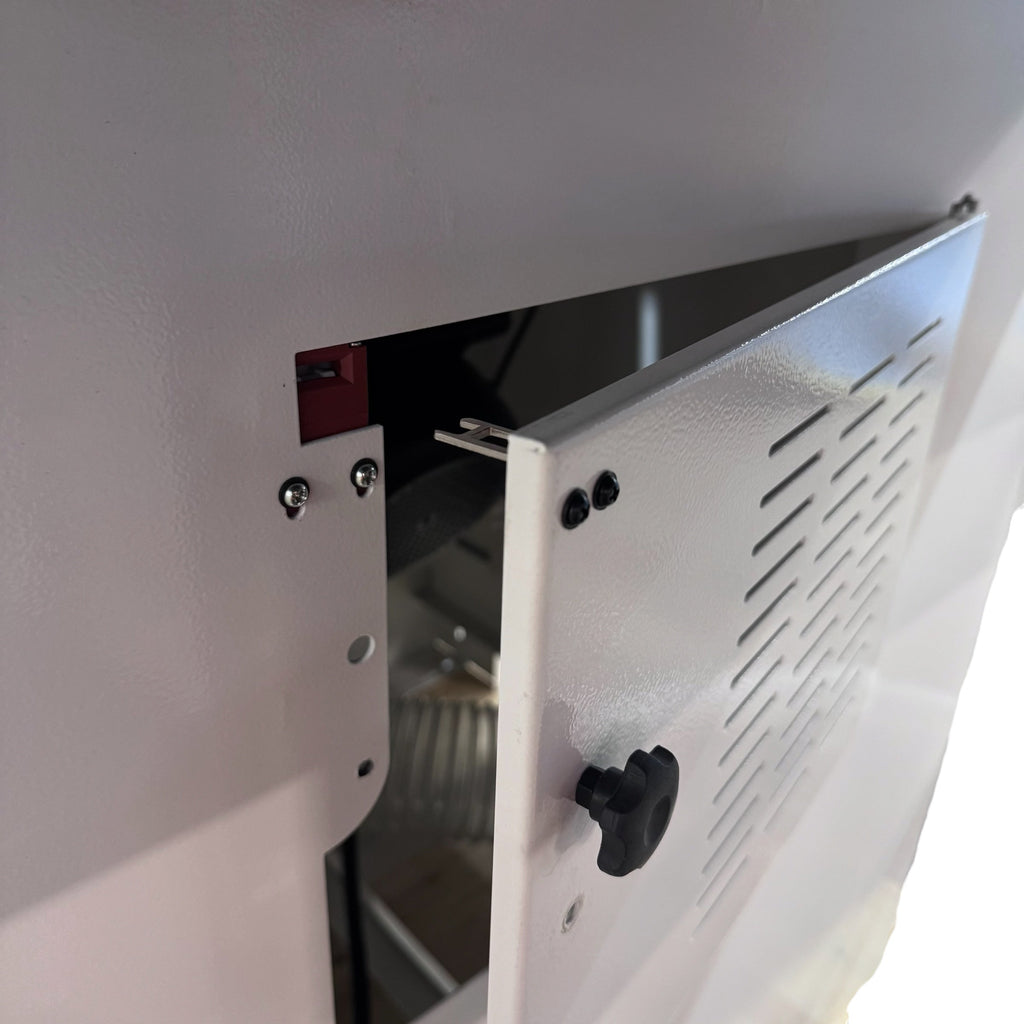

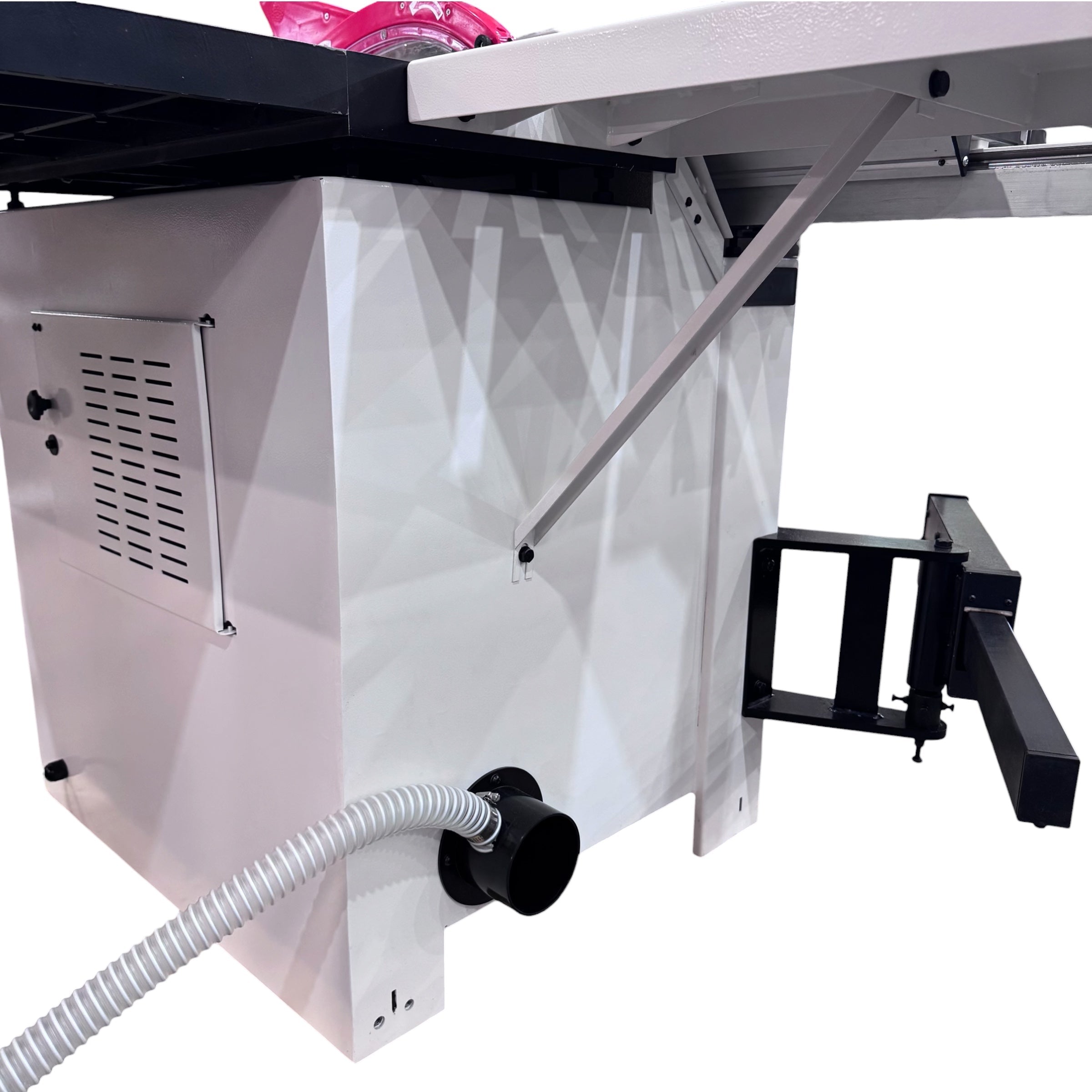

- Micro Switch on the Back Door Panel
- Tilt to 45 degrees

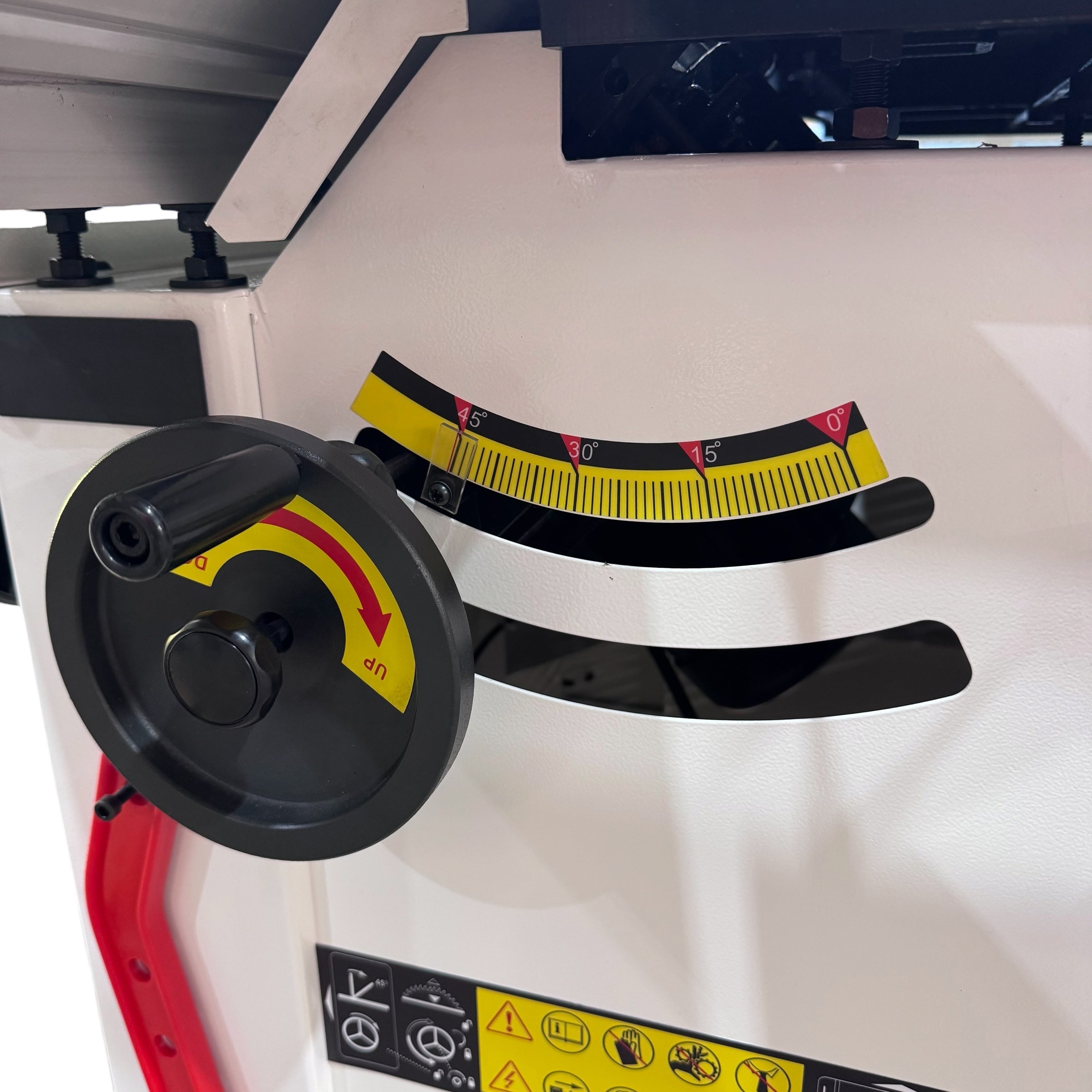

- Manuel Rise and fall of the main blade

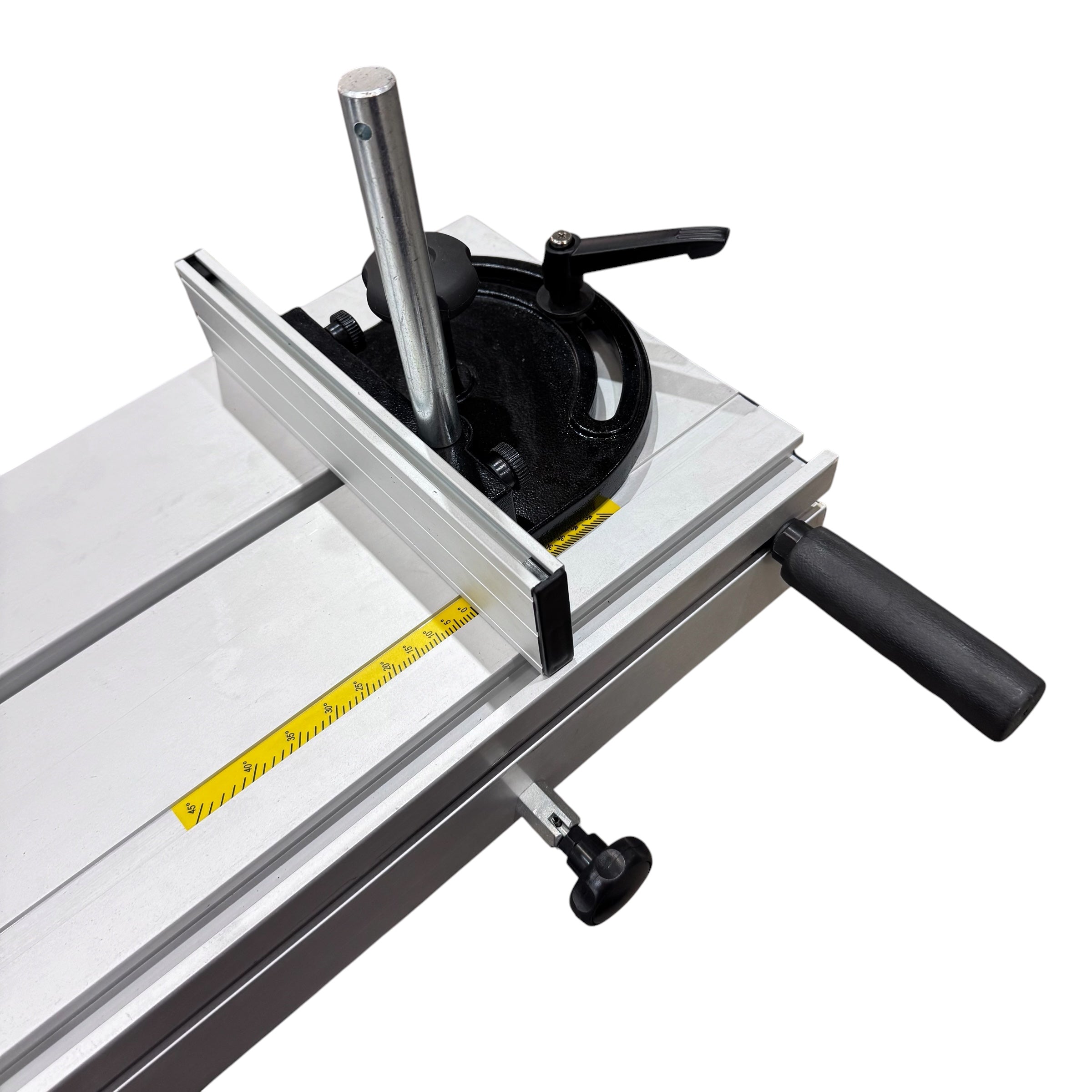

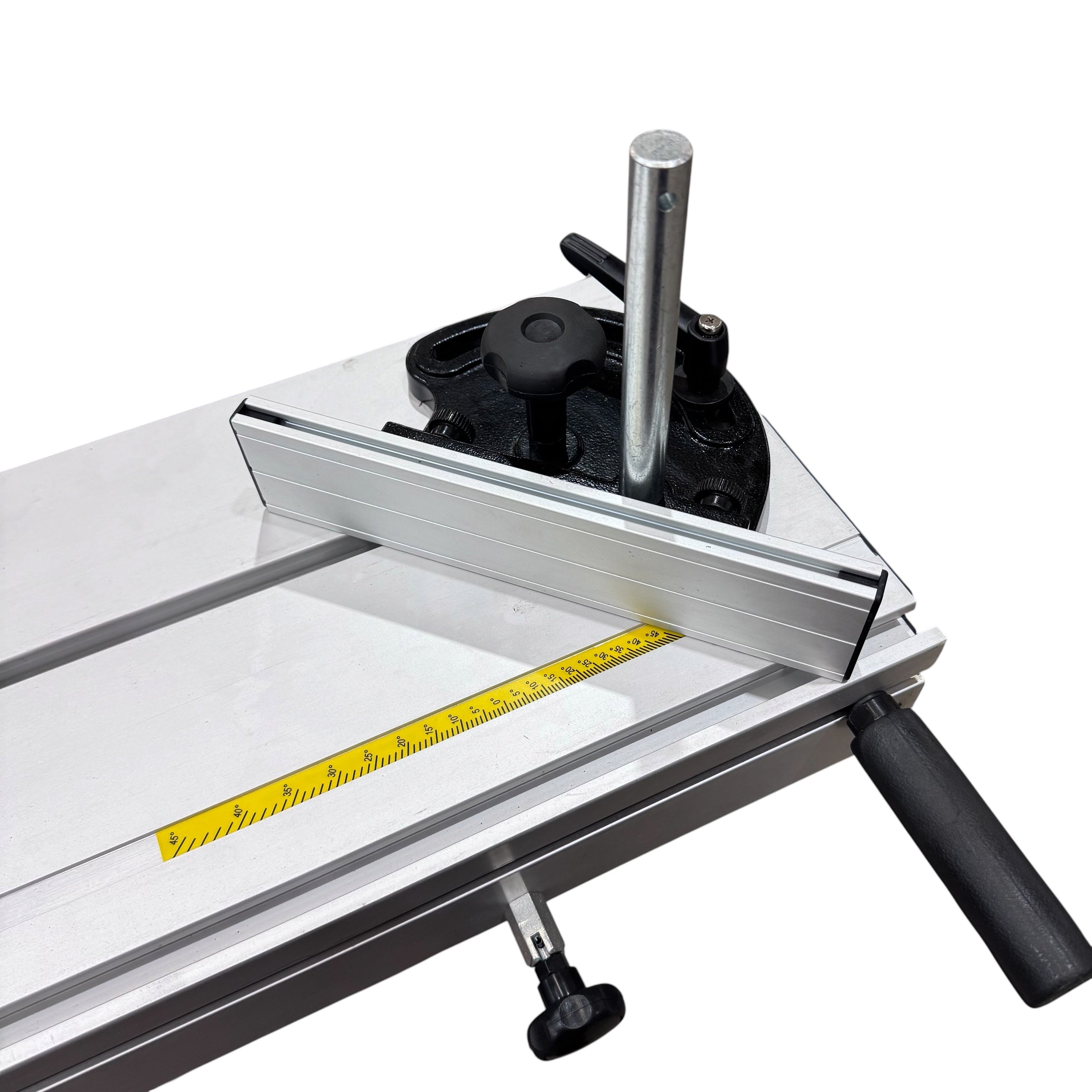

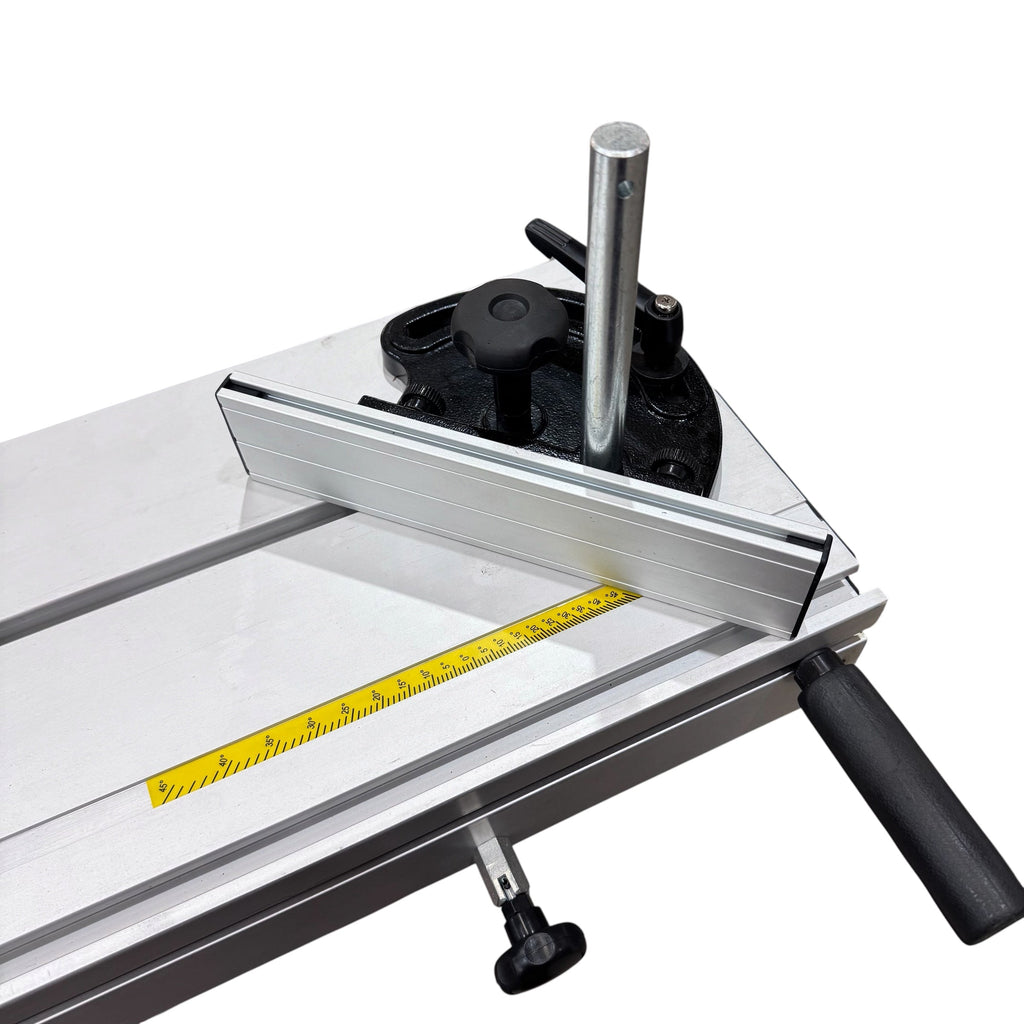

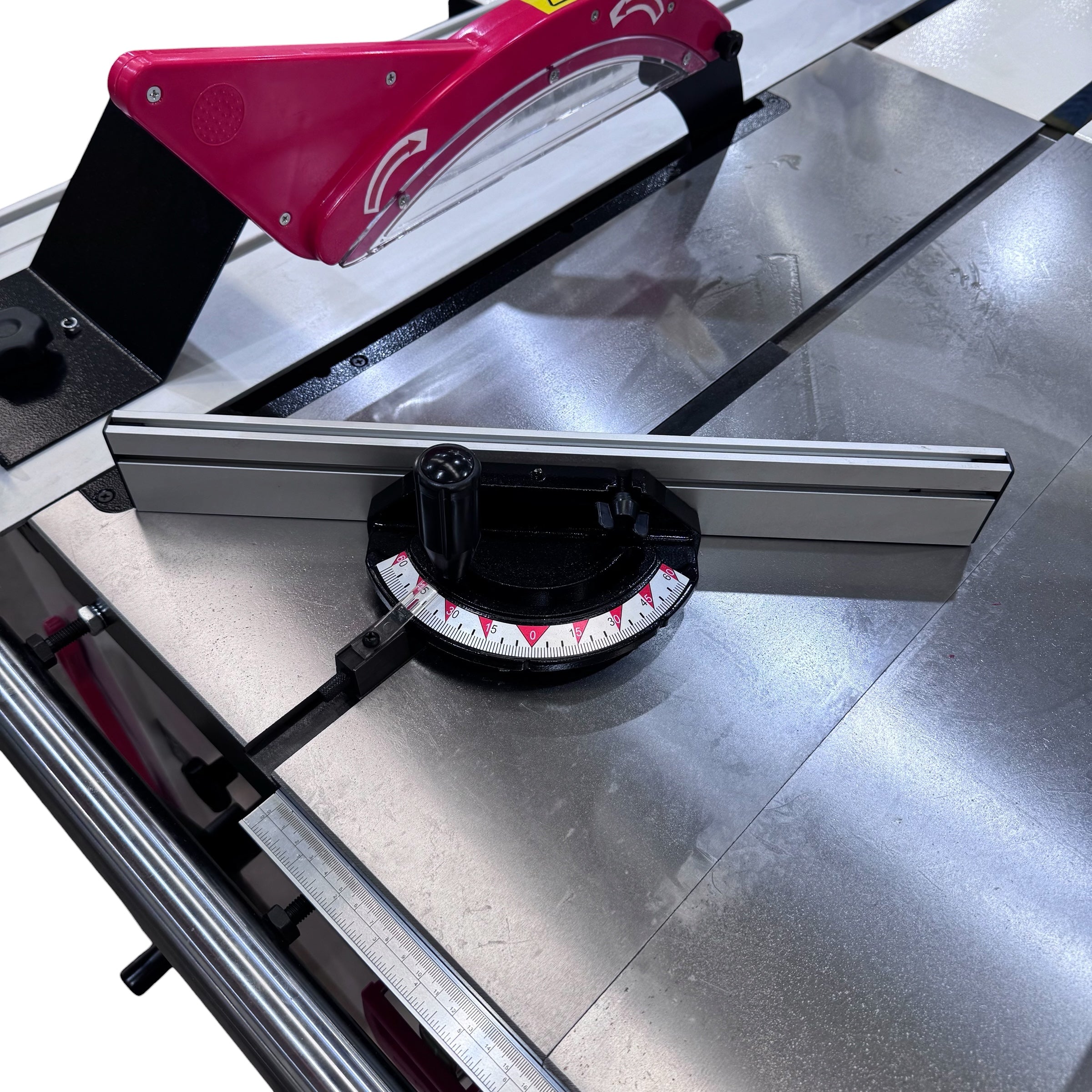

- Mitre fence on Sliding Table and Also Rip Side of Machine

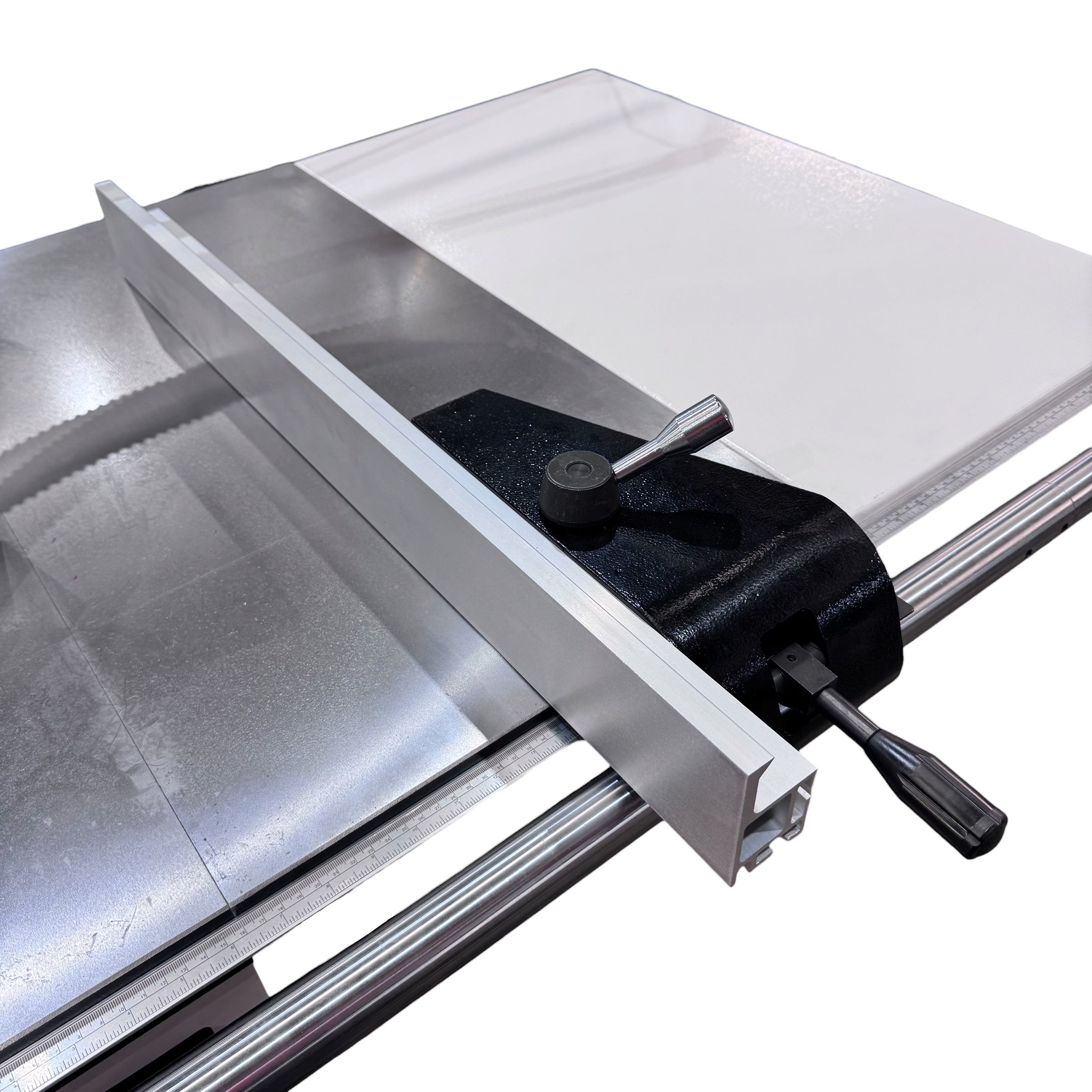

- Solid Round Bar and Cast Iron Rip Fence Assembly

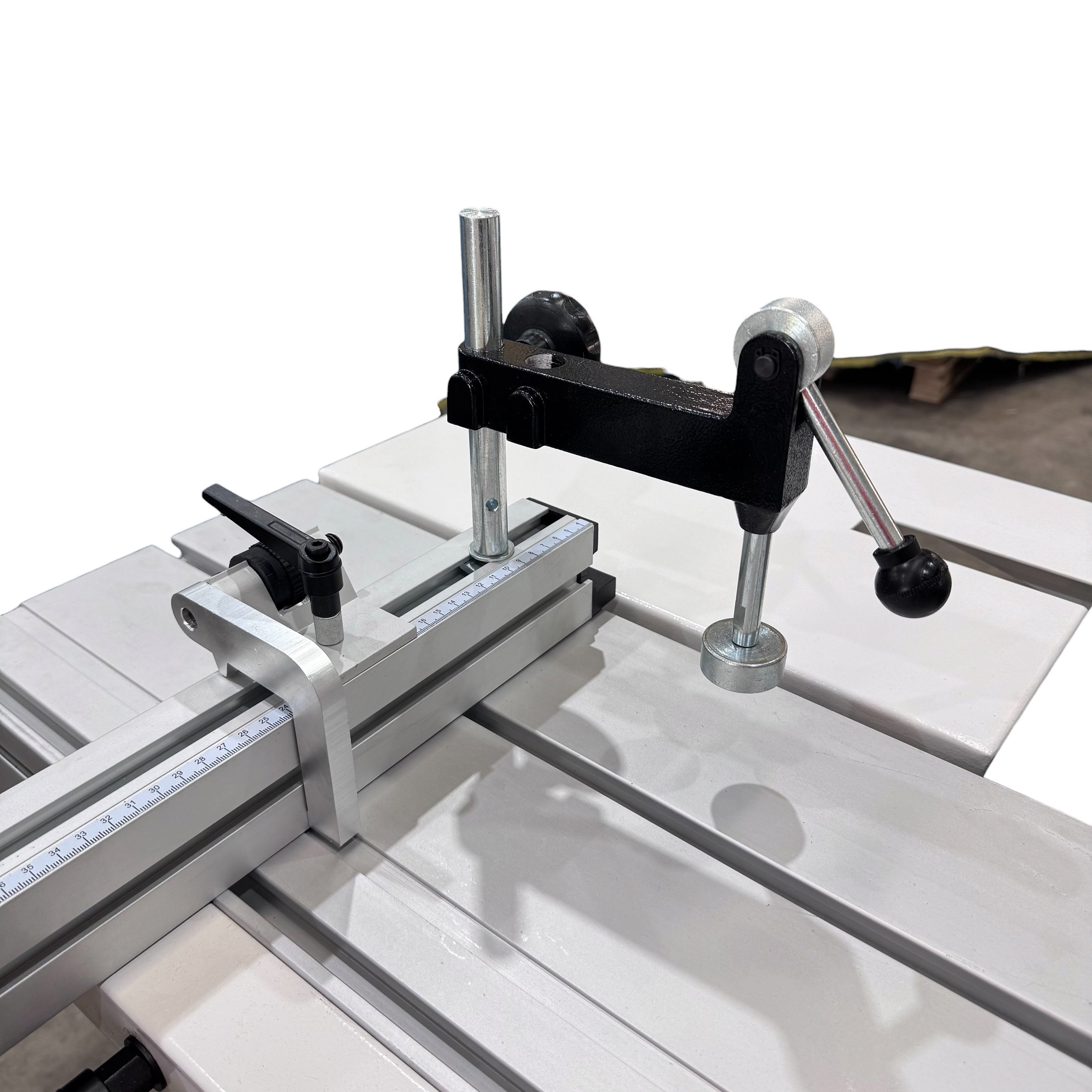

- Two Cross Cut Stops

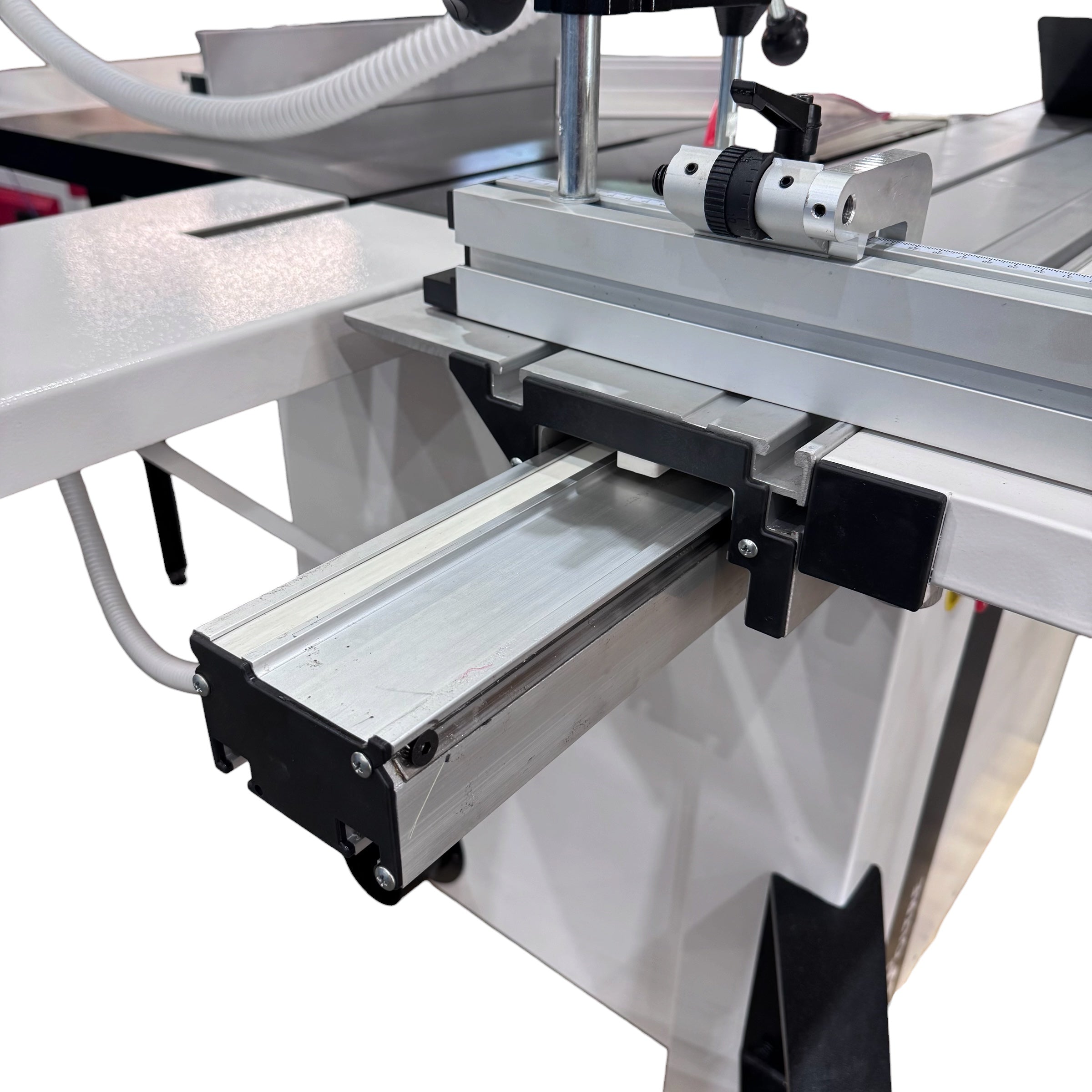

- 1600mm Sliding Table Capacity

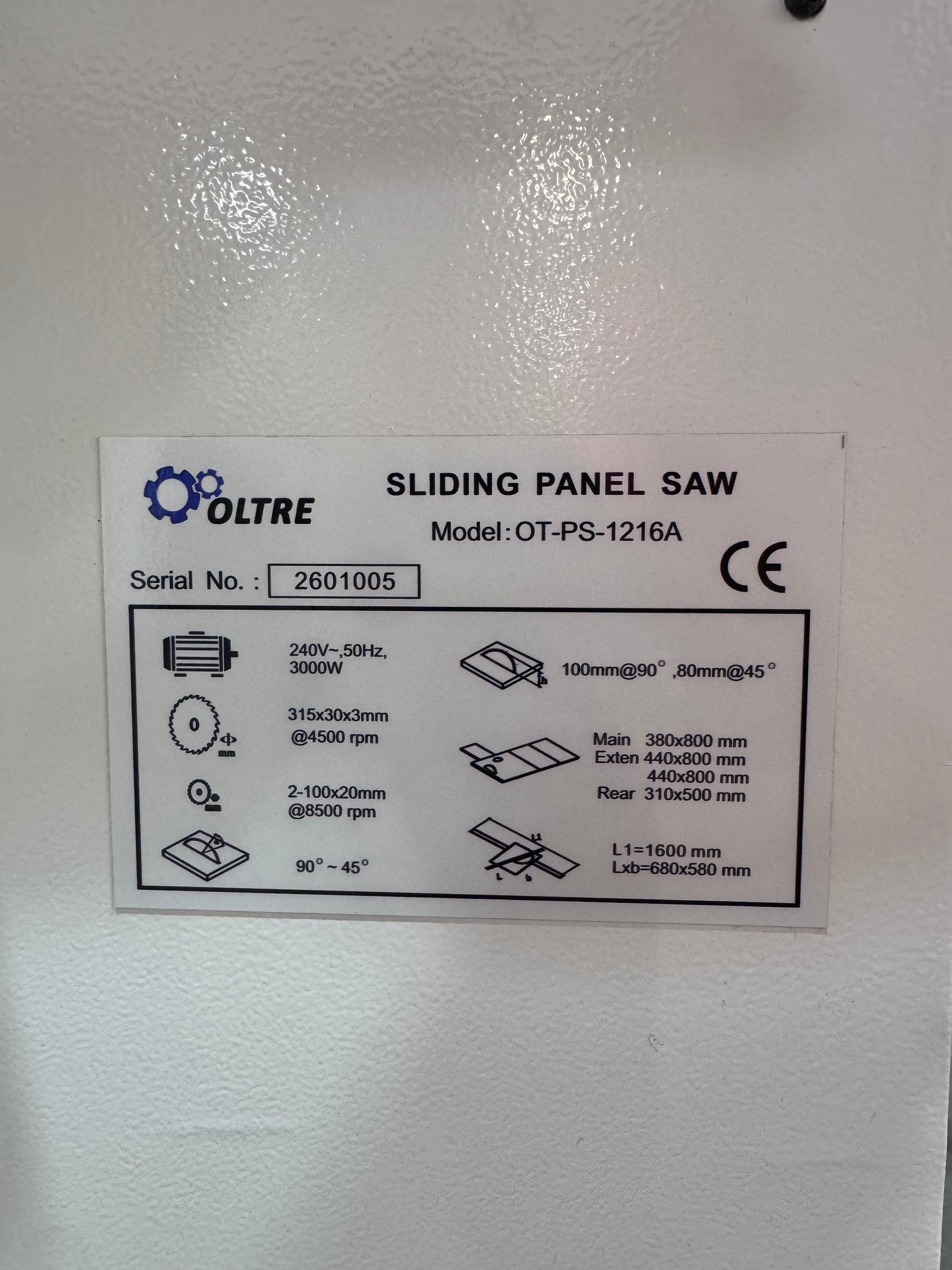

Specifications
- Major Table Size: 380 x 800mm
- Extension Table, Cast Iron: 440 x 800mm
- Extension Table, Steel Plate: 440 x 800mm
- Rear Extension Table: 310 x 500mm
- Sliding Table Size: 1600 x 270mm

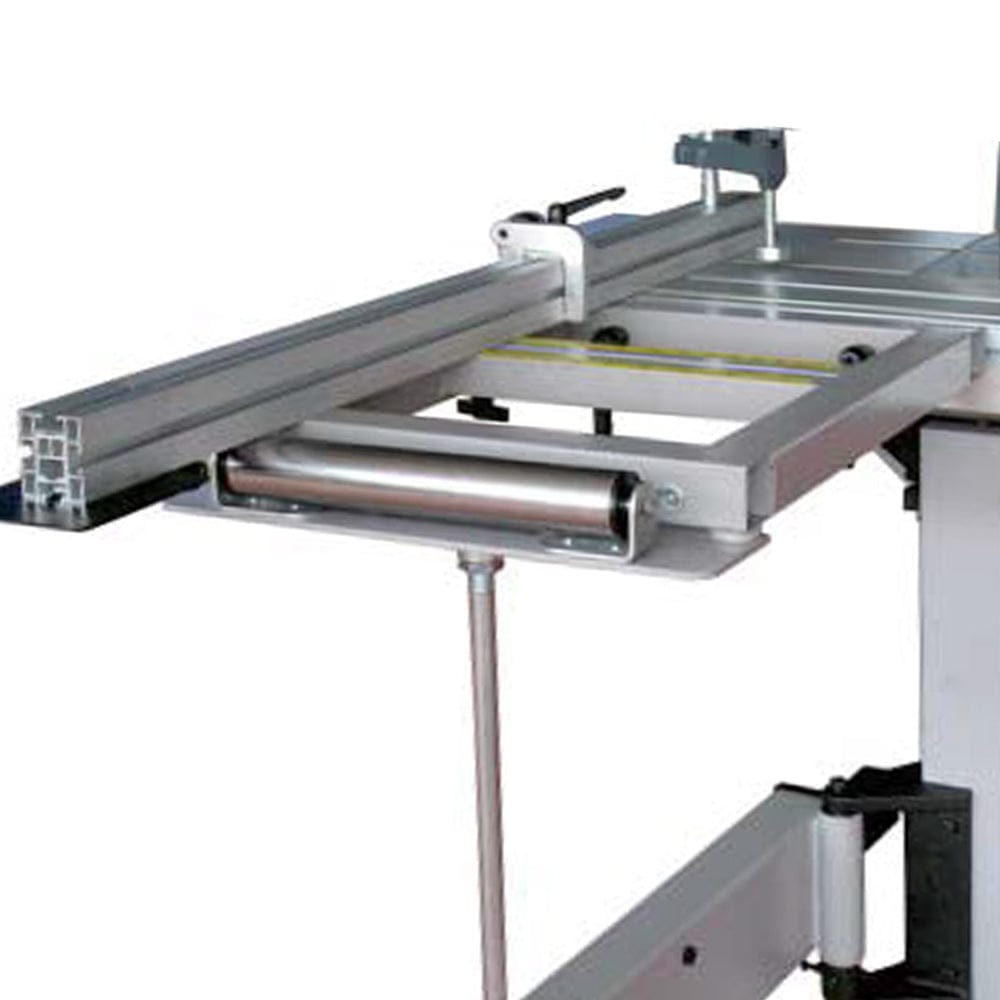

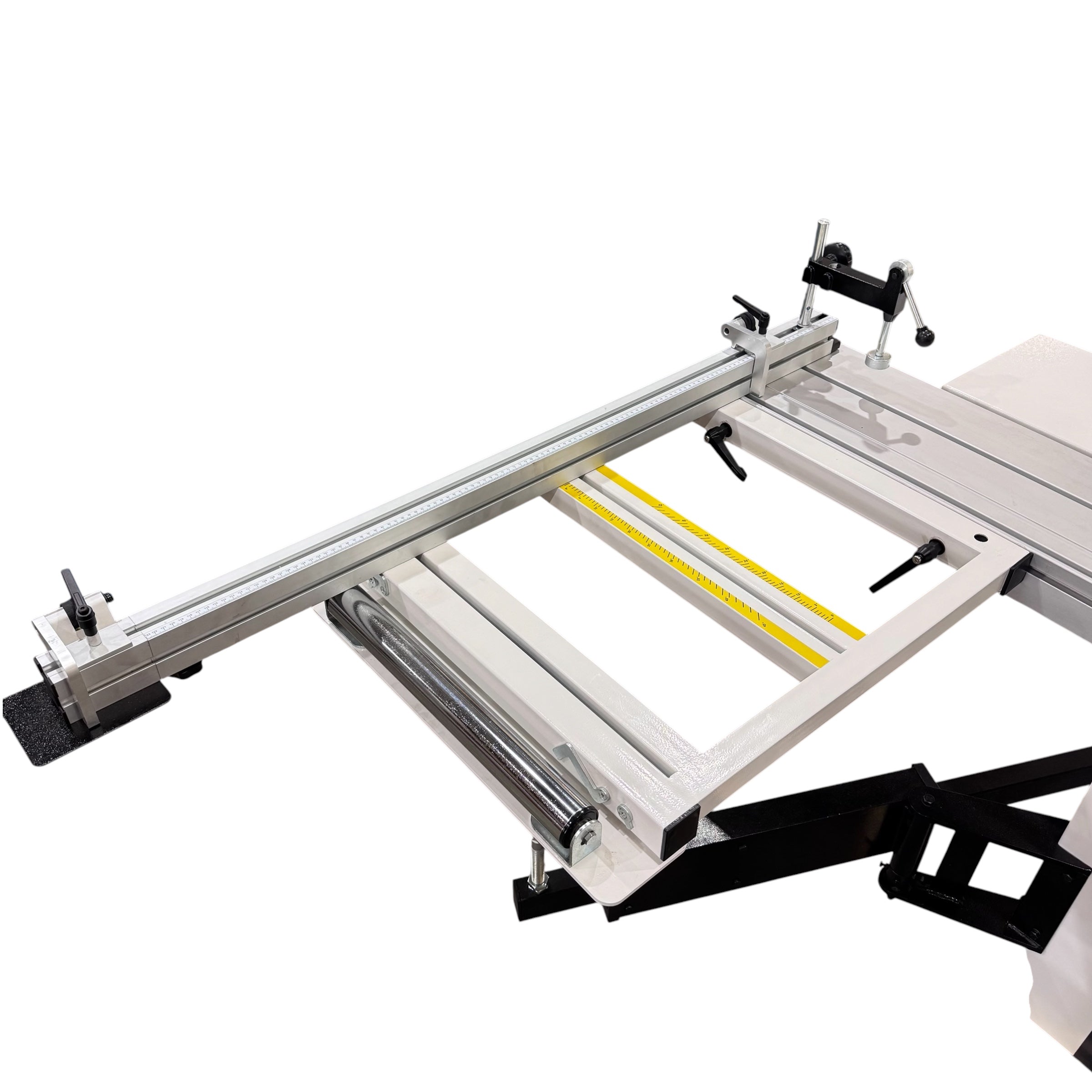

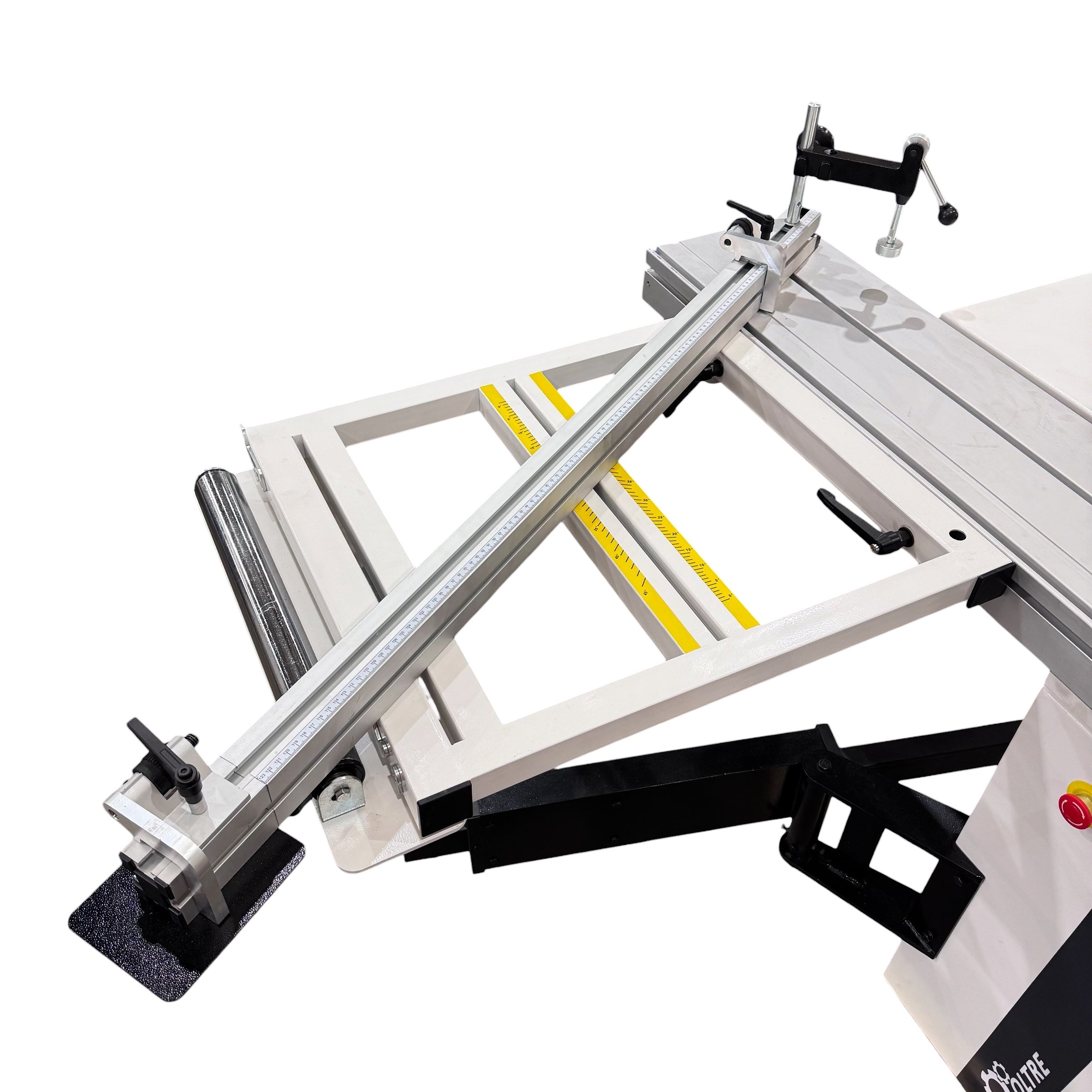

- Cross Cut Table Size: 680 x 580mm
- Cross Cut Fence: 1200 - 2200mm
- Maximum Cut Depth: 100mm at 90 ° / 80mm at 45 ° with 315mm Bladex
- Maximum Distance, Blade to Rip Fence: 1220mm
- Maximum Cross Cut Length: 1600mm
Machine is not supplied with any blades contact for blades
Optional Accessories
- Saw Blades 300mm x 30mm bore & scoring 100mm x 20mm bore
- 100mm Dust Hose
- Hose Clamps + fittings etc
- Dust Collector
Warranty
- Full 12Month Manufacturer's Warranty
Assembly
- $750 for assembly + delivery (Metro WA)
- Please contact us for other assembly options available throughout Australasia
Box Dimensions
- Main Body - 930 x 765 x 1040mmH 256KG
- Sliding Table -1680 x 320 x 245mmH 65KG
Additional Information
Model
Type
Panel Saw
SKU
9504836
Part Number
OT-PS-1216A
Brand
Oltre
Technical - Main
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Electrical Connection
Electrical Connection
Please note by default all our products are rated 230V-240V or 415V to suit the Australian Market

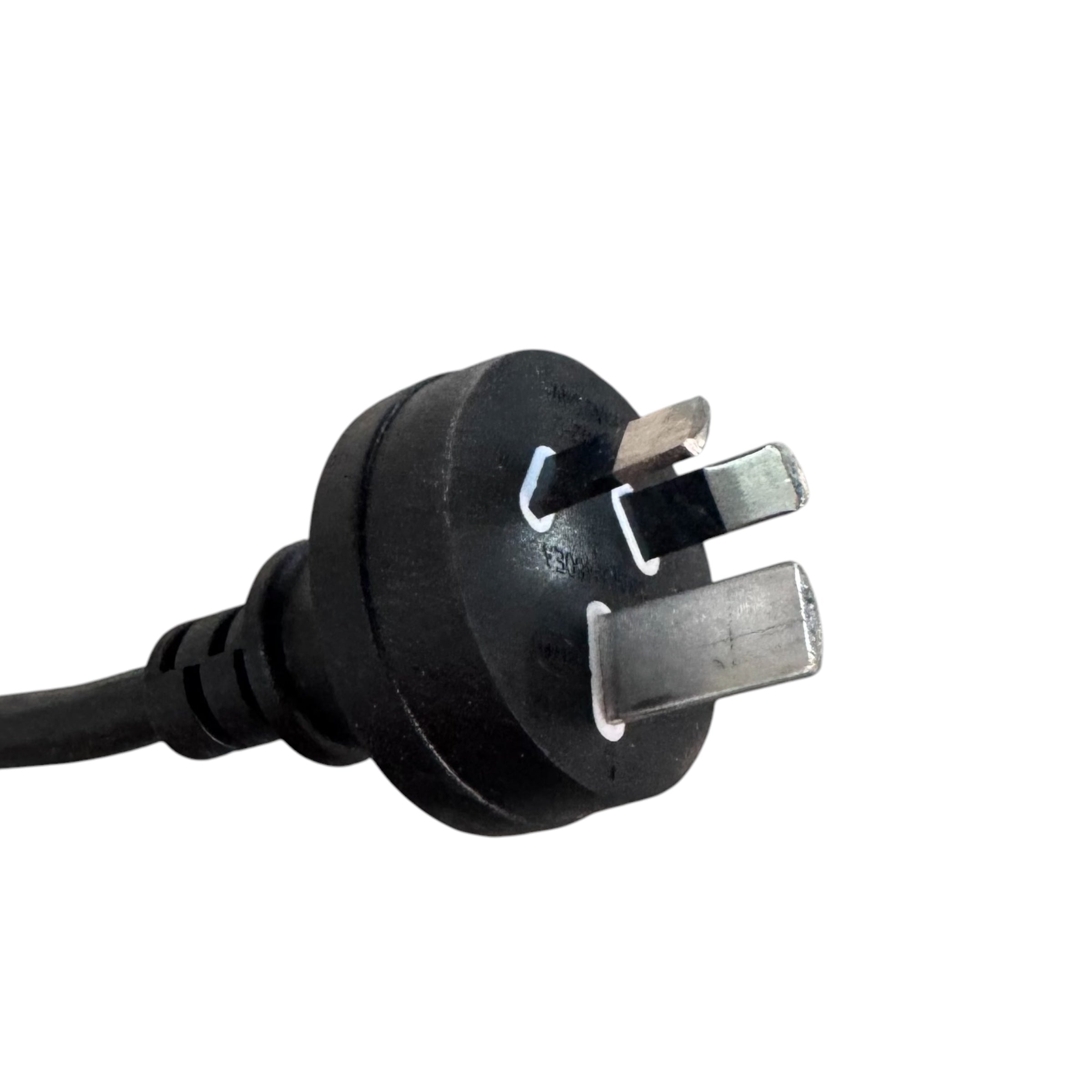

Lead & Plug
Cutting Capacity - Height
80mm
Technical - Saw
Sliding Table (Cross Cut) Size
1600mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
90mm
Blade (Scoring) - Bore Size
20mm
Blade (Scoring) - Speed
7500RPM
Blade Tilt
90° to 45°
Country of Origin
Manufactured in
China
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
1220mm
Shipping Width
765mm
Shipping Height
1047mm
Shipping Weight (Gross)
350kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
