Nib Roller Press with Heater 1300mm 240V T-RP135 by Turanlar

TuranlarSKU: 51988

Price:
Sale price$23,990.00
Stock:
Re-stocking soon

Status

Available

Description

The Nib Roller Press is used to press Laminates on materials such as Chipboard, MDF, Plywood, Chipboard etc. The Nib Roller guarantee's adhesion to bright and thin materials due to the Pneumatic Press and Hard Rubber Rollers. There is no waiting period, unlike Classic Press Machinery. There is also no limit to the work piece length and is extremely easy to use. The machine has very low energy consumption (especially compared to Traditional Presses). The footprint of the machine is also small, utilising in-feed and Out-feed benches. The machine is highly suitable for mass production and continuous use. Adjusting Roller Speeds and Temperature is necessary to ensure the best result.

Product Specification T-RP-135

Electrical Level:

415 V

Phase:

Three Phase

Nominal Current:

16A

Max Board Thickness:

90mm

Max Board Width:

1360mm

Speed:

2-6.5m/min

Total Electrical Power:

3,55kW

Air Pressure:

6 Bar

Working Height:

865mm

Machine Height:

1700mm

Machine Width:

810mm

Machine Length:

2060mm

Machine Weights:

720kg

Additional Information

Model
Type
Nib Roller
SKU
51988
Part Number
TRP135
Brand
Turanlar
Size
1300mm
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Compressed Air Required
6 Bar
Material (Stock) - Minimum Width
1300mm
Material (Stock) - Maximum Thickness
0-90mm
Speed Range
2-6.5m/Min.

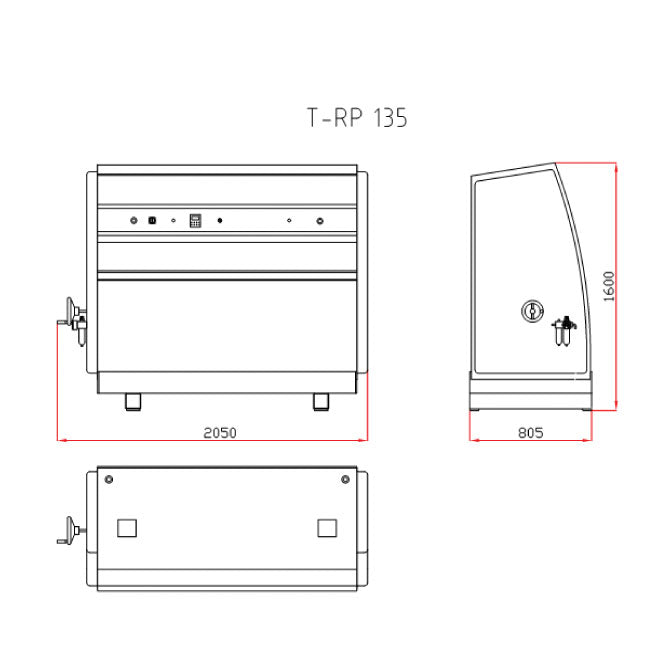

Dimensions
Product Length
2060mm
Product Width
810mm
Product Height
1700mm
Product Weight (Net Weight)
735kg
Country of Origin
Manufactured in
Turkey
Workshop (Site) Info
Compressed Air Required
6 Bar
Other Requirements
Compressed Air
Packaging + Shipping
Shipping Weight (Gross)
720kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
