Lock Mortise Jig Kit OT-LMJ by Oltre

Manual Door Lock Mortising Jig Kit is suitable for home / DIY or trade applications and is guaranteed to save time. Ideal for use with an electric / cordless drill or router / trimmer and is easy to install and operate. The Jig is designed to cut the mortise for door locks up to 100mm deep and also the lock's faceplate.

Features

• Fast and accurate for doors from 25mm-100mm thick
• Easy Set Up and Alignment
  • Clamp the jig to your door and align it to ensure the mortise cut is in the centre of the door
  • Clamp can also be used to cut out the lock's faceplate - the jig is supplied with a protective cap to allow this to be done without marking the door
• Robust jig increases accuracy and speed of mortise cutting
• Horizontal & Vertical Depth Stops
  • Easily lock the length and depth of cut to ensure there is no damage to the door
• Suitable For Most Door Materials
  • Use on wood / timber , plank and solid wood doors, hotel doors, security doors, fire doors and modifying door locks etc.
• Bearing base slide adjustment
• High Speed Steel Carbide Tipped Cutters

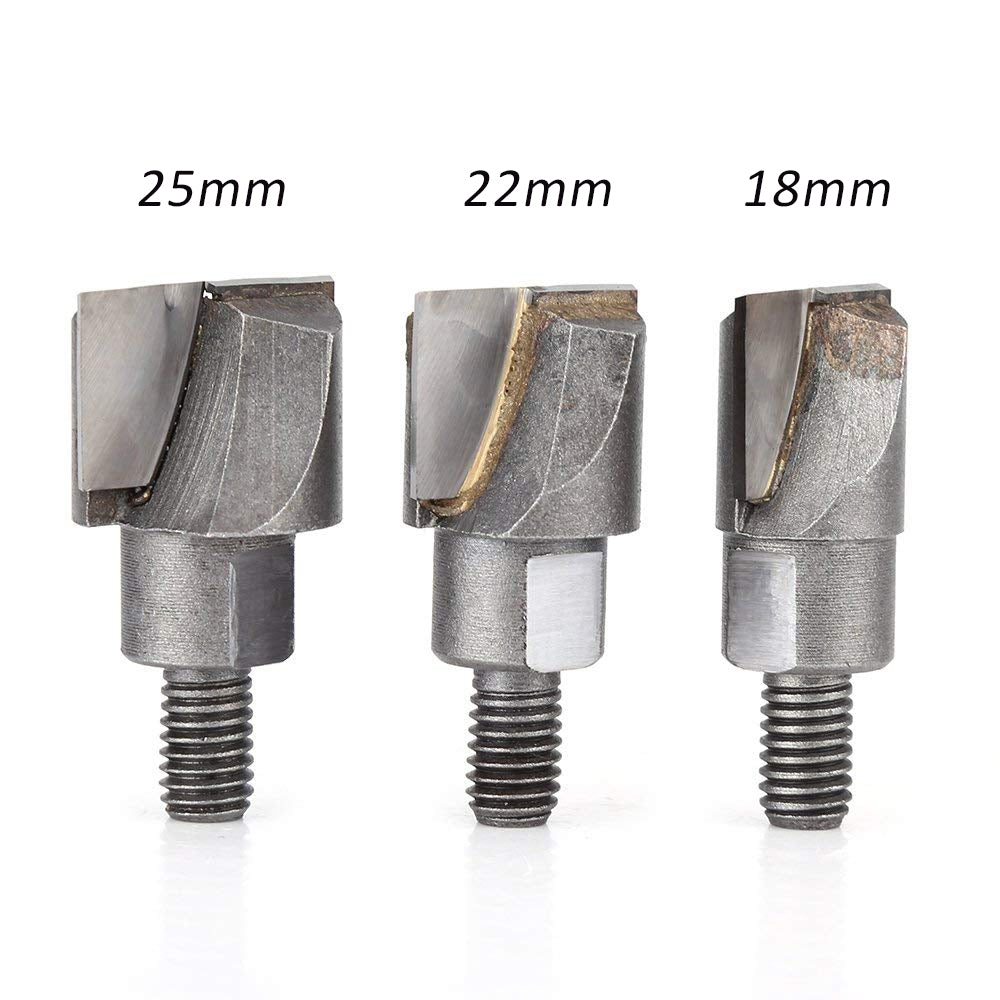

  • Supplied with 18mm, 22mm and 24mm cutters to accomodate the most widely used lock widths
  • Other sizes available as Optional Accessories
• Compatible with Most Power Drills
  • Use with a 13mm chuck at a speed of between 2,000 and 3,000RPM
• Clamping jaws are equipped with rubber faces to protect the doors
• Constructed from Steel and Aluminium

Specification:-

• Bit Thread: M10 x 1.5mm per thread

Standard Accessories:-

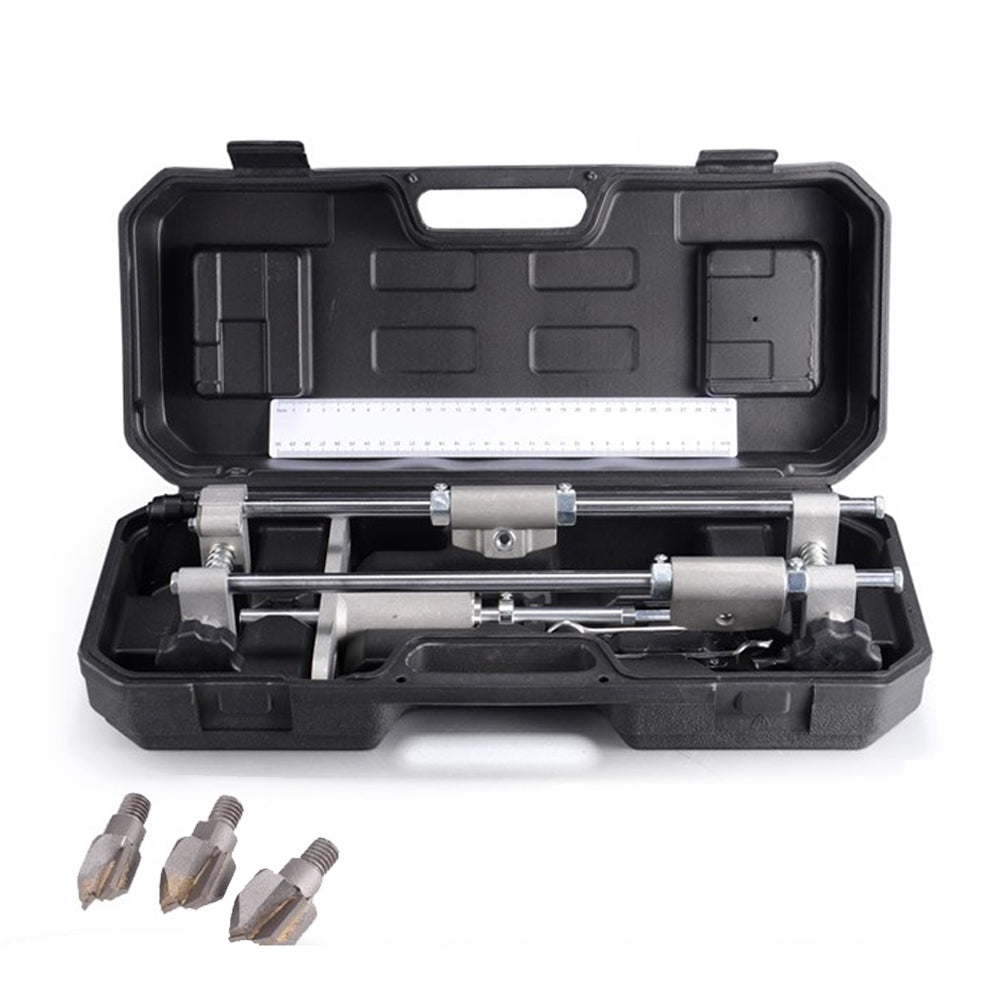

• 1 x Lock Mortise Jig Kit by Oltre
• 1 x 18mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 1 x 22mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 1 x 24mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 2 x (12 x 14mm) Adjusting Spanners
• 1 x Ruler
• 1 x Plastic Blow Moulded Carry Case
• 1 x Protective Cap

Optional Accessories:-

• 16.5mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 18mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 20mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 21mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 22mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 24mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 25mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 26mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
• 27mm Carbide Tipped Bit suit Lock Mortiser Jig Kit by Oltre
