Industrial Dust Collector / Extractor with High Pressure Fan 2HP Mini Euro - HPF 35 by Alfarimini

AlfariminiSKU: 8043216

Price:
Sale price$5,495.00
Stock:
Only 1 unit left

Status

Available

Description

The new HPF line was designed by Alfarimini following requests made by a few clients. They are extraction units fitted with a high pressure fan, which can be used on small diameter pipes. They are the perfect solution to be combined with single or dual-blade mitre saws, vertical saws and cutting centres.
They are fitted with a high pressure fan motor and this allows them to extract chips perfectly, even if heavy, and many metres away. The HPF filtering units are available in multiple configurations for different usage requirements. On request you can add a variety of accessories and options.

With characteristics similar to the more powerful HPF models, the MINI EURO HPF extractor is very compact and complete.

The special unit, with its large fan dimensions and special coil shape can provide truly significant services, with high extraction pressure (head) and relatively low flow rates. The sleeve filtering system guarantees an adequate filtering surface for the air volume extracted.

The expulsion hole on the top of the filter makes it easy to fully install external expulsion chimneys. For technical needs or specific customer request, the fan can be placed in a different position to the one shown in the photo: it could be coupled to the filtering unit directly, with the extraction outlet facing upwards, or be supported by a small stand standing on the wheeled base.

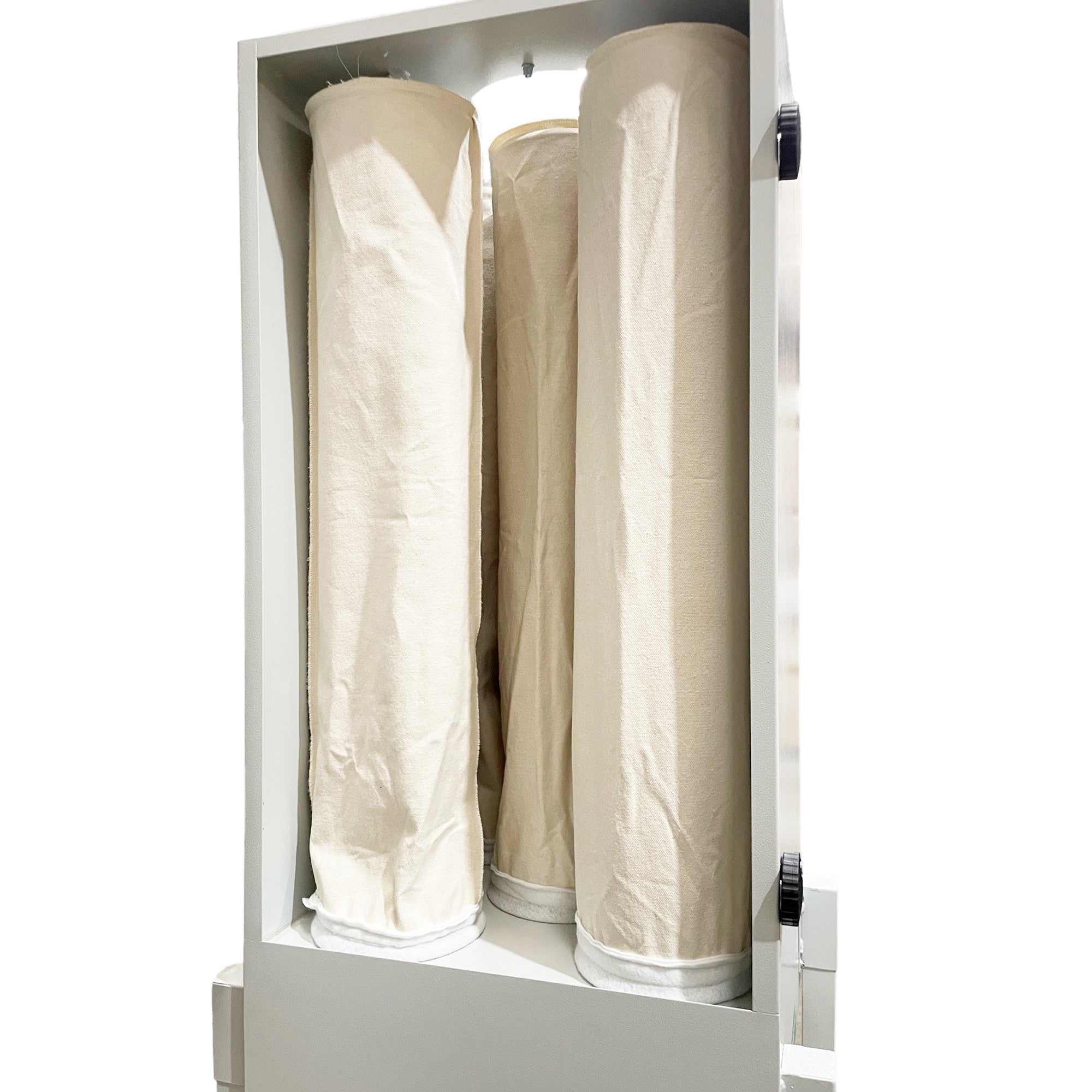

The filtering sleeves contained in the upper cabinet can be replaced by a special cartridge filter, to withhold even the finest sanding or polishing dust. The wheeled base means the filter can easily be moved to where it is needed. So it can be positioned near the workstation for better yield and greater power.

Made in Italy All our motors and machines are manufactured entirely in Italy, with top quality Italian or European components. They are highly reliable machines.

Additional Information

Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz (Three Phase)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
2HP (1.5kW)
Filtration Rate
3m2
Filter Bag / Sleeve Diameter
180mm
Filter Bag / Sleeve Height
1030mm
Filter Bag / Sleeve Volume
927L (5 x Filtering Sleeves @ 180mm Diameter)
Filter Bag / Sleeve Material
Needlefelt
Collection Bag Diameter
500mm
Collection Bag Material
Plastic
Model
Type
Dust Collector / Extractor
SKU
8043216
Series
HPF
Part Number
MINI EURO - HPF 35
Brand
Alfarimini
Packaging + Shipping
Shipping Weight (Gross)
100.48kg
Dimensions
Product Length
1100mm
Product Width
700mm
Product Height
2350mm
Country of Origin
Designed, Researched & Developed in
Italy
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
