Status
Available
Description

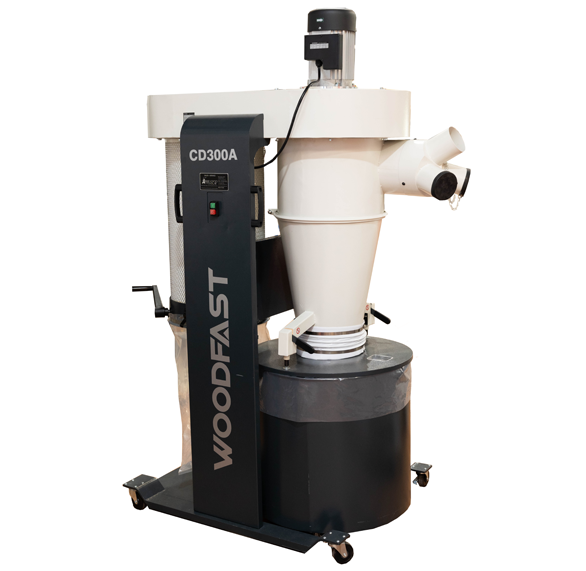

The Woodfast CD300A Industrial Cyclone Dust Collector is the ultimate solution for efficient, high-performance dust extraction in demanding workshop environments. With a sleek design and robust functionality, this dust collector ensures a cleaner, safer workspace for all your woodworking projects.
Key Features:
- Powerful 3HP Motor: Delivers an impressive 3000m³/hr air flow volume, achieving a dust removal efficiency of up to 99%.
- Optional 5HP motor: Delivers 5000m3/hr air flow volume with dust removal efficiency up to 99%.

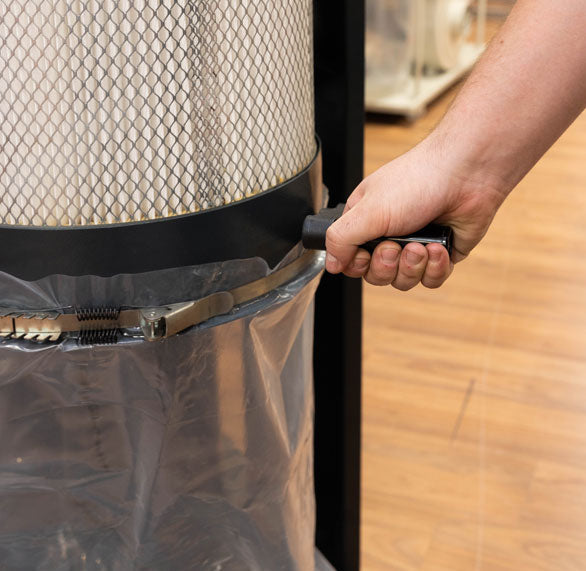

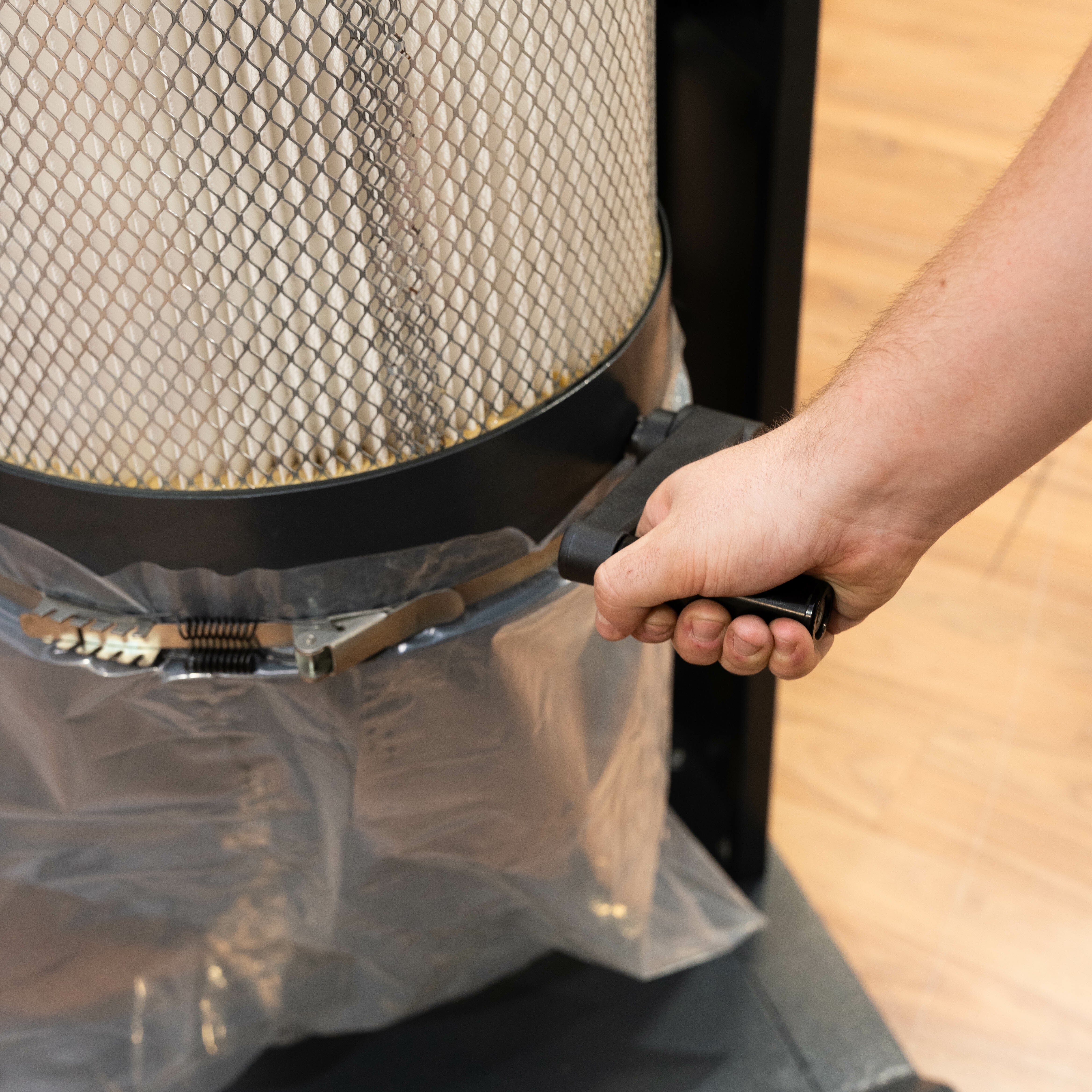

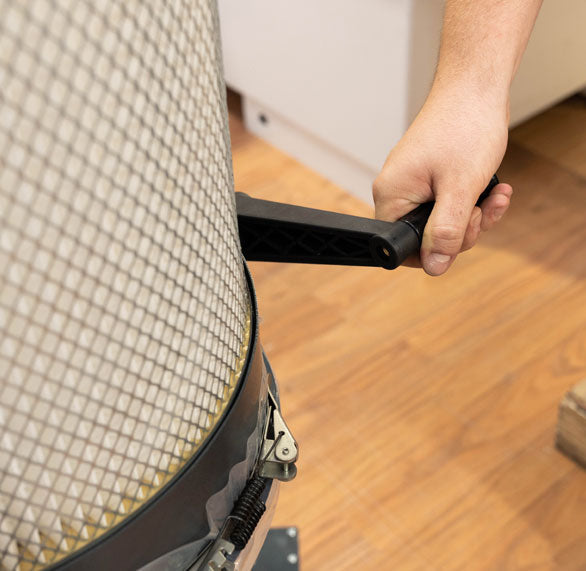

- High-Efficiency Filtration System: Micron-level filtration eliminates fine dust, providing double separation of wood chips and dust for improved air quality.

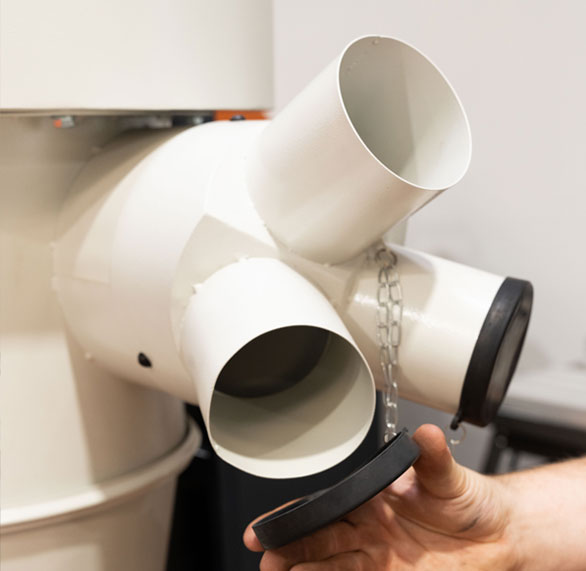

- Triple Dust Suction Ports: Designed to handle multiple tools simultaneously, meeting the needs of busy workshops.
- Large 174L Dust Bin: Generous capacity for high-load operations, reducing the need for frequent emptying.
- Mobile and Durable Design: A sturdy double base with built-in wheels allows for effortless movement around your workspace.
With its combination of power, efficiency, and convenience, the CD300A is an essential tool for maintaining a dust-free environment in industrial and professional workshops.
Features
- The micron level high efficient filtration system will completely solve the dust problem and achieve a double separation of wood and dust
- Three dust suction ports to suit multiple equipment at the same time.
- Solid Base with Mobility Wheels for Easy Movement
- 174L Large Capacity Dust Bin with Bag Supplied for Easy Dust Collection and High Load Requirements

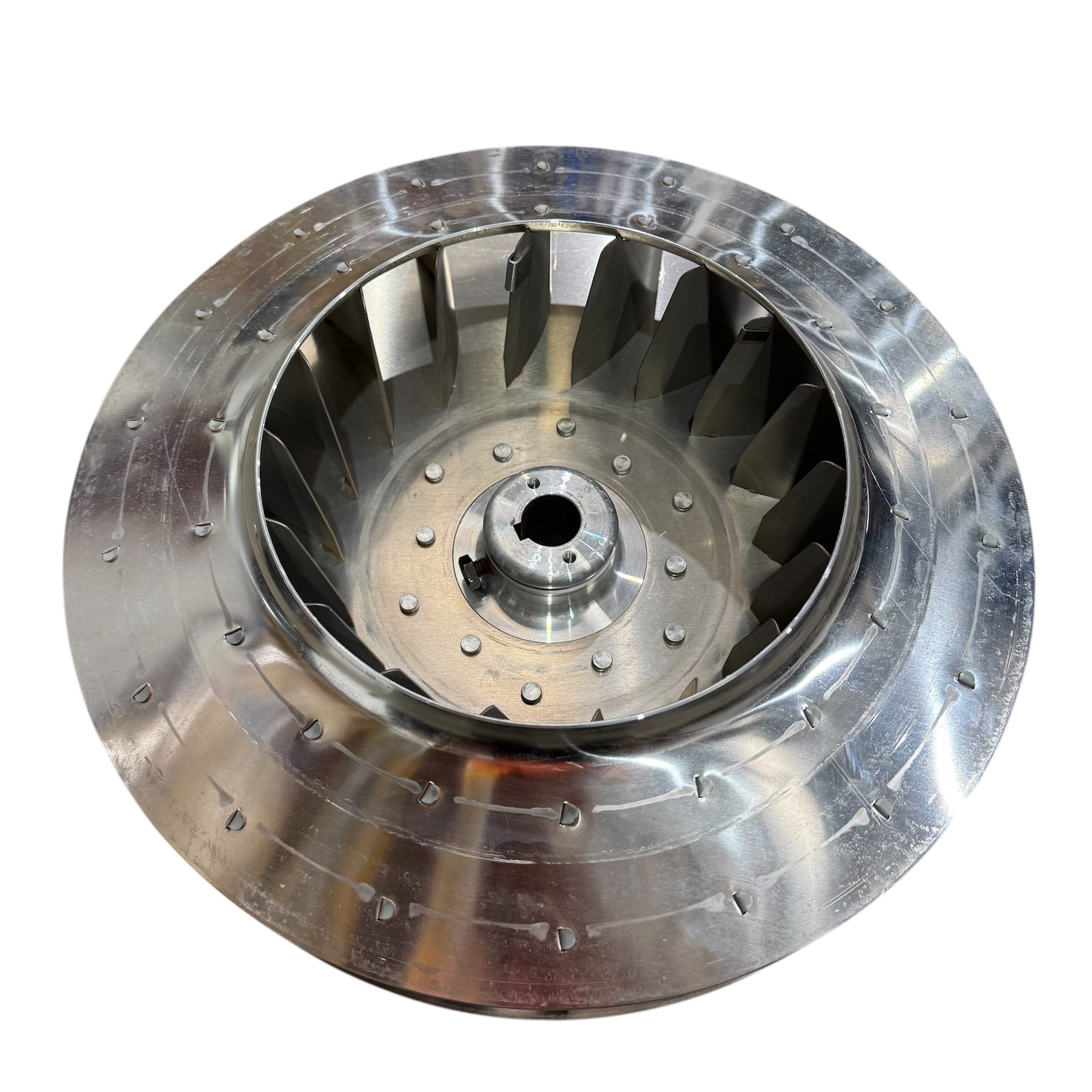

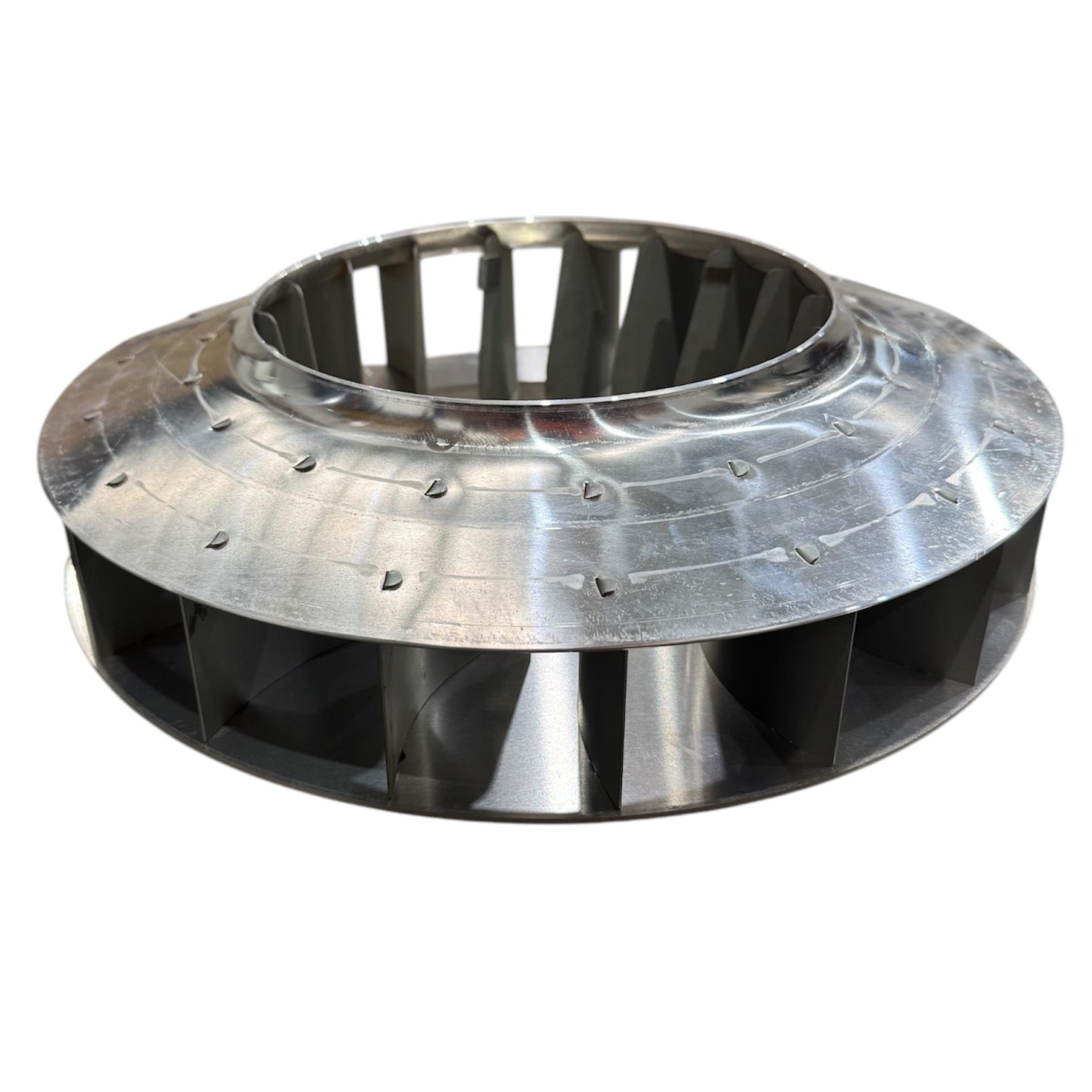

- 370mm aluminium impeller
Specifications - 3HP Version
- Air flow: 3,000m3/HR
- Motor Speed: 2800RPM
- Noise Level: 78dB(A)@3m
- Filter Area: 4.32 m2
Specifications - 5HP Version *Pre-Production - ETA Unknown*
- Please note this model is currently in pre-production.
Options
- CD300A-240V
- CD300A-415V
Additional Information
Model
Type
Cyclone Dust Collector / Extractor
SKU
8601542
Part Number
CD300A-240V
Brand
Woodfast
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Filter Class
HEPA
Filtration Rate
1 Micron
Filter Bag / Sleeve Diameter
400mm
Filter Bag / Sleeve Height
660mm
Filter Bag / Sleeve Volume
174L
Filter Bag / Sleeve Material
Cartridge Canister Filter
Collection Bag Material
Plastic
Motor Speed (RPM)
2800
Dimensions
Product Length
800mm
Product Width
820mm
Product Height
1900mm
Product Weight (Net Weight)
145kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Standard Inclusions
Tool Kit with 10mm Spanner, 13mm Spanner + Hex Keys
Workshop (Site) Info
Electrical Connection

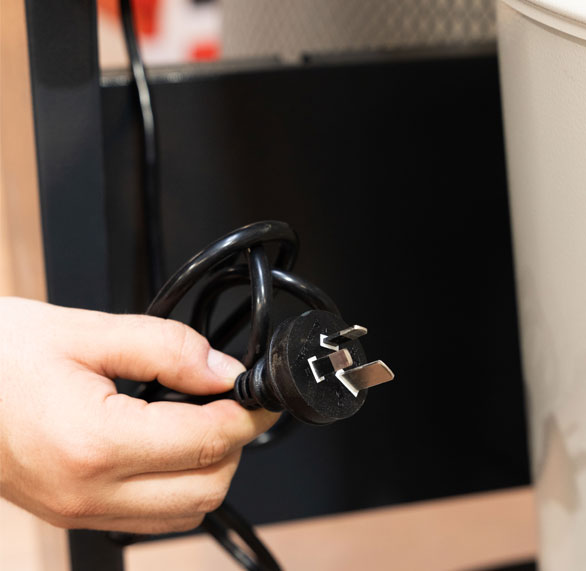

15Amp Plug & Lead
Dust Hose Inlet Diameter
1 x 200mm with Adaptor (3 x 100mm)
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
12 Months (Wood Dust) or 3 Months (Other Non-Wood Dust)
Packaging + Shipping
Shipping Weight (Gross)
296kg
Carton 1 (L X W X H x KG)
1235 x 760 x 1130mm (Main Engine)
Carton 2 (L X W X H x KG)
1550 x 375 x 220mm (Column)
Carton 3 (L X W X H x KG)
844 x 540 x 520mm (Filter Element)
