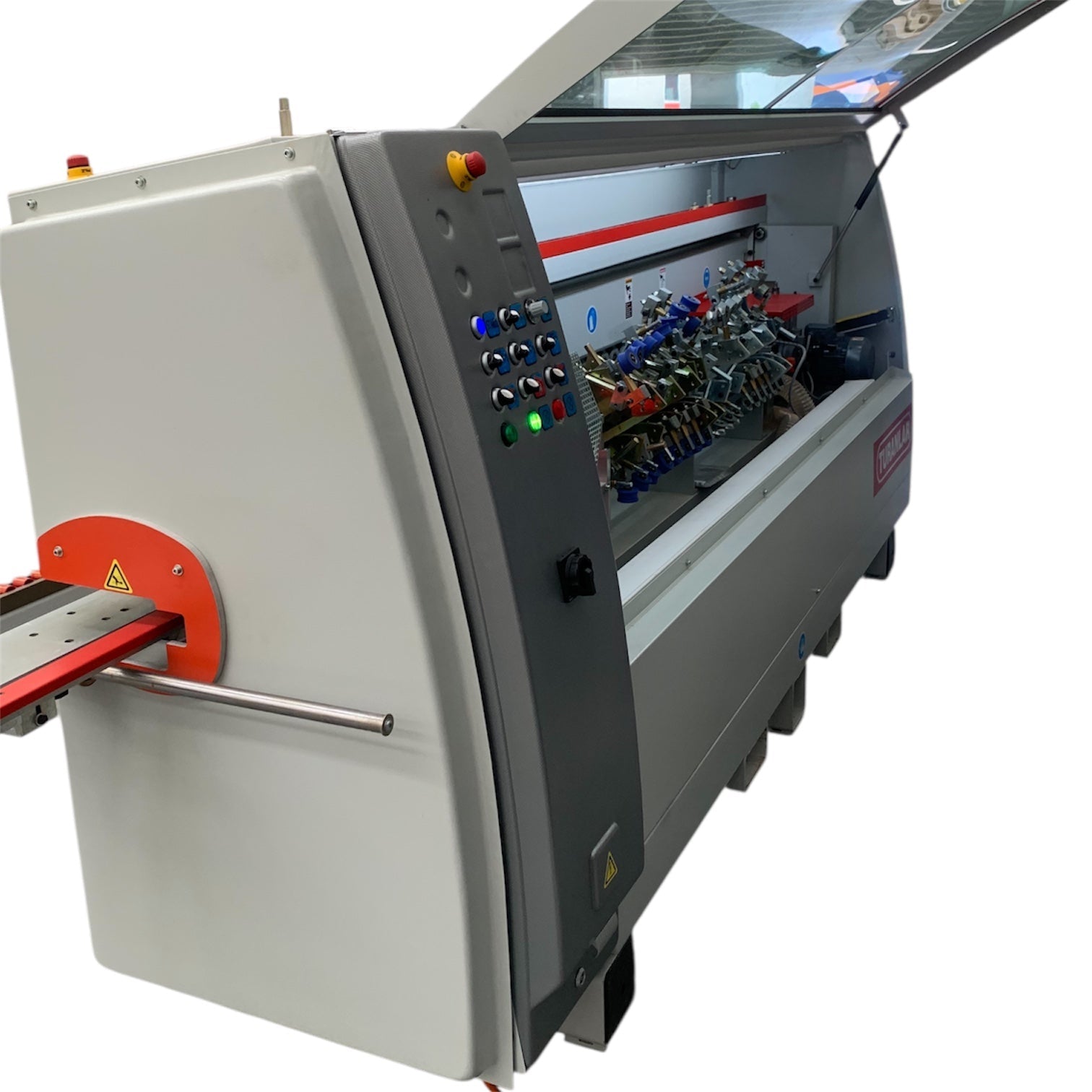

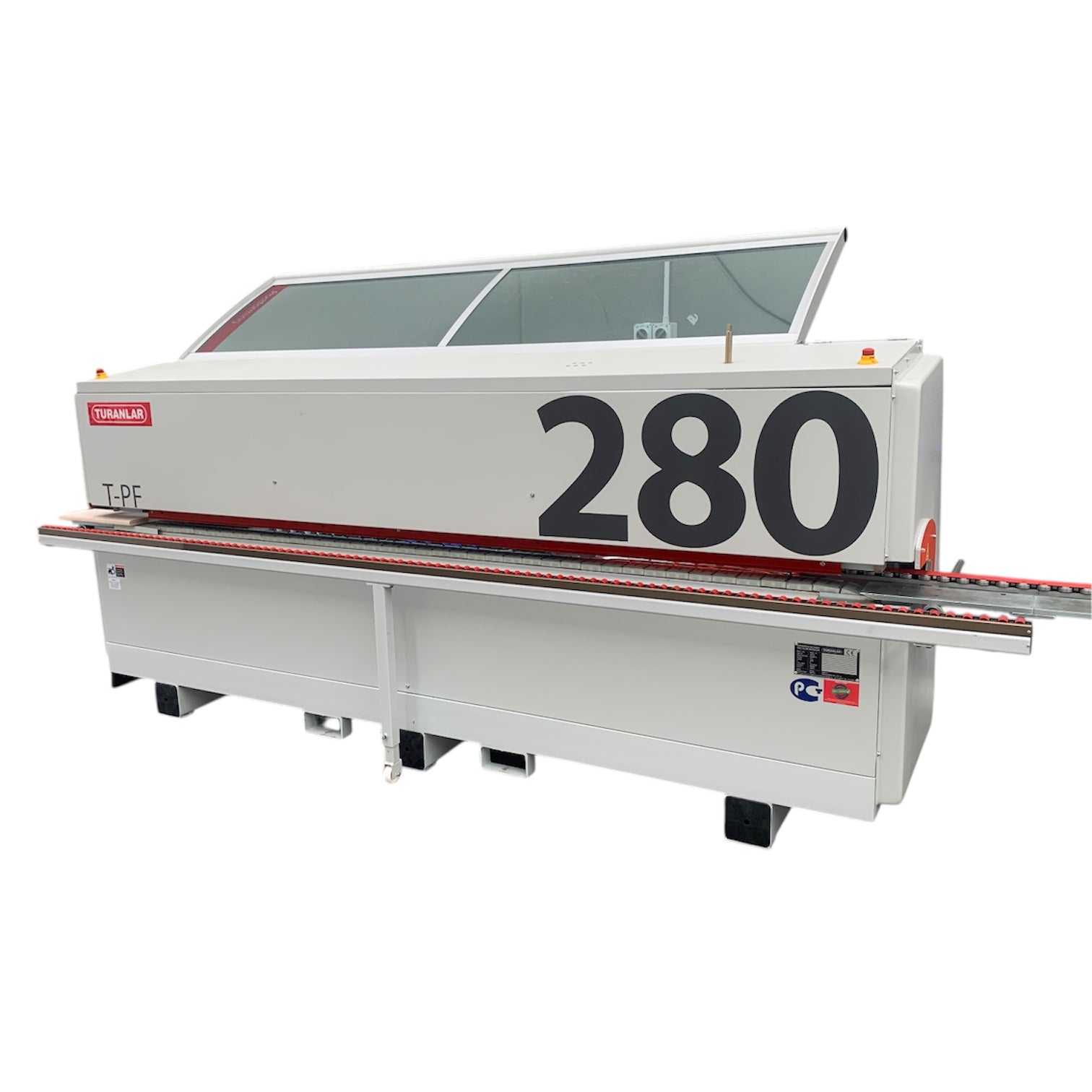

Flow Through Postformer T-PF280 by Turanlar
Flow Through Postformer T-PF280 by Turanlar
Flow Through Postformer T-PF280 by Turanlar
Flow Through Postformer T-PF280 by Turanlar
Roll over image to zoom in Click on image to zoom
Flow Through Postformer T-PF280 by TuranlarFlow Through Postformer T-PF280 by TuranlarFlow Through Postformer T-PF280 by TuranlarFlow Through Postformer T-PF280 by Turanlar

Flow Through Postformer T-PF280 by Turanlar

TuranlarSKU: 51989
Price:
$57,990.00
Stock:
Re-stocking soon

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

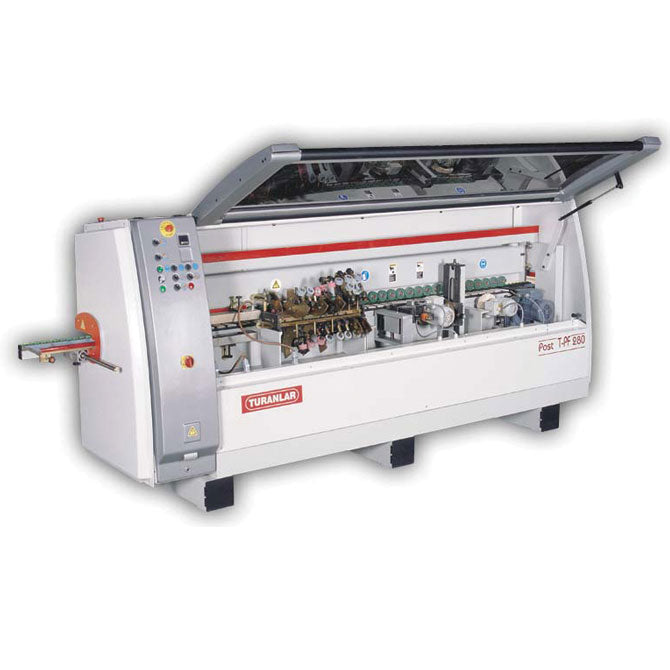

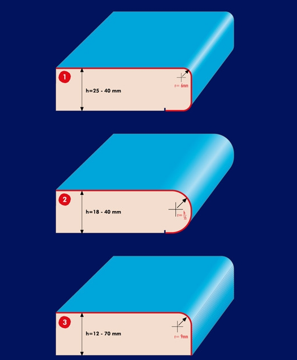

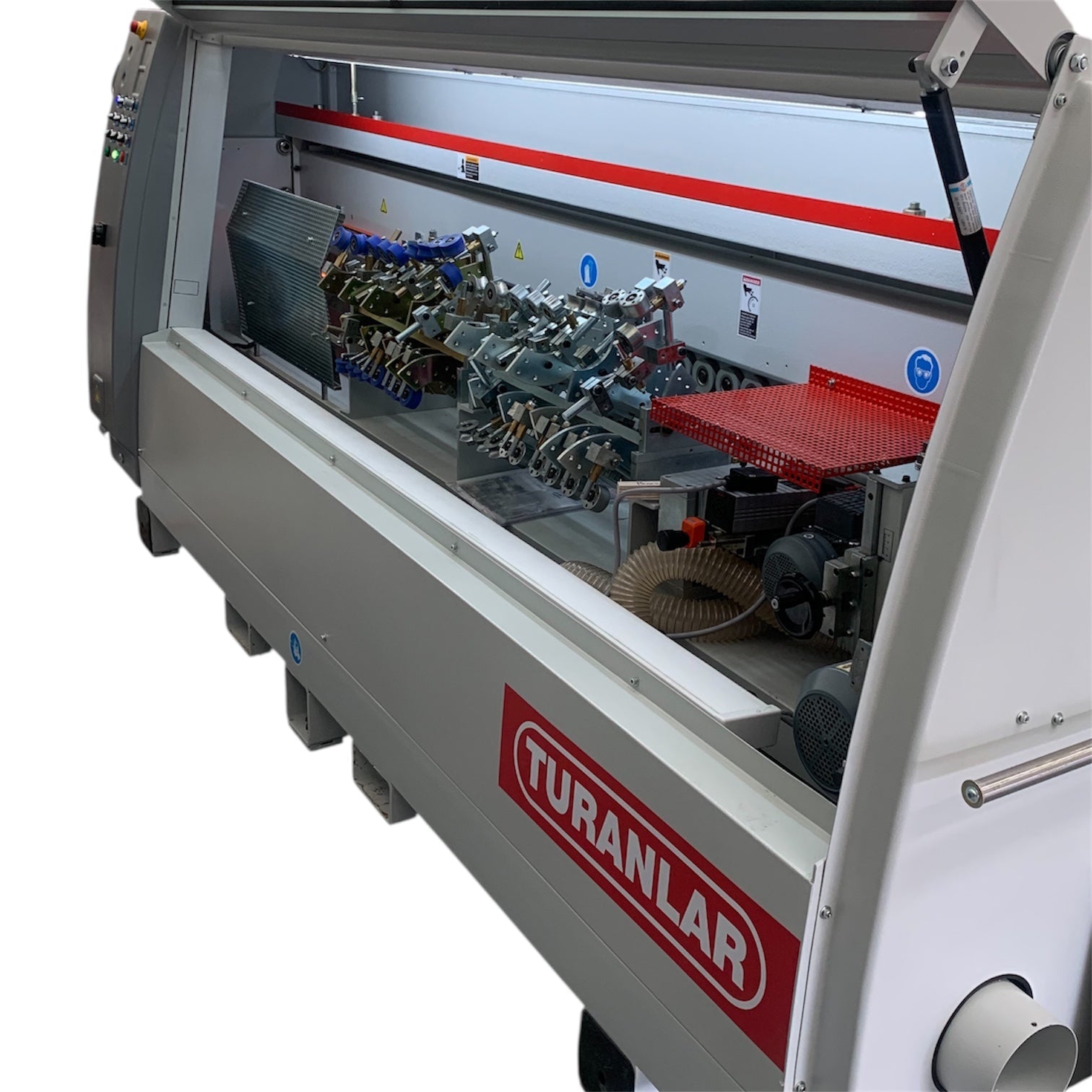

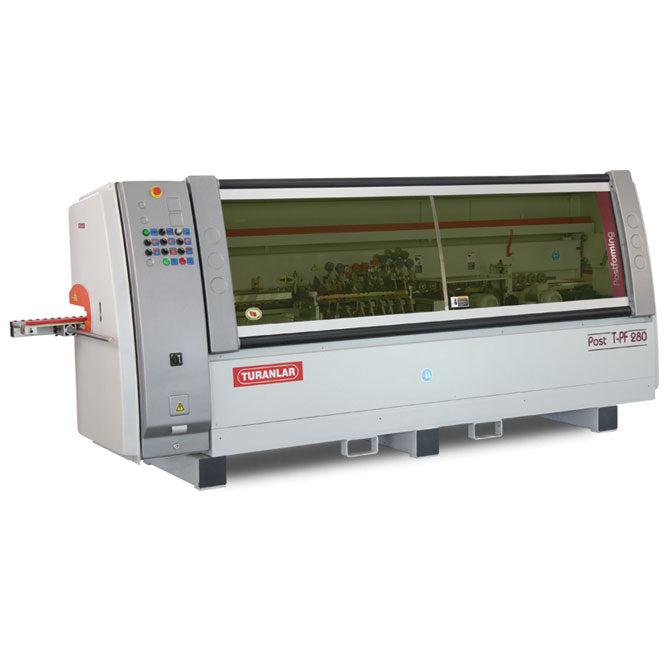

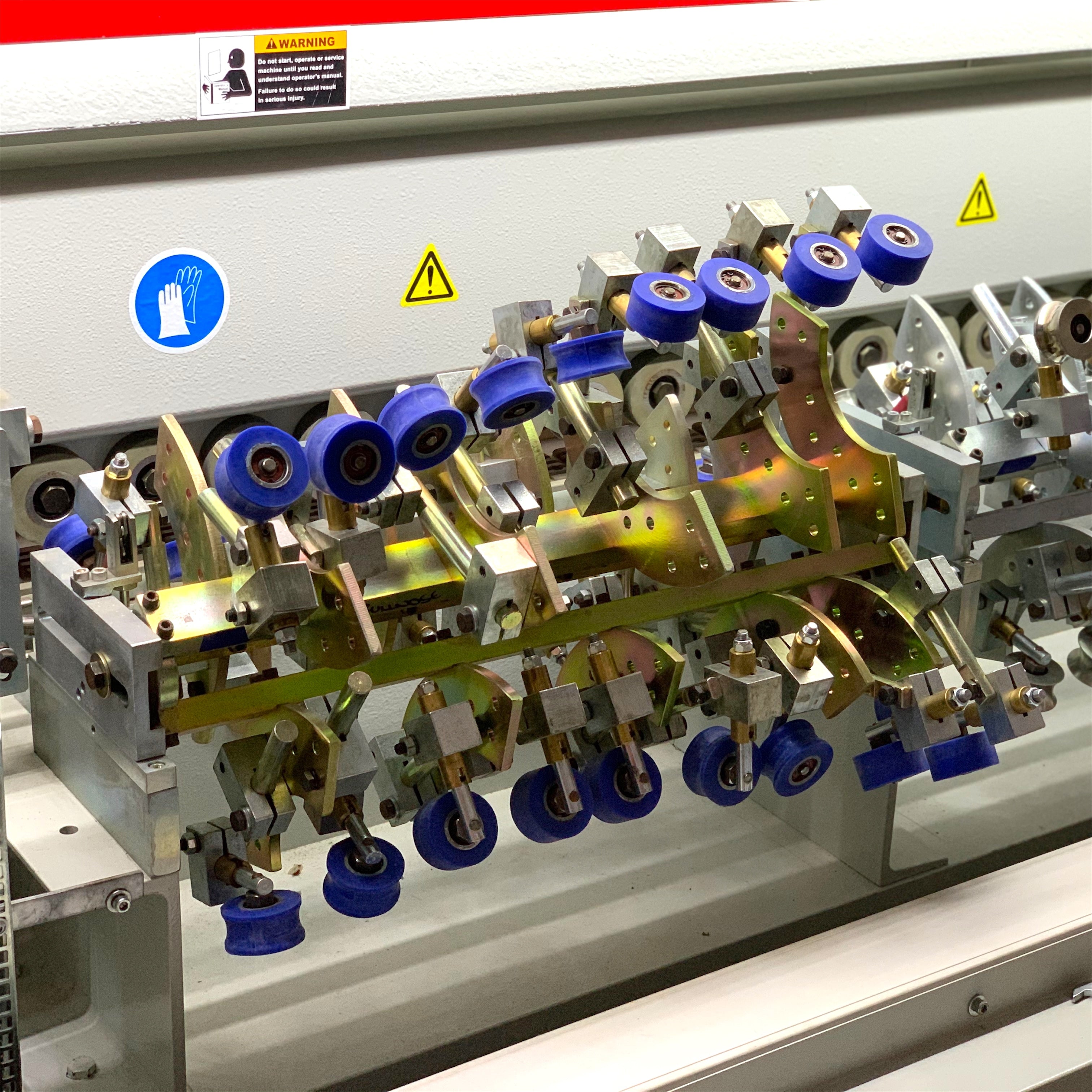

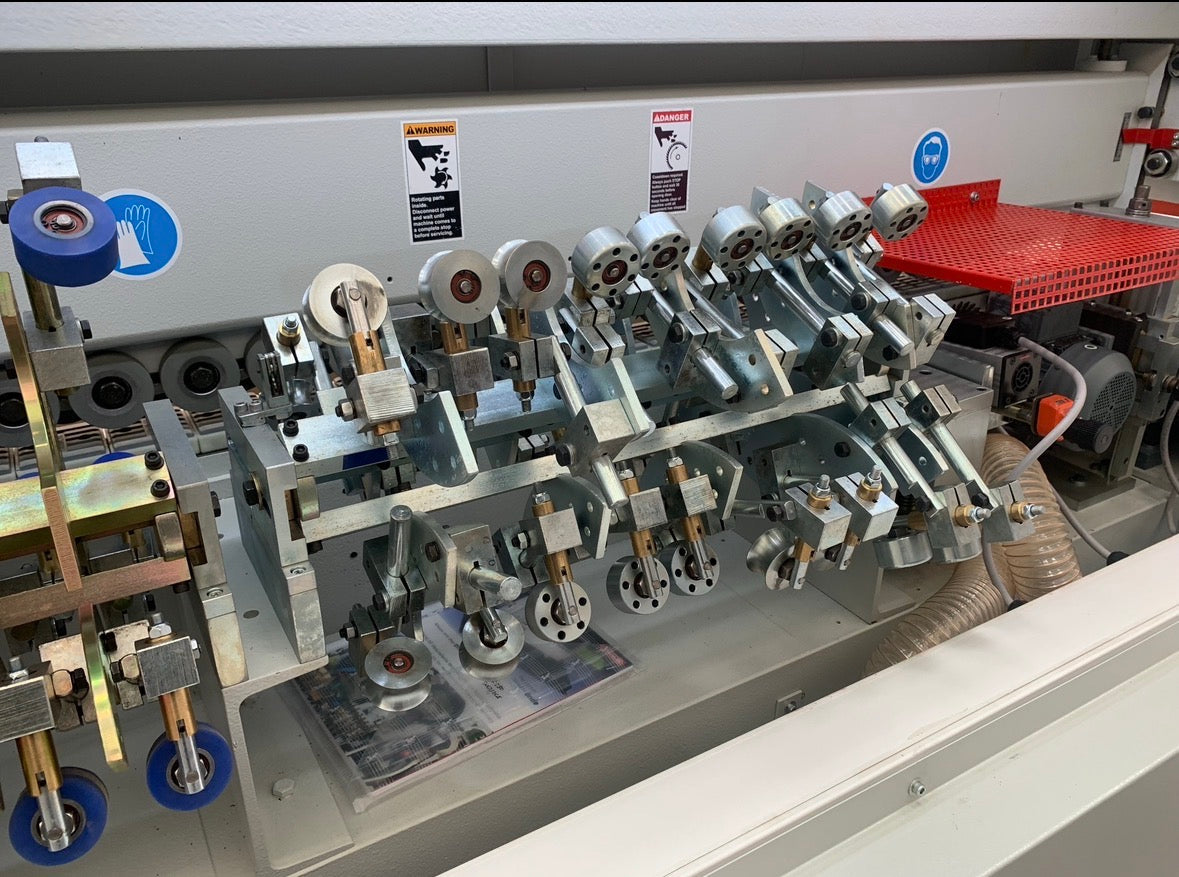

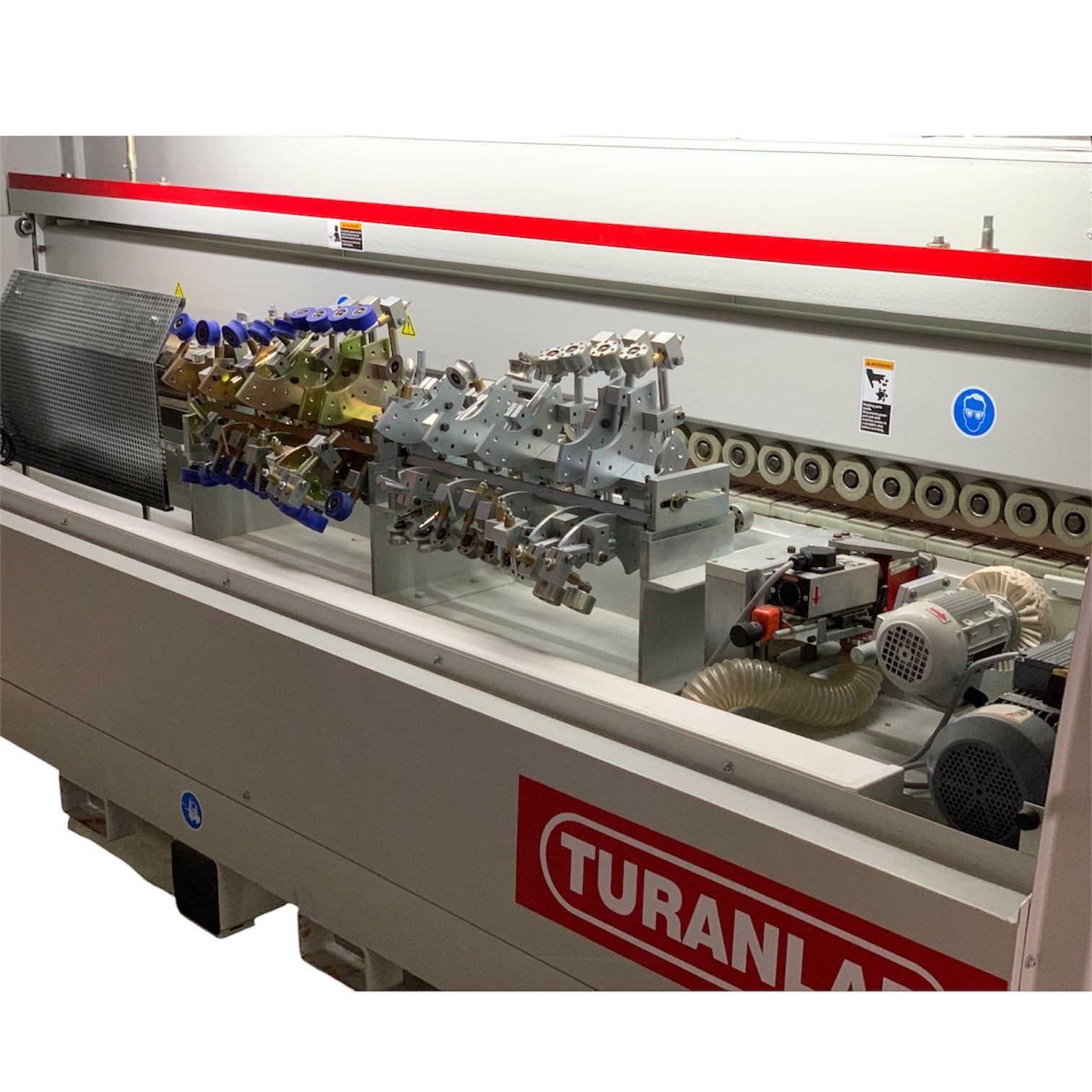

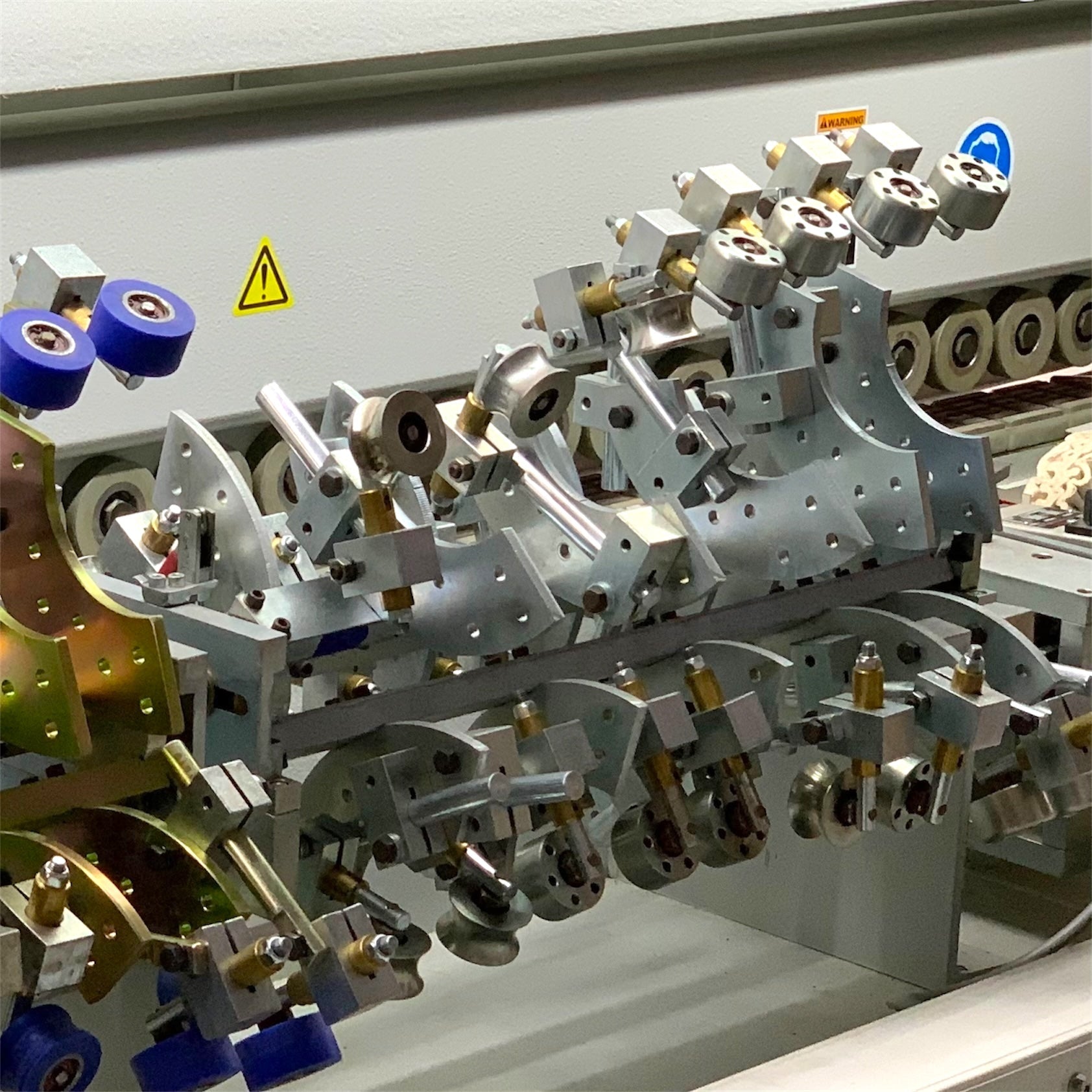

This Machine Curves and Softens the Laminate with Heating Lamps and Applies onto Profiled Edges utilising unique Feed Profile Rollers. The T-PF280 is extremely functional and equipped with Top-Bottom Infrared Medium Wave Heating Lamps, Profile Cartridge (which can be set for 3 different profiles), Cooling Rollers, End Milling Unit and Speed Adjustment.

Specification

  • Laminate Thickness: 0,4 - 1 mm
  • Laminate Height: 70 mm
  • Speed: 12 m/min.
  • Total Electrical Power: 7,6 kW

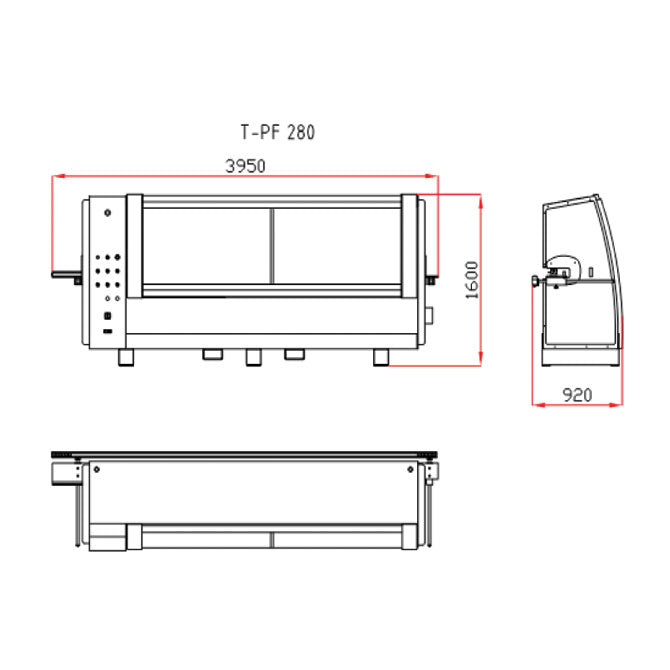

  • Working Height: 870 mm
  • Machine Width: 920 mm
  • Machine Length: 4000 mm
  • Machine Height: 1600 mm
  • Machine Weight: 1340 kg
  • Trimmer Power: 0,37 kW 12000 Rpm

INFRARED (MEDIUM WAVE) TOP & BOTTOM HEATERS UNIT
• They are 1750Watt/each, gold bladed glass tubes and imported from Germany.
• The big advantage with this heaters; the length of the panel does not matter at all,
customer can feed 4-5 meters table top and the temperature will remain same always as
on the beginning.
• Just 2-3 minutes to heat the elements is required at the beginning
• 15000 hours working time.

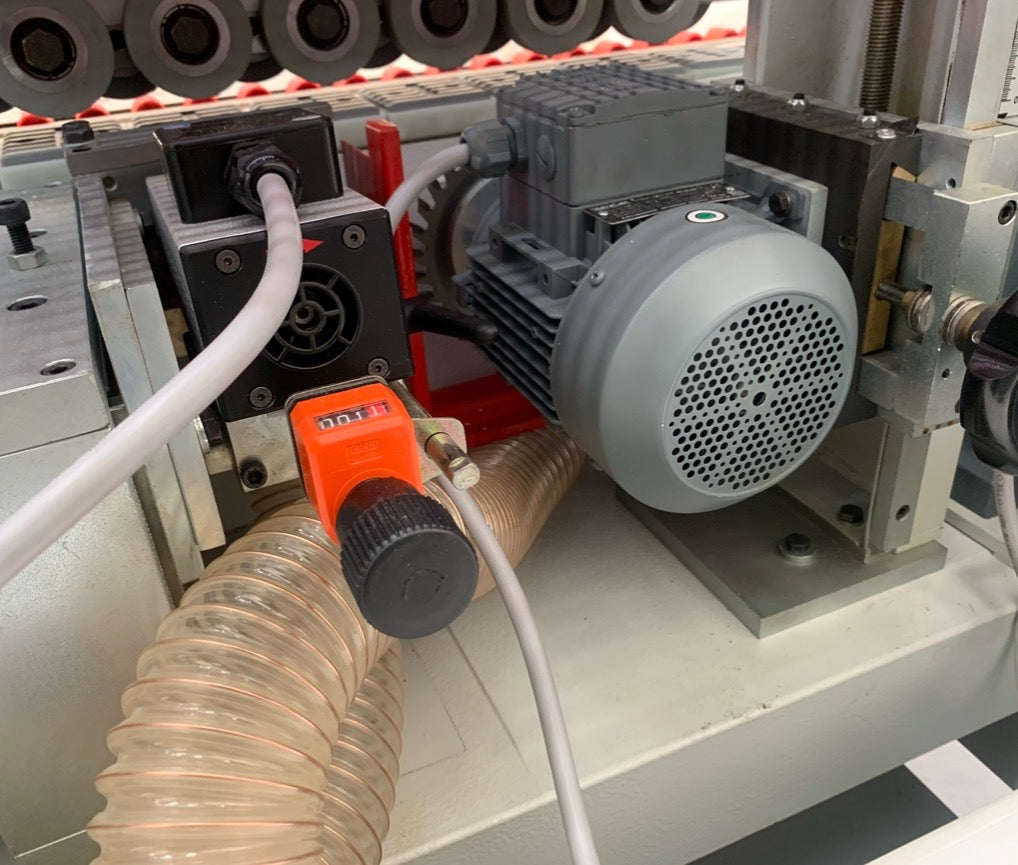

TRIMMING UNIT
High Frequency Italian Motor with 12000 rpm (same like the edgebanding trimming motors)
Placed on the bottom; in order to clean the amount in excess (overhangs) of the laminate.
Only to use for half turn (90 degree) profiles, when customers using full turn (180degree) this motor must not switched on and
move down little bit.

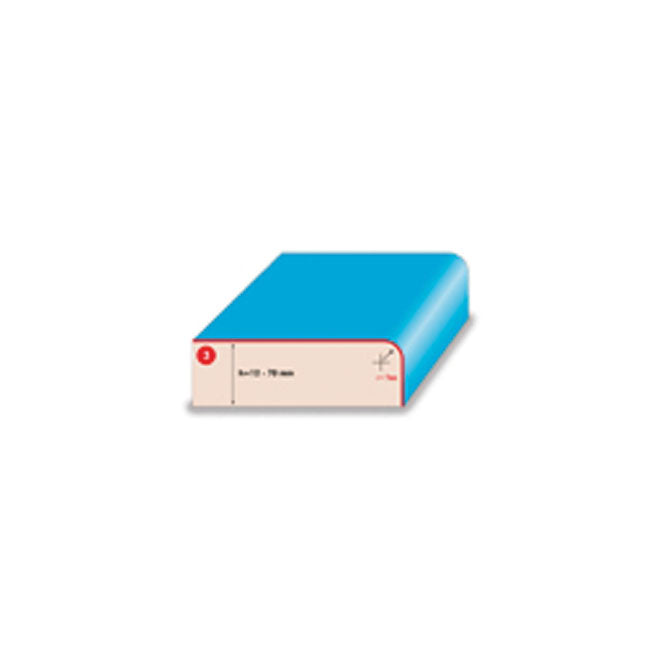

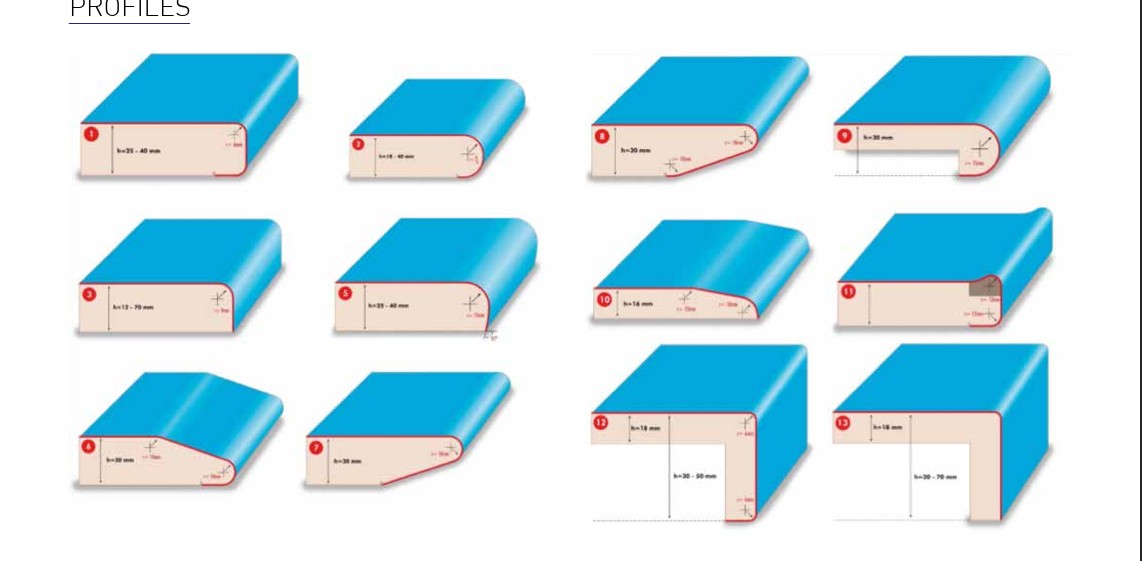

Sample profiles when you can use the trimming motors

GROOVING SAW UNIT
Especially for the kitchen-tops It is a very necessary unit, as you know, with the help of grooving unit most of the users are filling this
grooves with silicon, hot-melt or something else against to water drops.
Placed on the bottom like trimming unit.

BUFFING UNIT
Placed on the bottom like trimming and grooving units, it helps to clean the groove as the last process.

Additional Information

Model
Type
Postformer
SKU
51989
Part Number
T-PF280
Brand
Turanlar
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz 3 Phase
Dimensions
Product Length
4000mm
Product Width
920mm
Product Height
1600mm
Product Weight (Net Weight)
1340kg
Country of Origin
Manufactured in
Turkey
