Type
Fiber Pulsed Combination Laser Cleaning, Laser Welding, Laser Cutting Machine
SKU
8043101
Part Number
TCCWC-1500W
Brand
Toughcut
Status
Available
Description
Elevate Your Operations with the Toughcut TCCWC-1500W: Cutting, Welding, and Cleaning in One Powerful Machine
Product Overview

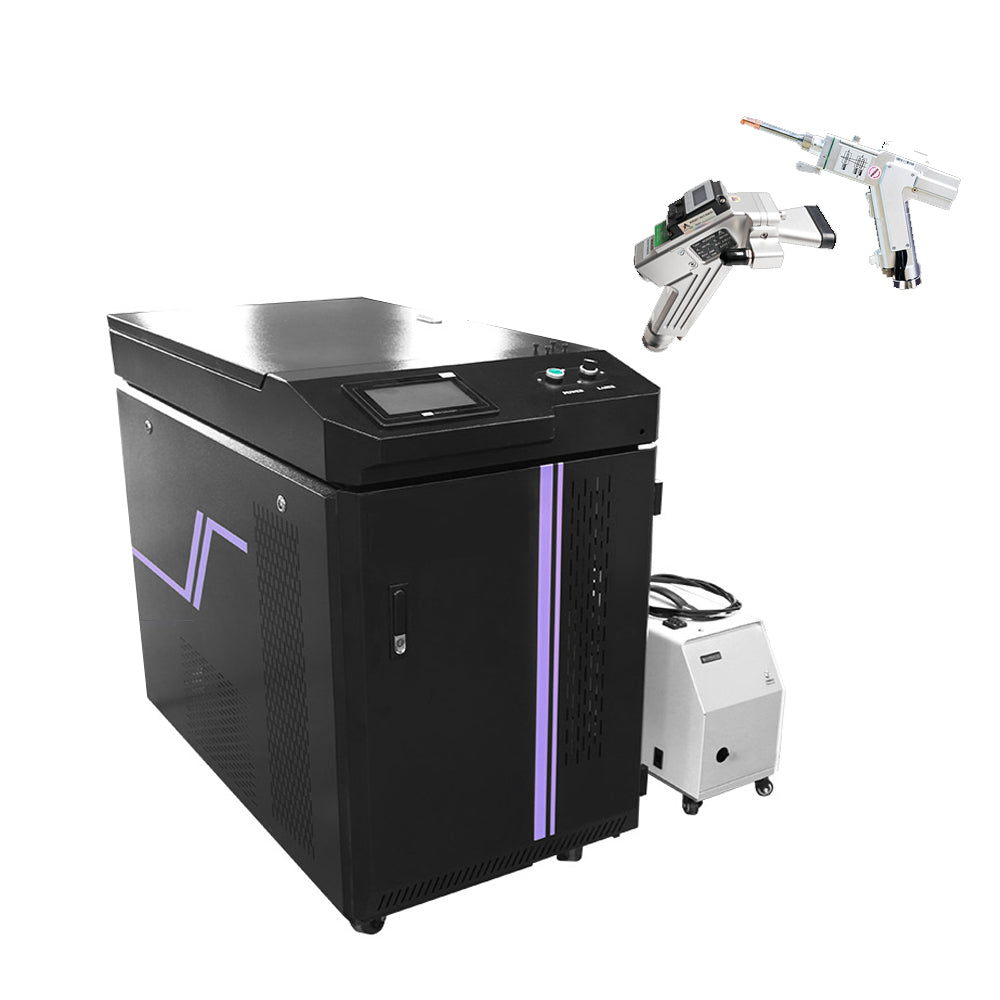

Introducing the Toughcut AKWH-1500W 3-in-1 Fiber Laser Machine, the ultimate solution for modern manufacturing needs. This versatile machine combines laser cutting, welding, and cleaning capabilities in one compact unit, providing unmatched flexibility and efficiency for a wide range of industrial applications.
Key Features
- Triple Functionality: Seamlessly switch between laser cutting, welding, and cleaning functions to meet diverse operational needs. Equipped with Ruida system, the conversion of each function is convenient and simple.
- High-Power Fiber Laser: Equipped with a robust 1500W fiber laser source (with custom made to order options to increase to 2000W or 3000W), delivering exceptional performance across all three functions.
- Precision and Accuracy: Advanced laser technology ensures fine cuts, strong welds, and thorough cleaning, all with minimal material waste.
- User-Friendly Interface: Intuitive control panel with an easy-to-use interface for quick setup and operation.
- Efficient Cooling System: Integrated cooling system maintains optimal performance and prolongs the machine's lifespan.
- Robust Build: Constructed with high-quality materials for durability and long-lasting performance in industrial environments.
- Automated Features: Includes automated systems to streamline operations and reduce manual labour.
- Portable design: The body has a compact and ergonomic design. The bottom of the fiber welder cleaner has wheels, which can be moved freely and can be taken to any workplace where welding and cleaning are required.
- Easy to operate: Fiber welder cleaning machine is easy to operate, and novice welders can master cleaning and welding operations with only a few hours of training. Reduce labour costs while improving quality, consistency, and productivity.
- Economical: The fiber welding cleaning machine is an economical and intelligent innovative product. For different application scenarios, the corresponding nozzle nozzles can be easily and quickly replaced, making tedious processing simple and efficient.
Technical Specifications
- Laser Power: 1500W
- Cutting Speed: 0-120mm/sec
- Welding Speed: Adjustable based on material and thickness
- Welding Gap Requirements: ≤0.5mm
-
Welding Depth: 0.1 - 4mm
- Cleaning Efficiency: High-efficiency cleaning with adjustable parameters at 12m2/Hr
- Repeat Precision: ±0.01mm
- Scanning Width: 10-80mm
- Pulse Frequency: 30-80KHz
- Laser Wavelength: 1080nM
- Supported Materials: Stainless steel, carbon steel, aluminium, brass, copper, and more
- Cooling System: Water-cooled
-
Control System: CNC control panel with touchscreen interface
- Expected Focal Distance: 160mm
-
Cable Length: 10m
Applications
- Automotive Manufacturing: Precision cutting, strong welding, and effective cleaning of metal components.
- Aerospace Engineering: High-precision cutting and welding for complex aerospace parts, with efficient cleaning.
- Metal Fabrication: Versatile cutting, welding, and cleaning for various fabrication needs.
- Electronics: Fine cutting and welding for electronic components, with precise cleaning.
- Medical Devices: Precision cutting, welding, and cleaning for medical equipment and instruments.
Why Choose Toughcut AKWH-1500W?
- Unmatched Versatility: Combines cutting, welding, and cleaning in one machine, offering flexibility for various tasks.
- High Efficiency: Speed up your production process with high cutting and welding speeds, and efficient cleaning.
- Precision and Quality: Achieve superior cut quality, strong welds, and thorough cleaning with minimal waste.
- Durability: Built to withstand rigorous industrial use, ensuring long-term reliability.
Equipment Features

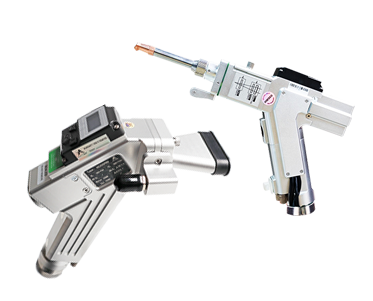

Au3tech Laser Cleaning and Welding Gun
The 3 in 1 handheld laser gun supports welding, cleaning, and cutting. It adopts a handheld design, which is comfortable to hold and can flexibly respond to various objects and angles. Easy to operate and portable to move.
The intelligent cleaning welding gun with temperature monitoring can monitor the protective lens and give early warning of damage. It is easy to use, flexible in processing, small in size, easy to carry, and low in operation and maintenance costs.
The intelligent cleaning welding gun with temperature monitoring can monitor the protective lens and give early warning of damage. It is easy to use, flexible in processing, small in size, easy to carry, and low in operation and maintenance costs.

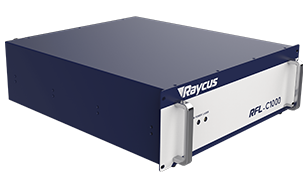

Raycus Laser Generator
Raycus has an efficient and professional R&D and production team, which is the top quality in China.
The lasers have higher electro-optical conversion efficiency, higher and more stable optical quality. Low error rate, low power consumption, maintenance-free and compact.
The lasers have higher electro-optical conversion efficiency, higher and more stable optical quality. Low error rate, low power consumption, maintenance-free and compact.

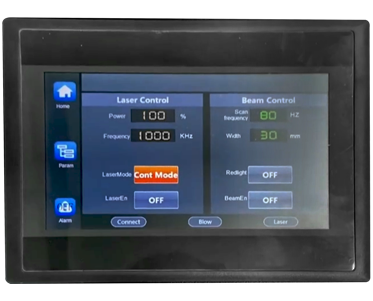

Au3tech Controller
Laser welding machine support a variety of different swing types, automatic wire feeding and other functions.
The system is easy to operate and can display real-time input and output IO status, alarm information and motion status.
The process parameter library is stored in the laser cleaning and welding machine. Each mode corresponds to different parameter settings. After saving, you can directly select the corresponding mode next time without setting the parameters again.
The system is easy to operate and can display real-time input and output IO status, alarm information and motion status.
The process parameter library is stored in the laser cleaning and welding machine. Each mode corresponds to different parameter settings. After saving, you can directly select the corresponding mode next time without setting the parameters again.

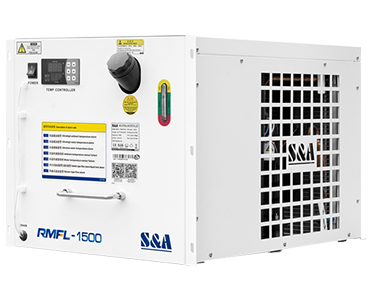

S&A Water Chiller
Specially developed for fiber laser equipment, excellent cooling effect. It has safe, durable, and stable working performance with long service life.
The built-in chiller design can avoid the shackles of wires to fit more sites and has good dustproof effects. A powerful and stable water cooling system will ensure the perfect working of the fiber laser source.
The built-in chiller design can avoid the shackles of wires to fit more sites and has good dustproof effects. A powerful and stable water cooling system will ensure the perfect working of the fiber laser source.

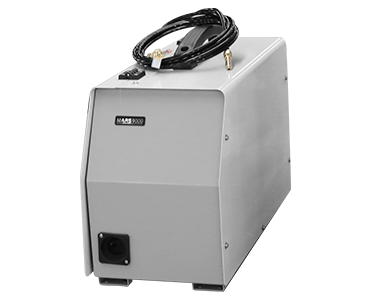

Automatic Wire Feeder
High wire feeding accuracy and good repeatability. The disadvantages of unstable and low efficiency of manual wire feeding are avoided.
Contact Us
For more information or to request a quote, contact us. Upgrade your operational capabilities with the Toughcut AKWH-1500W 3-in-1 Fiber Laser Machine today!
YouTube Videos
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
6000W (8HP)
Laser Class
Laser Class
Laser classes are categories assigned to lasers based on their potential to cause harm to humans, particularly to the eyes and skin. The classification system is designed to indicate the level of risk associated with the laser's power output and wavelength, guiding the necessary safety precautions for their use. The classes range from Class 1 (safest) to Class 4 (most hazardous).
Class 1: Safe under all conditions of normal use. Used in CD/DVD players, laser printers, barcode scanners. No special precautions needed.
Class 1M: Safe except when viewed with optical instruments. Used in fiber optic systems, measurement tools. Avoid using optical instruments to view the beam.
Class 2: Safe for brief exposure due to blink reflex. Used in laser pointers, alignment lasers. Do not stare into the beam.
Class 2M: Safe for brief exposure unless viewed with optical instruments. Used in alignment tools, rangefinders. Avoid using optical instruments to view the beam.
Class 3R: Low risk of injury, up to 5 mW. Used in laser pointers, alignment lasers. Avoid direct eye exposure.
Class 3B: Can cause eye and skin injuries, up to 500 mW. Used in research, some medical devices. Use safety goggles and avoid direct exposure.
Class 4: High risk, can cause severe injuries and fire hazards, above 500 mW. Used in industrial cutting, welding, medical, research. Use protective equipment and follow strict safety measures.
Class 1: Safe under all conditions of normal use. Used in CD/DVD players, laser printers, barcode scanners. No special precautions needed.
Class 1M: Safe except when viewed with optical instruments. Used in fiber optic systems, measurement tools. Avoid using optical instruments to view the beam.
Class 2: Safe for brief exposure due to blink reflex. Used in laser pointers, alignment lasers. Do not stare into the beam.
Class 2M: Safe for brief exposure unless viewed with optical instruments. Used in alignment tools, rangefinders. Avoid using optical instruments to view the beam.
Class 3R: Low risk of injury, up to 5 mW. Used in laser pointers, alignment lasers. Avoid direct eye exposure.
Class 3B: Can cause eye and skin injuries, up to 500 mW. Used in research, some medical devices. Use safety goggles and avoid direct exposure.
Class 4: High risk, can cause severe injuries and fire hazards, above 500 mW. Used in industrial cutting, welding, medical, research. Use protective equipment and follow strict safety measures.
Class 4
Laser Style
Laser Style
Fiber Lasers
High-efficiency lasers using doped optical fibers; excellent beam quality, used in cutting, welding, and telecommunications.
Continuous Wave (CW) Lasers
Emit steady, uninterrupted beams; used for continuous material processing and research, require robust cooling.
Pulsed Lasers
Emit high-energy bursts; ideal for precision applications like micro-machining, engraving, and medical procedures.
Fiber Pulsed Lasers
Combine fiber laser efficiency with pulsed operation; used for precise tasks in micro-machining, engraving, and medical fields.
Gas Lasers
Use gases like CO2 or helium-neon; high beam quality, common in cutting, engraving, and scientific research.
Solid-State Lasers
Use solid gain media like crystals or glass; versatile applications including medical procedures, material processing, and laser ranging.
Dye Lasers
Use liquid dyes as the gain medium; tunable wavelengths, used in spectroscopy and medical treatments.
Semiconductor Lasers (Diode Lasers)
Compact, efficient lasers using semiconductor materials; common in communications, barcode scanning, and laser printing.
High-efficiency lasers using doped optical fibers; excellent beam quality, used in cutting, welding, and telecommunications.
Continuous Wave (CW) Lasers
Emit steady, uninterrupted beams; used for continuous material processing and research, require robust cooling.
Pulsed Lasers
Emit high-energy bursts; ideal for precision applications like micro-machining, engraving, and medical procedures.
Fiber Pulsed Lasers
Combine fiber laser efficiency with pulsed operation; used for precise tasks in micro-machining, engraving, and medical fields.
Gas Lasers
Use gases like CO2 or helium-neon; high beam quality, common in cutting, engraving, and scientific research.
Solid-State Lasers
Use solid gain media like crystals or glass; versatile applications including medical procedures, material processing, and laser ranging.
Dye Lasers
Use liquid dyes as the gain medium; tunable wavelengths, used in spectroscopy and medical treatments.
Semiconductor Lasers (Diode Lasers)
Compact, efficient lasers using semiconductor materials; common in communications, barcode scanning, and laser printing.
Fiber
Laser Technology
Laser Technology
Fiber Lasers
Efficient, high-quality beam from doped optical fiber; versatile for cutting, welding, and telecommunications.
Continuous Wave (CW) Lasers
Emits steady, uninterrupted beam; suitable for large work area cleaning, continuous processing and research, requires cooling.
Pulsed Lasers
Emits high-energy bursts; ideal for precision tasks like micro-machining and medical procedures.
Fiber Pulsed Lasers
High-efficiency fiber lasers emitting high-energy pulses; excellent for high precision tasks like micro-machining, mold cleaning, engraving, and medical procedures.
Efficient, high-quality beam from doped optical fiber; versatile for cutting, welding, and telecommunications.
Continuous Wave (CW) Lasers
Emits steady, uninterrupted beam; suitable for large work area cleaning, continuous processing and research, requires cooling.
Pulsed Lasers
Emits high-energy bursts; ideal for precision tasks like micro-machining and medical procedures.
Fiber Pulsed Lasers
High-efficiency fiber lasers emitting high-energy pulses; excellent for high precision tasks like micro-machining, mold cleaning, engraving, and medical procedures.
Pulse Laser Formation: Q-Switched (Quality Factor)
Laser Function
3 in 1 (Cleaning, Welding, Cutting)
Laser Power
0-1500W Output Power (Adjustable)
Laser Invisible Wavelength (Nm)
Laser Invisible Wavelength (Nm)
Invisible wavelengths refer to electromagnetic radiation that falls outside the visible spectrum, meaning they cannot be perceived by the human eye. These wavelengths range from ultraviolet (UV) through infrared (IR), encompassing frequencies shorter or longer than those of visible light (approximately 400 nm to 700 nm).
Laser products operate at various wavelengths, ranging from visible (450 nm) to near-infrared (1064 nm), rated for high-efficiency industrial applications. These wavelengths, whether visible or invisible to the human eye, are optimised for tasks including cutting, welding, and cleaning.
Safety Considerations:
UV radiation can cause skin damage and eye injuries.
IR radiation, especially at high power levels, can cause burns and eye damage without proper protection.
Safety Notice:
Laser Class: Ranges from Class 1 to Class 4
Eye Protection: Use laser safety goggles rated for the specific wavelength of the laser product.
Fire Risk: Keep flammable materials away from the laser beam path to prevent fire hazards.
Enclosures: Ensure lasers are operated within appropriate safety enclosures and with proper warning labels.
Applications:
450 nm (Visible): Suitable for tasks requiring visible light, such as alignment and pointing.
700 nm - 1064 nm (Near-Infrared): Ideal for precision cutting, industrial welding, surface cleaning, and scientific research.
Laser products operate at various wavelengths, ranging from visible (450 nm) to near-infrared (1064 nm), rated for high-efficiency industrial applications. These wavelengths, whether visible or invisible to the human eye, are optimised for tasks including cutting, welding, and cleaning.
Safety Considerations:
UV radiation can cause skin damage and eye injuries.
IR radiation, especially at high power levels, can cause burns and eye damage without proper protection.
Safety Notice:
Laser Class: Ranges from Class 1 to Class 4
Eye Protection: Use laser safety goggles rated for the specific wavelength of the laser product.
Fire Risk: Keep flammable materials away from the laser beam path to prevent fire hazards.
Enclosures: Ensure lasers are operated within appropriate safety enclosures and with proper warning labels.
Applications:
450 nm (Visible): Suitable for tasks requiring visible light, such as alignment and pointing.
700 nm - 1064 nm (Near-Infrared): Ideal for precision cutting, industrial welding, surface cleaning, and scientific research.
1080
Dimensions
Product Length
1360 mm
Product Width
760 mm
Product Height
1420 mm
Product Weight (Net Weight)
242 kg
Country of Origin
Manufactured in
China
Features
Standard Inclusions
Au3tech Hand Held Laser Cleaning Head + Laser Welding Head
Au3tech controller
1500W power laser generator
Professional industry water chiller
10m cable length
1 x off Pce Focusing mirror for cleaning
1 x off Pce Focusing mirror for welding
5 x off Pce Protection lens Transmittance ≥99.95%
1 x off Protective glasses
7 x off Welding Nozzles
1 x off Laser and computer cable
Lens wipe paper
Au3tech controller
1500W power laser generator
Professional industry water chiller
10m cable length
1 x off Pce Focusing mirror for cleaning
1 x off Pce Focusing mirror for welding
5 x off Pce Protection lens Transmittance ≥99.95%
1 x off Protective glasses
7 x off Welding Nozzles
1 x off Laser and computer cable
Lens wipe paper
Safety
CE Certified
Workshop (Site) Info
Workshop Requirements
SAFETY RISK
Class 4 - These lasers are high-power devices capable of producing diffuse reflections hazardous to the eye. Skin exposure to the direct beam of a Class 4 laser is also hazardous. These lasers must not be used for building or construction tasks.
Class 4 lasers may also be a fire hazard.
For more details visit:
https://www.safeworkaustralia.gov.au/system/files/documents/1702/laser_classification_and_potential_hazards.pdf
The use of appropriate personal protective equipment (PPE), such as laser safety glasses or goggles must be worn. These PPE must be specifically designed for the wavelength and power of the laser being used, and must be worn at all times when working with the laser to protect against eye injury. Protective Clothing: Wear appropriate protective clothing to prevent skin exposure.
Appropriate workshop signage must be used and appropriate safety barriers.
Odour & Fume Extraction + Natural Ventilation (Preferable) Required
Class 4 - These lasers are high-power devices capable of producing diffuse reflections hazardous to the eye. Skin exposure to the direct beam of a Class 4 laser is also hazardous. These lasers must not be used for building or construction tasks.
Class 4 lasers may also be a fire hazard.
For more details visit:
https://www.safeworkaustralia.gov.au/system/files/documents/1702/laser_classification_and_potential_hazards.pdf
The use of appropriate personal protective equipment (PPE), such as laser safety glasses or goggles must be worn. These PPE must be specifically designed for the wavelength and power of the laser being used, and must be worn at all times when working with the laser to protect against eye injury. Protective Clothing: Wear appropriate protective clothing to prevent skin exposure.
Appropriate workshop signage must be used and appropriate safety barriers.
Odour & Fume Extraction + Natural Ventilation (Preferable) Required
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (2 Years for Laser Generator)
Packaging + Shipping
Shipping Length
1360 mm
Shipping Width
740 mm
Shipping Height
1355 mm
Shipping Weight (Gross)
290.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
