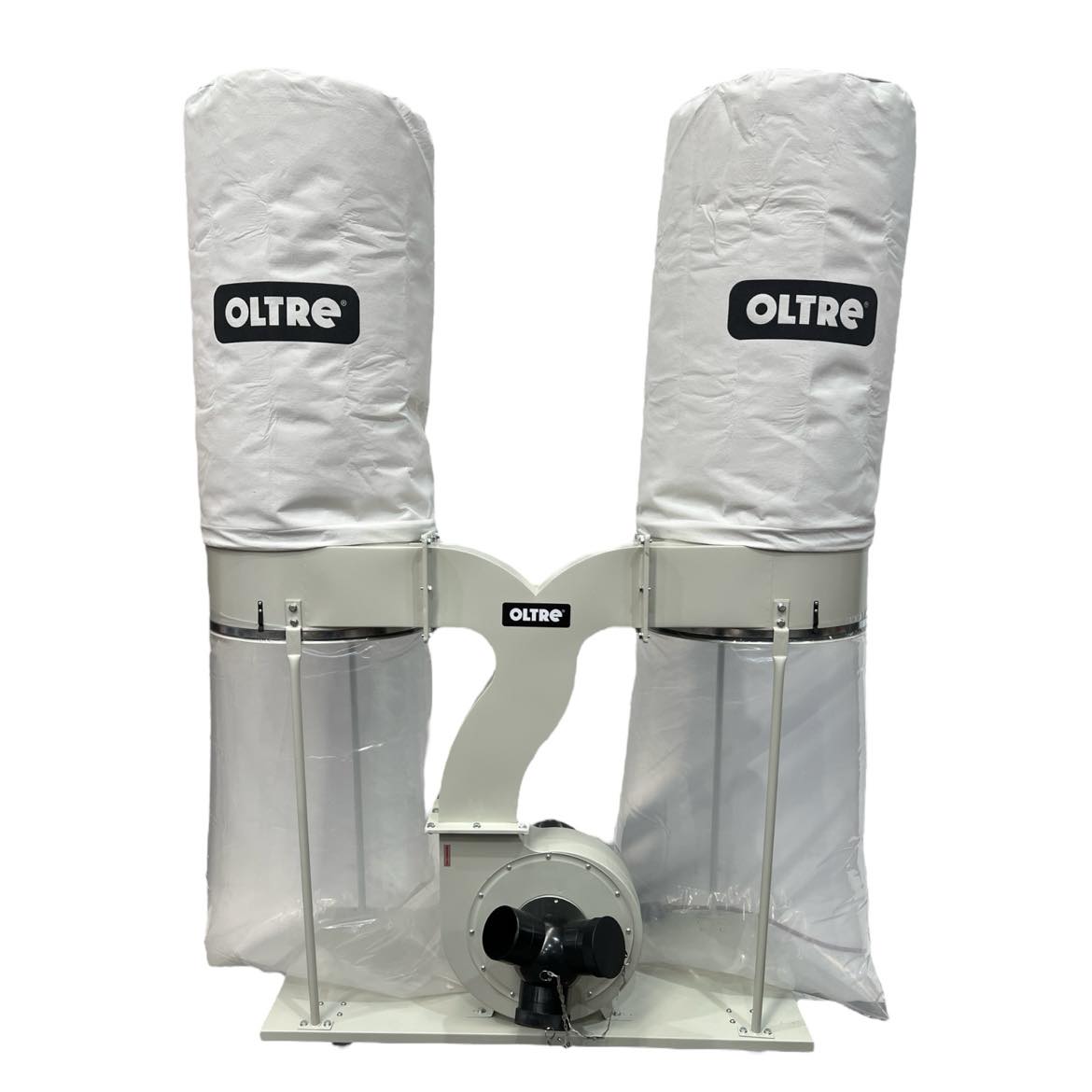

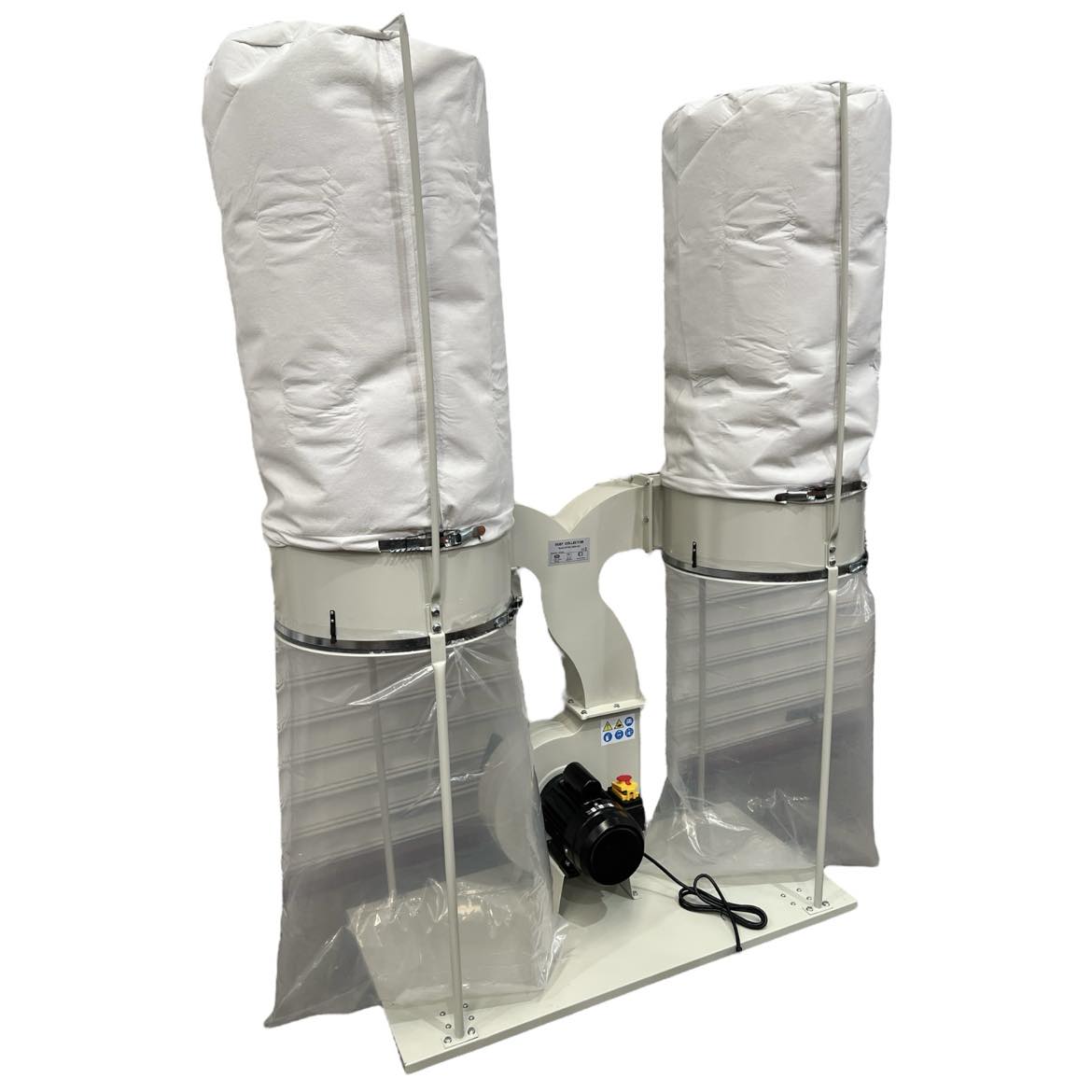

Type

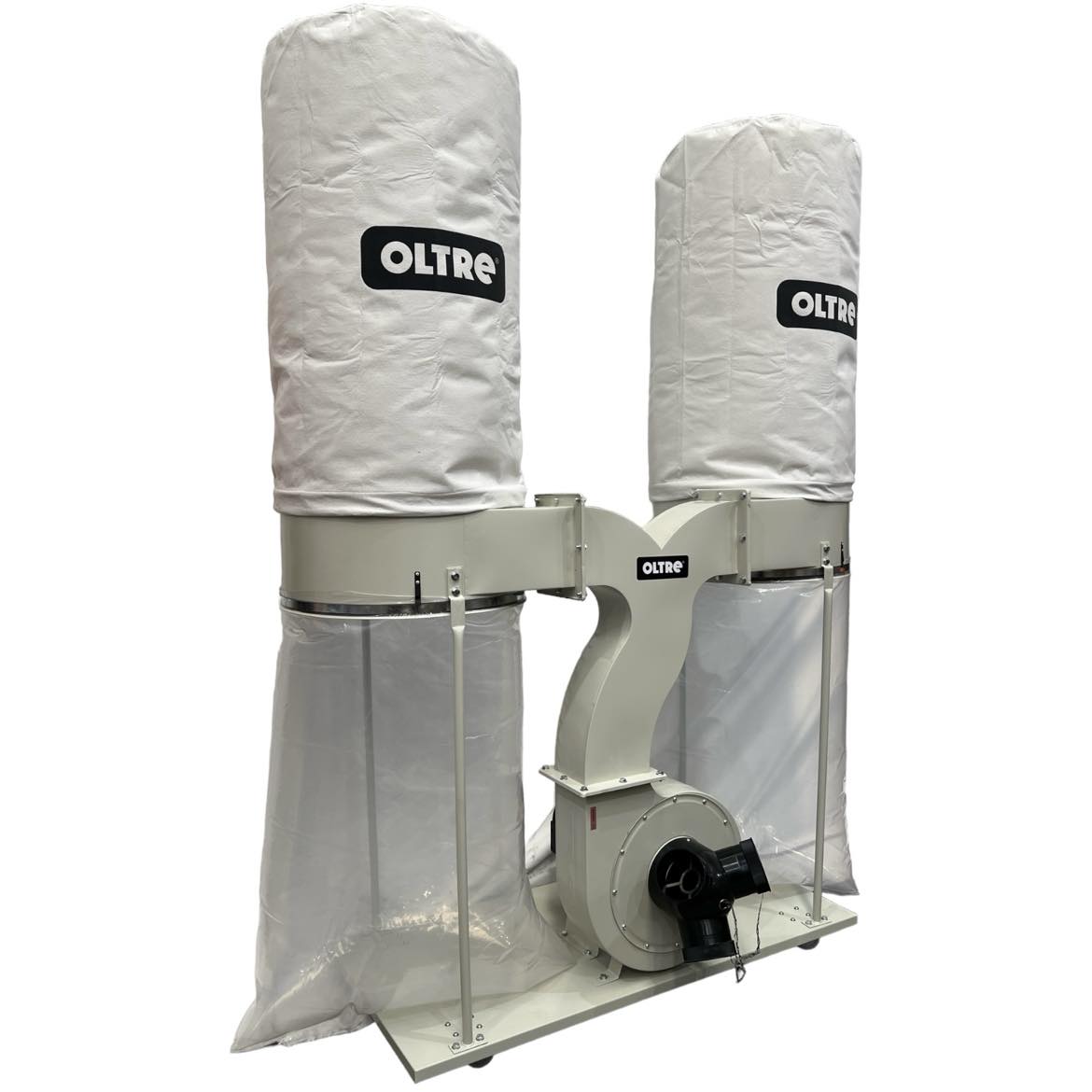

Dust Collector
SKU
52256
Part Number
OT-DC-3800-415
Brand
Oltre
Status
Available
Description
Specifications:
- Air Speed: 2500CFM
- Fan Diameter: 305mm
- Inlet Diameter: 150mm

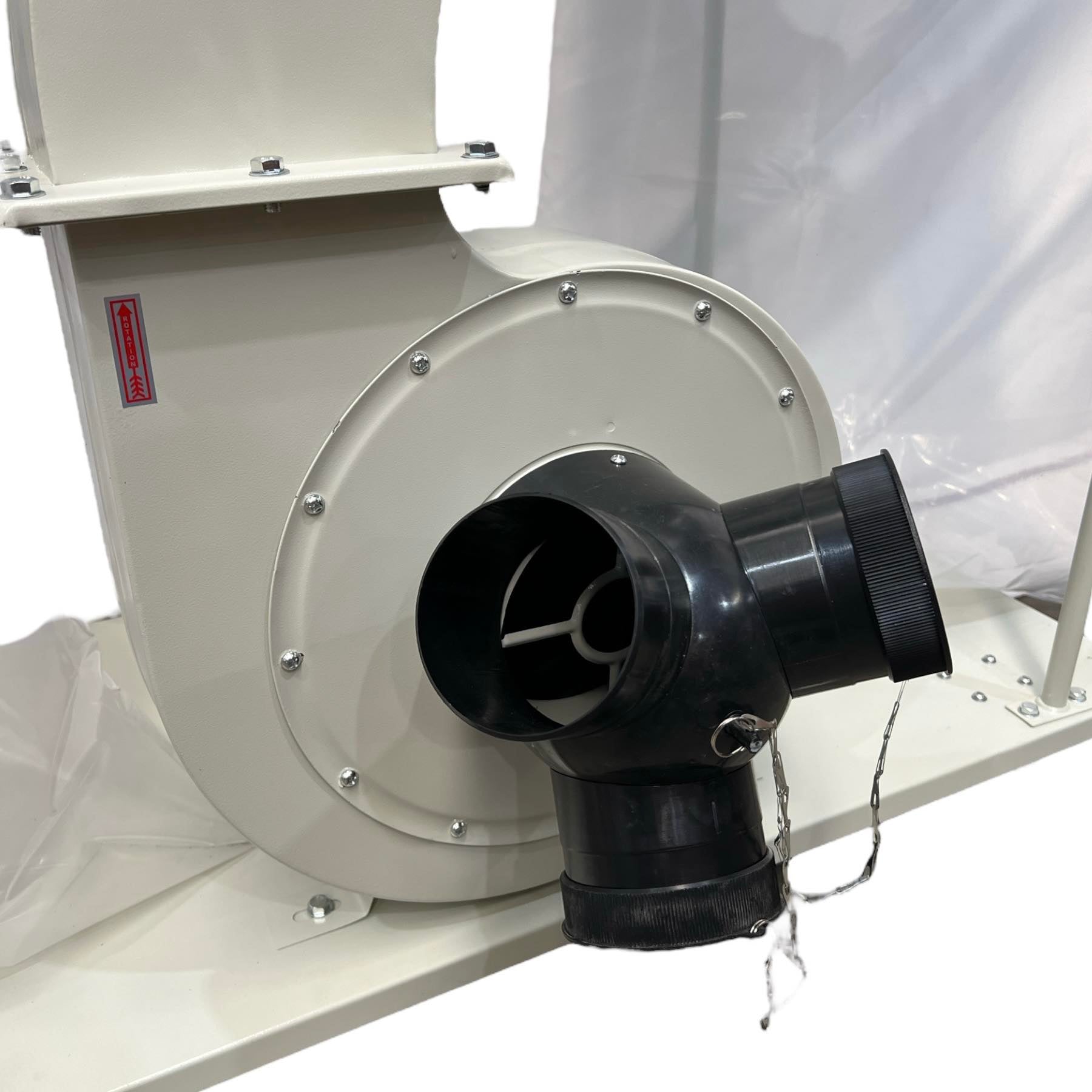

- No. Intake Holes: 3 x 100mm

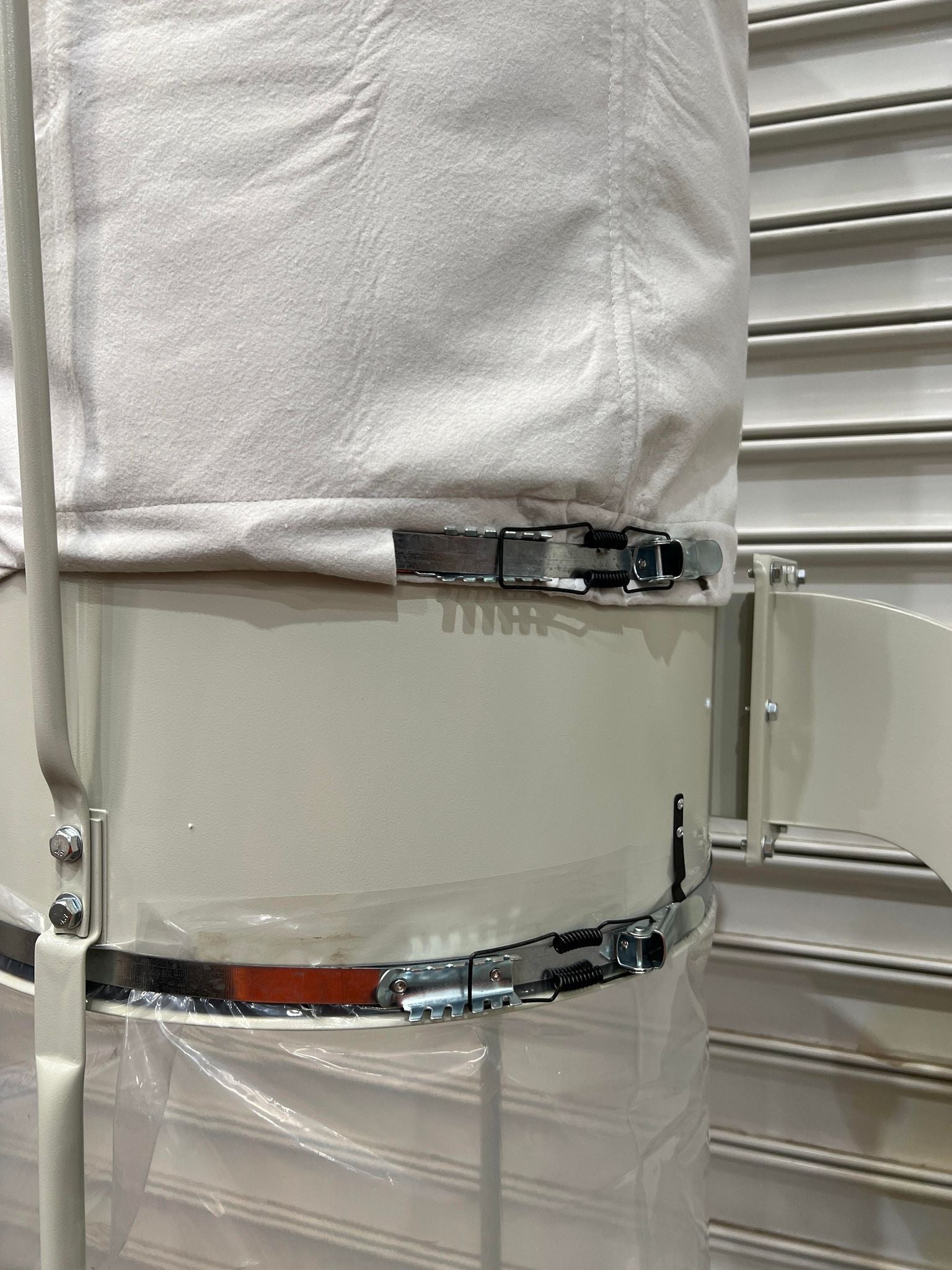

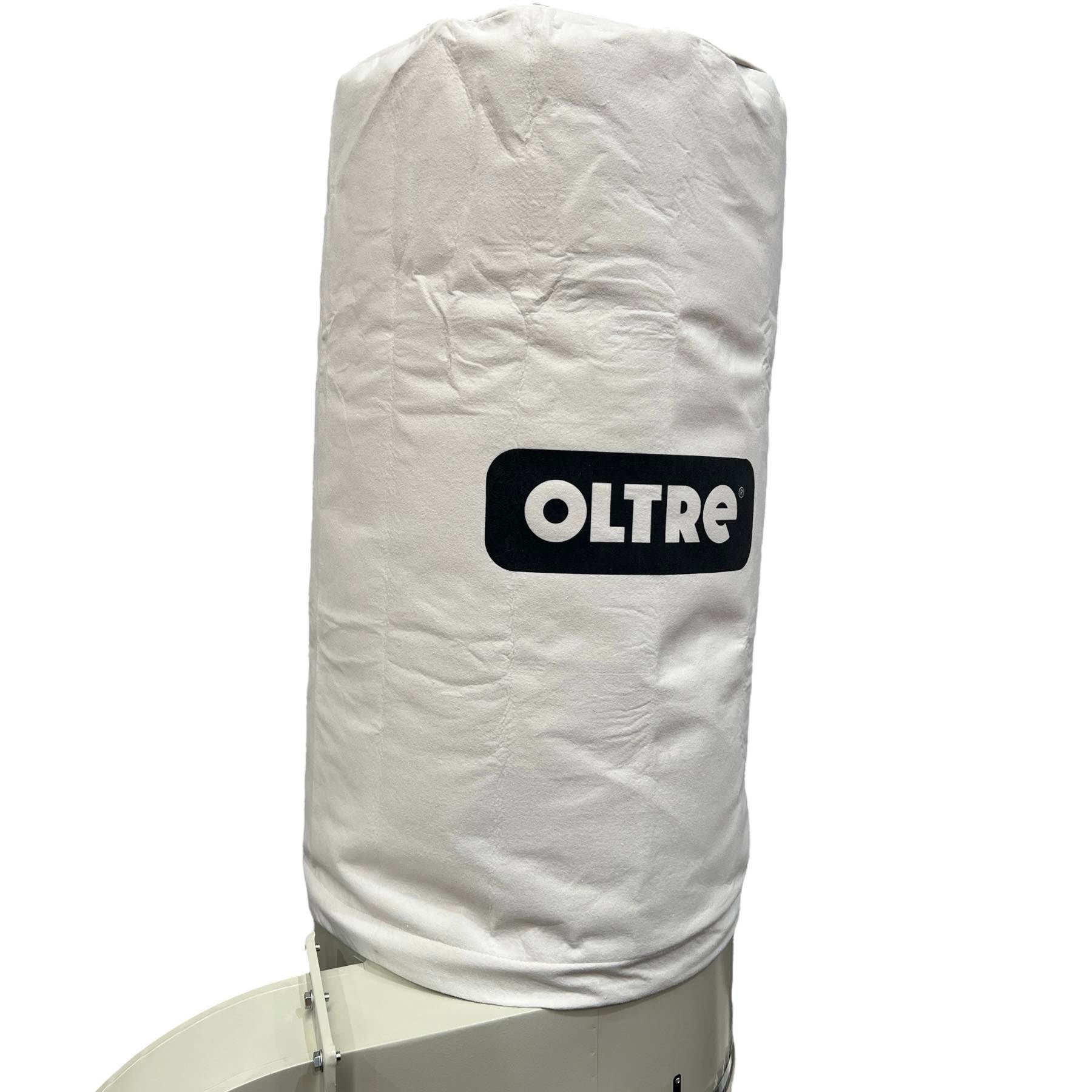

- Filter Bag (Top) Material: Needlefelt

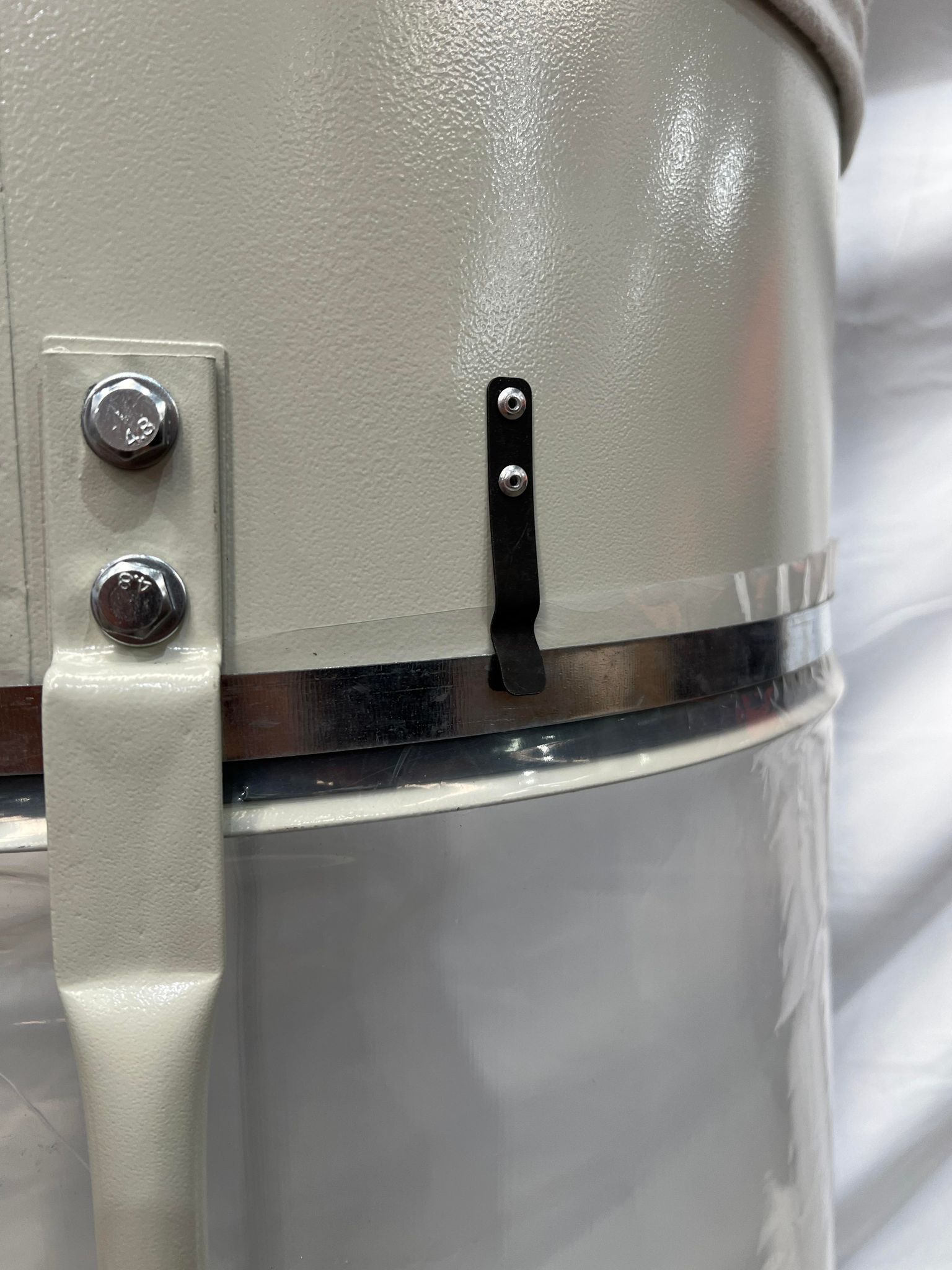

- Collection Bag (Bottom) Material: Clear Plastic
- Bag Diameter: 500mm
- Bag Height: 1100mm
- Bag Volume: 0.43m3
- Replacement Bottom Bag, Plastic
- Replacement Top Bag, Needlefelt
- Replacement Top Bag, Calico
- Dust Hose 150mm, Clear Antistatic
- Hose Clips
- Blast Gate 150mm Plastic
- Blast Gate 150mm Plastic - Self Cleaning (Double Insert)
- Blast Gate 150mm Aluminium
- Elbow 150mm
- Y Connector 150mm
- Stepped Reducer 1-6" Plastic
- Filter Cannister for increased Air Filtration
Additional Information
Model
Technical

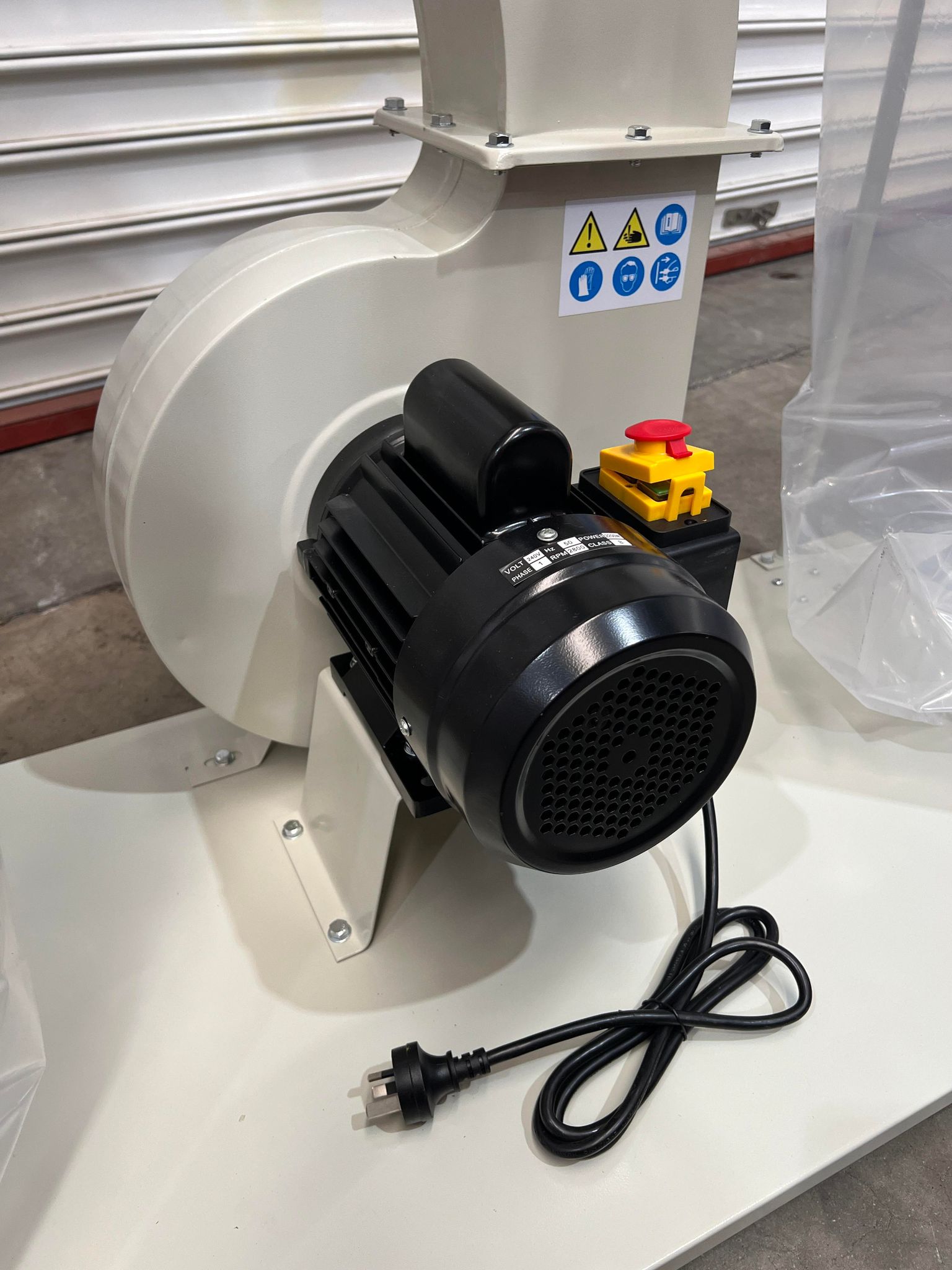

Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
5HP / 3700W
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Dimensions
Product Length
1450 mm
Product Width
800 mm
Product Height
2250 mm
Product Weight (Net Weight)
87kg
Workshop (Site) Info / Requirements
Electrical Connection
15Amp Plug & Lead
Packaging + Shipping
Shipping Length
1170 mm
Shipping Width
650 mm
Shipping Height
570 mm
Shipping Weight (Gross)
85.0 kg
