Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini
Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini
Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini
Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini
Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini
Roll over image to zoom in Click on image to zoom
Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by AlfariminiDust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by AlfariminiDust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by AlfariminiDust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by AlfariminiDust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini

Dust Collector 415V 4HP 2 x Filter Element (2 x Calico Top Bag + 2 x Plastic Bottom Bag) ALFA 2 by Alfarimini

Save $400.00
AlfariminiSKU: 8601032
Price:
$3,999.00 $4,399.00
Stock:
In stock (11 units), ready to be shipped

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

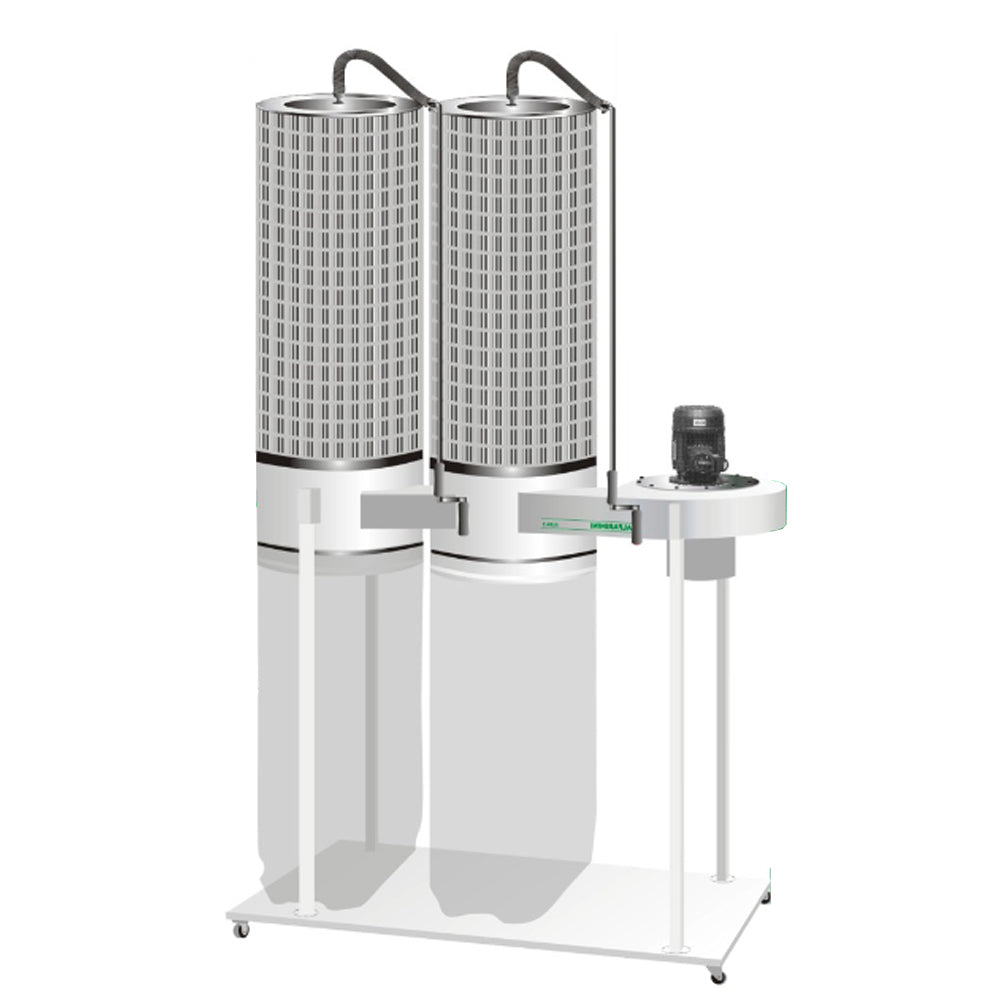

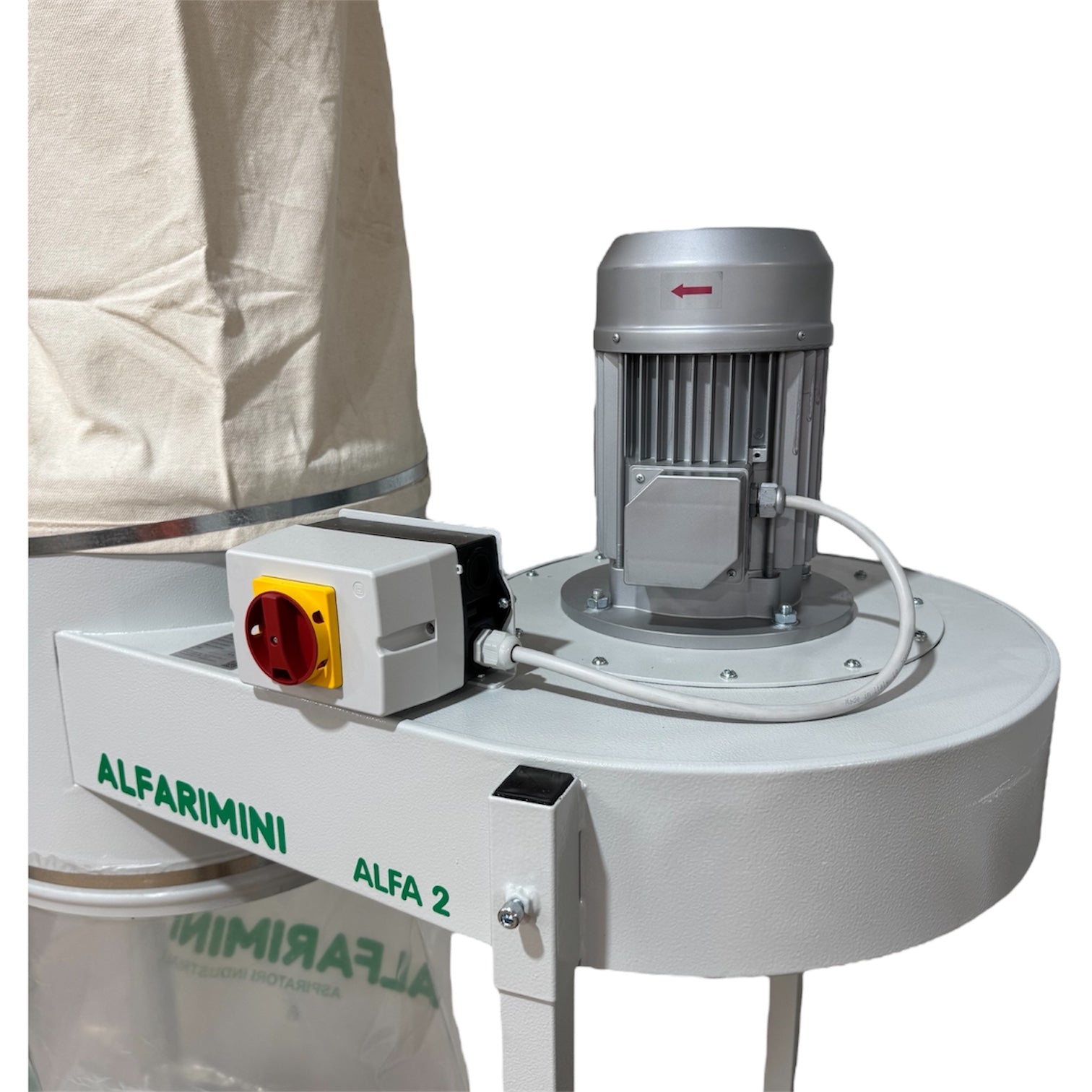

ALFA 2 is a professional, powerful extraction unit made of painted sheet metal steel and fitted with 2 exposed filter bags. Thanks to the wheeled base it can be moved very easily and safely from one point to another in the carpentry workshop to be connected to multiple machines. It is provided with a single-phase or three-phase motor with 3 or 4 HP. ALFA 2 is fitted with two nylon collection bags and a filling divider. It can be mounted either with the extraction outlet facing upwards or downwards. It is also provided with the 1.5 m power cable and the motor protection circuit breaker. The robust steel fan is perfectly balanced to prevent any vibration and minimise the noise. Upon request, the upper filter bags can be replaced with special cartridge filters, to retain even the finest dust. Installing this type of filter is simple and requires no technical change to the extraction unit. Packaging The packaging consists of a sturdy cardboard box which protects the machine from impact during transport. Made in Italy All our motors and machines are manufactured entirely in Italy, with top quality Italian or European components and therefore distinguished by high reliability.

Trailer Mounted Dust Collector.

Features

  • Extraction unit can also be assembled with the extraction inlet upwards

This unit arrives flat packed with easy to install panels with male/female grooves. Assembly available at additional cost.

Options

  • Cartridge Cannister Filter for Finer Dust

Additional Information

Model
Type
Dust Collector
SKU
8601032
Part Number
ALFA 2
Brand
Alfarimini
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz (Three Phase)
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Filter Bag / Sleeve Diameter
500mm
Noise Level (Std Pressure)
72.8dB
Dimensions
Product Length
1610mm
Product Width
700mm
Product Height
2600mm
Product Weight (Net Weight)
85kg
Country of Origin
Manufactured in
Italy
Workshop (Site) Info
Dust Collection Minimum CFM
5000 m3/H
Dust Hose Inlet Diameter
200mm
Packaging + Shipping
Shipping Weight (Gross)
100kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
