Status
Available
Description

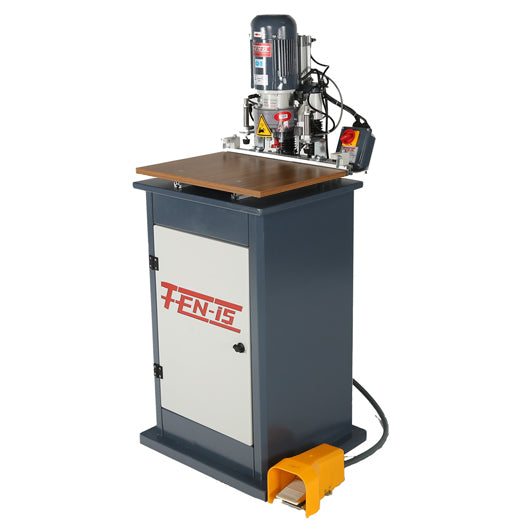

The Fen-Is hinge borer is a small and compact unit, ideal for the quick set-up, easy operation, and efficient assembly of Blum pattern fittings. It comes standard with a Blum-style hinge cup pattern and includes 2 x 10mm boring bits, making it ready for immediate use in common applications. For added versatility, the machine offers optional replaceable heads to accommodate Samet and Hettich hinges, making it adaptable to a variety of hinge types and installations.
Hinge Boring Bits (Sold Separately):
While the machine includes the Blum-style bit and 10mm boring bits, additional hinge boring bits are sold separately to cater to different hinge sizes and configurations. This gives users the flexibility to handle specialised or non-standard hinge installations with ease, ensuring the right tool for every project.
Features
- Pneumatic motion precision hinge drilling operations
- Drills hinge hole to desired size
- Allows adjustment of hole depth
- Drills reference holes in order to screw in the hinge
- Drilling pattern suits Blum Hinge
- Suits 10mm shank boring / drilling bits
- Includes 2 x pneumatic hold down clamps
- Foot Pedal included for operation
Options
Additional Information
Model
Type
Hinge Boring Machine
SKU
8601377
Part Number
FN950PLUS
Brand
Fen-Is
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1.5HP / 1100W
Motor Speed - No Load
3000RPM
Options
FN HTC Replaceable Head
Dimensions
Product Weight (Net Weight)
22kg
Country of Origin
Manufactured in
Turkey
Features
Standard Inclusions

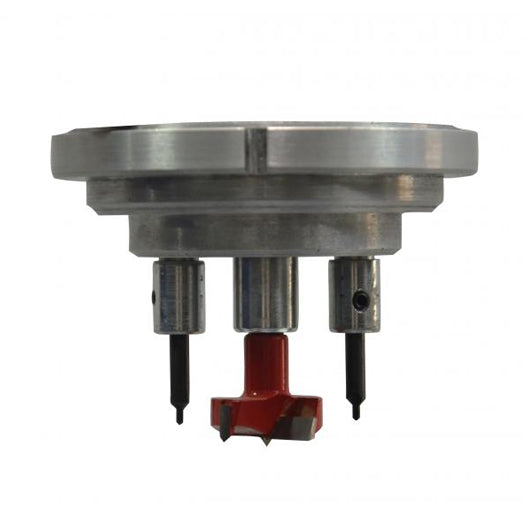

1 x Blum Style Hinge Pattern Boring Head suit Boring / Drilling Machine by Fen-Is1 x 35mm Hinge Boring Bit2 x 10mm Shank Hinge Boring Bits 2 x Pneumatic Hold Down Clamps1 x Allen Key
Workshop (Site) Info
Other Requirements
Compressed Air
Packaging + Shipping
Shipping Weight (Gross)
24kg
