Automatic Hot Melt Edge Bander Rutile 450 by Toughcut

ToughCutSKU: 8000878

Price:
Sale price$44,990.00
Stock:
Re-stocking soon

Status

Available

Description

ToughCut Rutile is the ideal edge bander for companies that require flexibility and economy. It offers consistent performance, superior reliability is easy to use, and is uncomplicated. The solid machine chassis and heavy-duty units combined in an attractive design ensure the highest level of precision. An absolute highlight is the accuracy of the position setting of the individual units. It delivers an impressive finished product.

Features:

  • Workpiece Infeed Stop – An automatic pneumatic cylinder on the infeed prevents panels from being fed incorrectly.

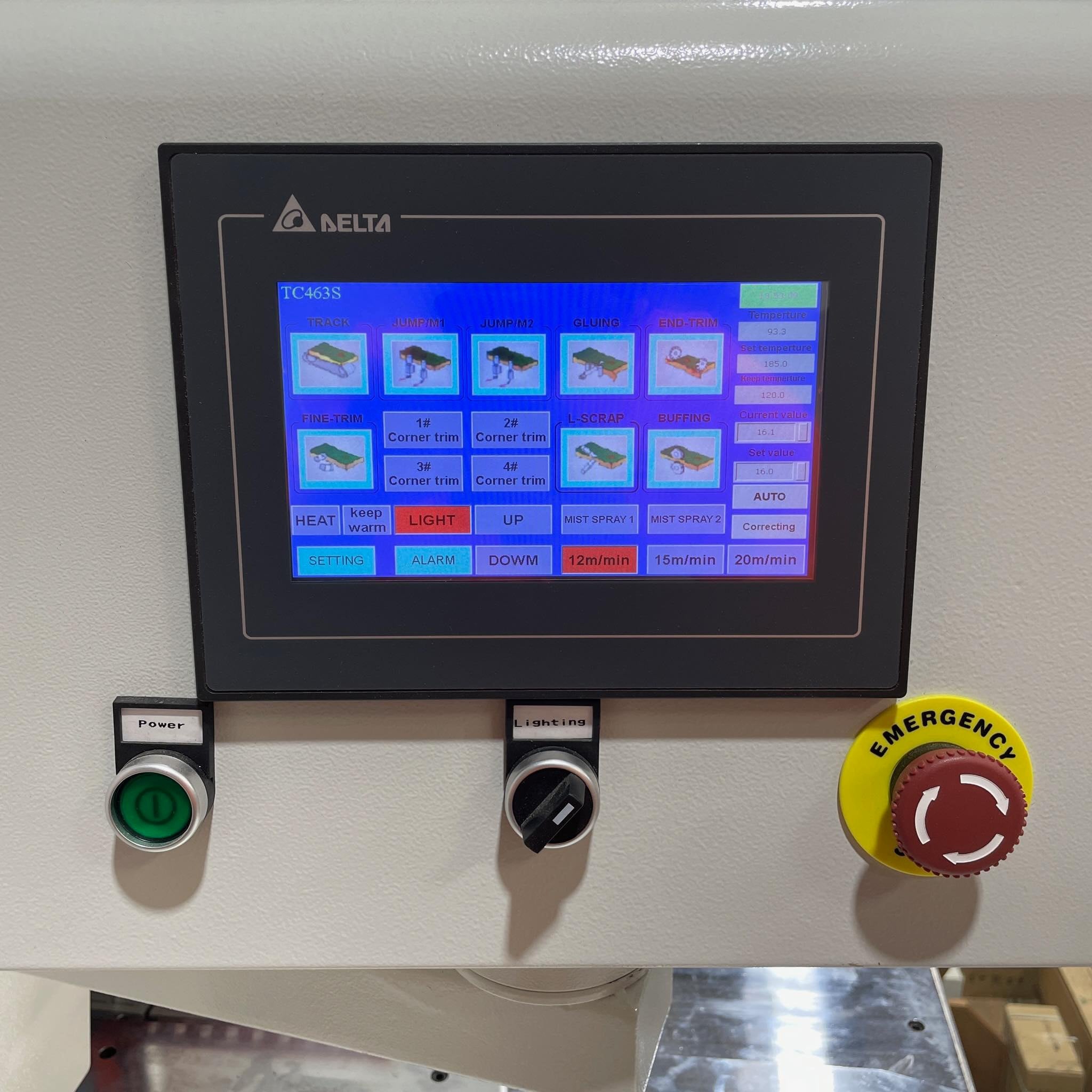

  • Touch Screen Control – User-friendly touch screen control and interface ensures quick and easy execution of customized working programs

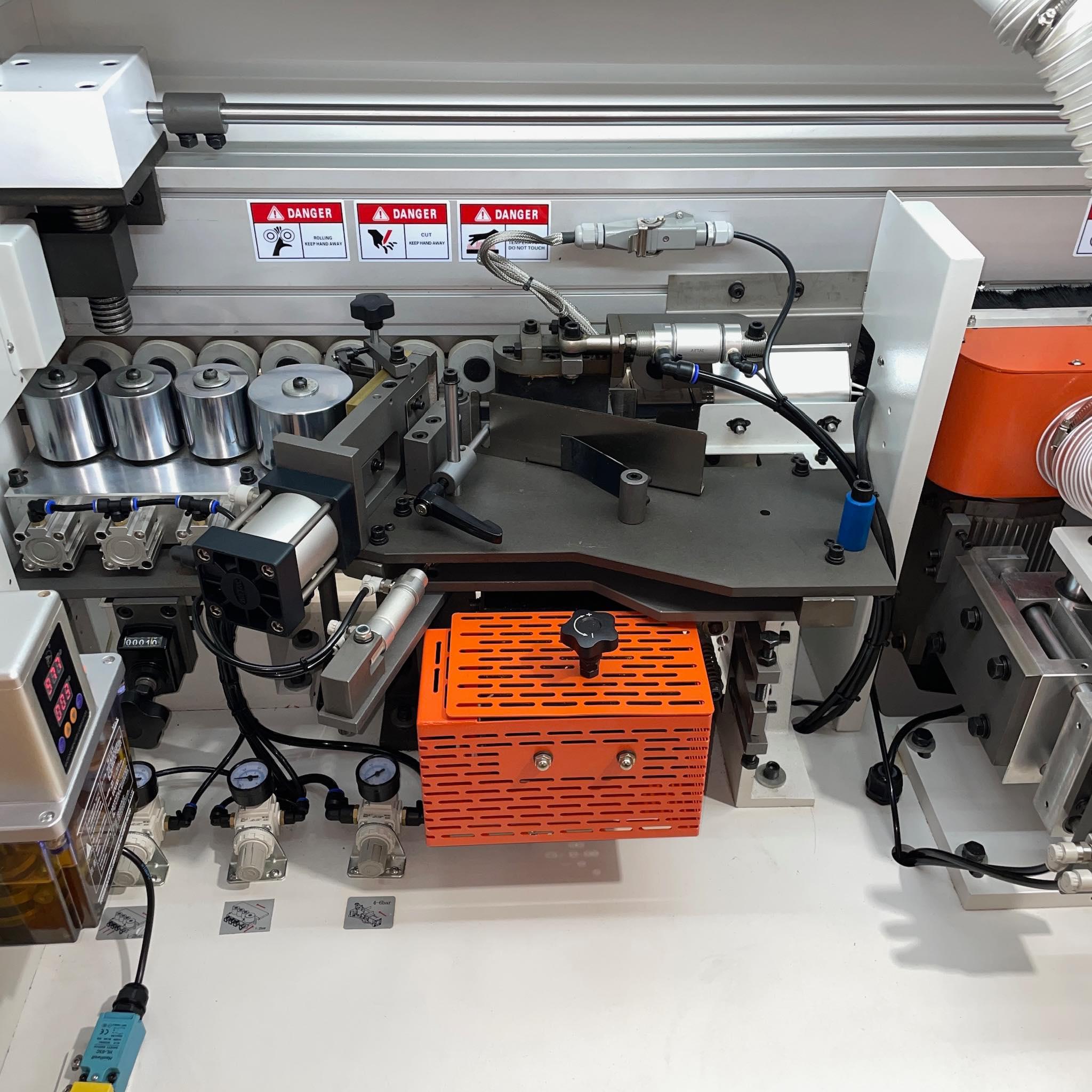

  • Glue Application Unit – Teflon coated glue pot ensures non-stick, easy clean from glue residue, reducing downtime including cleaning and maintenance. Automated glue control prevents glue from burning when the machine is on standby thus preventing glue carbonization and energy efficiency.

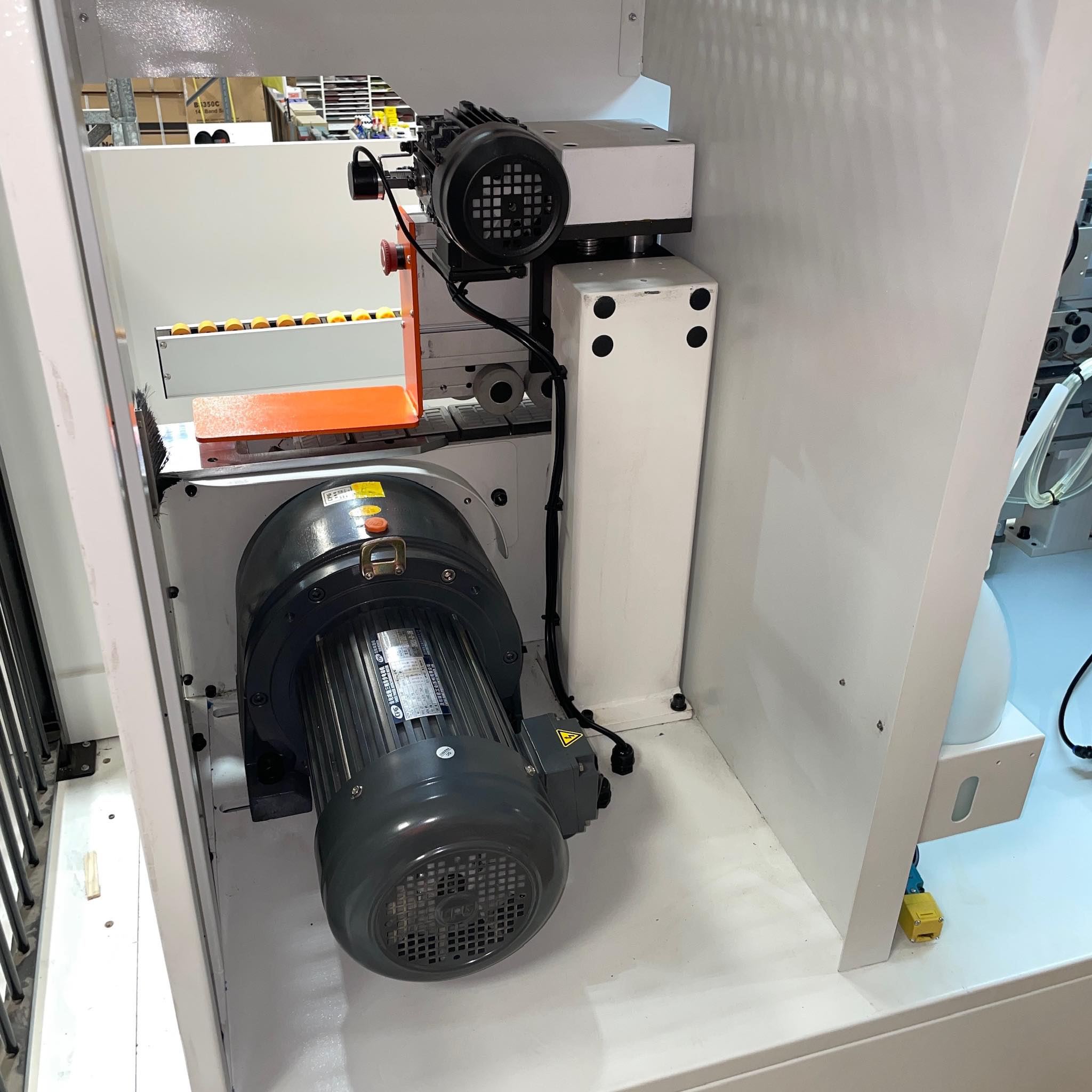

  • Panel Feed System – Rubber Pads and heavy-duty chain ensures total alignment when processing panels
  • Safety Infeed Guard – Safety guard with micro switch prevents incorrect workpiece thickness and ensures optimal safety for the user
  • Manual Height Adjustment

Edgebanding Stations:

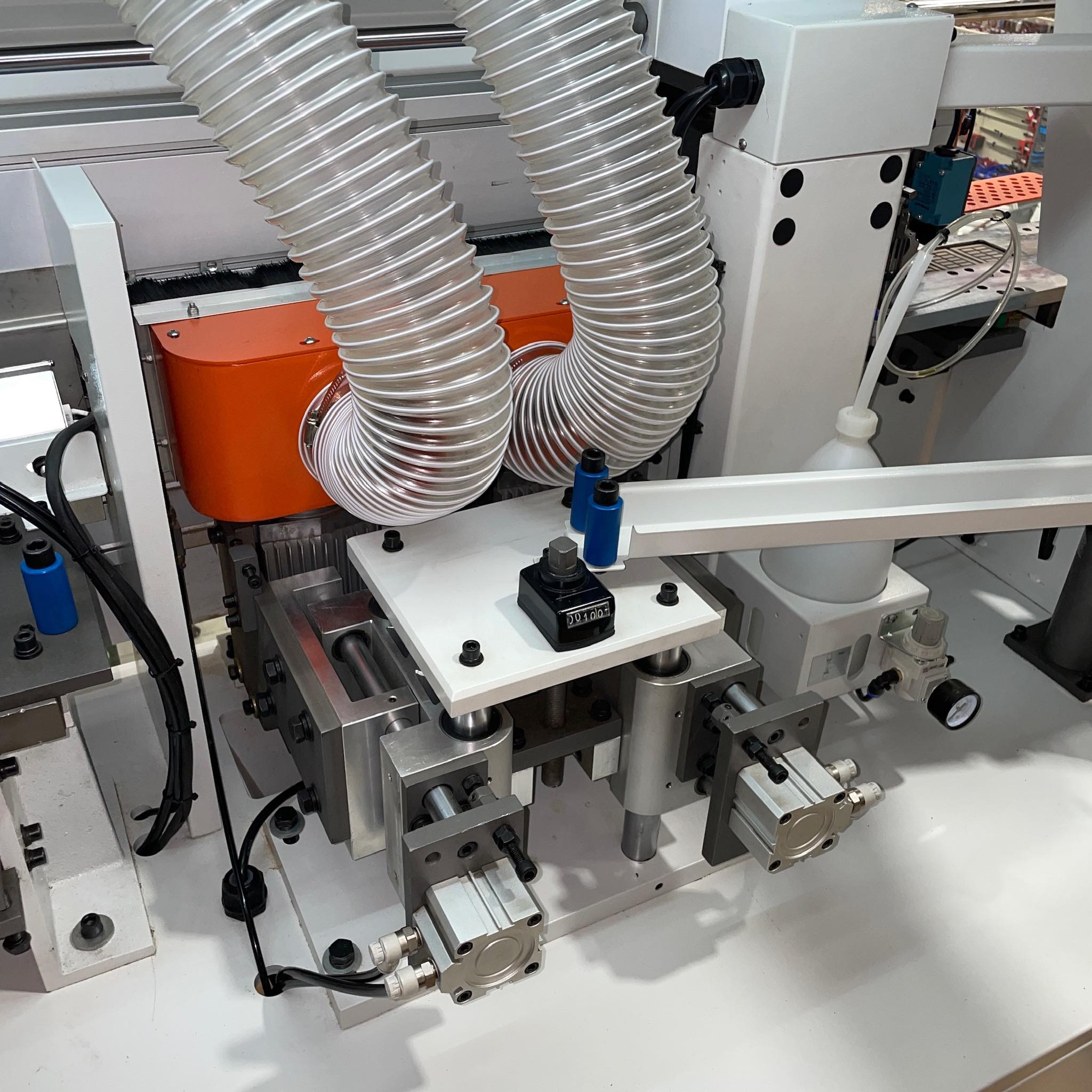

  • Pre Milling Diamond Tooling
  • Hot Melt Glue Pot

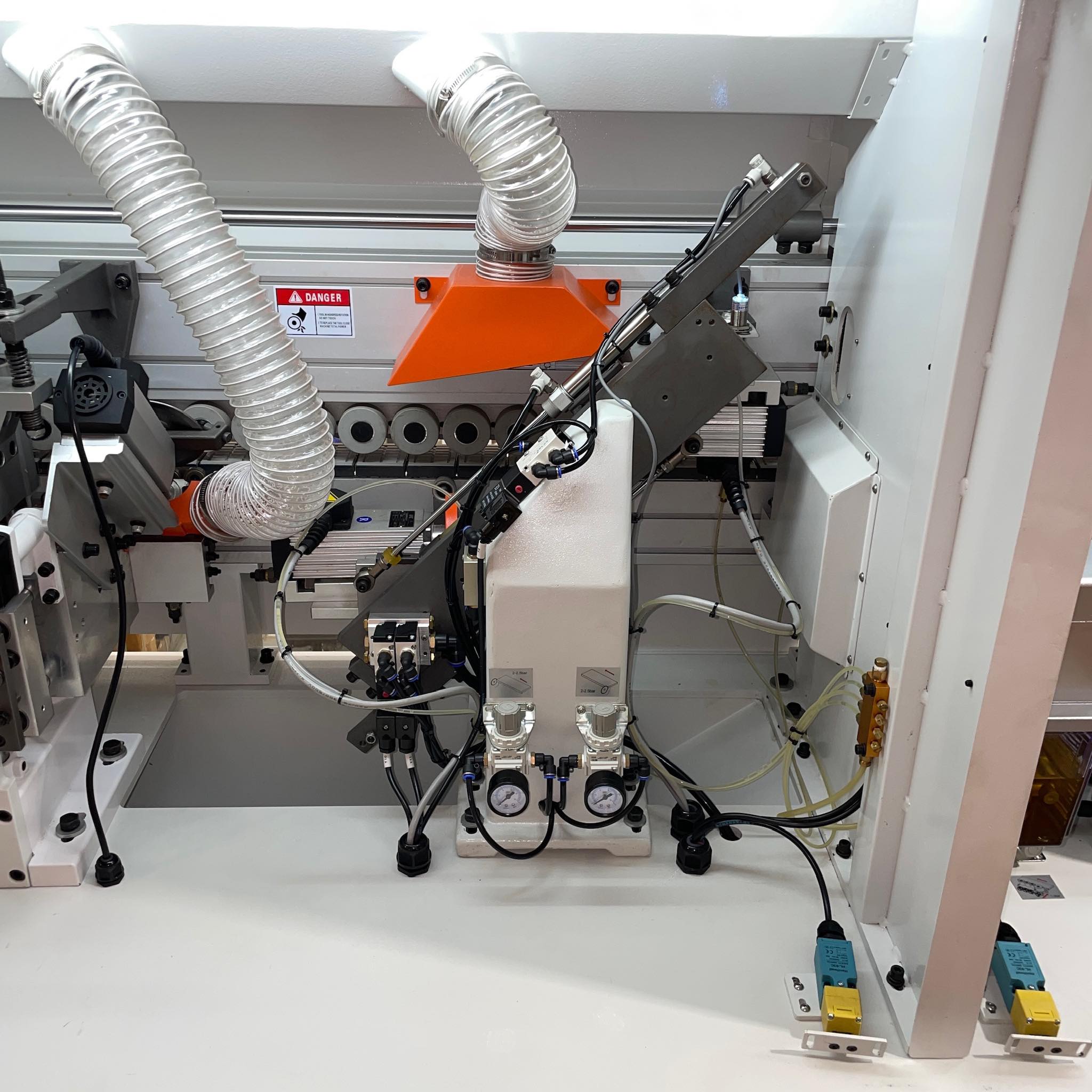

  • End Saws (Cutting) – Two Independent high-frequency motors to cut the front and rear edge. Each operating motor is equipped with a copying device for accurate positioning of blades in relation to the cutting point. The unit is complete with 2 x mechanical/digital readouts to make easy adjustments to the front copying pads and cutters
  • Tiltable Trimming Unit – Equipped with Two Independent high-frequency motors mounted on support firmly fixed to the frame to carry out the trimming of bottom/top exceeding edge.
  • The angle of trimming units is preset to 45 degrees. Each motor is equipped with vertical rotation copying devices and a front copying pad. Easy to read digital adjustment and accurate positioning of tools with reference to the trimming.

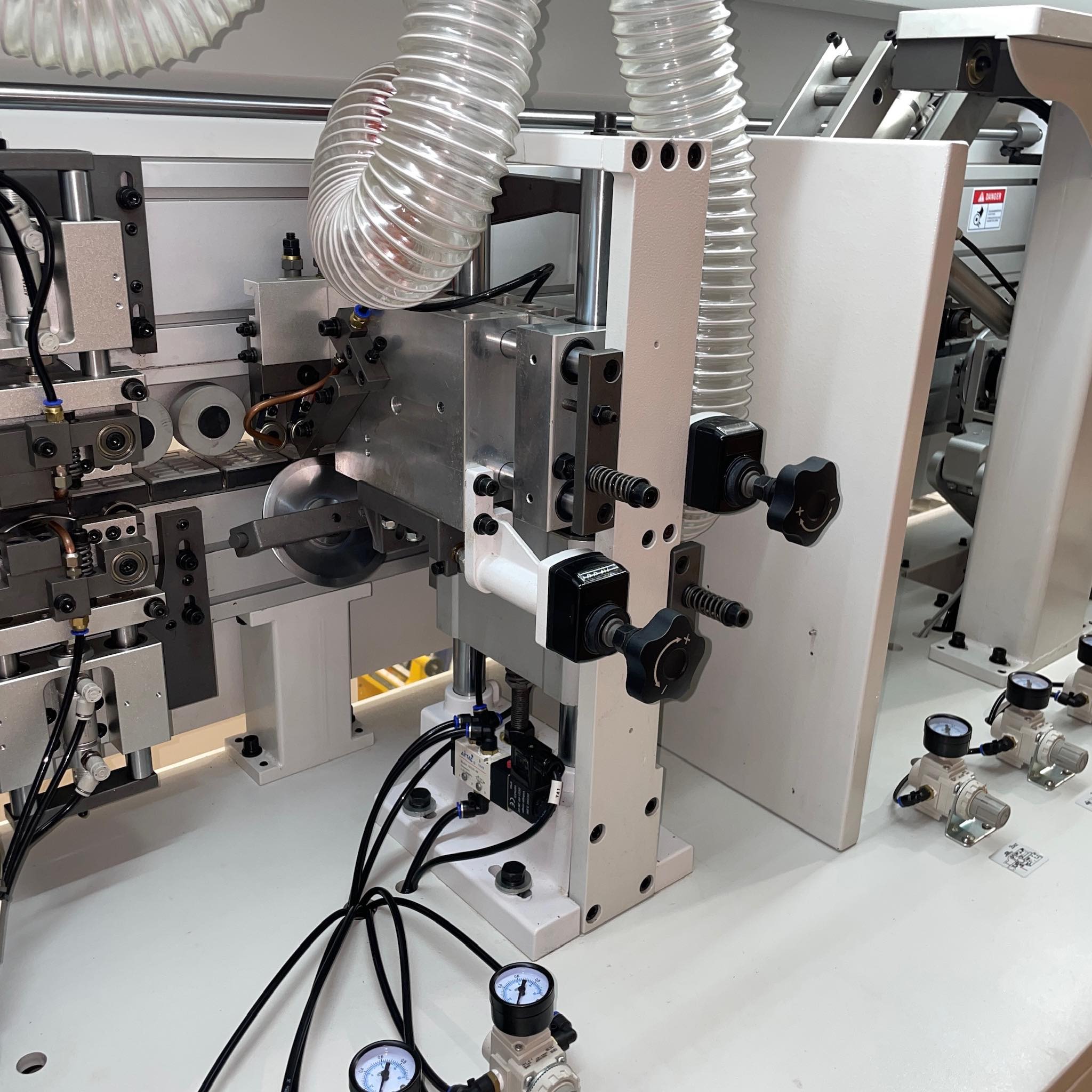

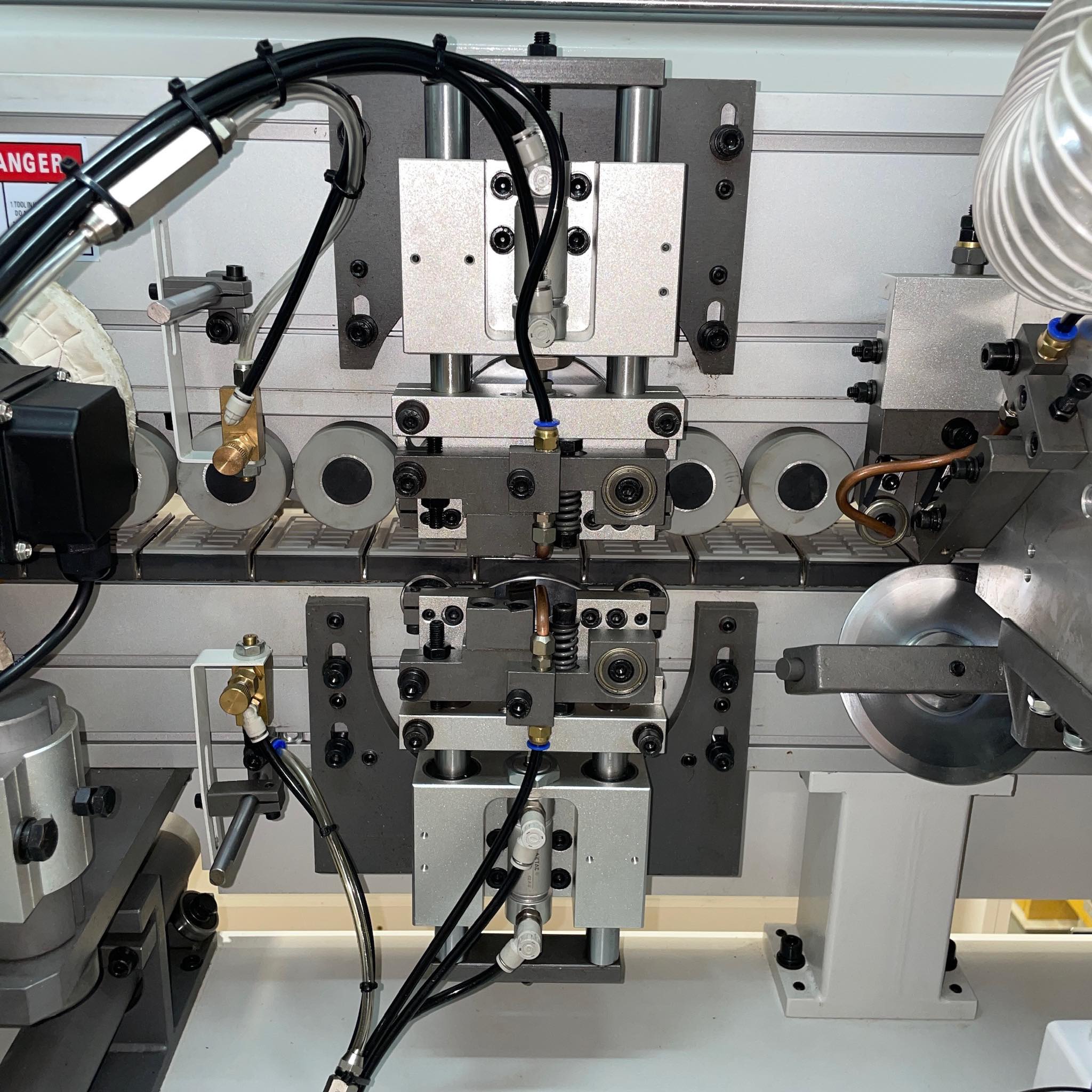

  • Edge Scraping Unit – For finishing of 3mm PVC / ABS edges. Excellent vibration-free finish due to rigid structure. High working precision thanks to front and vertical copying discs which ensure accurate positioning of the knives in relation to the cutting point.
  • Buffing Unit – Two Independent motors for buffing/polishing of the edge

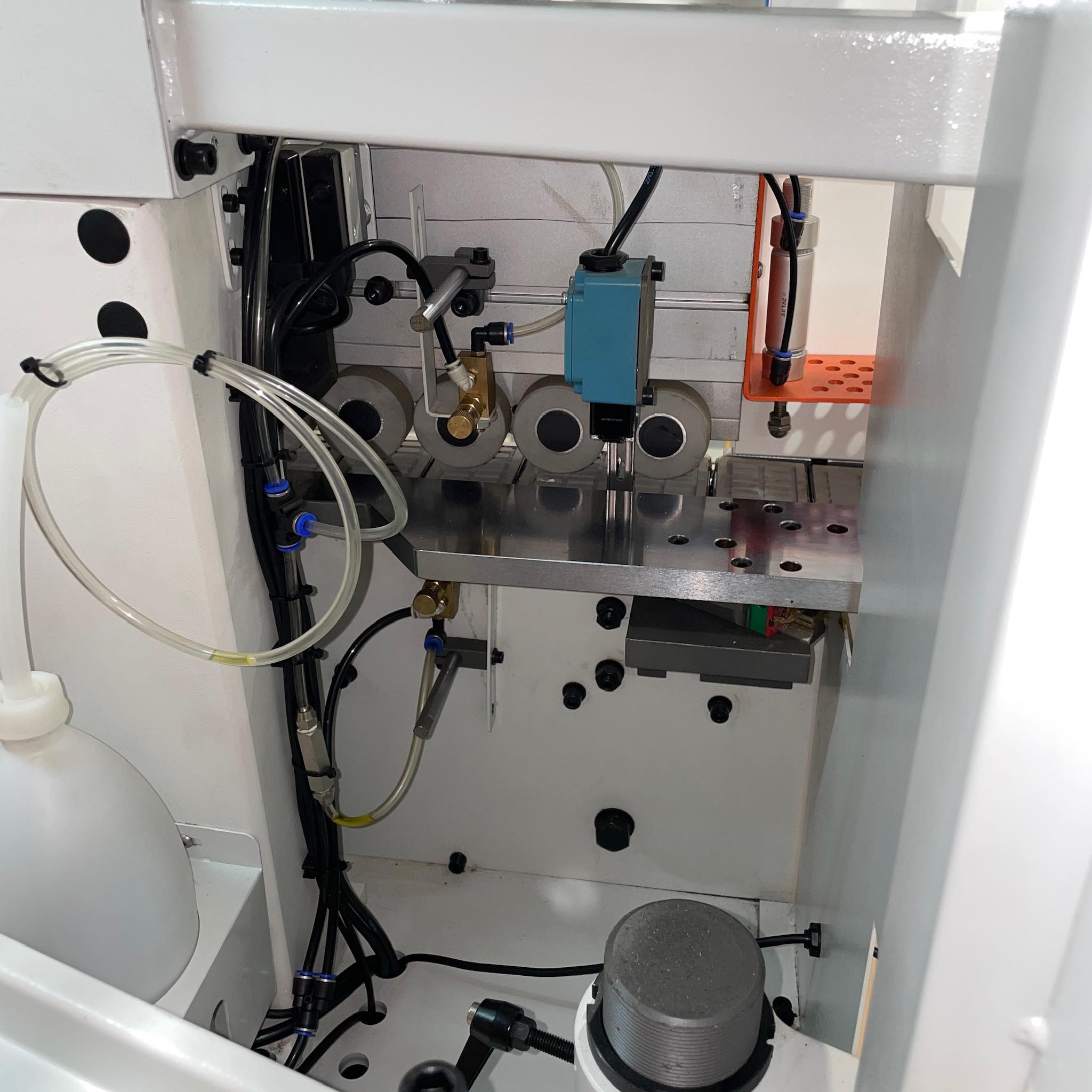

  • Cleaning Sprayer – Dispenses liquid spraying agent to ensure optimal buffing and cleaning

Additional Information

Model
Type
Edgebander
SKU
8000878
Part Number
RUTILE 450 415V
Brand
ToughCut
Packaging + Shipping
Shipping Length
4800 mm
Shipping Width
900 mm
Shipping Height
1550 mm
Shipping Weight (Gross)
1950.0 kg
