Automatic Hot Melt Edge Bander 415V Rutile 400 by Toughcut

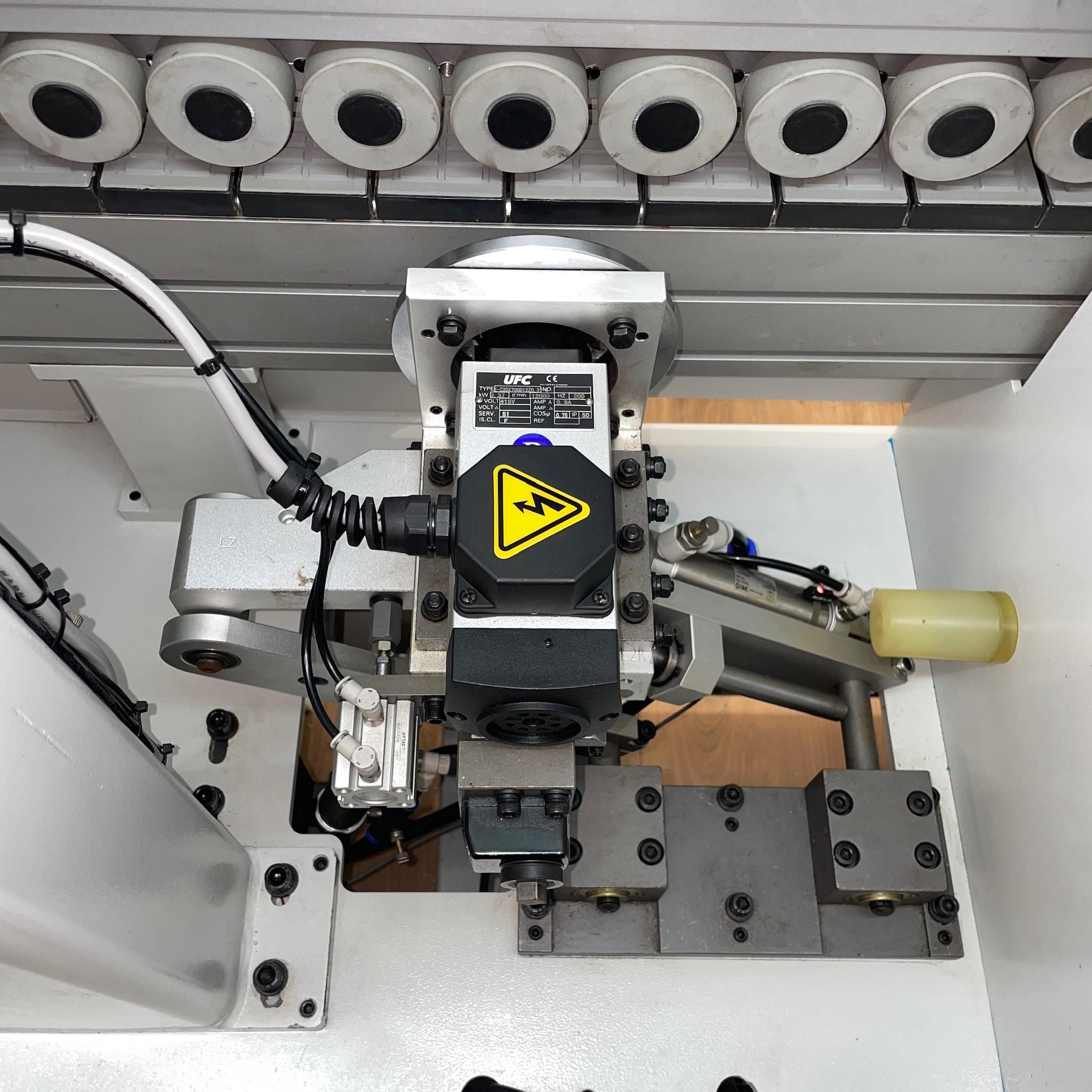

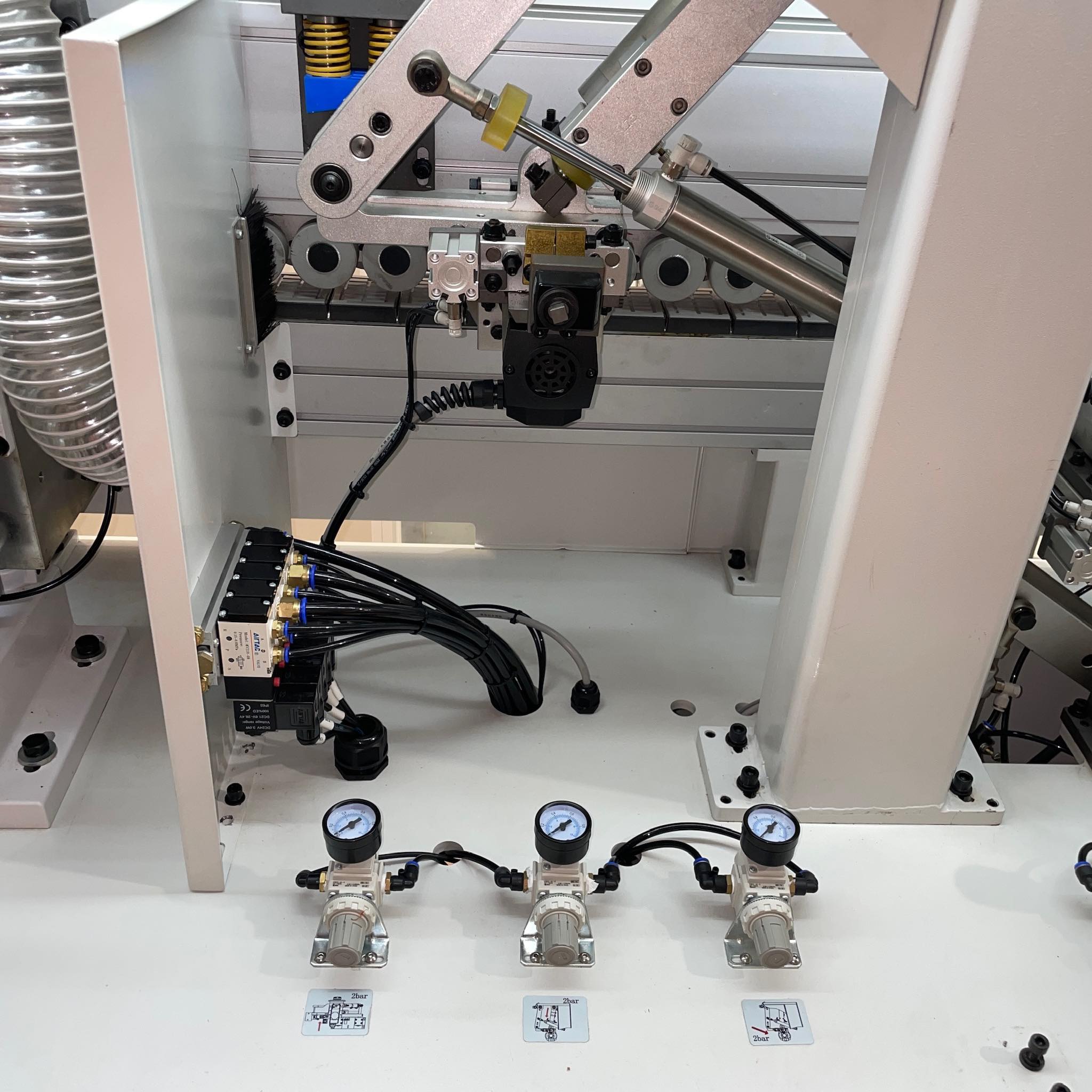

Corner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).
Corner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).
Corner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).

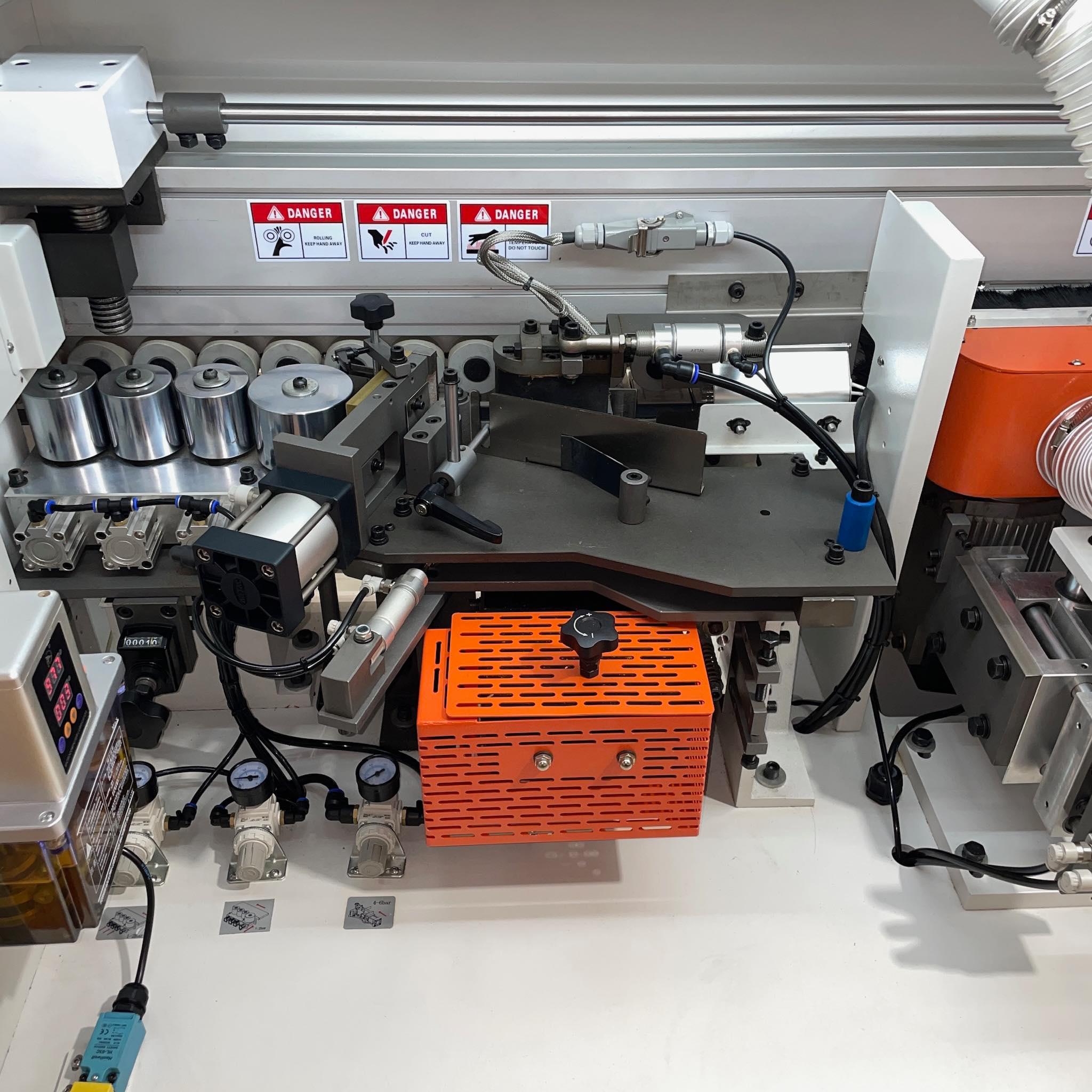

Glue Pot

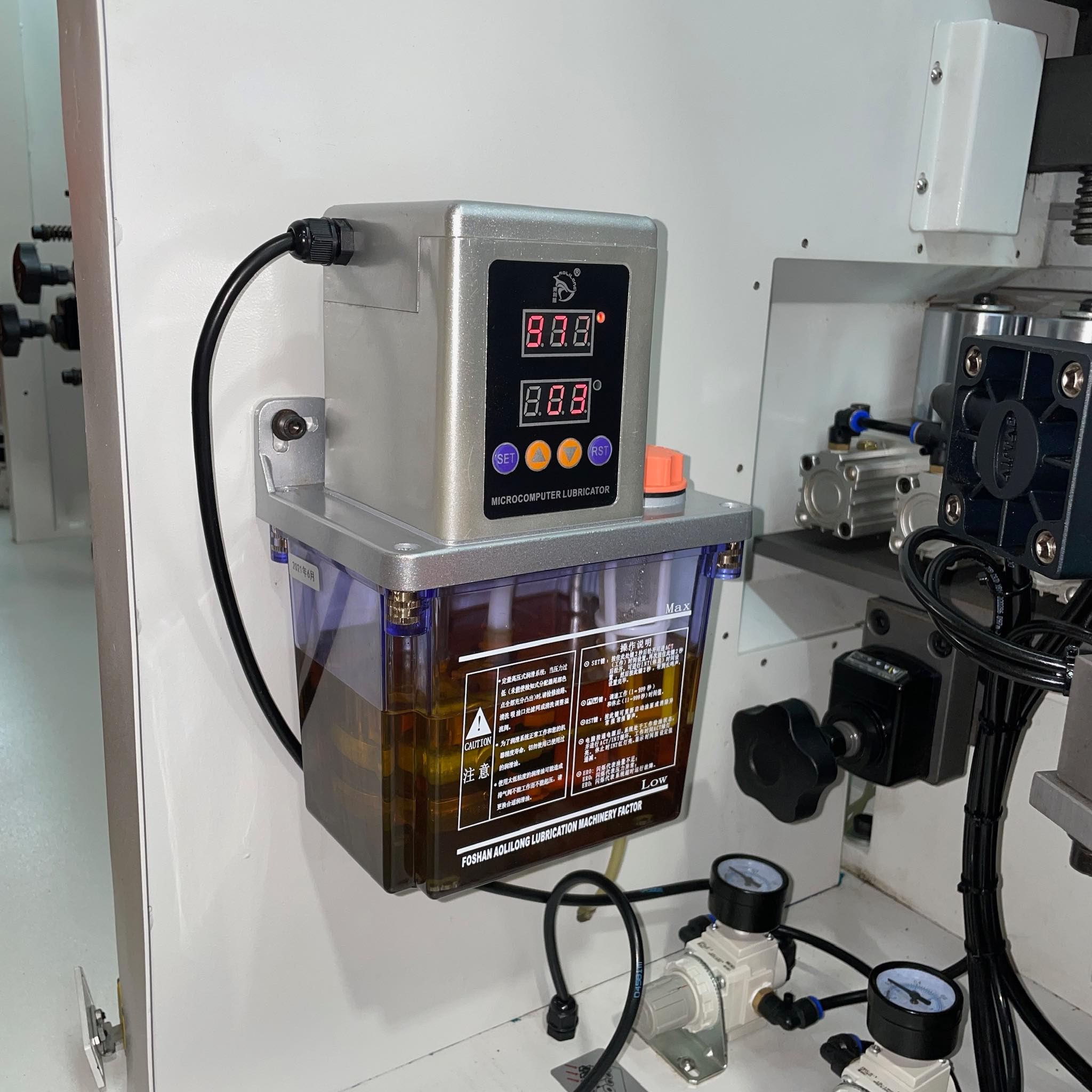

Oil Lubrication

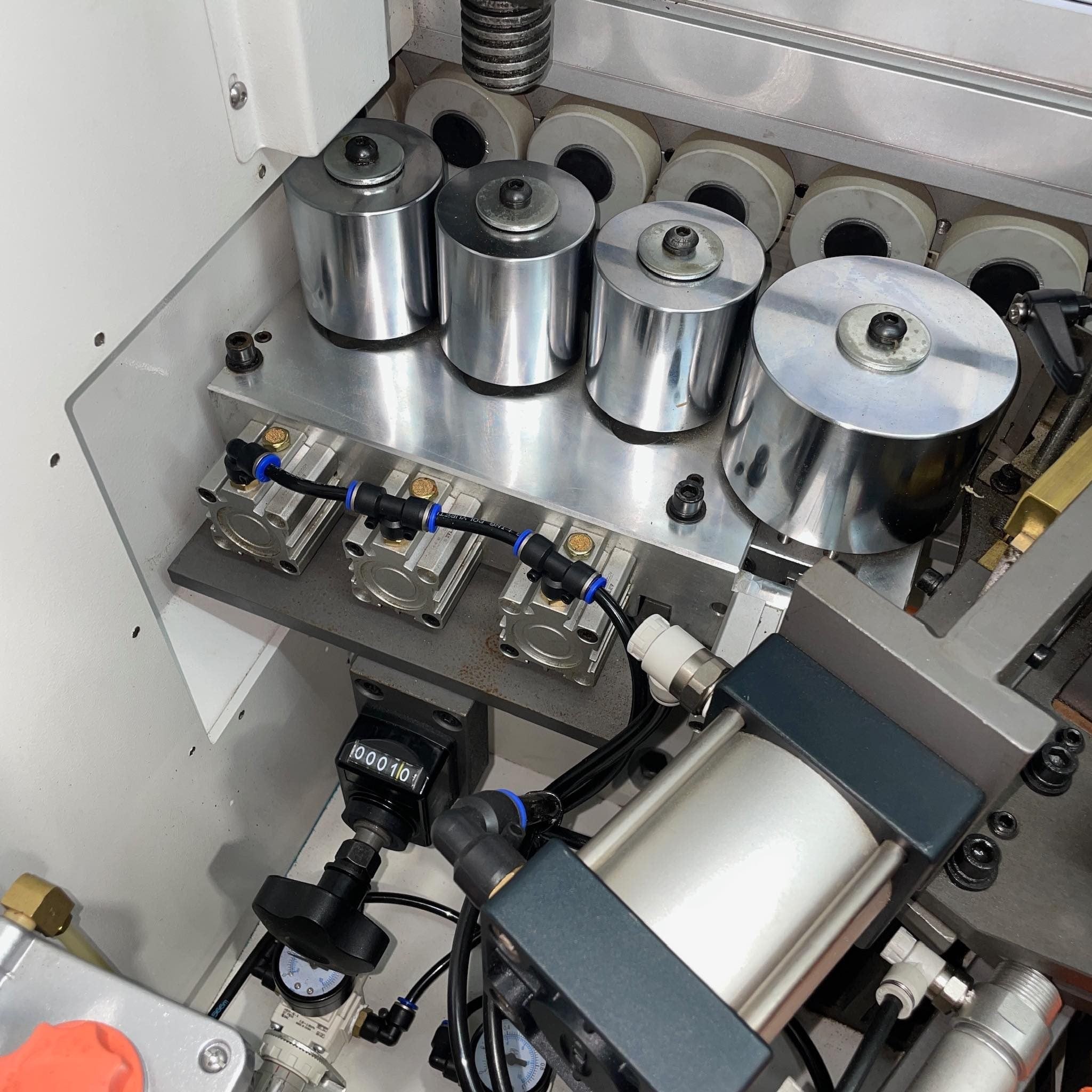

Rutile Series Pressure Rollers

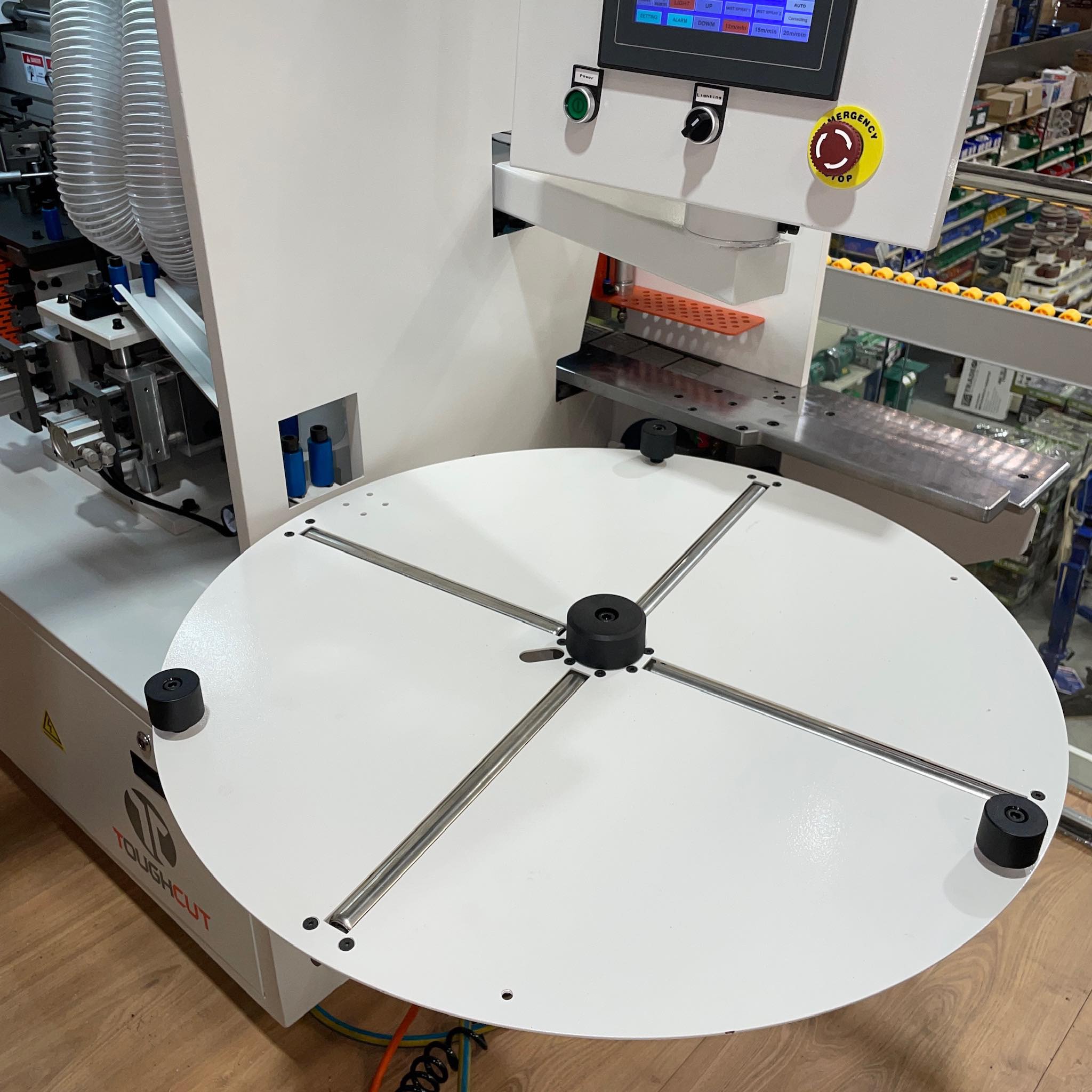

Rutile Series Edge Banding Tape Support Table

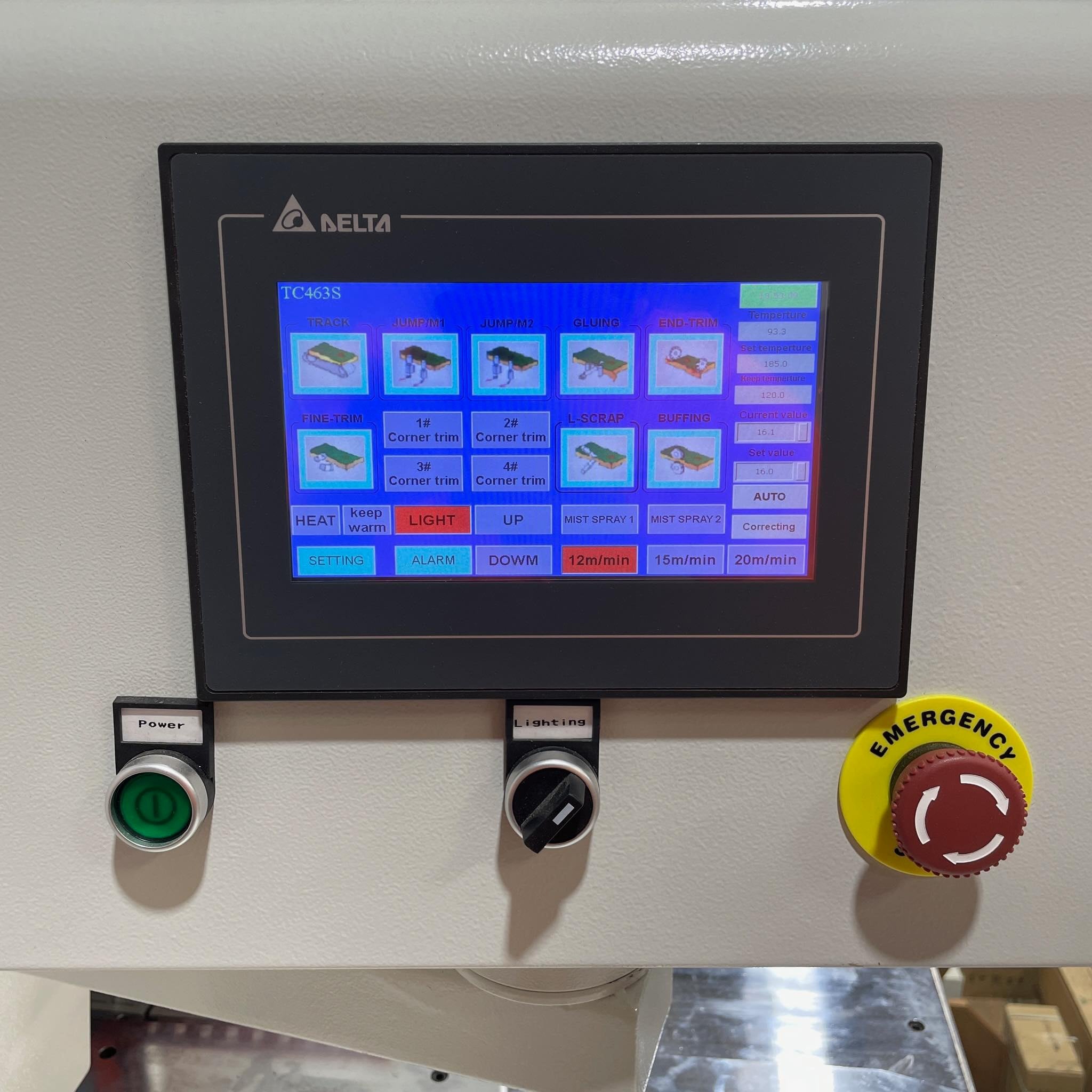

Rutile Series Touch Screen Control - User friendly touch screen control and interface ensures quick and easy execution of customised working programs.

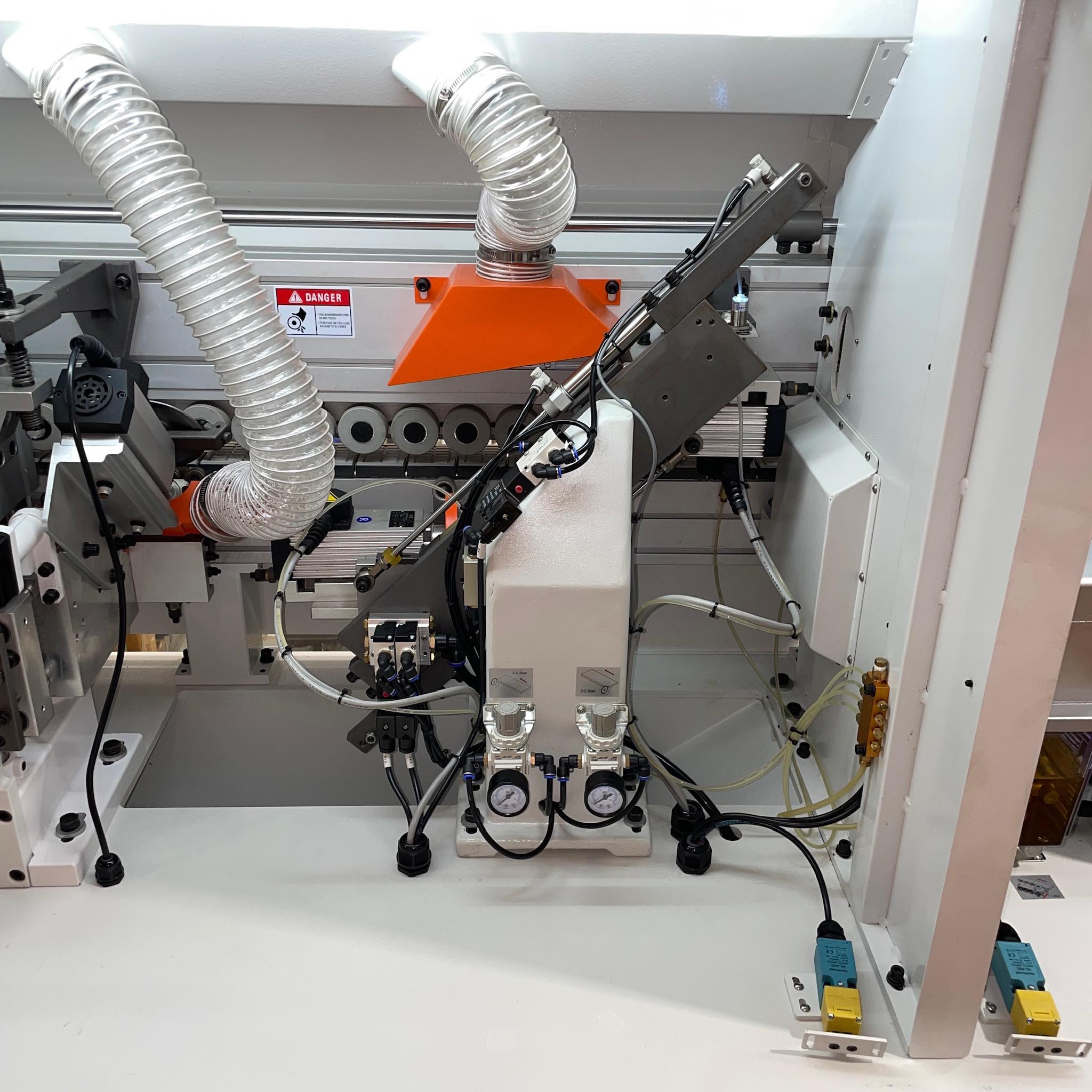

Rutile Series - End Cutting / Trimming Unit - With two independent high frequency motors to cut the front and rear edge. Each operating motor is equipped with copying device for an accurate positioning of blades in relation to the cutting point.
Rutile Series - End Cutting / Trimming Unit - With two independent high frequency motors to cut the front and rear edge. Each operating motor is equipped with copying device for an accurate positioning of blades in relation to the cutting point.
Automatic Hot Melt Edge Bander 415V Rutile 400 by Toughcut

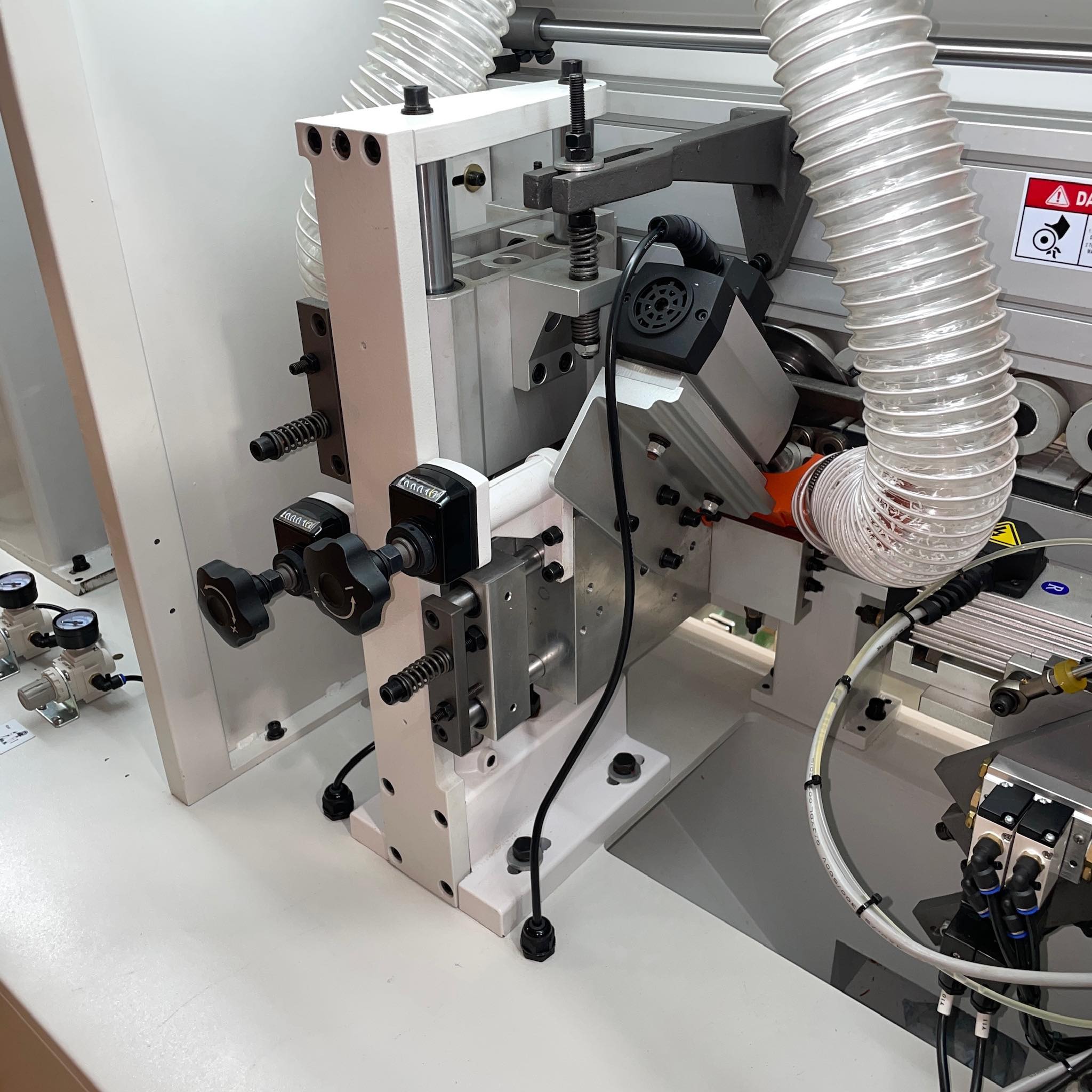

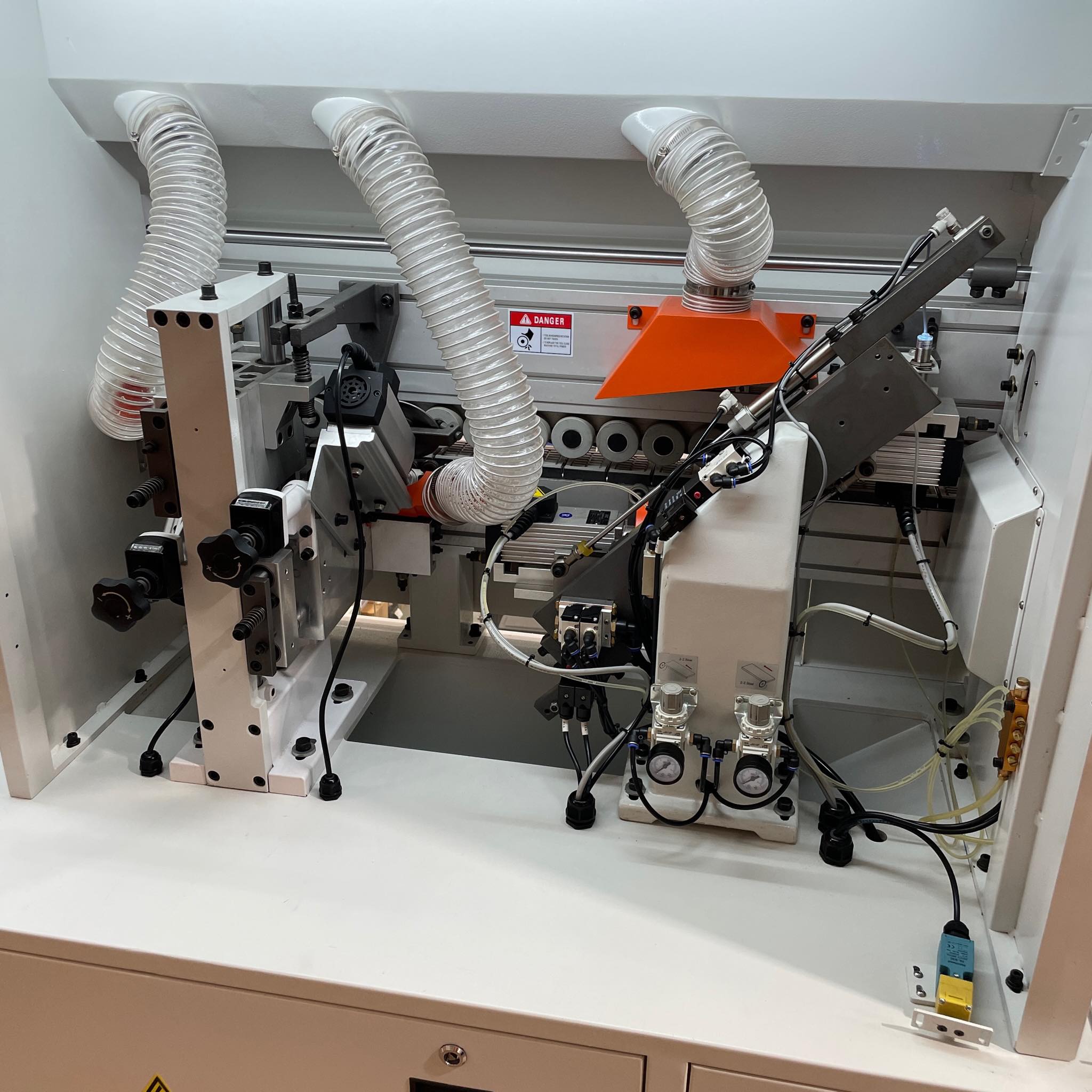

Rutile Series - Flush / Fine Trimming Unit - Equipped with two independent high frequency motors with diamond tooling mounted on a support firmly fixed to the frame to carry out th etrimming of the bottom / top exceeding edge. Each motor is equipped with vertical rotation copying devices and front copying pad, easy to read digital adjustment and accurate positioning of tools with reference to the trimming.

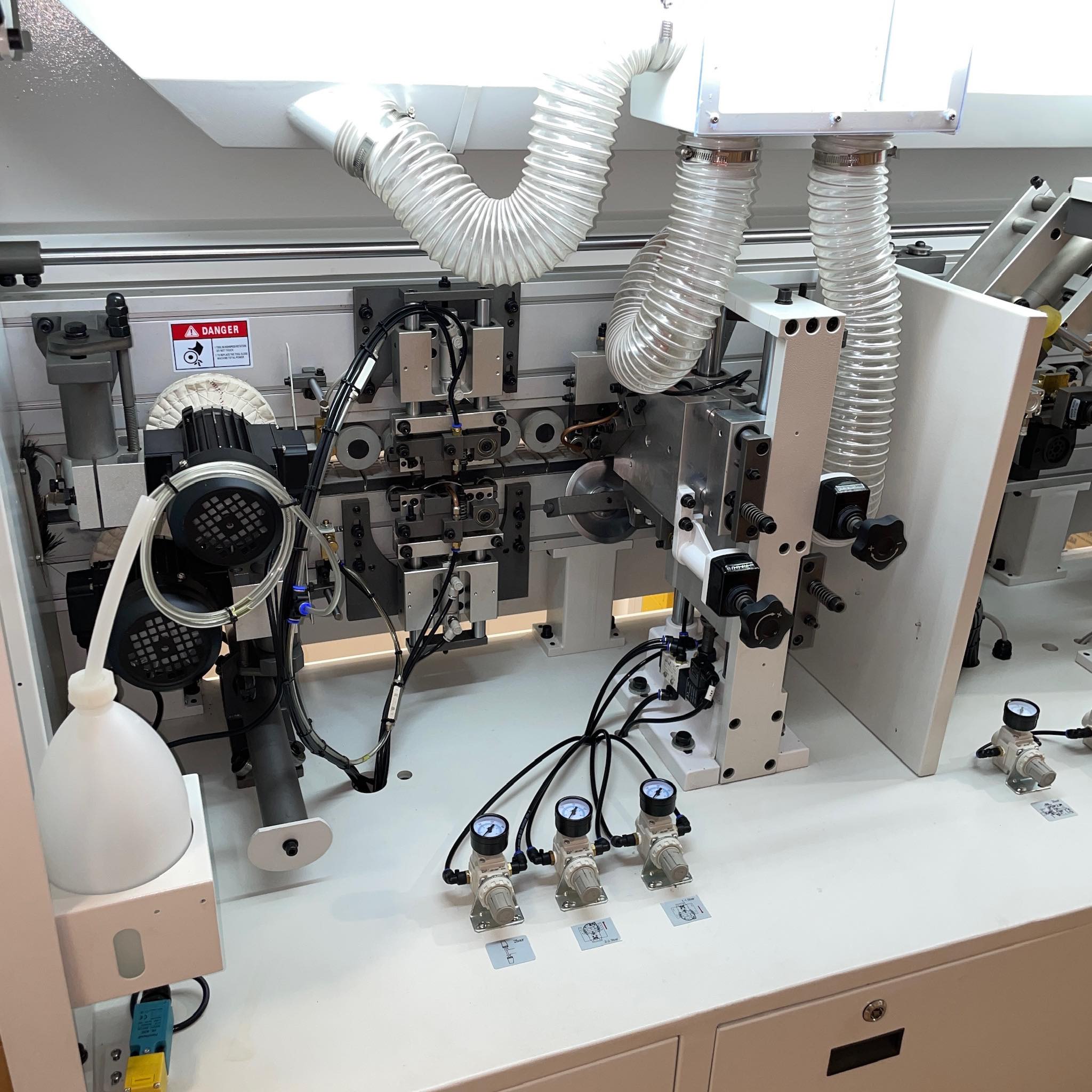

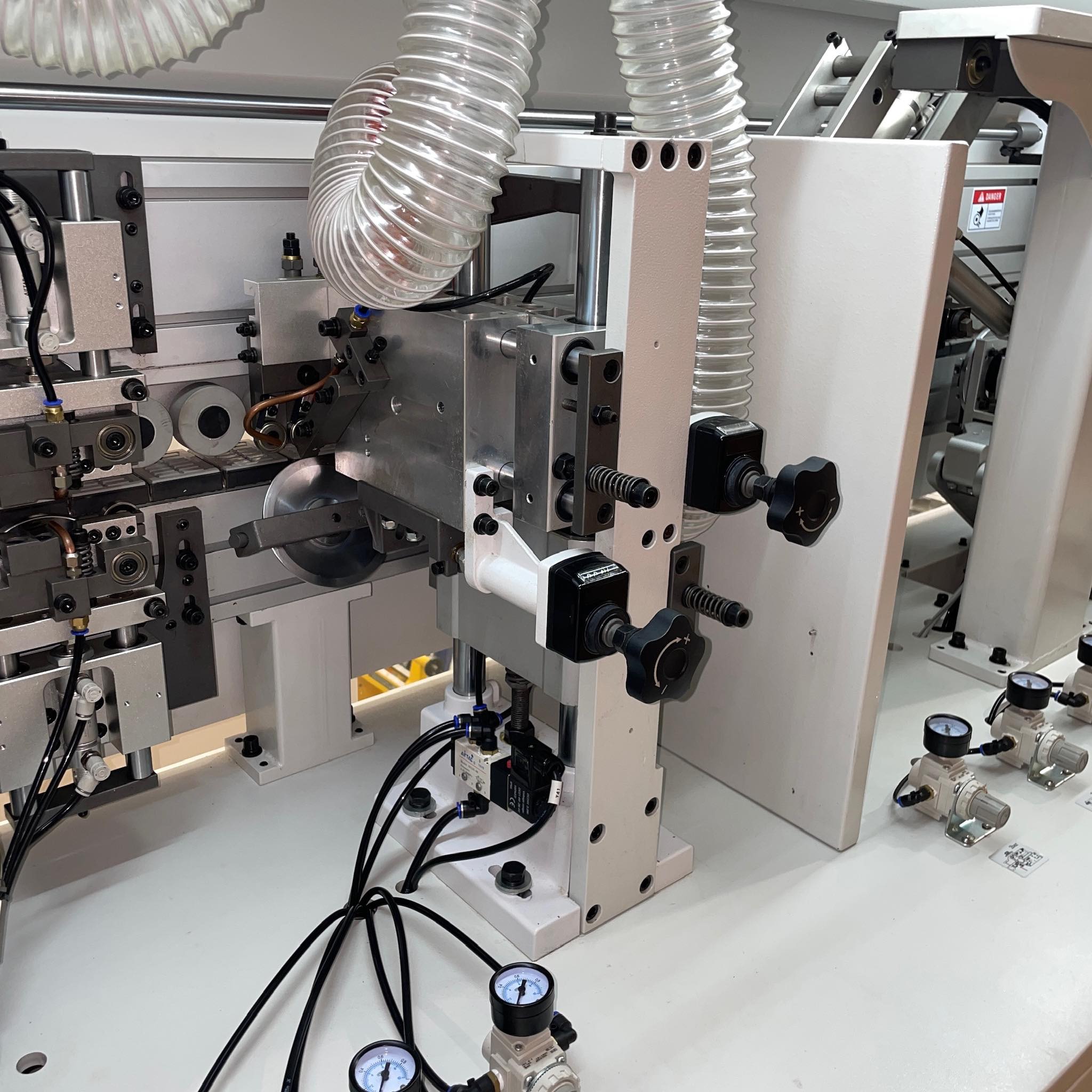

Rutile Series Scraping Station - Radius Scraping Unit - For the finishing of PVC / ABS edges. Excellent vibration free finish thanks to its high rigidity structure. High working precision thanks to the front and vertical copying discs, which ensure an accurate positioning of the knives in relation to the cutting point. The unit is complete with 2 mechanical digital readouts to make easy adjustment of the front copying pads and cutters.

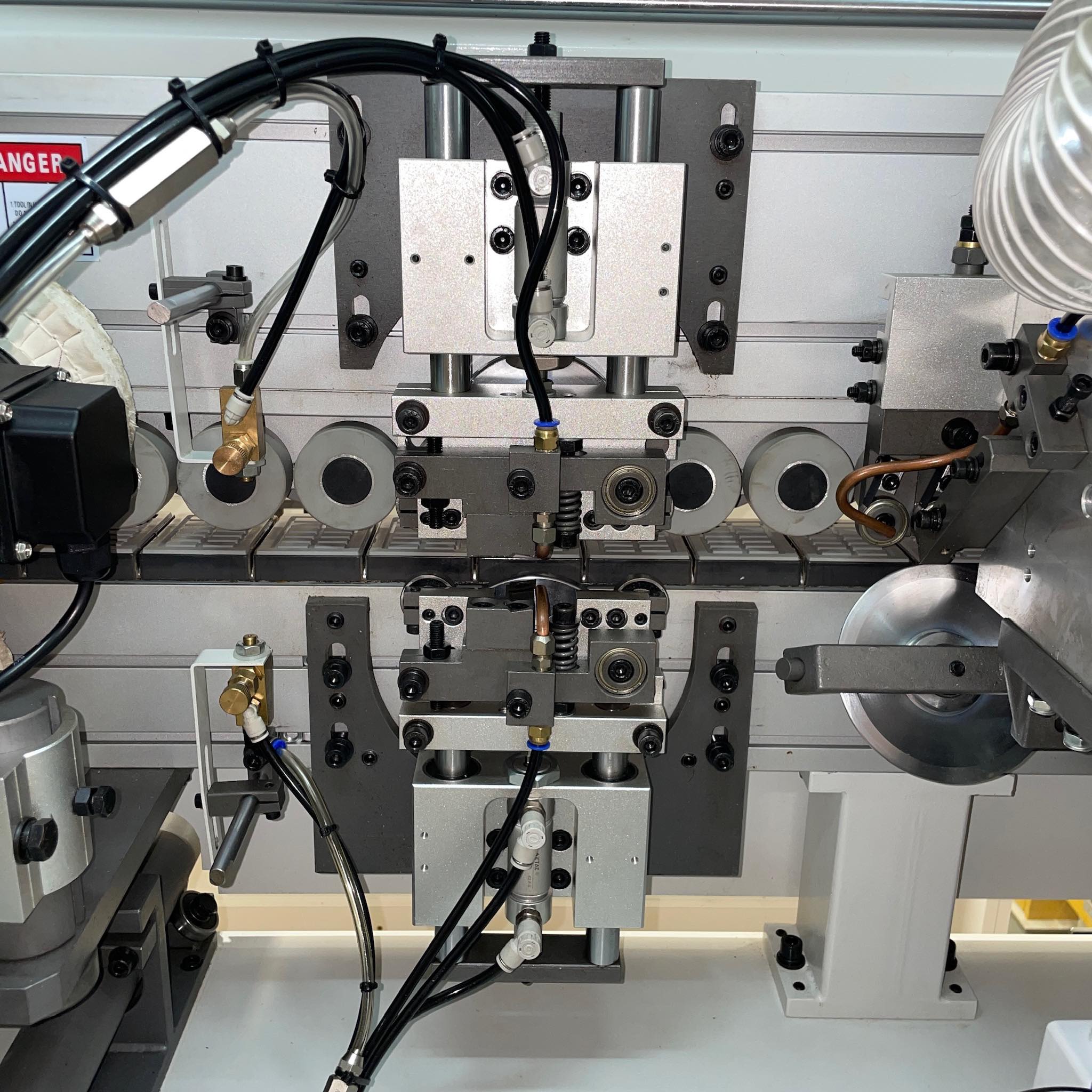

Rutile Series - Flat Glue Scrapers - The manual adjustable scraper knives ensure a perfect finish on the panel surface.
Rutile Series Scraping Station - Radius Scraping Unit - For the finishing of PVC / ABS edges. Excellent vibration free finish thanks to its high rigidity structure. High working precision thanks to the front and vertical copying discs, which ensure an accurate positioning of the knives in relation to the cutting point. The unit is complete with 2 mechanical digital readouts to make easy adjustment of the front copying pads and cutters.

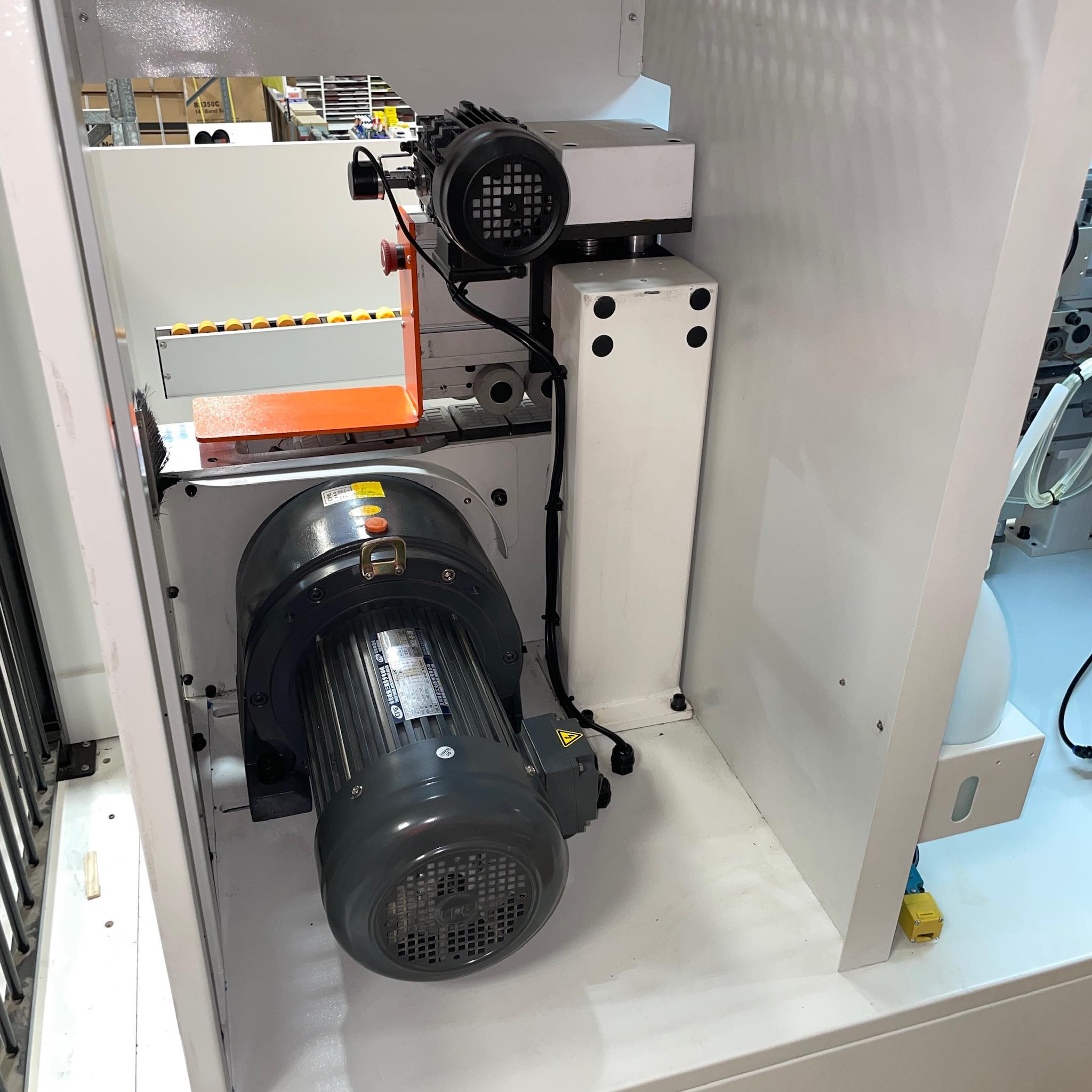

Rutile Series - Feed Motor
Roll over image to zoom in Click on image to zoom
Automatic Hot Melt Edge Bander 415V Rutile 400 by ToughcutCorner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).Corner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).Corner Rounding Unit - Fitted with diamond tooling the two motor corner rounding unit can process panels at high speed (Featured on Rutile 400+ Rutile 500 Series).Glue Pot Oil LubricationRutile Series Pressure RollersRutile Series Edge Banding Tape Support TableRutile Series Touch Screen Control - User friendly touch screen control and interface ensures quick and easy execution of customised working programs. Rutile Series - End Cutting / Trimming Unit - With two independent high frequency motors to cut the front and rear edge. Each operating motor is equipped with copying device for an accurate positioning of blades in relation to the cutting point.Rutile Series - End Cutting / Trimming Unit - With two independent high frequency motors to cut the front and rear edge. Each operating motor is equipped with copying device for an accurate positioning of blades in relation to the cutting point.Automatic Hot Melt Edge Bander 415V Rutile 400 by ToughcutRutile Series - Flush / Fine Trimming Unit - Equipped with two independent high frequency motors with diamond tooling mounted on a support firmly fixed to the frame to carry out th etrimming of the bottom / top exceeding edge. Each motor is equipped with vertical rotation copying devices and front copying pad, easy to read digital adjustment and accurate positioning of tools with reference to the trimming. Rutile Series Scraping Station - Radius Scraping Unit - For the finishing of PVC / ABS edges. Excellent vibration free finish thanks to its high rigidity structure. High working precision thanks to the front and vertical copying discs, which ensure an accurate positioning of the knives in relation to the cutting point. The unit is complete with 2 mechanical digital readouts to make easy adjustment of the front copying pads and cutters.Rutile Series - Flat Glue Scrapers - The manual adjustable scraper knives ensure a perfect finish on the panel surface.Rutile Series Scraping Station - Radius Scraping Unit - For the finishing of PVC / ABS edges. Excellent vibration free finish thanks to its high rigidity structure. High working precision thanks to the front and vertical copying discs, which ensure an accurate positioning of the knives in relation to the cutting point. The unit is complete with 2 mechanical digital readouts to make easy adjustment of the front copying pads and cutters.Rutile Series - Feed Motor

Automatic Hot Melt Edge Bander 415V Rutile 400 by Toughcut

ToughCutSKU: 800877
Price:
$0.00

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

Automatic Single Sided Edgebander Rutile 400 with ToughCut Technology - Advanced Edgebanding Solution

Upgrade your woodworking operations with the advanced Automatic Single Sided Edgebander Rutile 400. This cutting-edge edgebanding machine, equipped with ToughCut technology, provides precision, efficiency, and reliability for your edgebanding needs. Whether you're a furniture manufacturer, carpentry workshop, or woodworking professional, the Rutile 400 with ToughCut technology offers exceptional performance.

Key Features

  1. ToughCut Technology: The Rutile 400 is equipped with ToughCut technology, a revolutionary feature that enhances the durability and longevity of the edge banding process. It ensures superior cutting performance, even when working with challenging materials such as high-pressure laminates (HPL) and thick edges. Experience precise and clean cuts every time.

  2. Fully Automated Operation: With its fully automated edge banding process, the Rutile 400 reduces manual labour and increases productivity. It efficiently applies edge banding materials to panel edges, ensuring a seamless and professional finish. The ToughCut technology enhances the machine's ability to handle tough materials effortlessly.

  3. High-Quality Edge banding: Achieve impeccable edge banding results with the Rutile 400. Its precise glue application system guarantees strong adhesion and seamless bonding. The machine supports a variety of edge banding materials, including PVC, ABS, veneer, and solid wood strips. The ToughCut technology ensures consistent and high-quality edge banding results, even with challenging materials.

  4. User-Friendly Interface: The Rutile 400 features an intuitive control panel that makes operation and setup a breeze. Adjusting parameters such as edge thickness, feed speed, and cutting depth is quick and easy. The machine's advanced technology, including ToughCut, is seamlessly integrated into the user-friendly interface.

Upgrade your edge banding process with the Automatic Single Sided Edge bander Rutile 400 featuring ToughCut technology. Experience exceptional cutting performance, reliable operation, and outstanding edge banding results. Invest in the Rutile 400 today and take your woodworking operations to new heights.

Features

  • Workpiece Infeed Stop
  • Touch Screen Control
  • Glue Application Unit
  • Panel Feed System
  • Safety Infeed Guard
  • Electric Height Adjustment
  • Corner Rounding

Standard Equipment Inclusions

  • Buffing
  • Radius Scraping
  • Corner Rounding
  • Fine Trim Motors with Diamond Tooling
  • End Sawing
  • Hot Melt Glue Pot

Machine Footprint

Additional Information

Model
Type
Edgebander
SKU
800877
Series
Rutile
Part Number
RUTILE 400 3PH
Brand
ToughCut
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6 Bar (Required)
Edging Thickness
0.3-3mm
Feed Speed
12m / 15m / 18m / Min.
Material (Stock) - Minimum Length
120 mm
Material (Stock) - Minimum Width
80 mm
Material (Stock) - Maximum Height
60 mm
Material (Stock) - Maximum Thickness
10-60mm
Dimensions
Product Length
5460 mm
Product Width
2161 mm
Product Weight (Net Weight)
1950 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Digital Touch Screen Panel
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
CE Certified
Dust Port
150mm
Workshop (Site) Info
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6 Bar (Required)
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Other Requirements
Compressed Air , Dust Extraction (Minimum 5HP)
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Brochure
Brochure
https://cdn.shopify.com/s/files/1/0588/3160/1843/files/TOUGHCUT_RUTILE_350_400_450_500_-_SML.pdf
Packaging + Shipping
Shipping Length
5100 mm
Shipping Width
900 mm
Shipping Height
1550 mm
Shipping Weight (Gross)
2200.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
