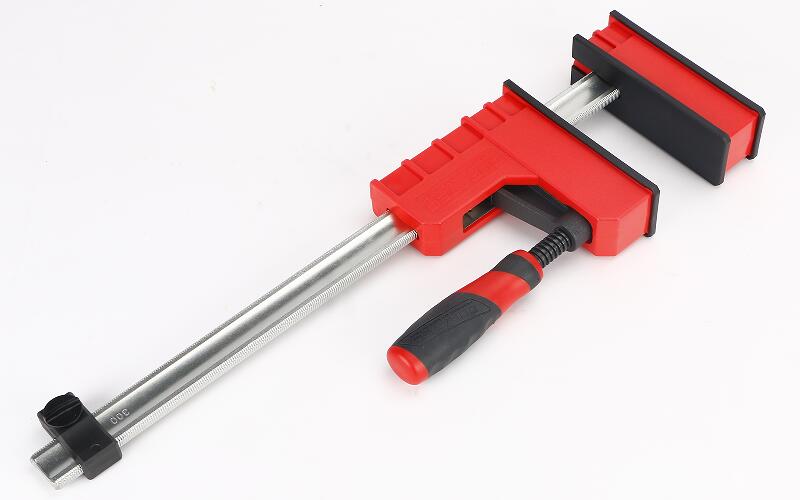

Ductile cast iron arms with built-in steel frame for maximum strength

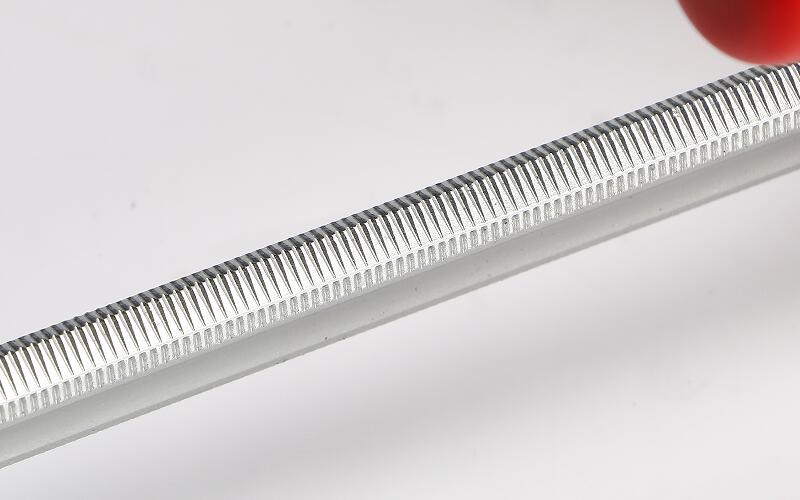

Rail made from reinforced C45 steel

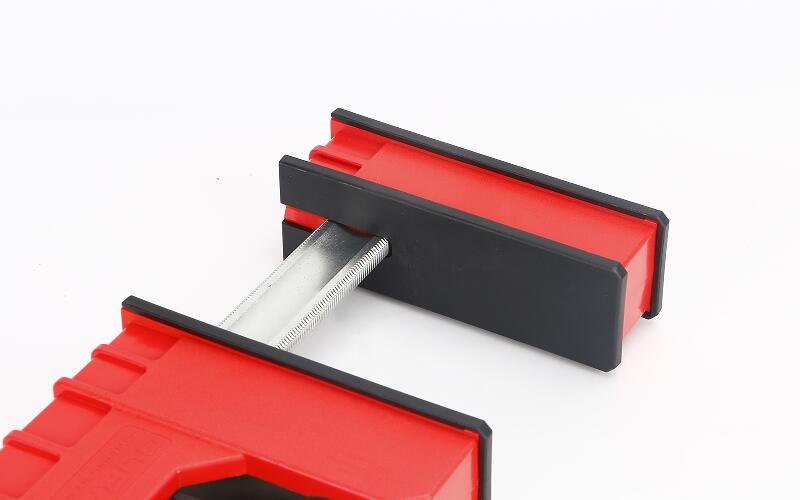

Replaceable soft cushions for protection of workpiece
Additional Information
Model
Type
Parallel Clamps
SKU
8001257
Part Number
DT69090800
Barcode
6929006909800
Brand
Duratec
Size
90mm (3-35/64") x 800mm (32")
Technical - Main
Clamping Capacity / Span
Clamping Capacity / Span
Clamping capacity, also known as clamping span, refers to the maximum distance or size that a clamp can effectively grip or hold. In other words, it's the maximum width or diameter of the object that the clamp can accommodate.
800mm (32")
Clamping Depth / Throat
Clamping Depth / Throat
Clamping depth, also known as throat depth or simply throat, refers to the distance from the edge of the clamping mechanism (such as the jaws of a clamp) to the nearest obstruction or the fixed part of the clamp.
In other words, it's the maximum depth or reach into which the clamp can securely hold an object.
90mm (3-35/64")
Clamping Force
Clamping Force
Clamping force is the pressure a clamp applies to hold an object in place. It's determined by the clamp's design, materials, tightening mechanism, and user's force. It's often measured in pounds or newtons. Proper clamping force ensures stability without damaging the object or the clamp itself.
