Status
Available
Description

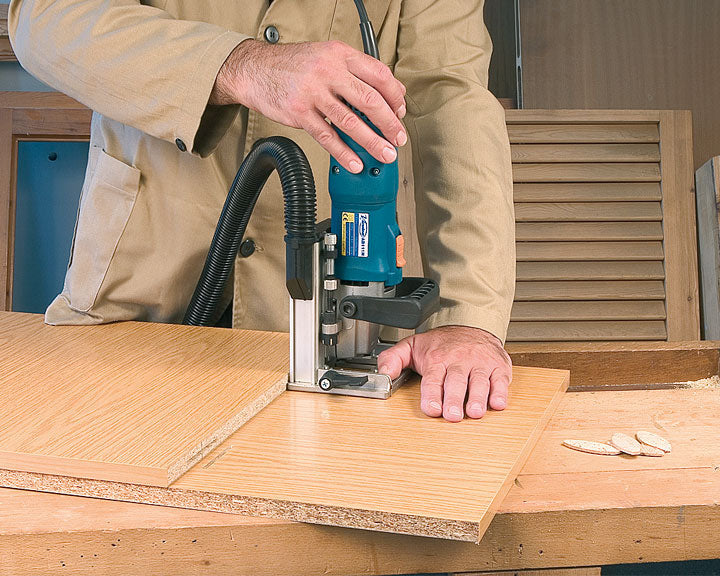

The Virutex AB111N Biscuit Joiner is a professional jointing machine designed for accurately cutting biscuit slots in panels, frames and solid timber components.

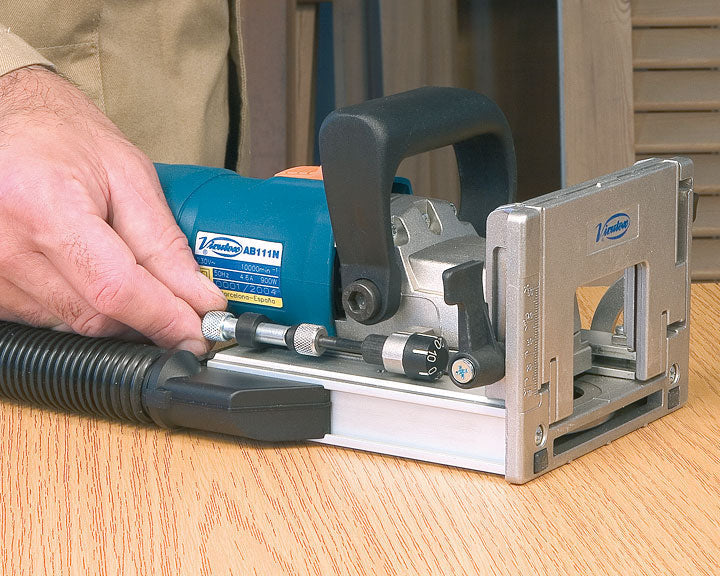

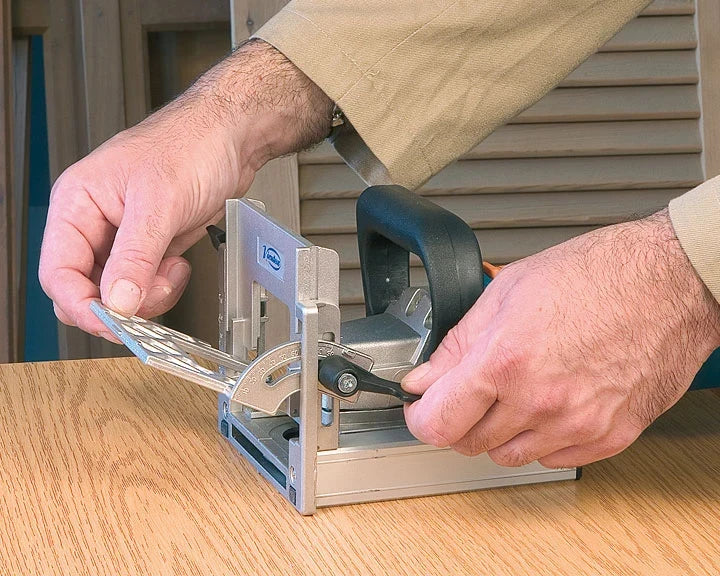

Its precision micrometric fence can be adjusted to virtually any height or angle, making it suitable for edge-to-edge joints, mitre joints, frame construction and joining materials of different thicknesses. Clear alignment markings help position each cut without requiring exact measurement, while allowing approximately 20mm of lateral adjustment when assembling the joint.
A pre-set depth selector makes it quick and easy to change between common biscuit sizes. The movable fence is optimised for working with 16mm, 19mm and 22mm panels, while its wider adjustment range also accommodates thicker workpieces.
Powered by an 800W motor and supplied with a professional 100mm carbide-tipped blade, the AB111N delivers clean, consistent grooves for strong and accurately aligned timber joints.
Features
- Precision micrometric fence with adjustable height and angle
- Pre-set depth selector for fast biscuit-size adjustment
- Cuts grooves in edges, faces, mitres and other working positions
- Suitable for standard No. 0, No. 10 and No. 20 joining biscuits
- Maximum 20mm cutting depth accommodates larger No. 6 splines
- Clear alignment markings simplify accurate positioning
- Allows approximately 20mm of lateral joint adjustment after cutting
- Movable fence helps centre grooves in thicker materials
- External dust-extraction connection
- Double-insulated construction
- Supplied in a protective carrying case
Applications
Ideal for:
- Edge-to-edge panel joining
- Cabinet and furniture construction
- Mitred joints
- Frame joints
- Solid timber and manufactured board
- Alignment of panels during glue-up
- Reinforcing wide or long timber joints
Specifications
| Specification | Details |
|---|---|
| Brand | Virutex |
| Model | AB111N |
| Part Number | 7900100 |
| Power Supply | 240V |
| Input Power | 800W |
| No-Load Speed | 10,000rpm |
| Blade Size | 100 × 22 × 4mm |
| Maximum Slotting Depth | 20mm |
| Fence Adjustment | Height and angle adjustable |
| Insulation | Double insulated |
| Weight | 2.6kg |
| Product Type | Biscuit Joiner / Biscuit Jointer |
Standard Equipment
- Virutex AB111N Biscuit Joiner
- 100 × 22 × 4mm cutter with two teeth and 2+2 spurs
- Adjustable micrometric fence
- External dust-extraction connector
- Carrying case
Compatible Biscuits and Splines
| Biscuit Size | Approximate Dimensions | Slot Depth |
|---|---|---|
| No. 0 | 47 × 15 × 4mm | 8mm |
| No. 10 | 53 × 19 × 4mm | 10mm |
| No. 20 | 56 × 23 × 4mm | 12mm |
| No. 6 | 85 × 30 × 4mm | Two adjoining 20mm slots |
For greater joint strength, Virutex recommends using three or more biscuits where the workpiece dimensions permit.
Recommended Accessories
- Virutex 1440080 replacement biscuit joiner blade
- Virutex No. 0, No. 10, No. 20 and No. 6 FSC beechwood biscuits
- Virutex 6446073 dust collector attachment
- Virutex 6446078 CB64B lateral fence
- Virutex 6446079 CA64B repairing head
- Virutex 7903177 10mm groove attachment
