Type
CNC Router
SKU
964199
Series
Sapphire
Part Number
TC6090
Brand
ToughCut
Status
Available
Description

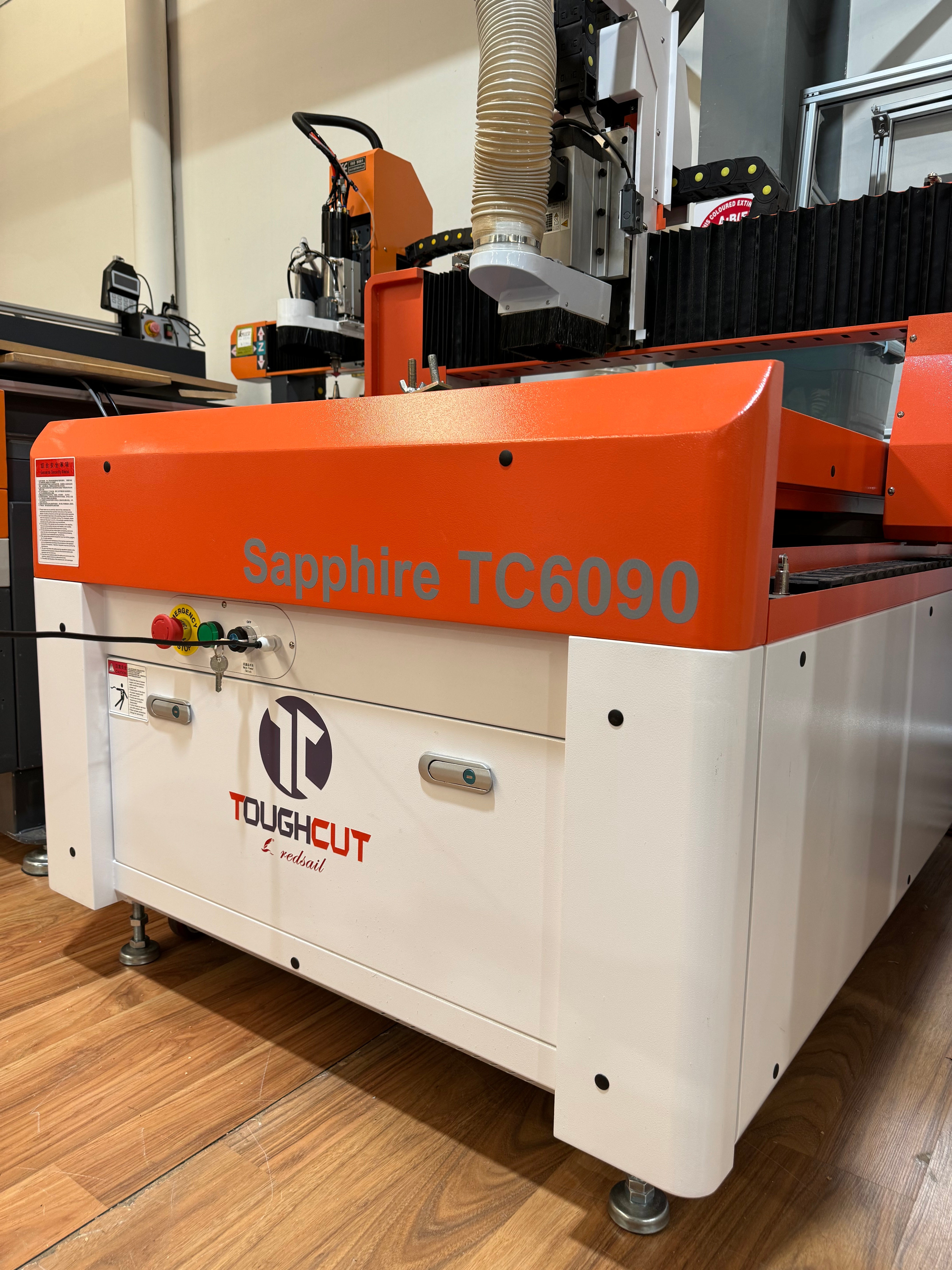

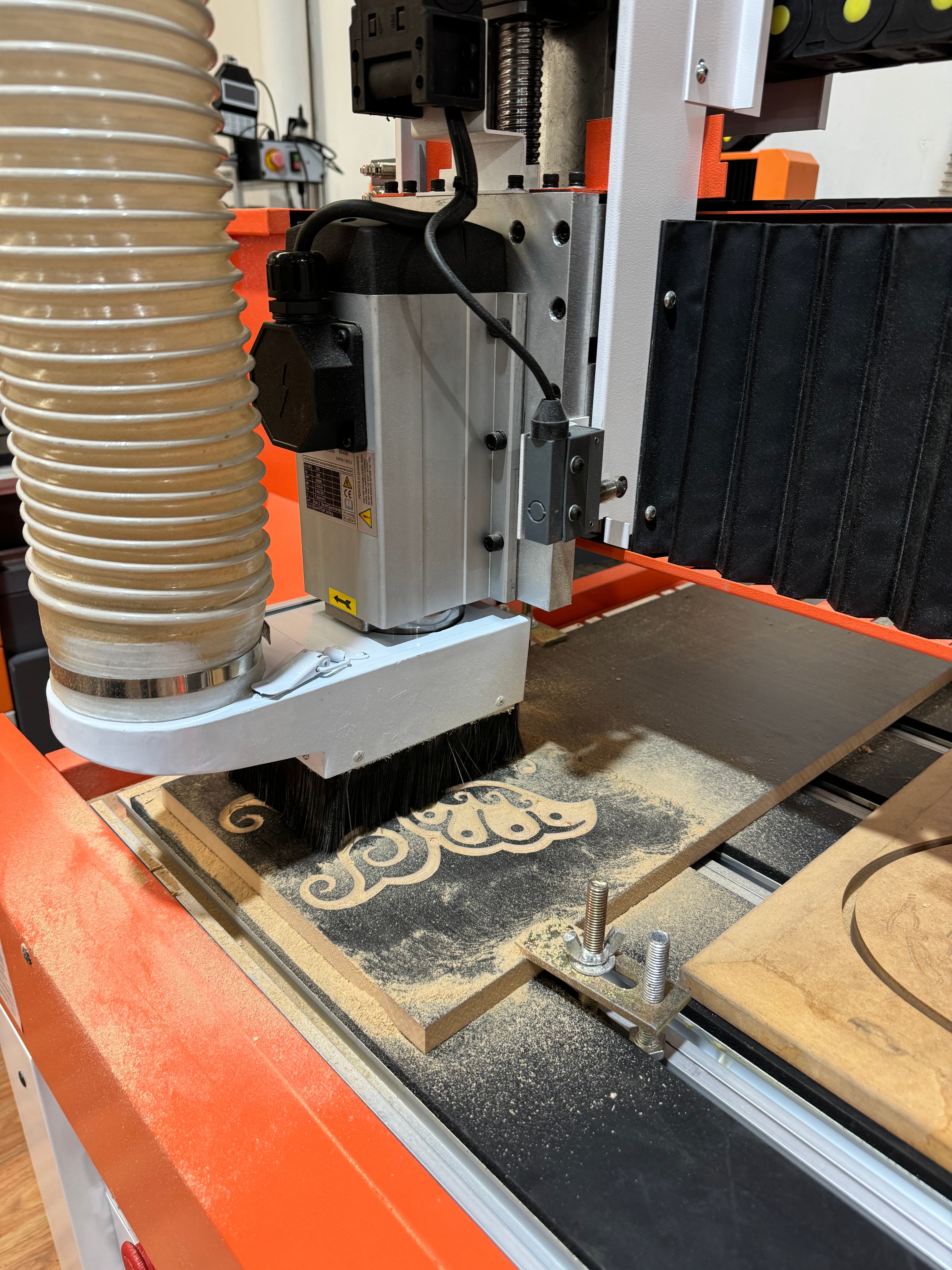

This desktop CNC router is small and simple to use. Various materials can be cut and engraved by this machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminium and copper can be engraved. The machines are equipped with MACH3 Software and Driver allowing for easier control of the machine. Also, this machine can achieve excellent performance and high resolution carving due to ball and screw drive.
Features

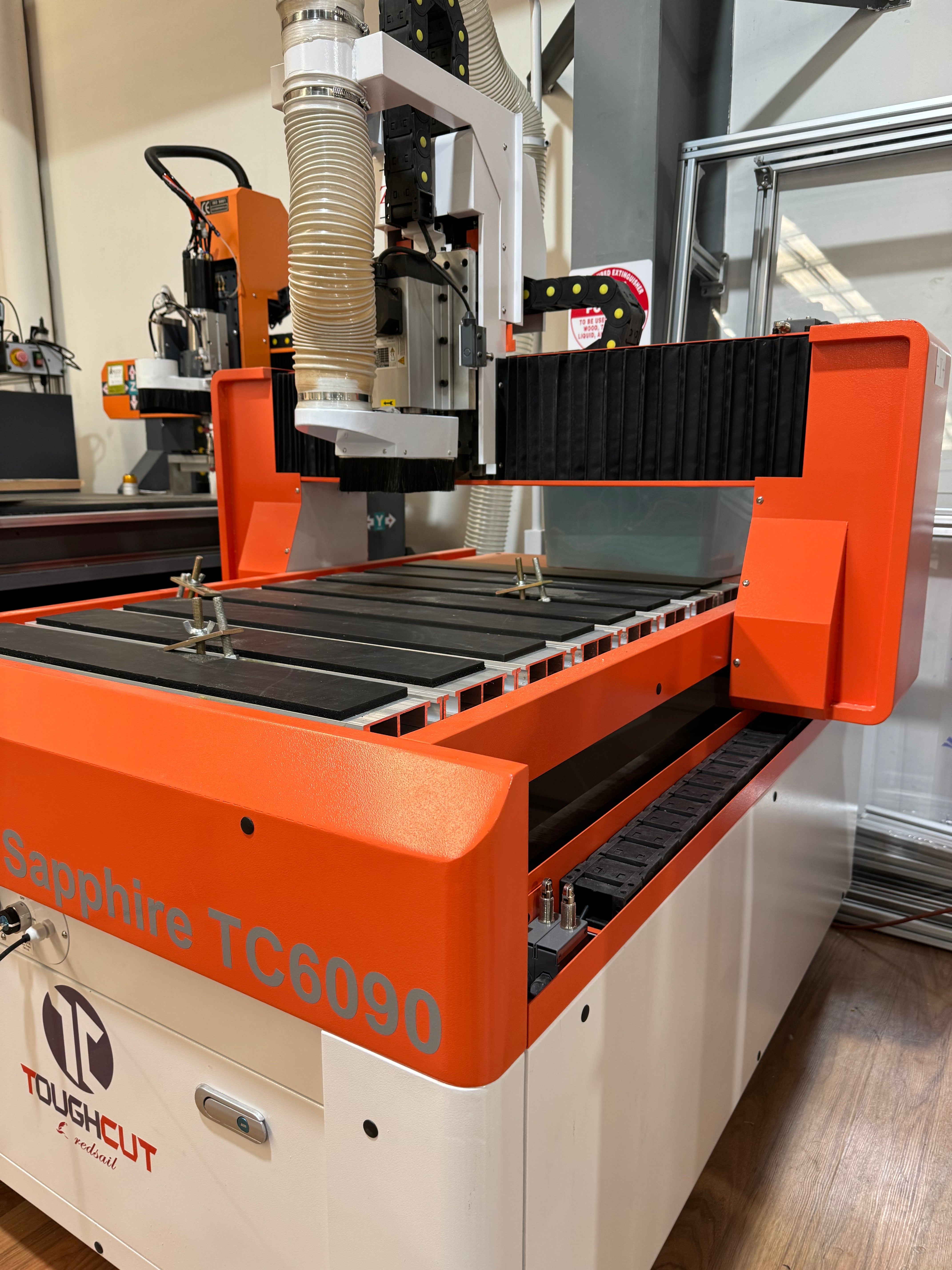

- The machine bed is aluminium, rigid, solid, and stable
- High precision
- Equipped with wheels for mobility
- Ball screw and linear guide rail, ensure stable and accurate operation
- Can use most types of CADCAM software, e.g. Artcam Express
- Auto tool measuring device

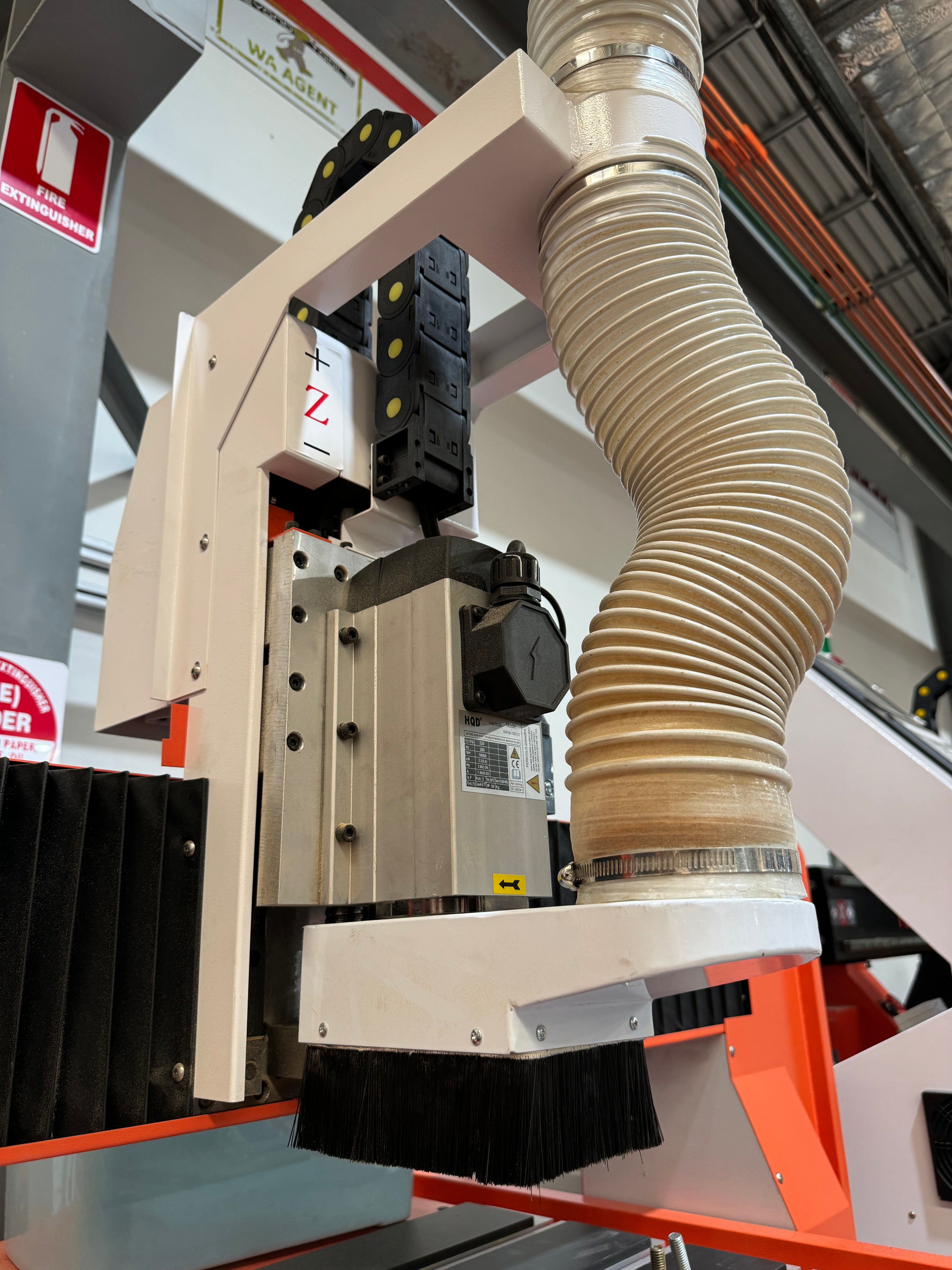

- 2.2kw (3HP) Air Cooled Spindle
Specifications
- Worktable Size: 600 x 900mm
- Max. Moving Speed: 7m/min
- Max. Machining Speed: 4m/min
- Machine Precision: 0.02mm
- Repeatiblity: 0.01mm
- Gantry Height: 150mm
- Drive Type: Stepper Motor
- Spindle: 2.2kW (air cooled)
- Spindle Speed: 0 – 24,000RPM
YouTube Clips of Product
Comparable Products
- RS6090 CNC Router by Redsail
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Accuracy
0.02mm
Mount
ER20
No. of Tool Changers
1
Speed Range
0-24,000RPM
Dimensions
Product Length
1410 mm
Product Width
1150 mm
Product Height
1740 mm
Product Weight (Net Weight)
370 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Standard Inclusions
Small Tool Box with Maintenance Tools
2 x Cutters

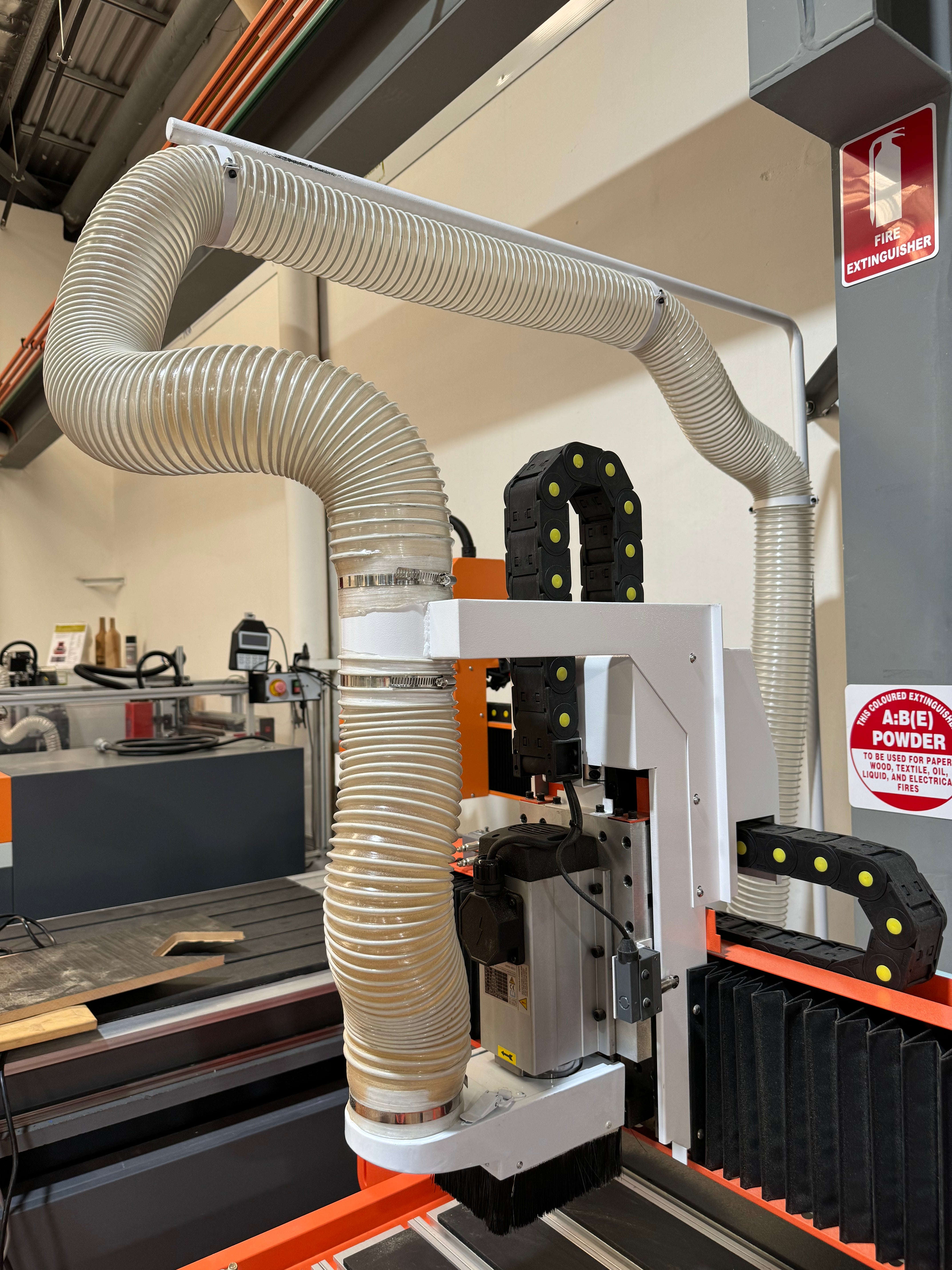

100mm Hose suitable for Extraction (approx. 5m)

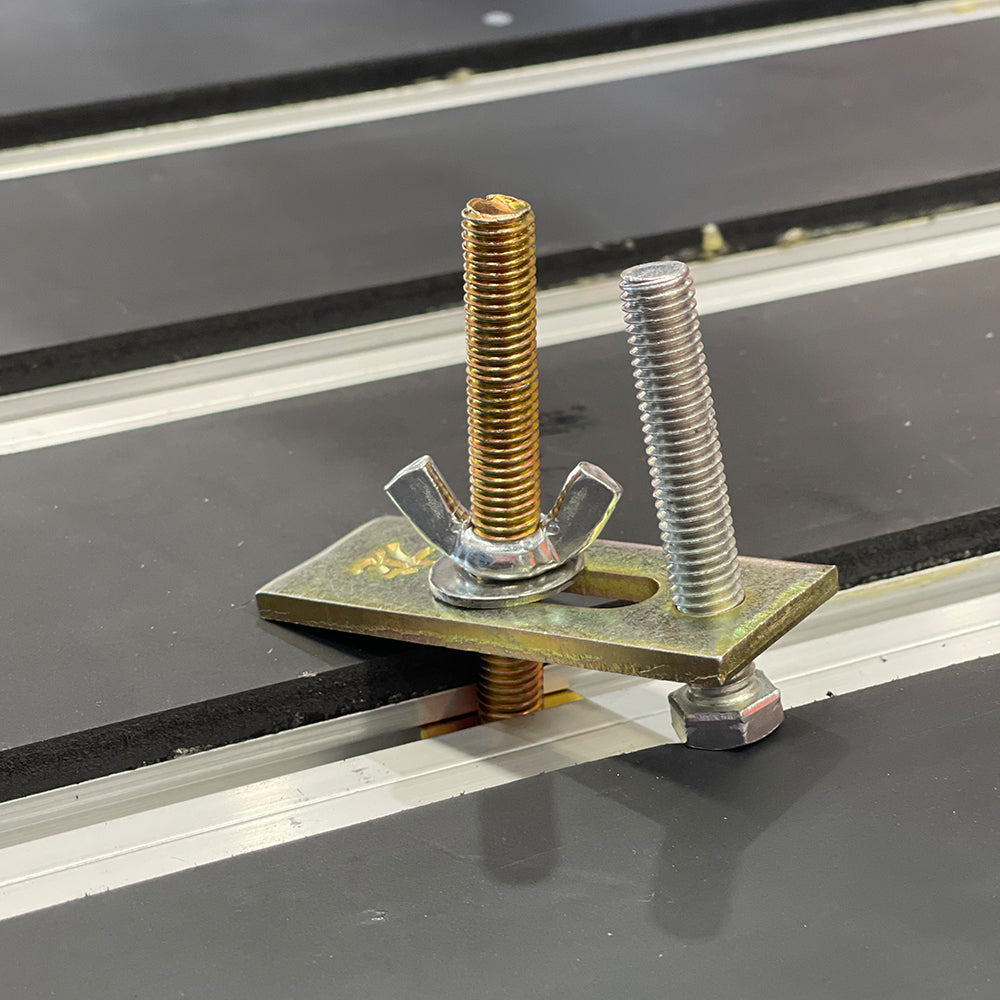

6 x Workpiece Clamps
Machine Operating Hardware: Windows-based laptop with MACH3 software installed for machine control (* laptop not for CAD designing use)
2 x Cutters
100mm Hose suitable for Extraction (approx. 5m)
6 x Workpiece Clamps
Machine Operating Hardware: Windows-based laptop with MACH3 software installed for machine control (* laptop not for CAD designing use)
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
CE Certified
Dust Port
100mm
Workshop (Site) Info
Electrical Connection
10 Amp Plug
Workshop Requirements
Power Supply: 2 x 230-240V 50Hz Single Phase - 10Amp Plug (1 x for Machine, 1 x Machine Hardware)
User Computer / Laptop: (To draw and design)
CAD CAM Software: Required (To draw and design)
Odour & Fume Extractor: Highly Recommended
Safety Wear: Safety Glasses
Cutters / Tooling - Various sizes depending on client requirements
User Computer / Laptop: (To draw and design)
CAD CAM Software: Required (To draw and design)
Odour & Fume Extractor: Highly Recommended
Safety Wear: Safety Glasses
Cutters / Tooling - Various sizes depending on client requirements
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
1530 mm
Shipping Width
1230 mm
Shipping Height
1550 mm
Shipping Weight (Gross)
400.0 kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
