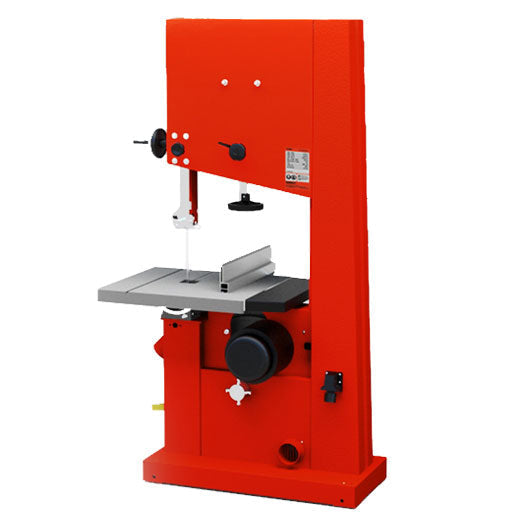

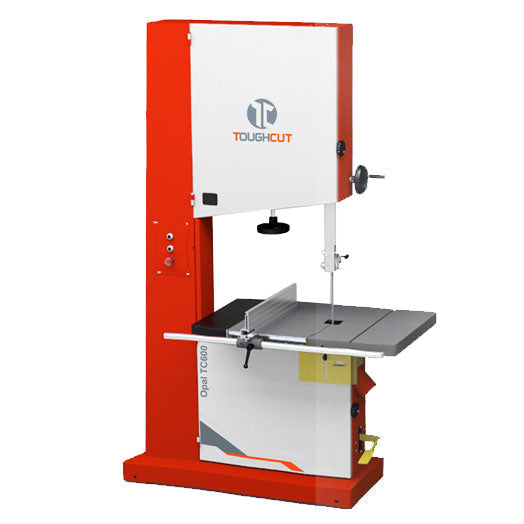

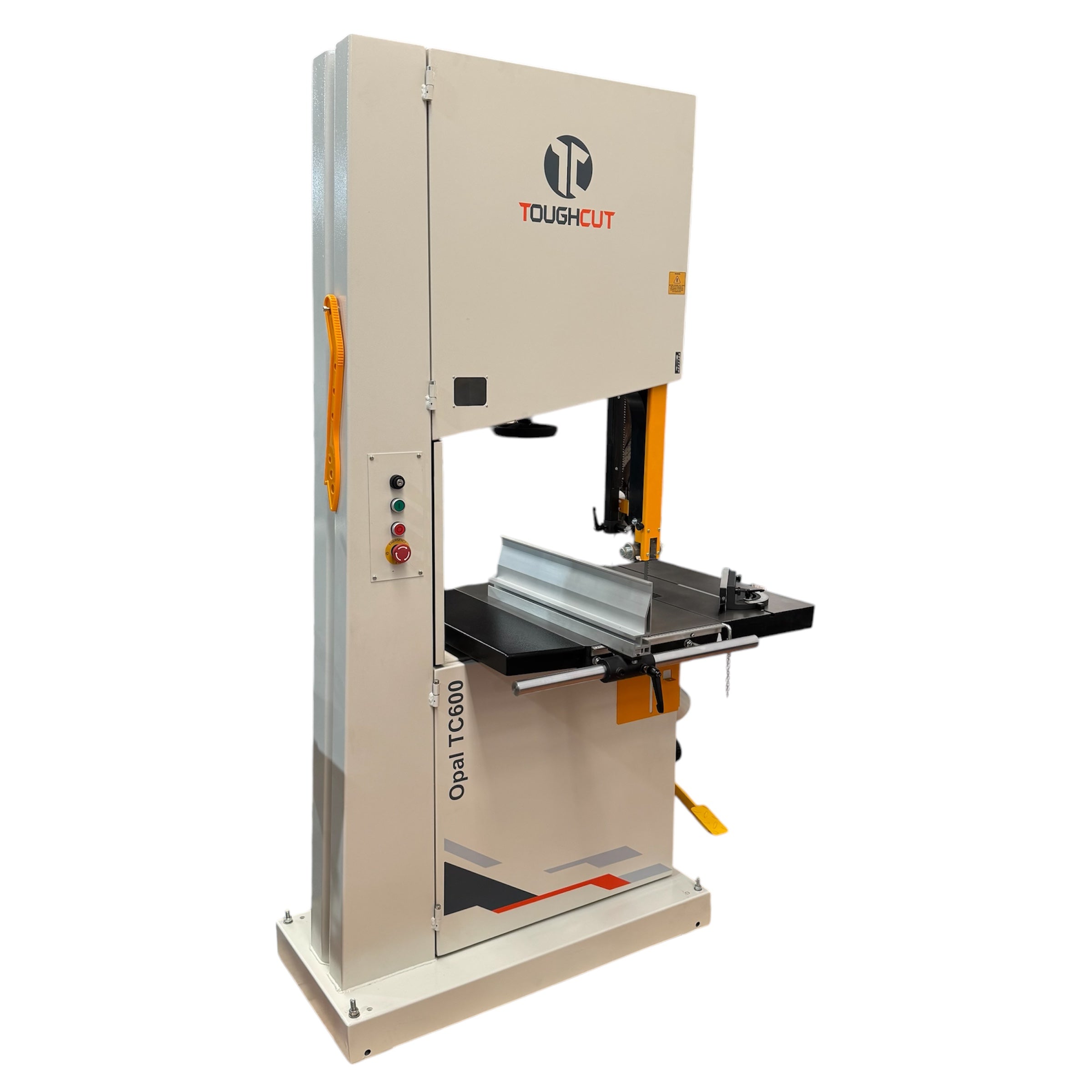

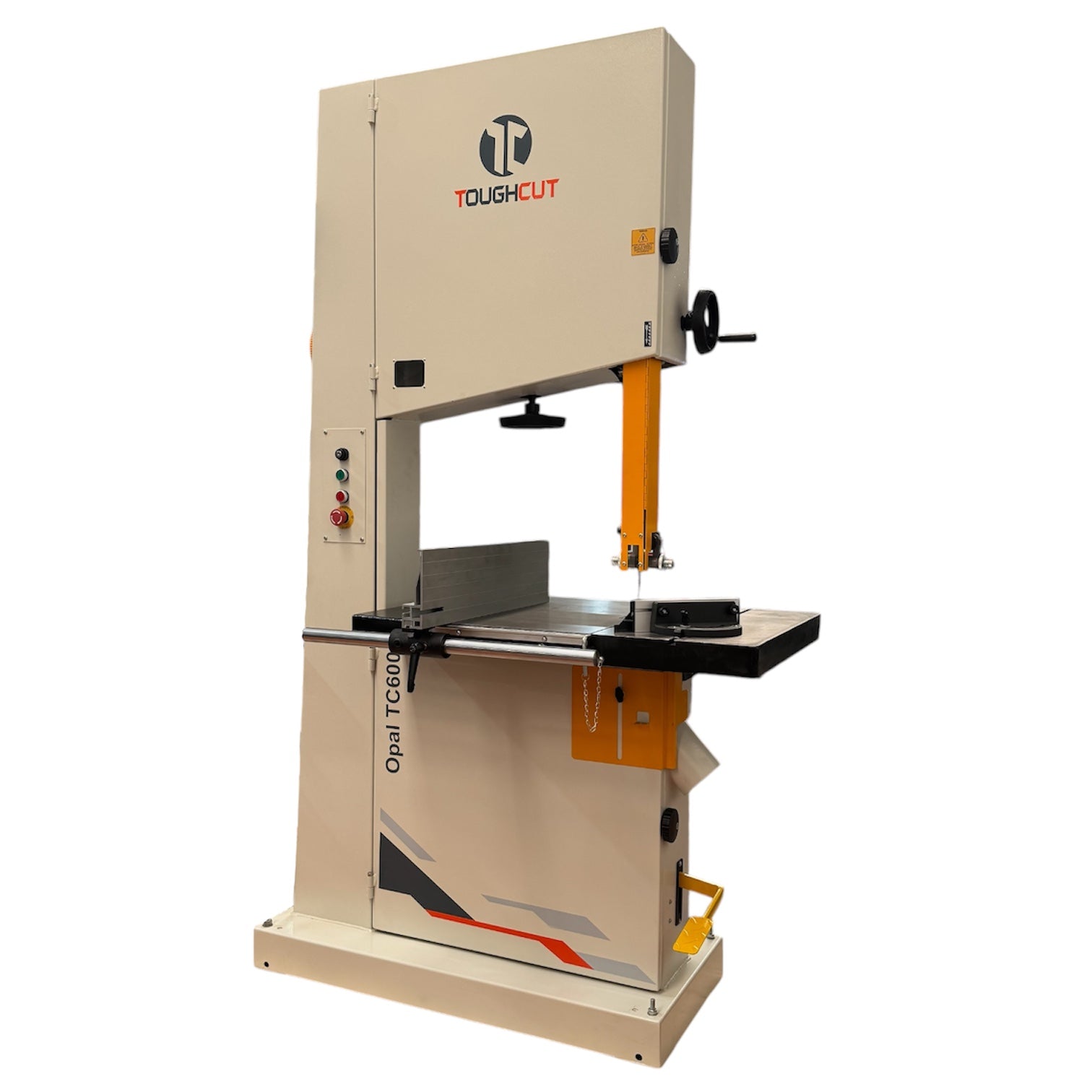

*Special Order* 600mm (24") Industrial Bandsaw Opal TC600 by Toughcut

ToughCutSKU: 8000908

Price:
Sale price$5,199.00
Stock:
In stock (2 units), ready to be shipped

Status

Available

Description

Features

  • Dual 4″ Dust Ports
  • Double Bearing Blade Guide System
  • Thickened Large Cast Iron Table with T Slot Design
  • Fully Enclosed thickened Steel Body
  • Quick Release Blade Tension
  • Hinged Blade Guard with Sight Window
  • Rack and Pinion Saw Blade Guide

Additional Information

Model
Type
Bandsaw
SKU
8000908
Part Number
OPAL TC600
Brand
ToughCut
Size
600mm (24”)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase

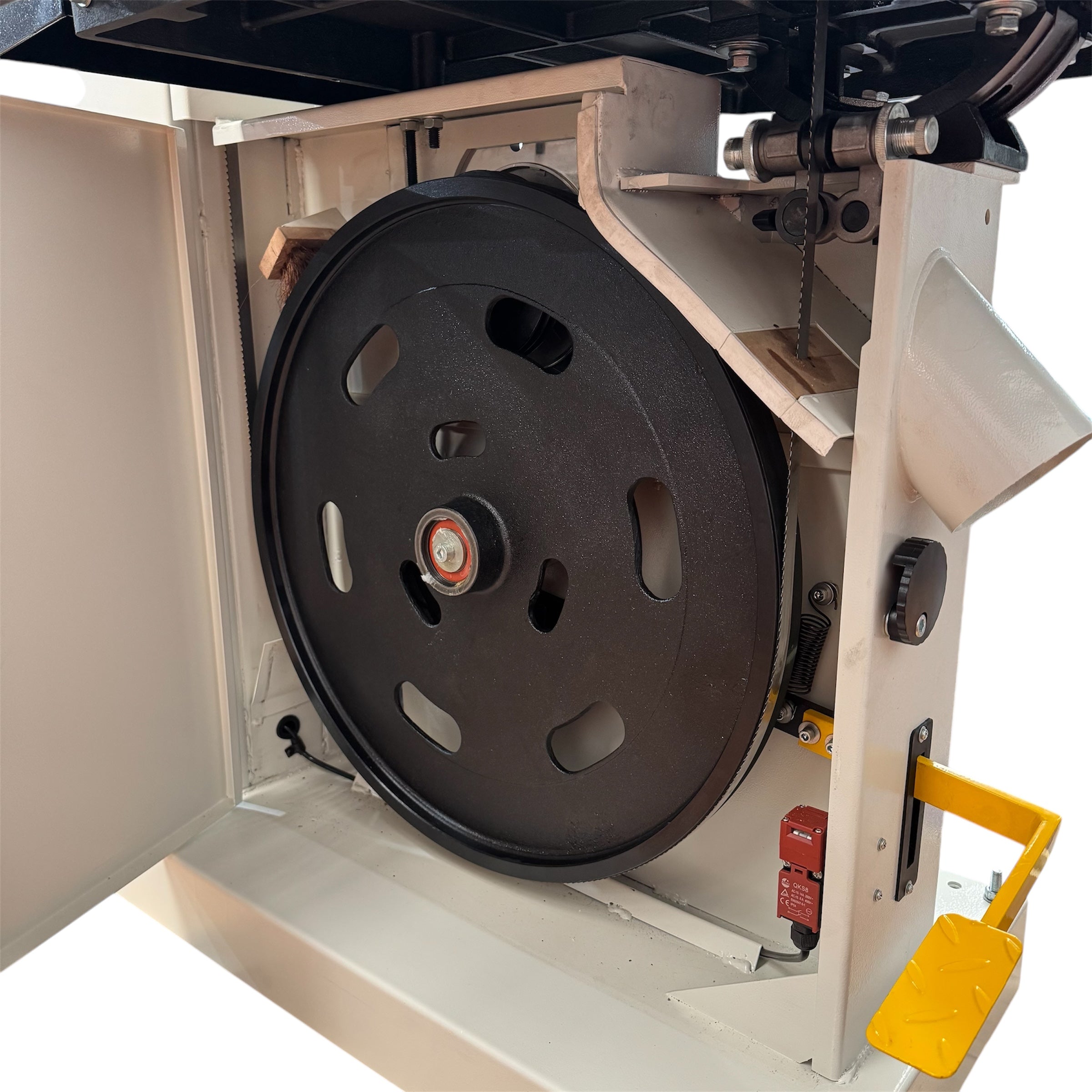

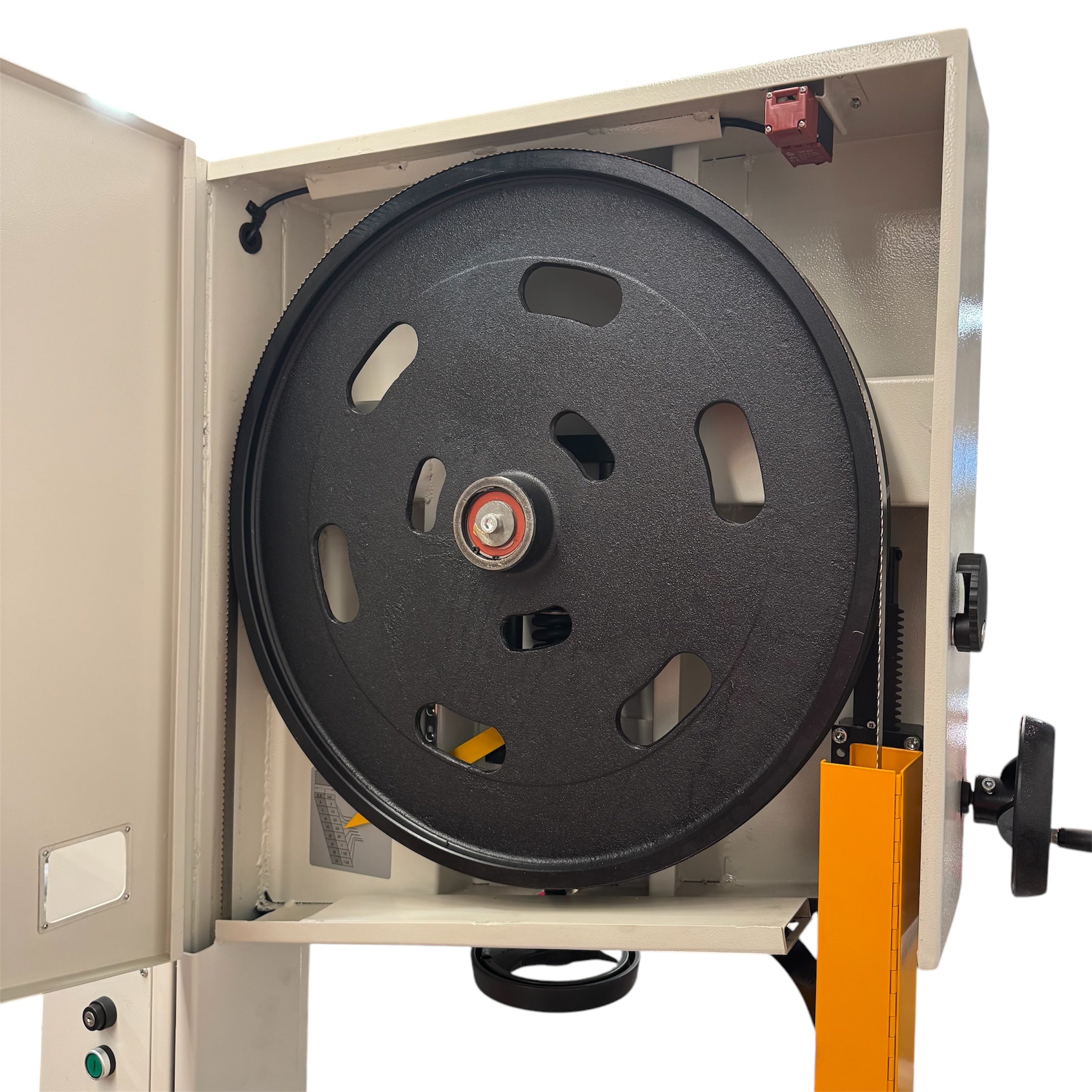

Bandwheel
Solid Cast Iron Balanced
Bandwheel Diameter
600 mm
Blade Length
4470 mm
Blade Width
10-35mm
Cutting Capacity - Height
370 mm
Throat Capacity
580 mm
Table Size
700 x 608mm
Technical - Saw
Blade (Main) - Speed
1500m / Min.
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features

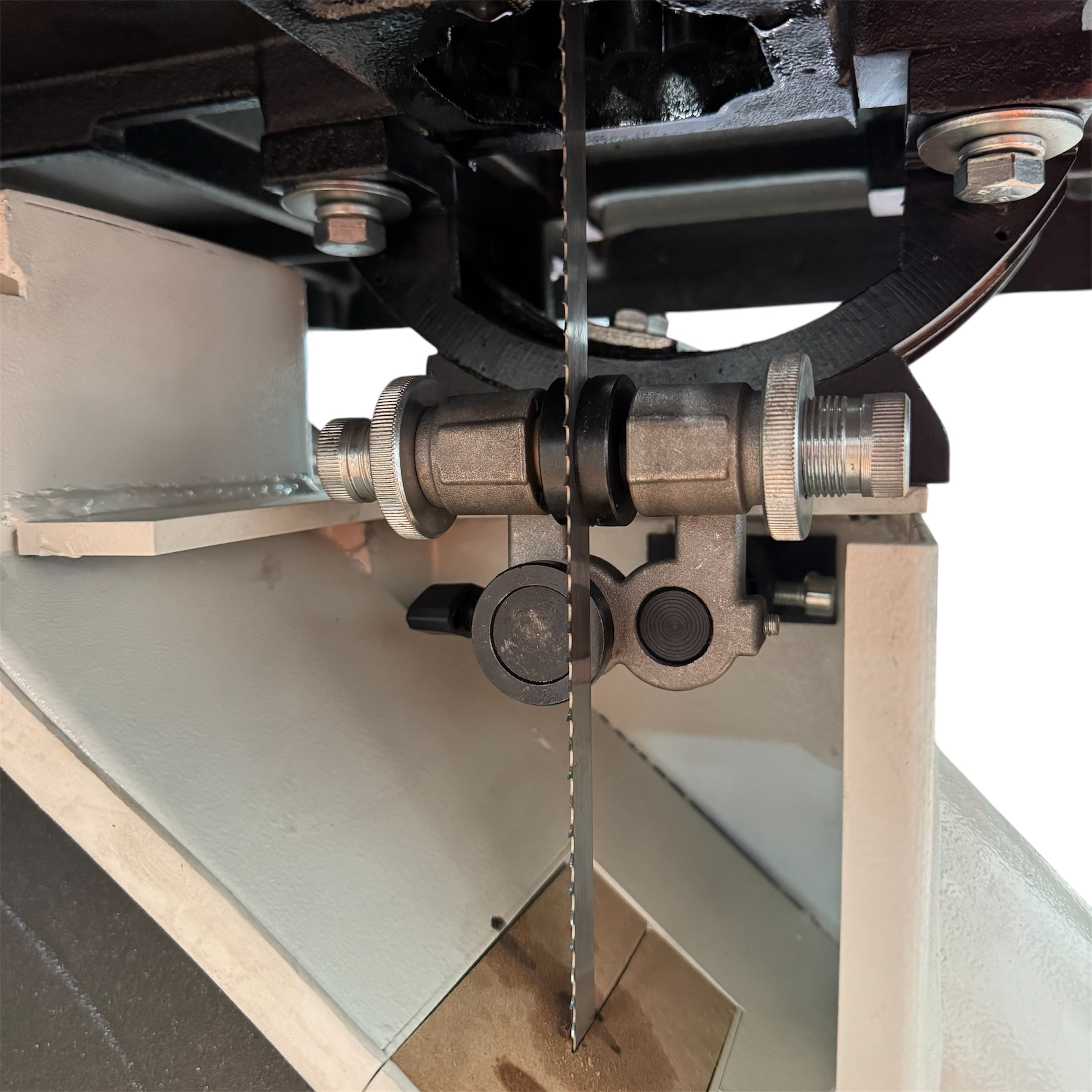

Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.

De-tensioning your blade will extend the life of your blade.

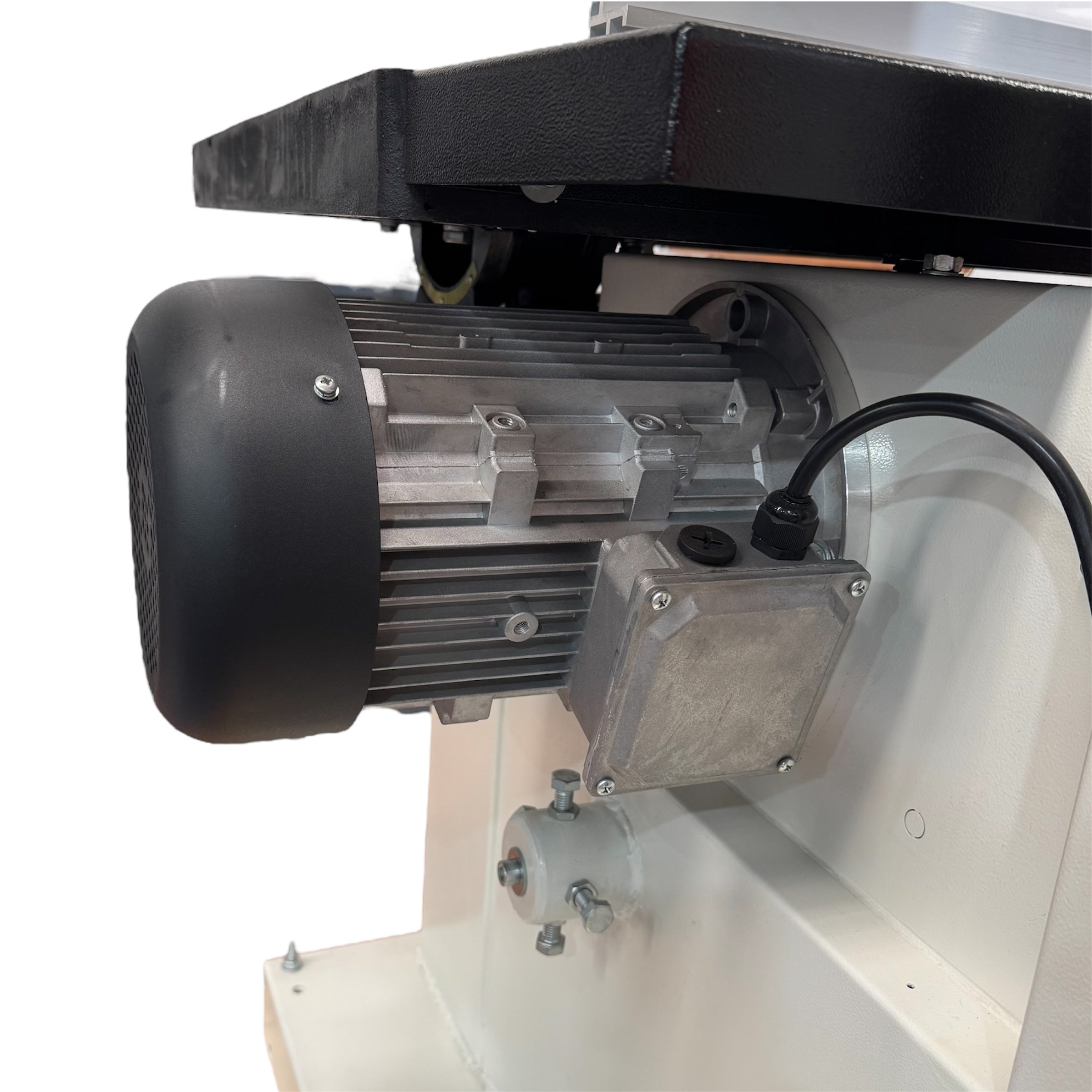

Induction Motor

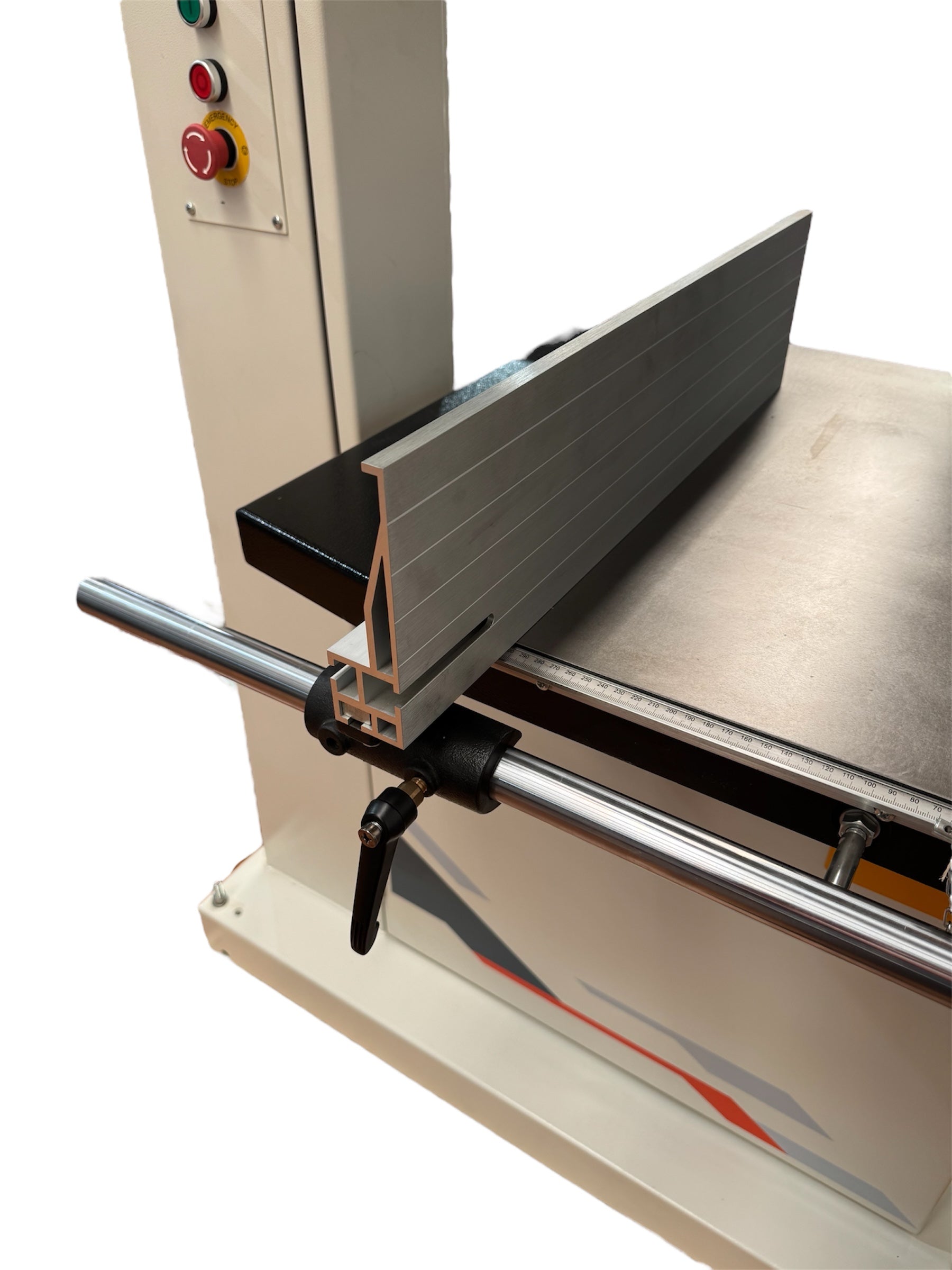

Table Fence Construction
150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.

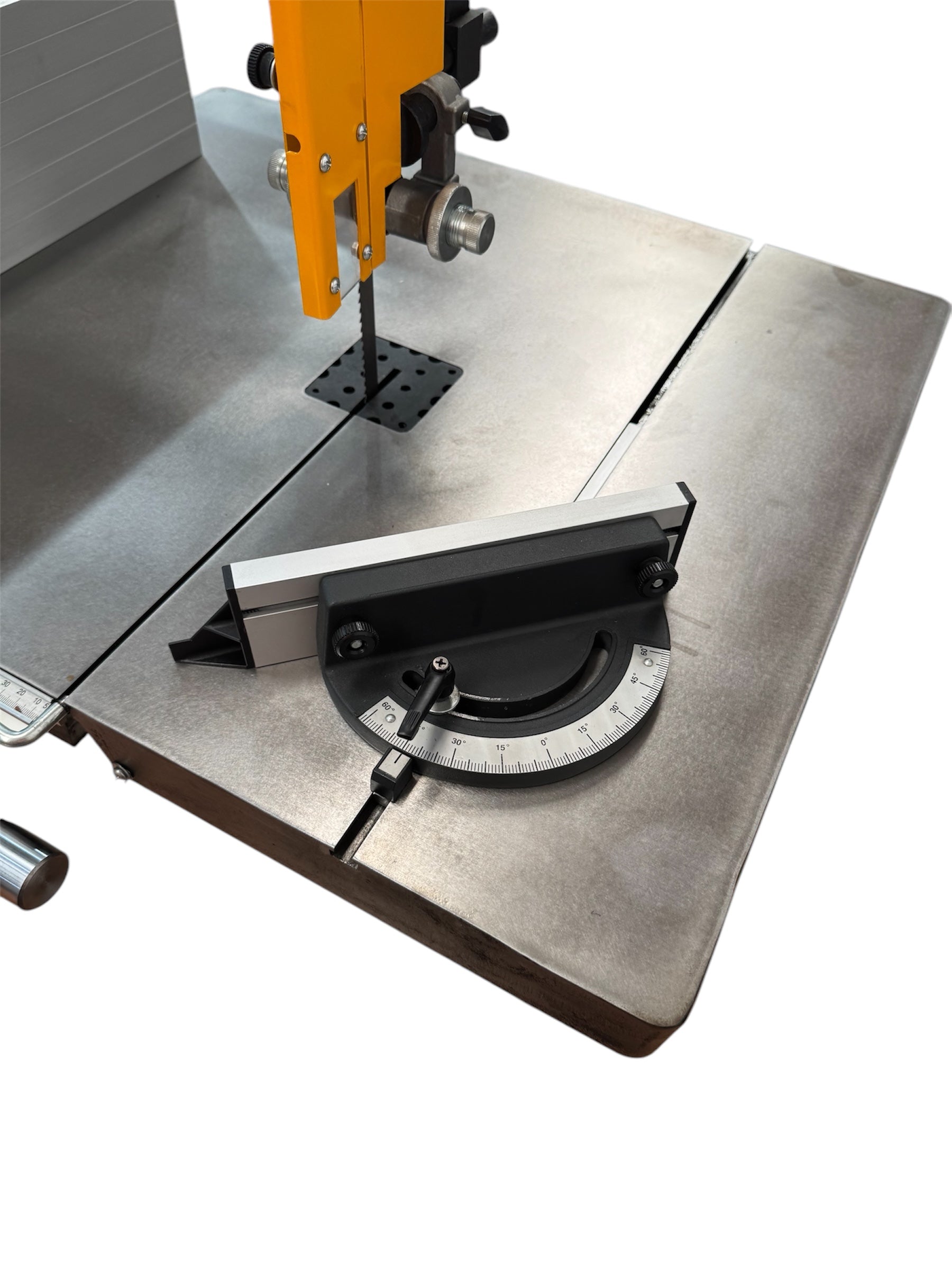

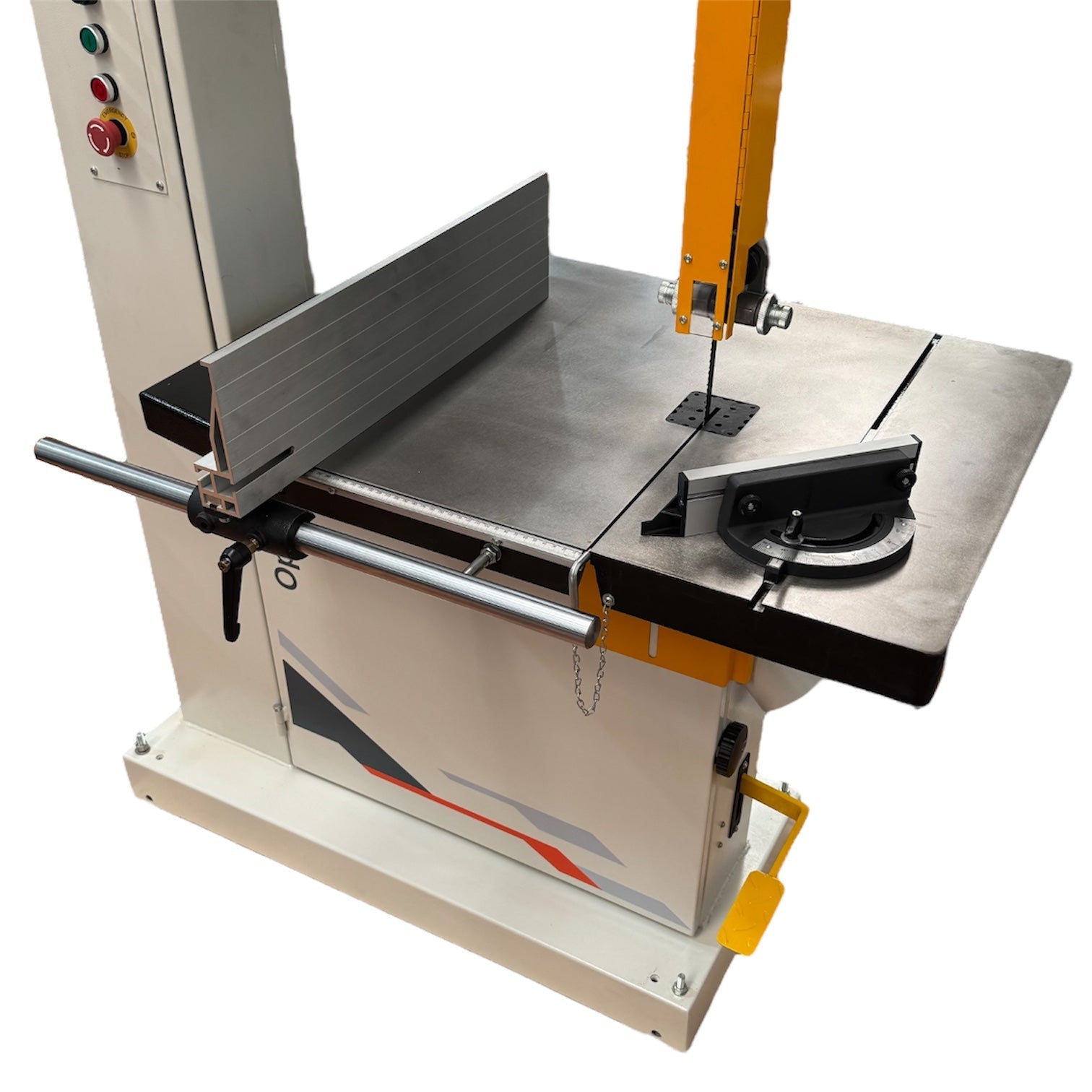

Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
1 x Push Stick
1 x 4470mm Bandsaw Blade
1 x Mitre Gauge
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings

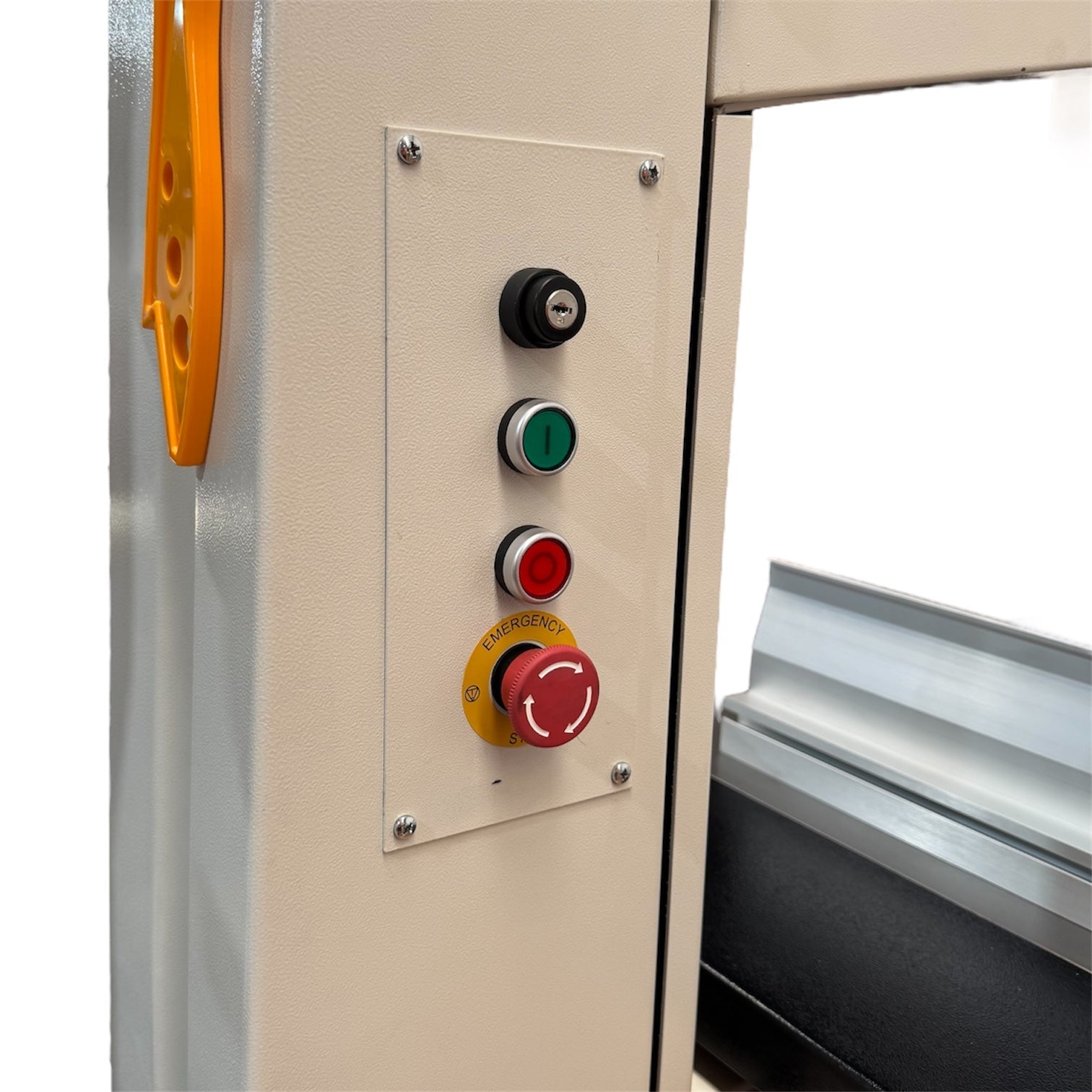

Emergency Stop Mushroom Foot Switch
Emergency Stop Mushroom Foot Switch
An Emergency Stop Mushroom Foot Switch is a type of safety switch used in industrial and commercial settings to quickly and easily shut off power to machinery or other equipment in an emergency situation. It typically has a large, mushroom-shaped button that can be easily activated with the foot, allowing workers to stop equipment quickly without having to reach for a switch or control panel. The switch is often red and has a distinctive shape to make it easily recognizable and to promote quick action in an emergency.

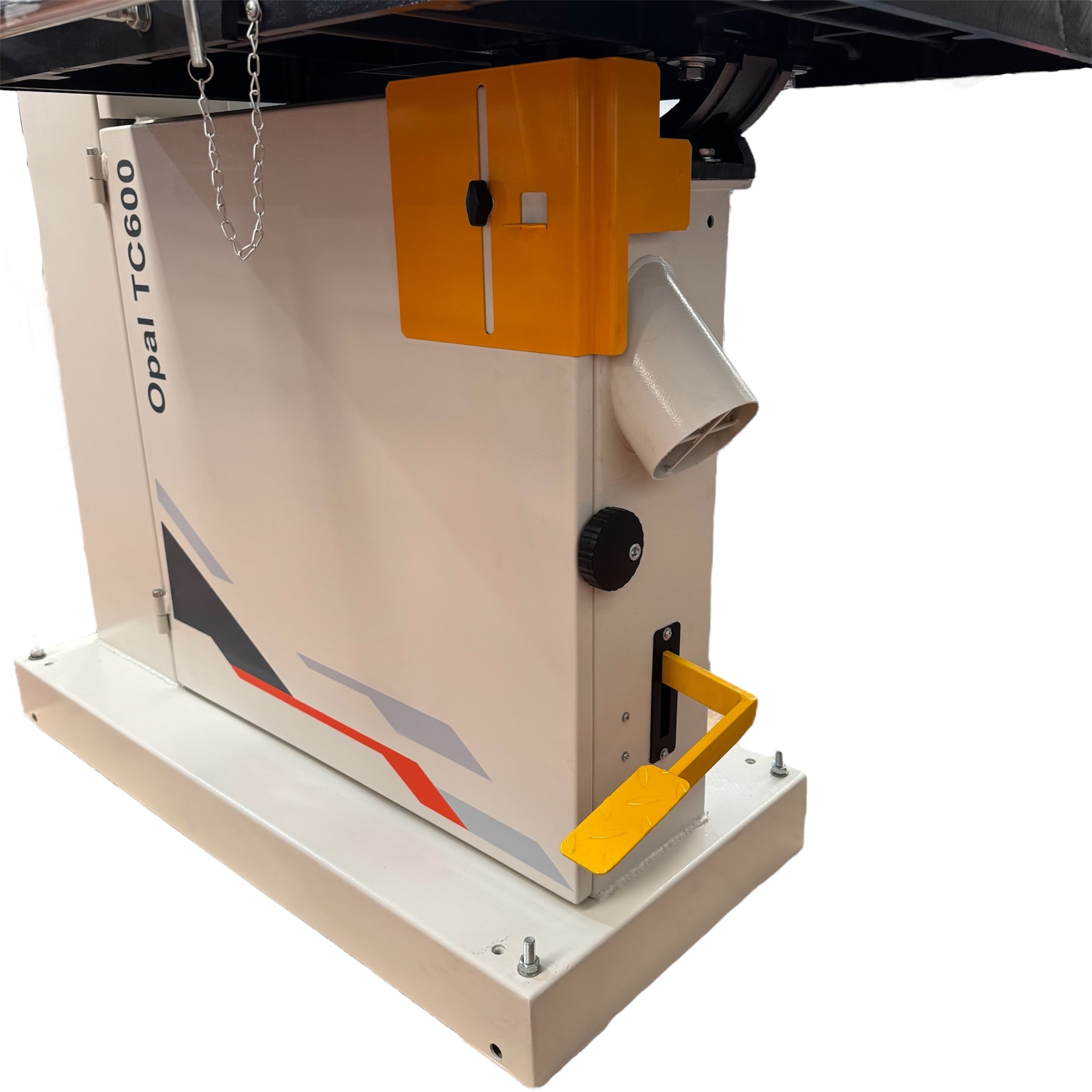

Foot Operated Brake
Foot Operated Brake
The foot operated brake mechanism is a safety feature on a machine whereby a brake is supplied with the machine. The brake is operated by applying the foot pedal. When the foot pedal is
applied, the power is removed from the motor.

In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.

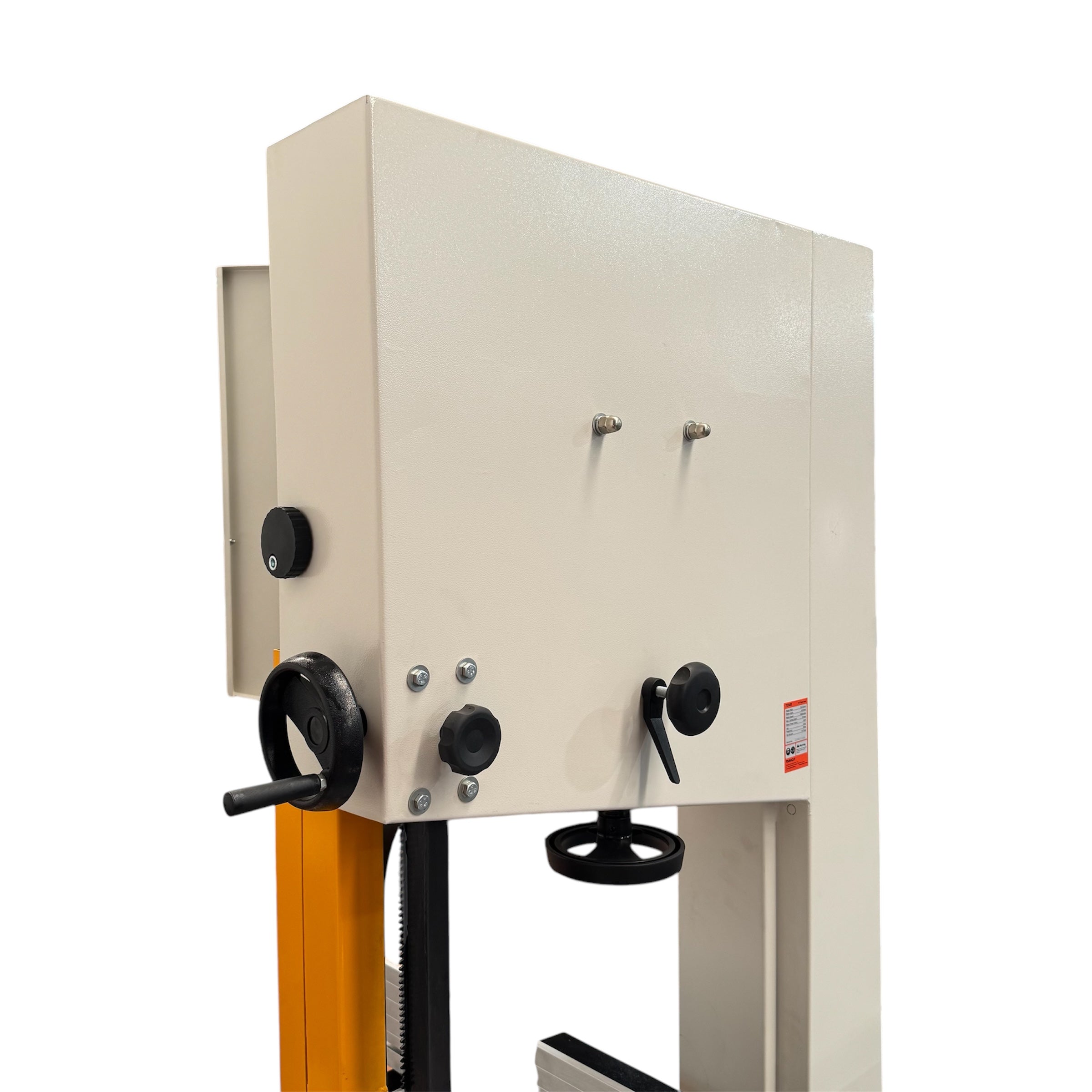

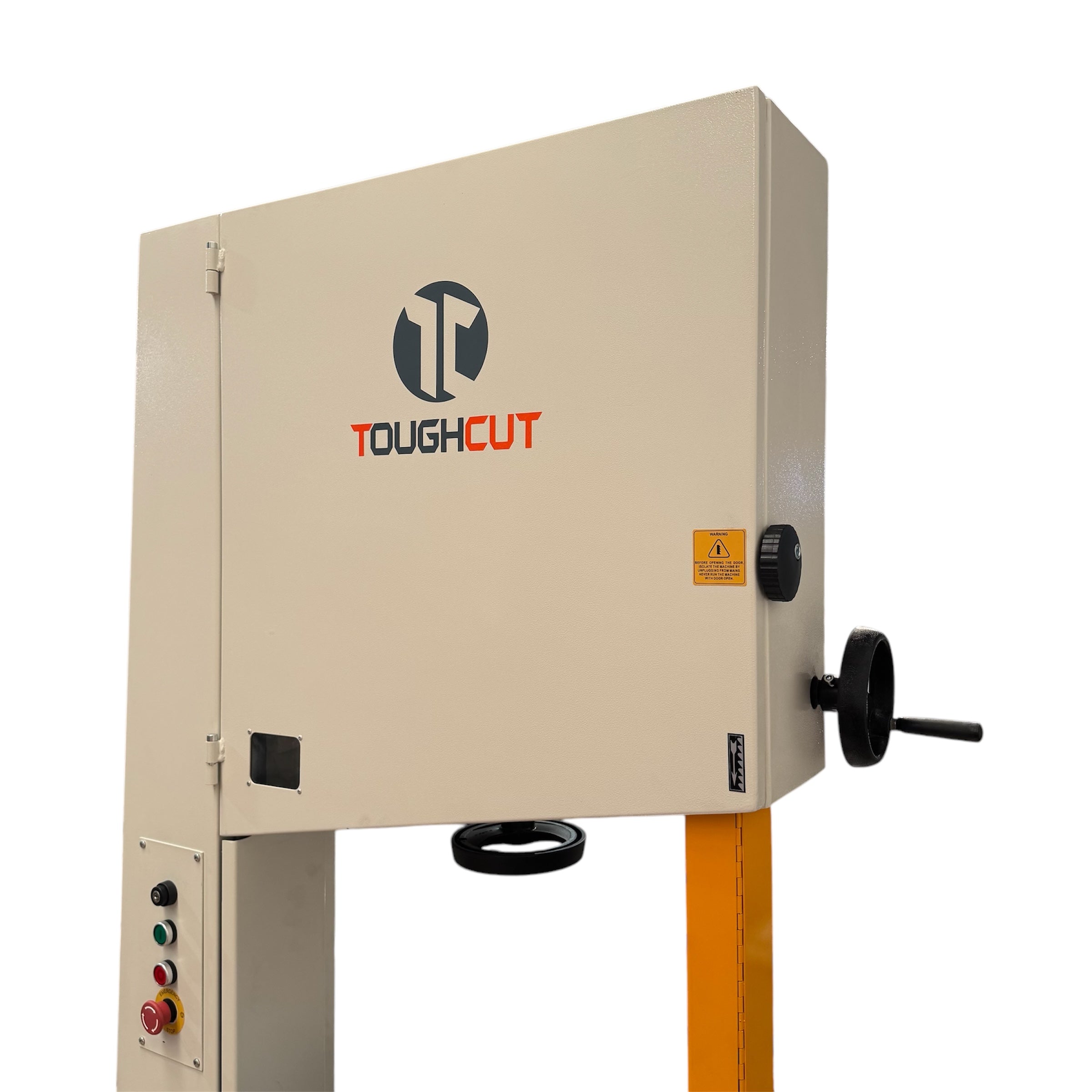

Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Not Included
CE Certified

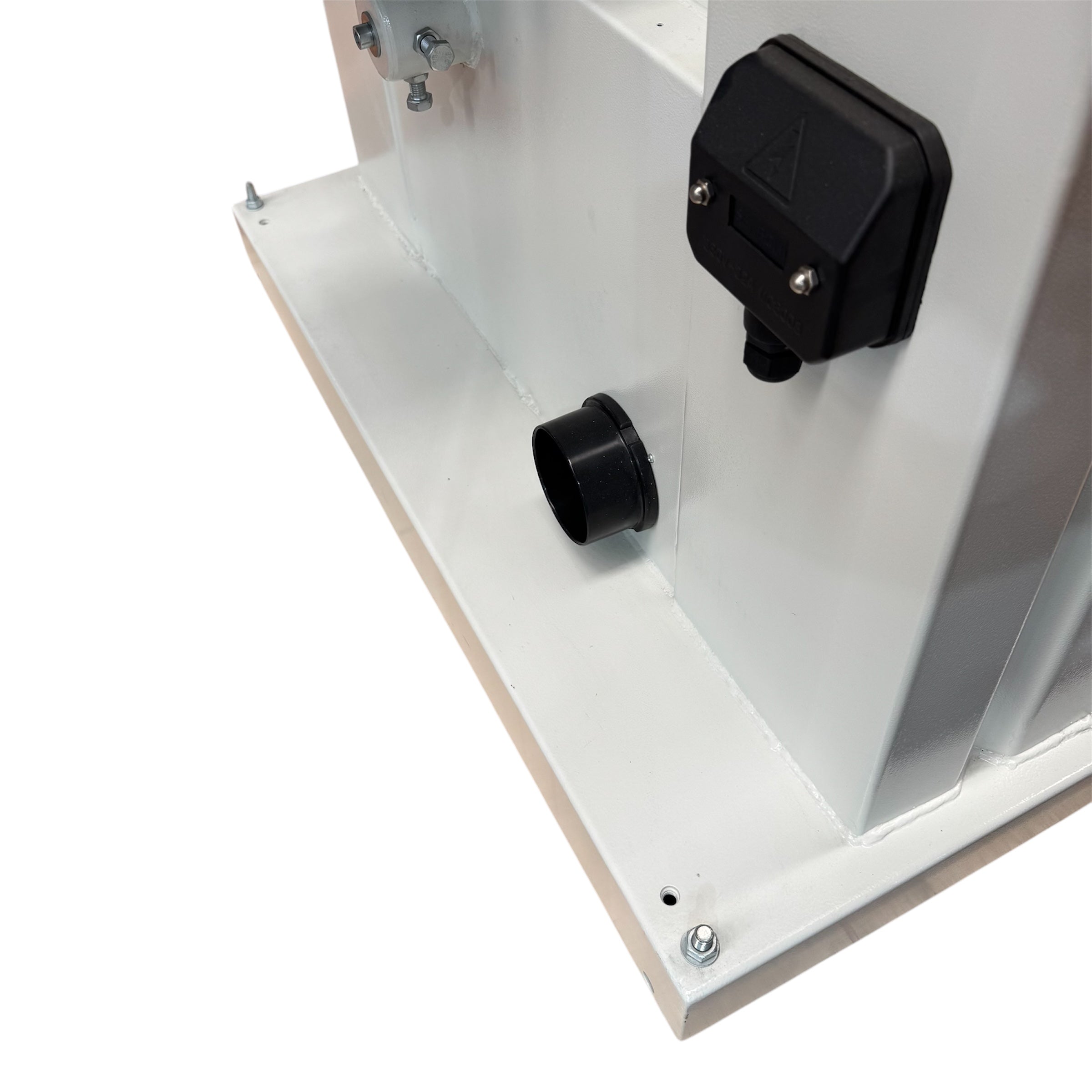

Dust Port
2 x 100mm (4")
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Other Requirements
Dust Extraction
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Length
1125 mm
Shipping Width
780 mm
Shipping Height
2160 mm
Shipping Weight (Gross)
317.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
