530mm (21") Industrial Thicknesser Ilmenite 530H by Toughcut

Save $3,796.00
ToughCutSKU: 8000868

Price:
Sale price$9,999.00 Regular price$13,795.00

Status

Available

Description

The very high work capacity from 5mm to 300mm allows optimum machine use and offers flexibility for wood machining. Ilmenite 530H has brought industrial features and design to this machine, including variable feed speed, electronic braking, digital height control and spiral cutter head with 4 sided cutting knives.

Features:

  • Spiral Head Cutter Block (92 pieces)
  • Variable speed infeed by inverter suit all types of finishes
  • Motor drive table lifting mechanism with micrometric positioning

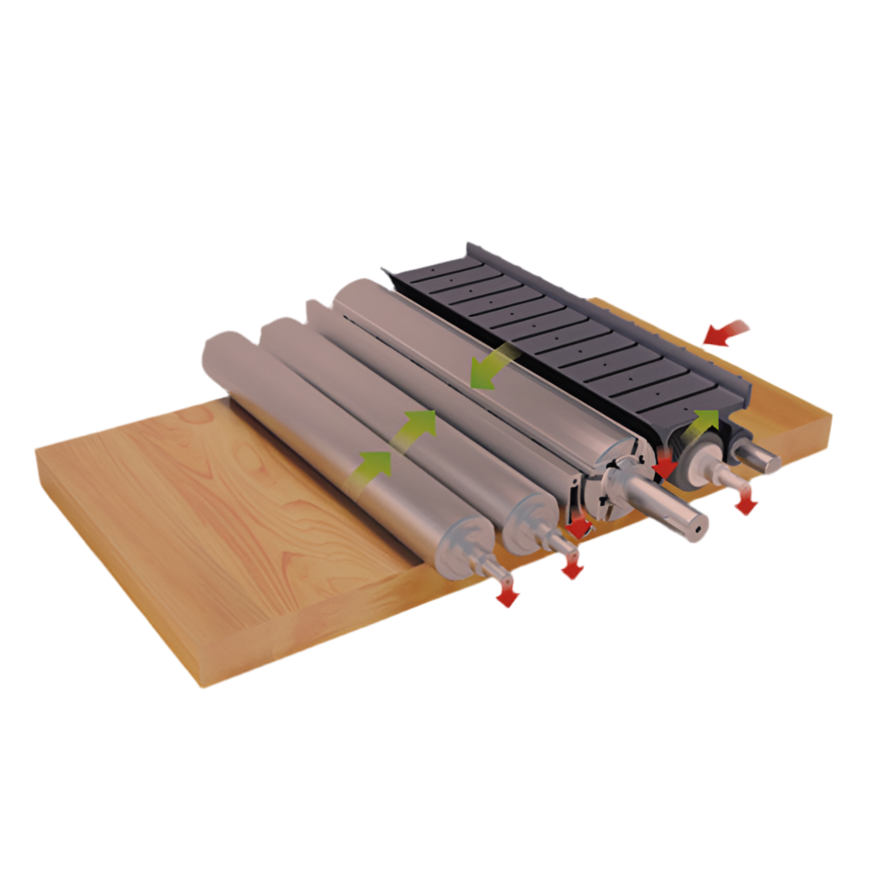

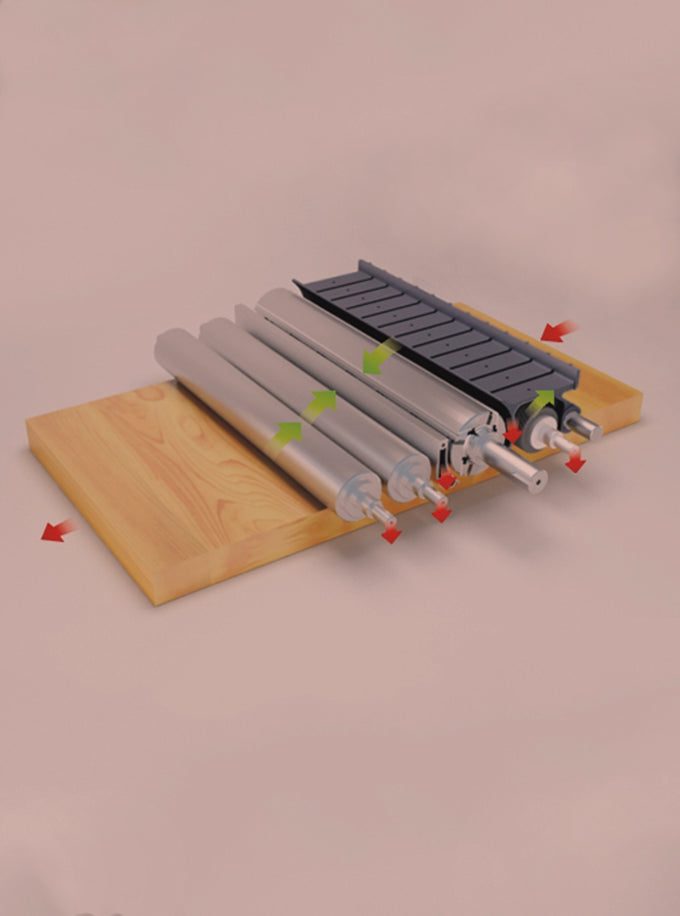

  • Spring-loaded pressure bars and double outfeed rollers design prevents vibration of very thin workpieces during thicknessing

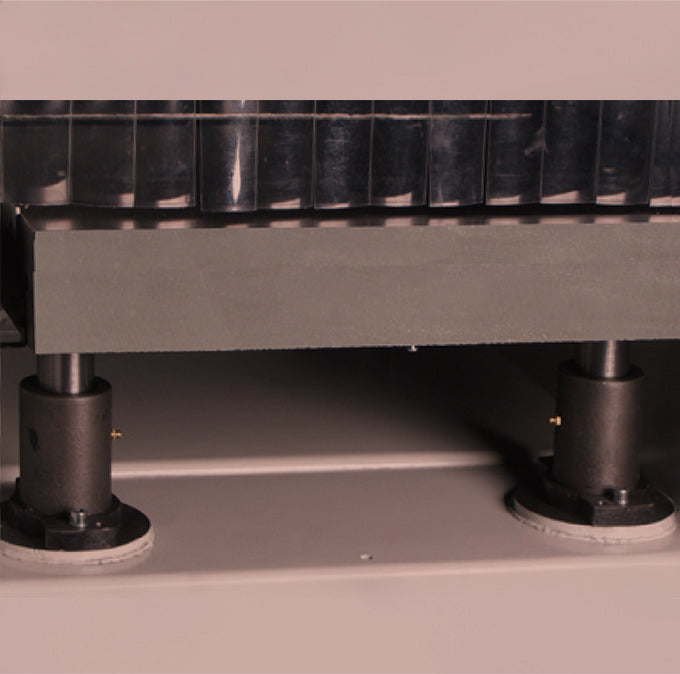

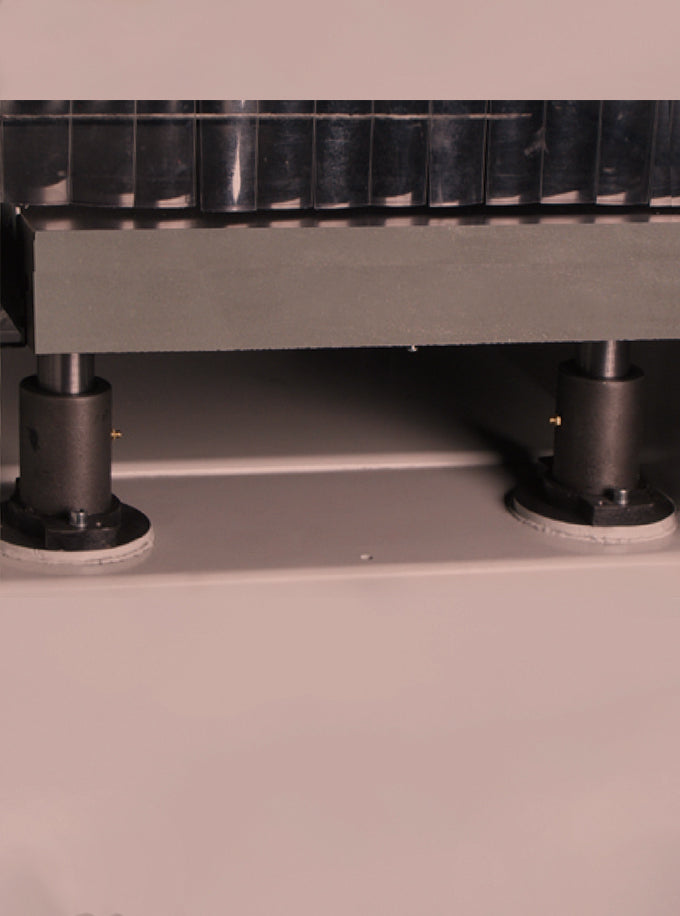

  • Four trapezoidal thread spindles with dual guide rails guarantee accurate adjustment and avoid lateral movement during thicknessing
  • Two bottom table rollers
  • Electronic motor breaking
  • Sound insulation underside of the lid
  • Matting protection on top of the lid to allow material to be pasted over the machine without causing damage to the workpiece

Additional Information

Model
Type
Thicknesser
SKU
8000868
Series
Ilmenite
Part Number
ILMENITE 530H 415V
Brand
ToughCut
Size
530mm (21")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Blade Type
Spiral Head Cutter Block
Blade Width
530mm (21")
Cutting Capacity - Height
300 mm
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
117 mm
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
92
Dimensions
Product Weight (Net Weight)
526 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
1120 mm
Shipping Width
1150 mm
Shipping Height
1300 mm
Shipping Weight (Gross)
640.0 kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
