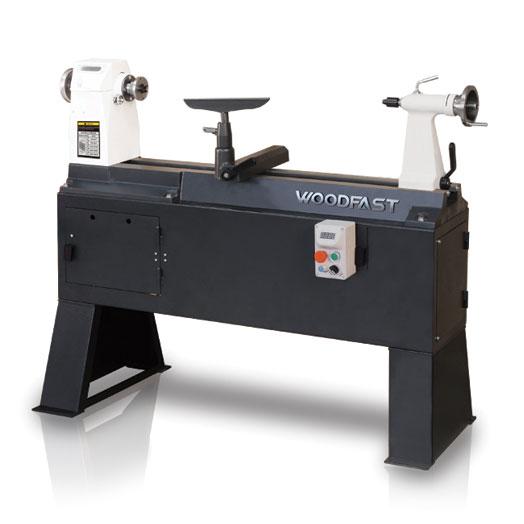

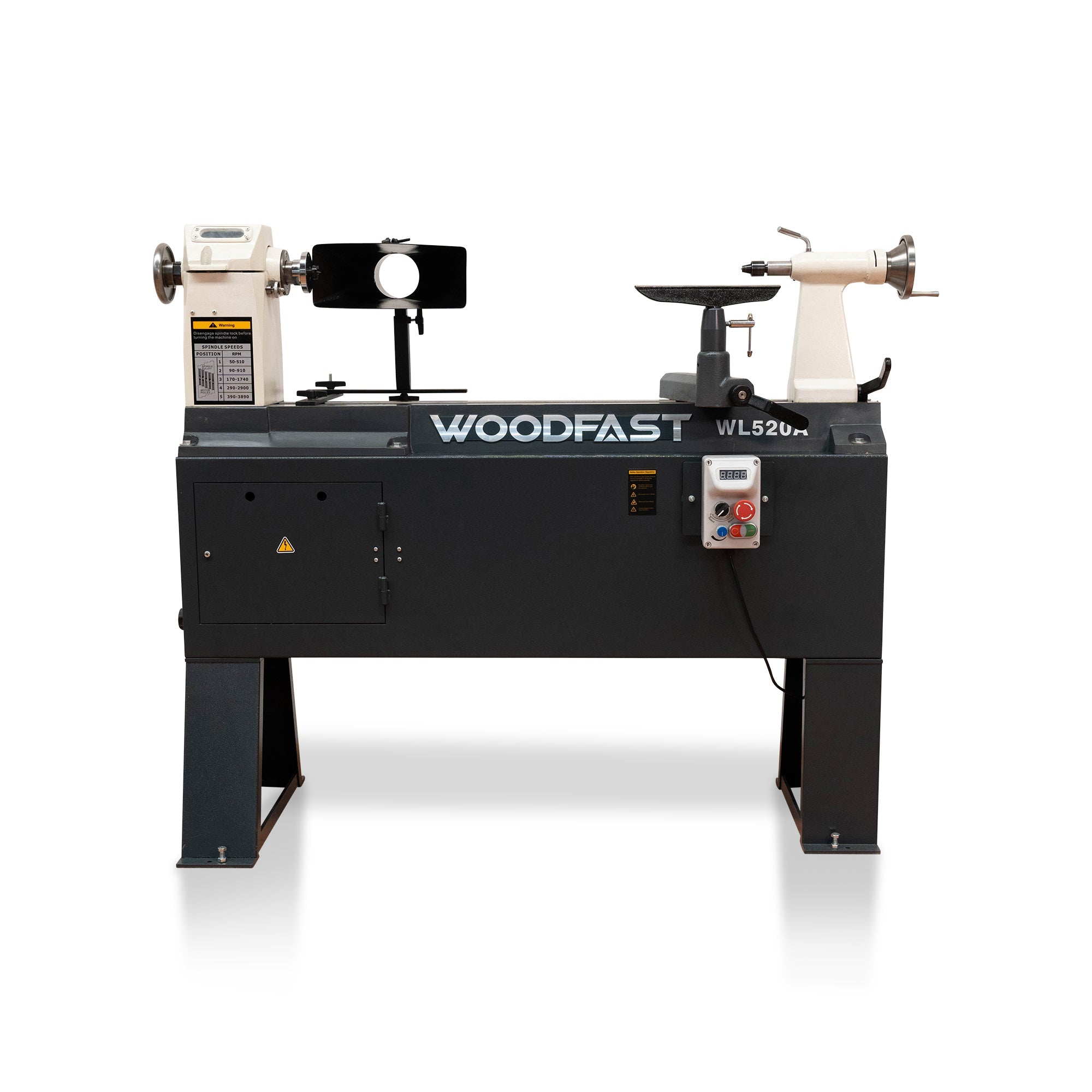

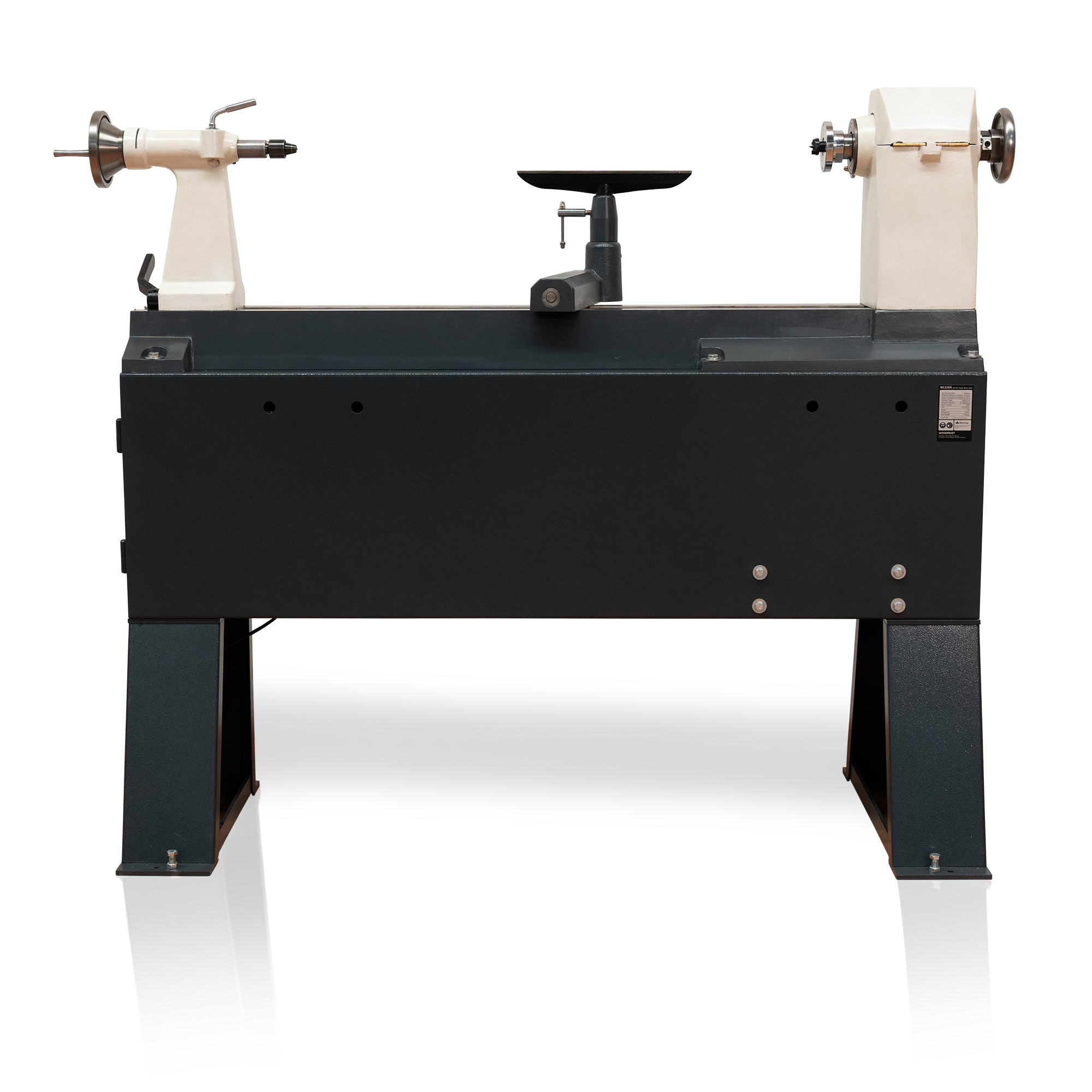

510mm (20") Swing x 915mm (36") Between Centres Heavy Duty Wood Lathe WL520A by Woodfast

Save $296.00
WoodfastSKU: 8000838

Size: Short Legs (Suit Education - 311mm Legs)
Price:
Sale price$4,699.00 Regular price$4,995.00

Status

Available

Description

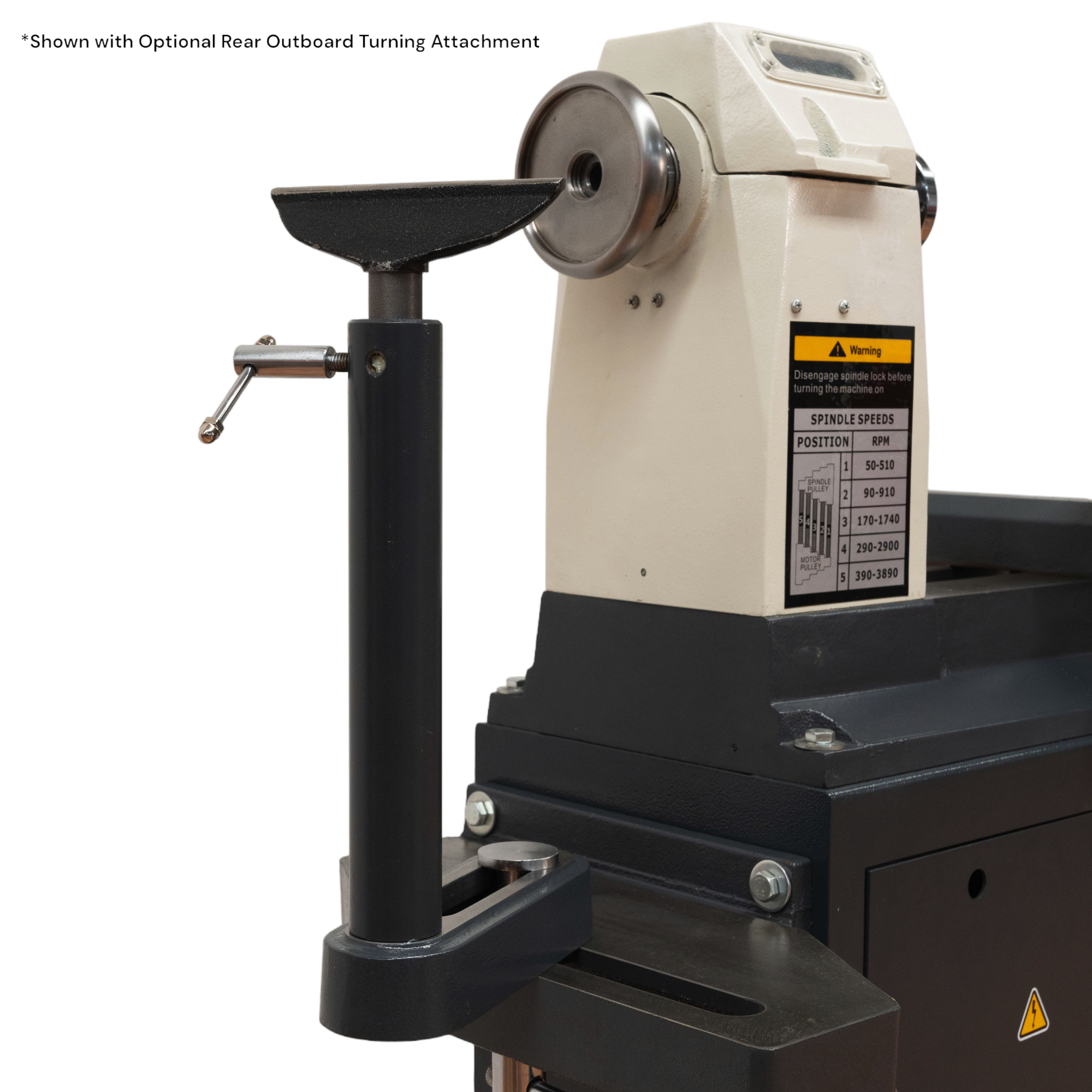

The WL520A Series is a truly classic lathe and ideal for education, featuring a fixed head for outboard turning. It has been designed to offer large capacities and support for heavy work in a traditional configuration that is familiar to woodturners worldwide. Combined with modern construction and high-quality electronic control, this machine is ideal for the professional woodturner as well as the dedicated enthusiast.

The optional 311mm Lathe Leg Kit is 75mm (3") shorter from the base to suit educational or similar environments where a shorter lathe is more convenient. This can be purchased as a separate optional extra.

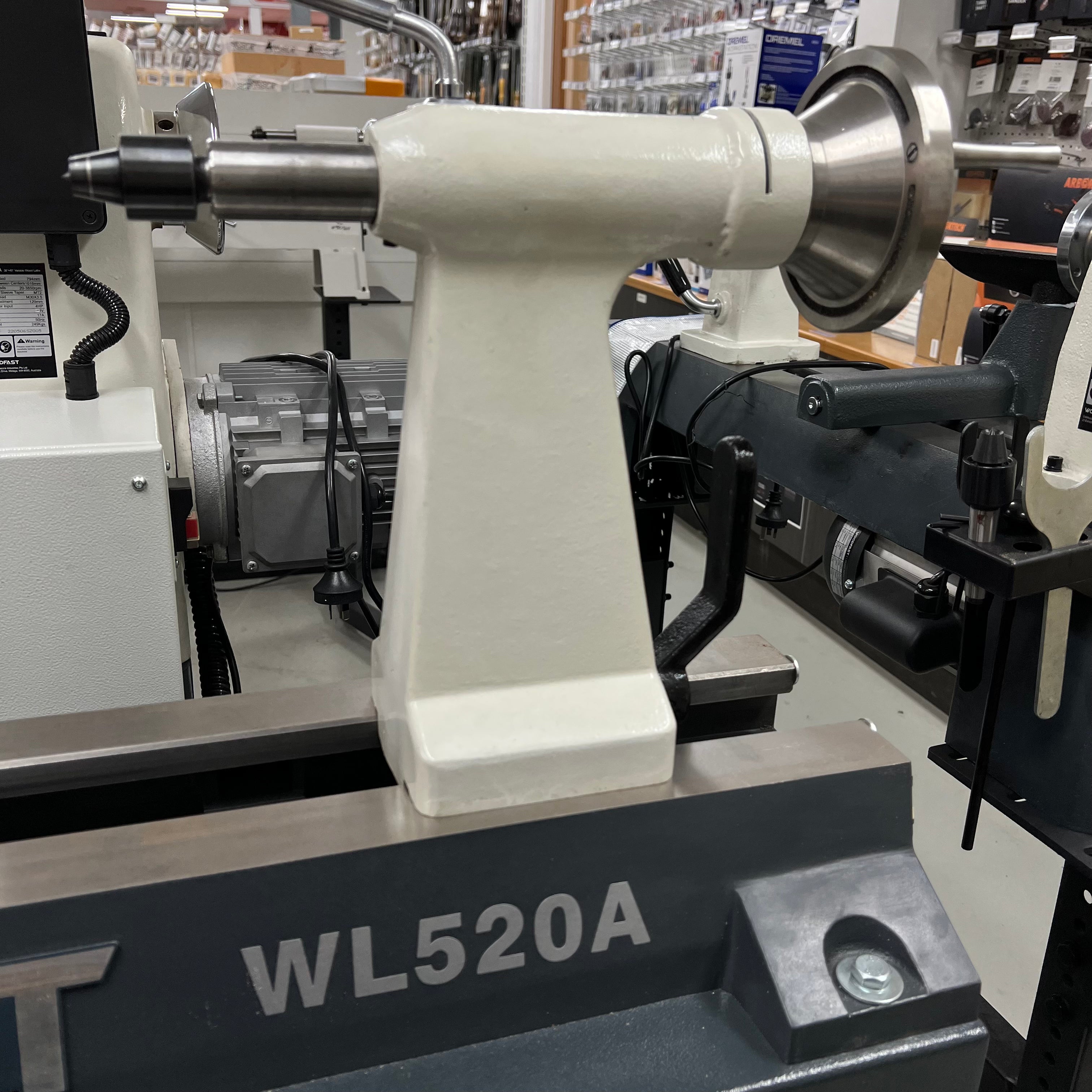

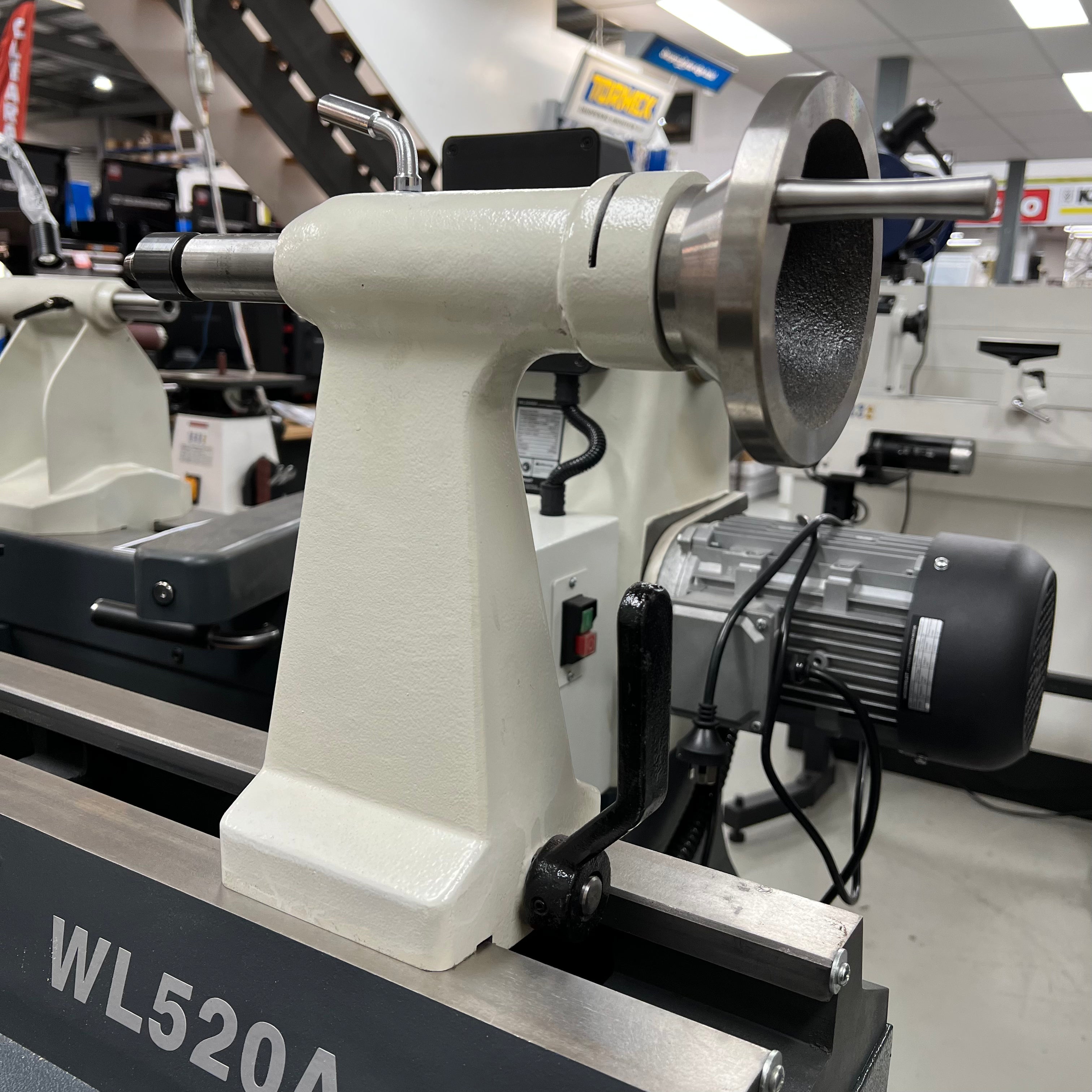

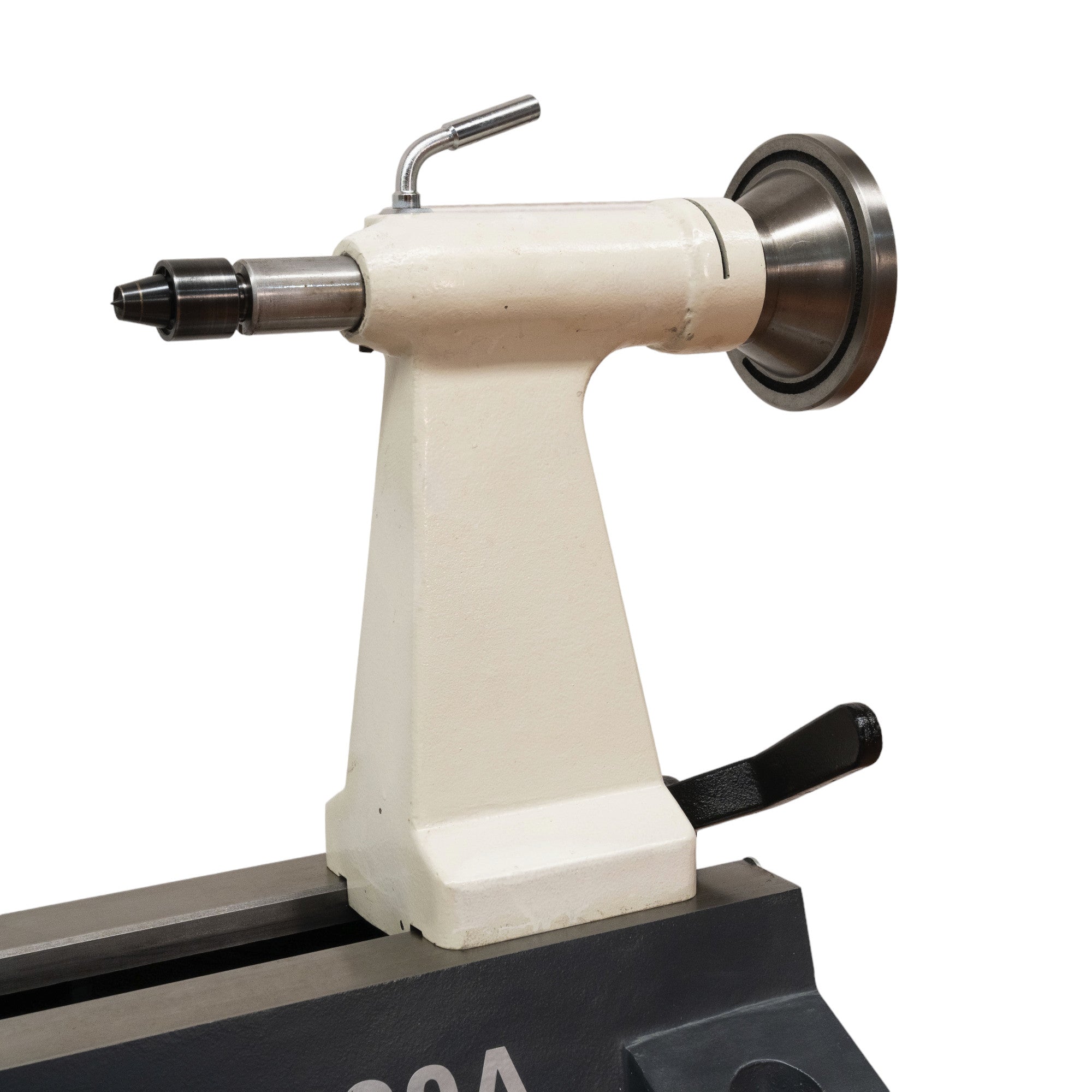

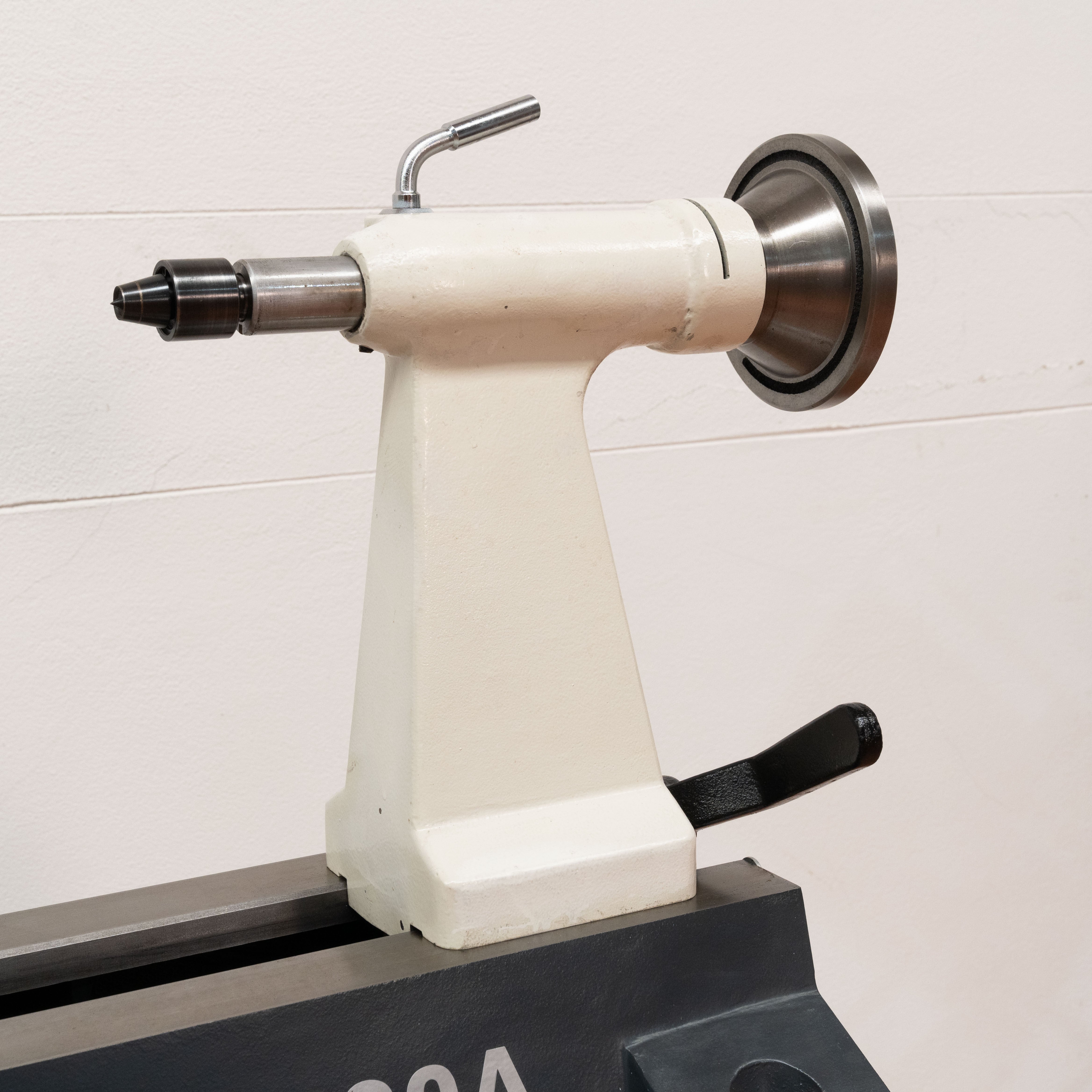

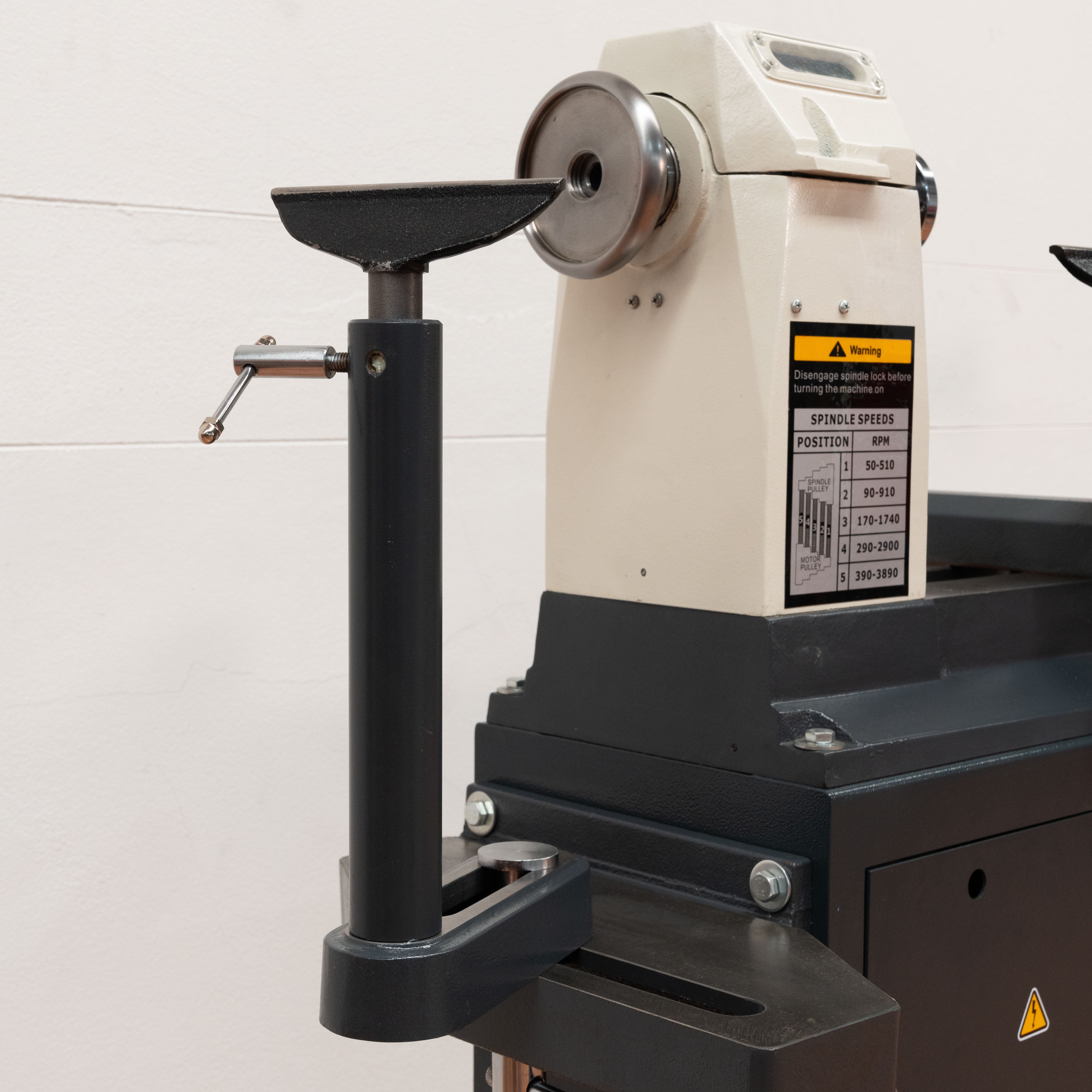

Cast iron features heavily in the construction of this machine, including the headstock, tailstock, and cast bed. The splayed legs give further stability, with an opposing asymmetrical design to spread the load and counteract the forces generated by this formidable lathe.

Features

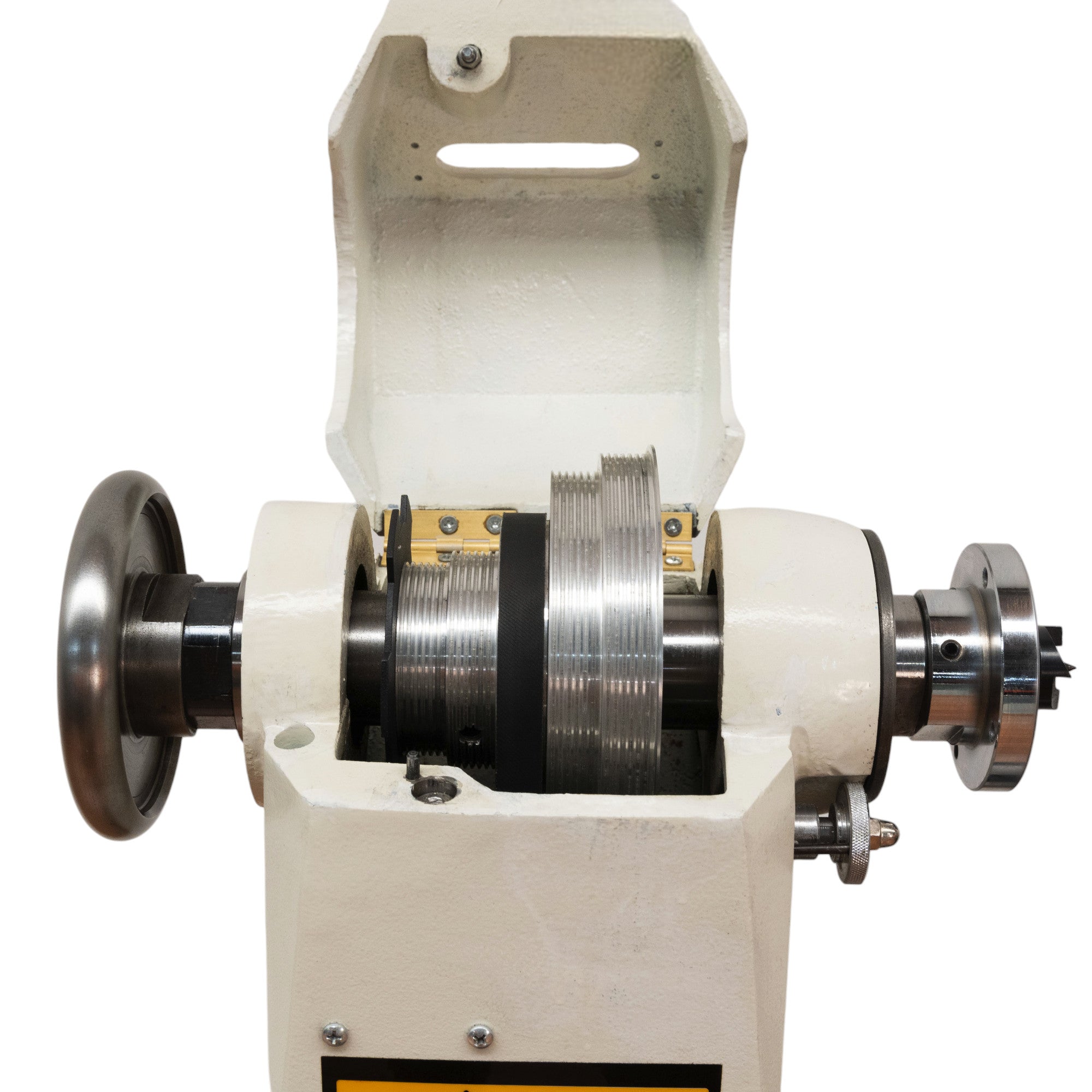

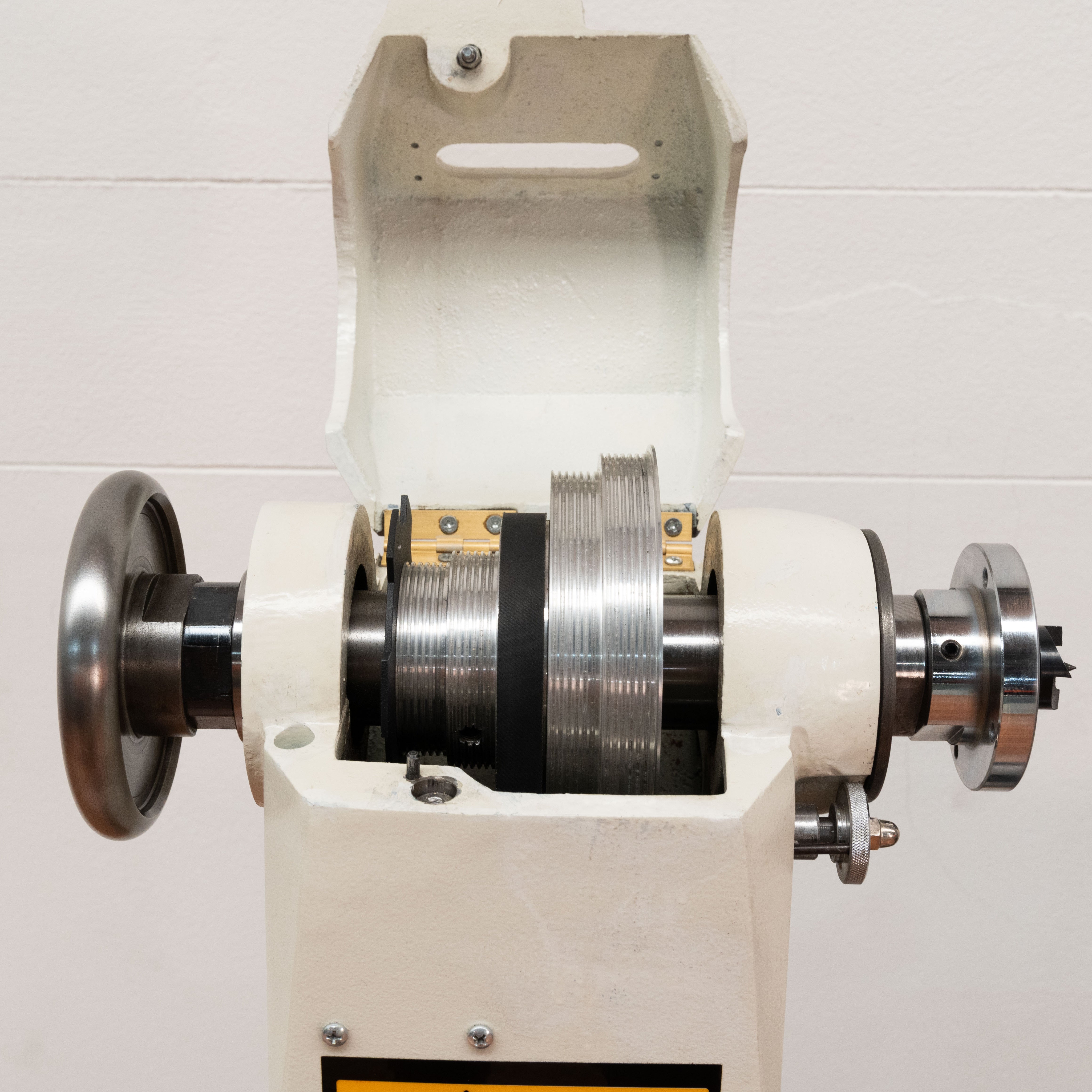

  • Extra Heavy Duty Spindle With QUATRE Precision Bearing Support

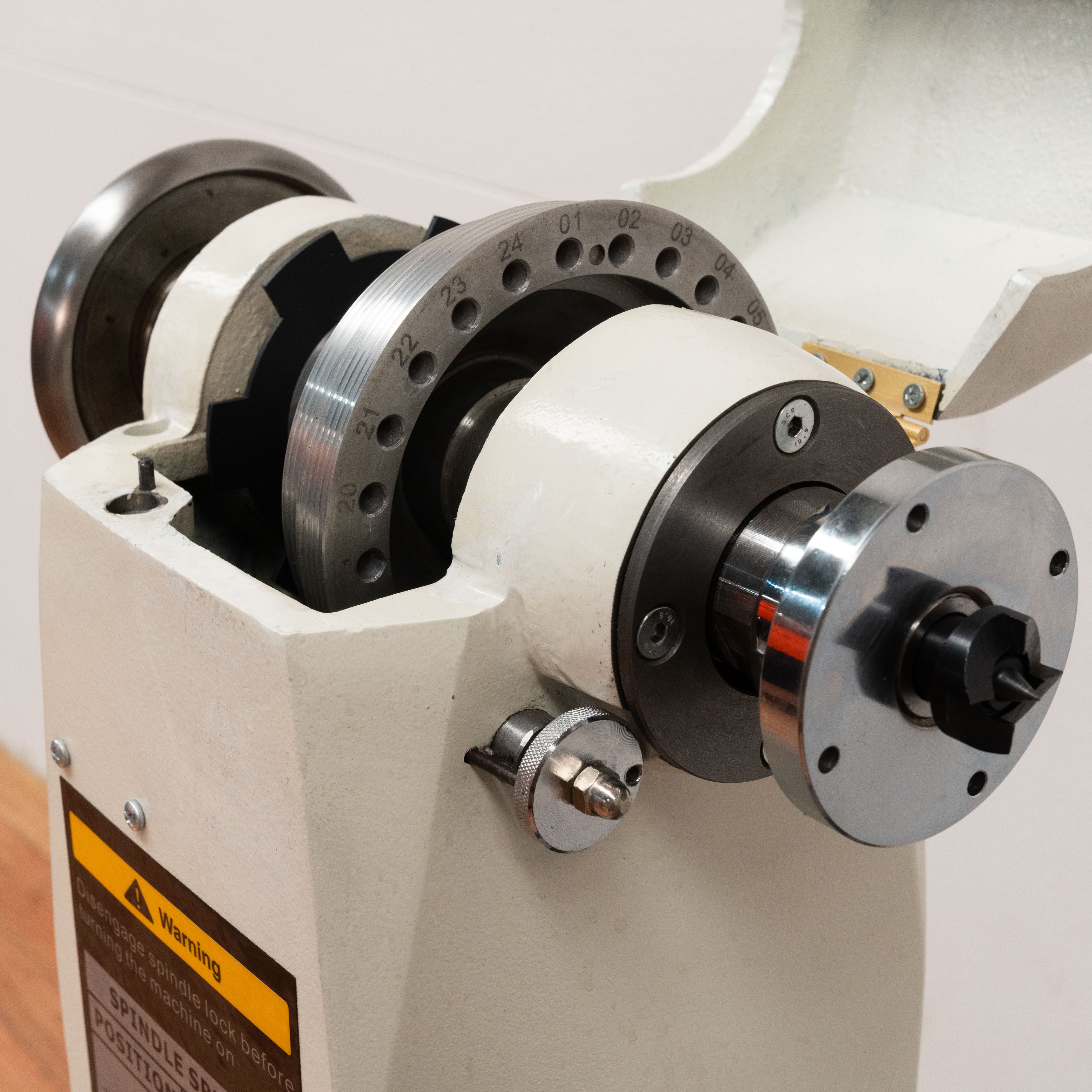

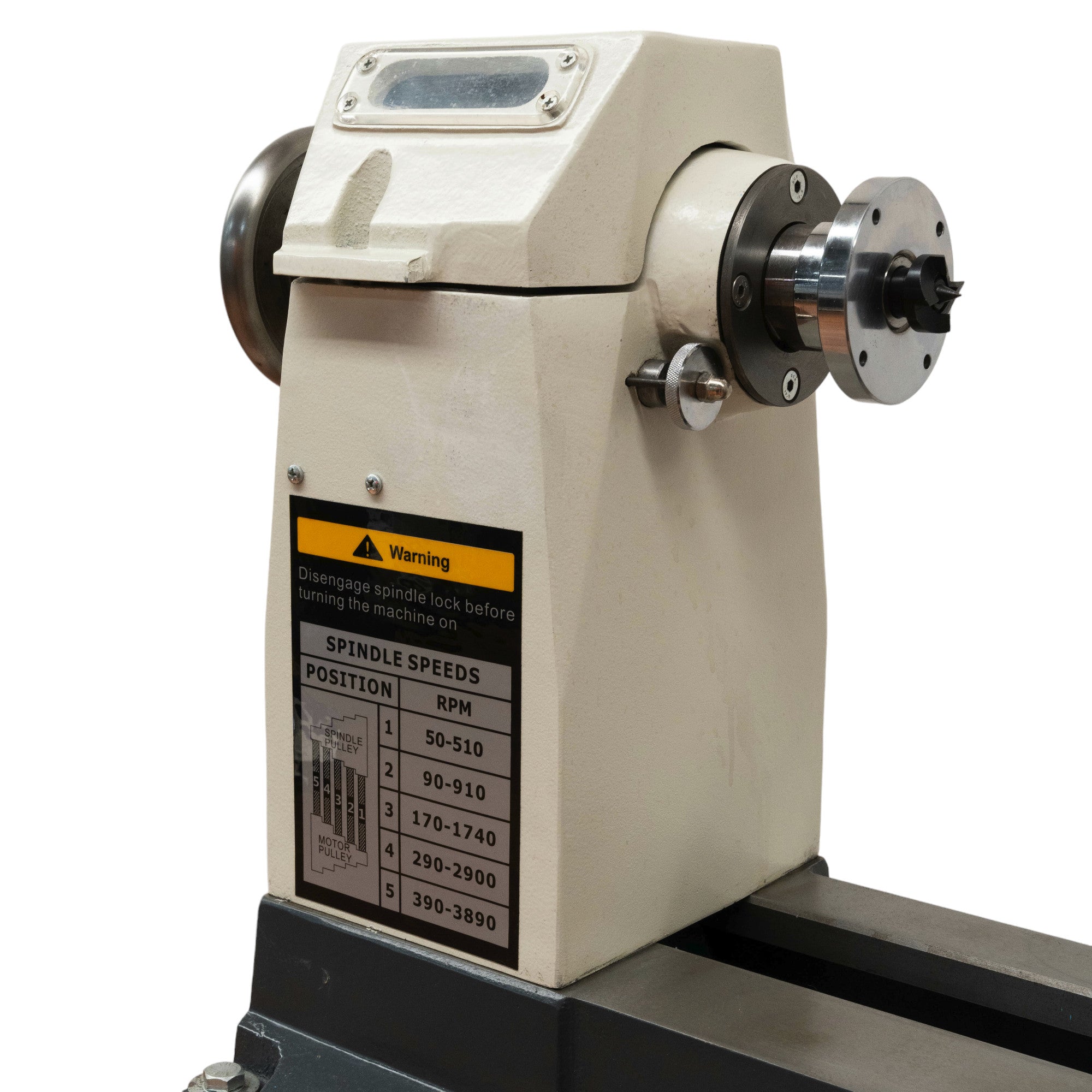

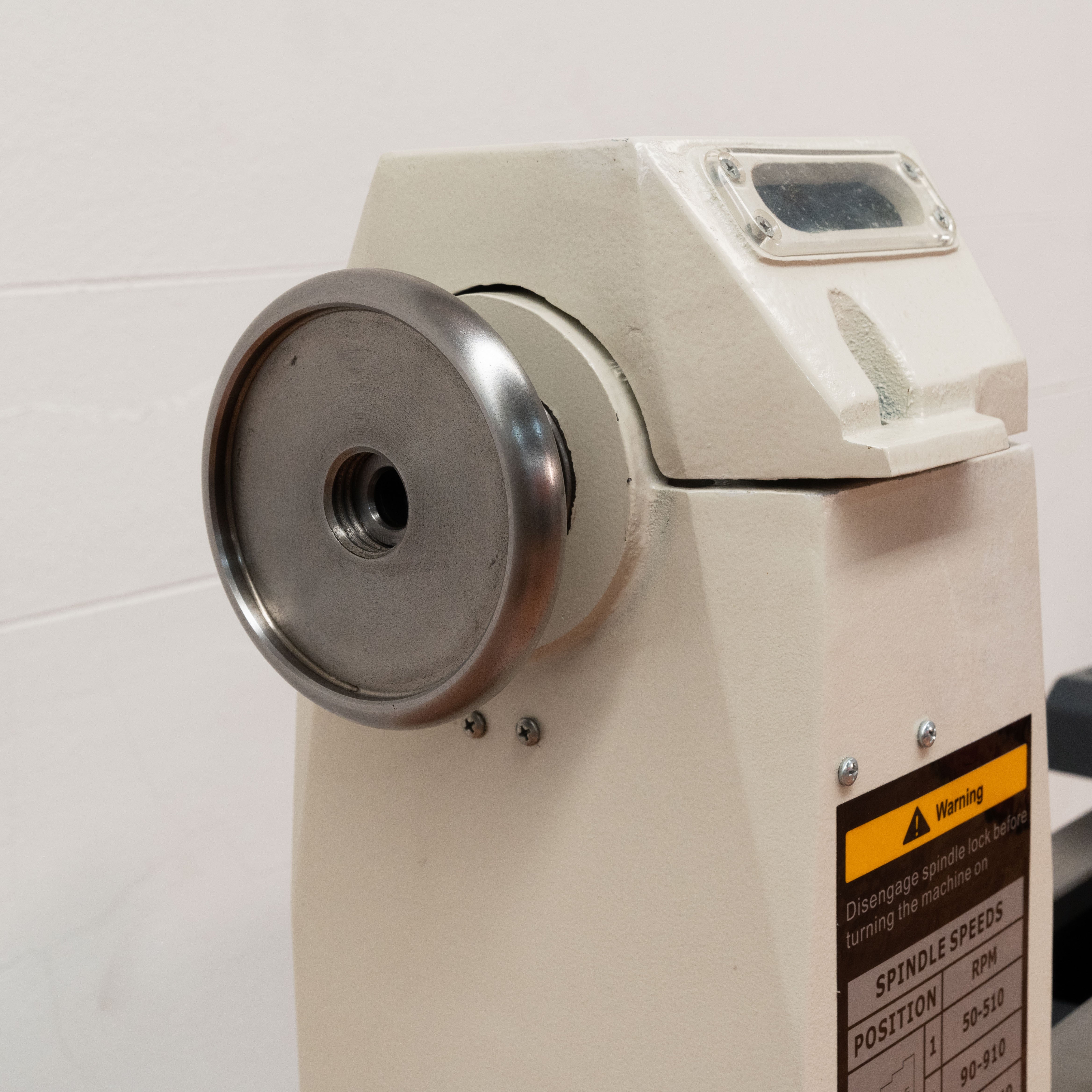

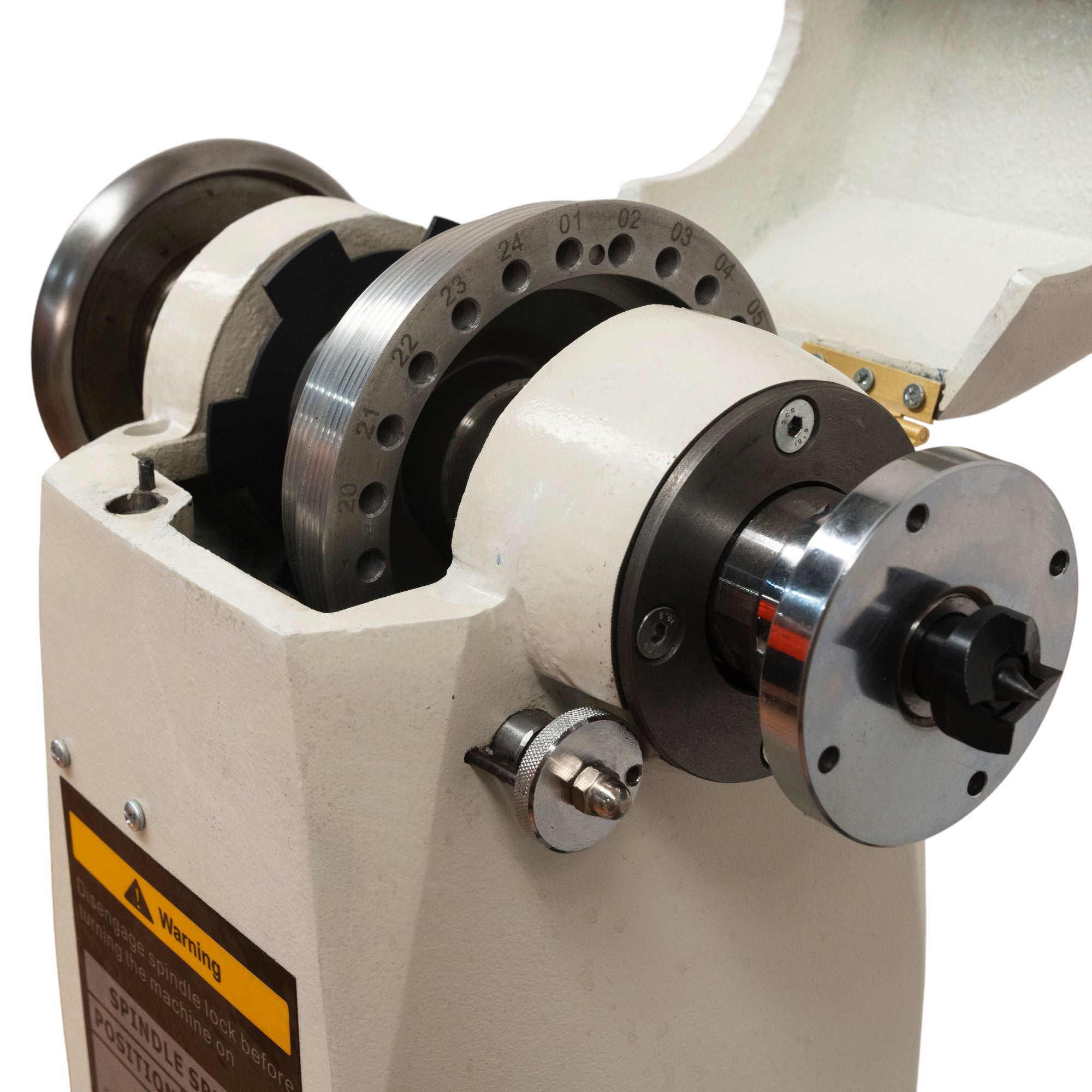

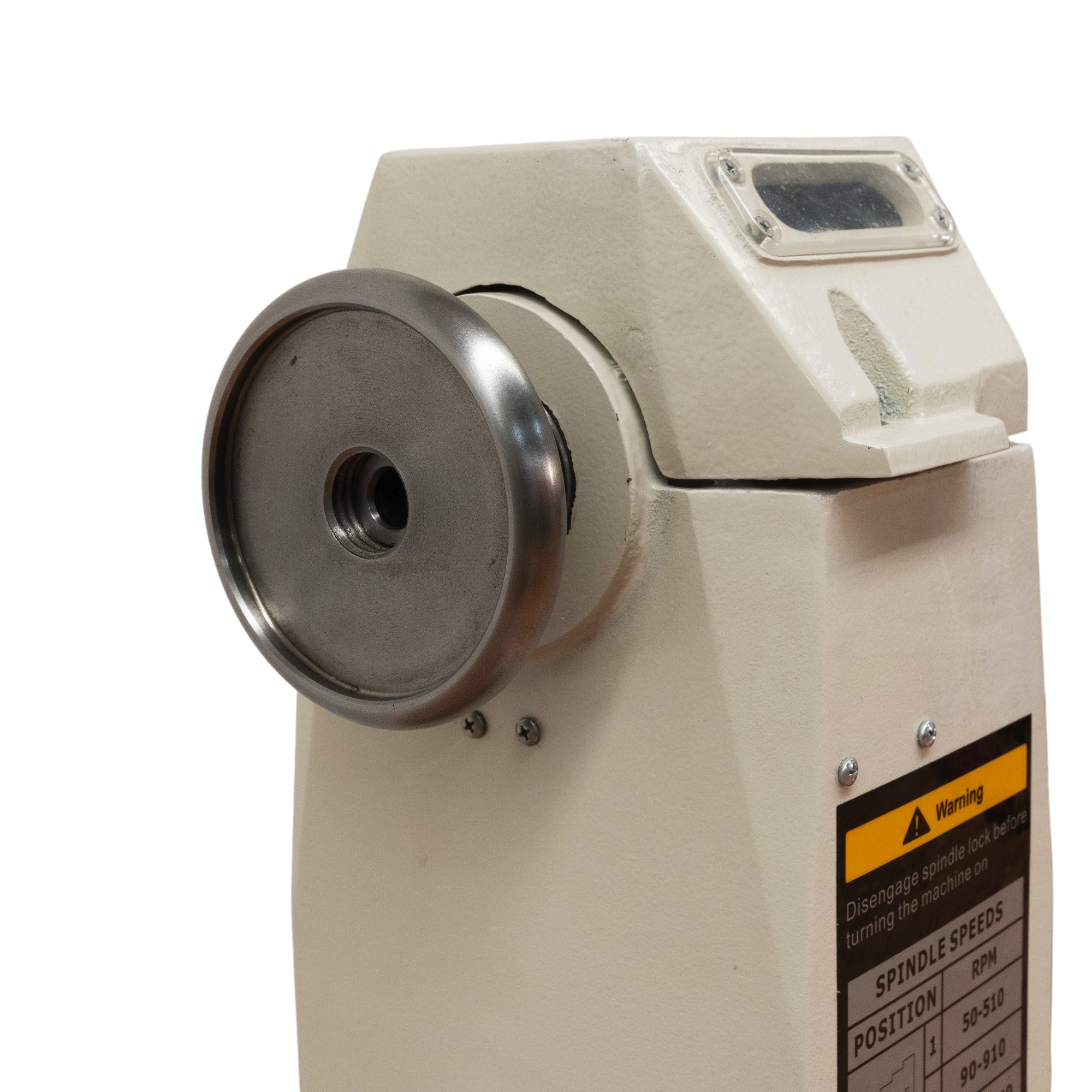

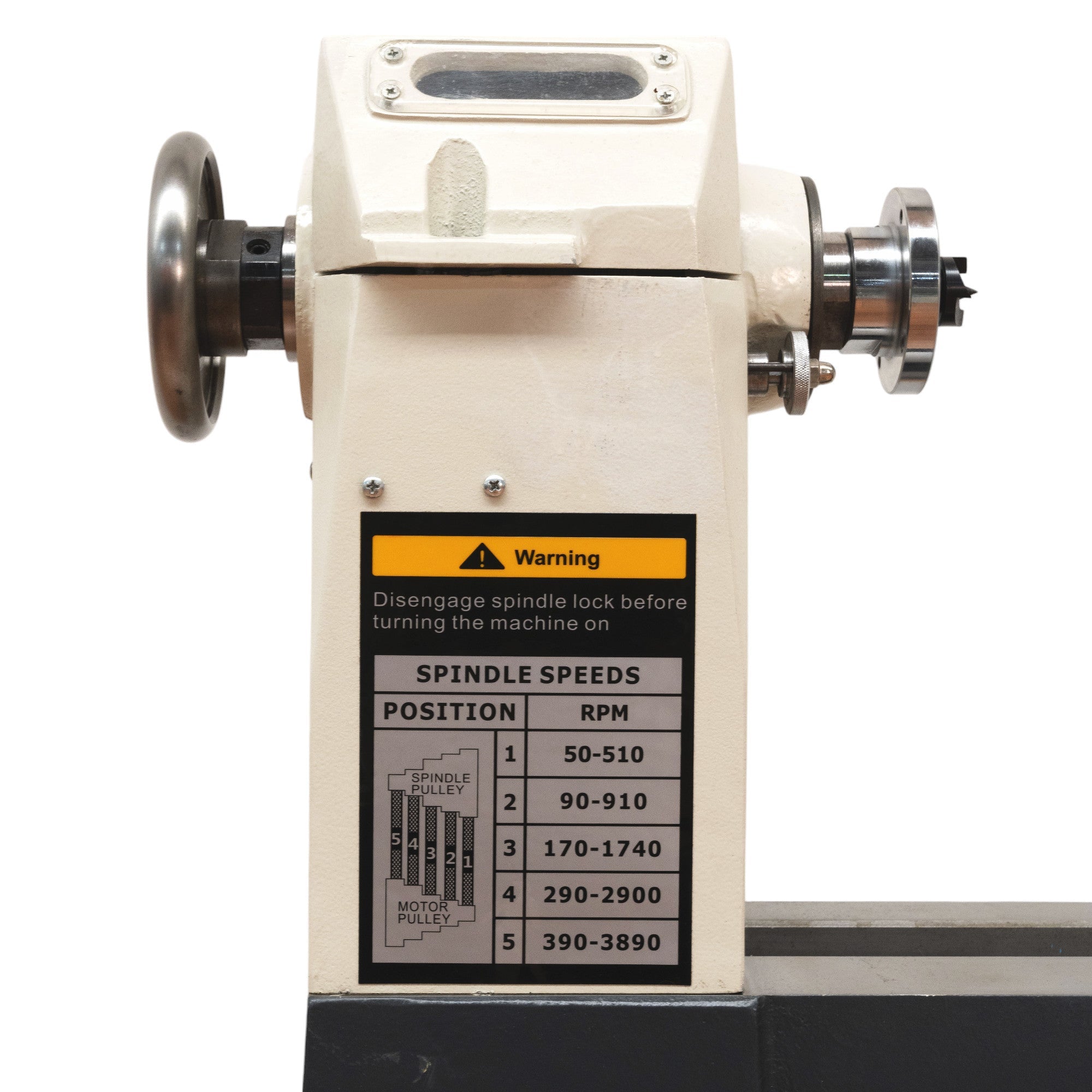

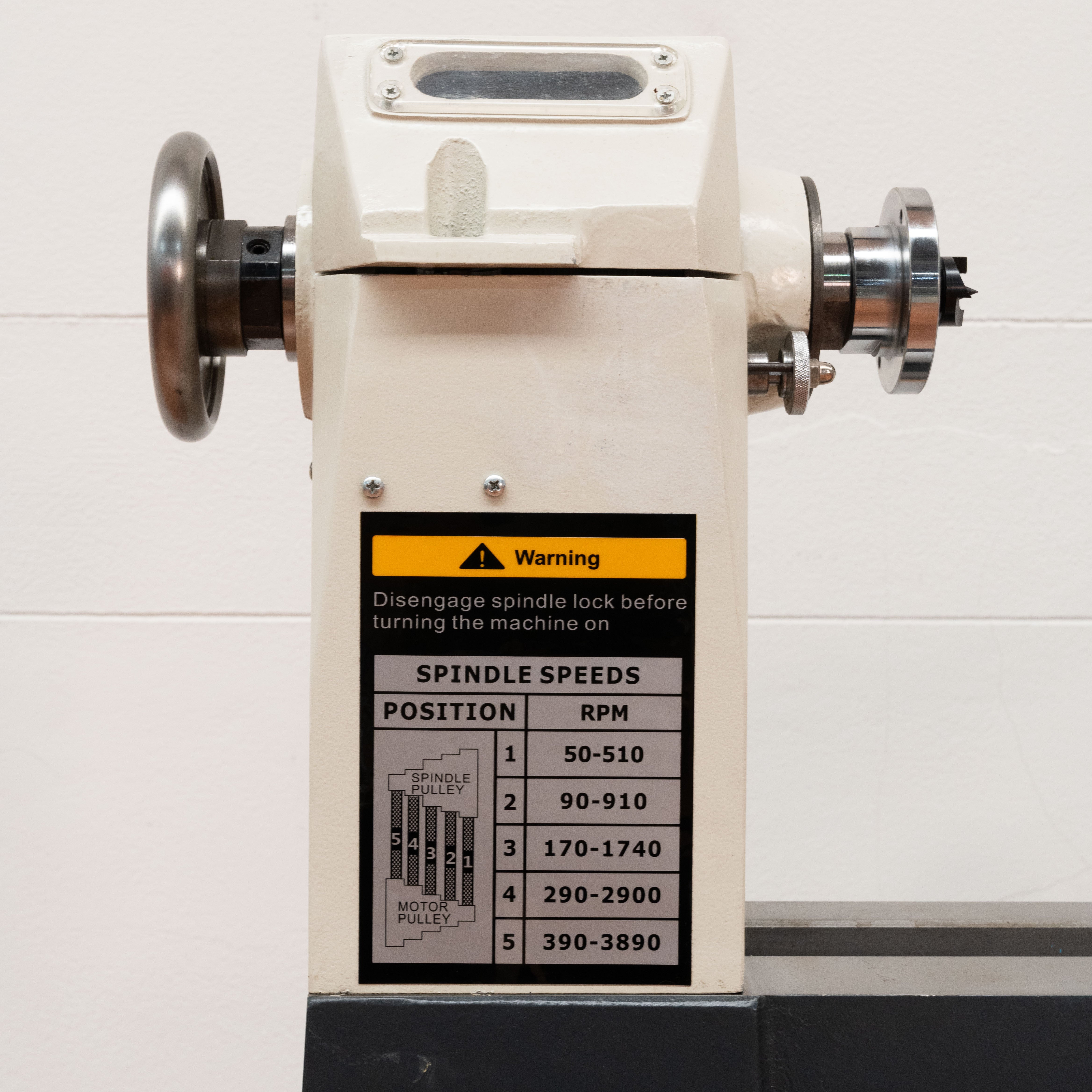

  • Rock Solid Headstock Features Indexing And Hand Brake Wheel

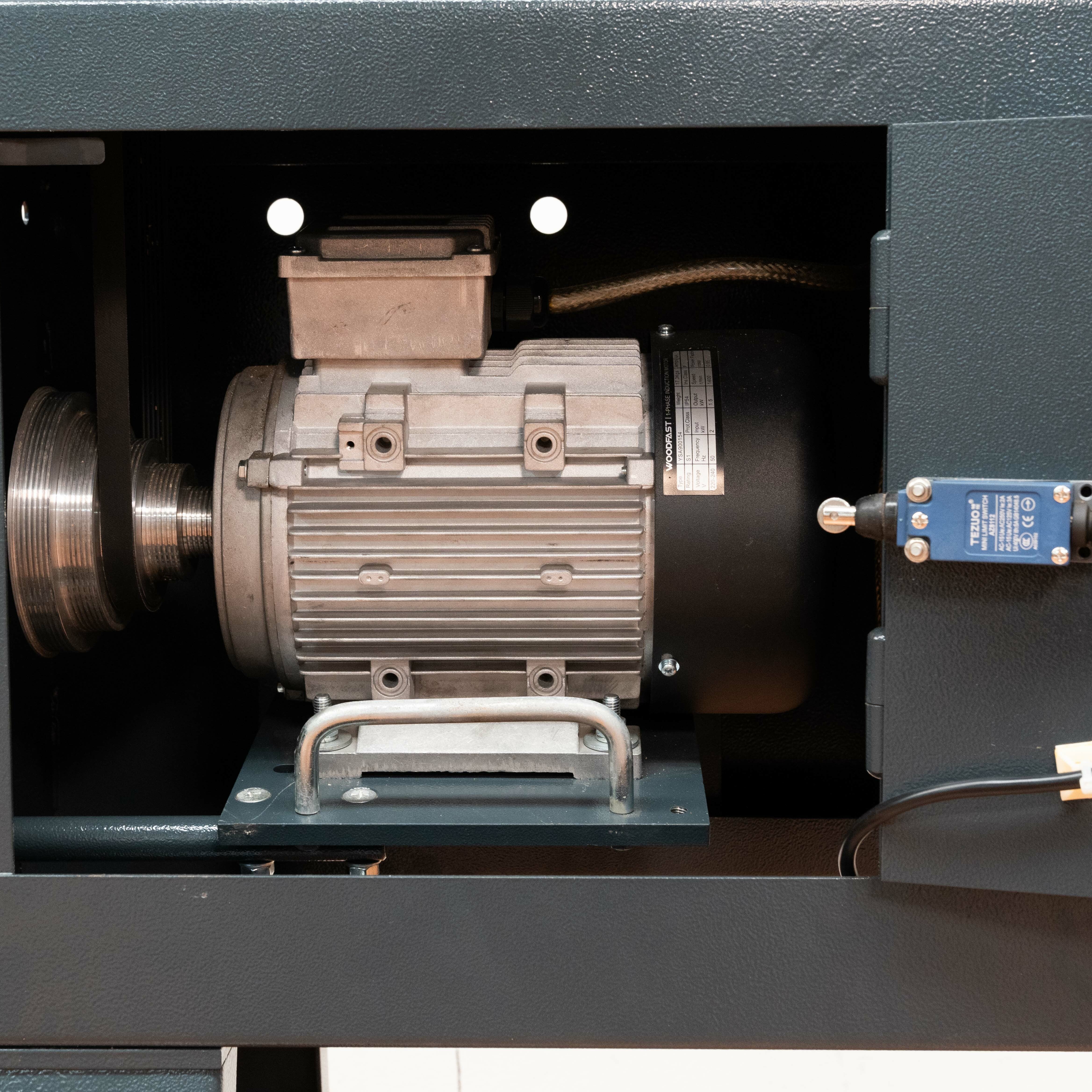

  • Easily Accessible Motor Inside The Cabinet Rather Than On The Headstock
  • Electronic Variable Speed Is Achieved Using The Premium Quality European Made Schneider Inverter, The Industrial Solution To Variable Speed Control

Specification

  • Standard Legs (386mm High)

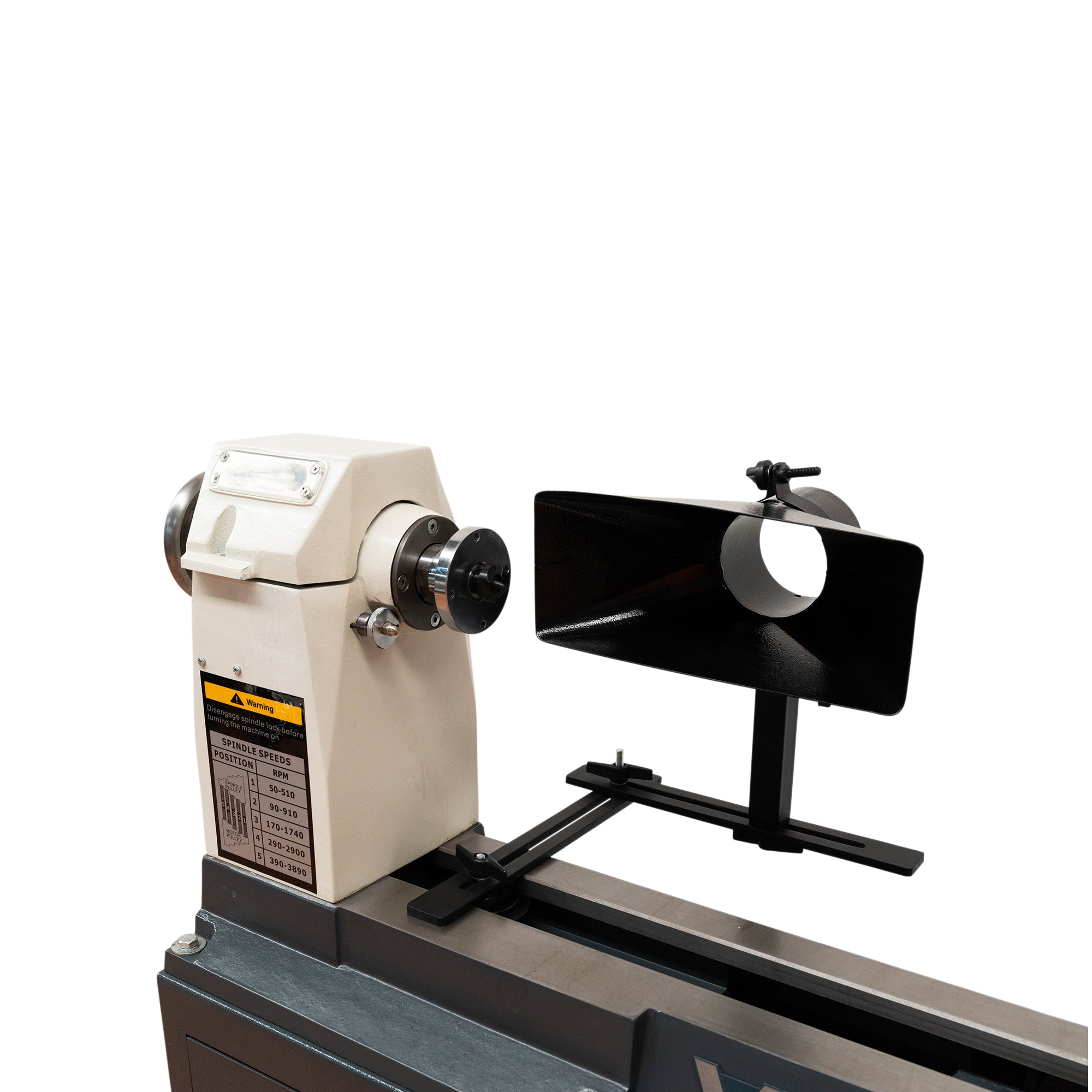

Optional Accessories

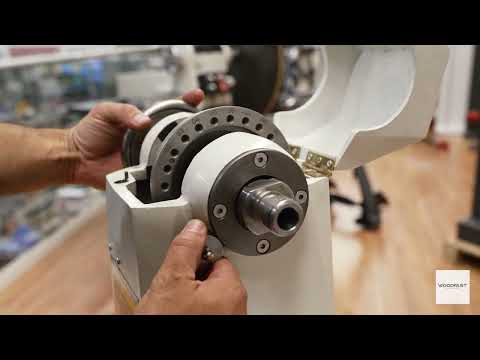

Youtube Video Links of this Product in use below

  1. Watch Beyond Tools Youtube Clip Here.
  2. Watch Beyond Tools Youtube Clip Here.

Additional Information

Model
Type
Woodturning Lathe
SKU
8000838
Part Number
WL520A-SHORT
Brand
Woodfast
Size
510mm (20") Swing x 915mm (36") Between Centres

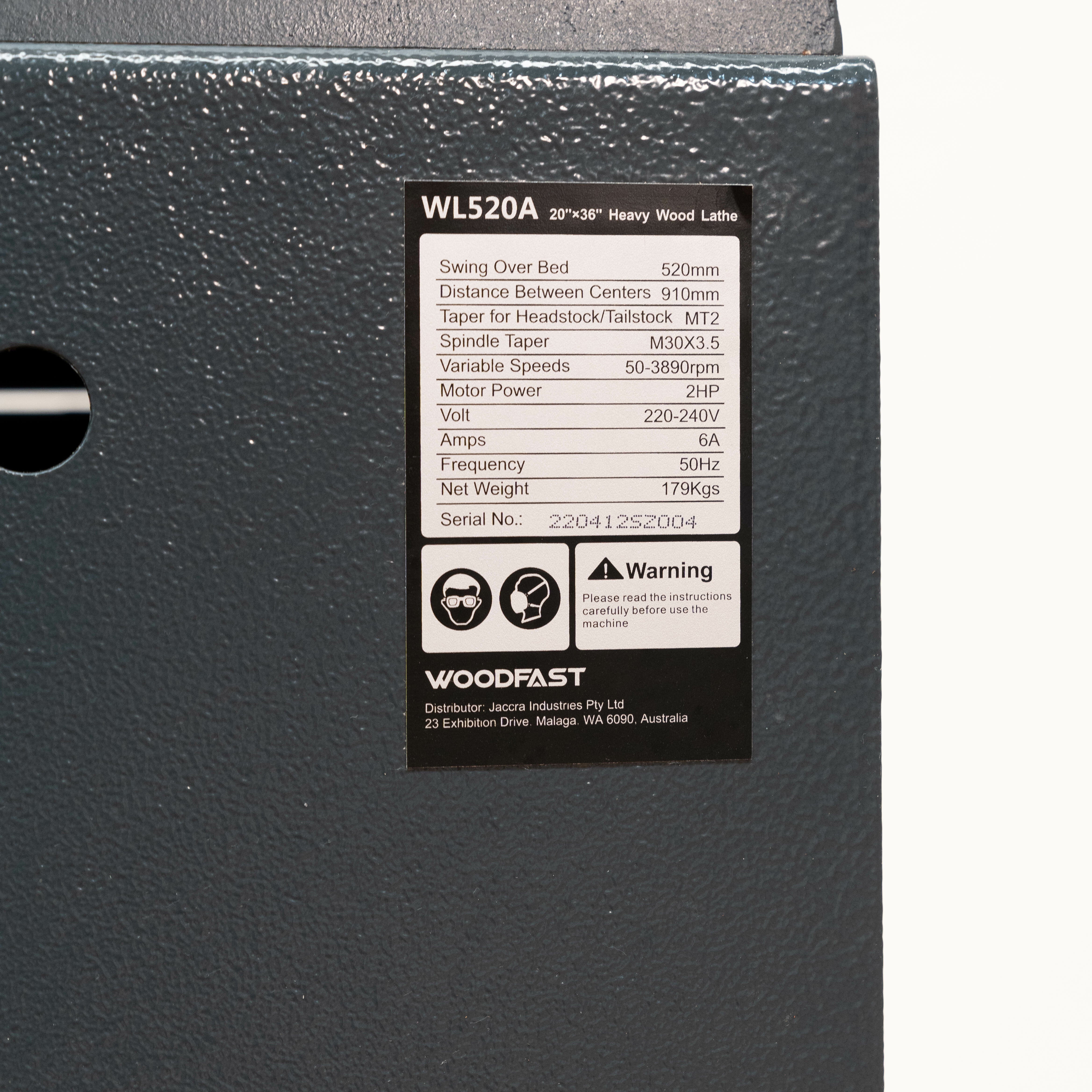

Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
2HP (1.5kW)
Chuck Taper
MT2
Distance Between Centres
910mm (36")

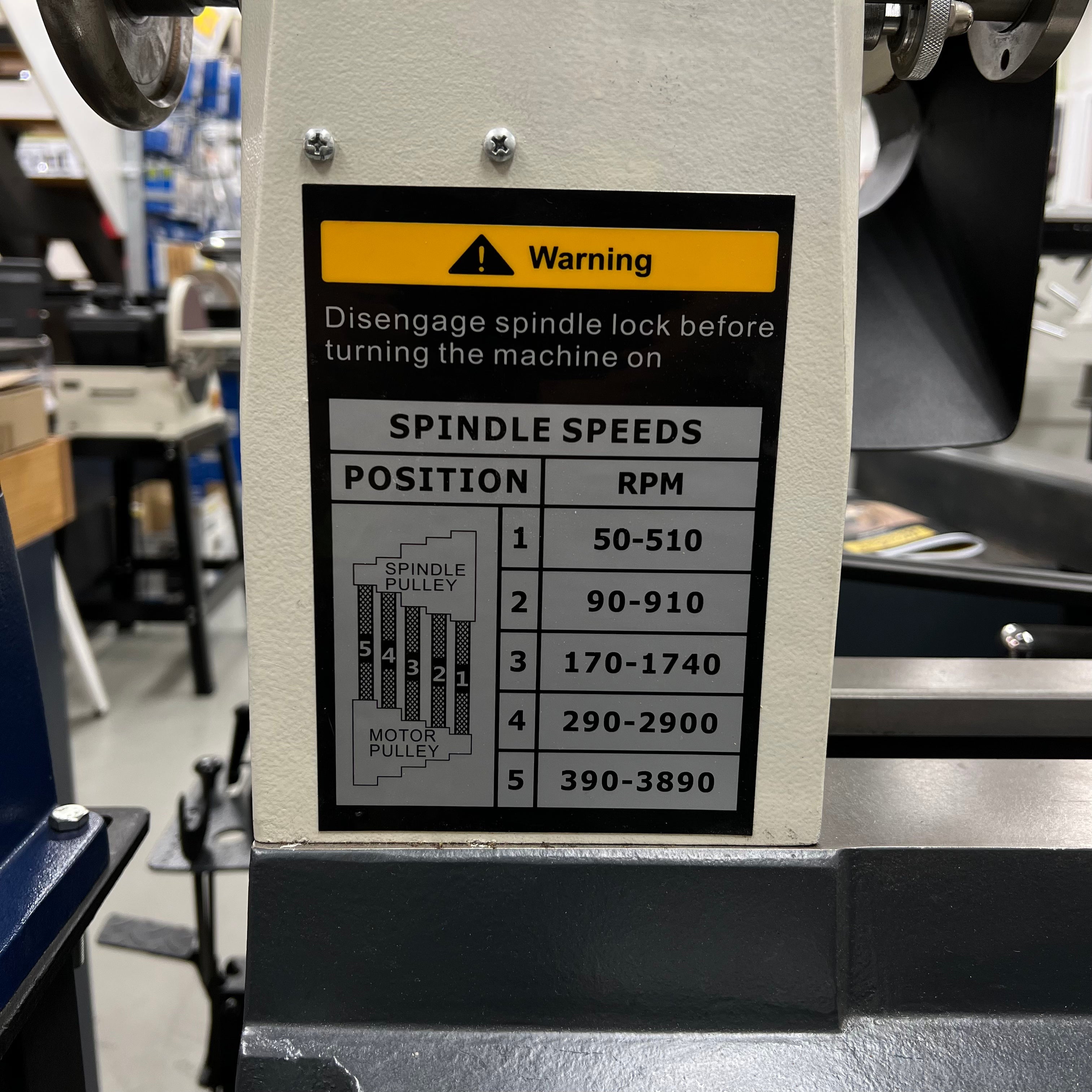

Speed Range
50-3890RPM
Swing Over Bed
520mm (20")
Spindle Taper - Headstock
MT2

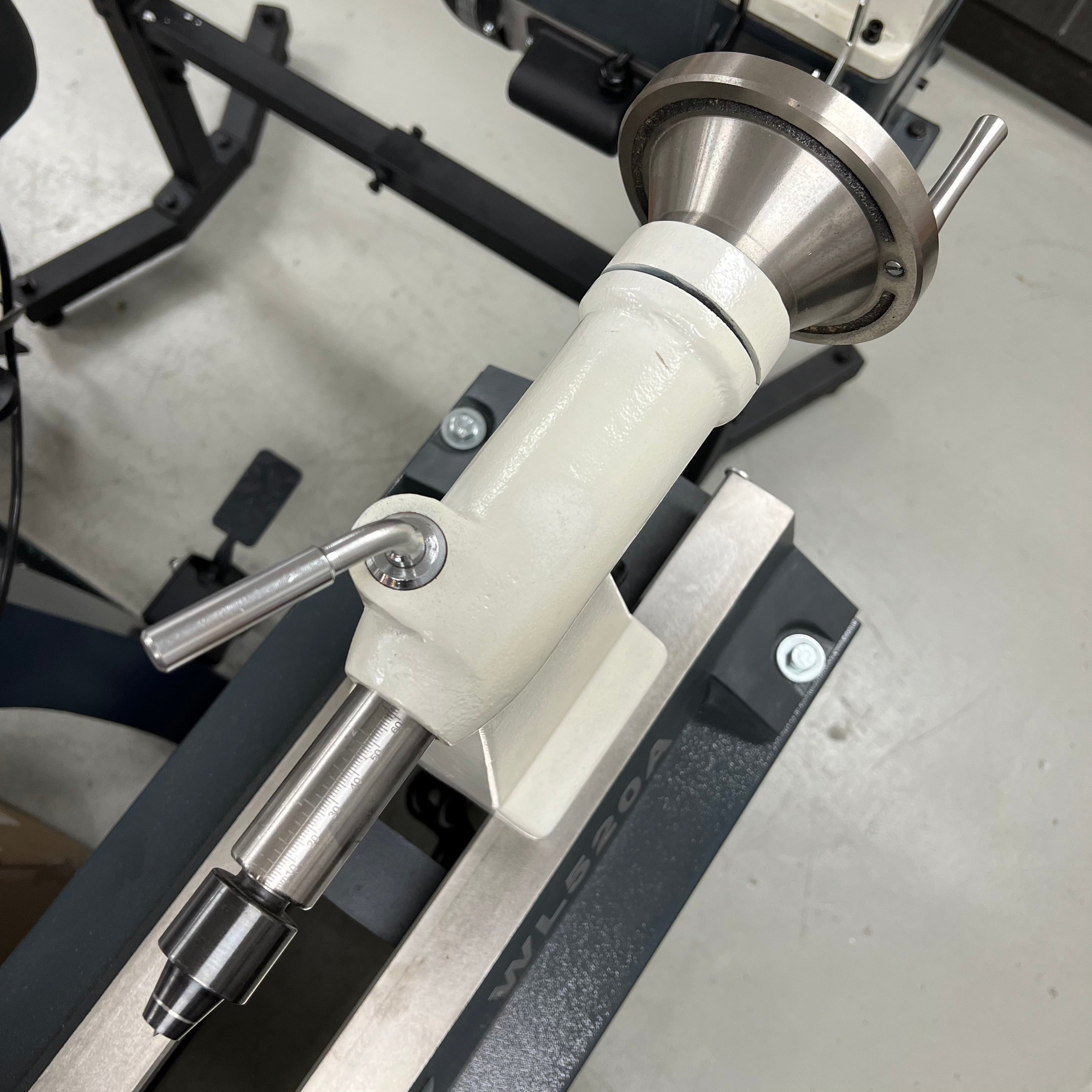

Spindle Taper - Tailstock
MT2
Dimensions
Product Weight (Net Weight)
102 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features

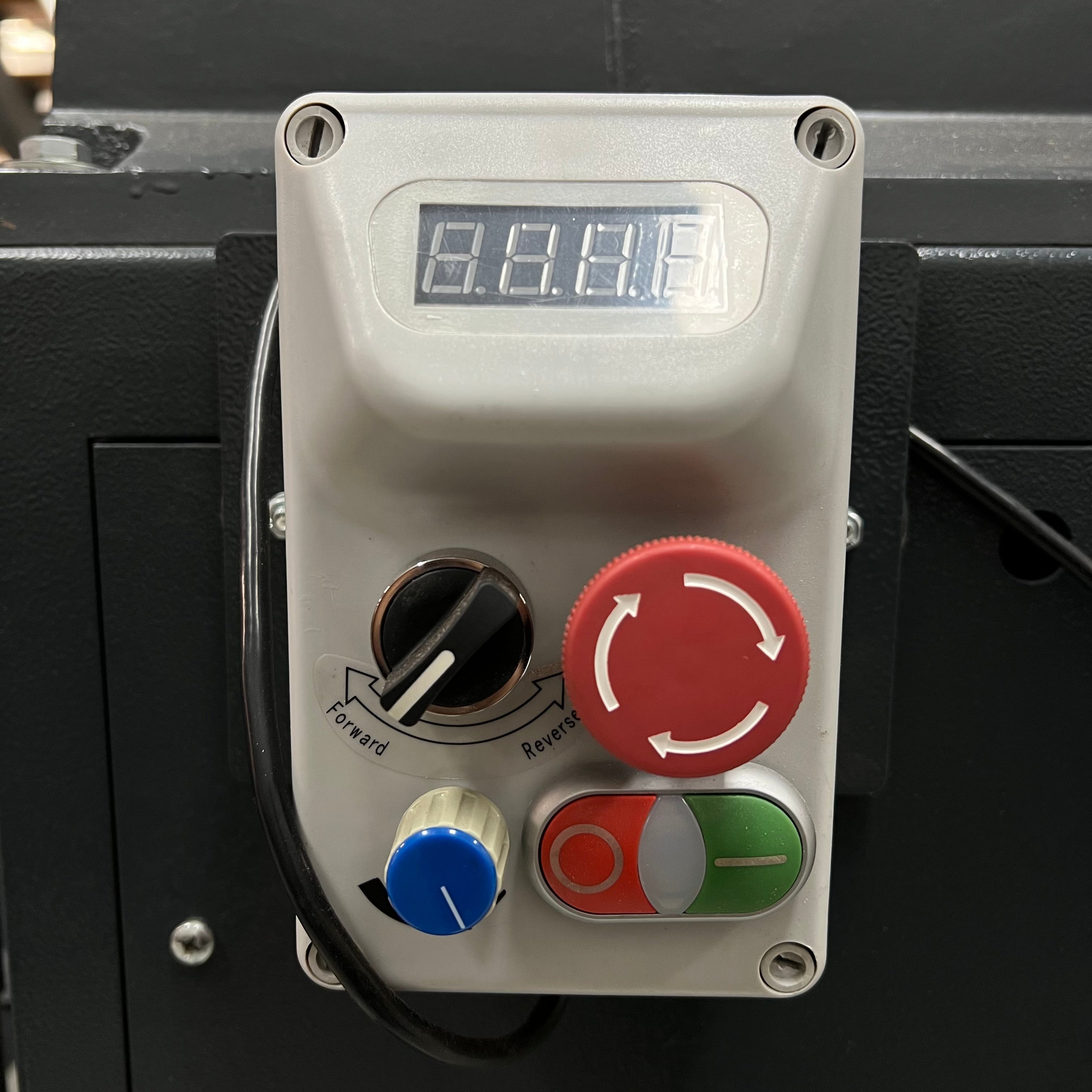

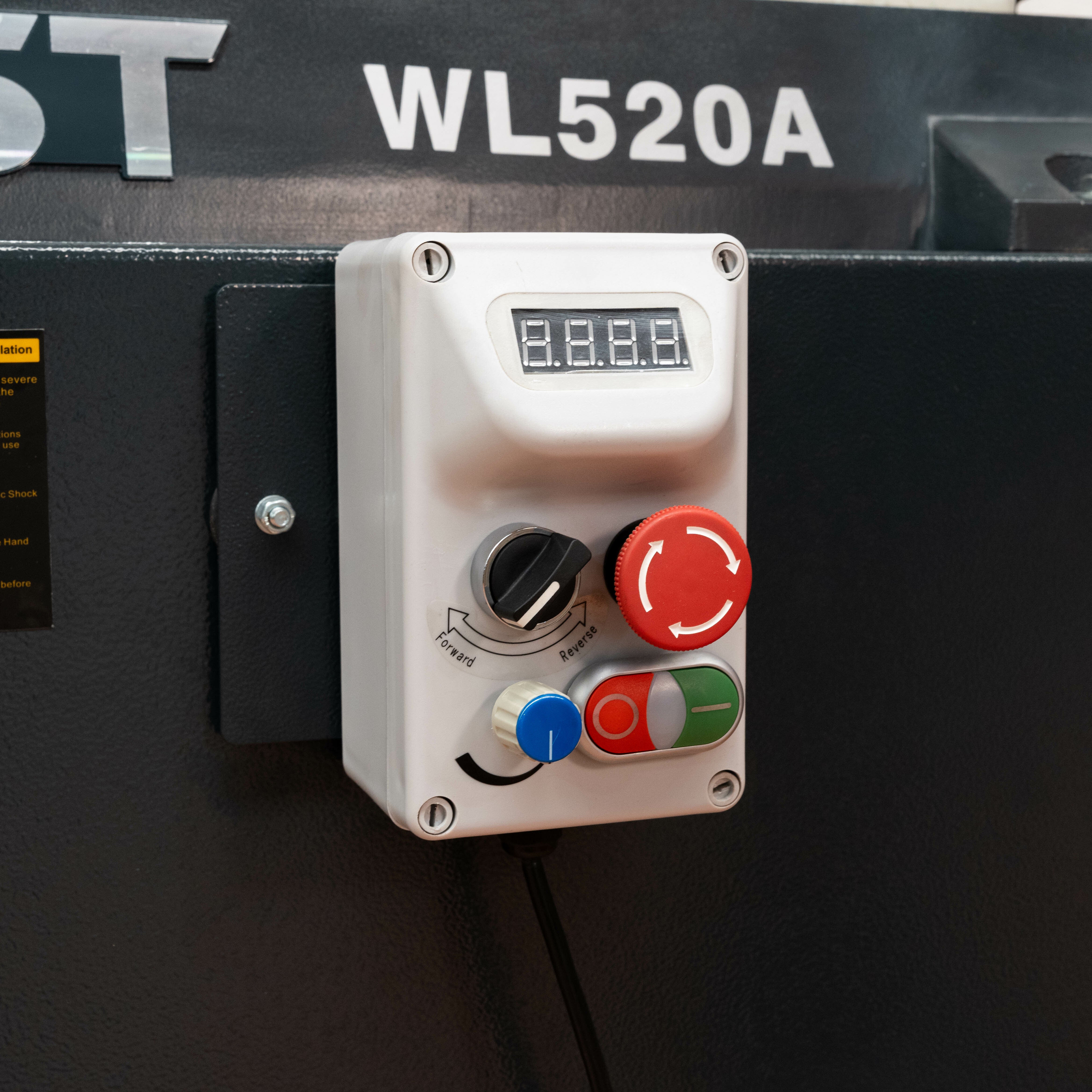

Digital Speed Display
Digital Speed Display
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
Dust Port
1 x 100mm
Workshop (Site) Info
Electrical Connection
15Amp Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years
Packaging + Shipping
Shipping Length
1510 mm
Shipping Width
960 mm
Shipping Height
1180 mm
Shipping Weight (Gross)
263.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
149cm x 39cm x 60.5cm x 110Kg
Carton 2 (L X W X H x KG)
151cm x 57cm x 57cm x 133Kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
