Status
Available
Description

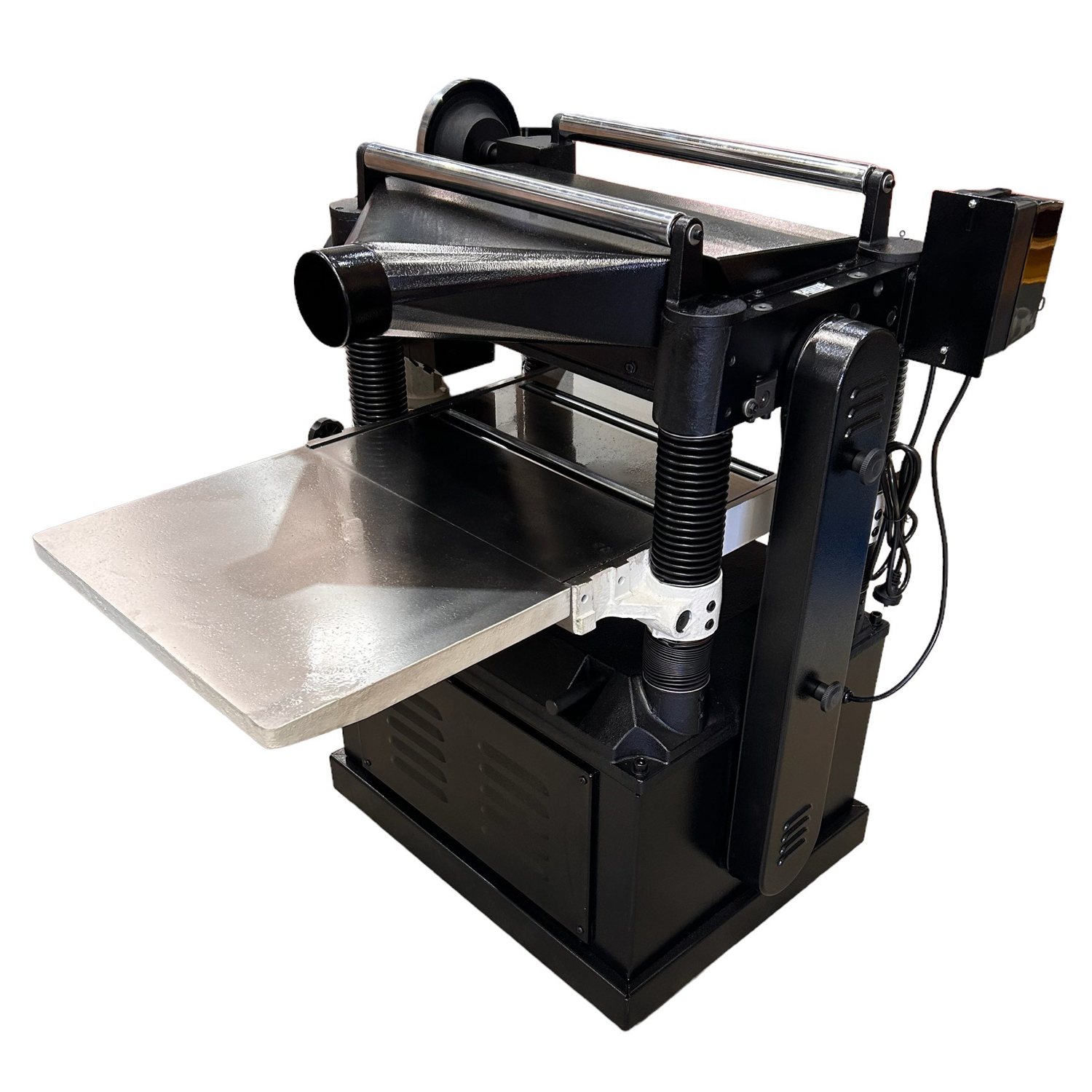

This durable, powerful machine is designed to achieve precision results with reliable, continuous operation. Perfect for home workshops and educational use, the Oltre OT-P-510 (W0201) offers premium economy performance and is crafted with superior cast iron table wings and a mobile wheel kit. Beyond expectations, Oltre (Italian for "Beyond") delivers a reliable jointer-planer with spiral head cutter block.
Features

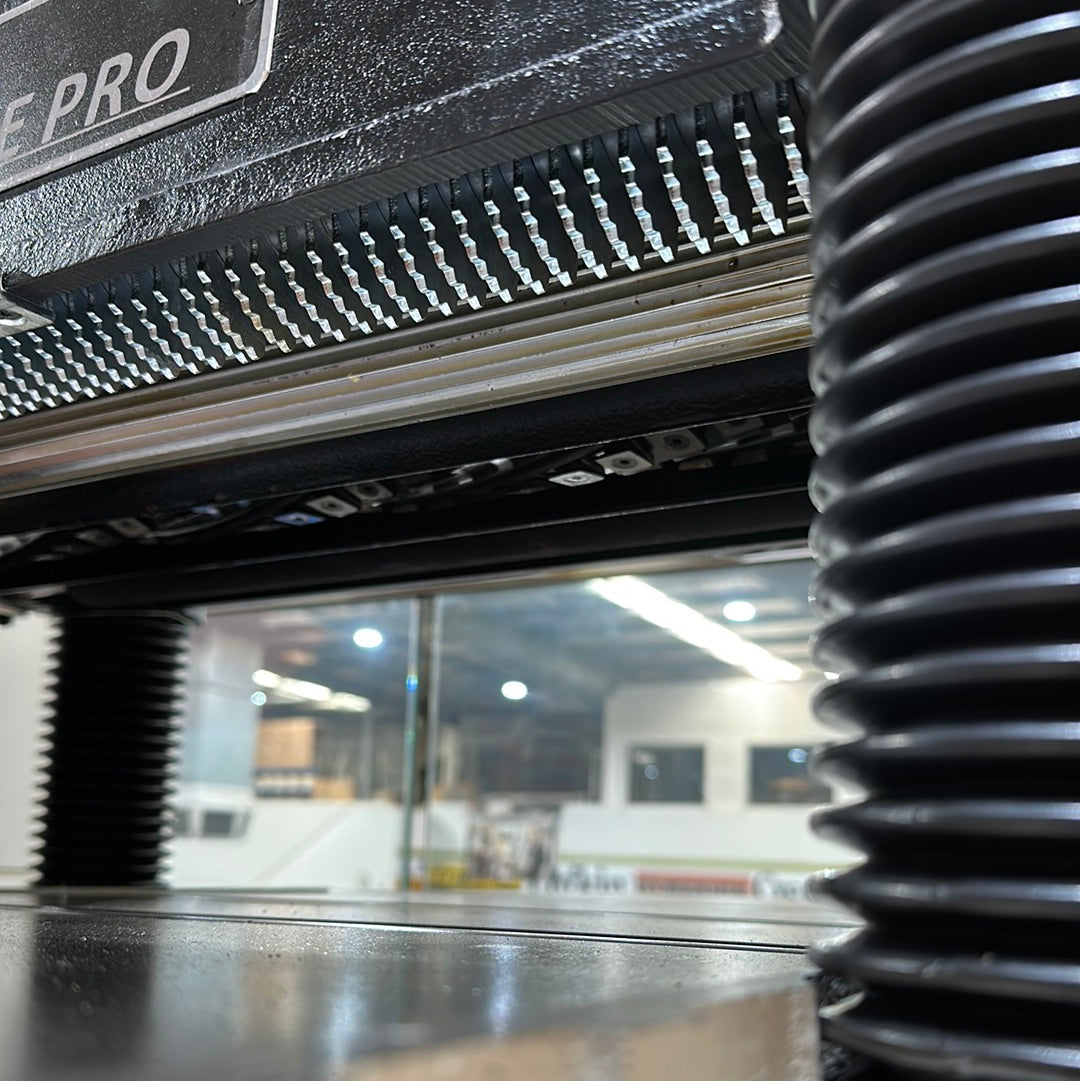

- Spiral Head Cutter Block for Premium performance with a quieter cut.
- 2 Feed Speeds

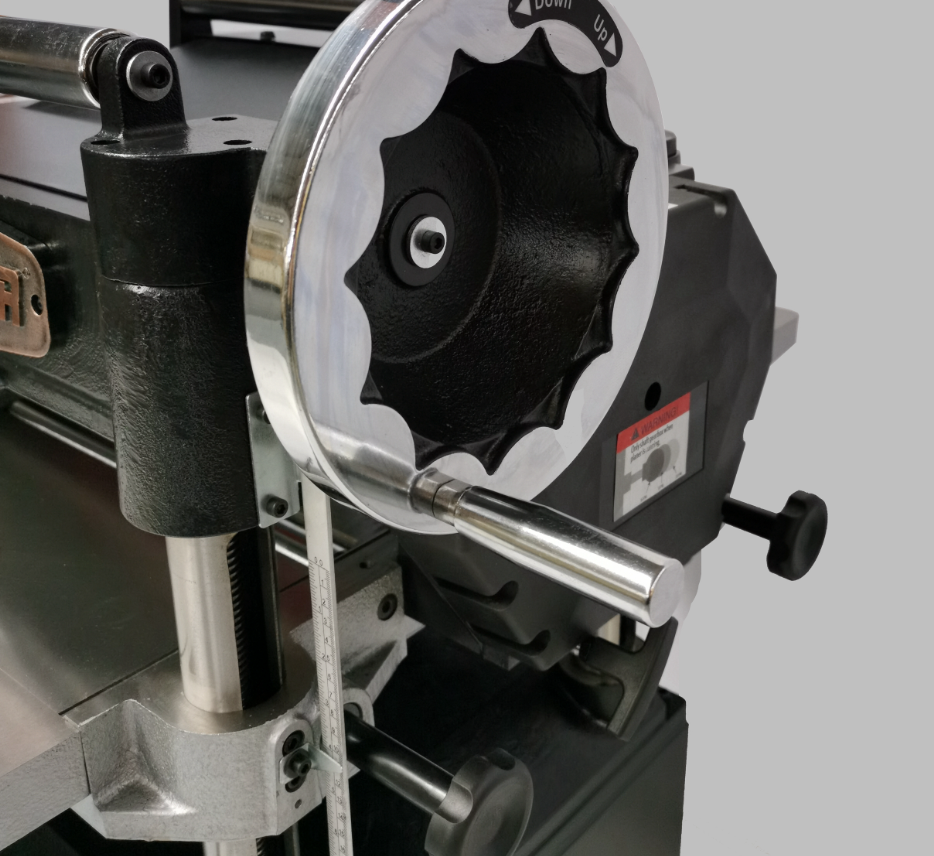

- 4 Post Table Height Adjustment
Specification
- Planing Table Size: 654mm x 510mm
Additional Information
Model
Type
Thicknesser
SKU
8601397
Part Number
W0201
Brand
Oltre
Size
200mm (20")
Size*
200mm (20")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP / 2200W
Blade Type
Spiral Head Cutter Block
Cutting Capacity - Depth
3mm (planing)
Material (Stock) - Minimum Length
180mm
Material (Stock) - Minimum Width
508mm
Material (Stock) - Maximum Thickness
204mm (Maximum)
Table Size
654mm x 510mm
Technical - Saw
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
78mm
Blade - Cutter Head Block - Rows
6
Blade - Cutter Head Block Speed (RPM)
5000
Blade - Cutter Head Block - No. of Blades / Tips
130
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
78mm
Blade - Cutter Head Block - Rows
6
Blade - Cutter Head Block Speed (RPM)
5000
Blade - Cutter Head Block - No. of Blades / Tips
130
Features
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Standard Inclusions

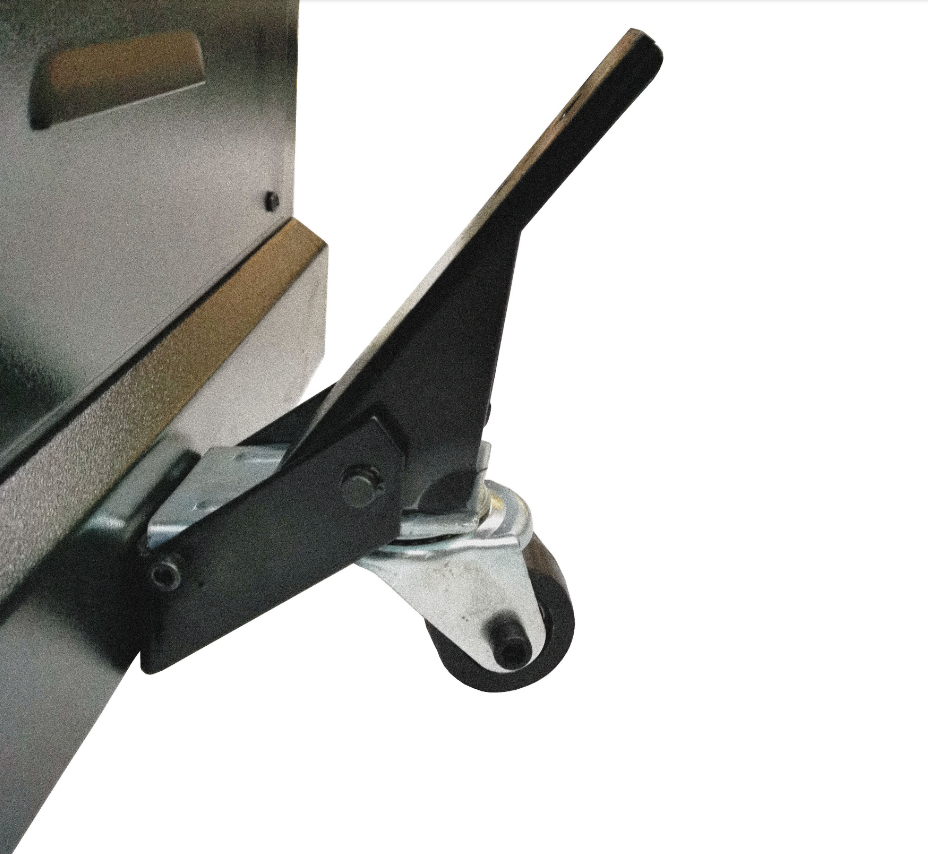

Mobility Wheel KitCast Iron Extension Table
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
960mm
Shipping Width
720mm
Shipping Height
1165mm
Shipping Weight (Gross)
372kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
