500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin

CasolinSKU: 9301598
Price:
$69,900.00

Stores

Buy from Beyond Tools Search Another Dealer

Status

Available

Description

Features:-
  • 5 x Axis CNC Movements
    • Scribe - Electronic left and right movement
    • Scribe - Electronic Rise & Fall movement
    • Main Blade - Electronic Rise & Fall
    • Main Blade - Electronic Tilting
    • Parallel Fence - Electronic Rise & Fall
  • 3800mm Double Roller Sliding Table
  • 1.3m Rip Fence

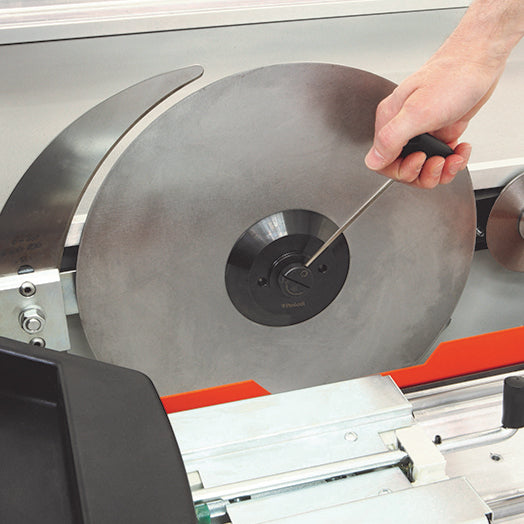

  • Quick Saw Blade Change
  • 3 x Speed

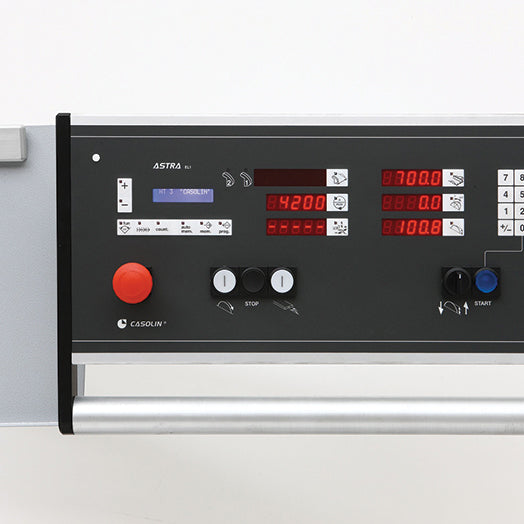

  • Overhead Control
Specification:-
  • Main Blade Diameter: 250-550mm (Without Scribe)
  • Main Shaft: 30mm Diameter
  • Scoring Shaft: 120mm
  • Speed Rotation: 3000-4200-5000RPM
  • Main Motor: 7.5HP
  • Scoring Motor: 1HP
  • Dimensions: 3800x2220x1800mmH
  • Approx. Weight: 1050-1350Kg

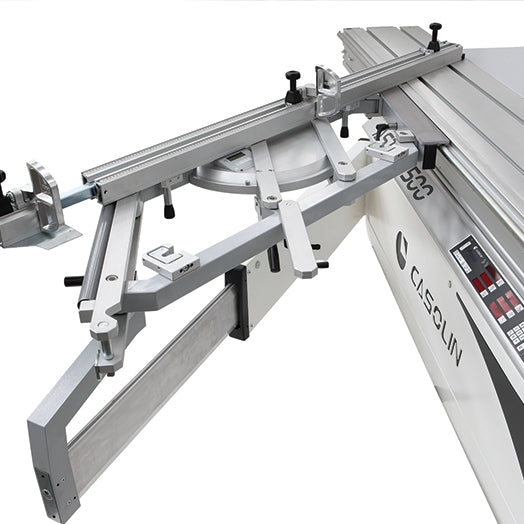

Includes (Cross Slide Parallelogram Sliding Table)
  • Fast & Precise Angular Cut Panels
  • Tapered Roller Bearings Guarantees Accuracy
  • Ground Plane Locking Position +/-46Deg.
  • Convenient Adjustment Handle with Locking Pin

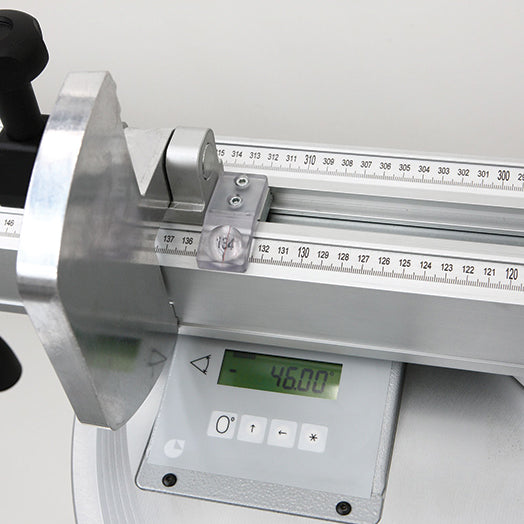

  • Viewing Angle on LCD Digital Display
  • Registers Telescopic Cuts up to 3000/3500mm, in 2 Working Positions

Additional Information

Model
Type
Panel Saw
SKU
9301598
Part Number
ASTRA 500 OHC
Brand
Casolin
Technical - Saw
Sliding Table (Cross Cut) Size
3800mm
Country of Origin
Manufactured in
Italy
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
