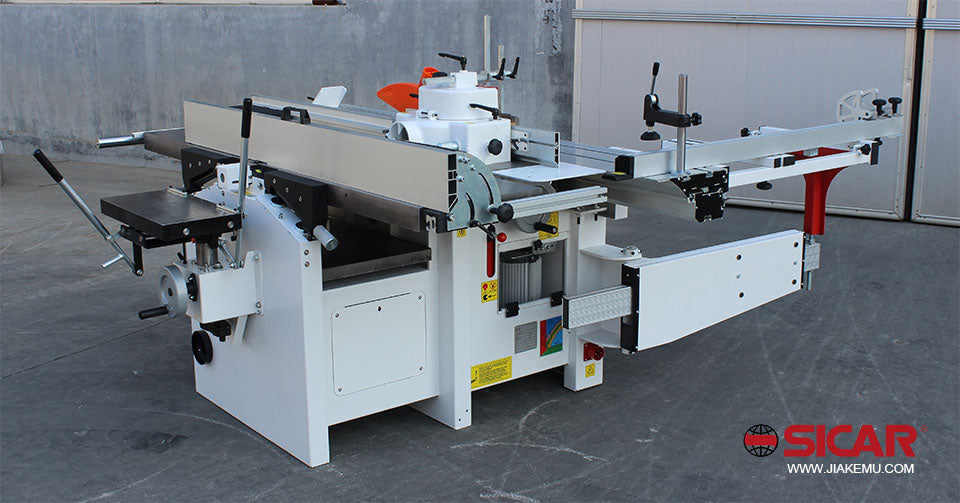

Sicar 5 Function Combination Woodworking Machine with 300mm Panel Saw + 400mm Spiral Head Cutter Block Planer / Thicknesser C400S

The Sicar C400S 5 Function Combination Woodworking Machine is designed for serious woodworking applications where workshop space, accuracy and productivity all matter.

This industrially rated machine features:

• Table Saw

• Spindle Moulder

• Planer

• Thicknesser

• Mortiser

Built with heavy-duty cast iron construction, the C400S offers the kind of stability, durability and machining confidence expected from a professional-grade machine. The accurate cross cut fence and superb overall build quality place this machine in a class of its own.

As a true professional workshop machine, the C400S is fully adjustable, with accuracy that stands alongside larger industrial machinery. Its three independent Class 1 motors provide ample power, allowing the operator to switch functions with the flick of a switch rather than having to manually change belts.

The saw utilises a sliding beam running alongside the blade, similar to a panel saw. By positioning the beam this close to the blade, the machine is designed to deliver excellent cutting accuracy. The planer / thicknesser function is powerful, accurate and designed to produce a superb finish, while the inward swing of the thicknessing unit helps keep the machine compact and manageable in every function.

This version also features a spiral head cutter block on the planer and thicknesser, offering the benefits of a shear-style cut, reduced tear-out, lower noise and easy insert rotation for reduced downtime.

Several further options are available, allowing each machine to be tailored to the user’s specific needs. These may include a heavy-duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.

Features

• 5 in 1 combination machine

• Table saw

• Spindle moulder

• Planer with Spiral Head Cutter Block

• Thicknesser with Spiral Head Cutter Block

• Mortiser

• Three motors

• Tilting functionality on saw blade

• Scoring saw

• Cast iron construction

• Industrial standard machine

• Compact footprint for factory and professional workshop use

Options Table

Available Options

• C400S / 1.8M / 415V

• C400S / 2.6M / 415V

General Specifications

• Motor: Three-phase motor 5.3HP / 4kW

• Voltage: 415V

• Weight: 645kg

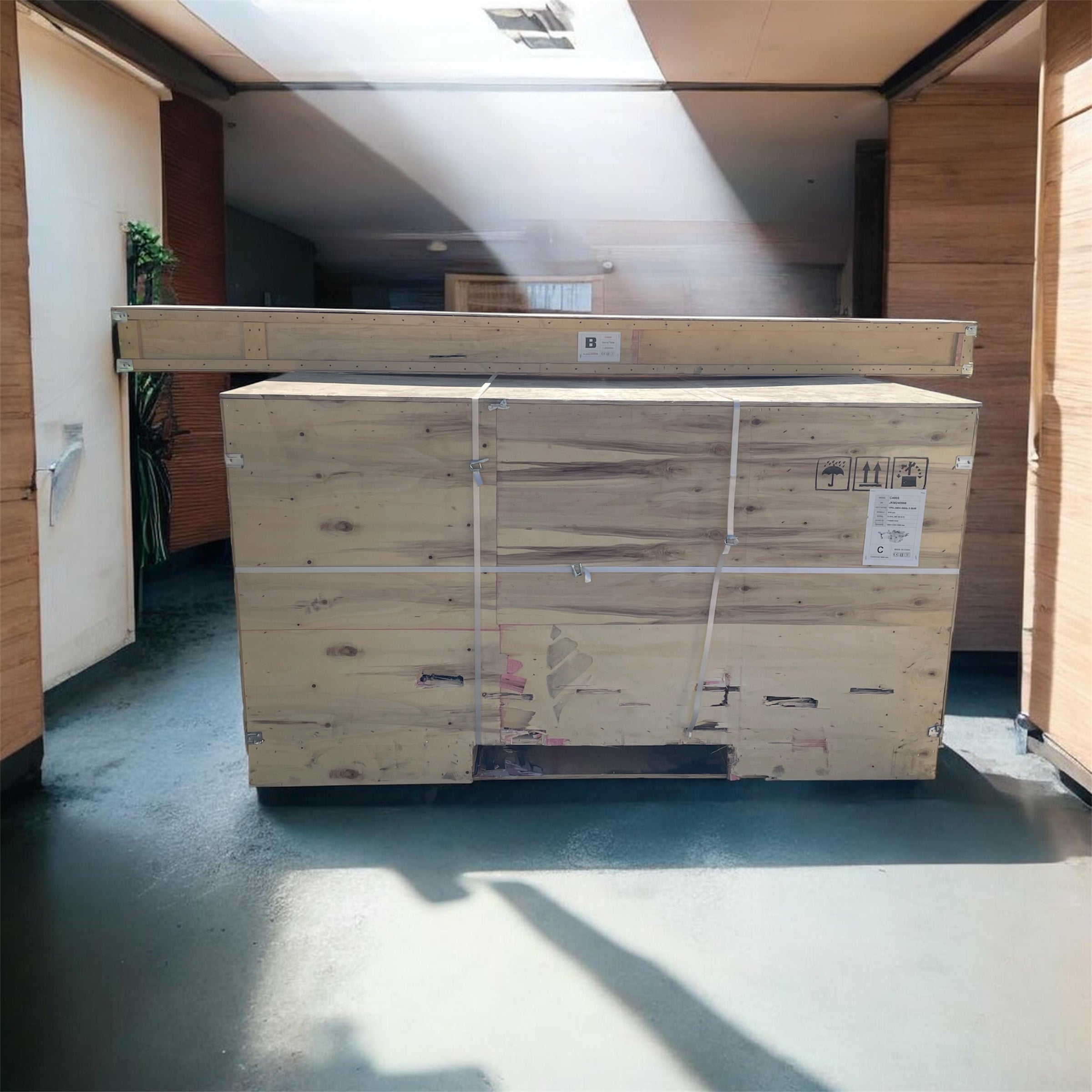

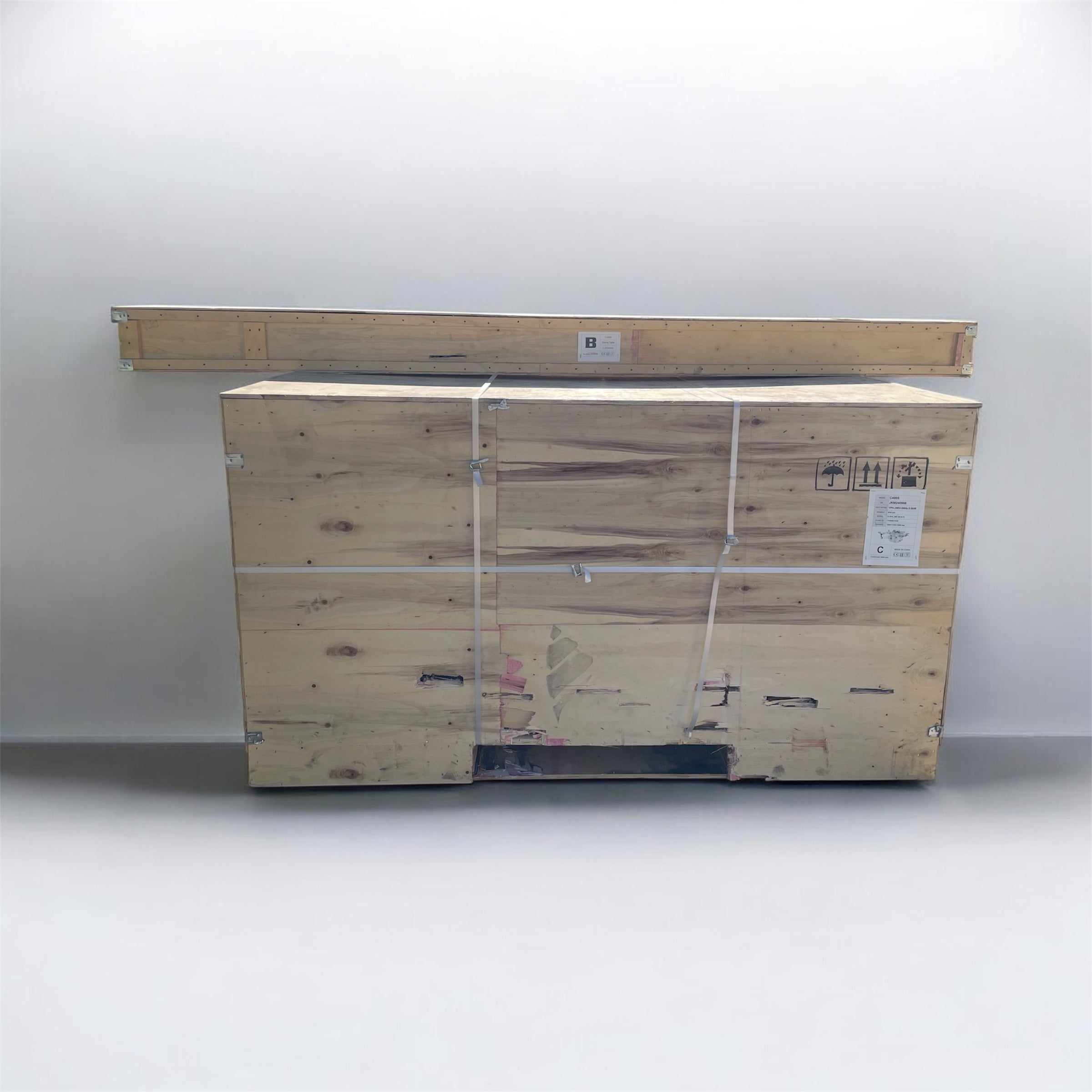

• Packing Weight N.W / G.W: 645 / 690kg

Note: your supplied data shows the 2600 x 315mm carriage dimensions for the larger sliding table version. For the 1.8m version, you can list it separately by variant rather than repeat the 2600mm carriage dimension across both options.

Planer with Spiral Head Cutter Block

The planer unit features a spiral cutter block designed to provide smoother cutting, reduced tear-out and easier maintenance.

Planer Specifications

• Spiral Cutter Block

• Working Table: 400 x 1800mm

• Cutter Block Diameter: 70mm

• Cutter Block Rotation Speed: 5700RPM

• Cutter Block Length: 400mm

• Max Table Adjustment: 4mm

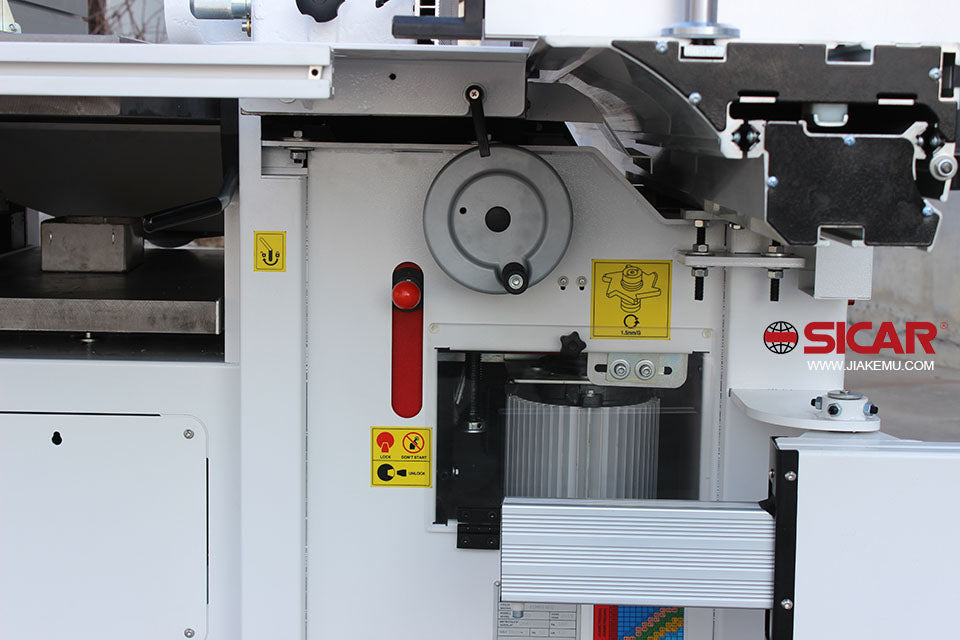

Thicknesser with Spiral Head Cutter Block

The thicknesser continues the benefits of spiral cutter technology, helping produce a cleaner finish while reducing noise and downtime.

Thicknesser Specifications

• Working Table: 400 x 760mm

• Feed Speed: 7m/min

• Working Height: 4–220mm

• Cutter Block Rotation Speed: 5700RPM

• Max Cutting Depth: 4mm

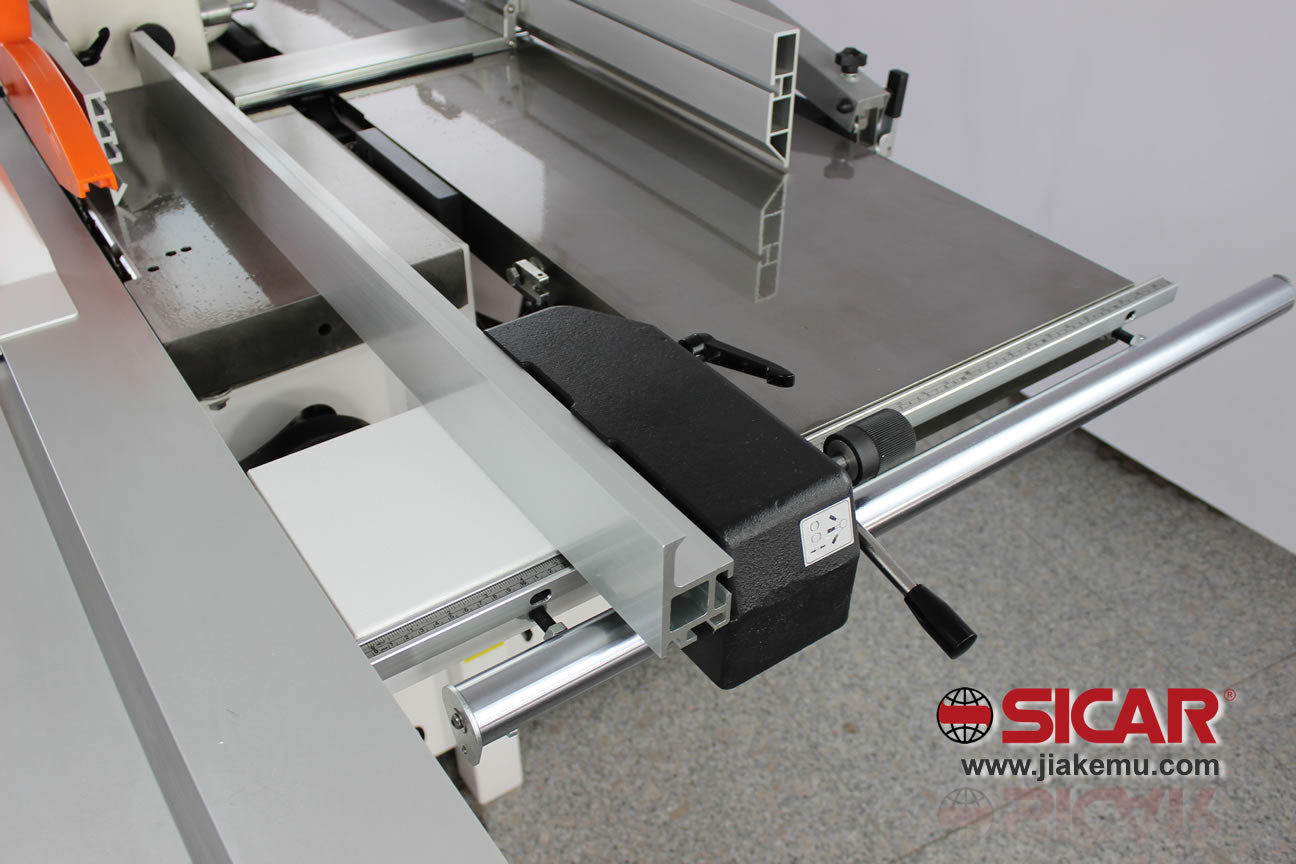

Table Saw / Circular Saw

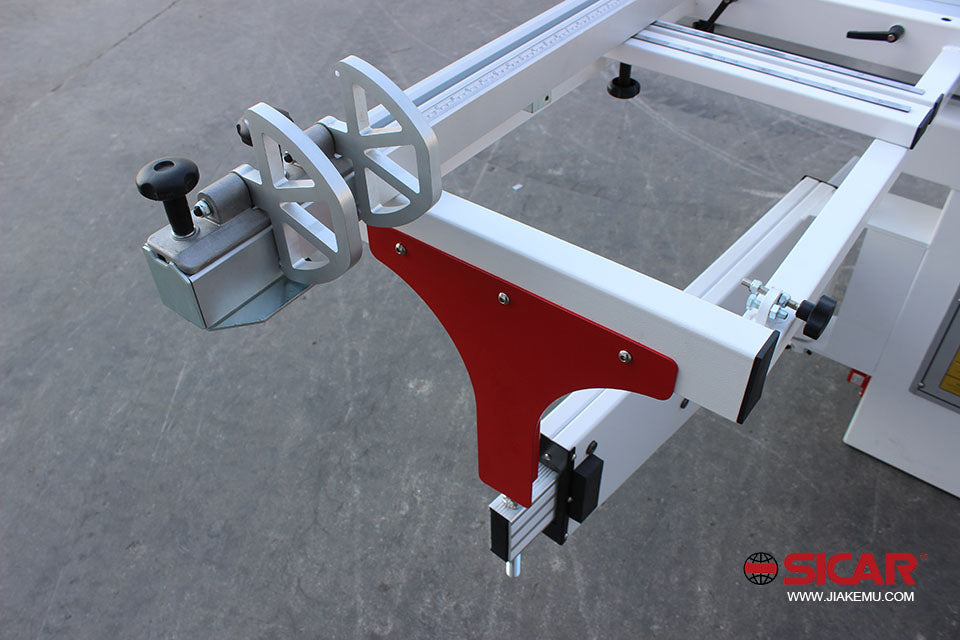

The table saw and sliding table assembly are designed for accurate panel and timber cutting in a professional workshop setting.

Table Saw Specifications

• Working Table: 326 x 1112mm

• Main Shaft Speed: 4500rpm

• Scribe Shaft Speed: 7000rpm

• Main Blade Diameter: 300 x 30mm

• Scribe Blade Diameter: 90 x 22mm

• Cutting Height at 90°: 100mm

• Cutting Width Parallel Fence: 730mm

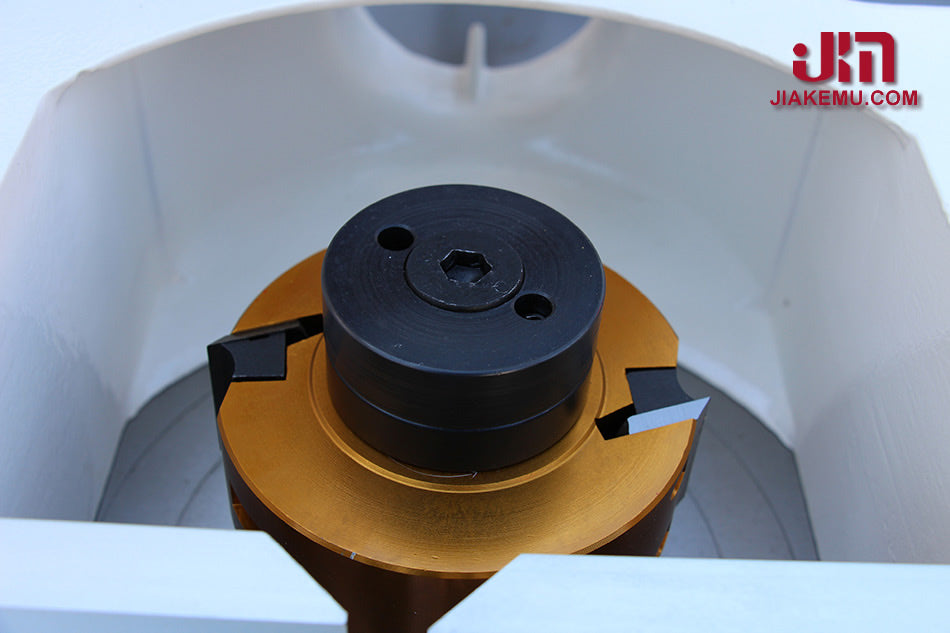

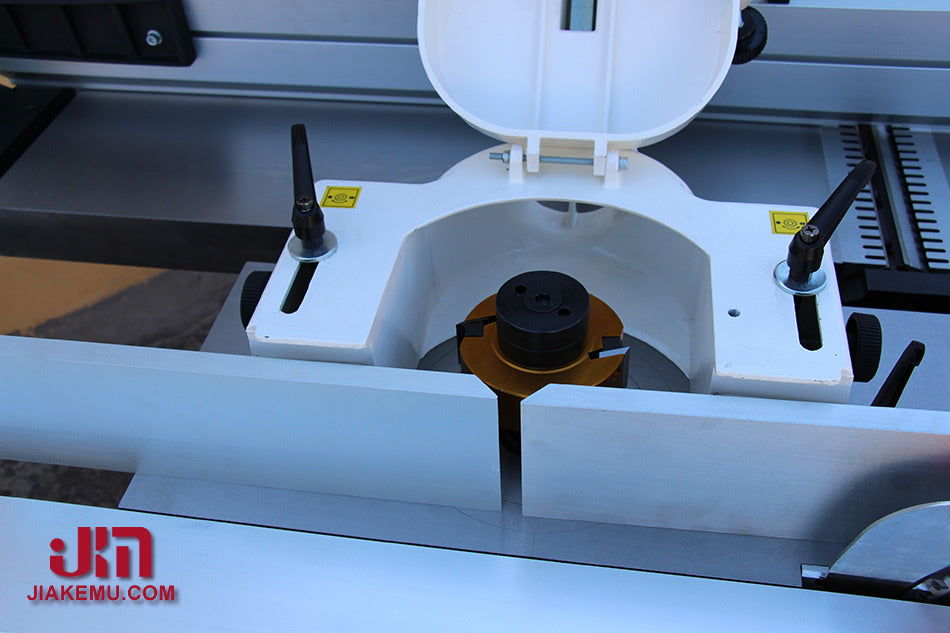

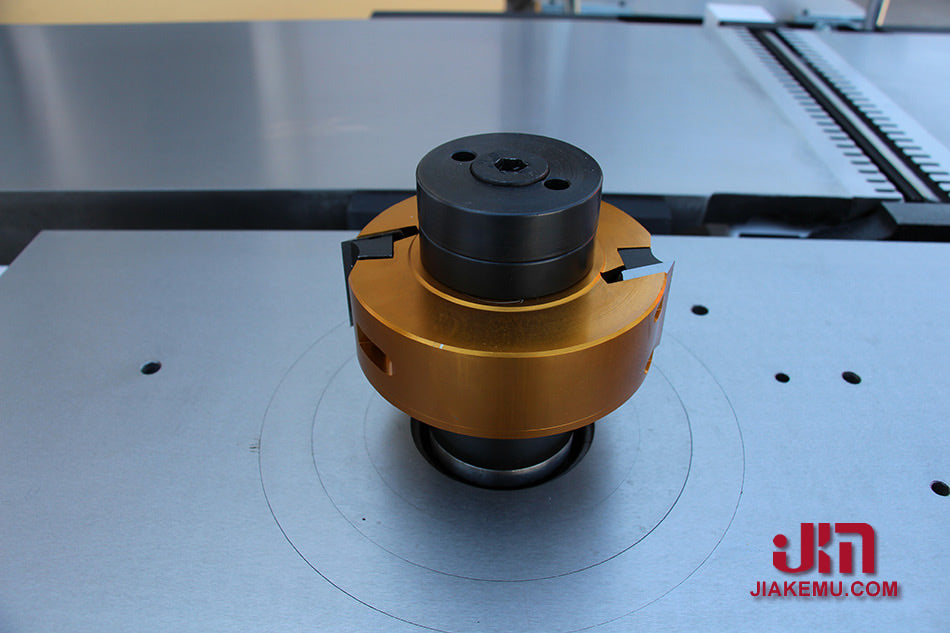

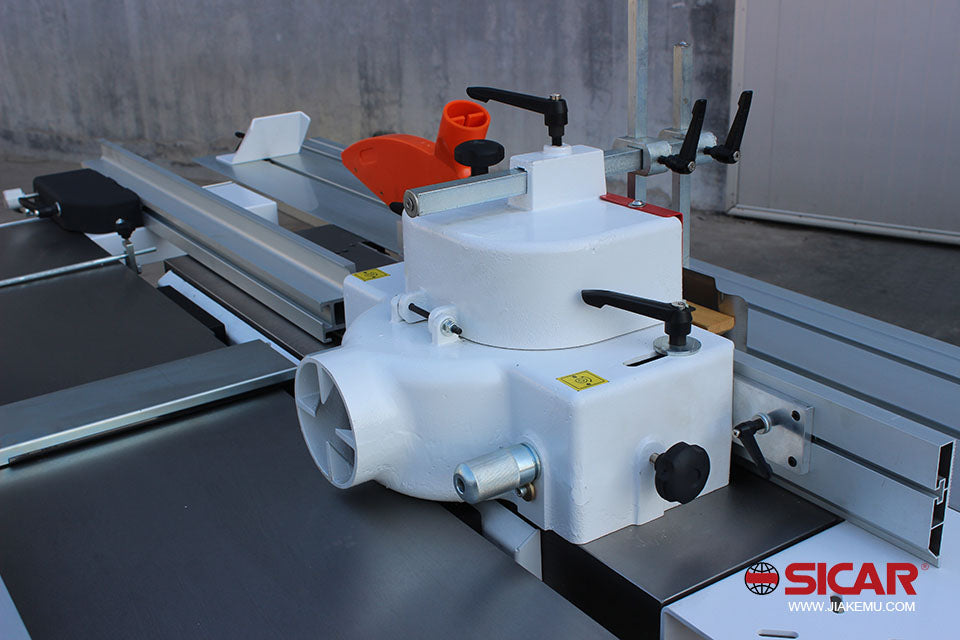

Spindle Moulder

The spindle moulder provides flexible shaping and profiling capability with multiple spindle speeds.

Spindle Moulder Specifications

• Working Tables: 326 x 1112mm

• Shaft Rotation Speeds: 2000 / 3100 / 4400 / 7000RPM

• Standard Shaft Diameter: 30mm

• Shaft Vertical Stroke: 115mm

• Max. Tool Diameter: 180mm

• Max. Tenoning Depth: 65mm

Mortiser

The integrated mortiser expands the machine’s versatility without needing a separate standalone unit.

Mortiser Specifications

• Working Table: 250 x 500mm

• Longitudinal Stroke: 205mm

• Traversal Stroke: 95mm

• Vertical Stroke: 90mm

• Chuck: 16mm

• Chuck Rotation Speed: 5700RPM

Optional Accessories

• 100mm Dust Hose #8600640

• FM300 Dust Collector

Optional Consumables

• Main Blade: 250 x 30mm x 24T

• Main Blade: 250 x 30mm x 80T #8714666

• Scribe Blade: 90 x 22mm

Warranty

Full 12 Month Manufacturer Warranty

Ideal For

• Professional woodworking workshops

• Small factories

• Serious timber users

• Cabinet makers and joinery shops

• Workshops wanting multiple functions in one machine

• Users wanting the benefits of a spiral head cutter block
