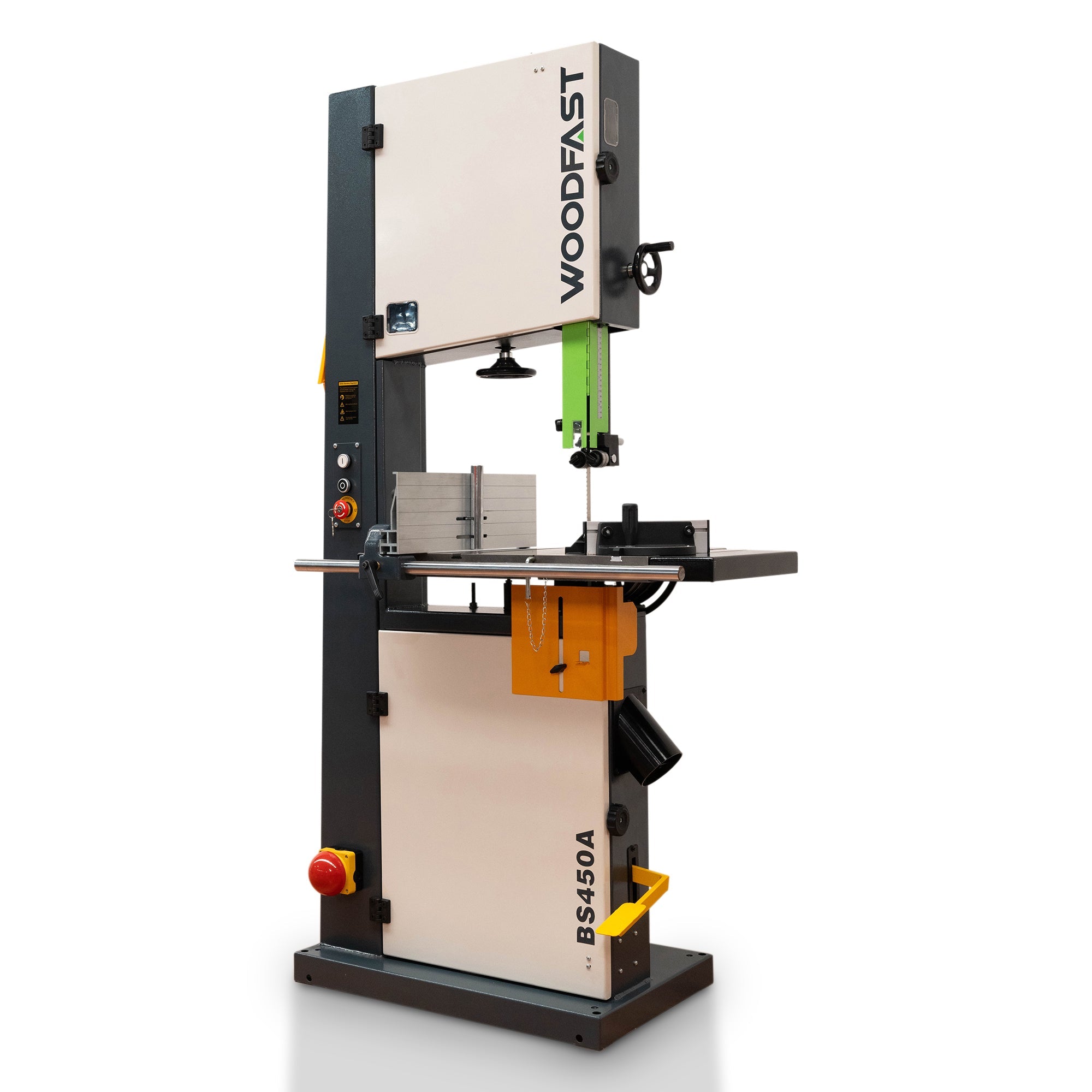

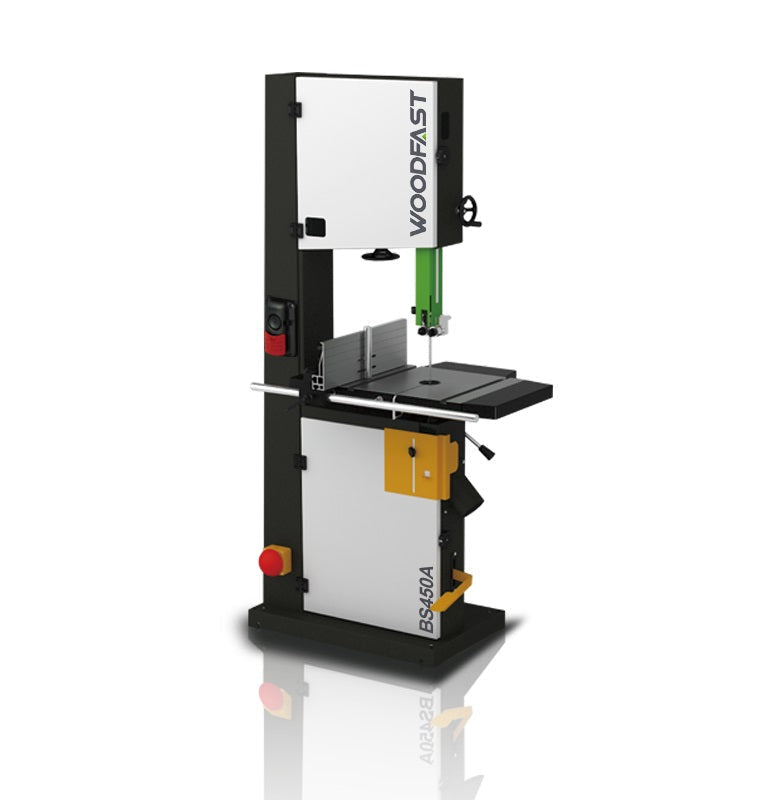

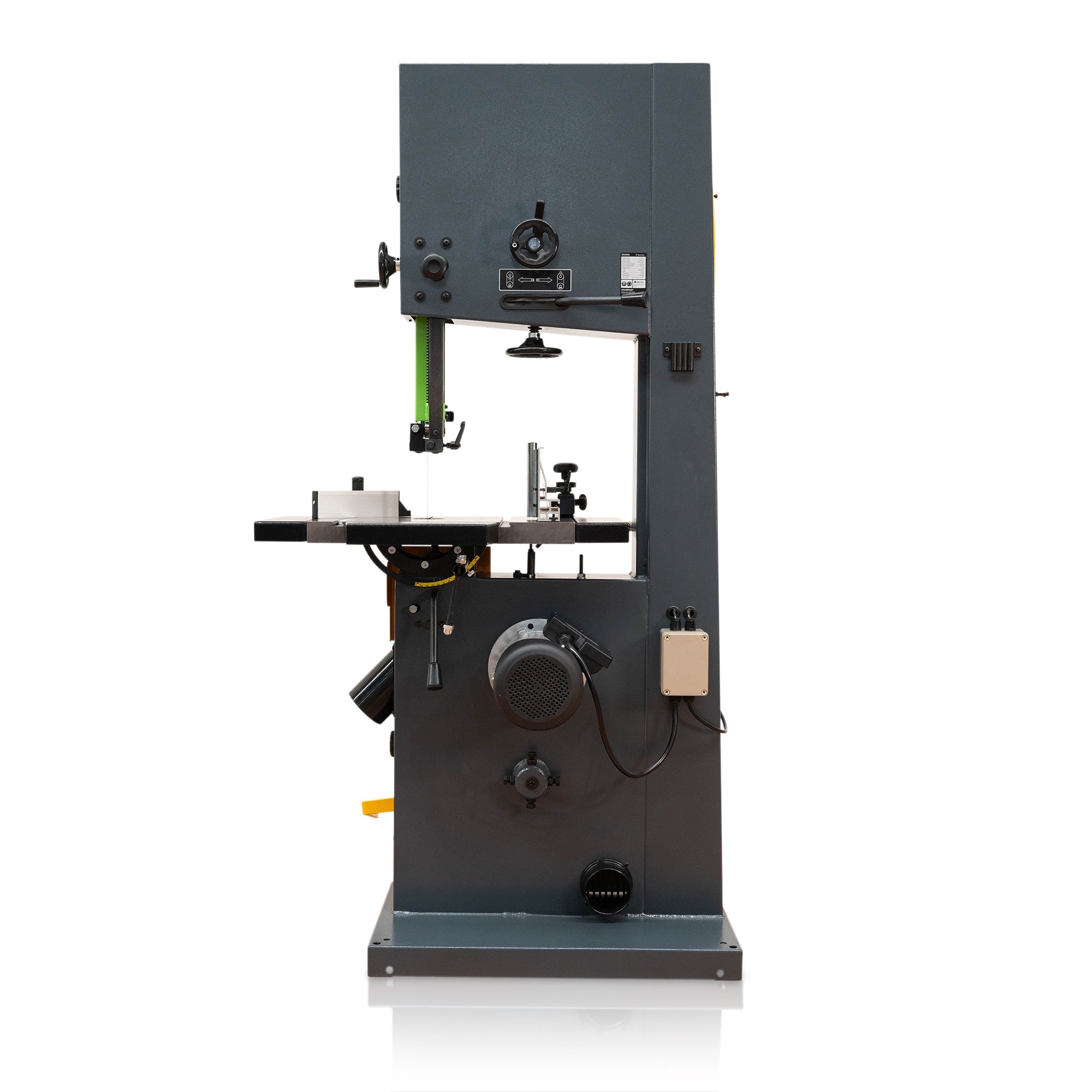

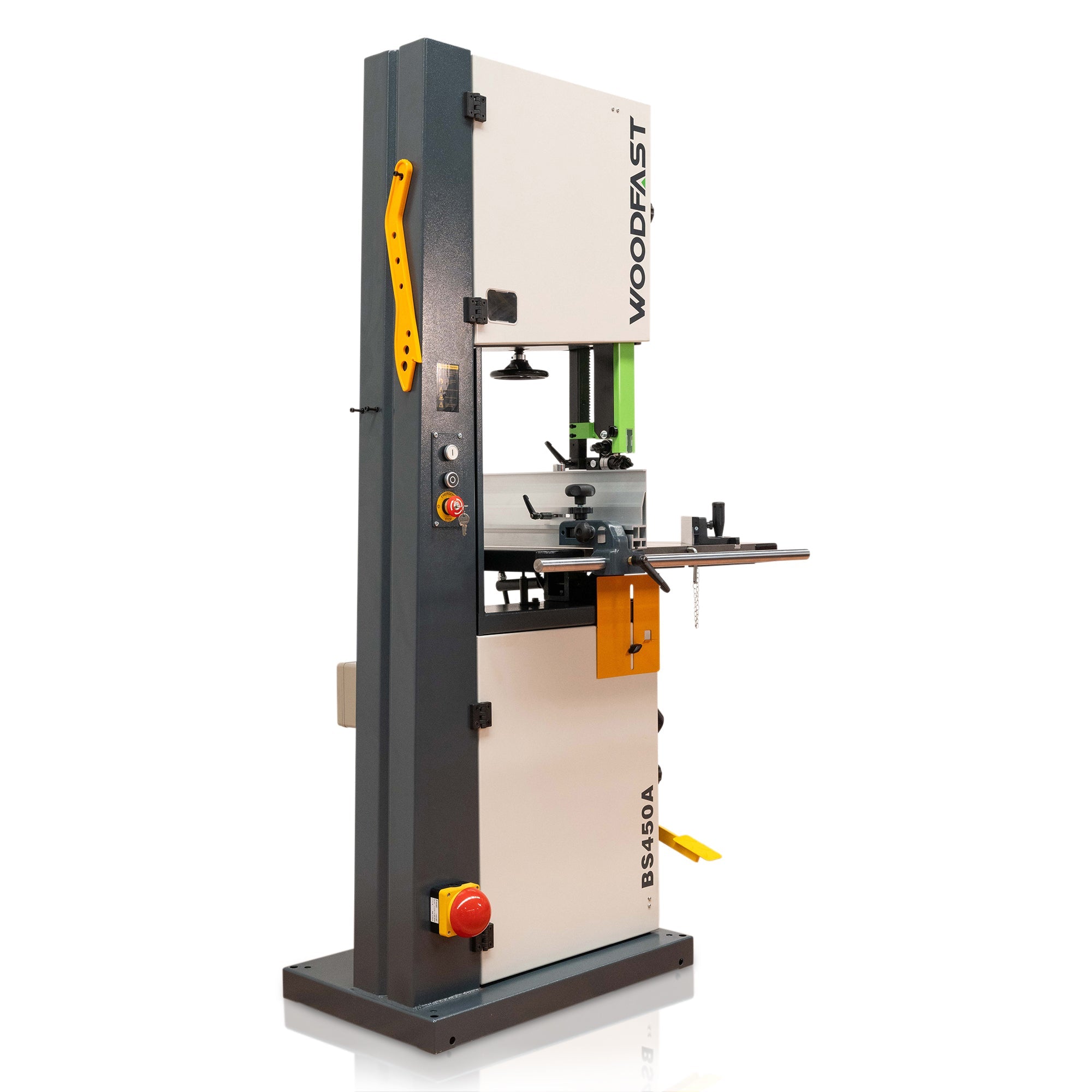

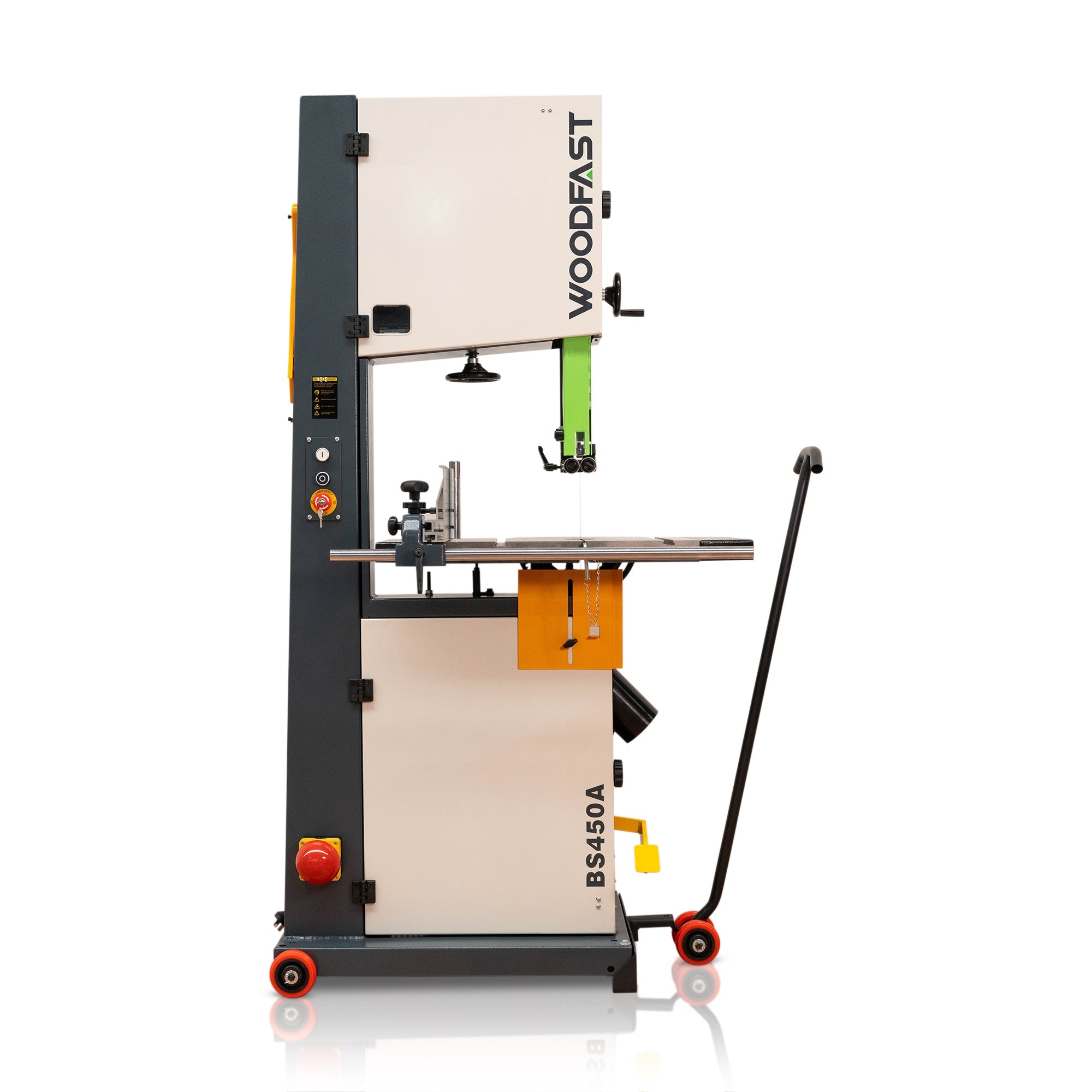

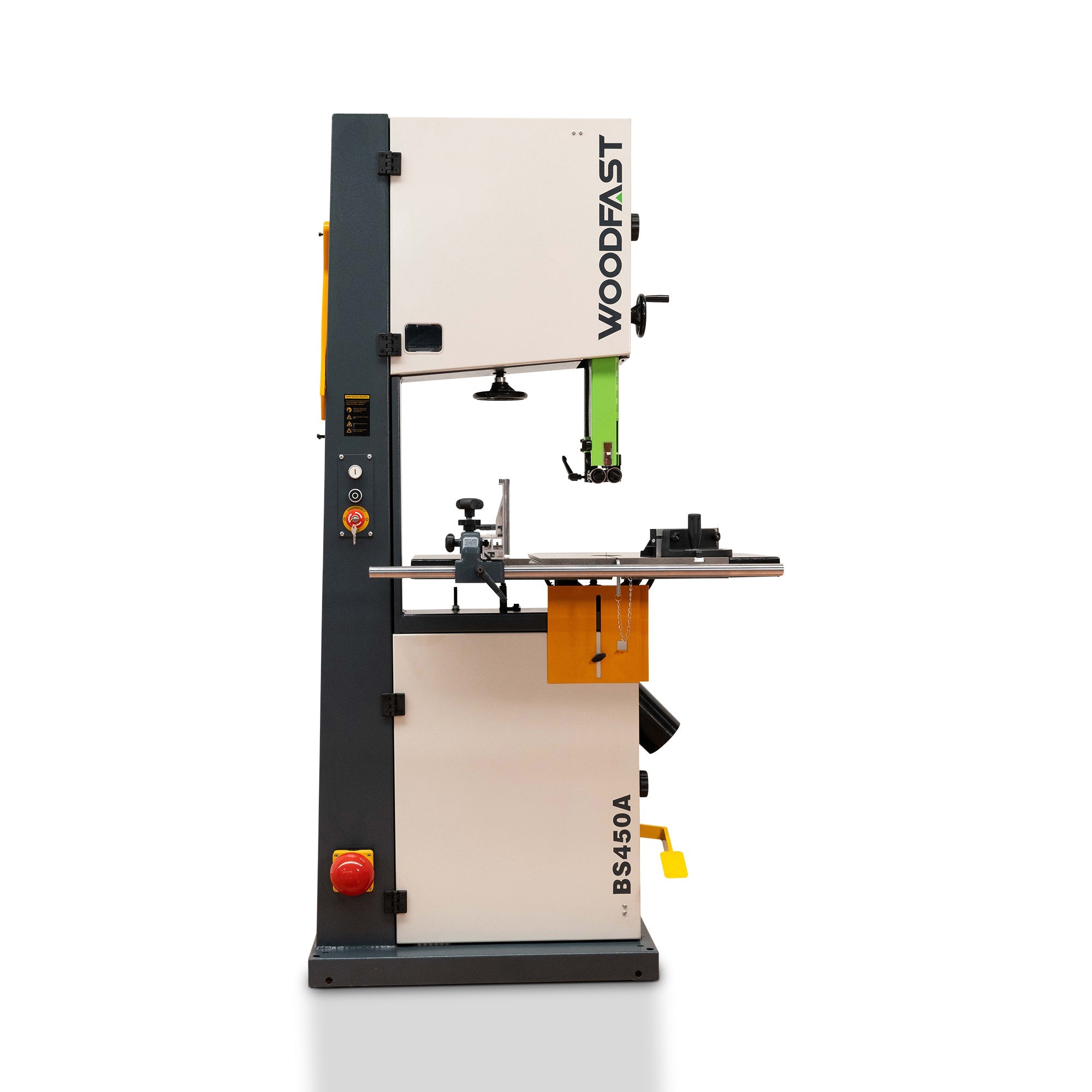

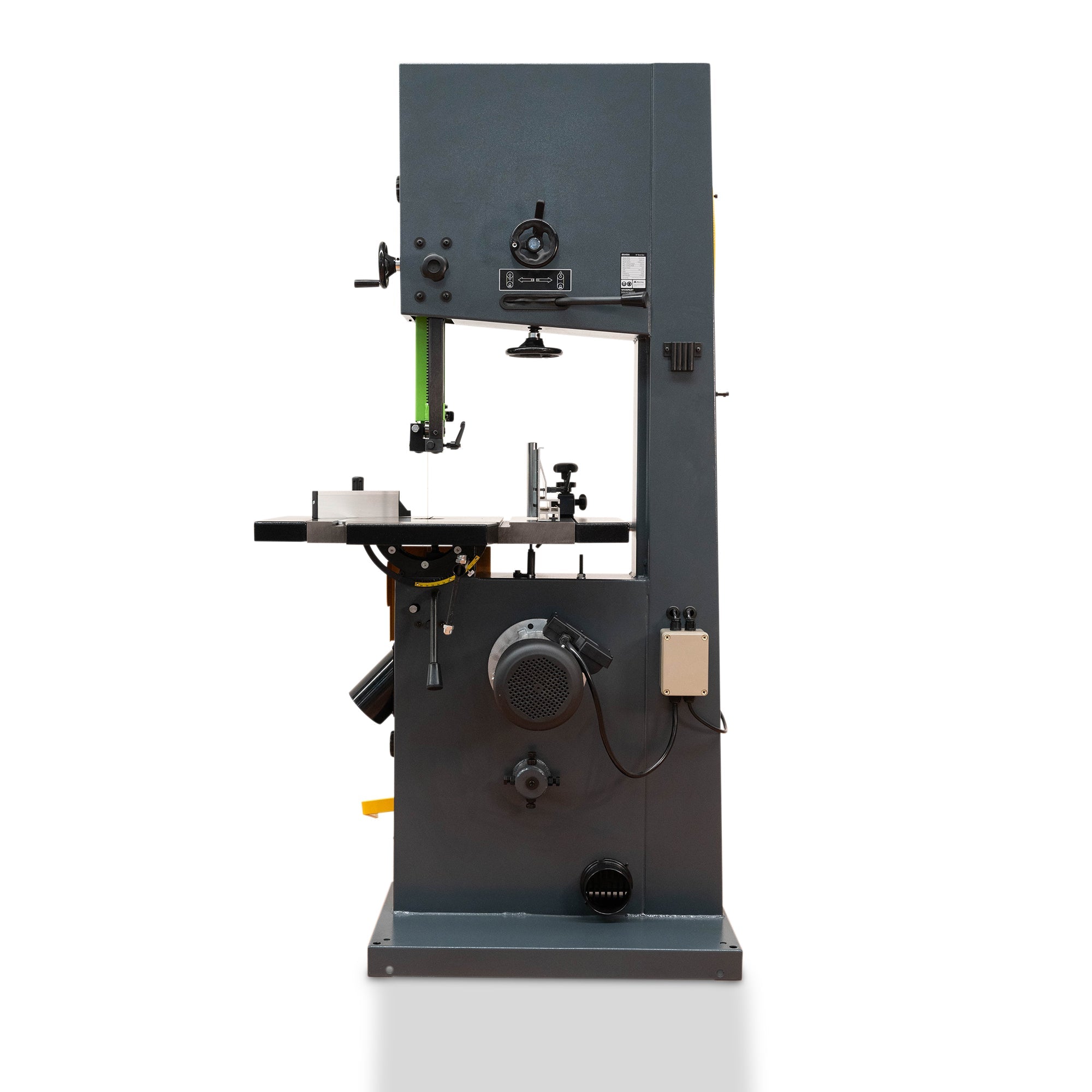

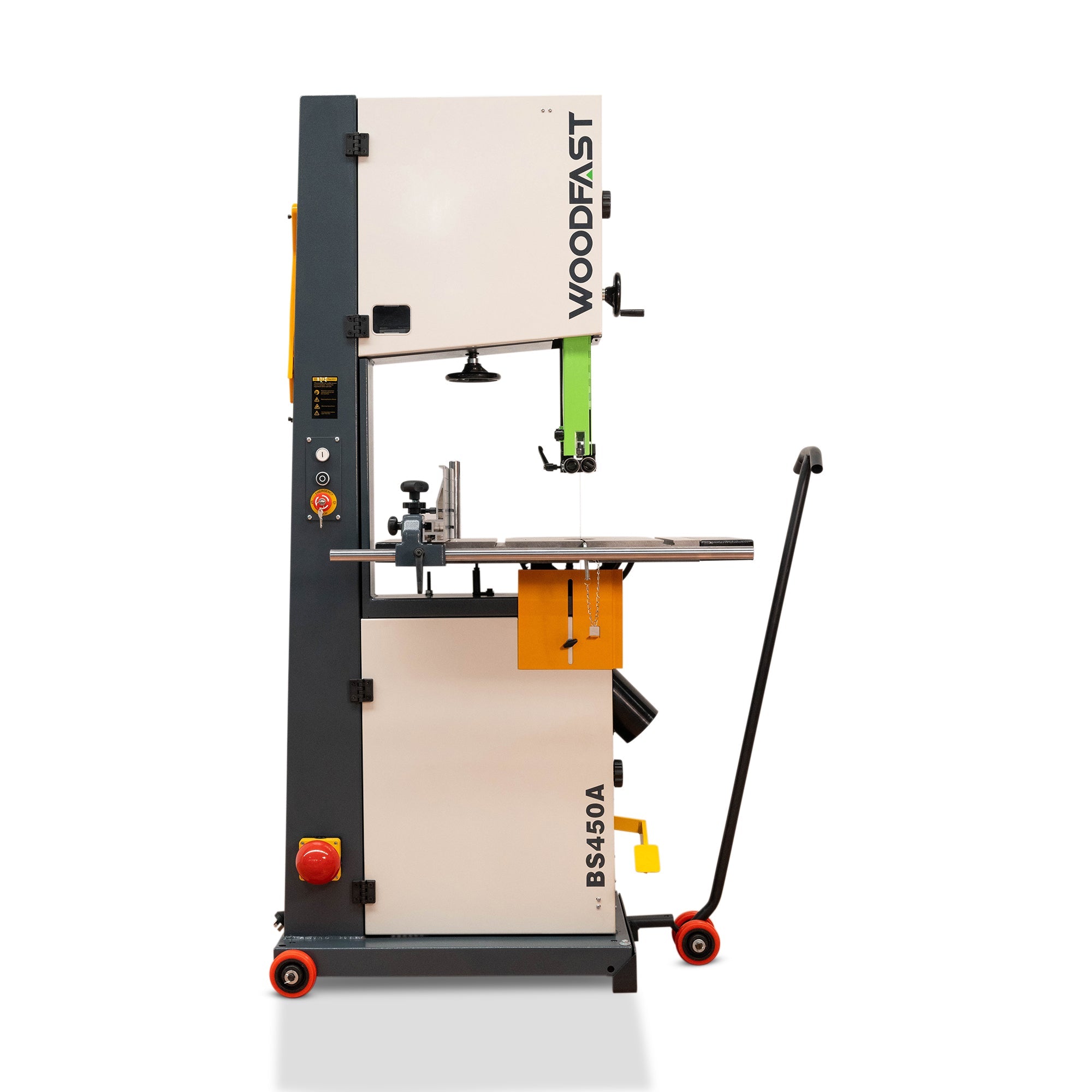

450mm (18") 3HP Deluxe Wood Bandsaw BS450A by Woodfast

WoodfastSKU: 1000205

Price:
Sale price$2,319.00

Status

Available

Description

If you need to process larger materials, then a higher cutting capacity and motor power are required and that’s why the BS450A the 18″ Deluxe 3HP bandsaw of the Woodfast “Aussie Muscle” series has been developed. Compared to its 14″ brother the BS350D, this saw is more heavy duty with square column welding and enhanced body structure. Safety features including a kick-off Emergency Stop and Foot Brake system, as well as micro switched doors, make this saw ideal for home, school and workshop users.

This powerful bandsaw is outstanding value and a more than capable addition to any workshop.

Features

  • Precisely balanced and Heavy Duty Bandwheels ensures great inertia output and delivers perfect cutting and heavy duty resawing.

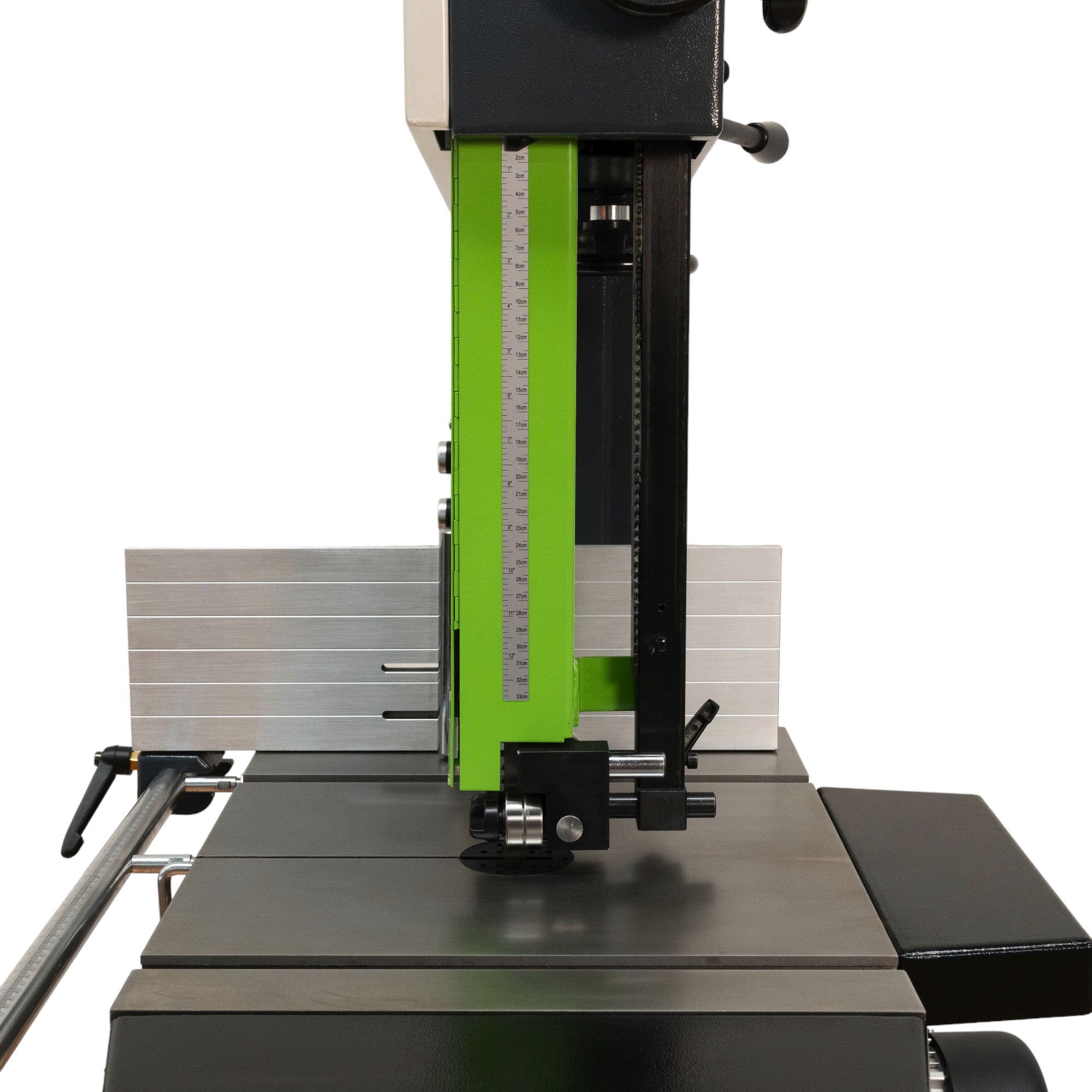

  • Upper and lower double Spring Loaded Toolless Blade Guides System is our unique design, adjusting the guides cannot be any easier.

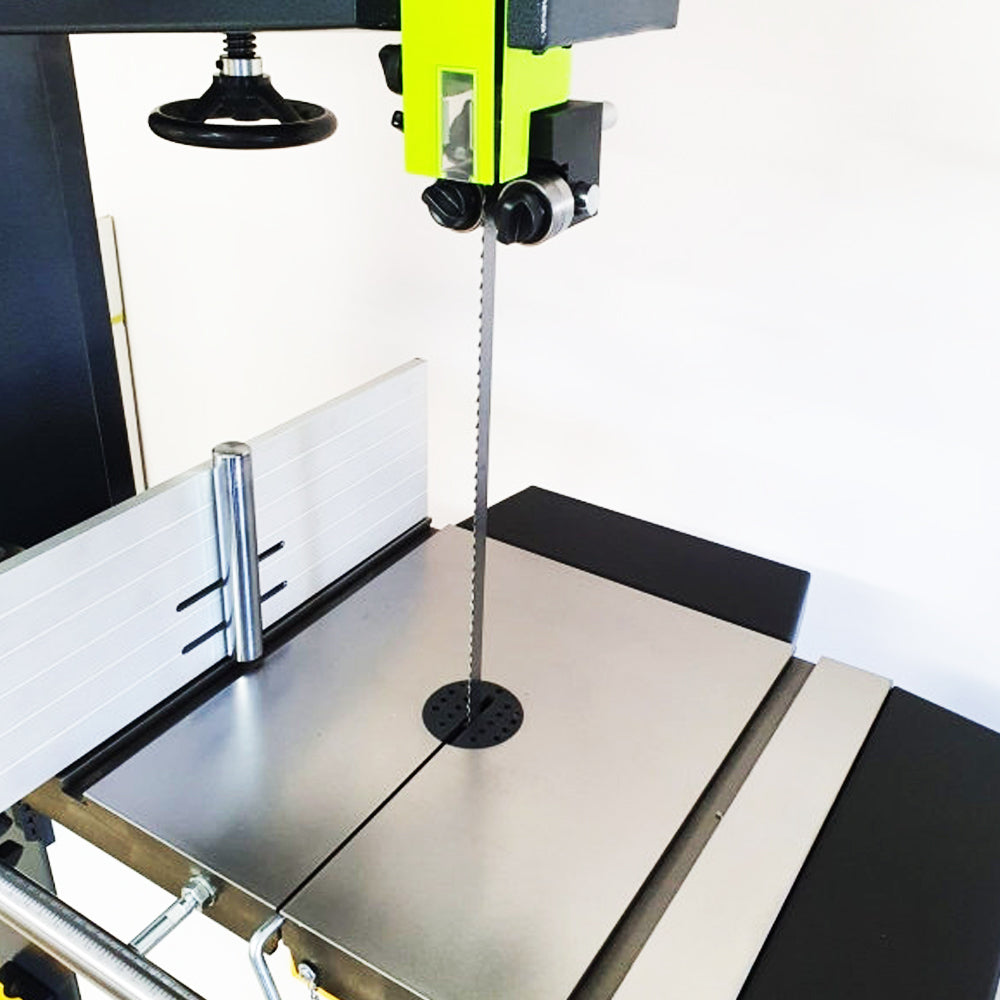

  • 150mm High-Lo fence, gives great support for hard and thick wood cutting and the fence can also be used on the other side of the blade.
  • Blade Quick Tension-Release System + Normal and Accurate Tension System makes blade changing much quicker. While not in use, release tension to extend the blade life.

Additional Information

Model
Type
Bandsaw
SKU
1000205
Part Number
BS450A
Brand
Woodfast
Size
450mm (18")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)

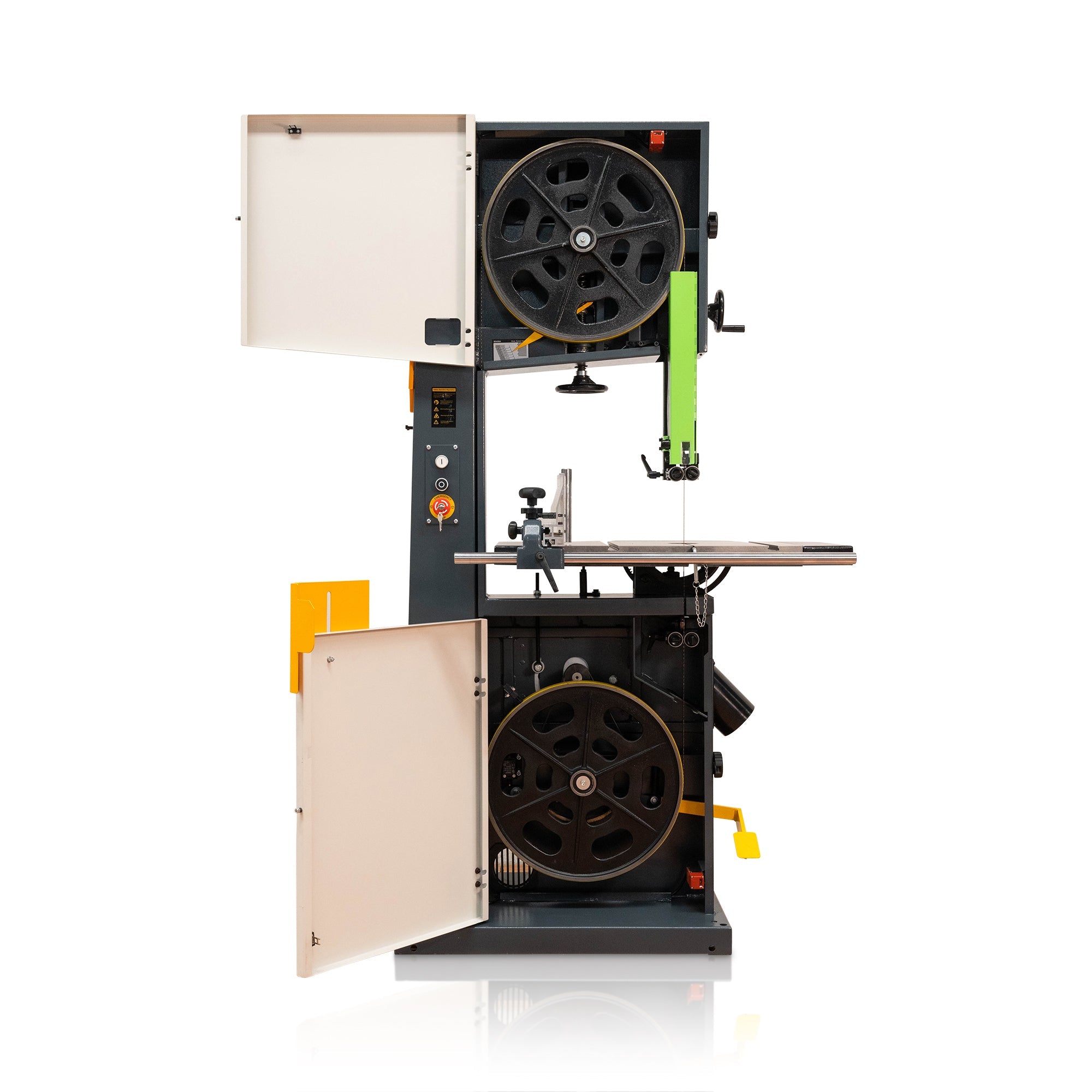

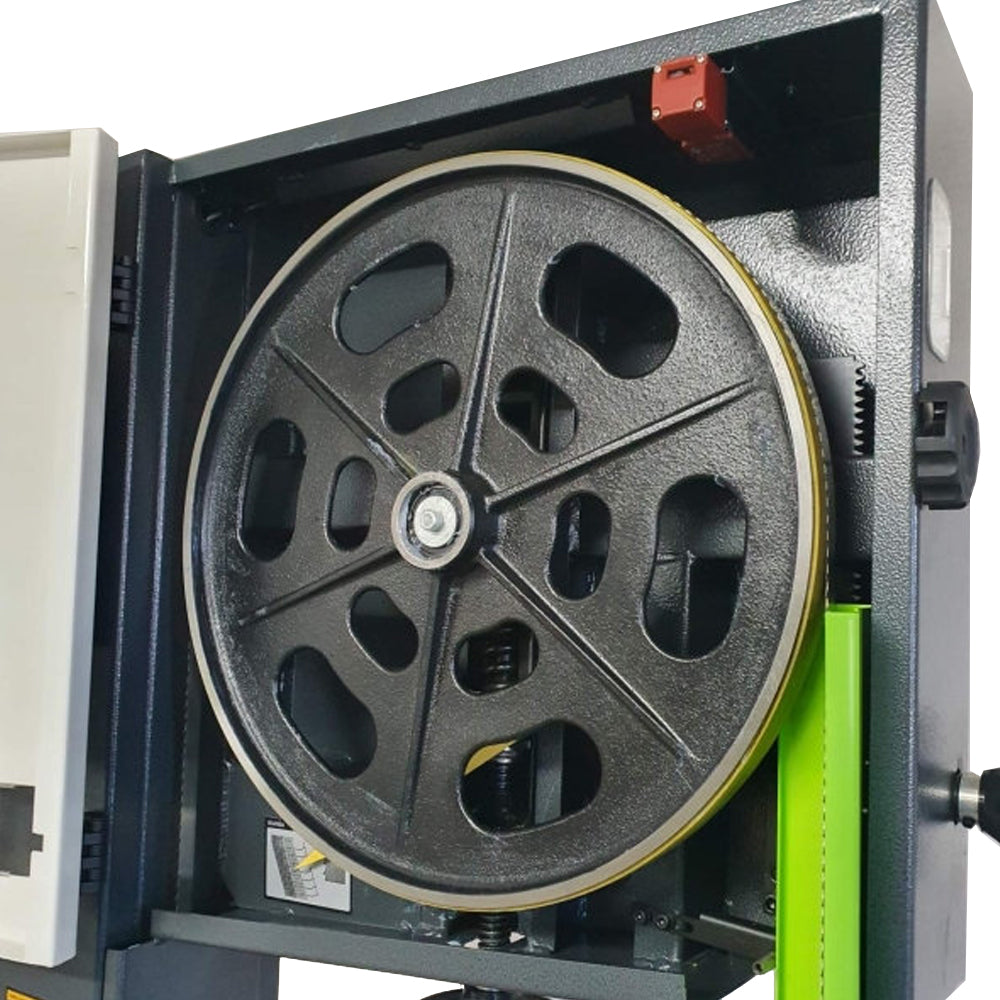

Bandwheel
Cast Iron (Balanced)
Bandwheel Diameter
450 mm
Blade Type
Continuous
Blade Length
3886 mm
Blade Width
6-36mm
Cutting Capacity - Height
330 mm
Throat Capacity
450 mm
Speed Range
1000m/Min.
Table Size
405 x 550mm (+ Table Extensions on 3 Sides)
Blade Length
3886 mm
Dimensions
Product Length
960 mm
Product Width
600 mm
Product Height
1850 mm
Product Weight (Net Weight)
170 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).

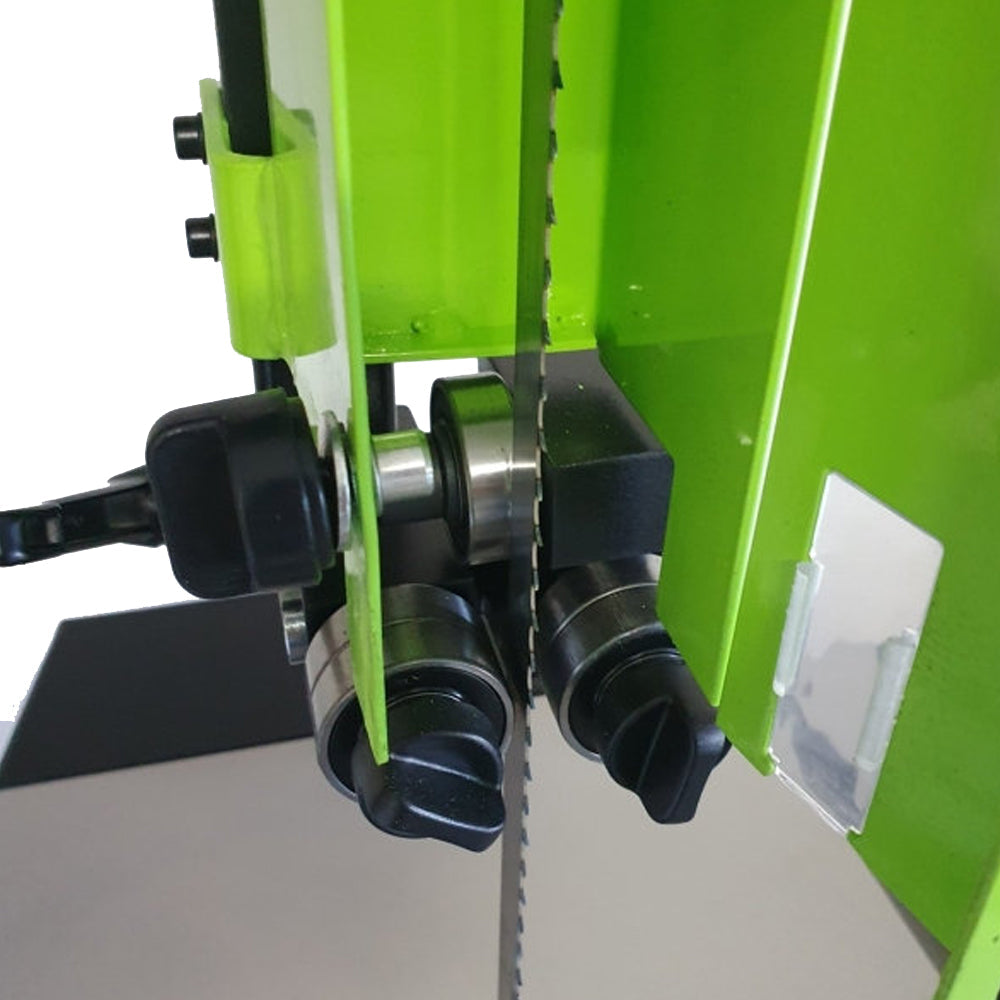

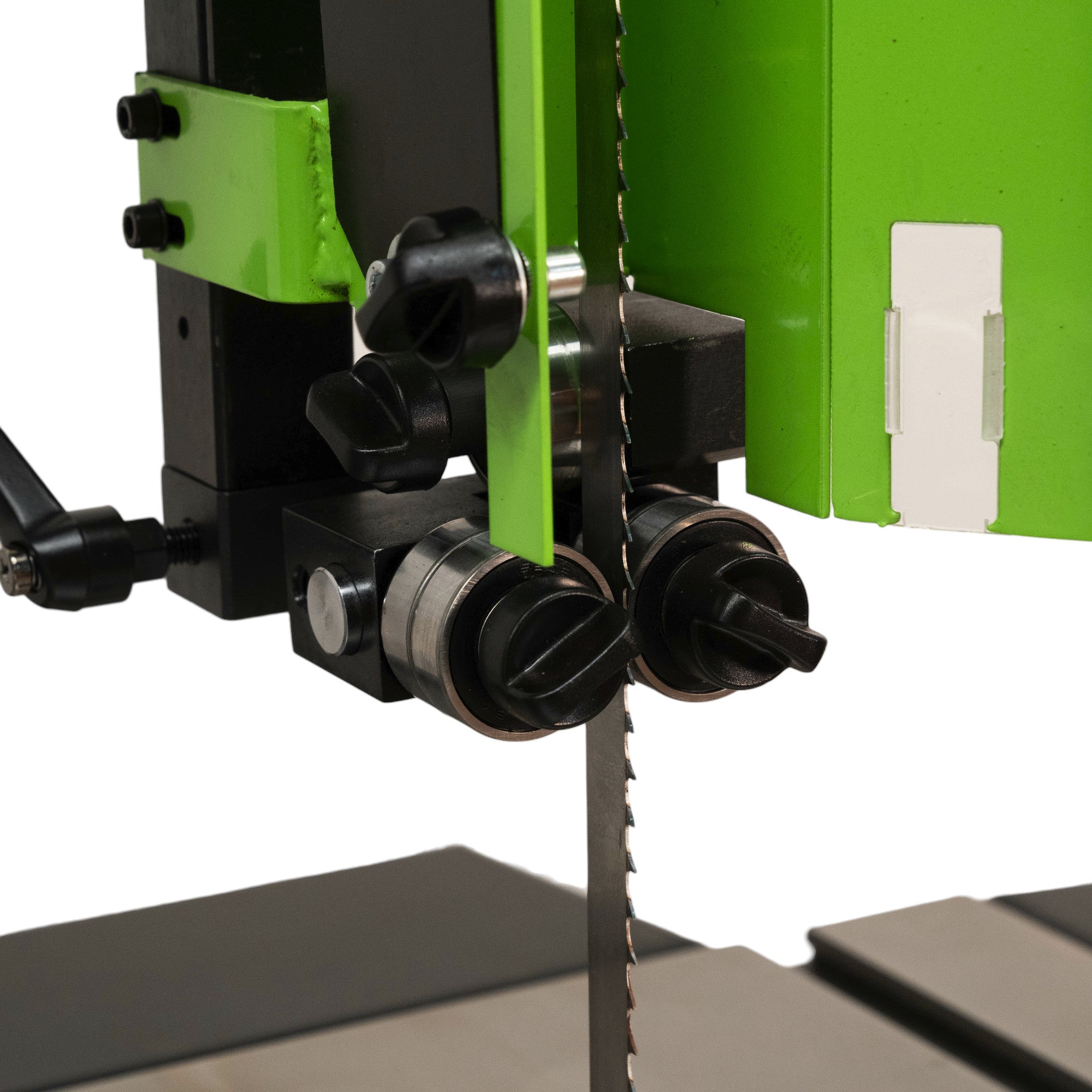

Tool Less Blade Guide System
Tool Less Blade Guide System

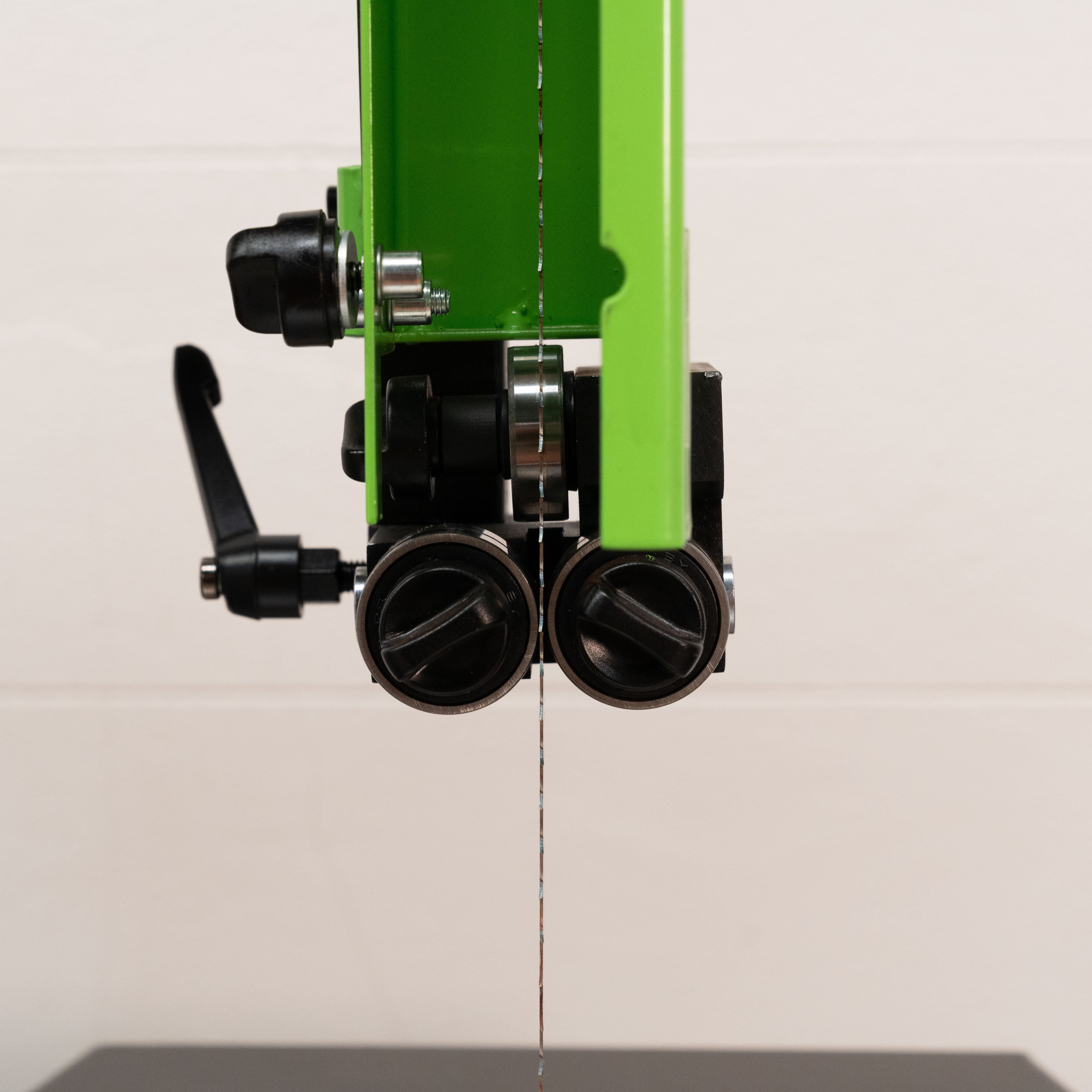

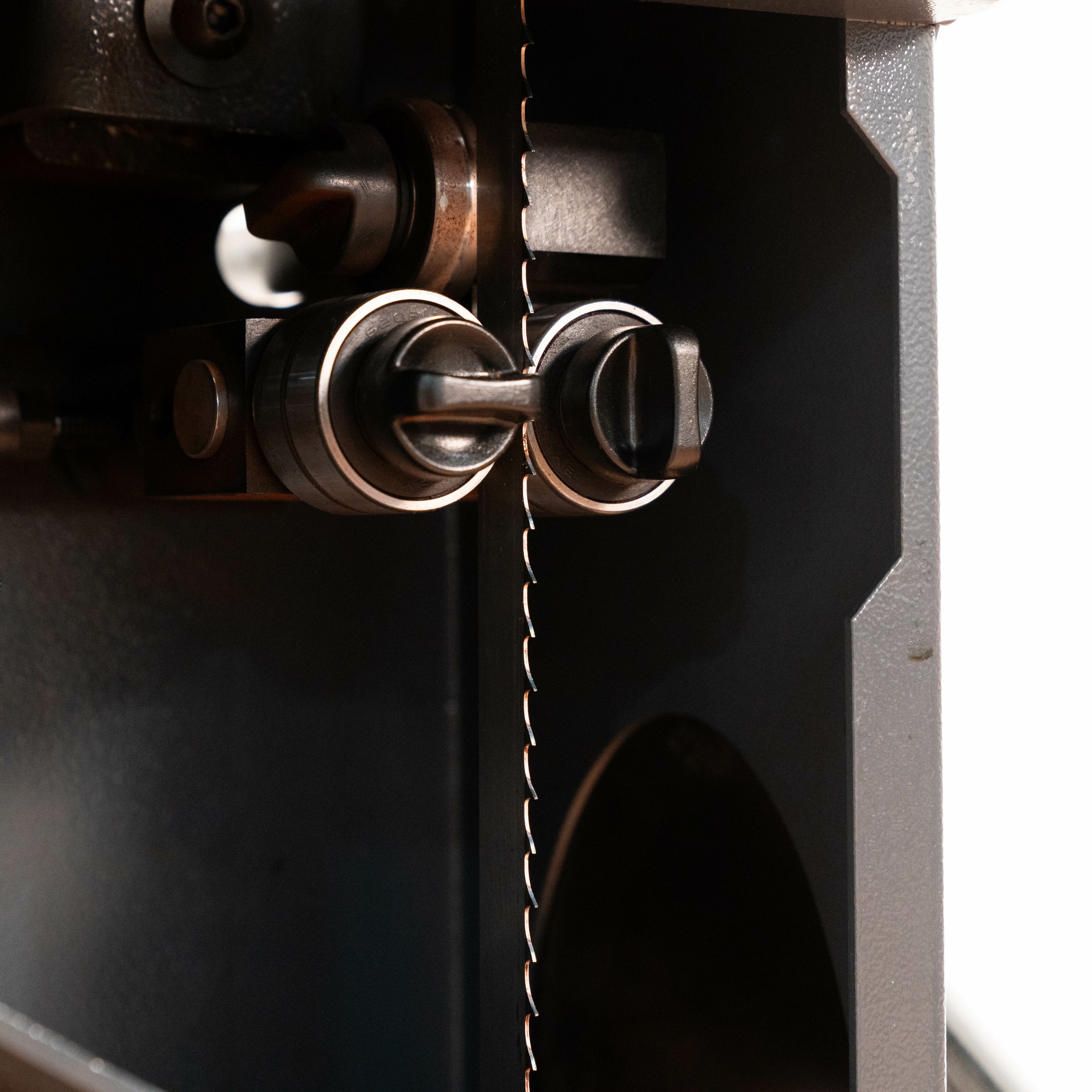

Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.

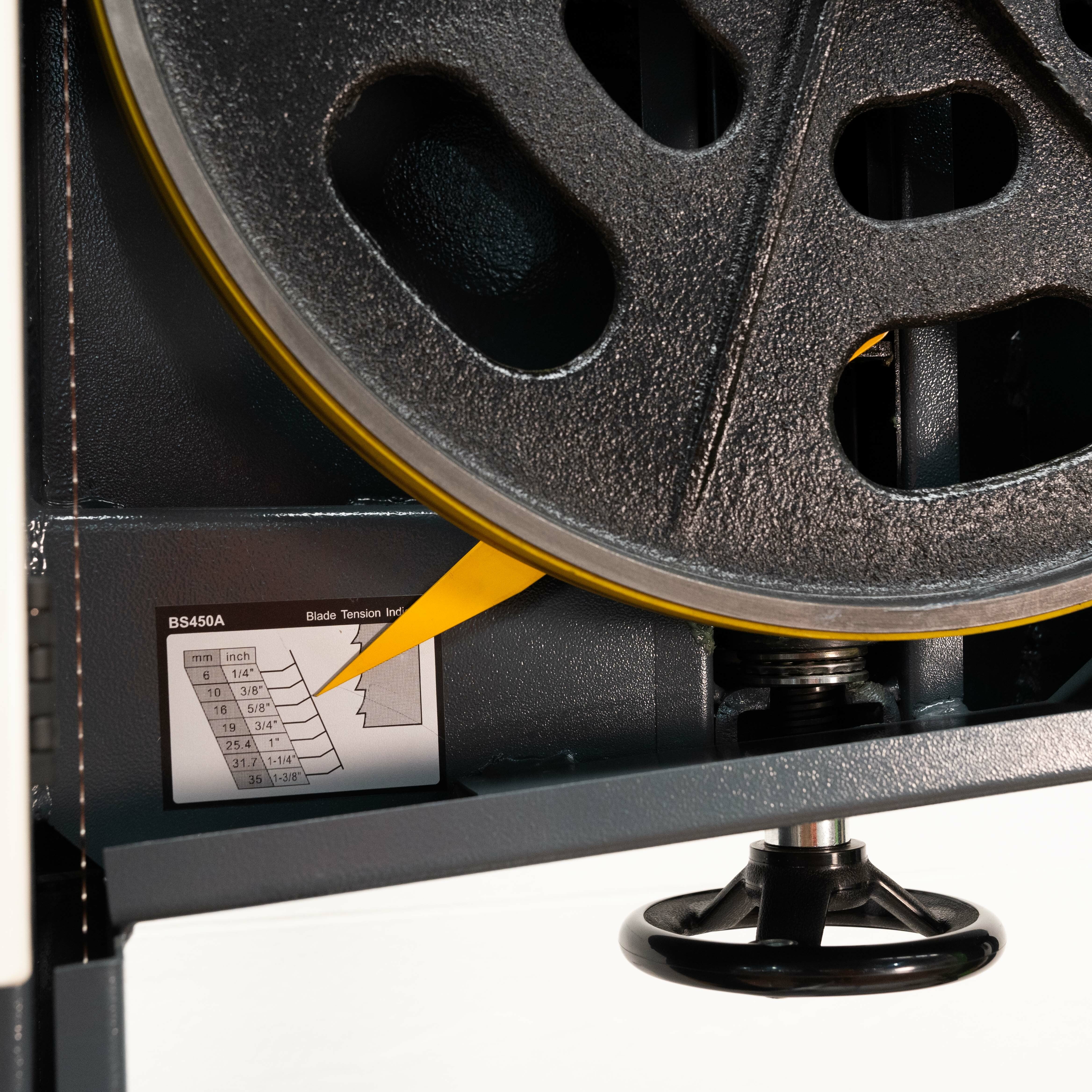

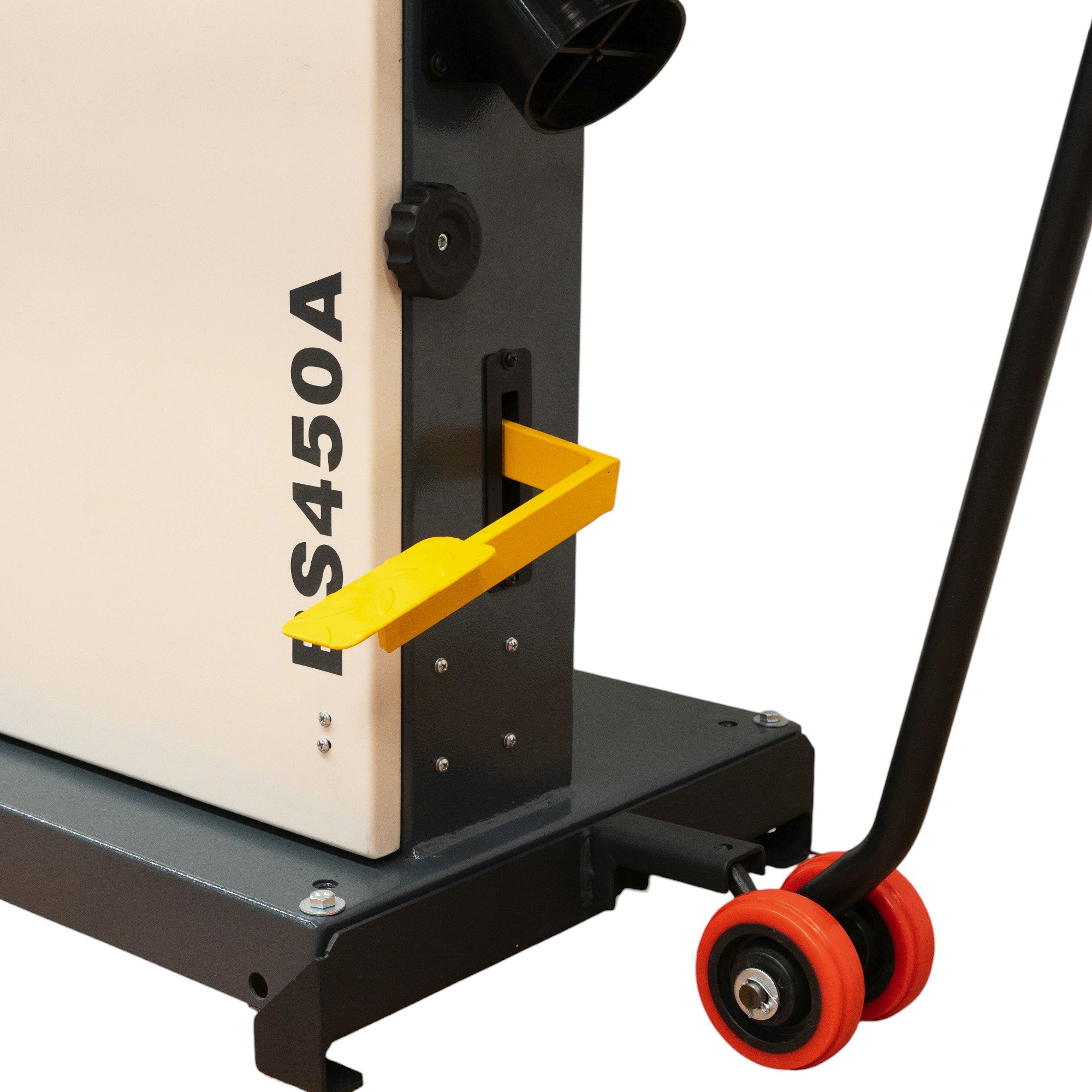

Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device

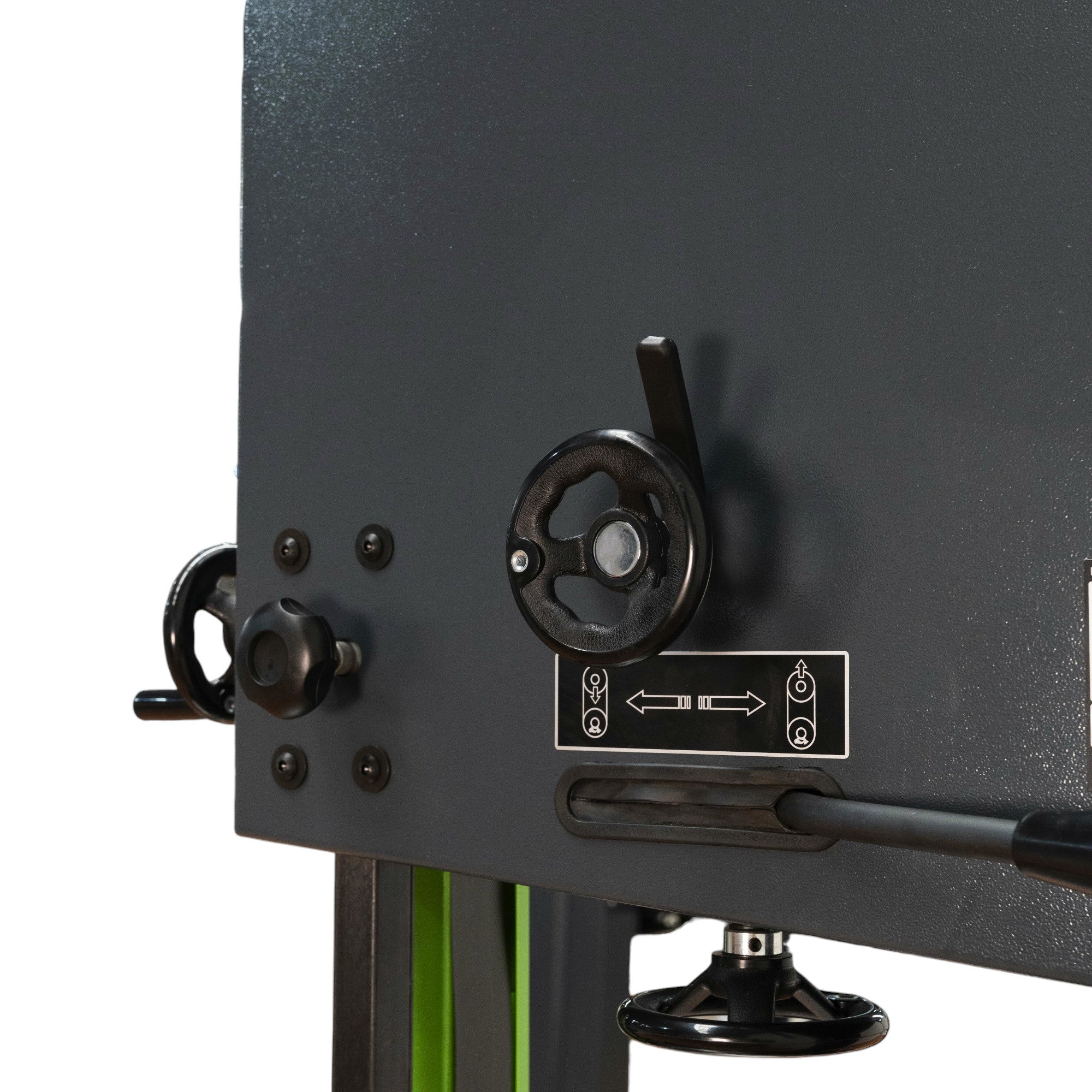

Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.

De-tensioning your blade will extend the life of your blade.

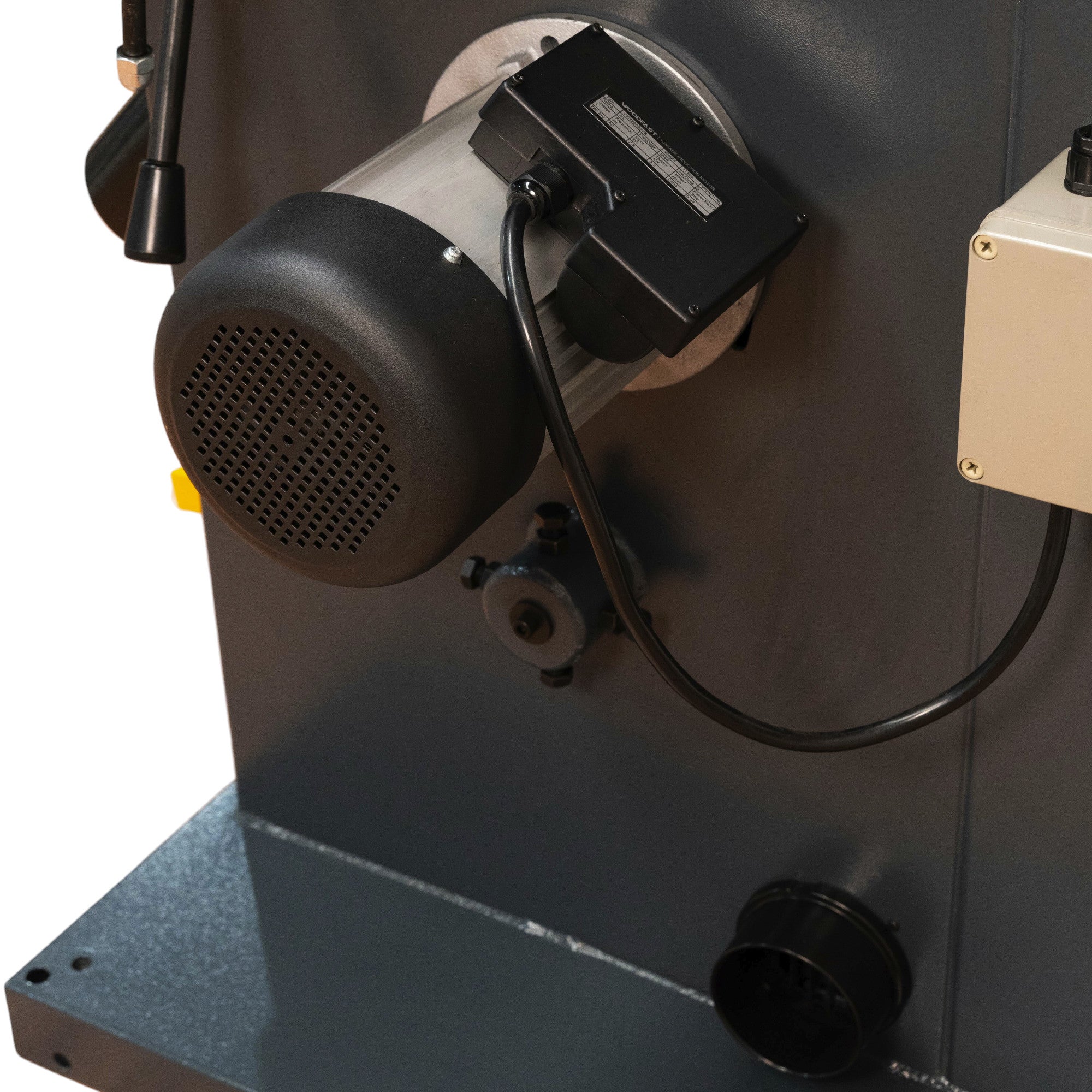

Induction Motor

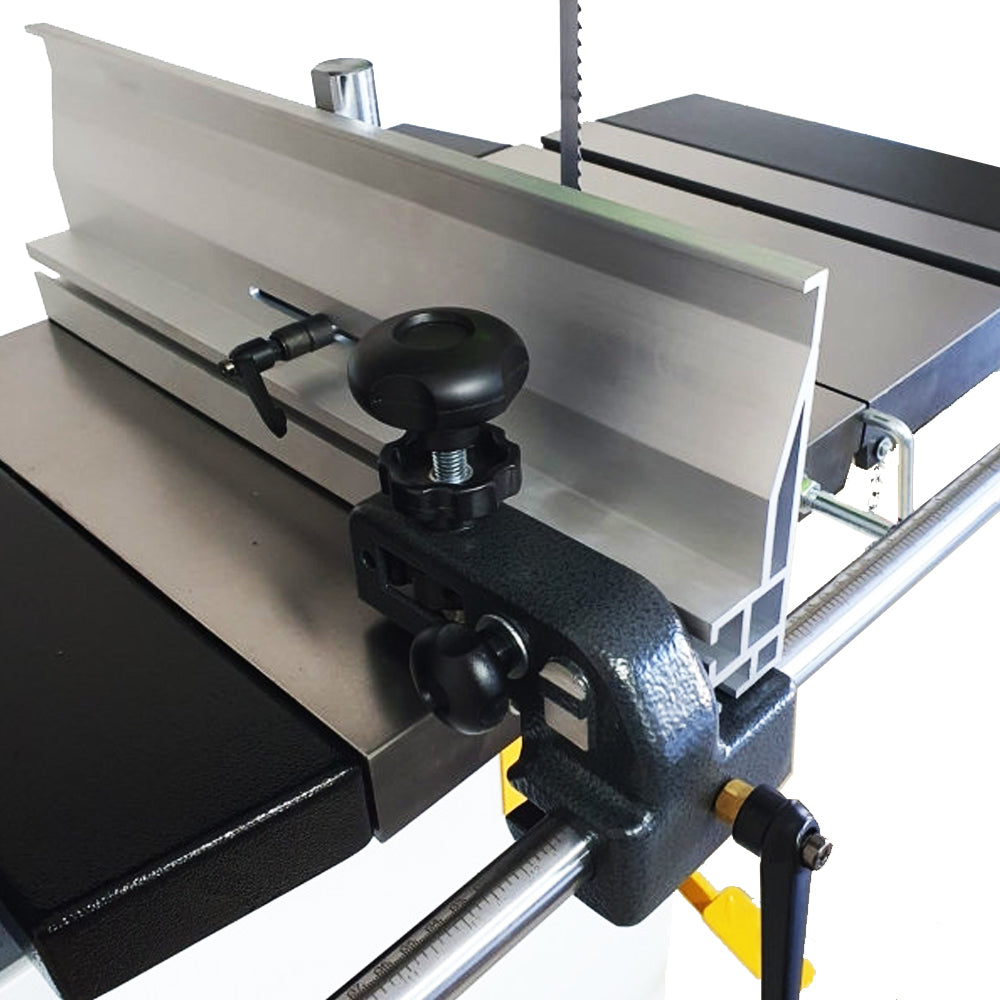

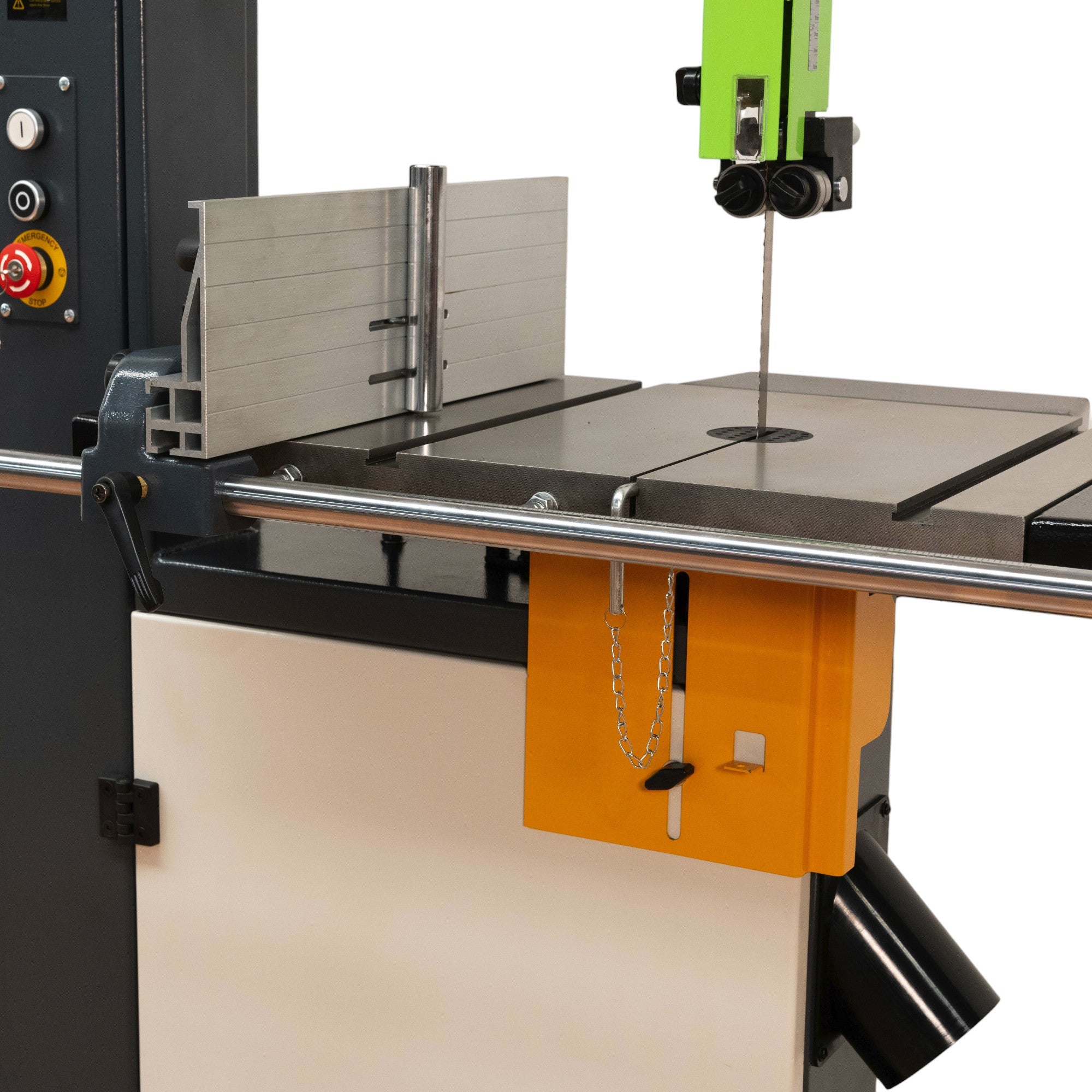

Table Fence Construction

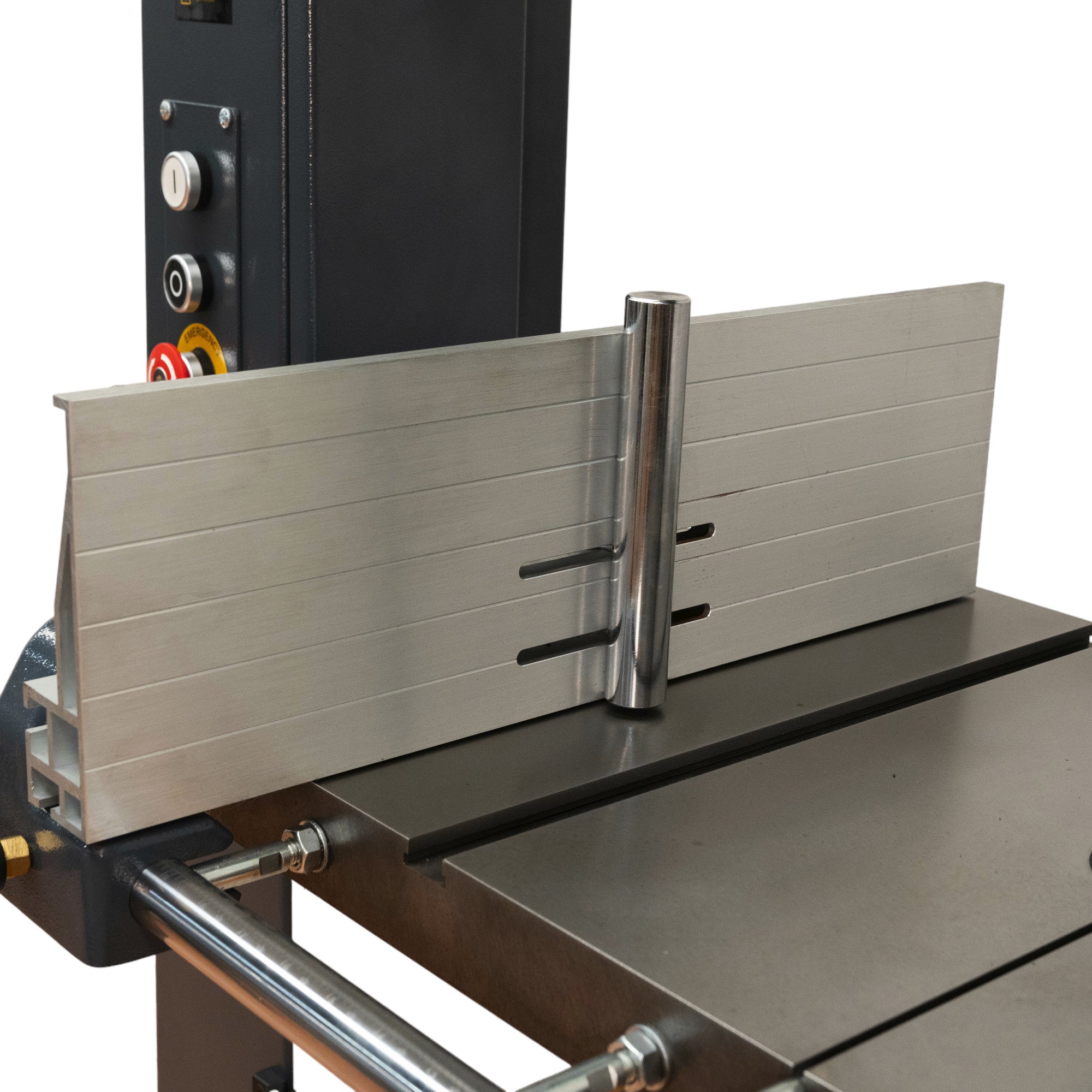

150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.
Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.

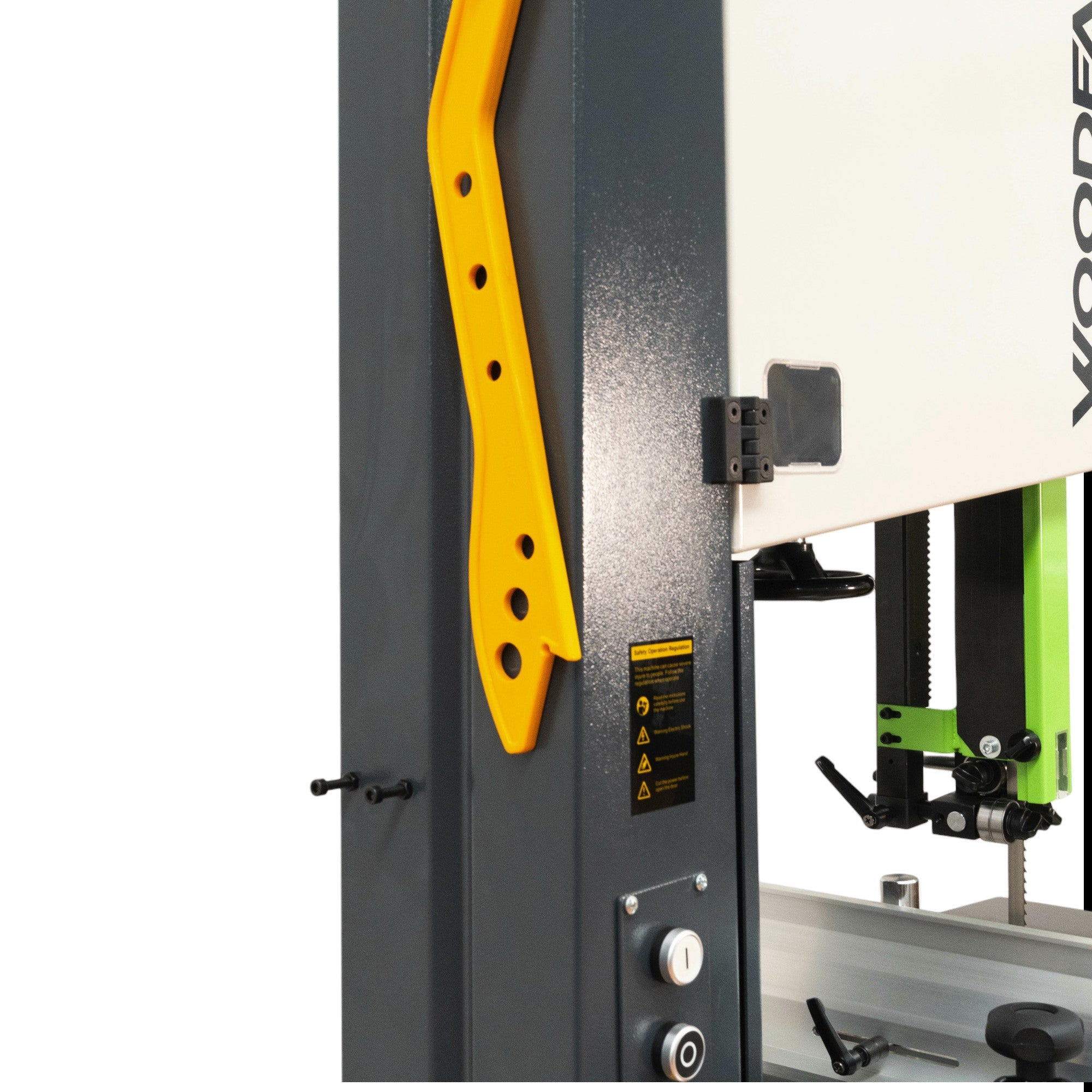

Push Stick Included
Standard Inclusions
Push Stick
Mitre Gauge
Drift Bar
Drift Bar
The drift bar acts as a thickness gauge and adjusts the angle of cut with the scribed line, ensuring a uniform thickness without putting undue strain on the blade.
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)

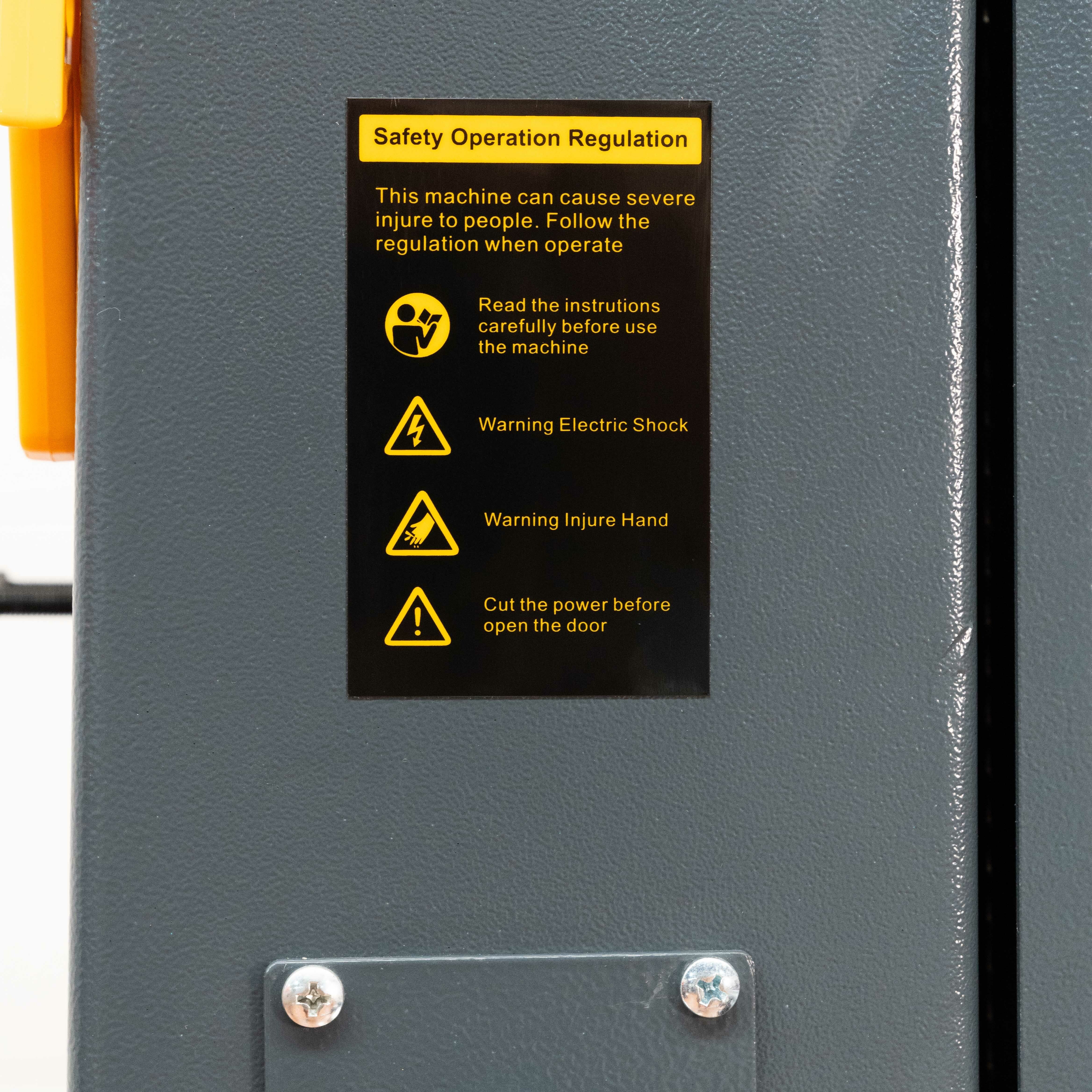

Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.

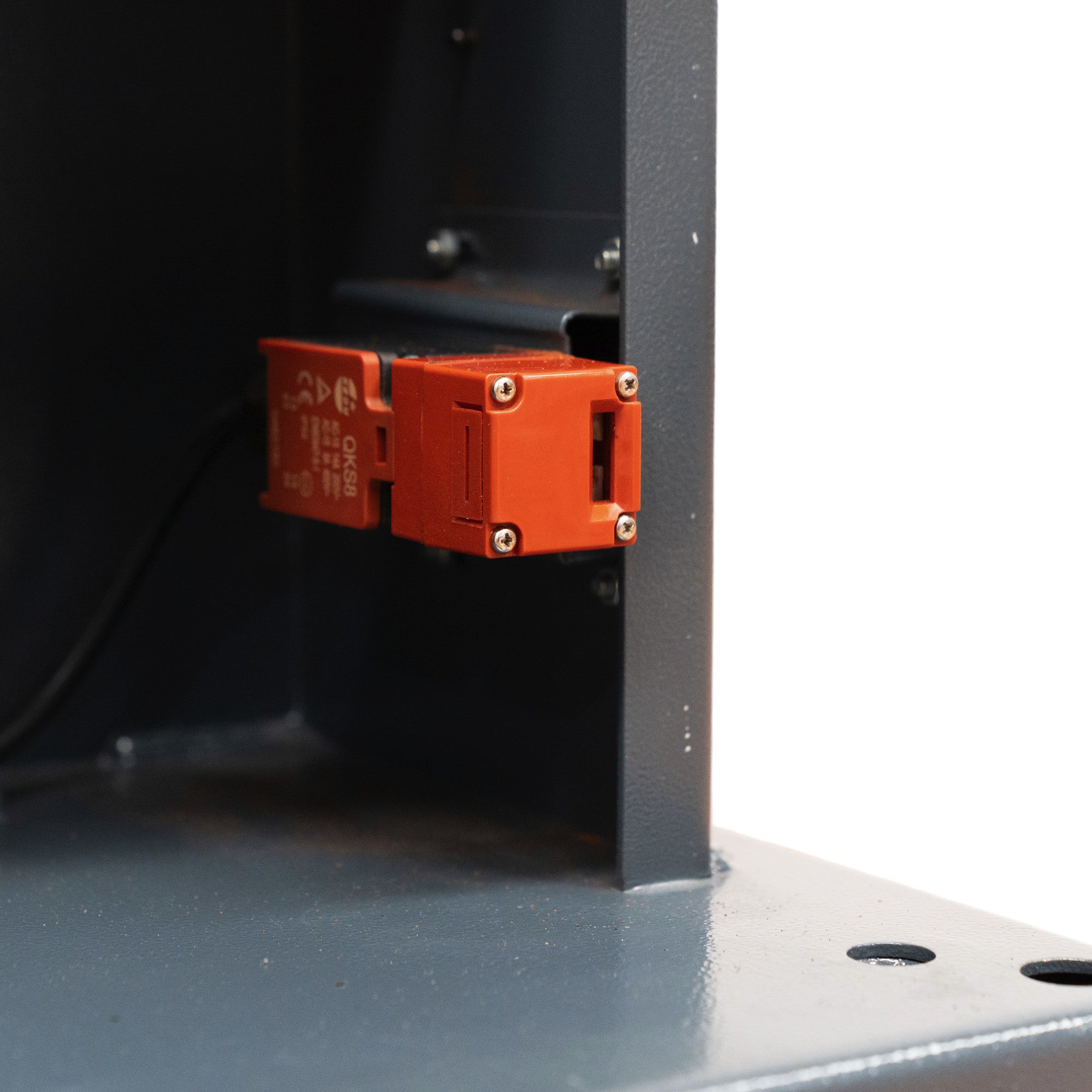

Magnetic safety switches on all openings

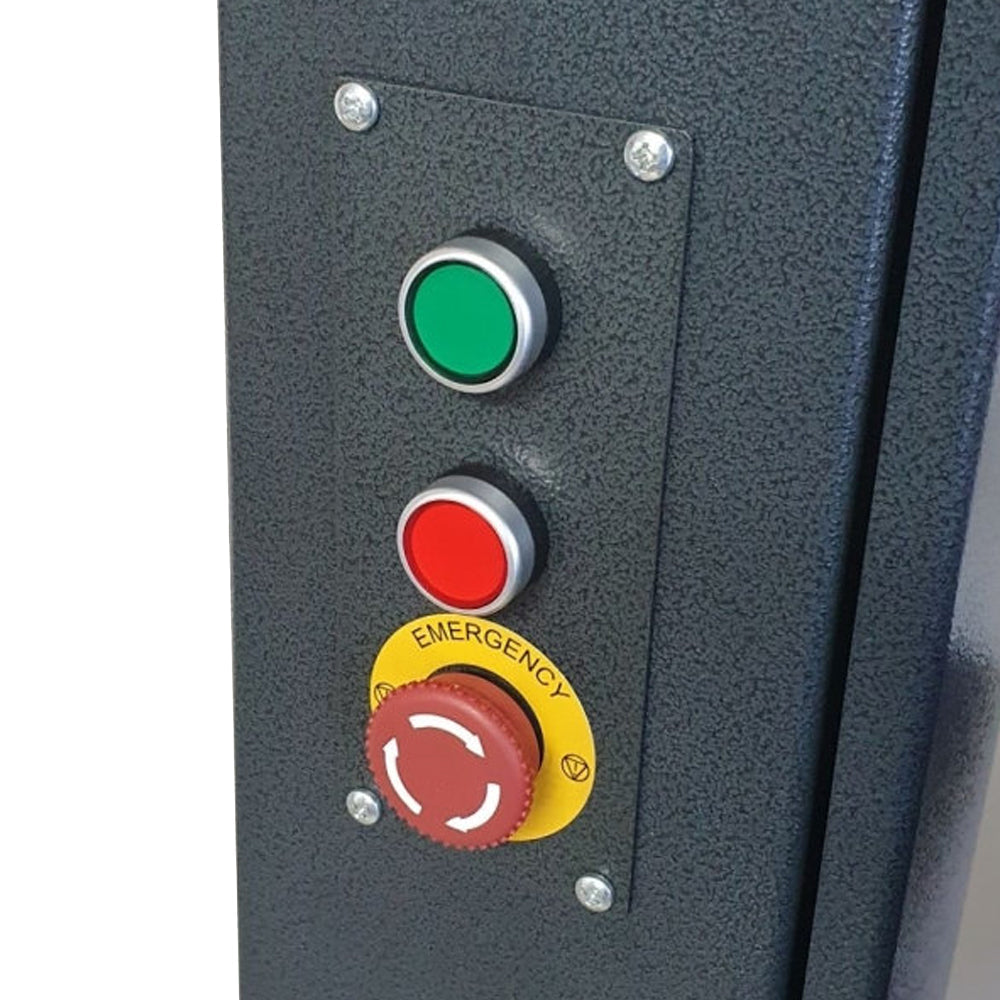

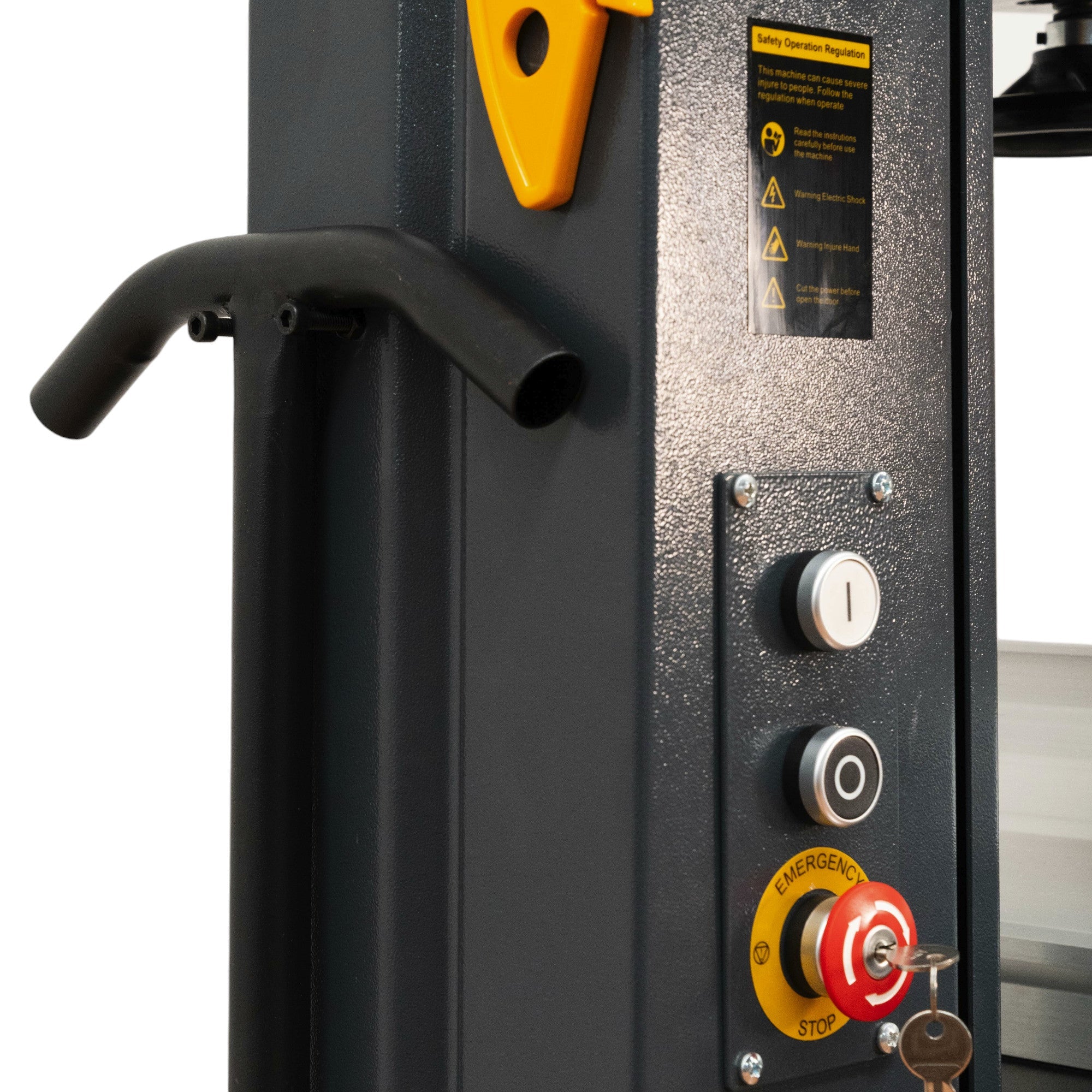

Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.

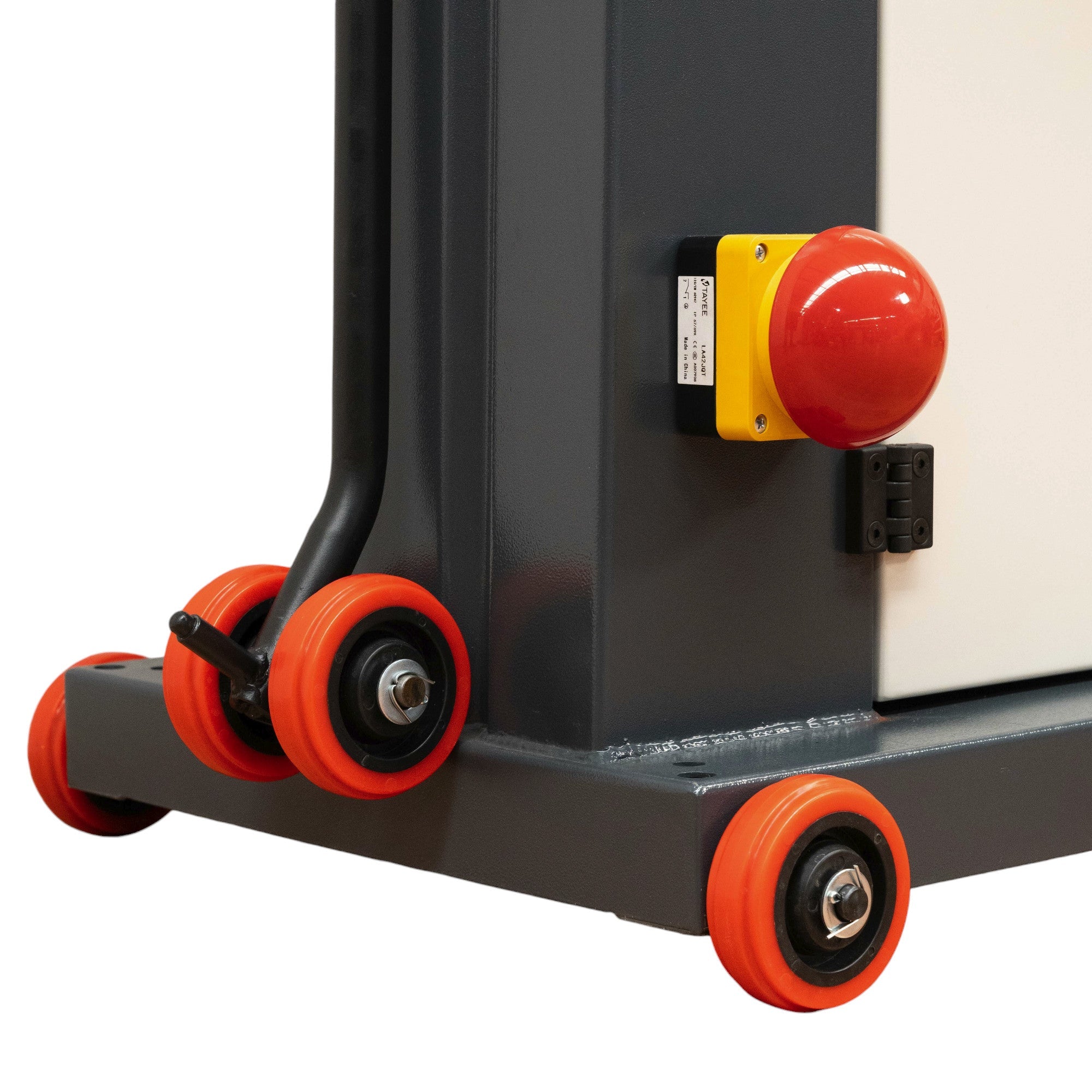

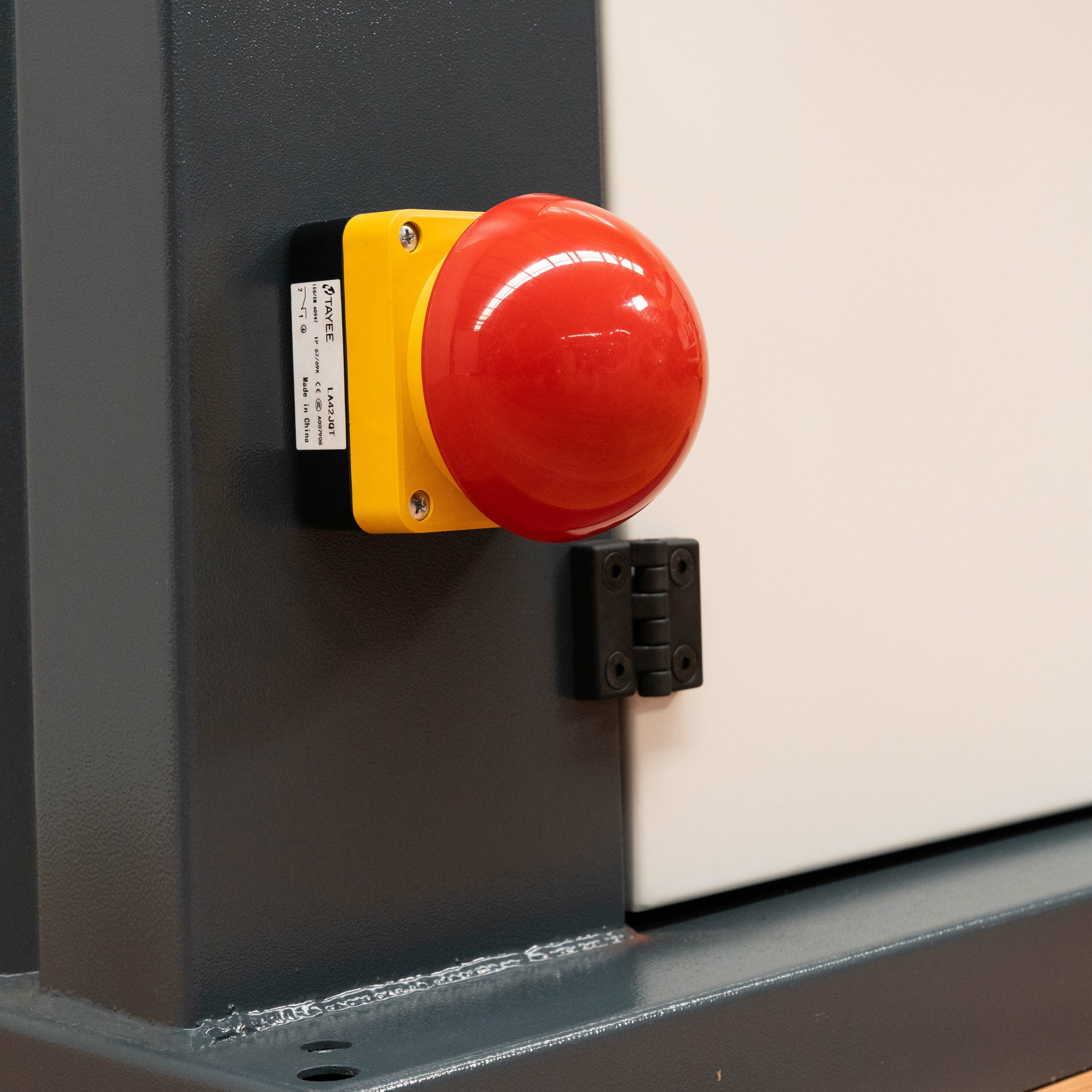

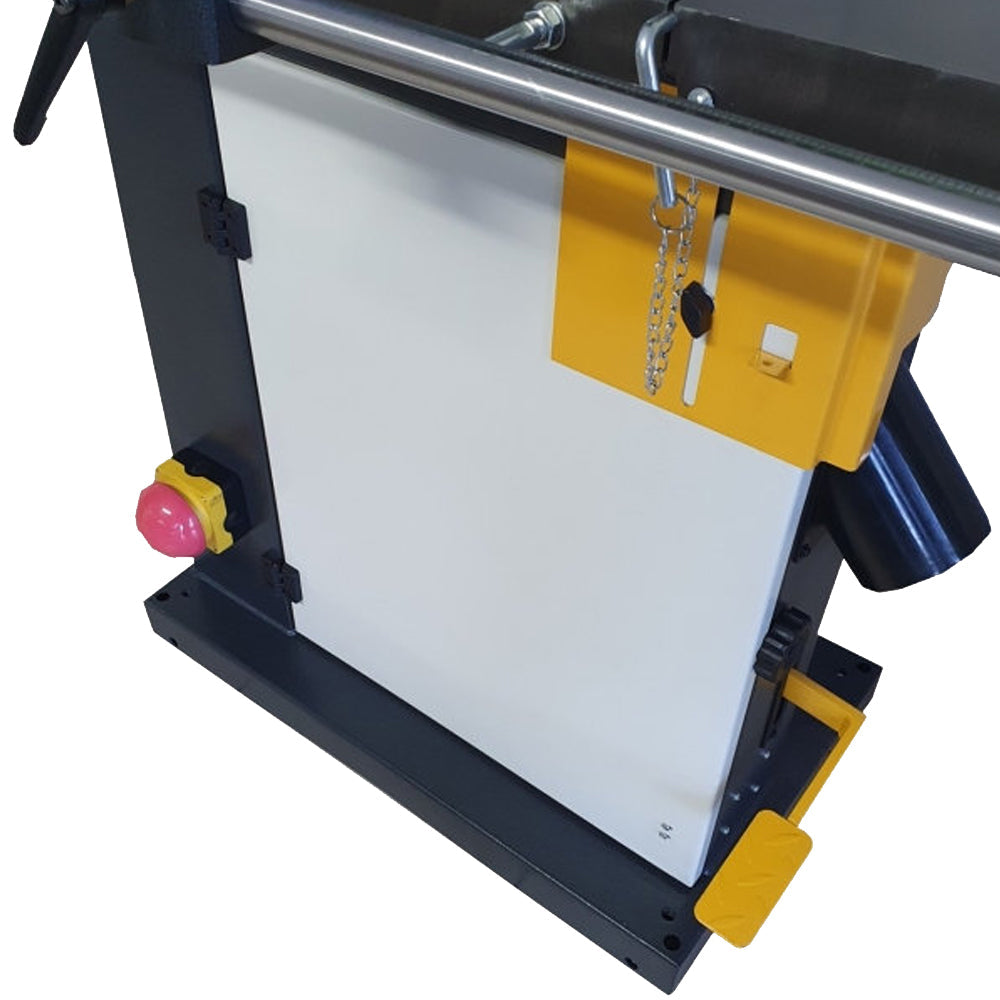

Emergency Stop Mushroom Foot Switch
Emergency Stop Mushroom Foot Switch
An Emergency Stop Mushroom Foot Switch is a type of safety switch used in industrial and commercial settings to quickly and easily shut off power to machinery or other equipment in an emergency situation. It typically has a large, mushroom-shaped button that can be easily activated with the foot, allowing workers to stop equipment quickly without having to reach for a switch or control panel. The switch is often red and has a distinctive shape to make it easily recognizable and to promote quick action in an emergency.

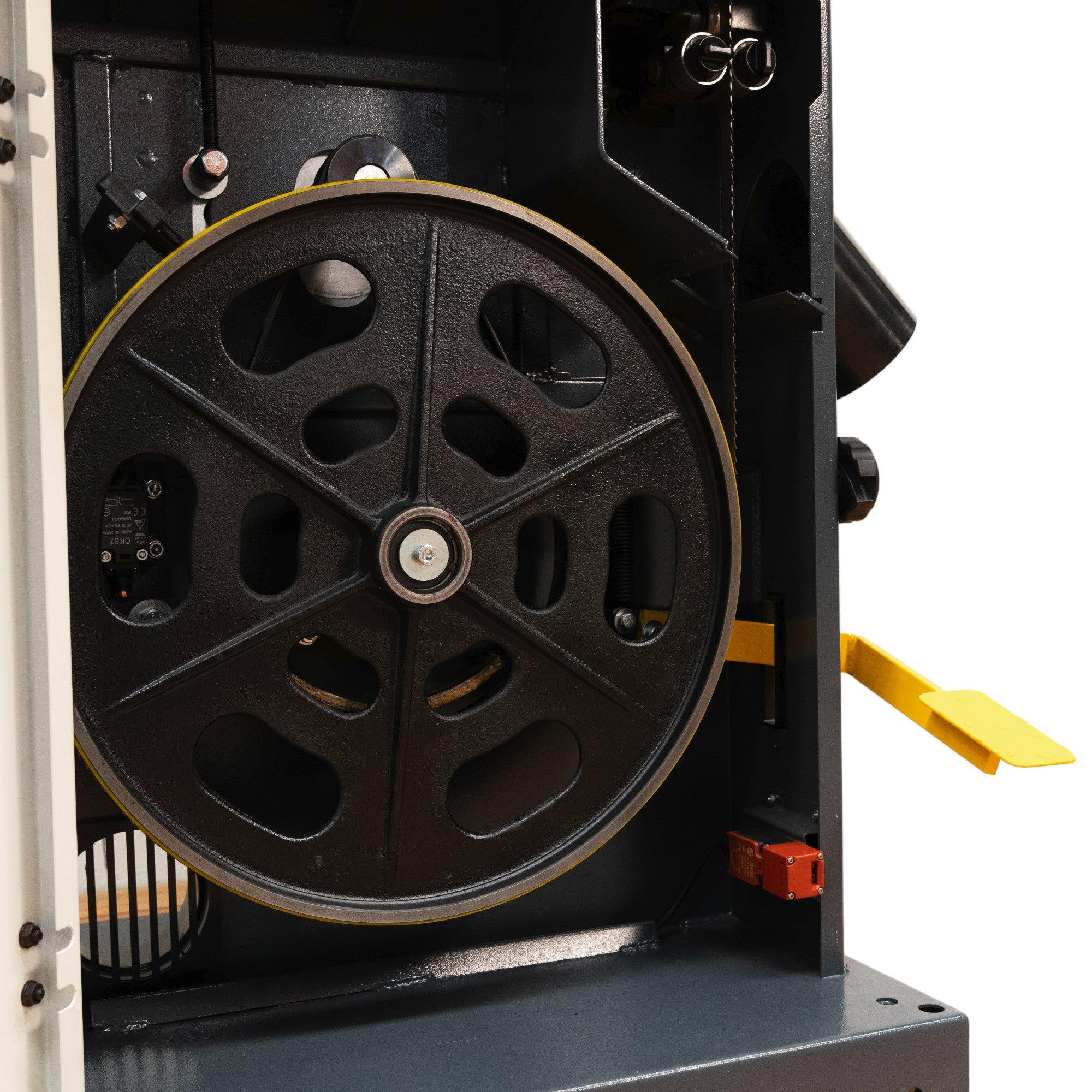

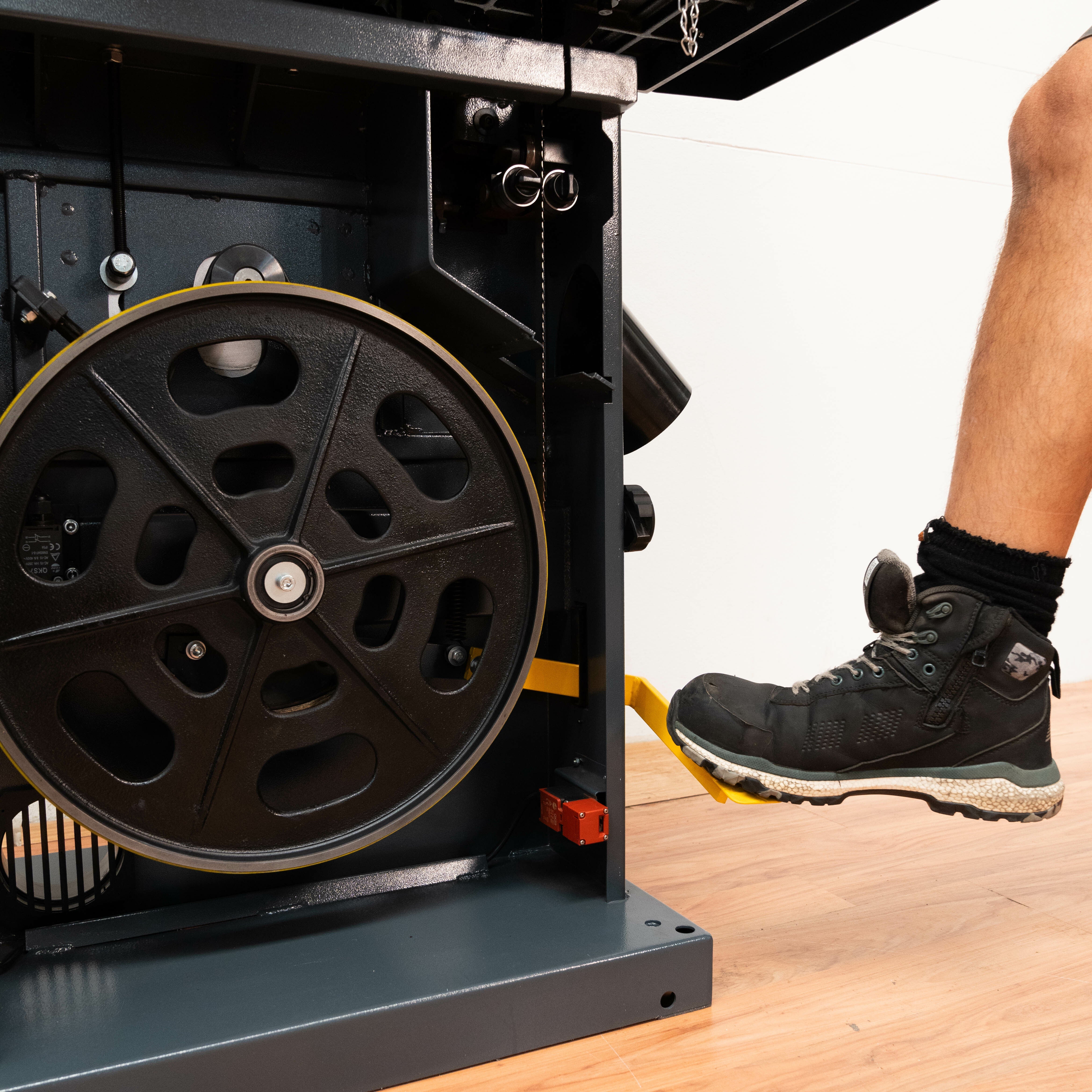

Foot Operated Brake
Foot Operated Brake
The foot operated brake mechanism is a safety feature on a machine whereby a brake is supplied with the machine. The brake is operated by applying the foot pedal. When the foot pedal is
applied, the power is removed from the motor.

In the case of a bandsaw foot operated brake the flywheel is slowed by the disc break when the power is removed from the motor when the brake is applied by foot.
Blade Guard
NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.

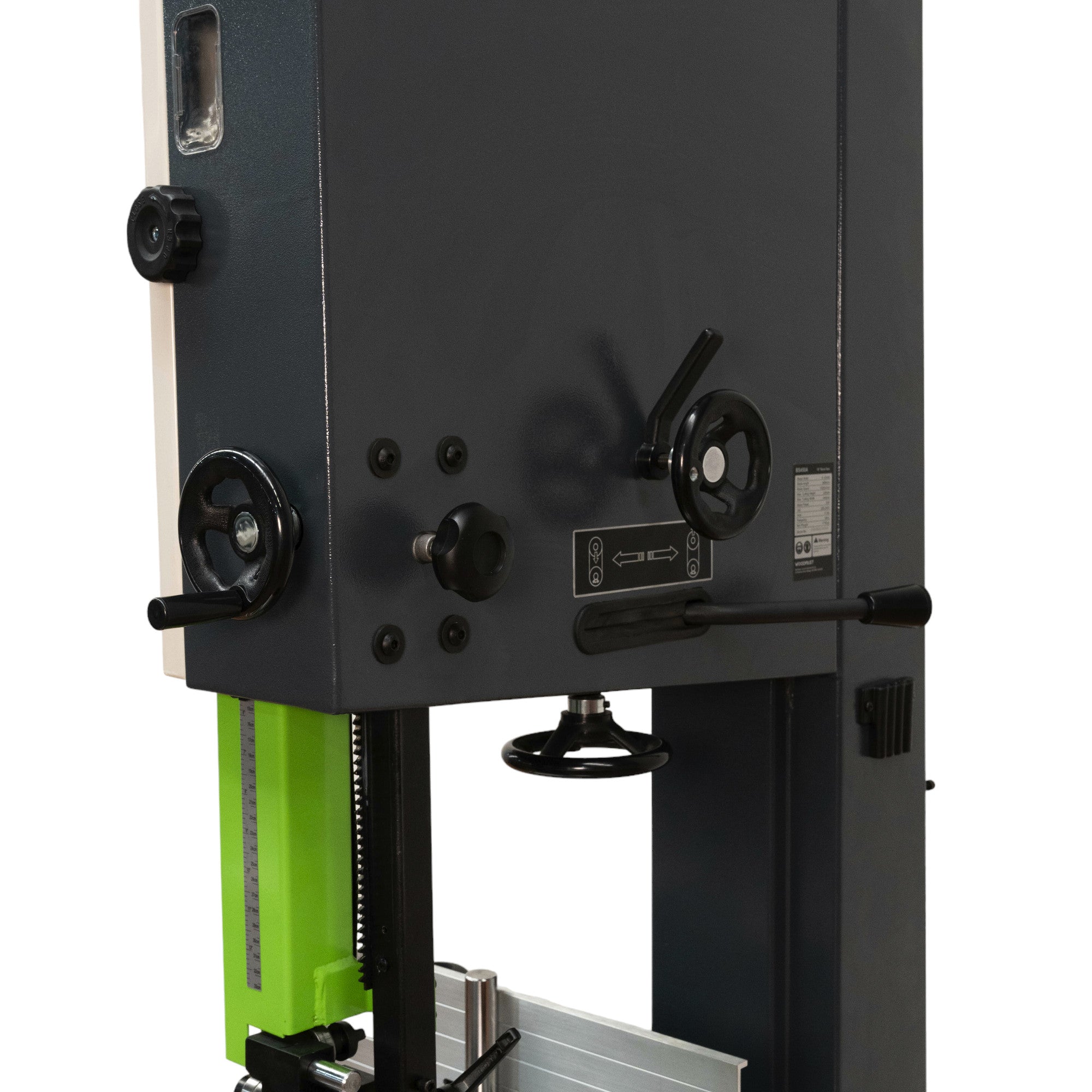

Rack & Pinion Blade Guide Height Adjustment
Rack & Pinion Blade Guide Height Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.

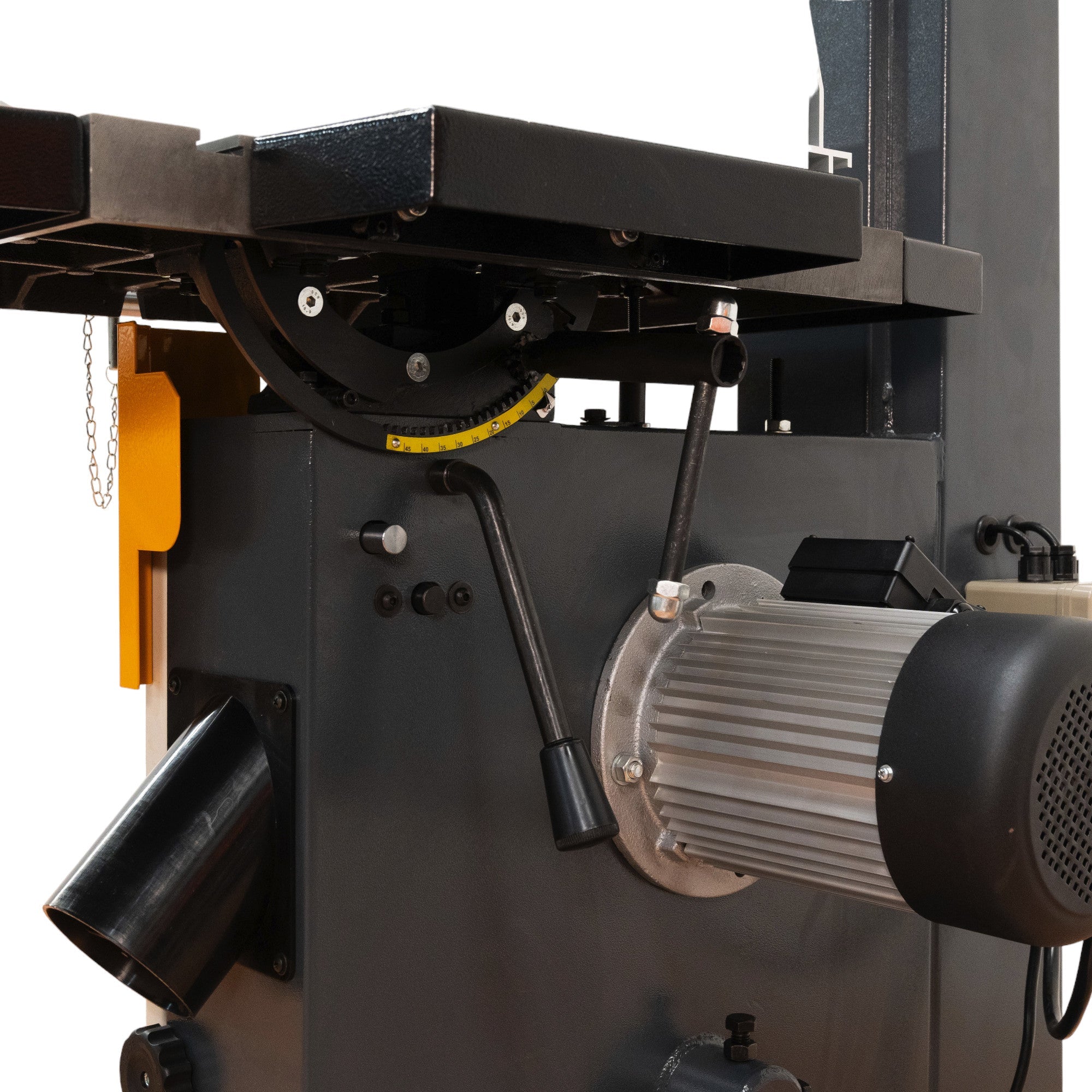

Rack & Pinion Table Angle Adjustment
Rack & Pinion Table Angle Adjustment
Rack and pinions are a mechanical device consisting of a bar (the rack), having teeth on one side that mesh with teeth on a small gear (the pinion) and are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery.

On machine tools, rack and pinion mechanisms are used to obtain rapid movements of worktables.
Dust Port
2 x 100mm (4")
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
204.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
