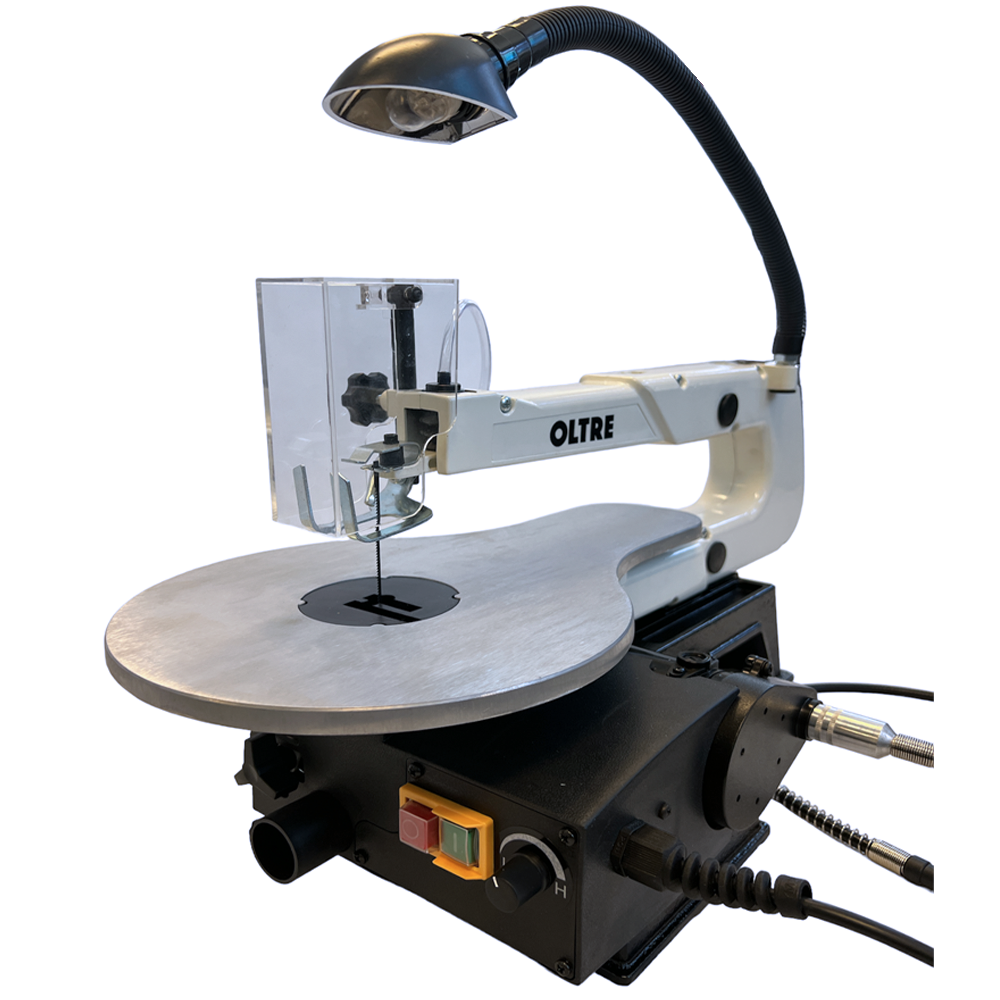

410mm (16″) Variable Speed Scroll Saw OT-SS-410 by Oltre

OltreSKU: 8100263

Price:
Sale price$201.00

Status

Available

Description

The OT-SS-410 Scroll Saw is a ‘Specialty Saw’ designed for small, delicate detail cutting. The saw is made of all-metal construction.

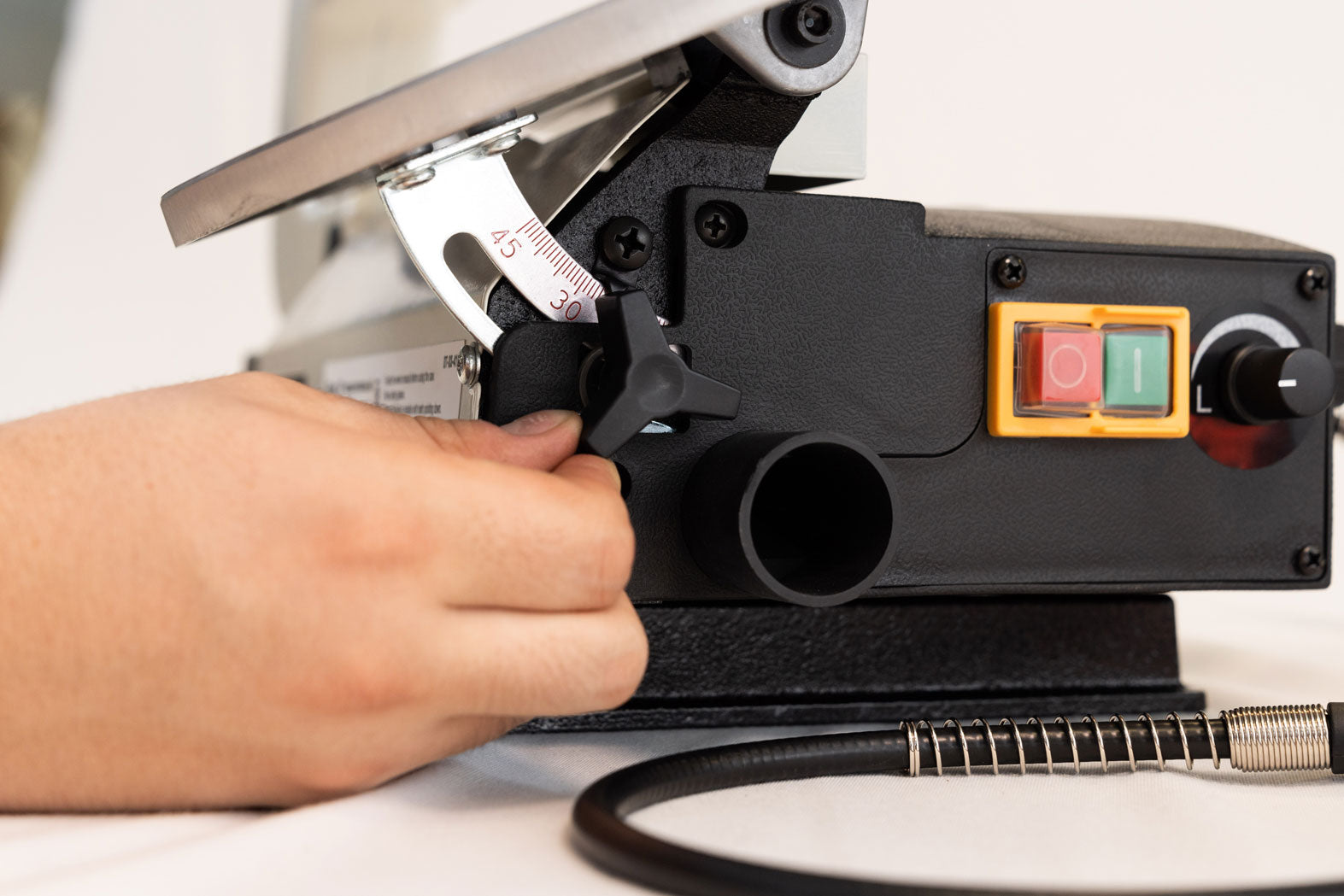

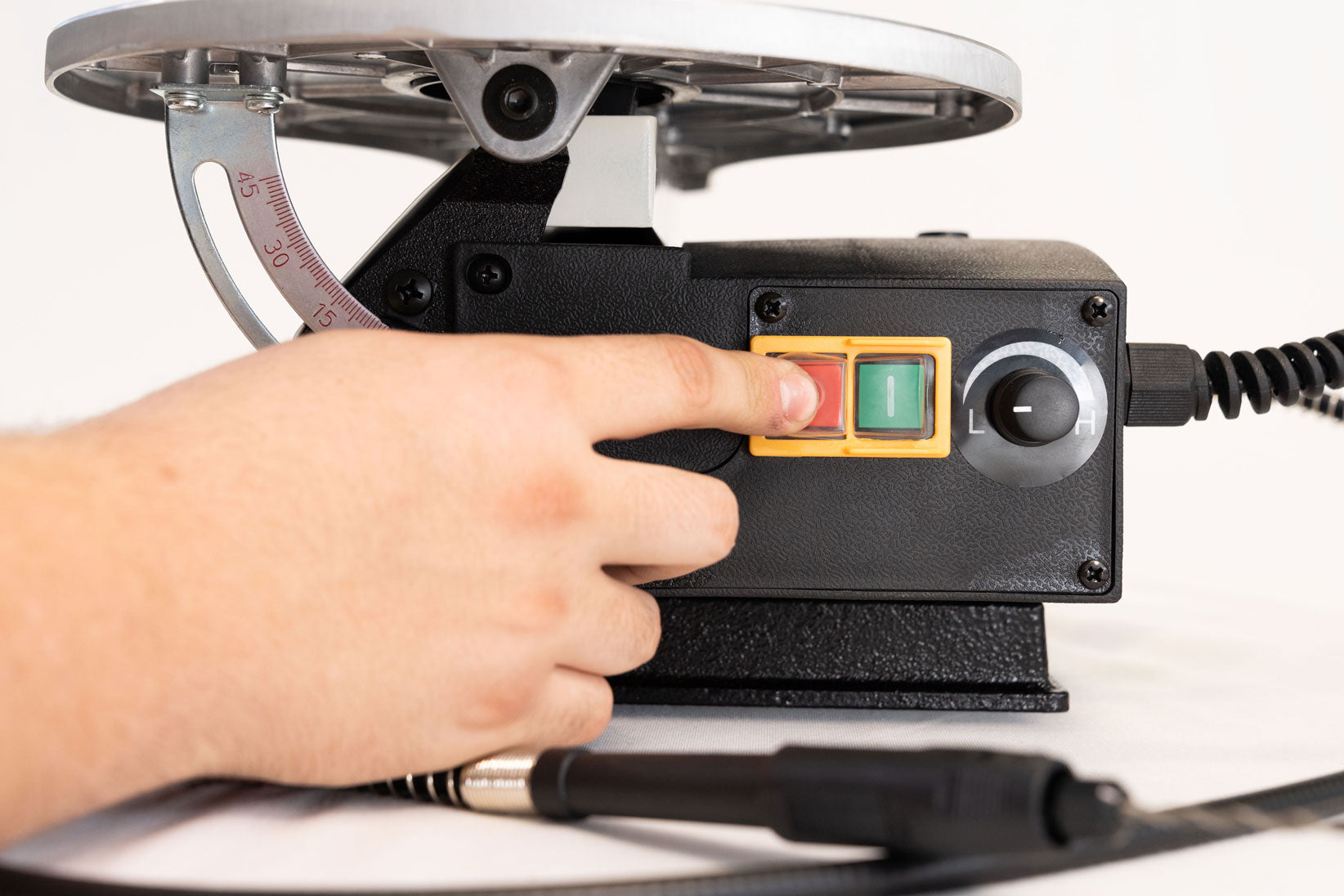

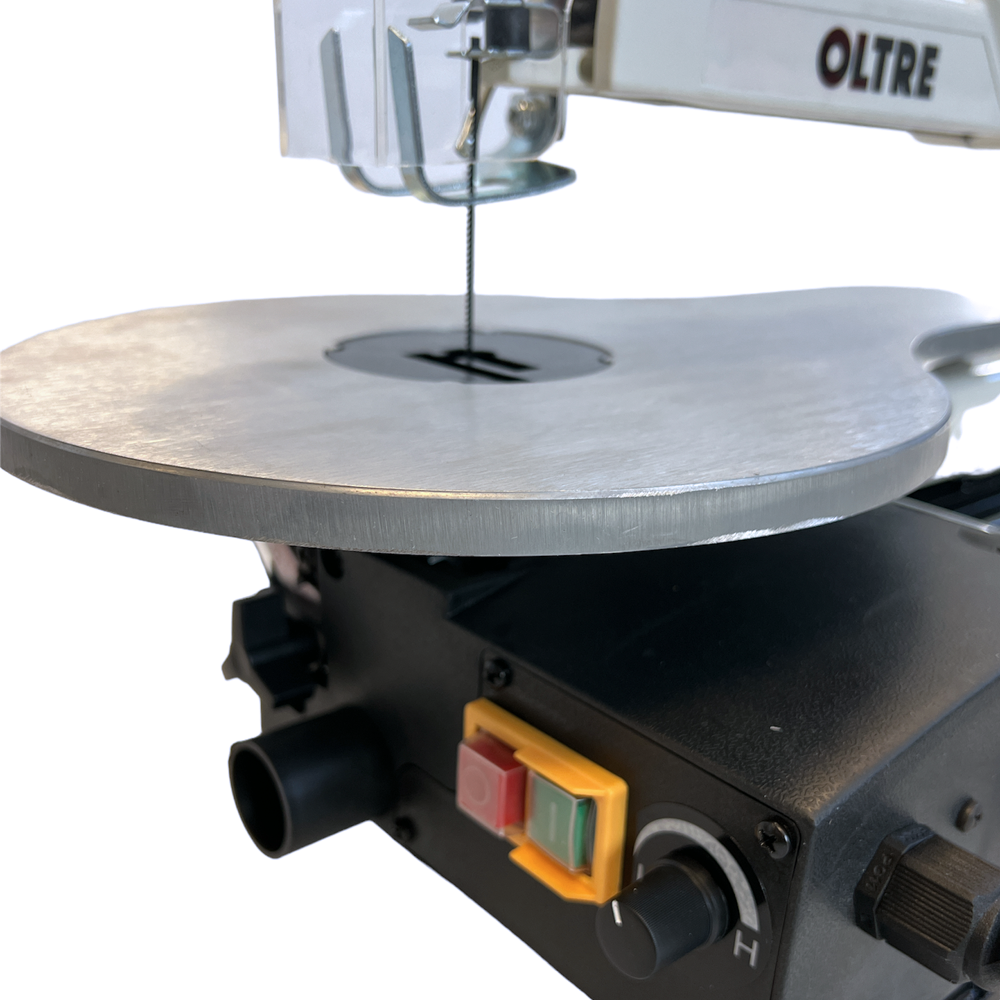

The 410mm Scroll Saw is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scrollwork, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The variable speed DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s 410mm (16”) throat and large machined aluminum table give extra access and stability when sawing large stock. Table also tilts to -45° for making angled cuts. The OLTRE OT-SS-410 machine uses 125mm (5”) long pinned or plain end blades. Includes cast iron base for greater stability, work light, pair of pin-less blade holders.

Features

  • Variable Speed

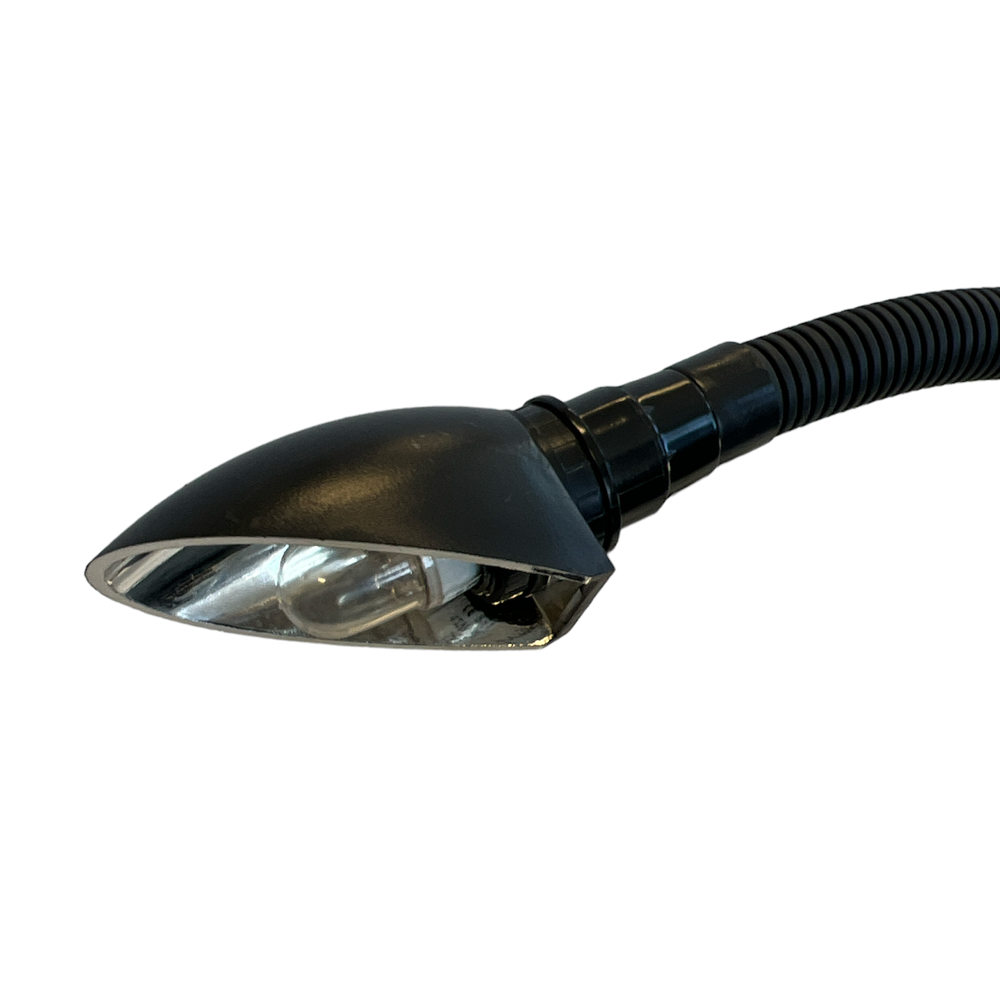

  • LED Flexible Gooseneck Work light
  • Cast Iron Base
  • Large Aluminium Table

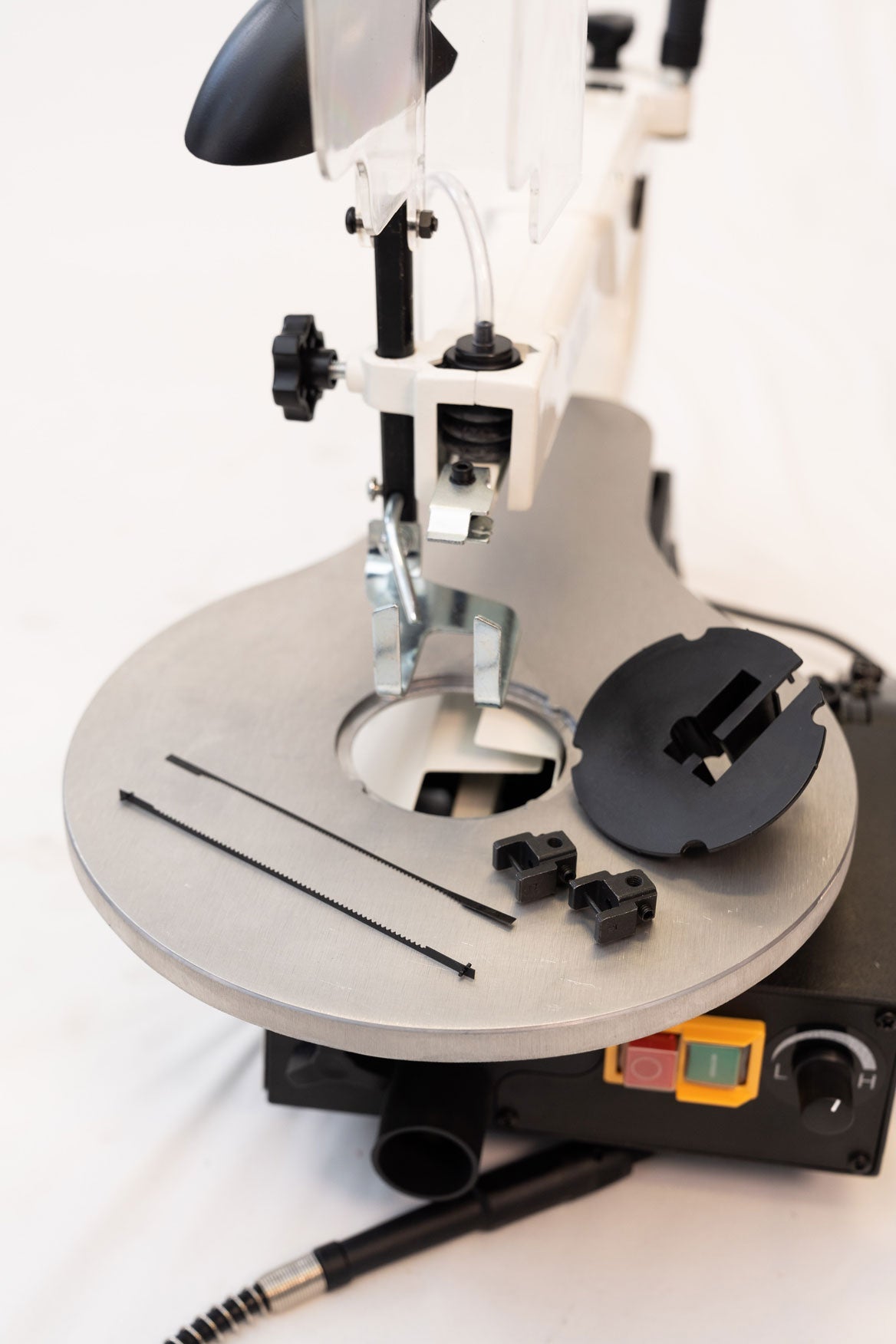

  • Pair of Pinless Blade Holders - Accepts both Plain and Pin Type Blades

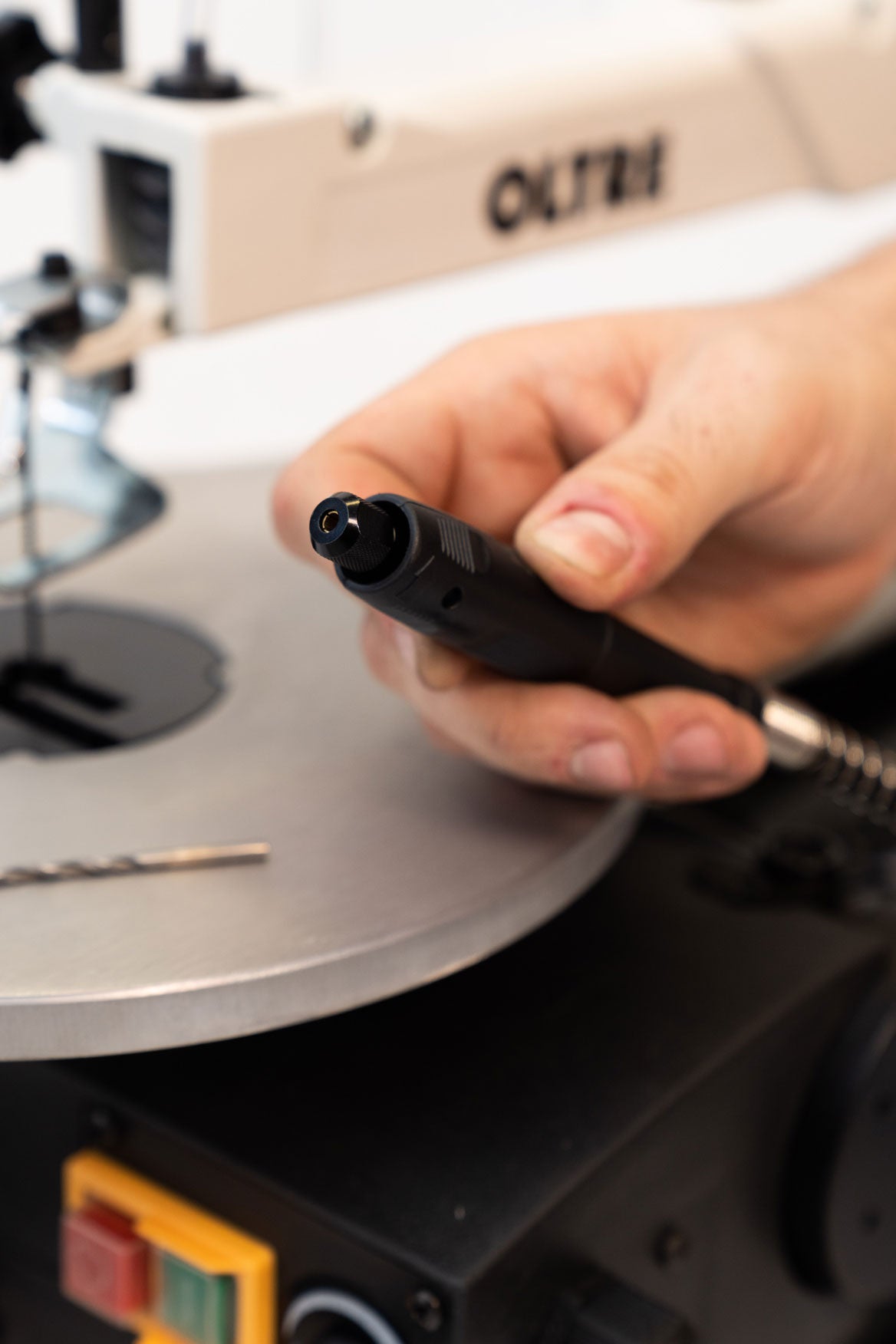

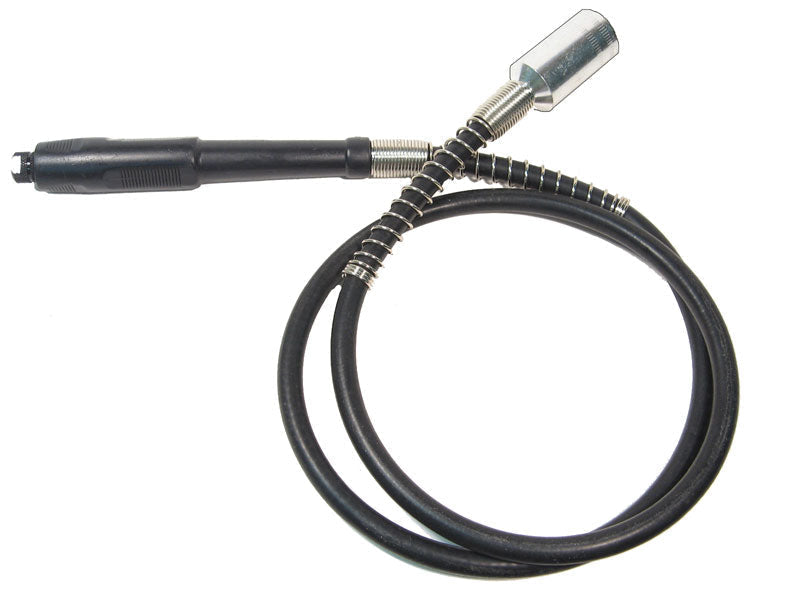

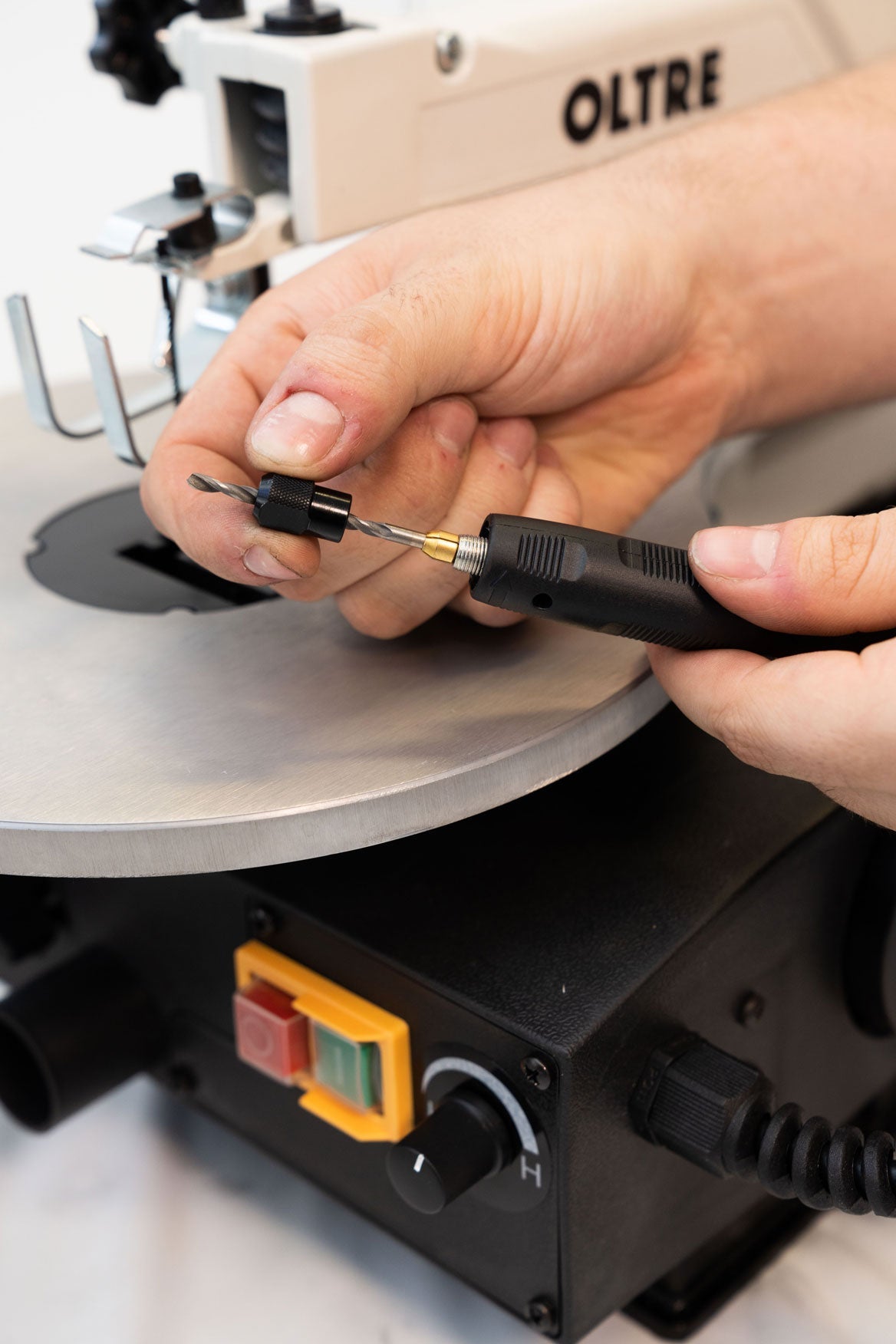

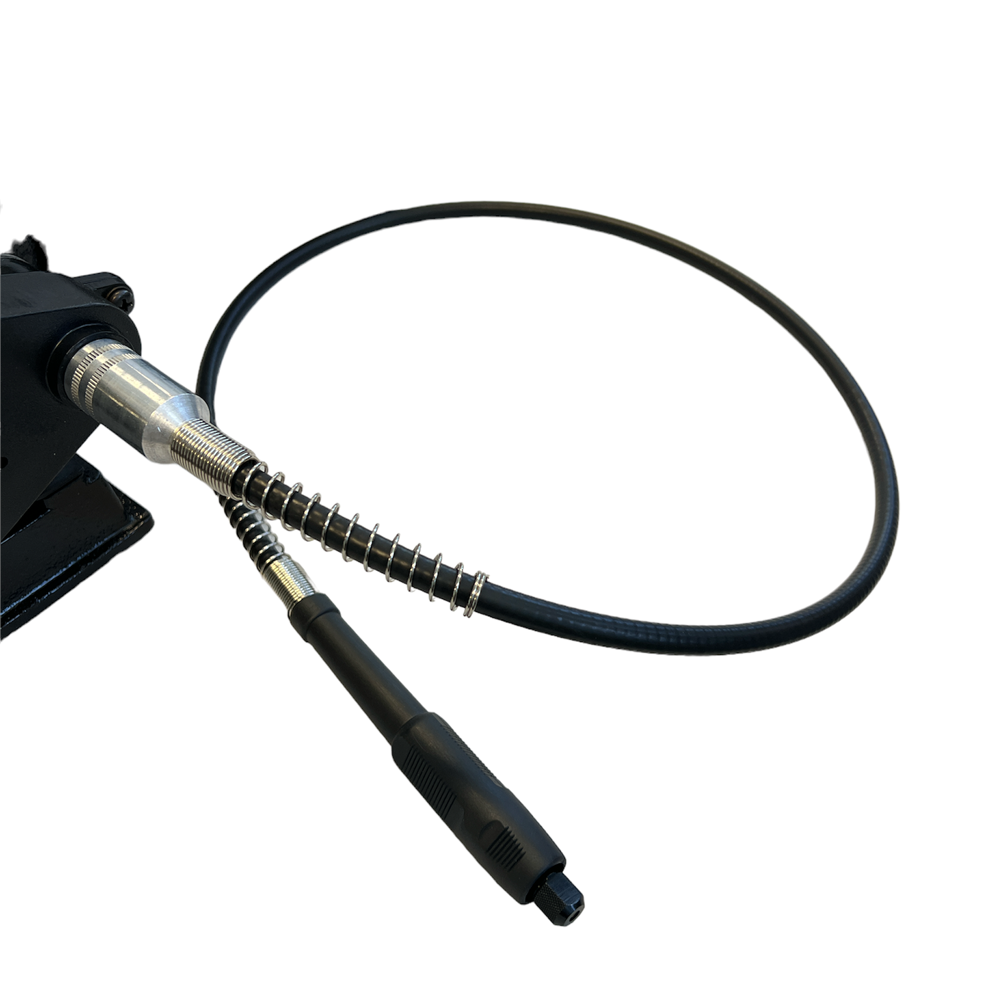

  • 10-9123 High Speed Flexible Shaft - attaches to the motor shaft for rotary work (pictured - included as standard with OT-SS-410)

Optional Accessories

  • 10-9124 Rotary Attachment Set - 64Pce Accessory Kit 10-9124 by Rikon

Spare Parts / Consumables

  • P10-600VS-96 Pin-Less Blade Holder
  • P10-600VS-26 Replacement Bulb (10W)

Additional Information

Model
Type
Scroll Saw
SKU
8100263
Part Number
OT-SS-410
Barcode
745240316718
Brand
Oltre
Size
410mm (16")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Blade Type
Pinless / Pin Type Blade (Dual Blade Feature)
Blade Length
127 mm
Cutting Capacity - Height
50 mm
Throat Capacity
405 mm
Table Size
254mm (Diameter) x 415mm
Stroke
15 mm
Speed Range
550-1600SPM (Variable Speed)
Dimensions
Product Length
320 mm
Product Width
380 mm
Product Height
630 mm
Product Weight (Net Weight)
14 kg
Country of Origin
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Flexible Worklight
Safety
Blade Guard
Dust Port
1 x 35mm
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Other Requirements
Benchtop
Spare Parts / Consumables
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
660 mm
Shipping Width
330 mm
Shipping Height
400 mm
Shipping Weight (Gross)
14.5 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
