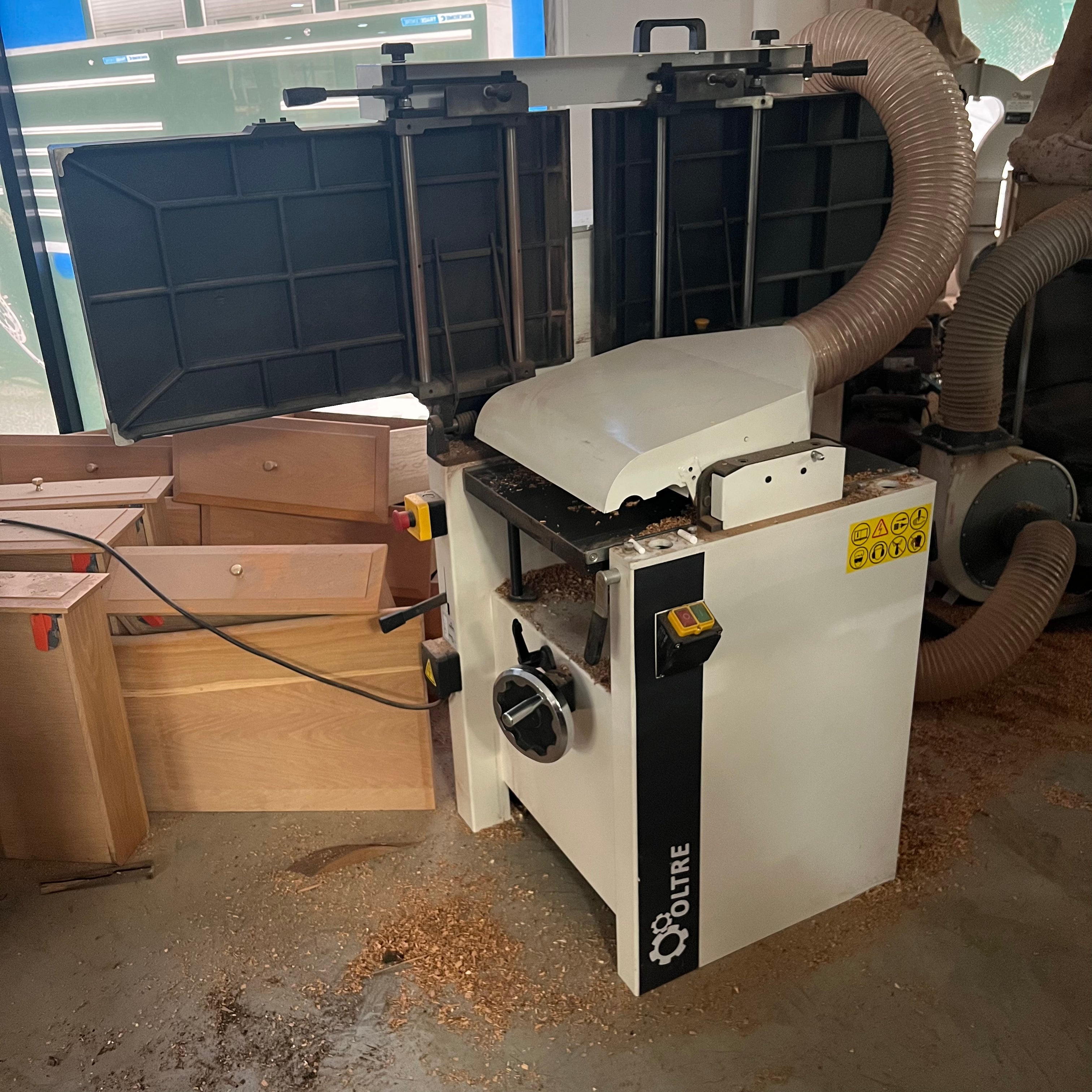

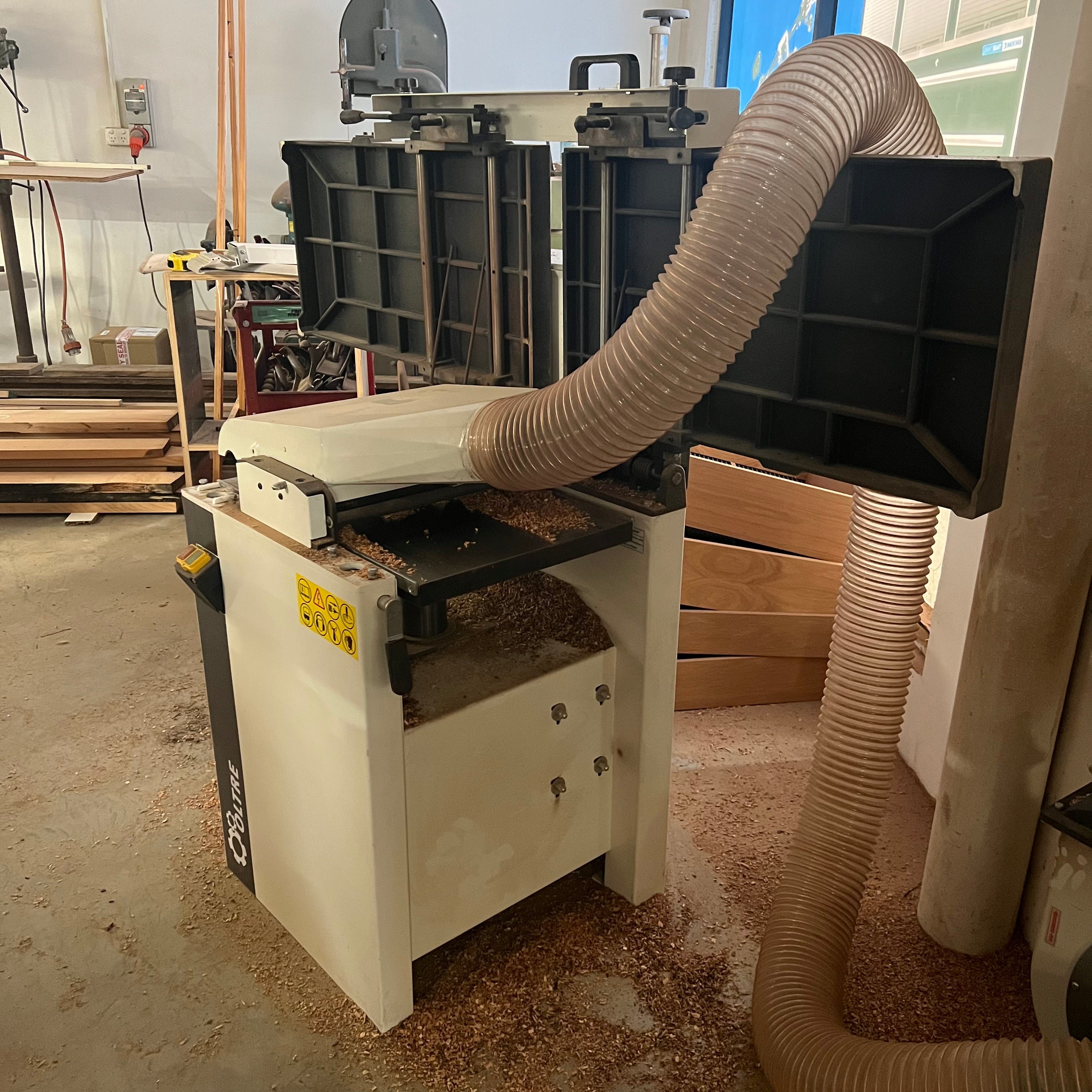

*Ex Display / Demo Stock* 410mm (16") Combination Planer & Thicknesser with Spiral Head Cutter Block 415V OT-PT-1601A by Oltre

Save $2,000.00
OltreSKU: 8601510

Price:
Sale price$4,999.00 Regular price$6,999.00
Stock:
Only 1 unit left

Status

Available

Description

*Ex Display / Demo Stock*

Premium economy machine ideal for home workshops and education environments and small workshops. Oltre means 'Beyond' in Italian and this machine is certainly beyond expectations! Very solidly built with beautifully ground cast iron tables (Planer 1645 x 410mm, Thicknesser 600mm x 408mm) it is more than capable of milling rough sawn timber into a Square all Round board ready for that next project.

Featuring a 5.5HP 415V (15amp) motor and 72, 15mm x 15mm x 2.5mm (150mm radius), carbide knives in its Helical Head / Spiral Cutter Block this machine will produce a perfect tear-out free finish in the most difficult of Australian Hardwoods. The tables lift easily in one piece for a 10 second change into Thicknesser mode with a capacity of 225mm of depth with a 408 width. It also features a Siko style depth of cut gauge. The roller feed is 7m/min. This is a quality machine for the Home Hobbyist or Small workshop.

Features
  • Spiral Head Cutter Block for Premium performance with a quieter cut.
Specification
  • Planing Table Size: 410mm x 1645mm
  • Thicknessing table size: 408mm x 600mm
  • Fence Size: 150mm x 1100mm
  • Fence Tilt: 90 to 45 degrees

Additional Information

Model
Type
Combination Planer & Thicknesser
SKU
8601510
Part Number
OT-PT-1601A
Brand
Oltre
Size
410mm (16")
Size*
410mm (16")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Cutting Capacity - Depth
3mm (planing)
Cutting Capacity - Height
225mm
Feed Speed
7m / Min.
Technical - Saw
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70mm
Blade - Cutter Head Block - Rows
3
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
72
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70mm
Blade - Cutter Head Block - Rows
3
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
72
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1670mm
Shipping Width
690mm
Shipping Height
980mm
Shipping Weight (Gross)
300kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
