410mm (16") Combination Planer & Thicknesser with Spiral Head Cutter Block PT410A by Woodfast

WoodfastSKU: 8727870

Power Source: 240V 50Hz Single Phase (1PH)
Motor Power: 4HP / 3000W
Price:
Sale price$6,999.00
Stock:
In stock (9 units), ready to be shipped

Status

Available

Description

Following the outstanding market success of the PT310A 12″ Planer Thicknesser, WOODFAST GROUP AUSTRALIA has decided to launch the heavy-duty PT410A.

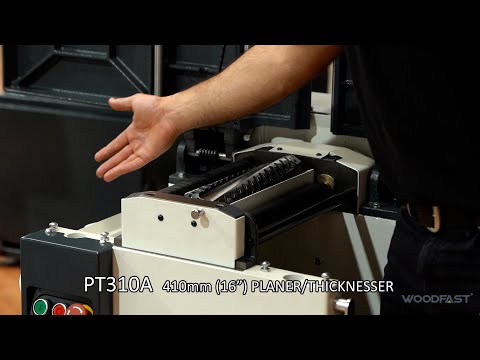

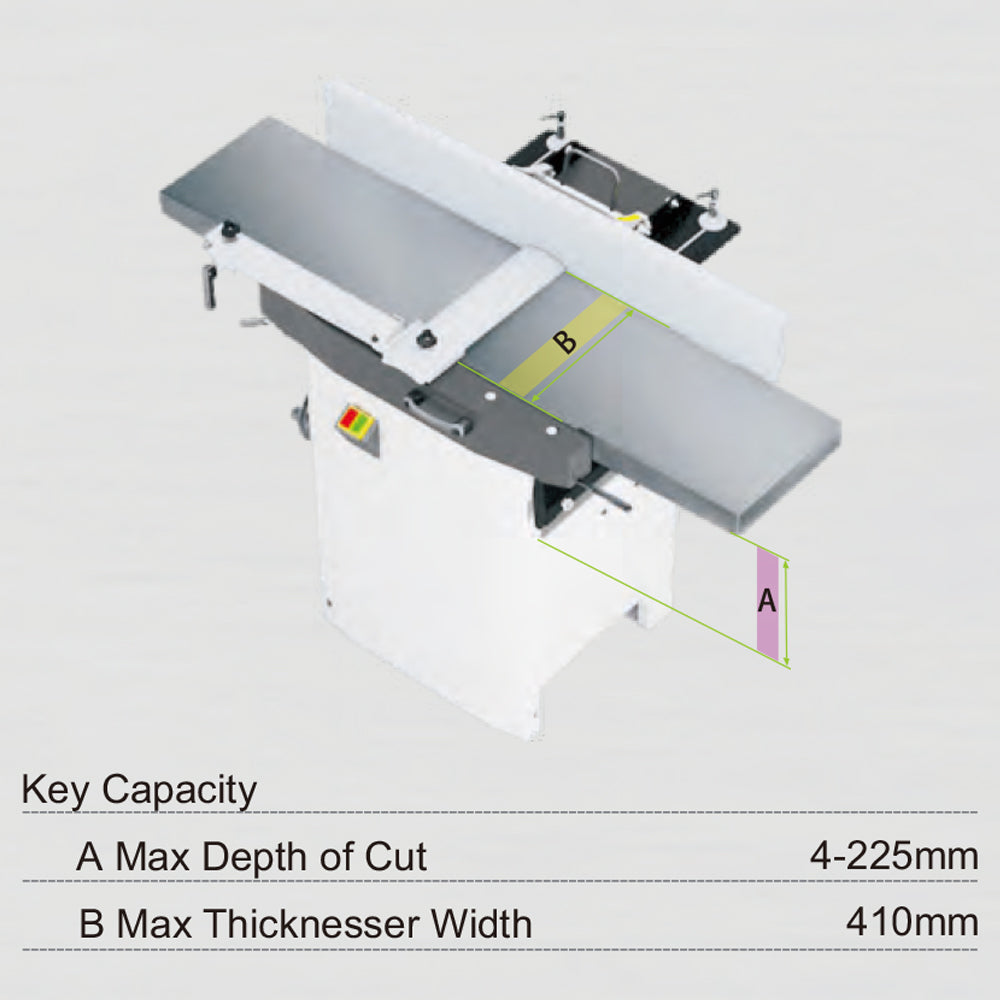

This impressive machine, weighing in at 365kg and available in either 3kw (4HP) 1 Phase or 4kw (5.3HP) 3 Phase. The true Helical Style / Spiral Head cutter block is 70mm in diameter with 72 carbide 4 sided knives and offers a full 410mm of superb wood jointing and thickness capacity. The helical cutter block reduces noise and presents a superior finish to traditional straight blades.

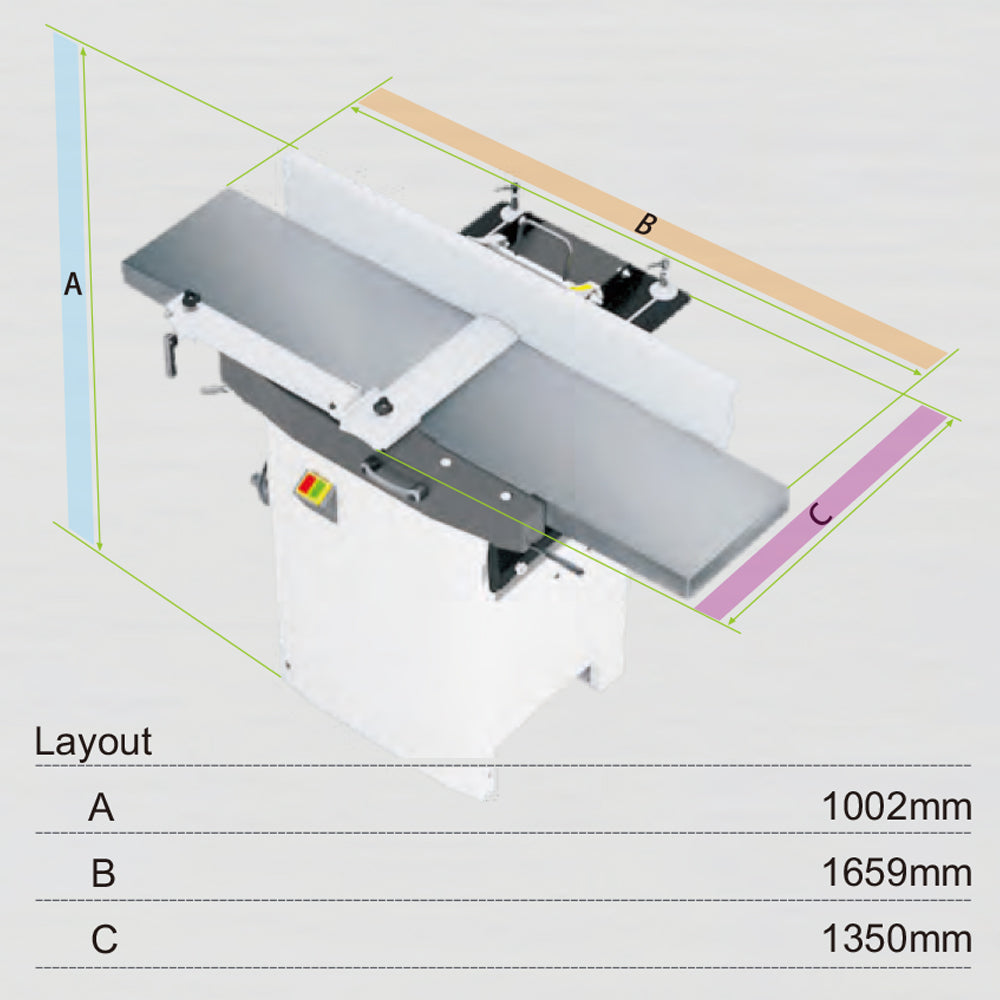

With the convenience of a single-handed table lift (no need to remove the fence), switching from surface planning to thickness cannot be easier. This versatile machine features an extra-large aluminium extruded fence with centred controls and cam locking for quick adjustments. In Jointer mode, the table length is 1659mm. The added Thicknesser Outfeed Extension Table (standard) gives extra support for those longer, heavy boards.

It’s a great machine to choose for serious woodworkers and busy trade workshops.

Features

  • Spiral Head Cutter Block for better thickness result and longer knife life and less noise
  • Single-Handed Table Lift (no need to lift the fence), switching from surface planing to thickness cannot be easier

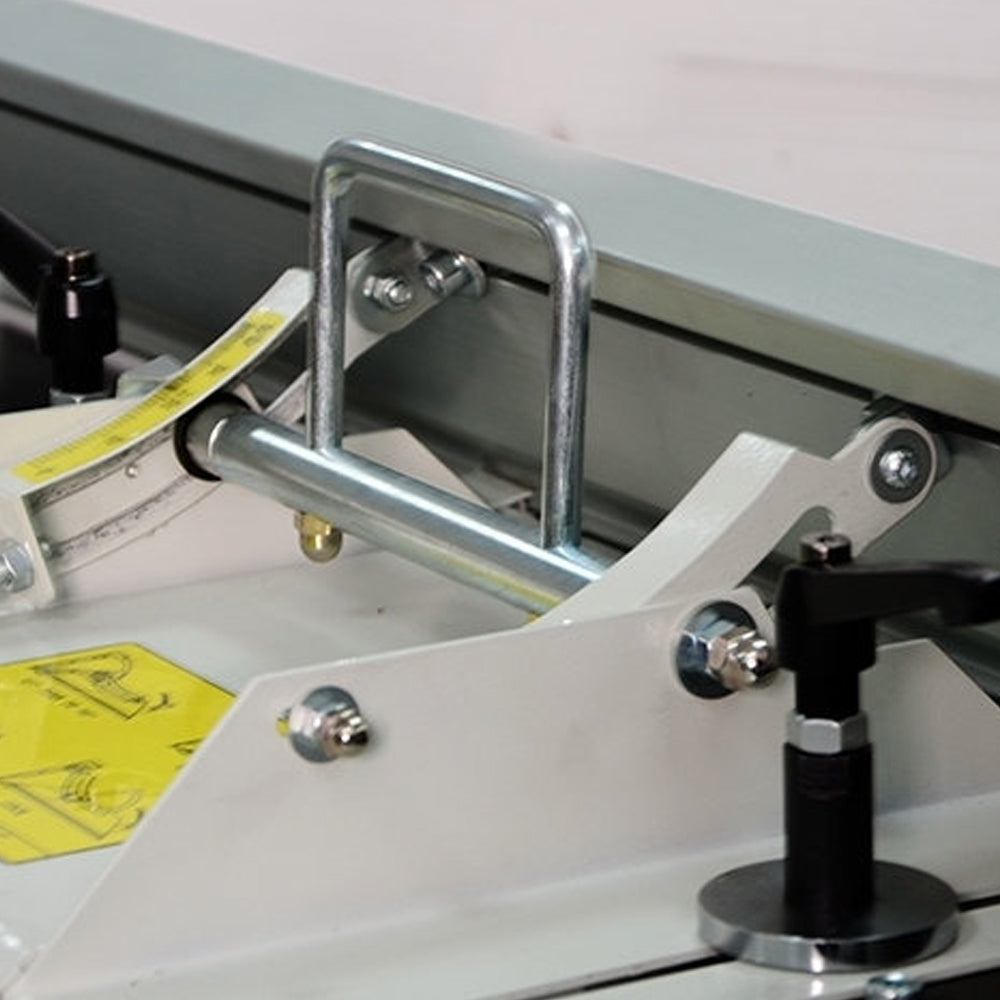

  • Centered controls and CAM locking for quick adjustments

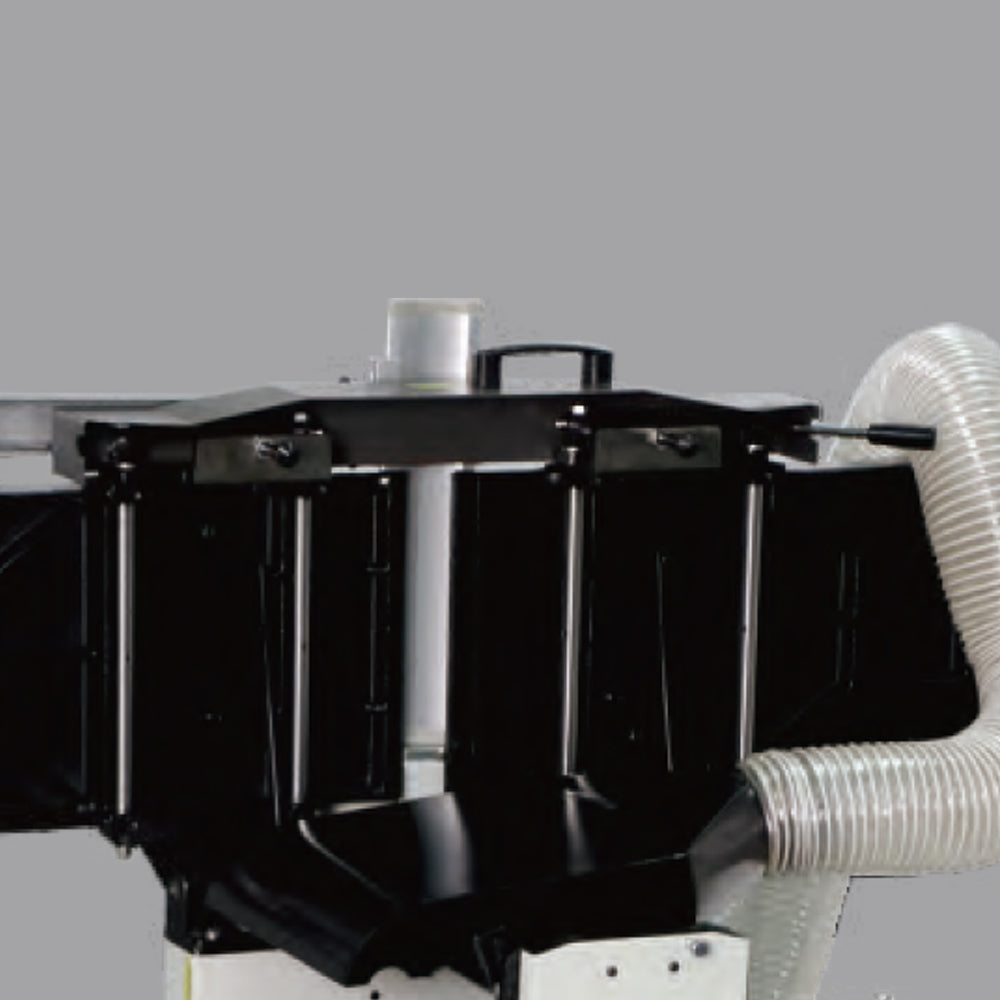

  • Built-in dust chute and capable of handling both planning and thickness operations
  • 125mm Dust Outlet

Optional Accessories

Options

  • PT410A 240V
  • PT410A 415V

Additional Information

Model
Type
Planer / Thicknesser
SKU
8727870
Part Number
PT410A 240V
Brand
Woodfast
Technical - Saw
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70mm
Blade - Cutter Head Block - No. of Blades / Tips
72
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70mm
Blade - Cutter Head Block - No. of Blades / Tips
72
Packaging + Shipping
Shipping Weight (Gross)
305kg
