Status
Available
Description
FN 400P Mitre Saw Machine is used for straight and angular cutting processes of aluminum, wooden and plastic materials.
Features
- Cutting at any desired angle between -45 °, +45 ° and 0 °, 15 °, 22.5 °, 30 °, 45 ° right and left angle fixing
- Safe cutting with saw barrier and strong spring system
- Strong and precision cutting operations with 3 hp electric motor
- Manual cutting and pneumatic operating system

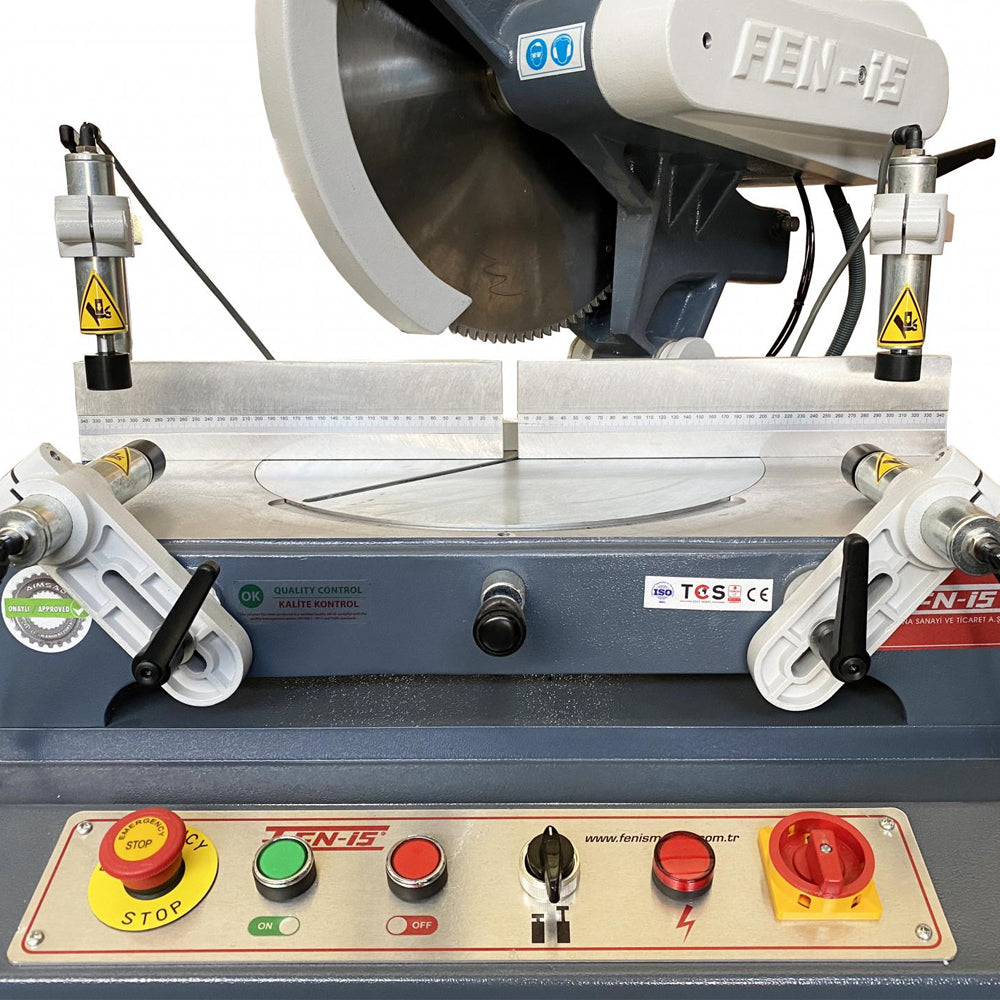

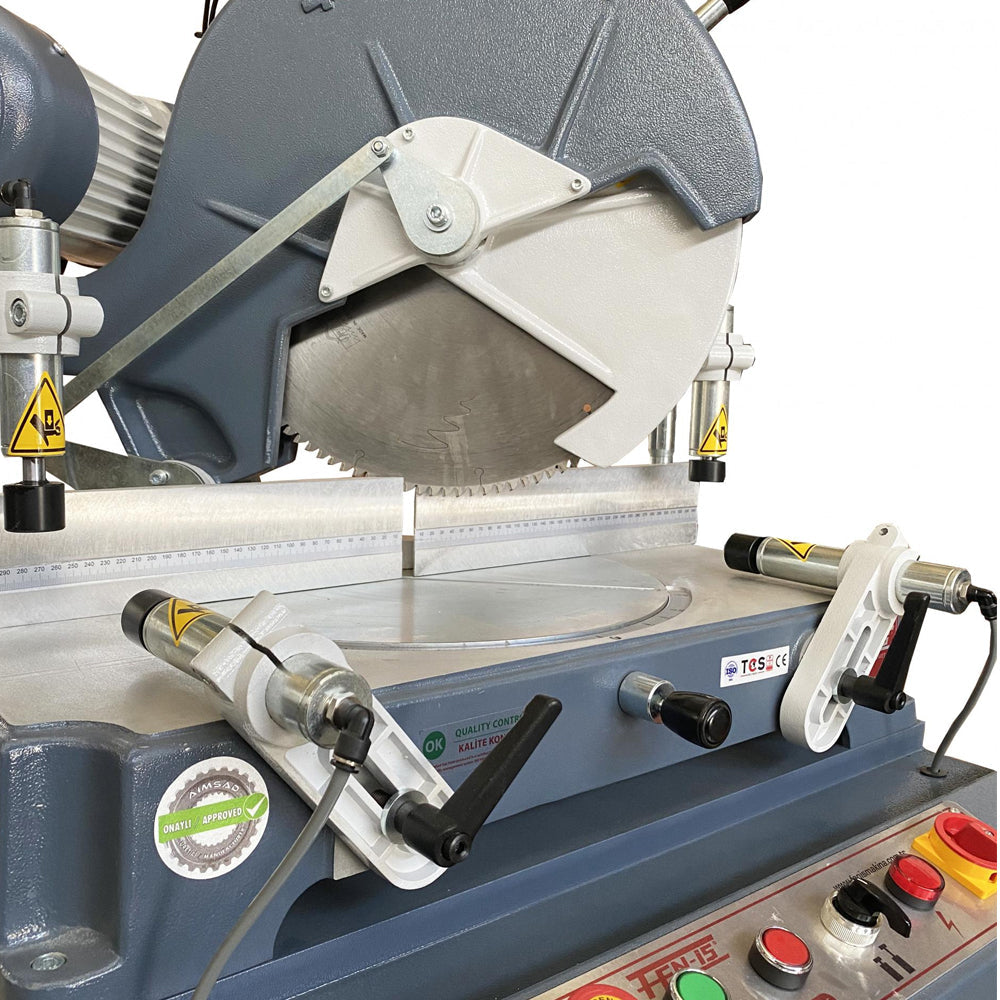

- Pneumatic vertical and horizontal clamps
- Hydro-pneumatic cutting operation (optional)
- Machine body made of special aluminum alloy
- Made of steel sheet machine stand
- Durable electrostatic paint
- 400mm Saw Blade

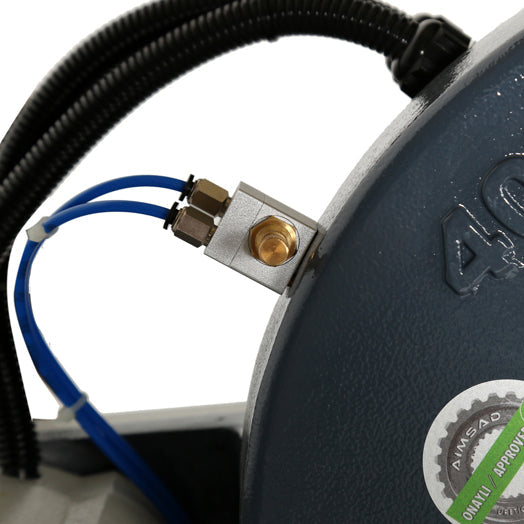

- Cooling System
- 2x Pneumatic Horizontal Clamps
- 2x Pneumatic Vertical Clamps
- Air Gun
Additional Information
Model
Type
Mitre Saw Machine
SKU
8601367
Part Number
FN 400P
Brand
Fen-Is
Size
400mm
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz 3 Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP 2200W
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6-8 Bar
Motor Speed - No Load
3000RPM
Options
Motor Brake Unit (Optional)
Technical - Saw
Blade (Main) - Bore Size (mm)
30-32mm
Blade (Main) - Diameter (Max.)
400mm
Blade (Main) - Speed
3000RPM
Dimensions
Product Length
830mm
Product Width
830mm
Product Height
1490mm
Product Weight (Net Weight)
135kg
Country of Origin
Manufactured in
Turkey
Features
Standard Inclusions
400mm Saw bladeCooling System2 x Pneumatic Horizontal Clamps2 x Pneumatic Vertical ClampsAir Gun
Workshop (Site) Info
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6-8 Bar
Other Requirements
Compressed Air
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Weight (Gross)
184kg
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
Brochure
Brochure
https://cdn.shopify.com/s/files/1/0588/3160/1843/files/FEN-IS_Machinery_Catalogue_2022.pdf?v=1677048155
Product Accessories
