Type
Air Mitre Saw
SKU
8601544
Part Number
FN 400HP AUTO
Brand
Fen-Is
Size
400mm
Status
Available
Description

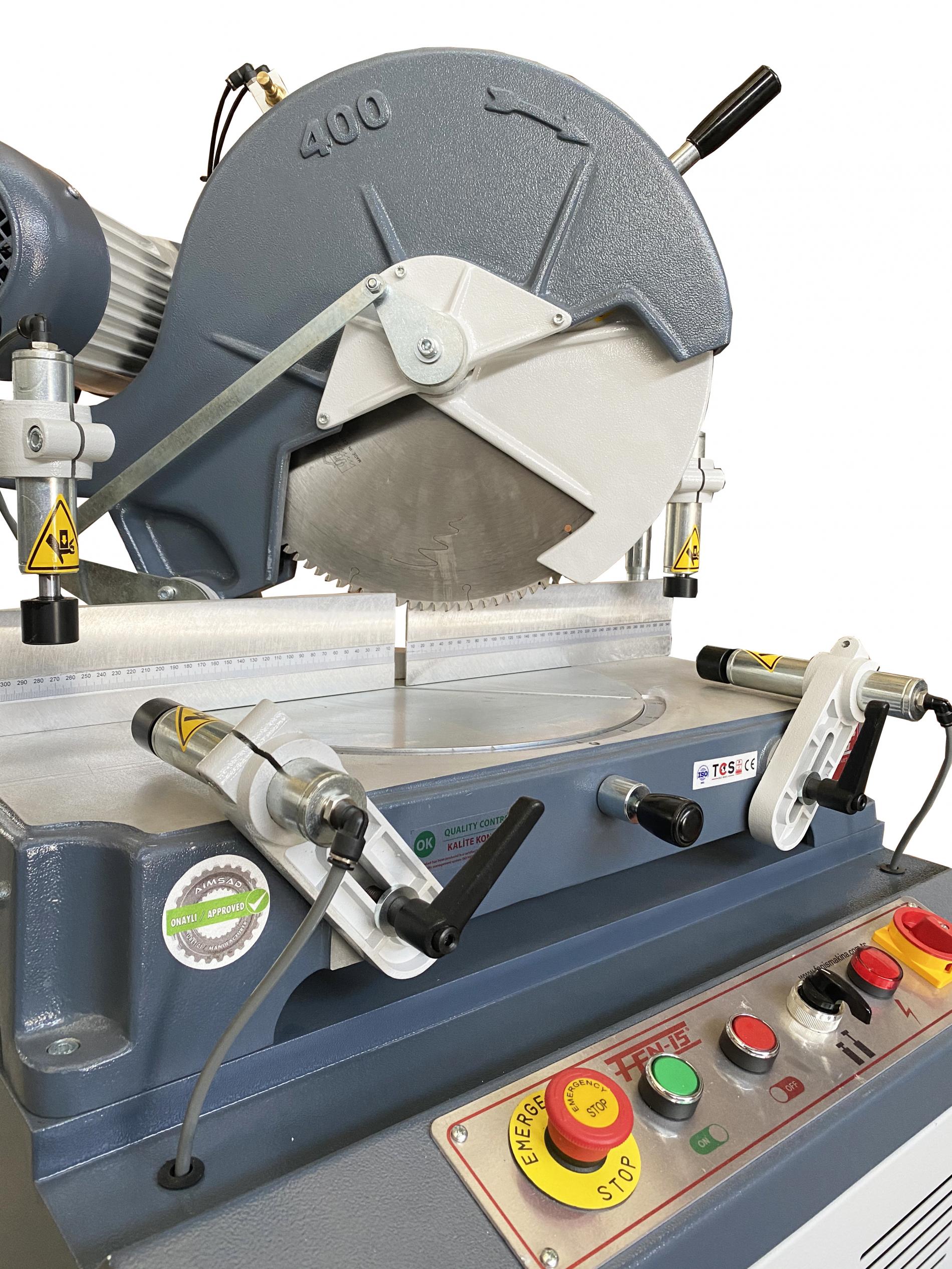

FN 400P Mitre Saw Machine is used for straight and angular cutting processes of aluminum, wood and plastic materials.
Features:-
- Cutting at any desired angle between -45°, +45° and 0°, 15°, 22.5°, 30°, 45° right and left angle fixing
- Safe cutting with saw barrier and strong spring system
- Strong and precision cutting operations with 3HP electric motor
- Automatic cutting and hydro pneumatic operating system

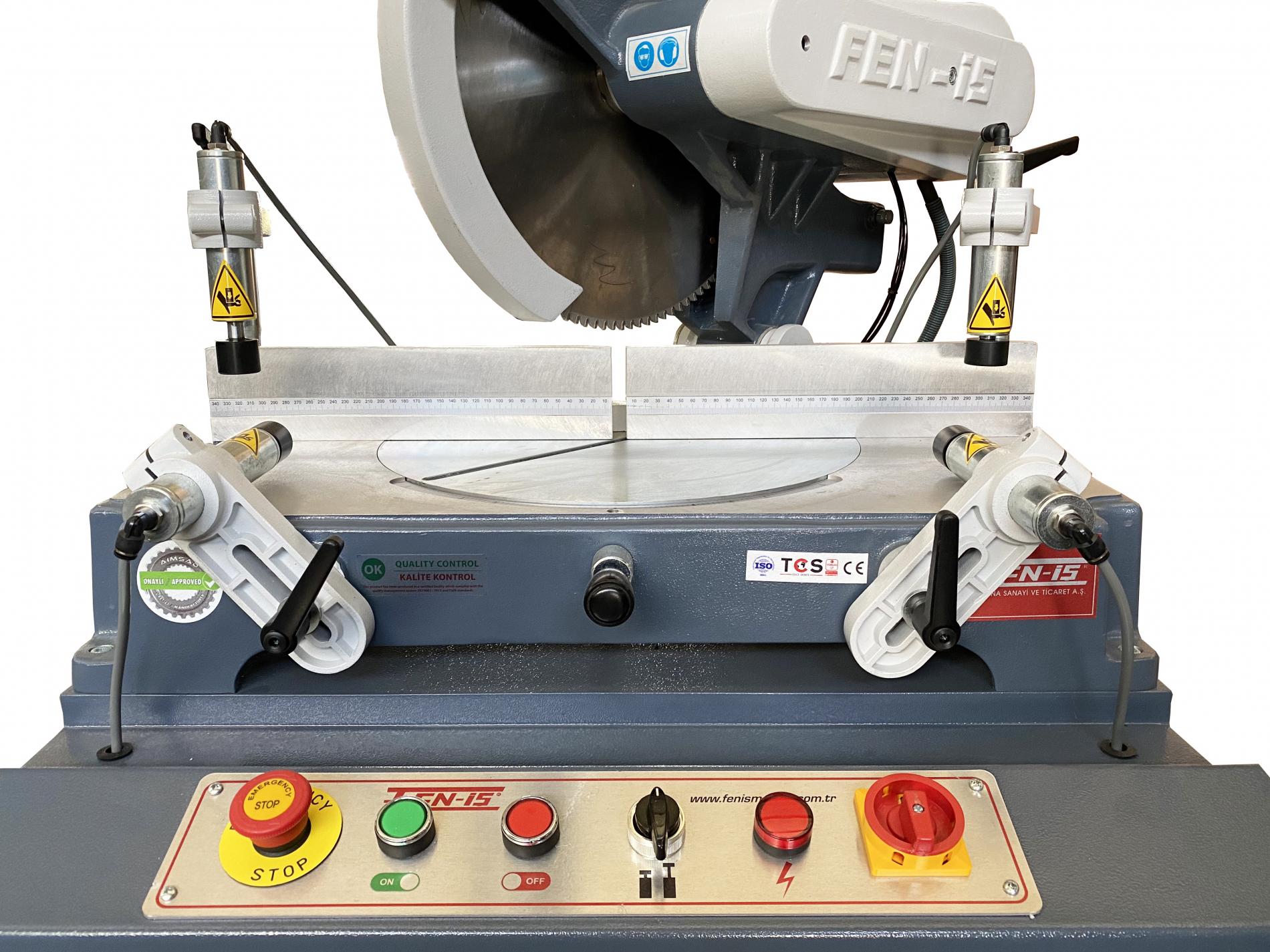

- Pneumatic vertical and horizontal clamps
- Cast core with impact resistance
- Machine body made of special aluminum alloy
- Made of steel sheet machine stand
- Durable electrostatic paint
- 400mm Saw blade

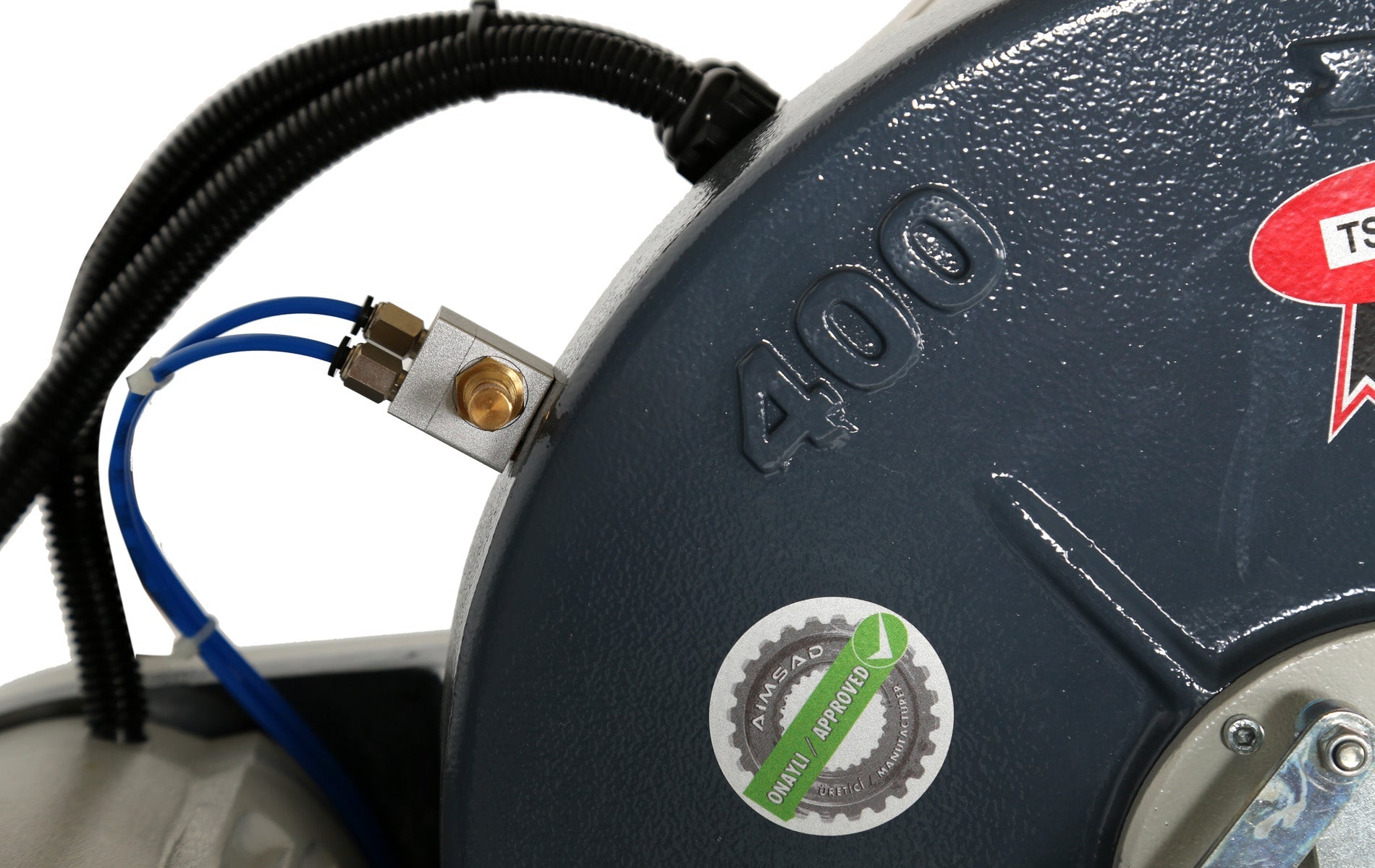

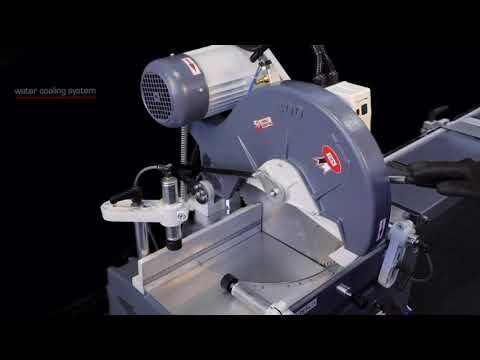

- Cooling System
- 2x Pneumatic Horizontal Clamps
- 2x Pneumatic Vertical Clamps
- Air Gun
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz 3 Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP 2200W
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6-8 Bar
Motor Speed - No Load
3000RPM
Options
Motor Brake Unit (Optional)
Technical - Saw
Blade (Main) - Bore Size (mm)
30-32mm
Blade (Main) - Diameter (Max.)
400 mm
Blade (Main) - Speed
3000RPM
Dimensions
Product Length
830 mm
Product Width
830 mm
Product Height
1490 mm
Product Weight (Net Weight)
135 kg
Country of Origin
Manufactured in
Turkey
Features
Standard Inclusions
400mm Saw blade
Cooling System
2x Pneumatic Horizontal Clamps
2x Pneumatic Vertical Clamps
Air Gun
Cooling System
2x Pneumatic Horizontal Clamps
2x Pneumatic Vertical Clamps
Air Gun
Workshop (Site) Info
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
6-8 Bar
Other Requirements
Compressed Air
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Brochure
Packaging + Shipping
Shipping Weight (Gross)
184.0 kg
