Type
Panel Saw
SKU
8043445
Series
Diamond
Part Number
DIAMOND 450B
Brand
ToughCut
Status
Available
Description

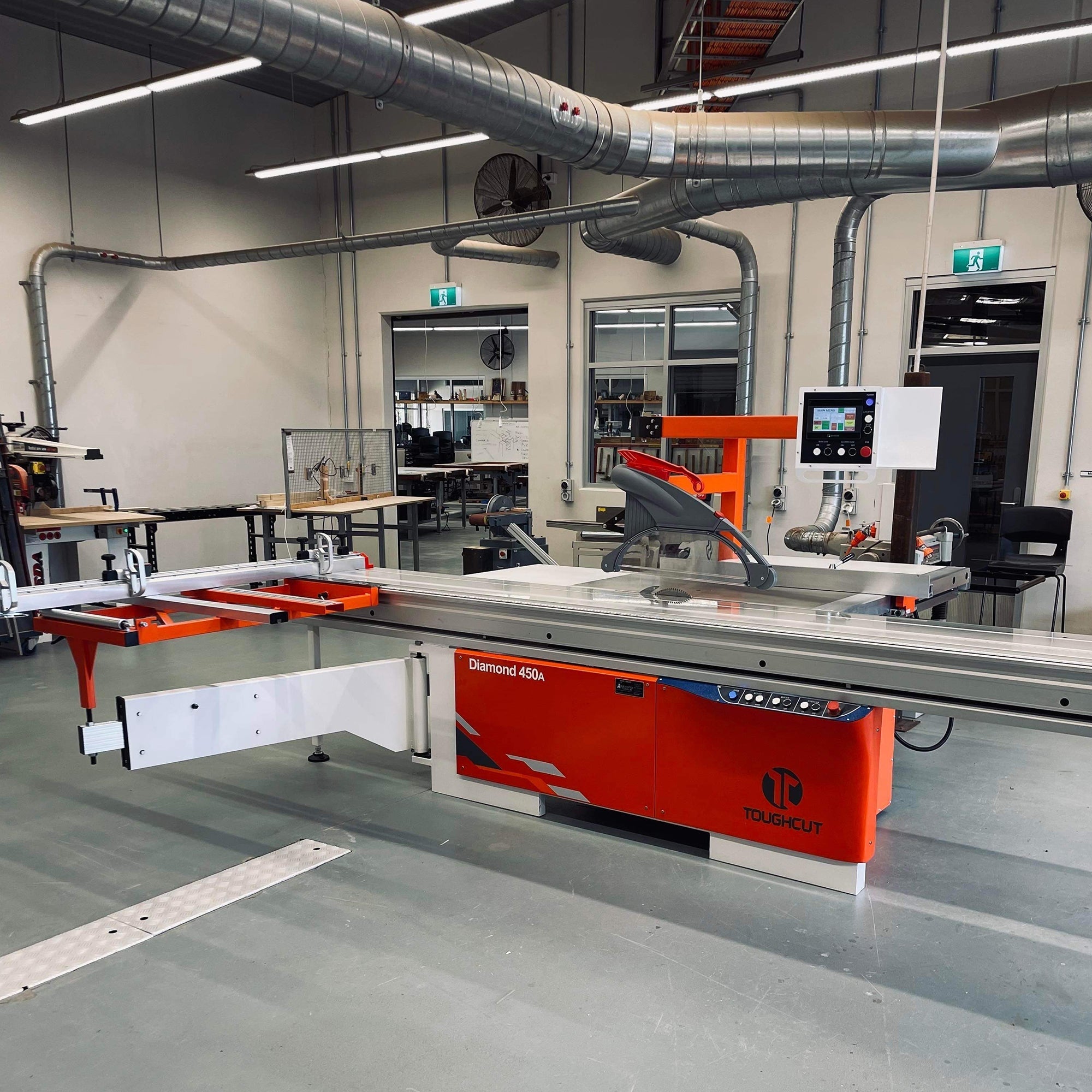

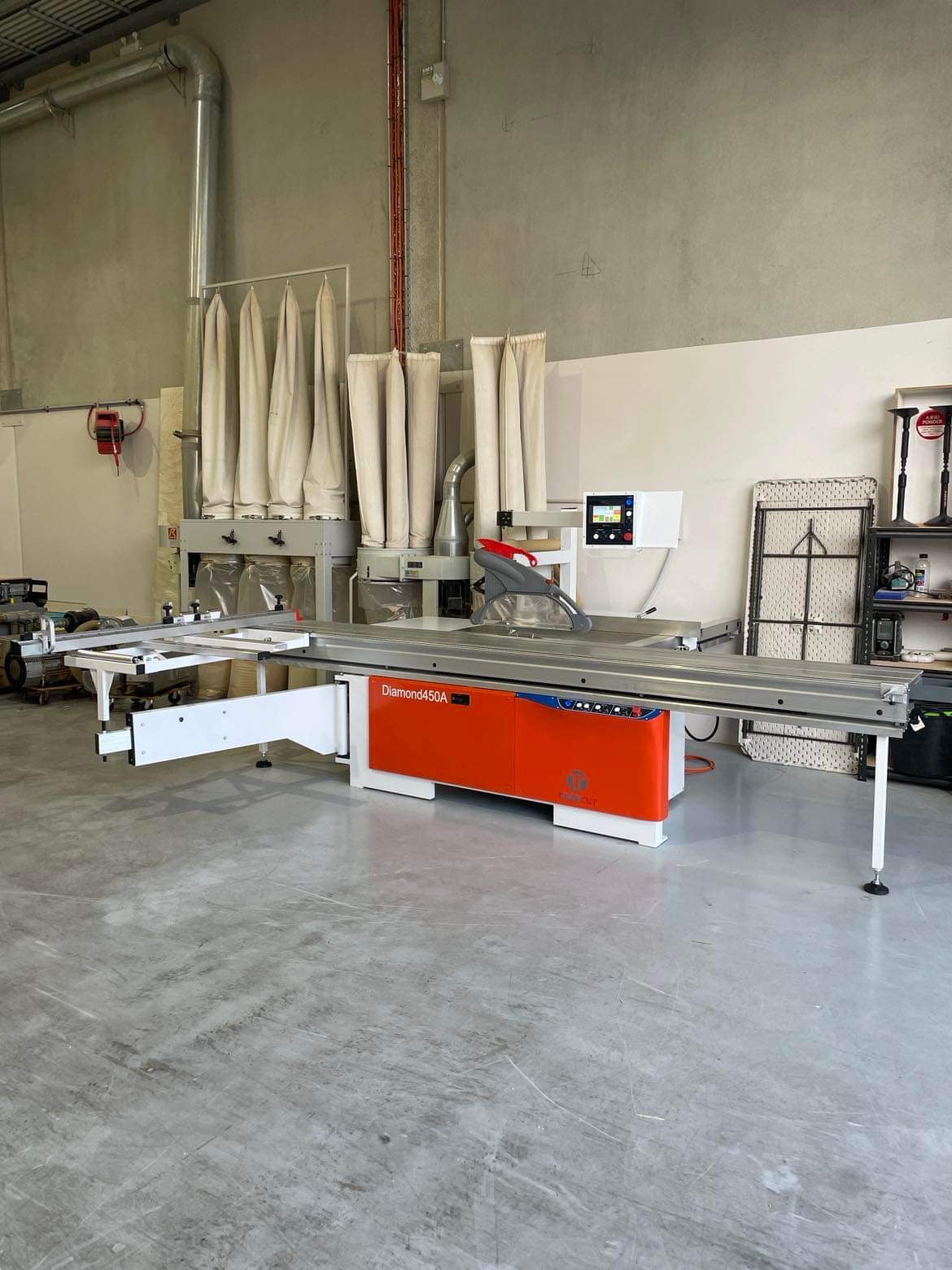

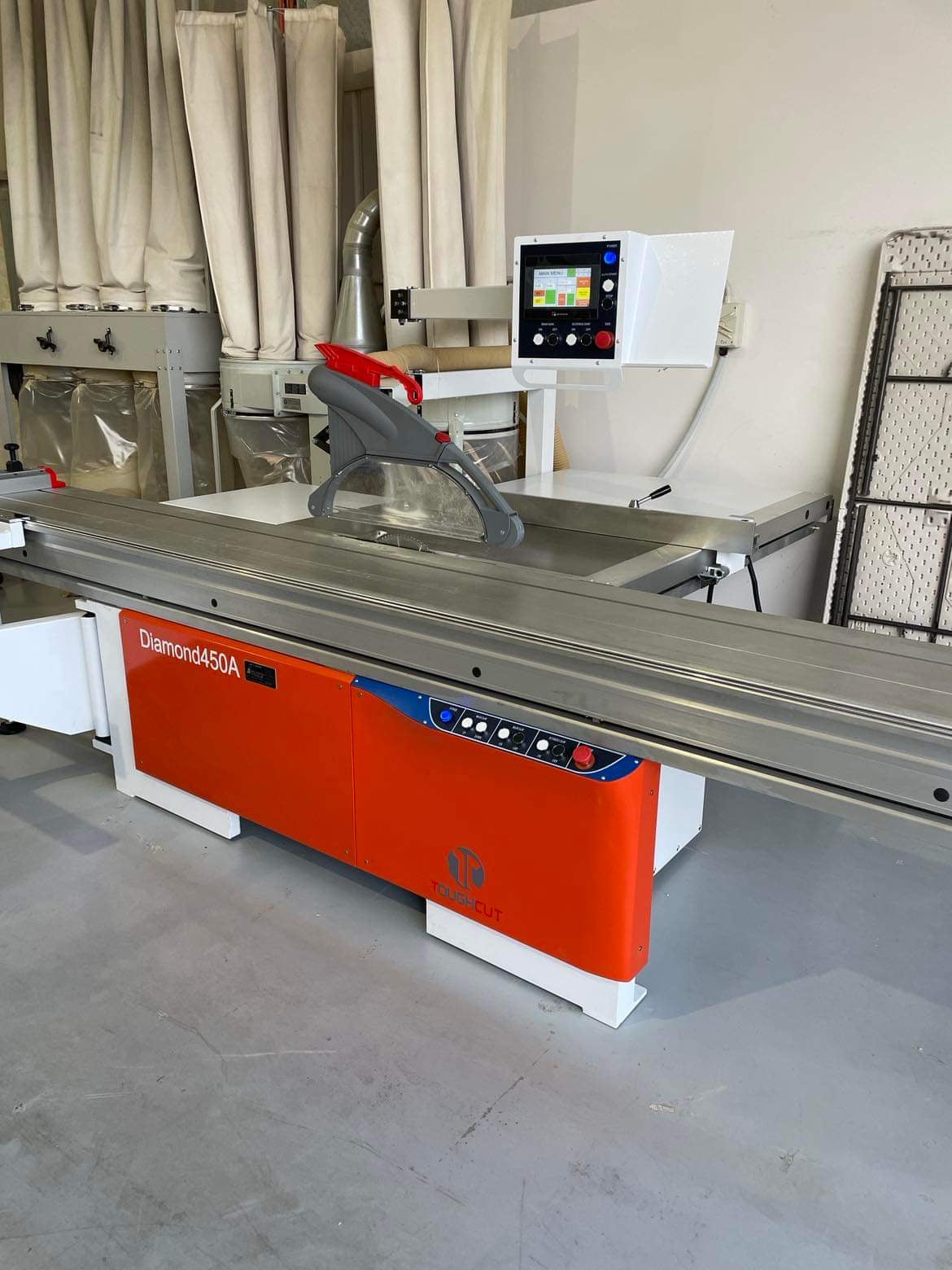

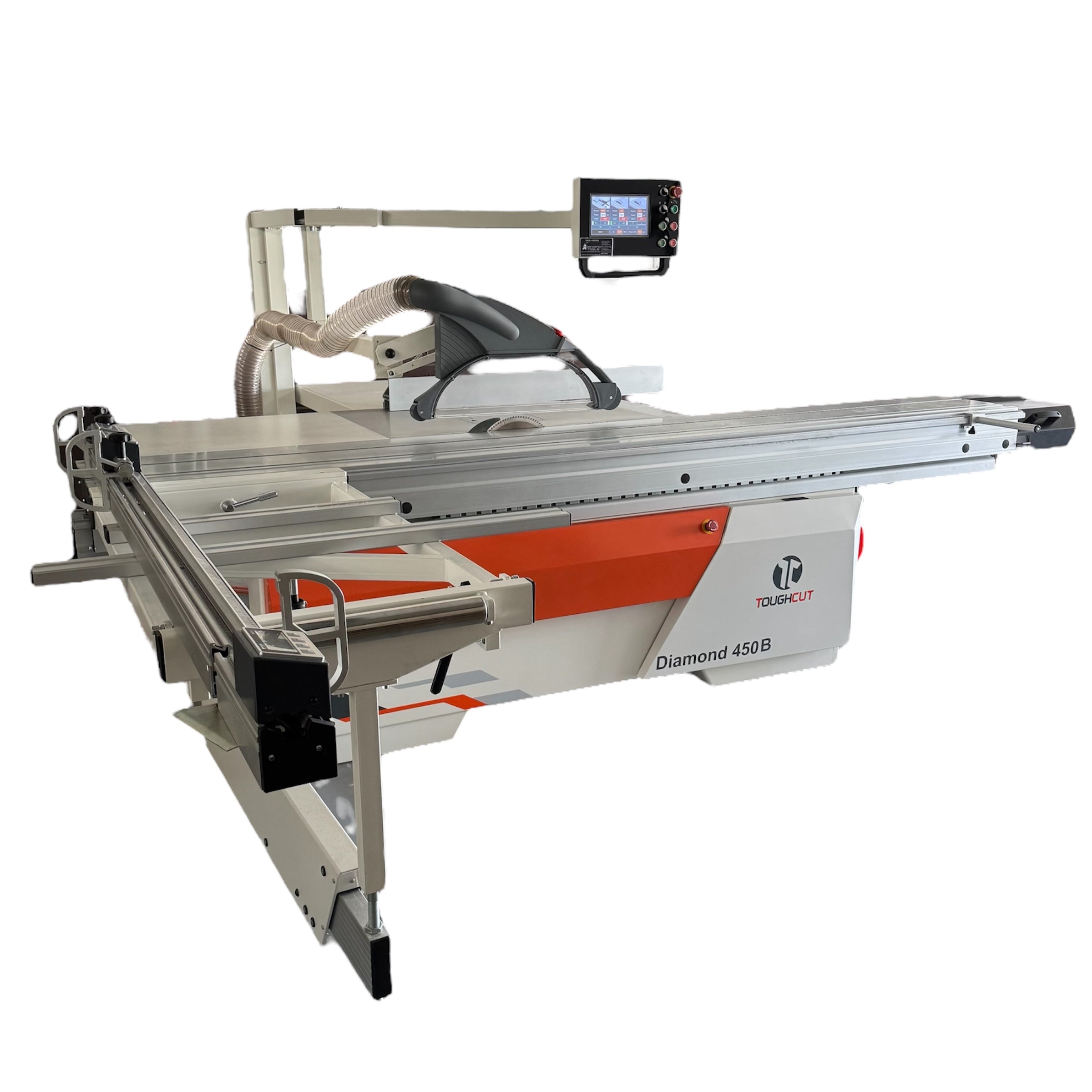

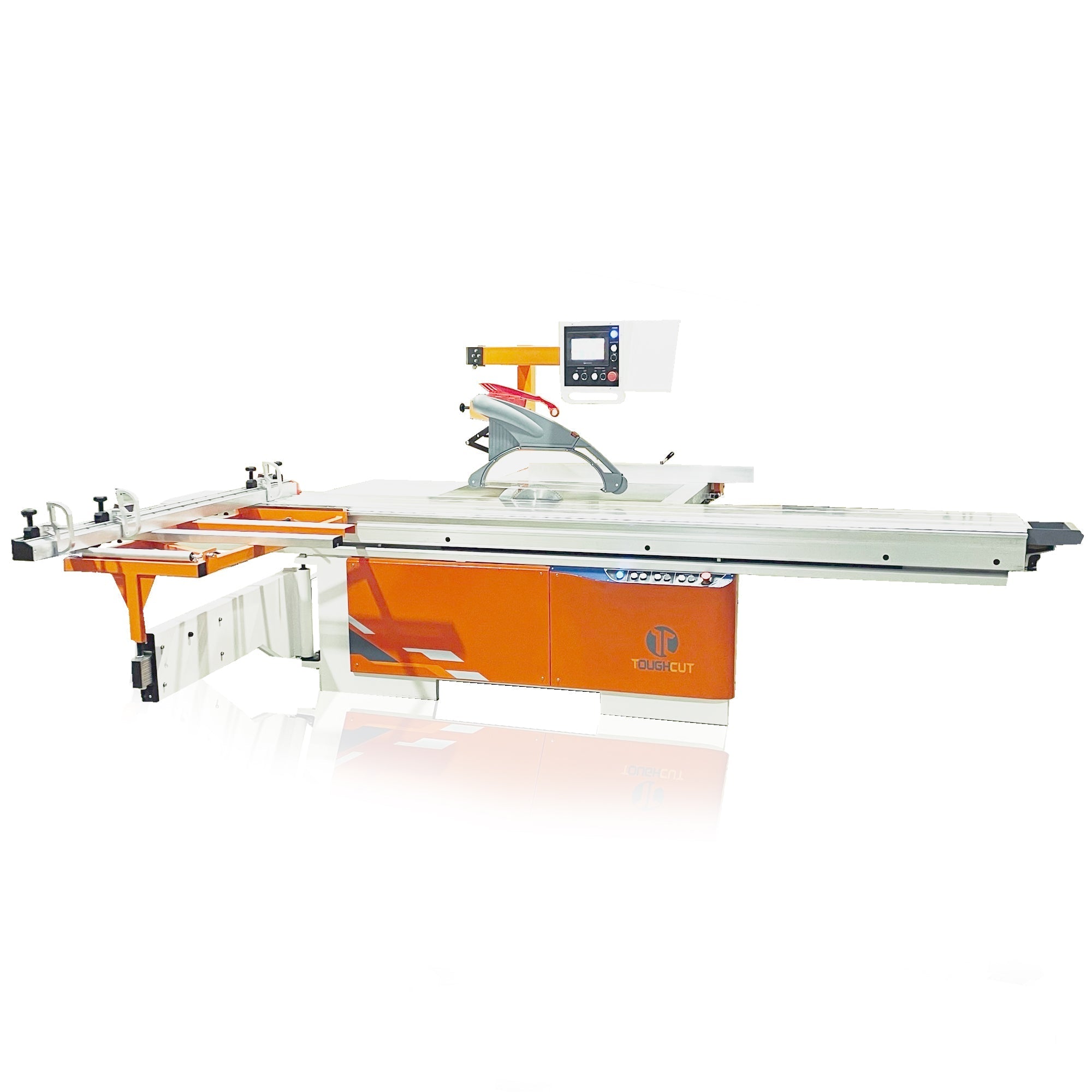

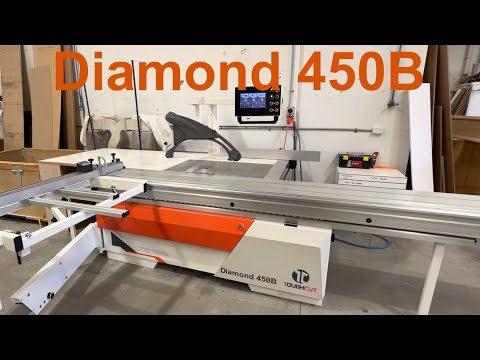

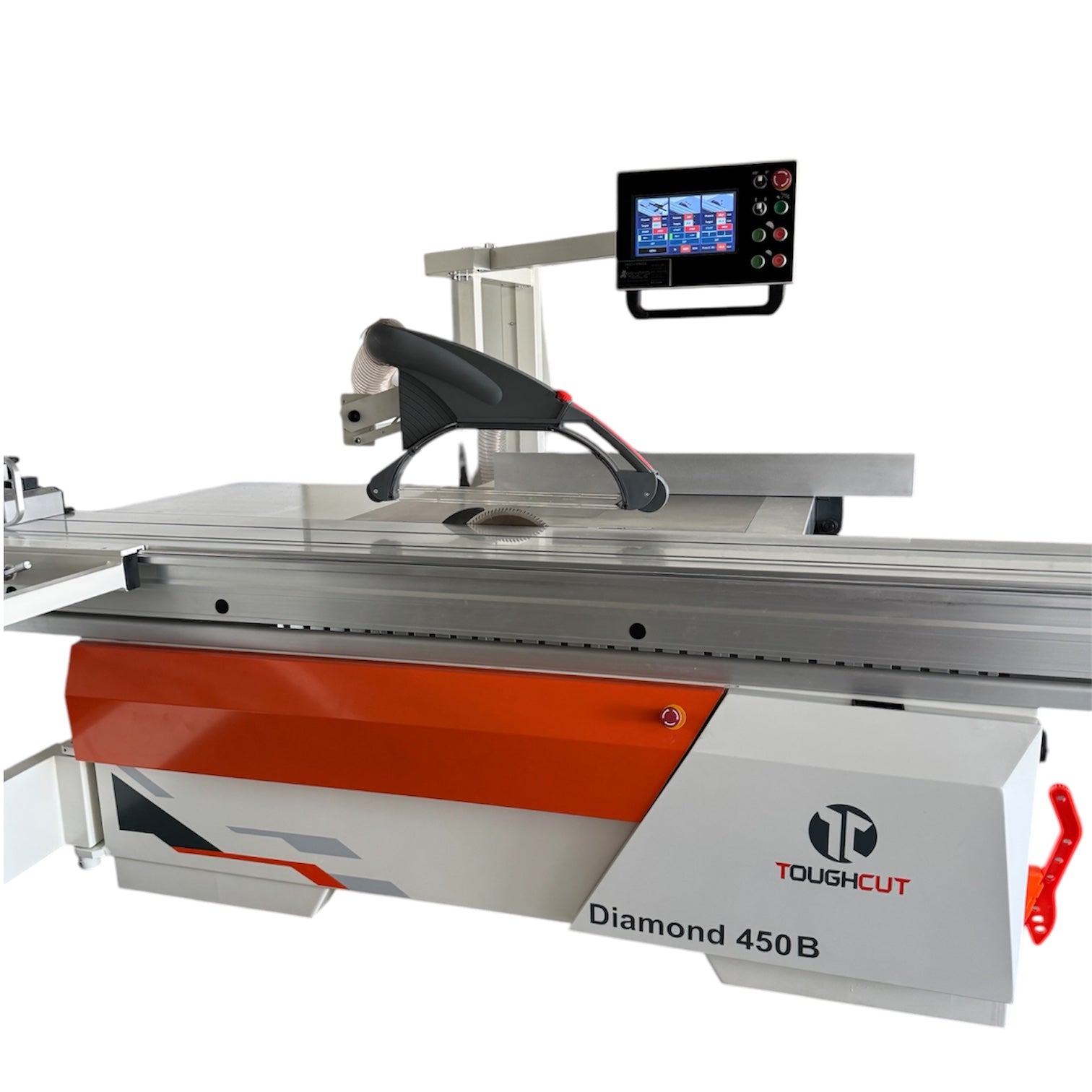

Toughcut Diamond 450B is an improved heavy-duty, professional quality panel saw ideal for any furniture manufacturing business. The perfect solution for easy and accurate cutting of panels up to 3600mm long with electric Rise/Fall/Tilt. PLC controlled Rip Fence, via fast and accurate Ball & Screw movement and three Cross Cut Stops with two Digital Readouts.
Features

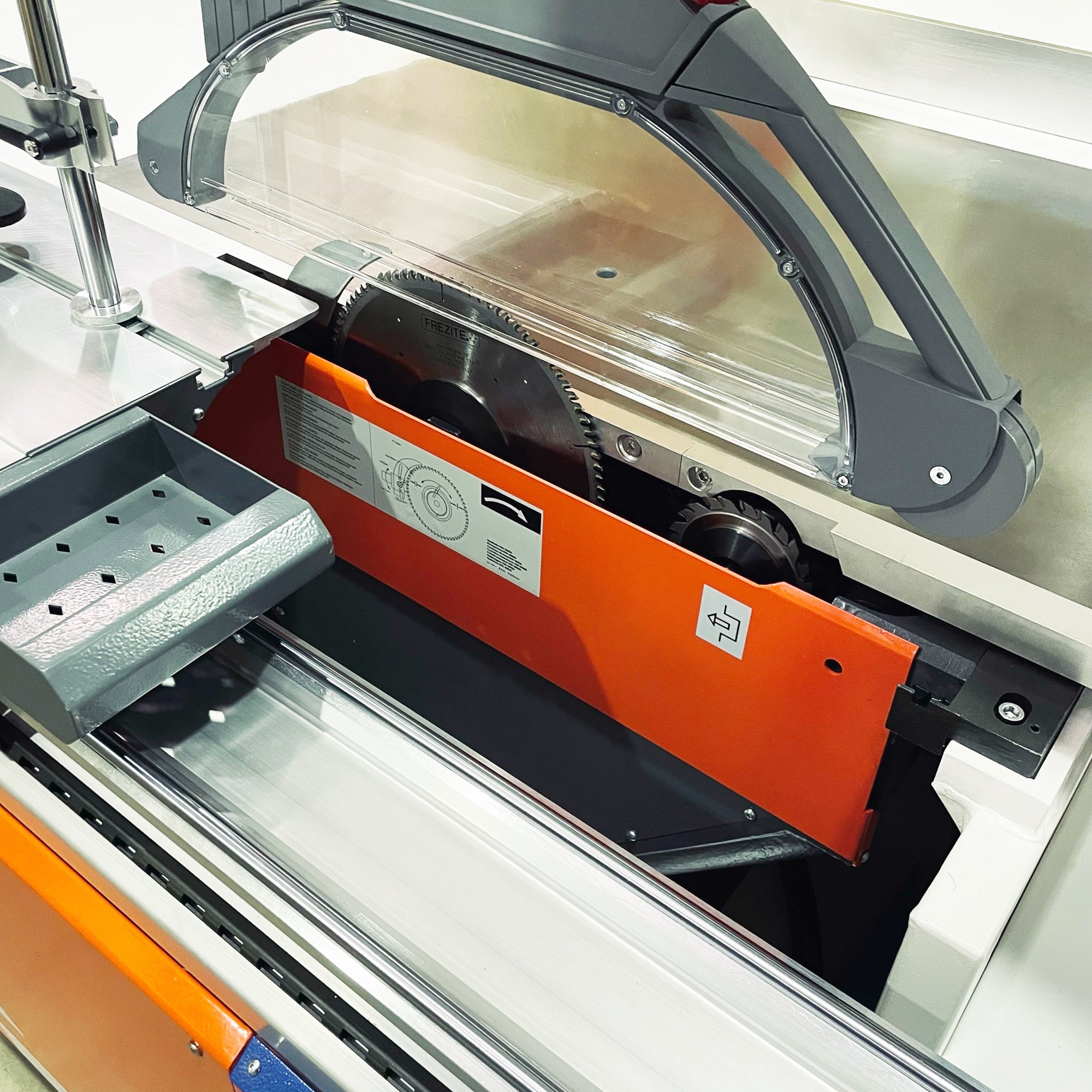

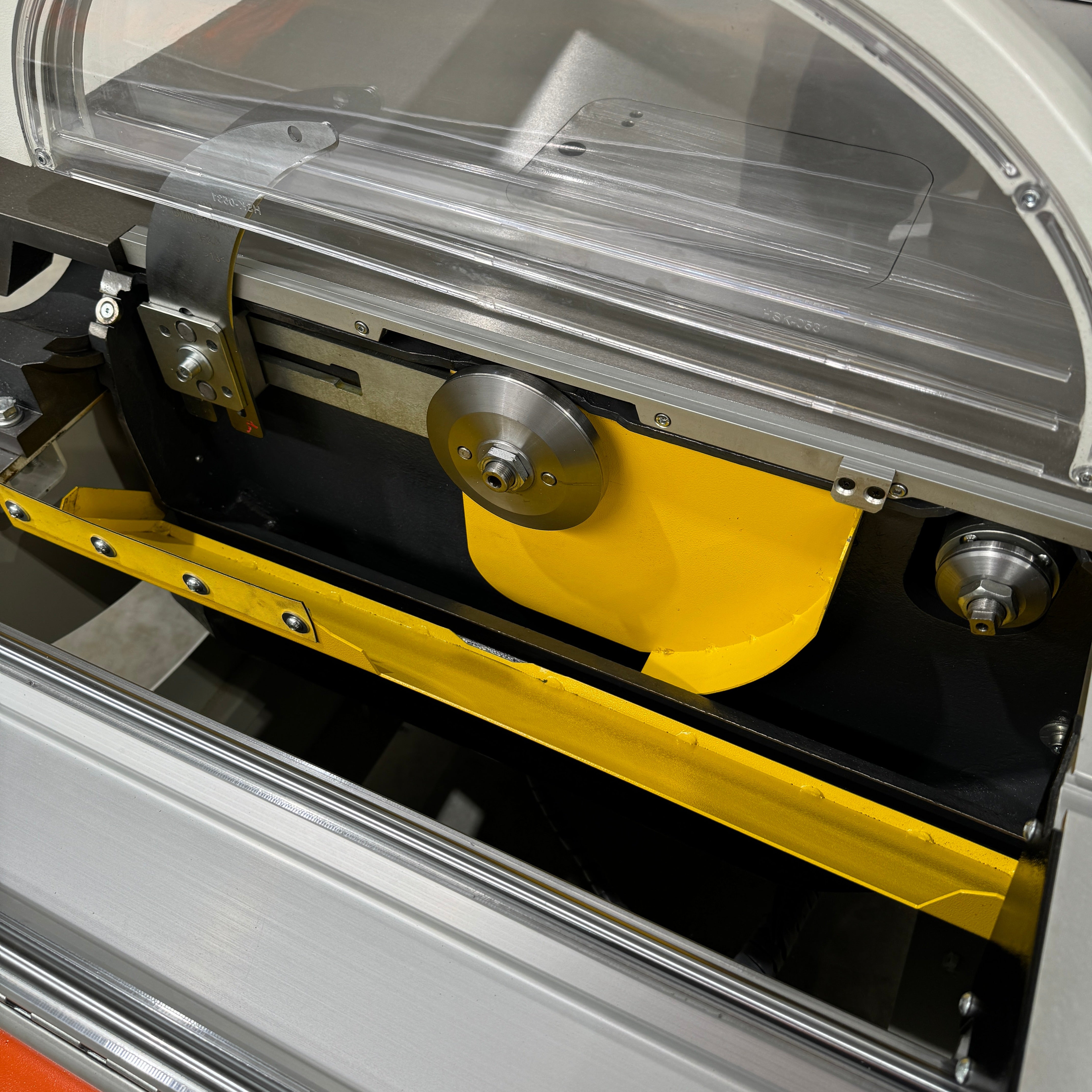

- Automatic, Electric Scribe Blade Rise and Fall - When scribe blade is turned on the blade automatically lifts to preset height. When the blade is turned off it automatically lowers out of the way.

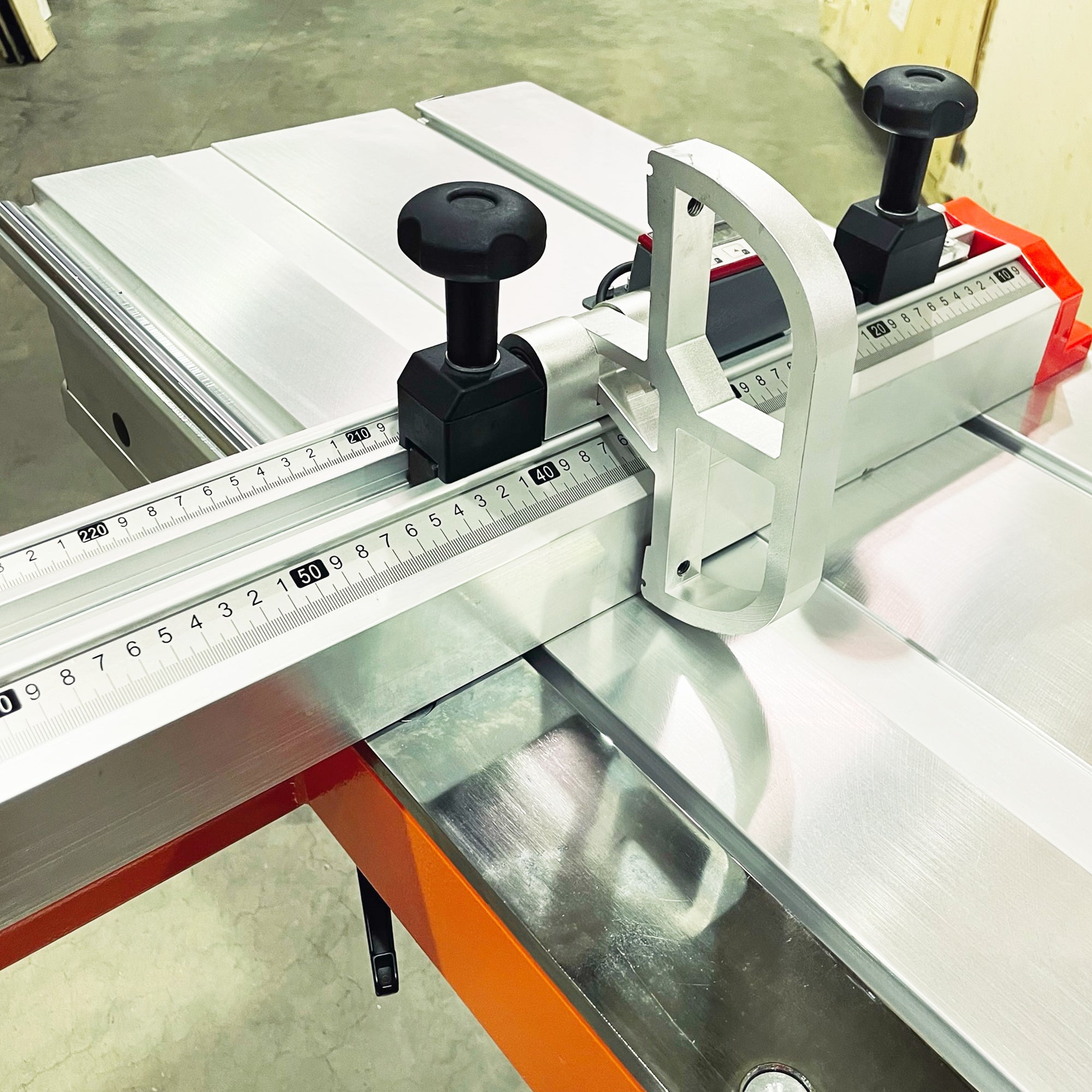

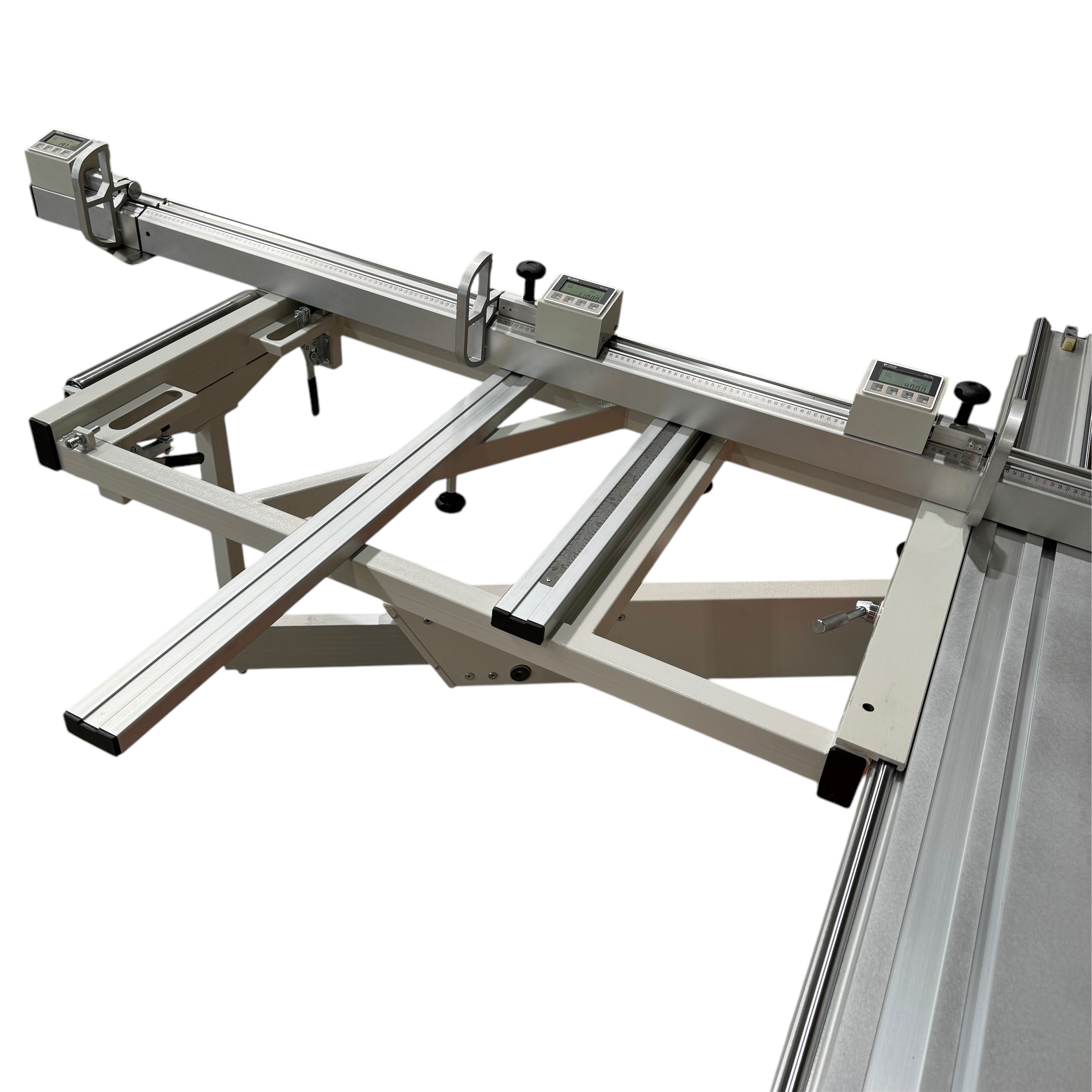

- Three Cross Cut Stops

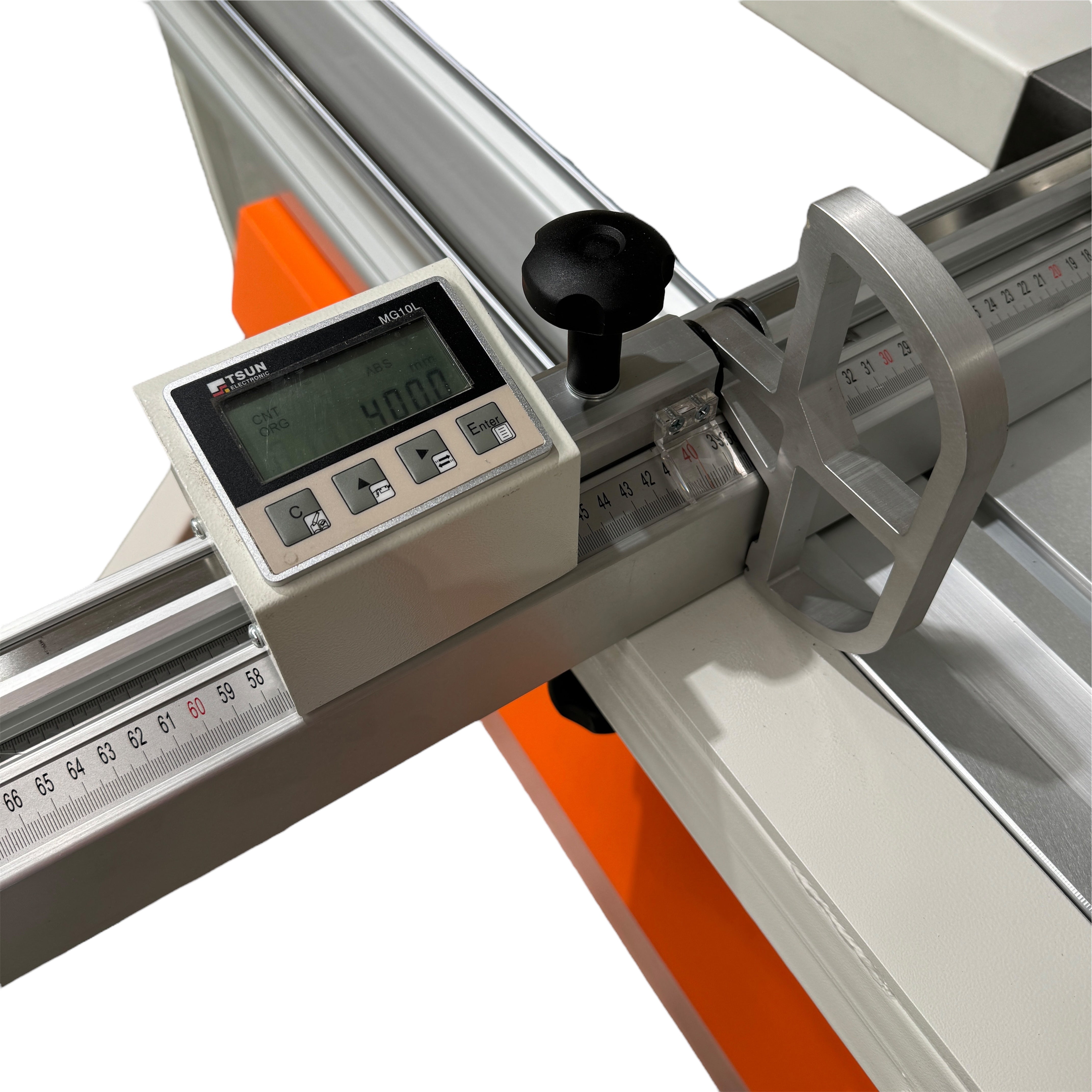

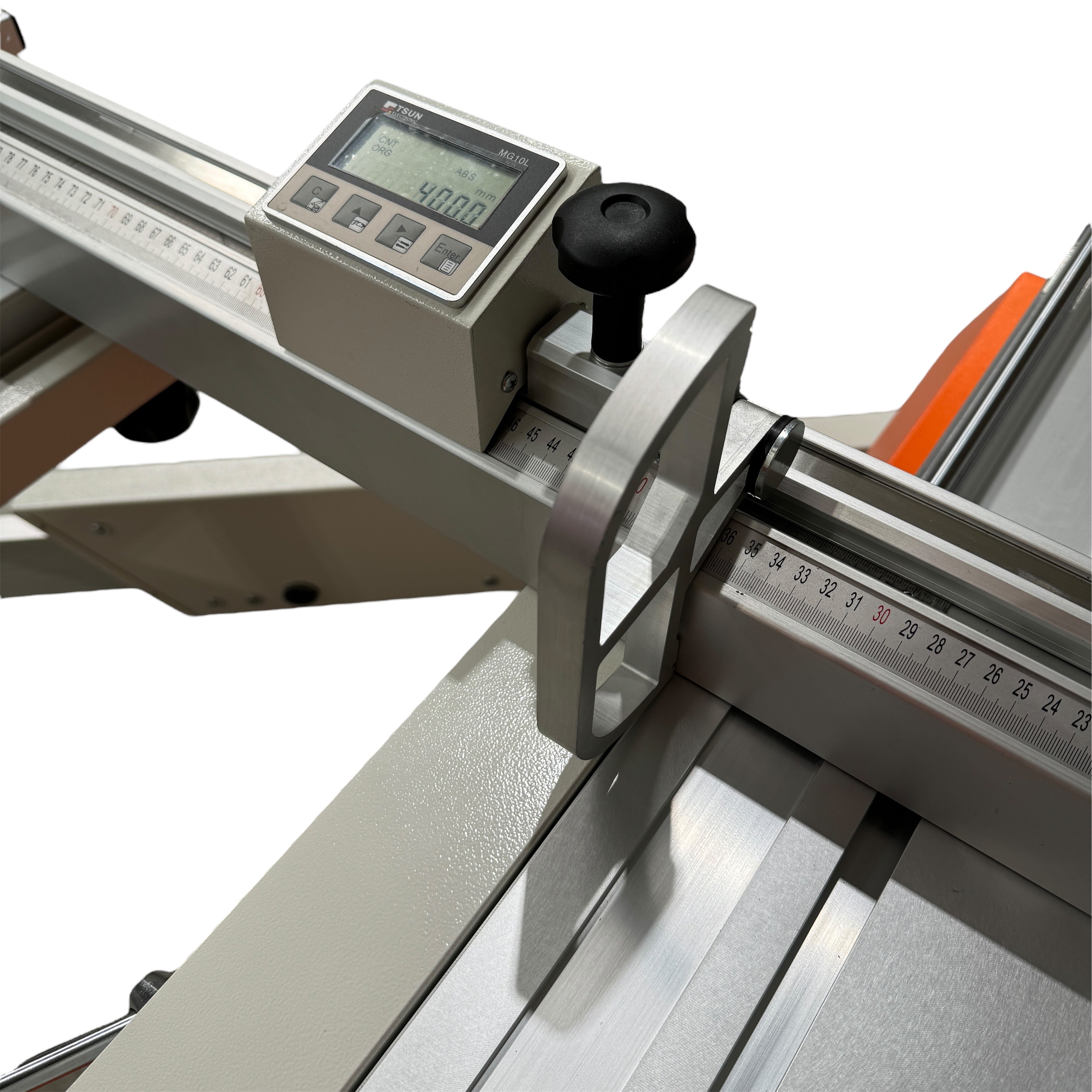

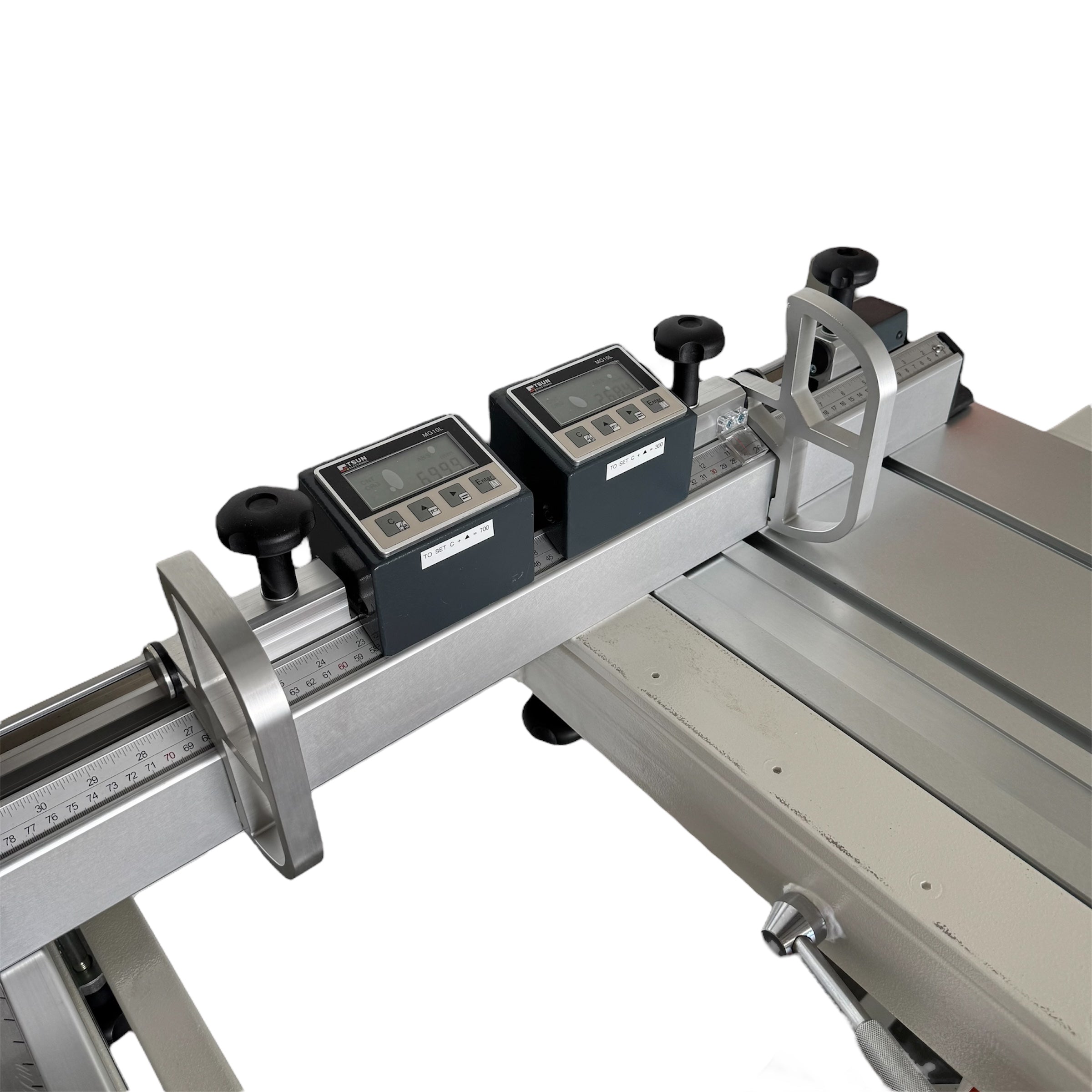

- Two Digital Displays and One Manual Display

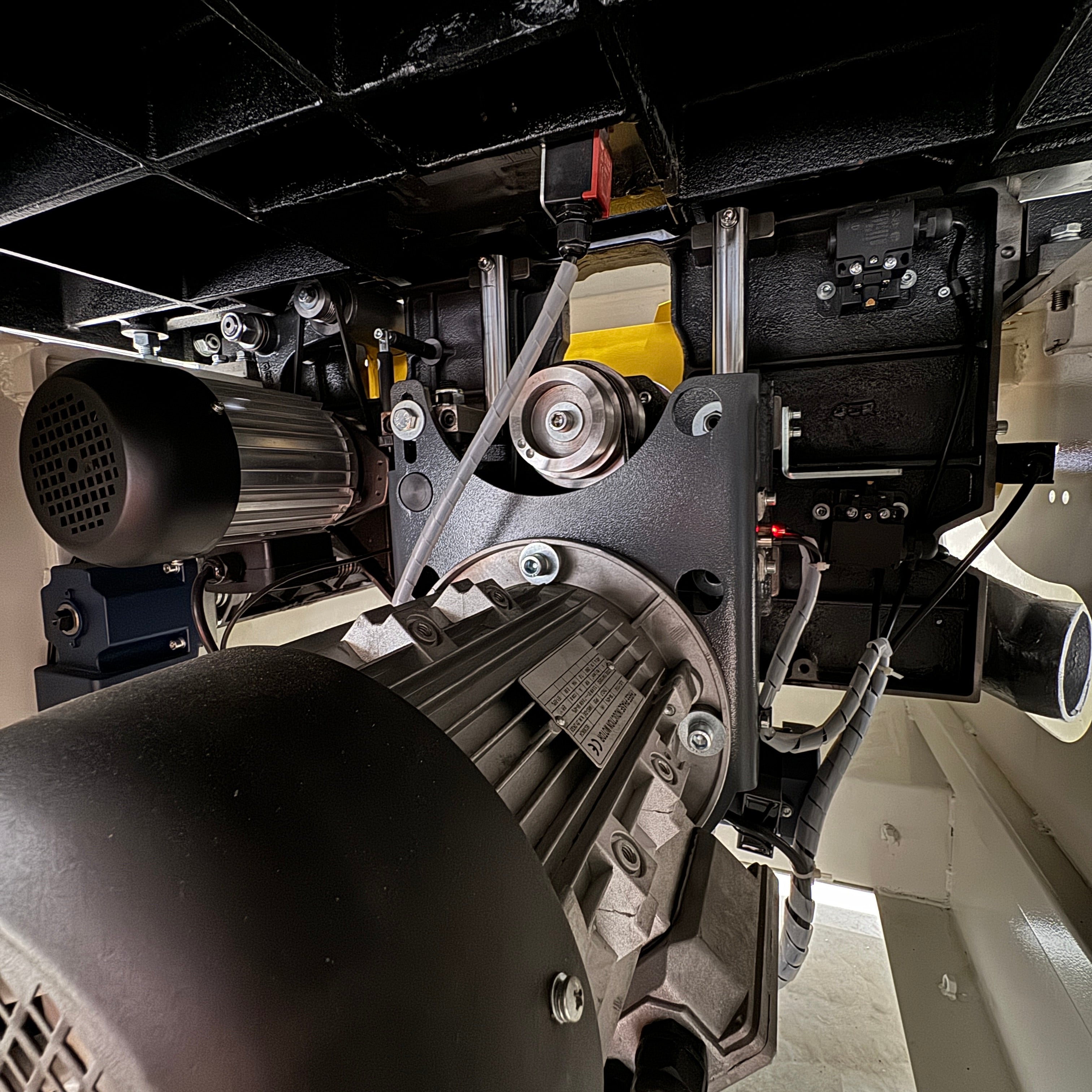

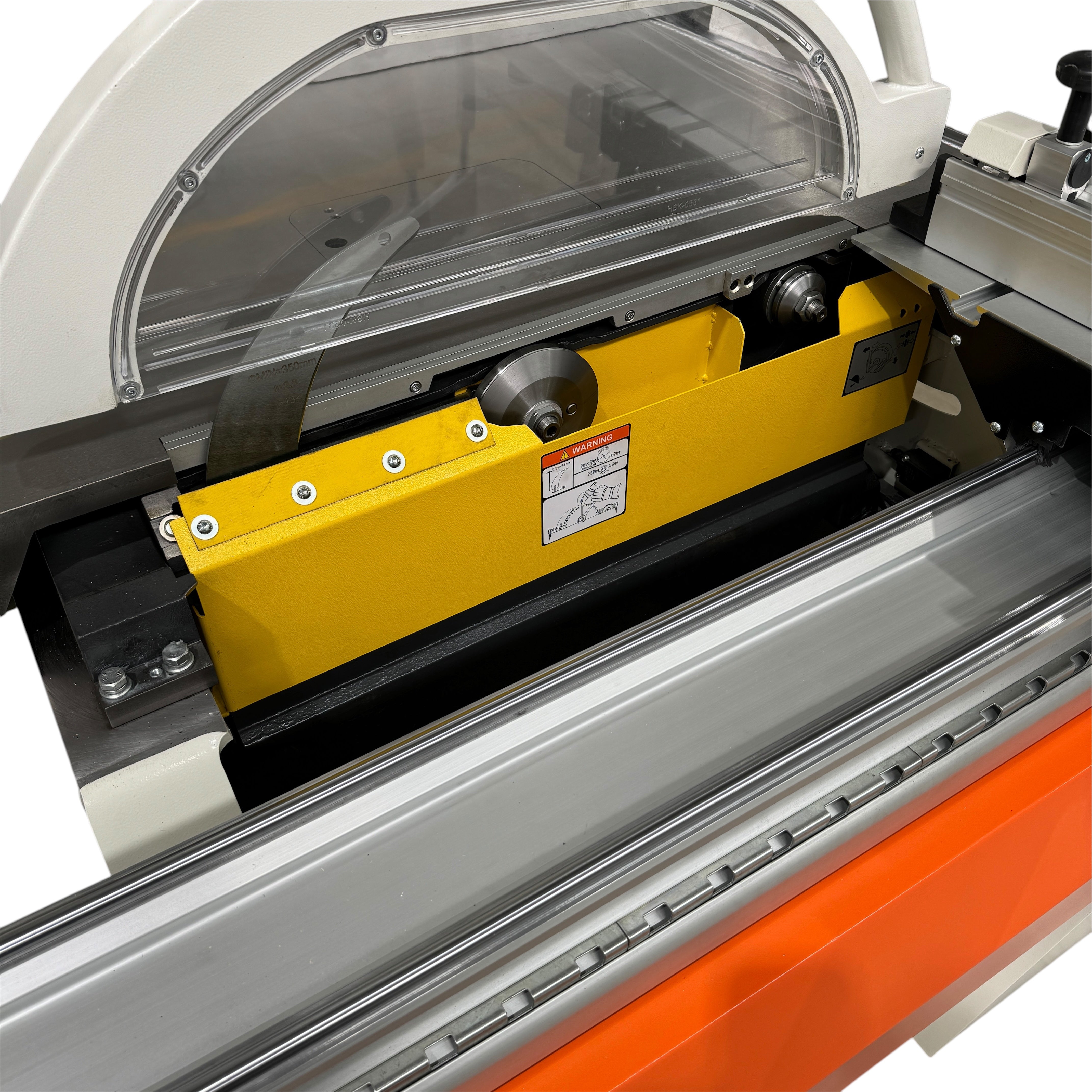

- The cast iron saw unit provides extra support and stability for reduced vibration.

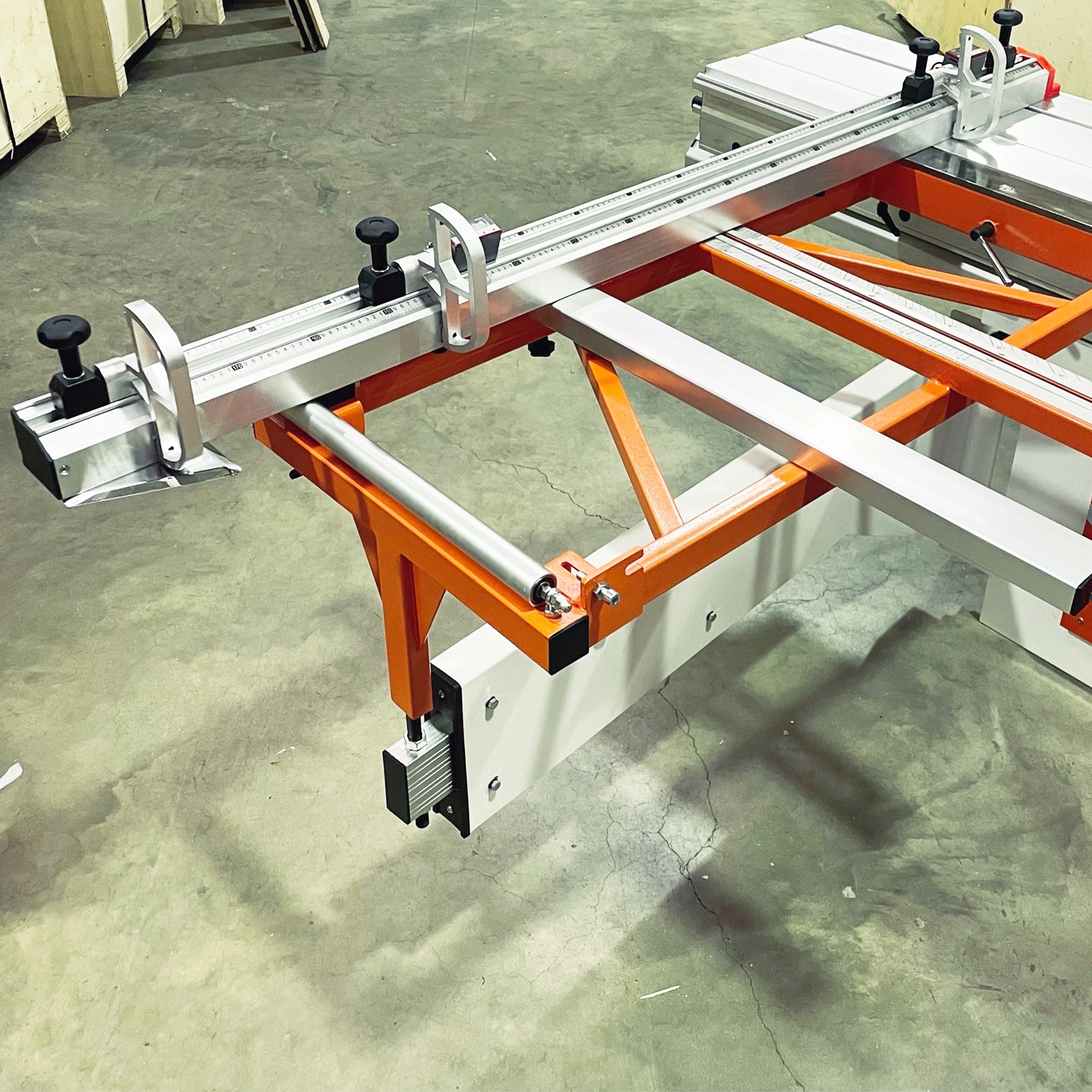

- Large section profile crosscutting fence with reversible fence stops
- The saw unit is mounted on dual vertical shafts for smooth and accurate movement.

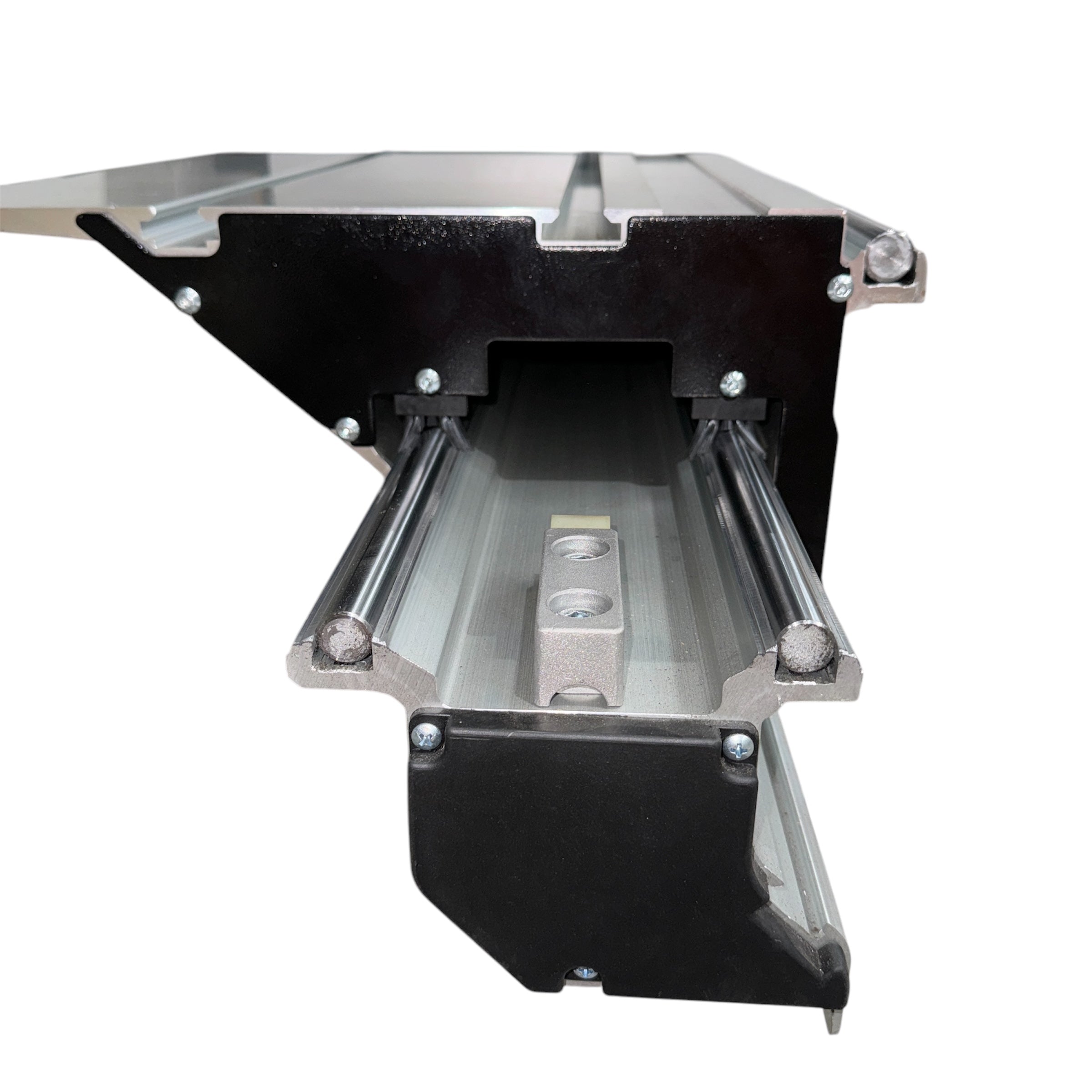

- Rolling along tempered and ground prismatic guides guarantees a smooth and precise sliding table.

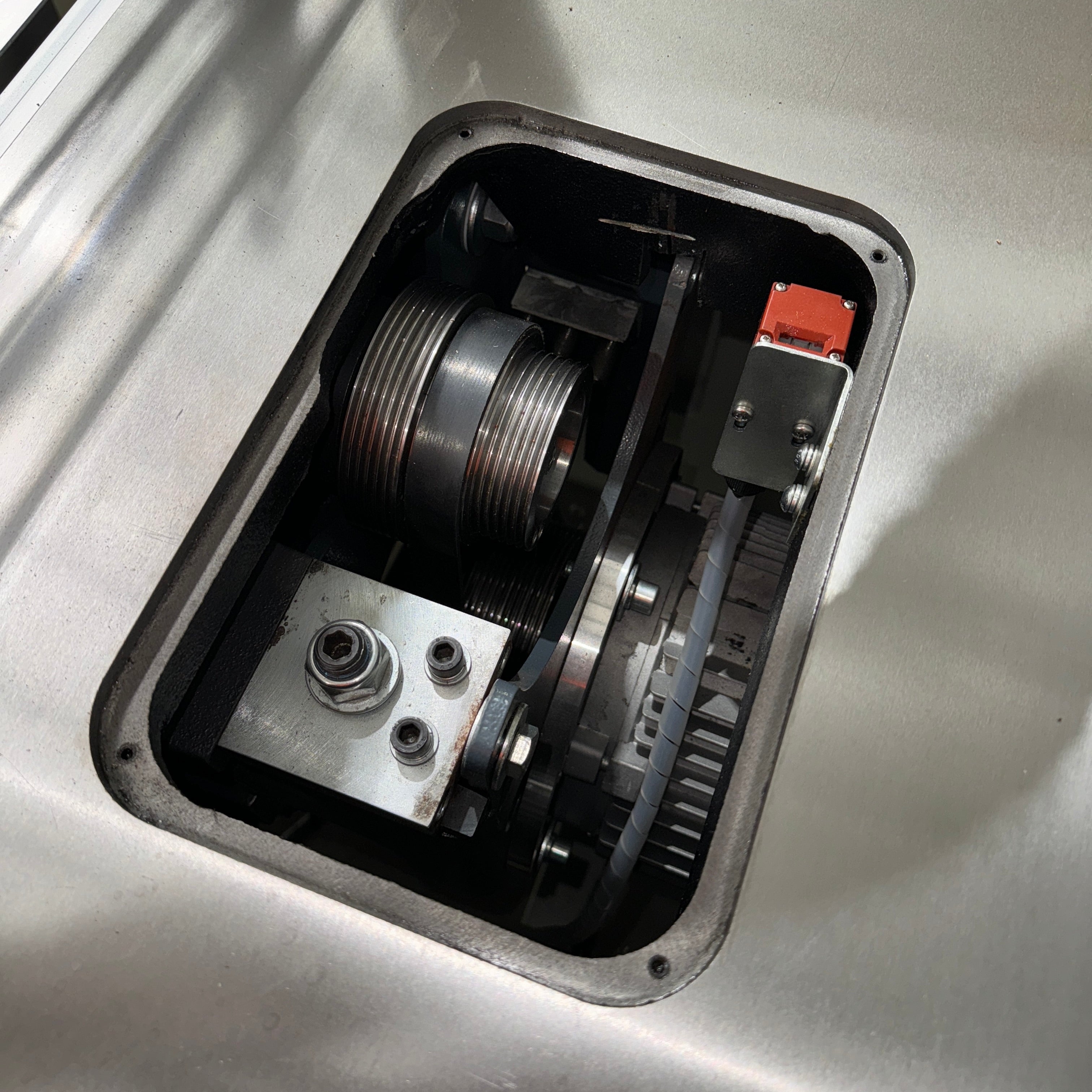

- Three-speed design suits different materials and a quick tension release handle is convenient for speed changing.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
7.5HP
Blade Type
Main Blade + Scoring Blade
Table Size
1020mm (690 + 720mm)
Technical - Saw
Sliding Table (Cross Cut) Size
3800 x 418mm
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
1250 mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
350 mm
Blade (Main) - Speed

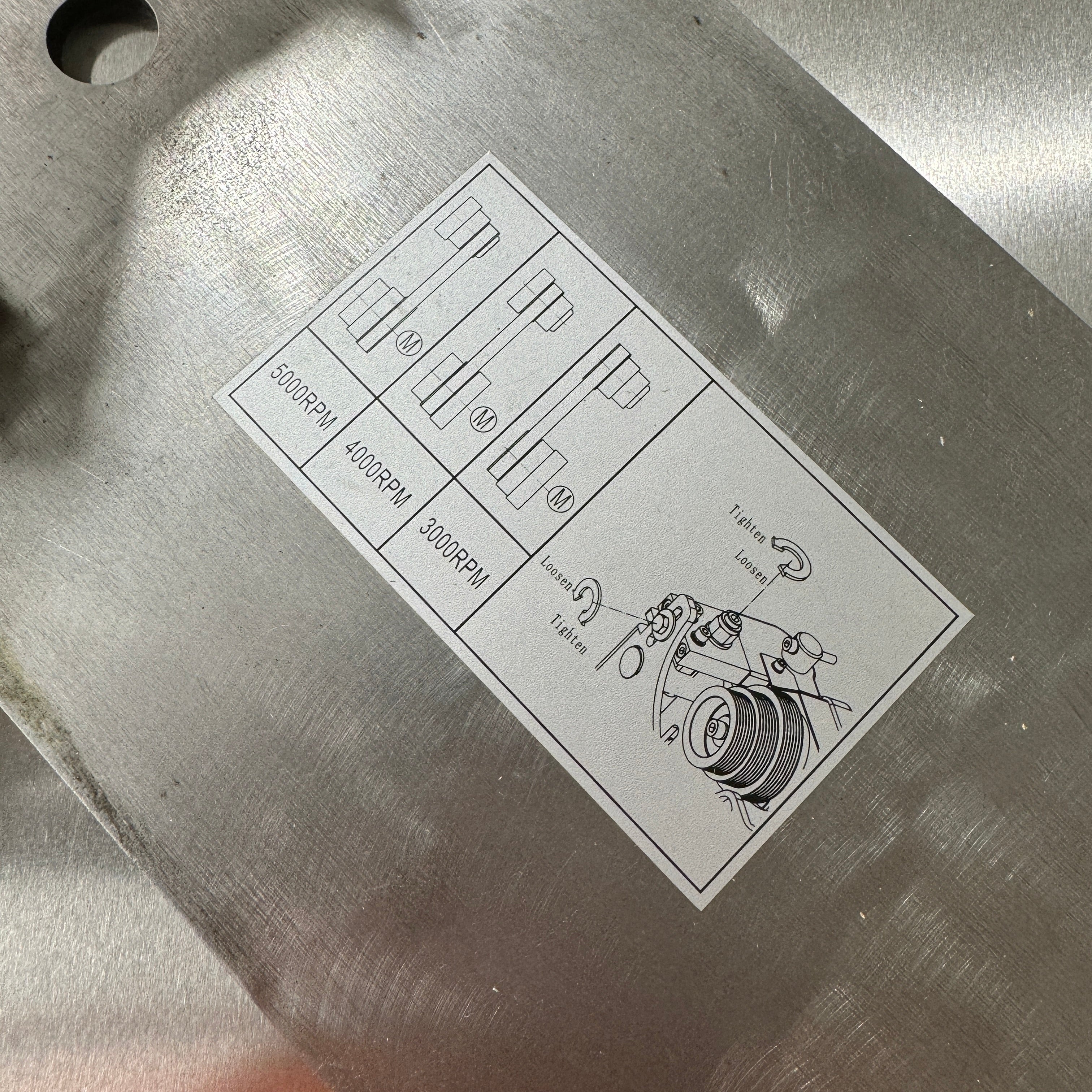

3000RPM, 4000RPM, 5000RPM
Blade (Scoring) - Diameter (Max.)
120 mm
Blade (Scoring) - Bore Size
20 mm
Blade (Scoring) - Speed
8000RPM
Blade Tilt
0-45°

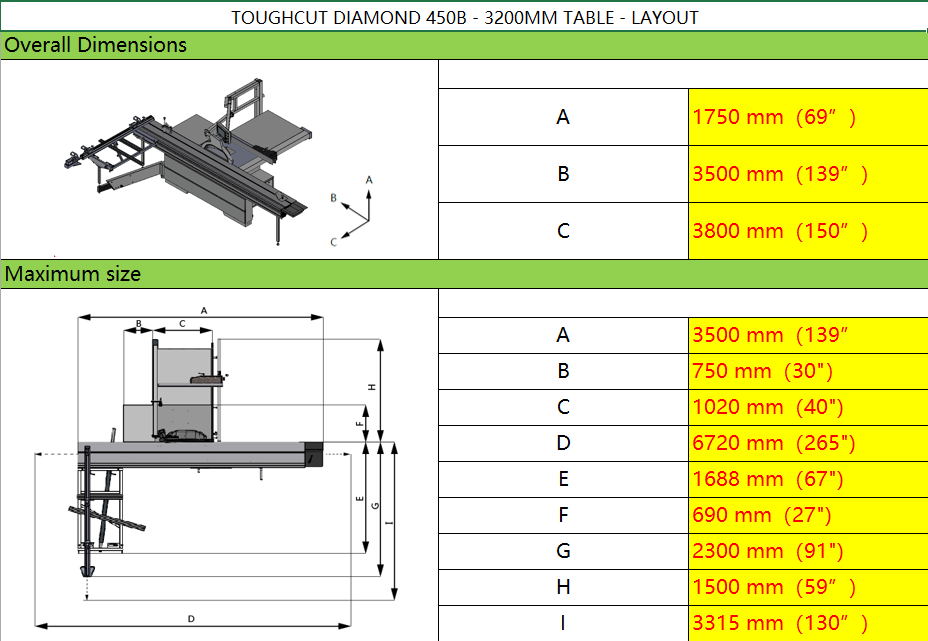

Dimensions
Product Weight (Net Weight)
760 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Variable Speed
Variable Speed
Variable speed motors generally start a motor at zero voltage and ramp it up slowly. This minimises the power needed to set the mechanism into operation, which in turn reduces the wear and tear on the motor. Variable speed also enables equipment to have precise speed control.
Push Stick Included
Blade - Automatic Scribe Rise and Lower
Blade - Electric Tilt
CNC Controlled Rip Fence
CNC Optimisation Software
Not Included

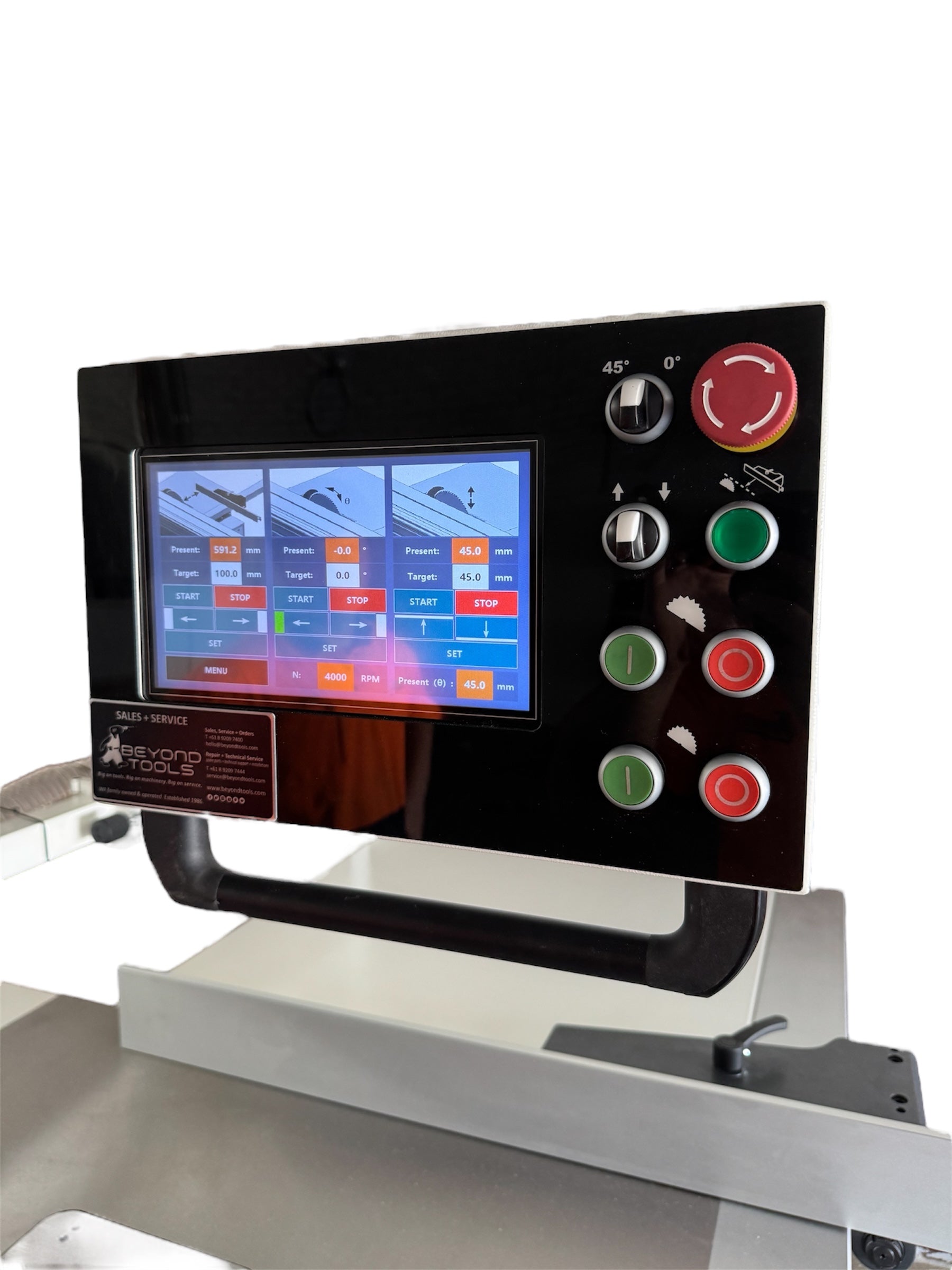

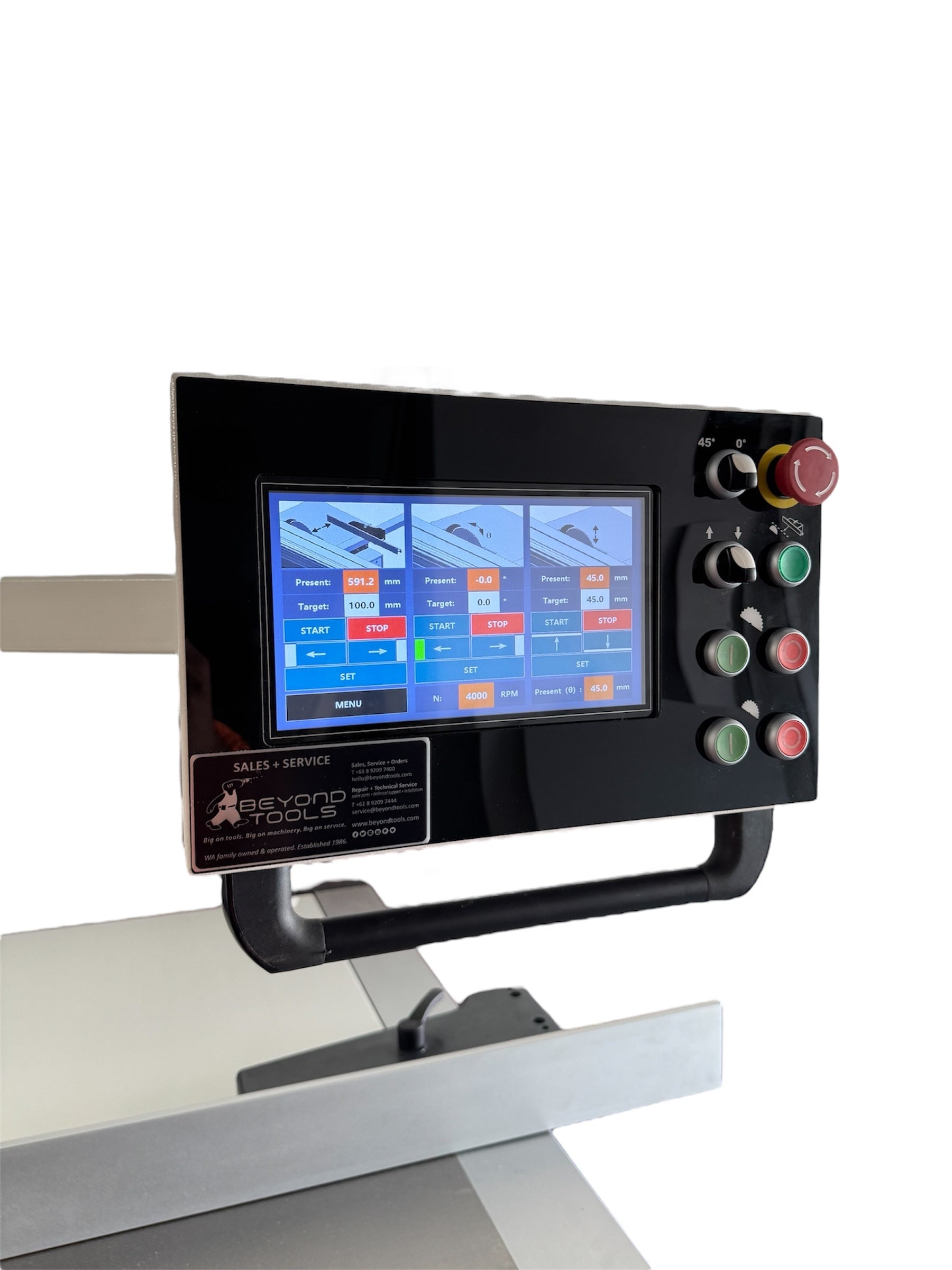

Digital Touch Screen Panel
Digital Readout on Rip Fence
Standard Inclusions
Angle Cutting Device + Digital Fence
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Rear Door Motor Brake
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.

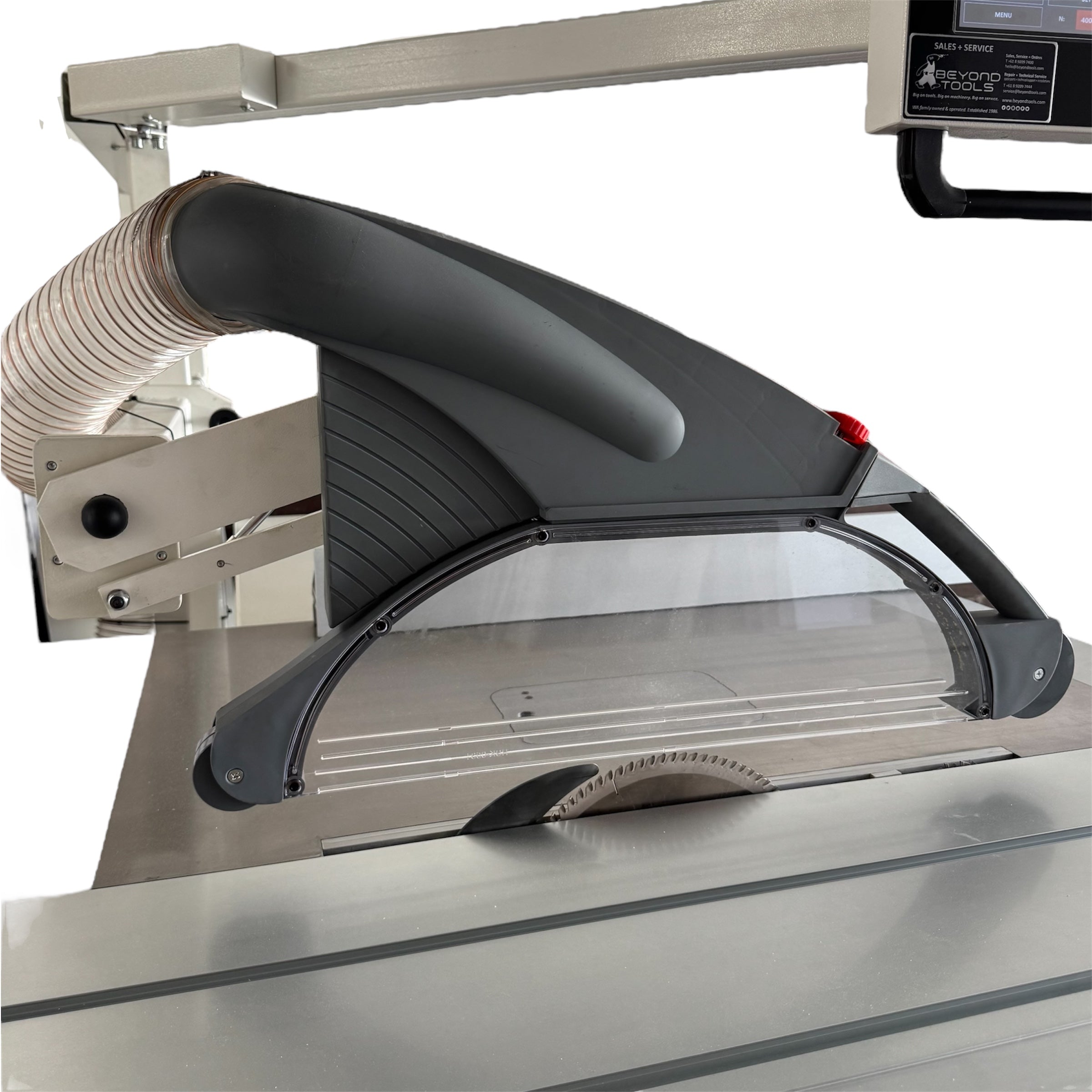

Blade Guard
CE Certified
Dust Port
1 x 100mm, 1 x 80mm
Electric Motor Brake
Electric Motor Brake
An electric motor brake is a safety feature incorporated into many modern power tools, such as circular saws, drills, panel saws and mitre saws.
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician) - 20A 5 Pin Supply Required
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
800.48 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
2.35m x 2.2m x 1.25mH (1290Kg) MACHINE BODY
Carton 2 (L X W X H x KG)
3.45m x 0.54m x 0.34m (190Kg) SLIDING TABLE
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
