Type
Panel Saw
SKU
9000603
Part Number
SEGA350/415V/3.8M
Brand
Sicar
Size
350mm (14") 3.8m Sliding Table
Status
Available
Description
FEatures:
Specifications:-
- Main Blade Diameter φ350 x φ30mm
- Main Blade Speed 4000 RPM

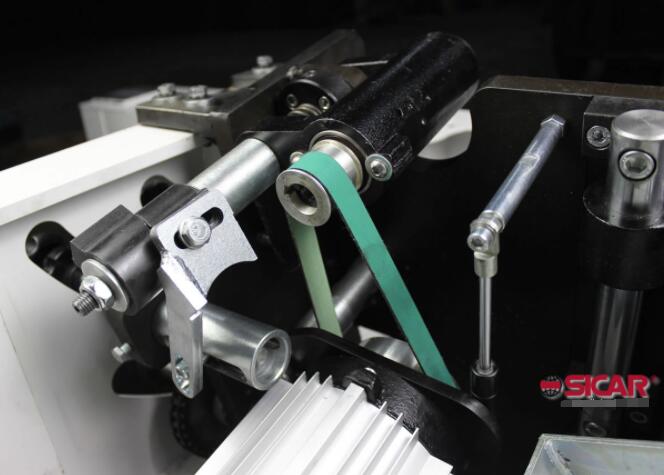

- Scoring Blade Diameter φ120 x φ22mm
- Scoring Blade Speed 8000mm
- Mαx Depth of Cut @ 45 ° 92mm
- Max Depth of Cut @ 90 ° 120mm
- Max Rip Capacity 1250mm
- Main Table Size 910x550mm
- Main extend Table Size 910x760mm
- Side extend Table Size 500x550mm
- Dust Extraction Outlet φ120mm
- Main Blade Motor Output 7.5HP
- Scoring Blade Motor Output 0.75KW 1HP
- Net/Gross Weight 610/710KG
- Mαin Package 2220×1030×1150mm
- Sliding Beam Size(W.x L.) 3560×420×210mm
- CE Style Overhead Guard Included
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Blade - Electric Rise / Fall
No
Cut Max. Depth @ 45°
92mm
Cut Max. Depth @ 90°
120mm
Rip Capacity
1250mm
Technical - Saw

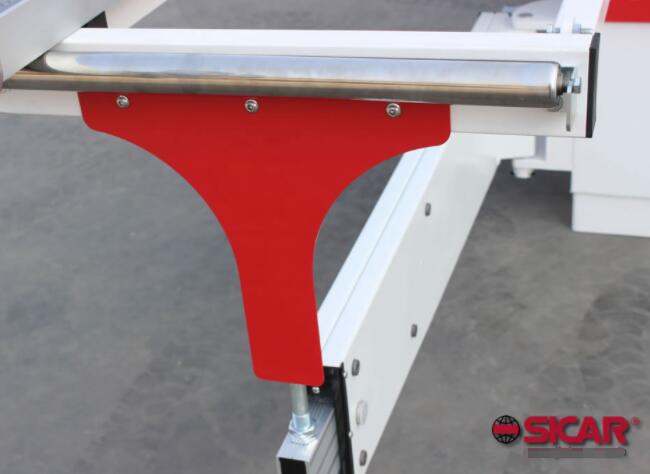

Sliding Table (Cross Cut) Size
3800mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
350 mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
120 mm
Blade (Scoring) - Speed
8000RPM
Blade Tilt
0-45°
Dimensions
Product Weight (Net Weight)
610 kg
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
CE Certified
Dust Port
1 x 120mm
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected by Licensed Electrician)
Workshop Requirements
Space Requirement: 6935mm x 4900mm
Packaging + Shipping
Shipping Weight (Gross)
710.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
2220mm x 1030mm x 1150mm (Main Body)
Carton 2 (L X W X H x KG)
3560mm x 420mm x 210mm (Sliding Table)
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
