Type
Table Saw
SKU
8001359
Part Number
CSB315
Brand
Oltre
Size
315mm (12”)
Status
Available
Description

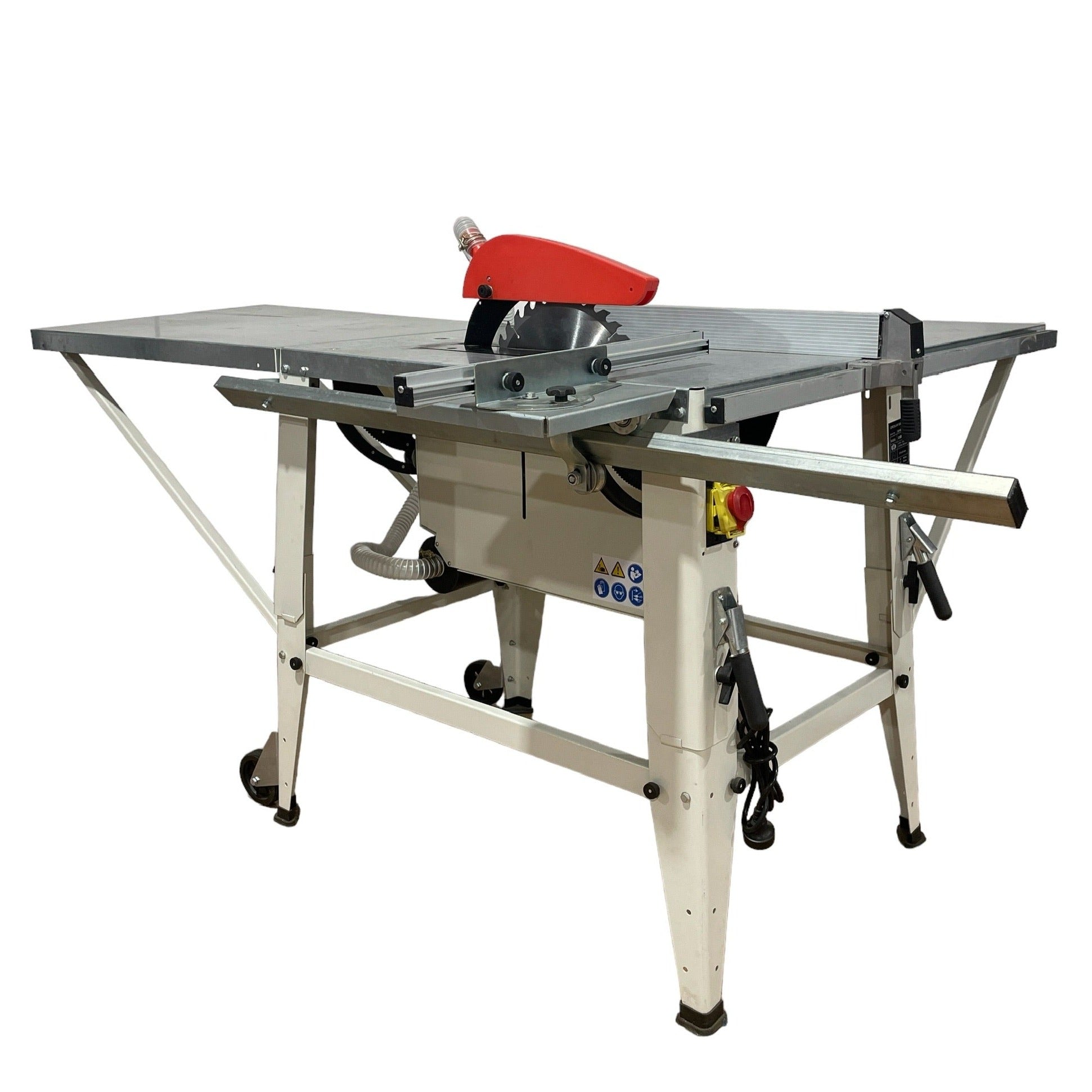

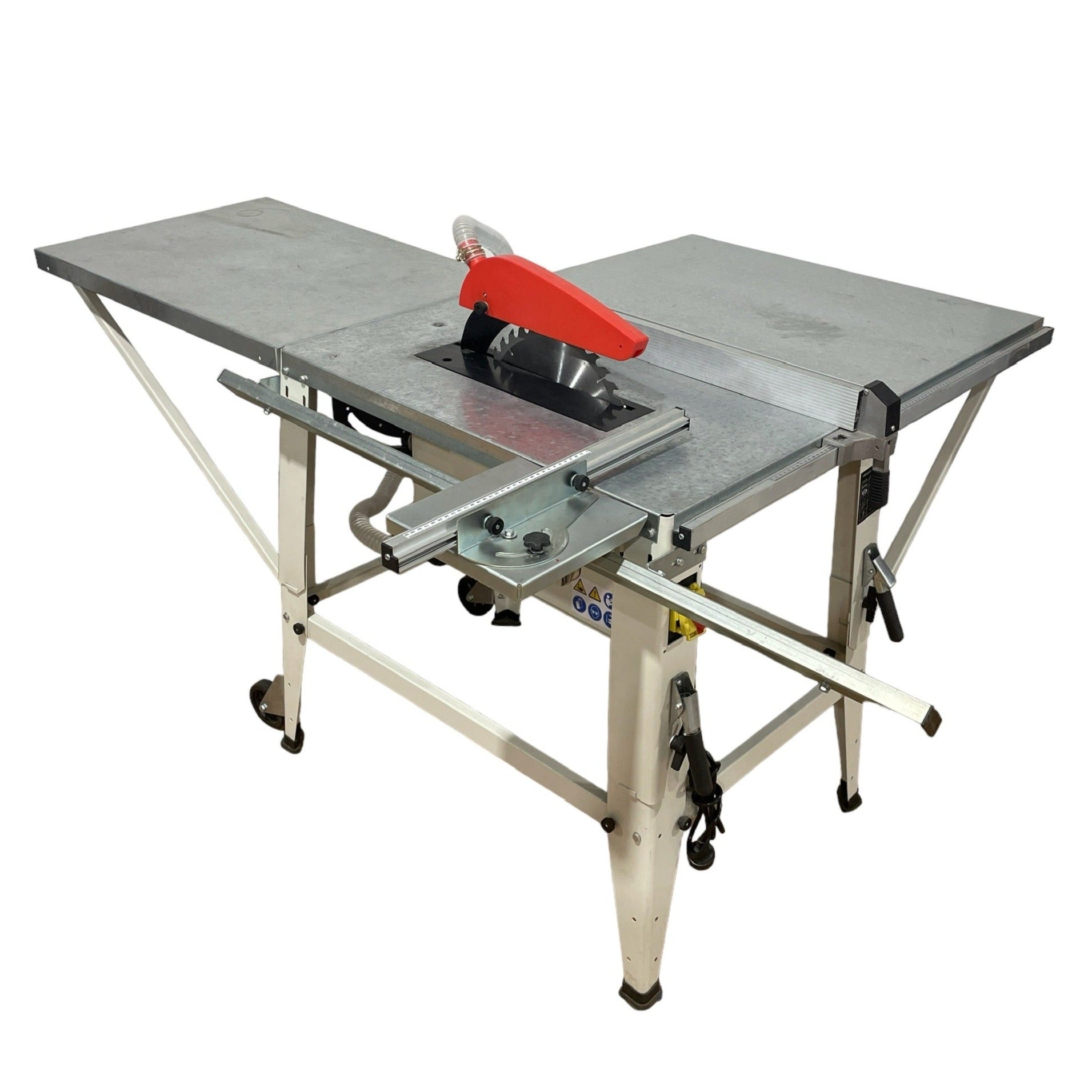

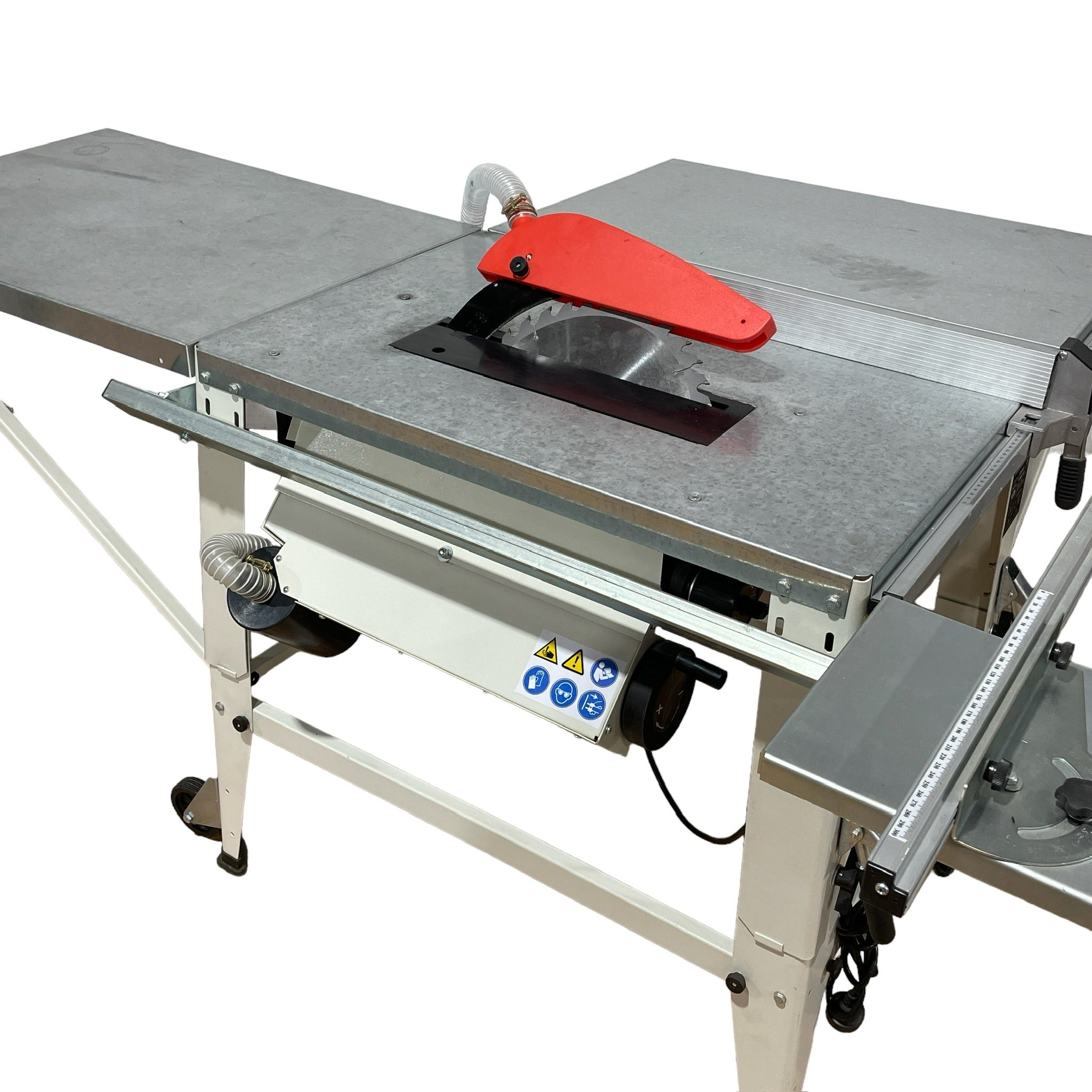

The Oltre 315mm (12") Contractors Table Saw 3HP 240V CSB315E is a lightweight, reliable tool for any workshop or for taking to the job site. It features a rack and pinion system for accurate saw blade height and tilt setting. Its extension table is mounted on both the right and rear side, offering versatility and convenience. The foldable legs make assembly and transportation easy.
Features

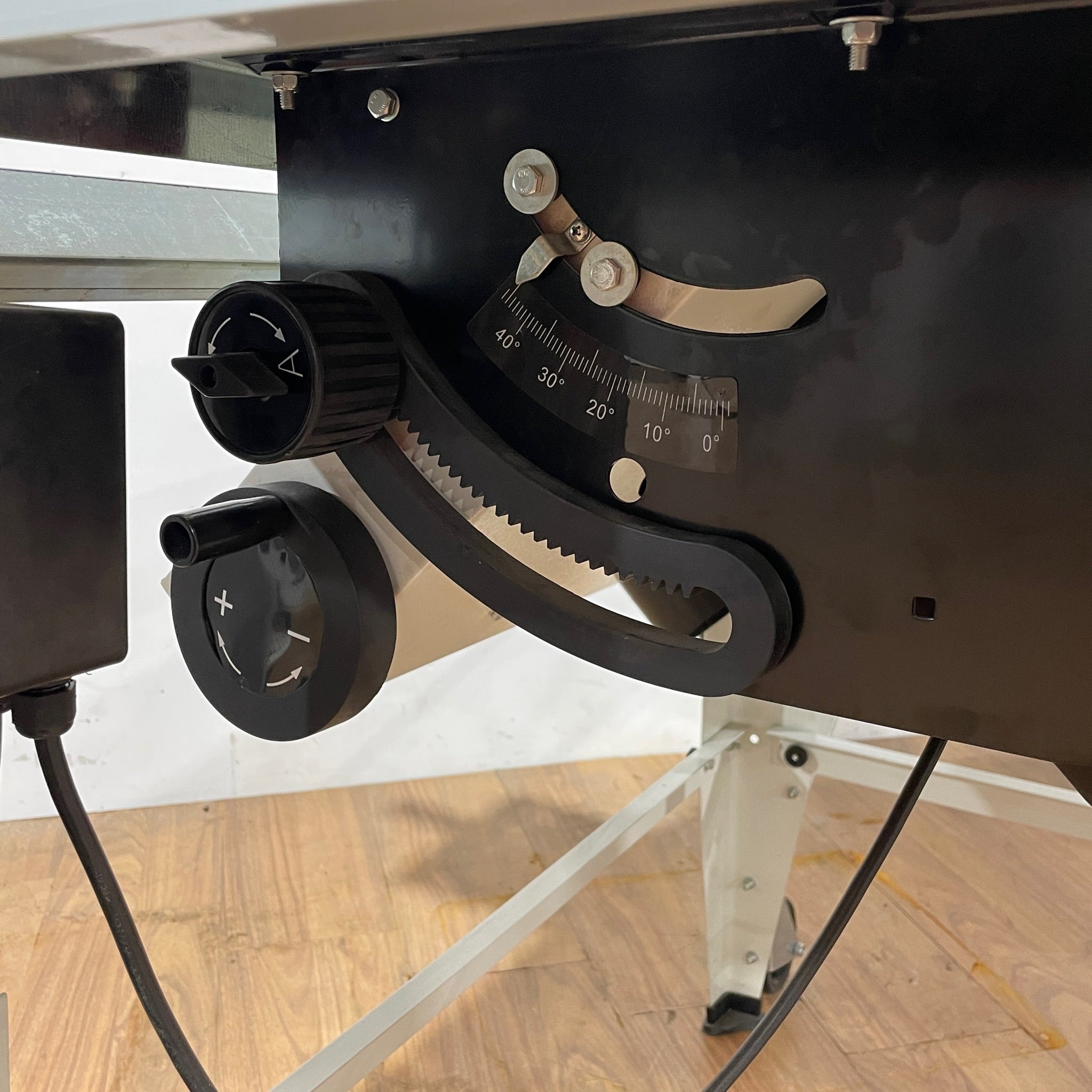

- Rack & pinion for accurate saw blade height & tilt setting

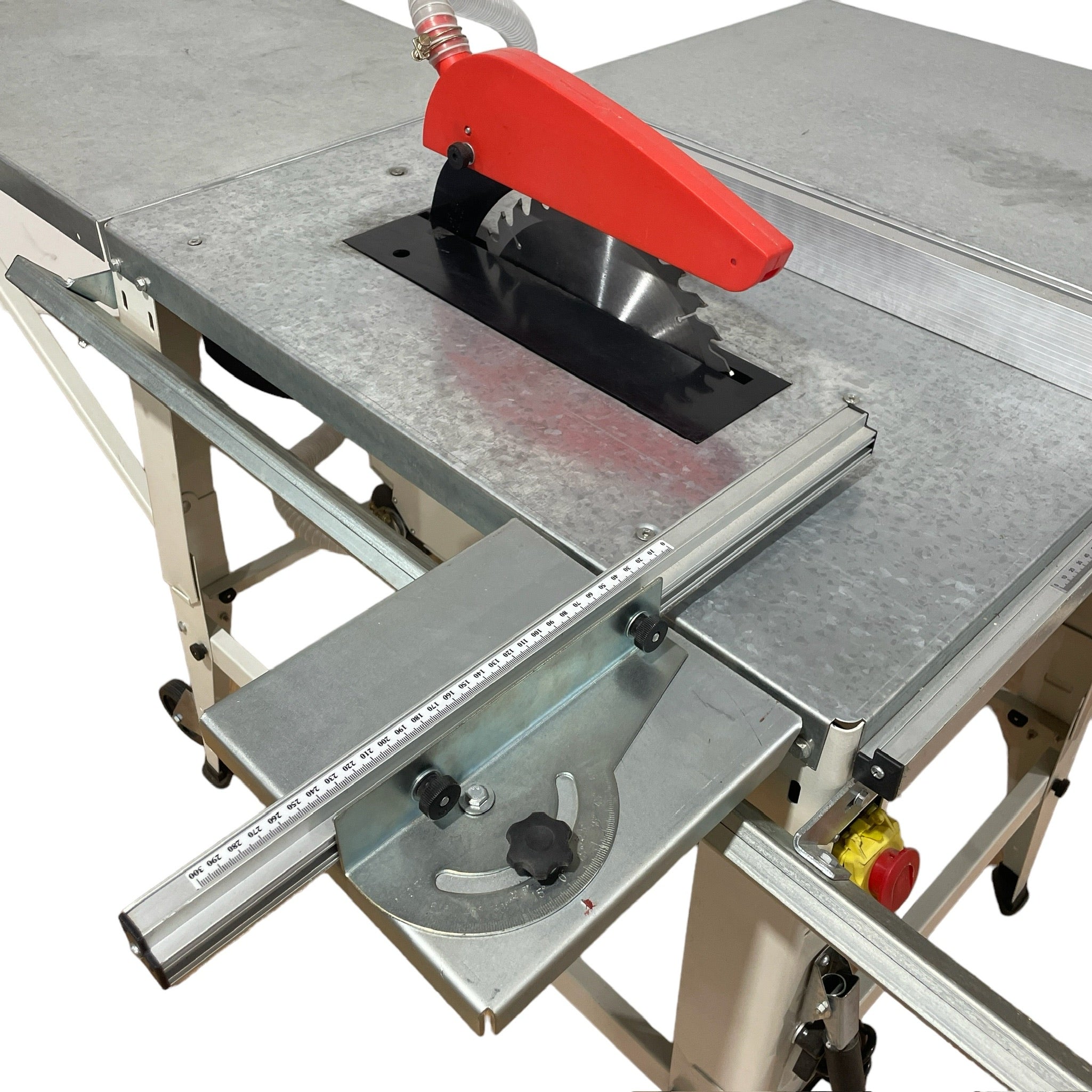

- Extension table fitted to both right side & rear side

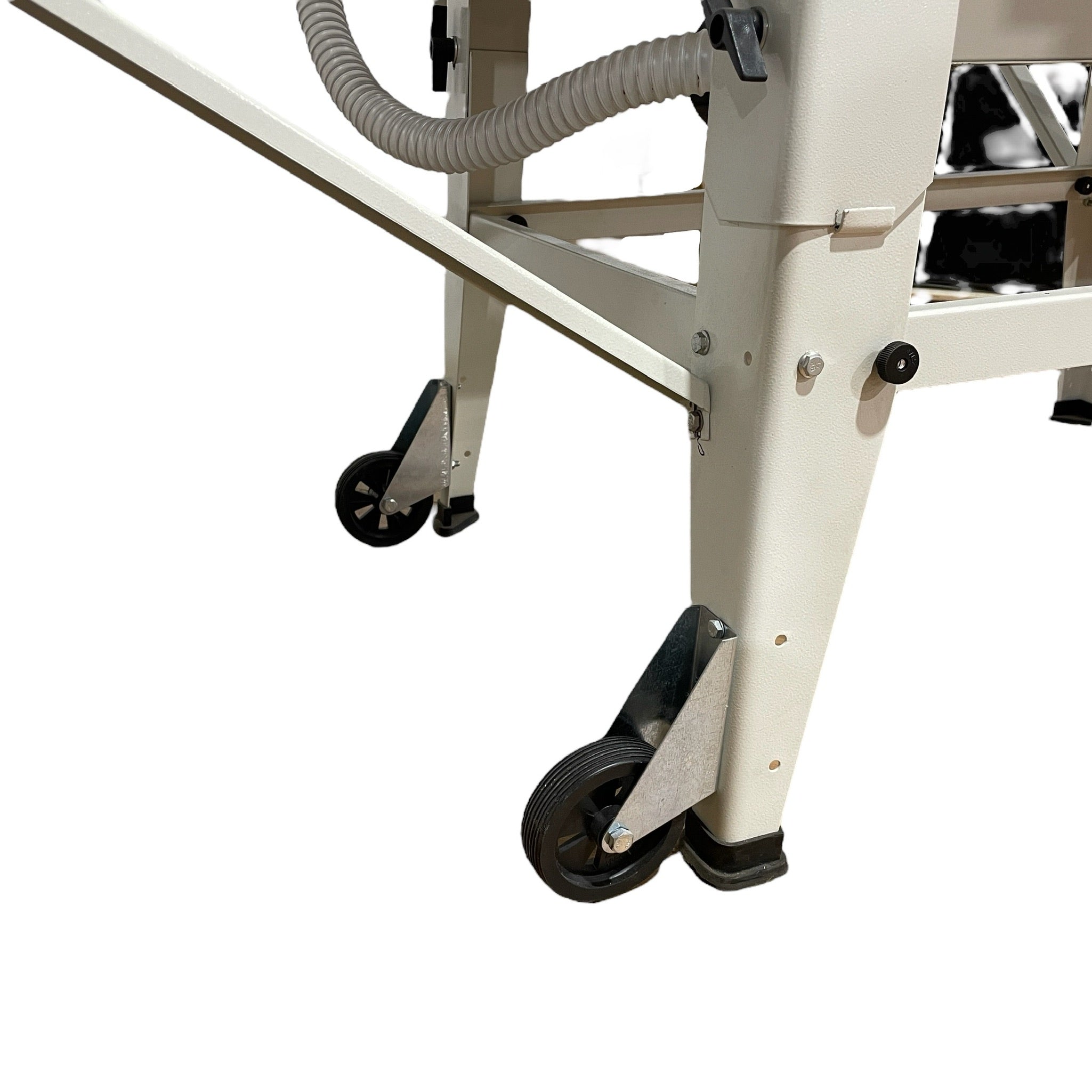

- Foldable legs for easy assembly & transportation
Additional Information

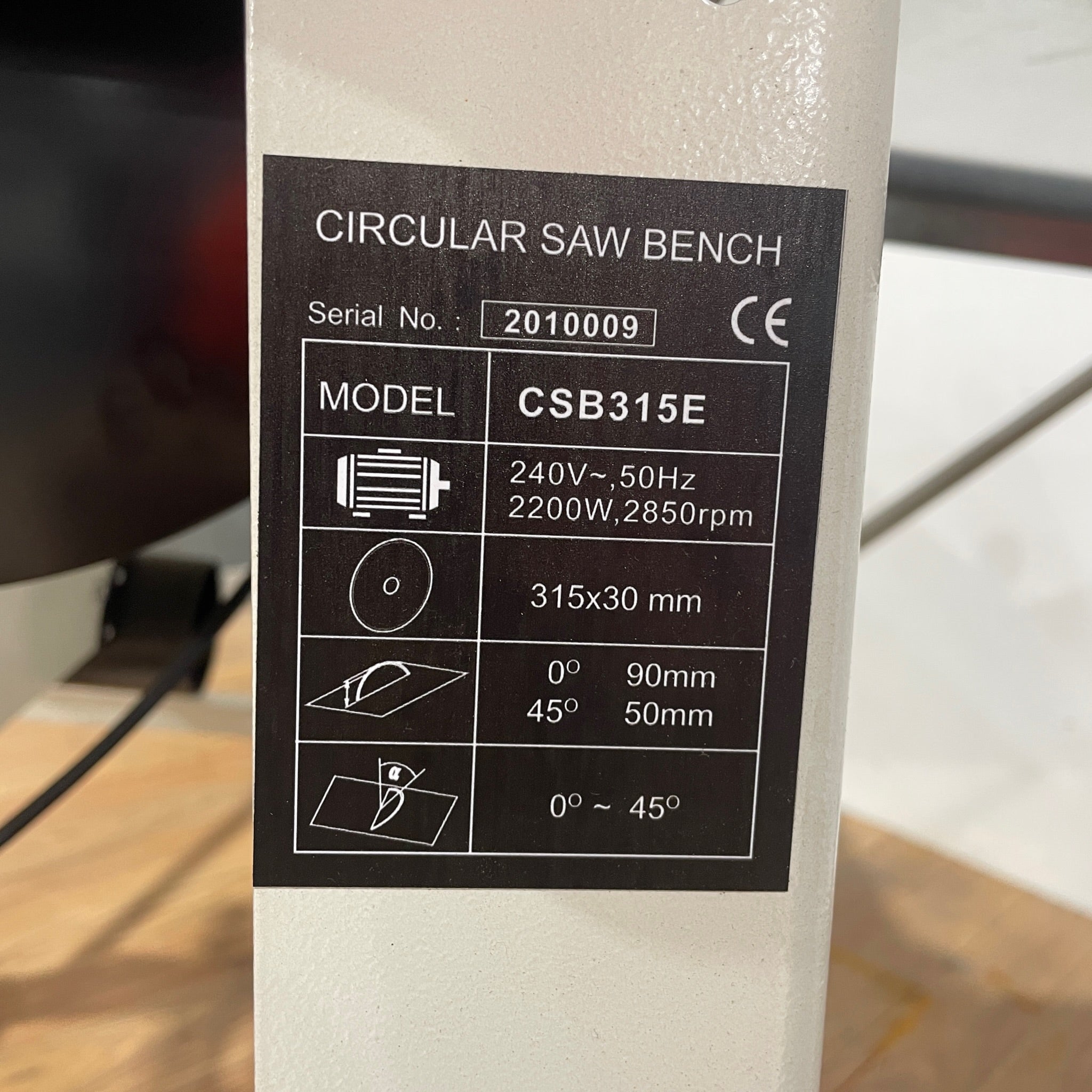

Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Cutting Capacity - Height
100 mm
Technical - Saw
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315 mm
Blade (Main) - Speed
2800RPM
Blade Tilt
0° to 45°
Dimensions
Product Weight (Net Weight)
63 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Safety

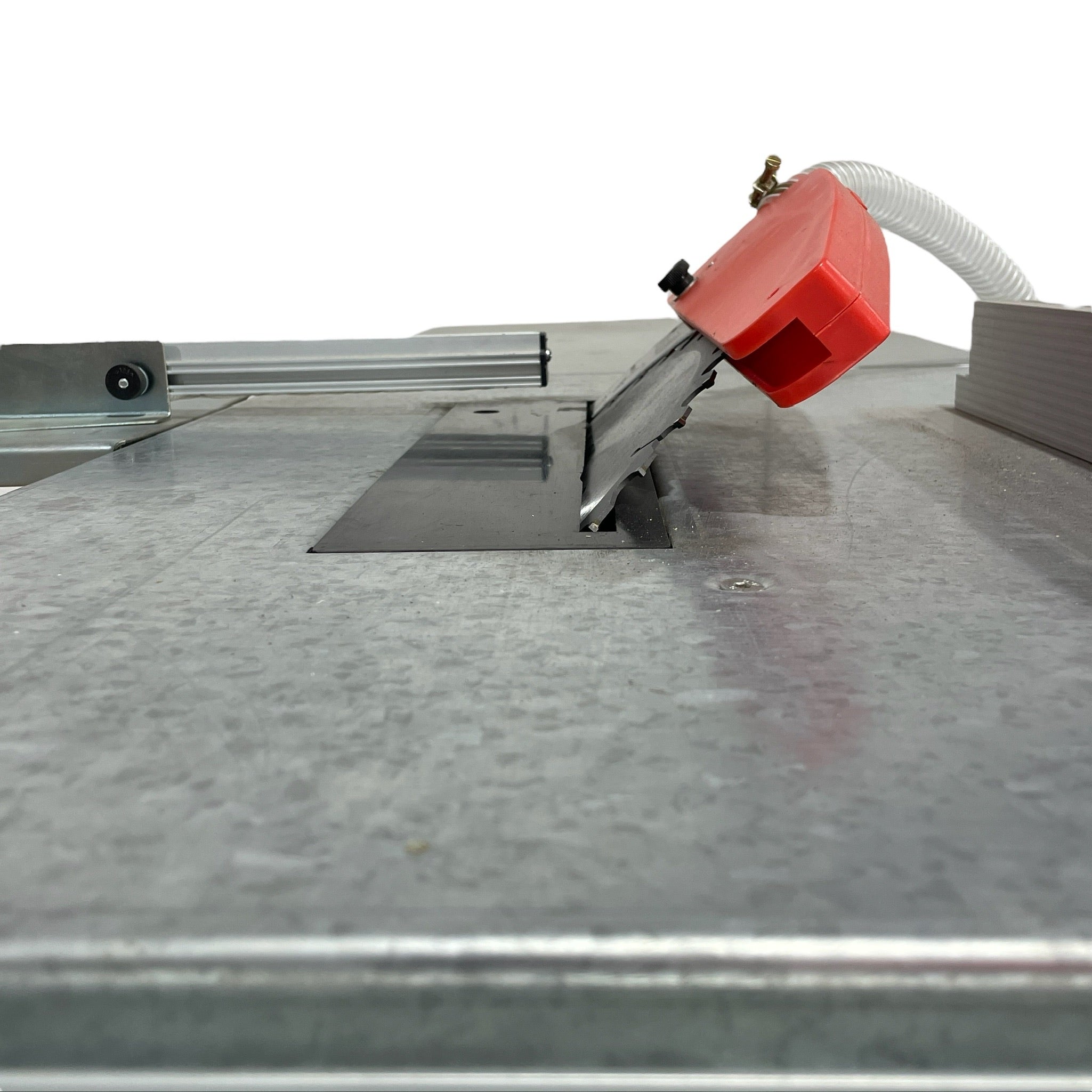

Blade Guard
Workshop (Site) Info
Electrical Connection
10Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Use
Not intended or designed for commercial use.
Packaging + Shipping
Shipping Length
128 cm
Shipping Width
66 cm
Shipping Height
61 cm
Shipping Weight (Gross)
83.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
94cm x 66cm x 47cm x 57Kg
Carton 2 (L X W X H x KG)
128cm x 24cm x 14cm x 6Kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product requires a skid / pallet / crate in order to safely transport via road (a custom price will be provided after your order is placed)
