Type

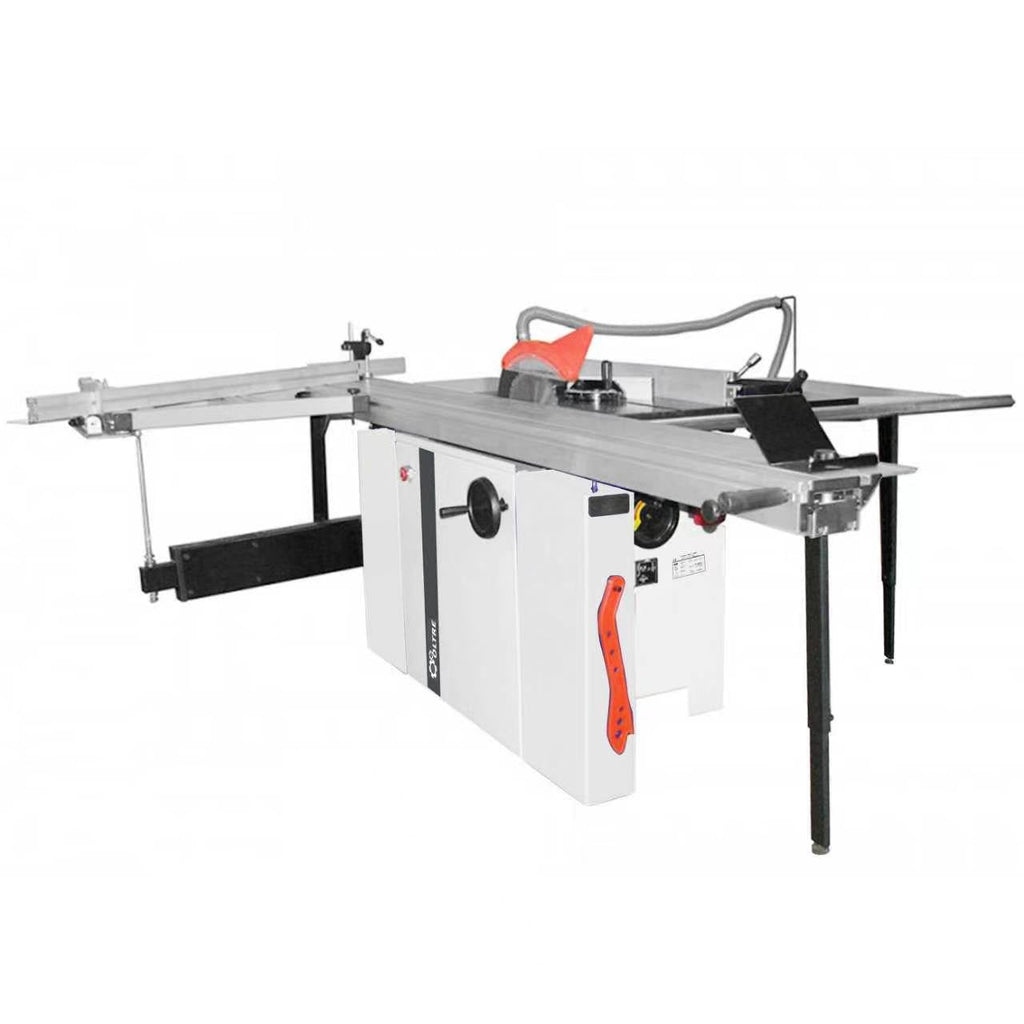

Panel Saw
SKU
9504838
Part Number
OT-PS-1226A
Brand
Oltre
Status
Available
Description
Specifications:
- Major Table Size: 380 x 800mm
- Extension Table, Cast Iron: 440 x 800mm
- Extension Table, Steel Plate: 440 x 800mm
- Rear Extension Table: 310 x 500mm

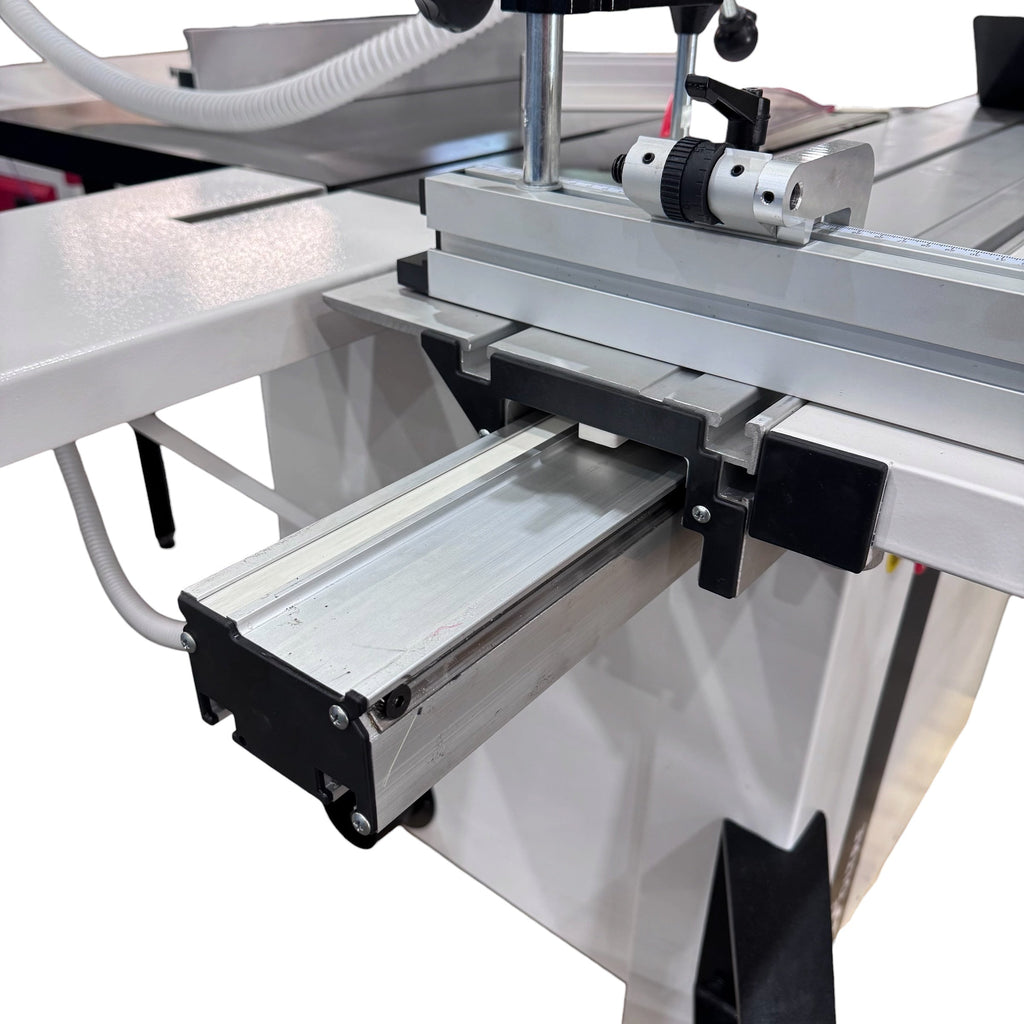

- Sliding Panel Size: 2600 x 270mm

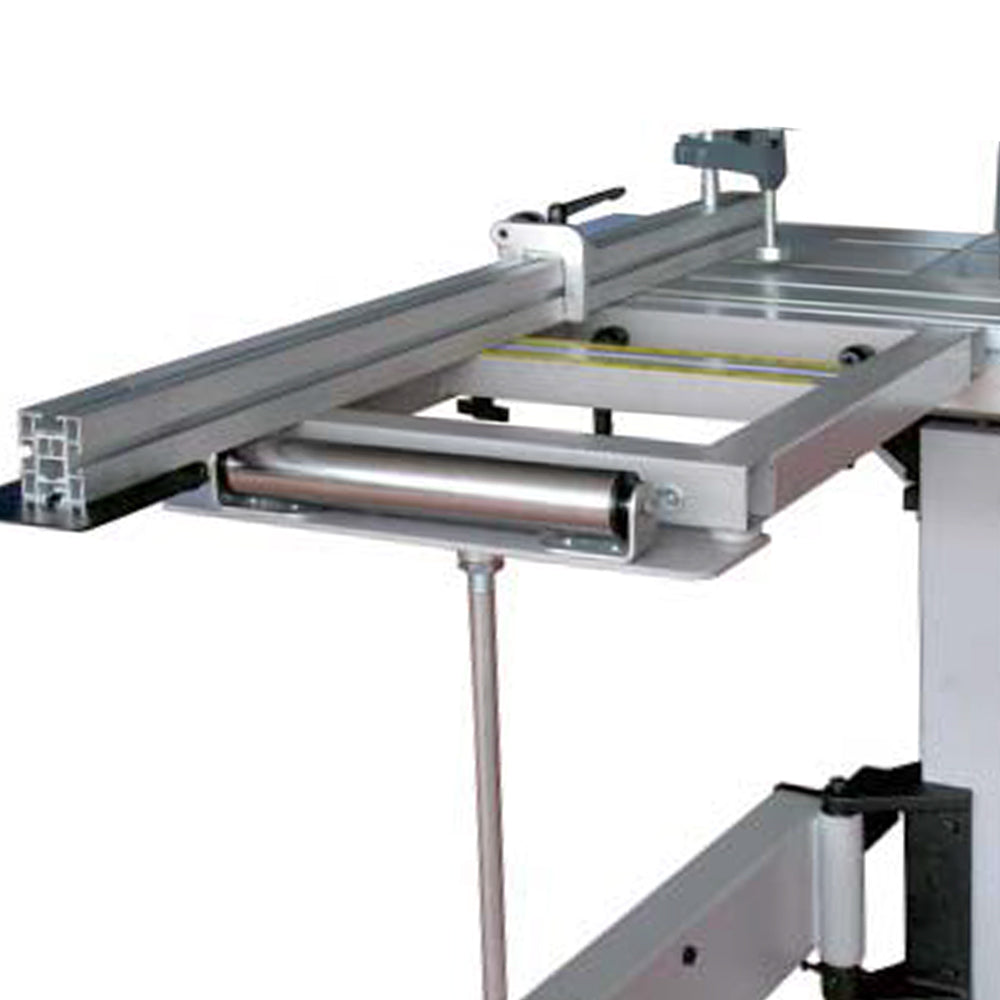

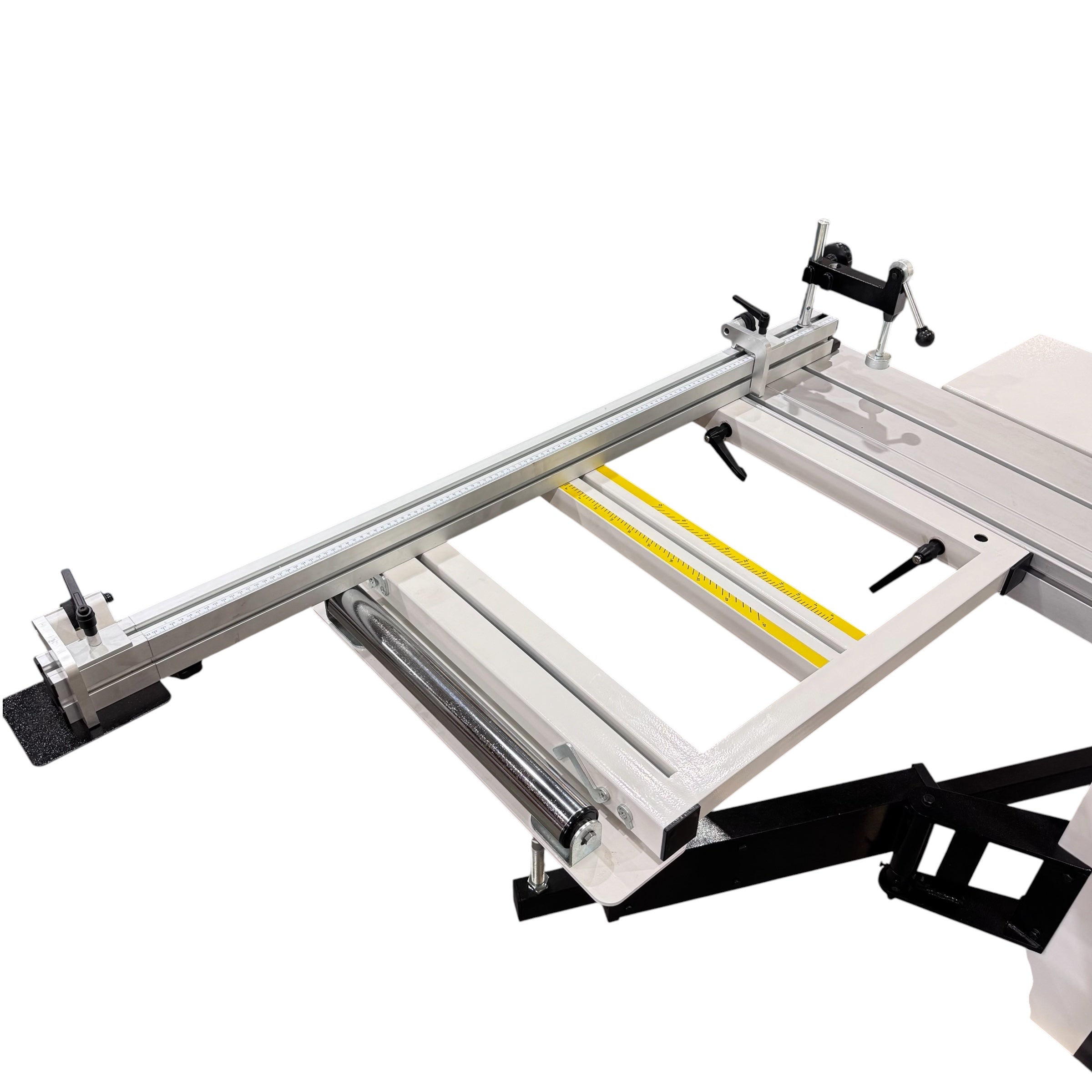

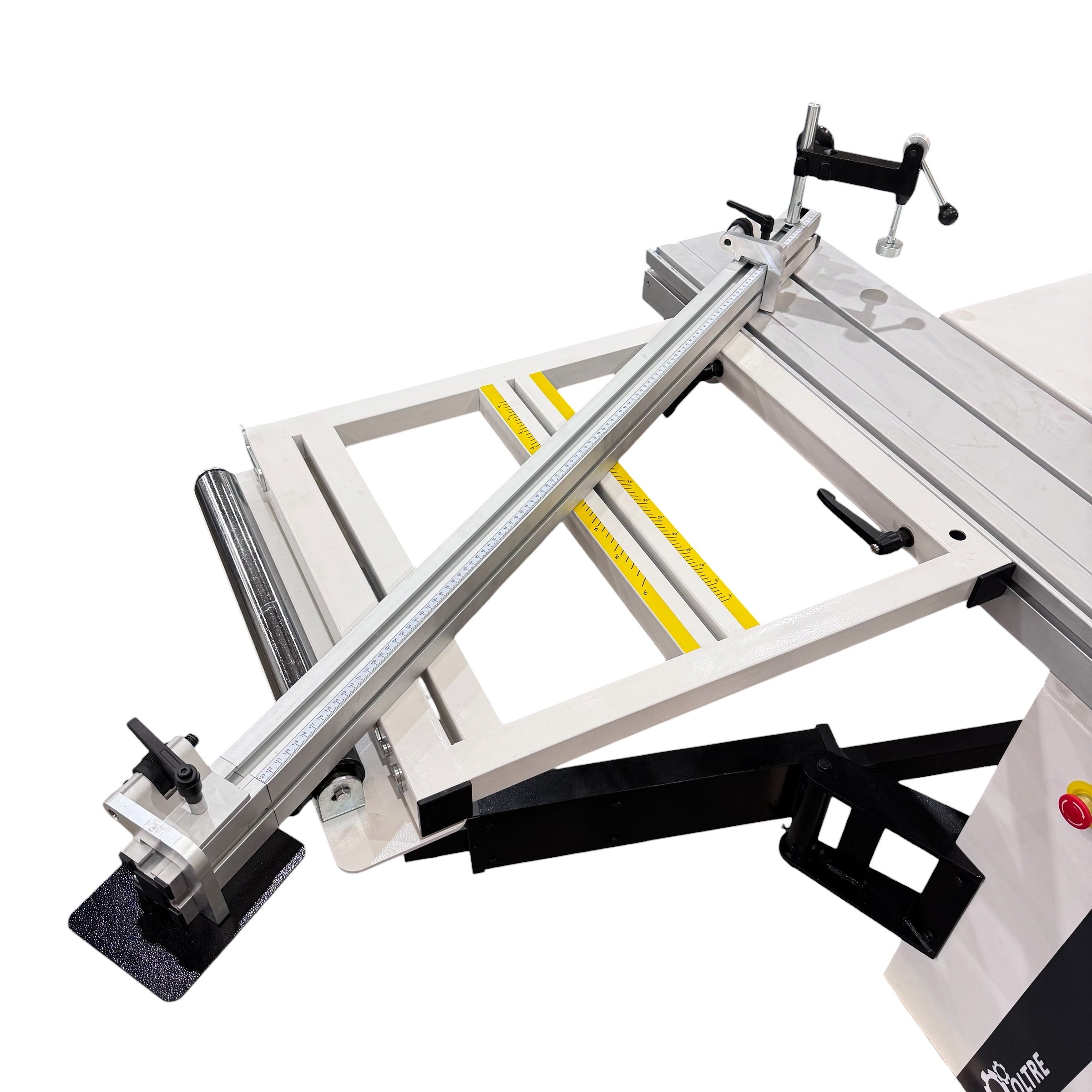

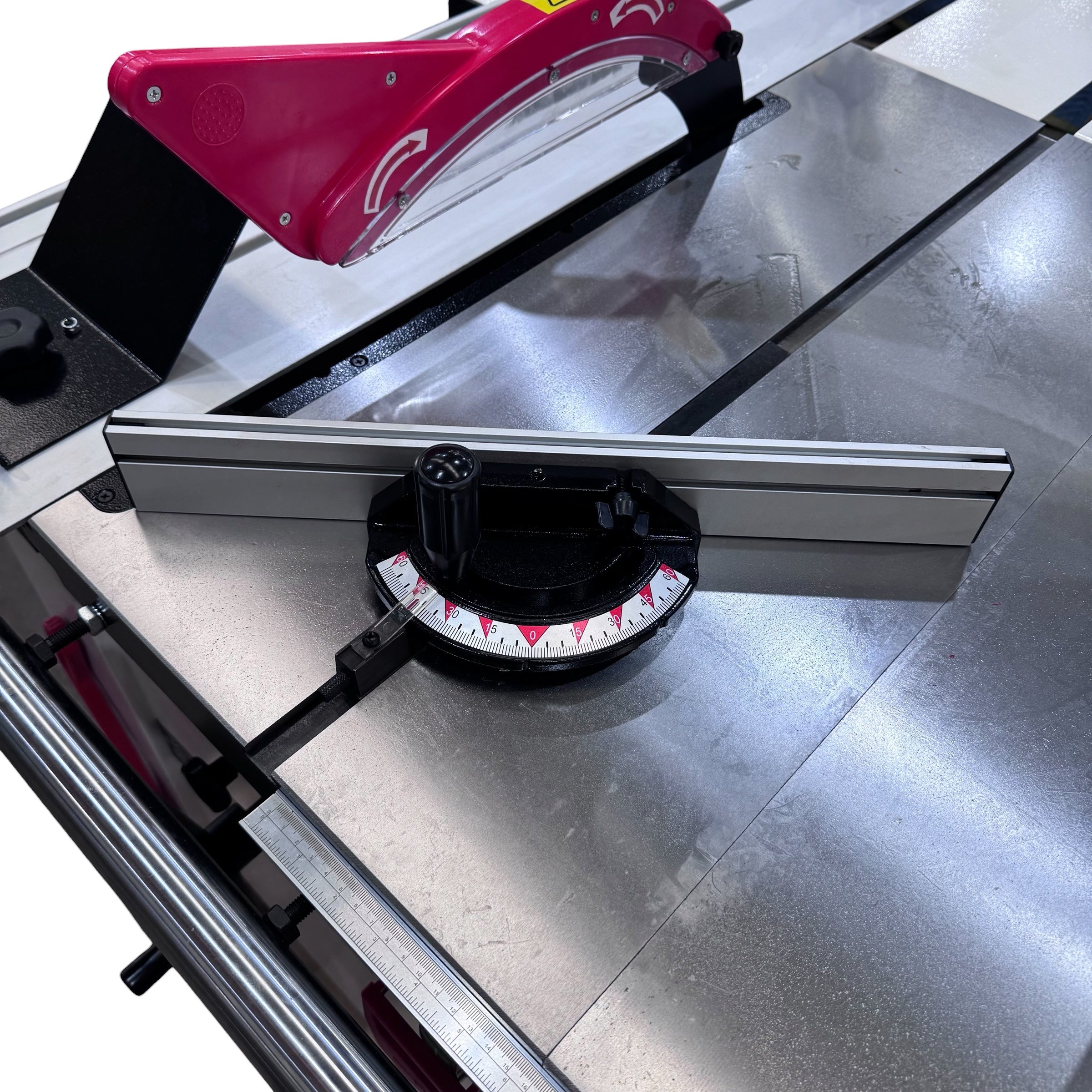

- Cross Cut Table Size: 680 x 580mm

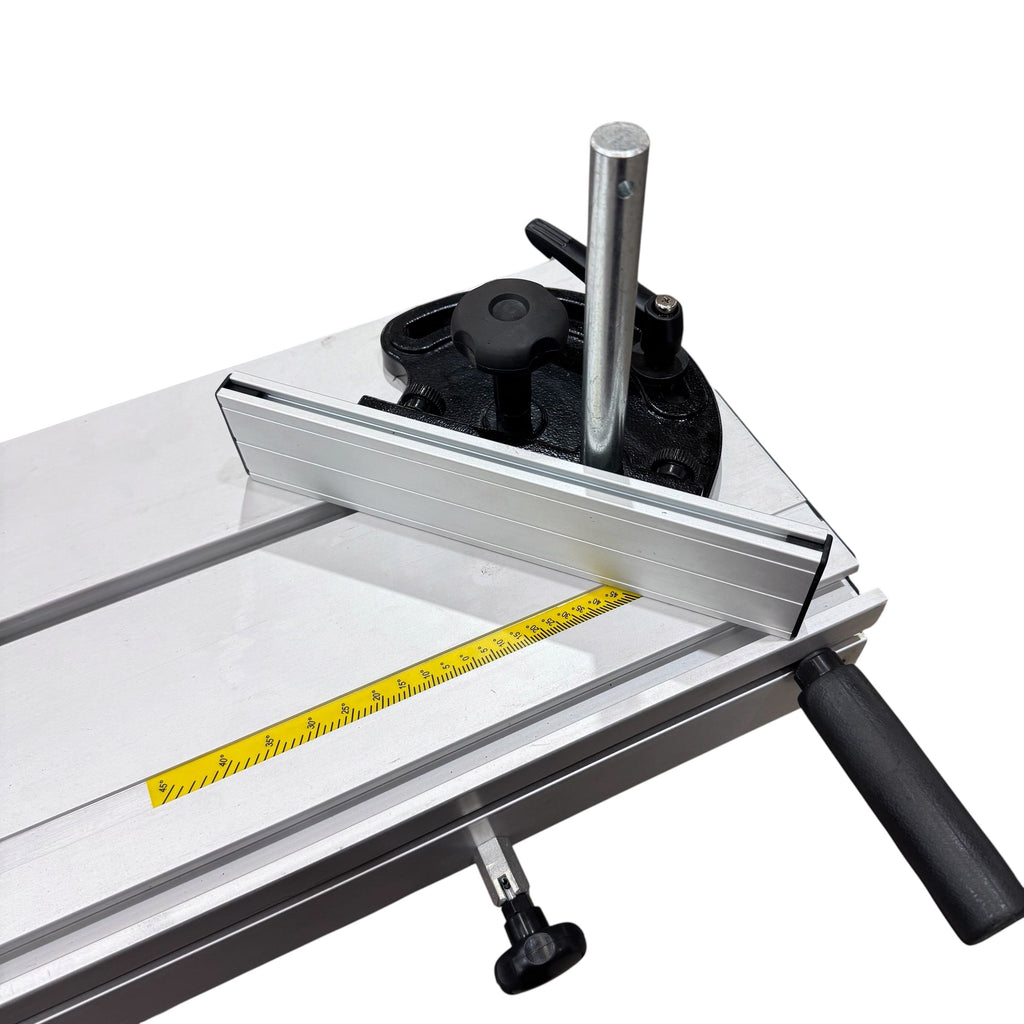

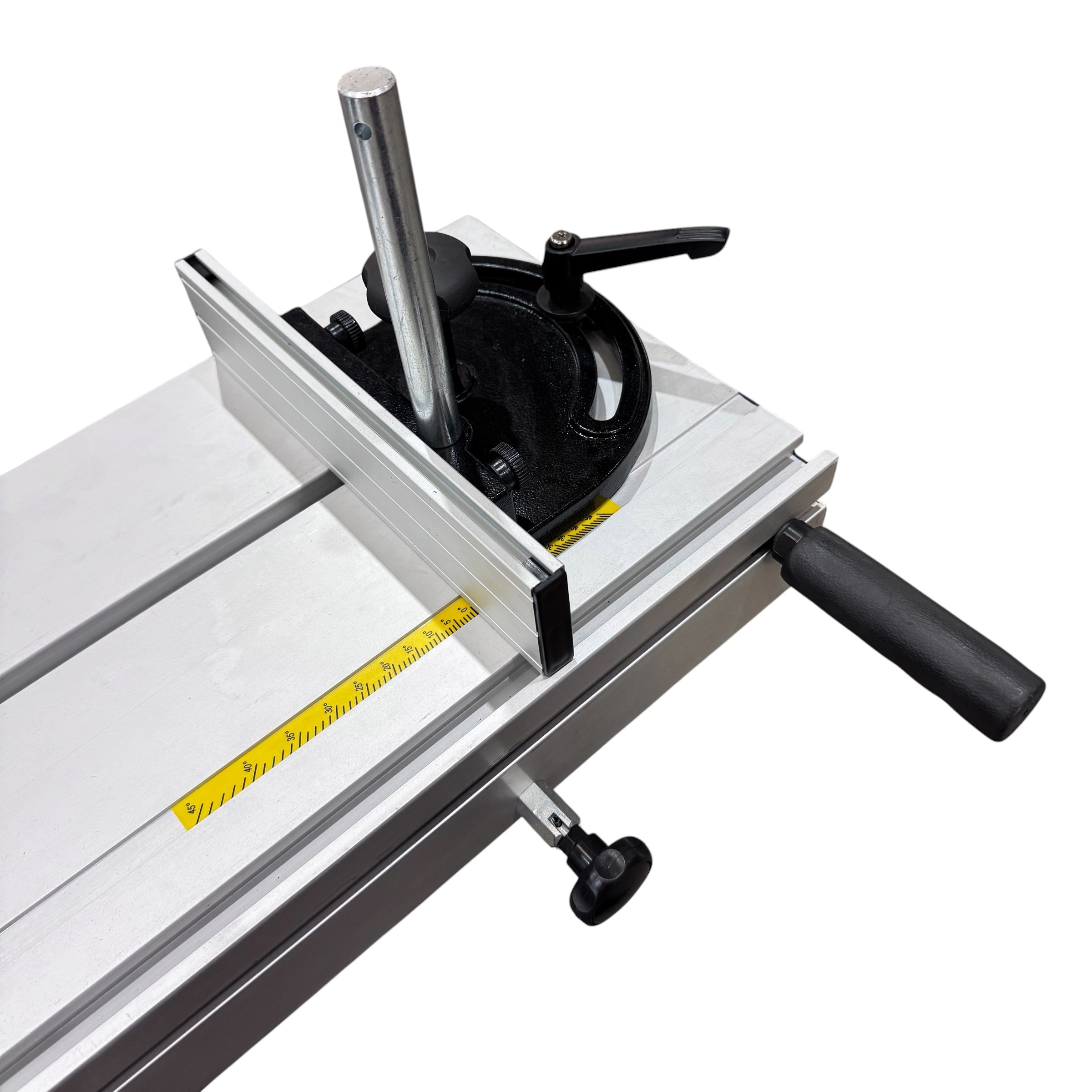

- Cross Cut Fence: 1200 - 2200mm
- Maximum Cut Depth: 100mm at 90 ° / 80mm at 45 °

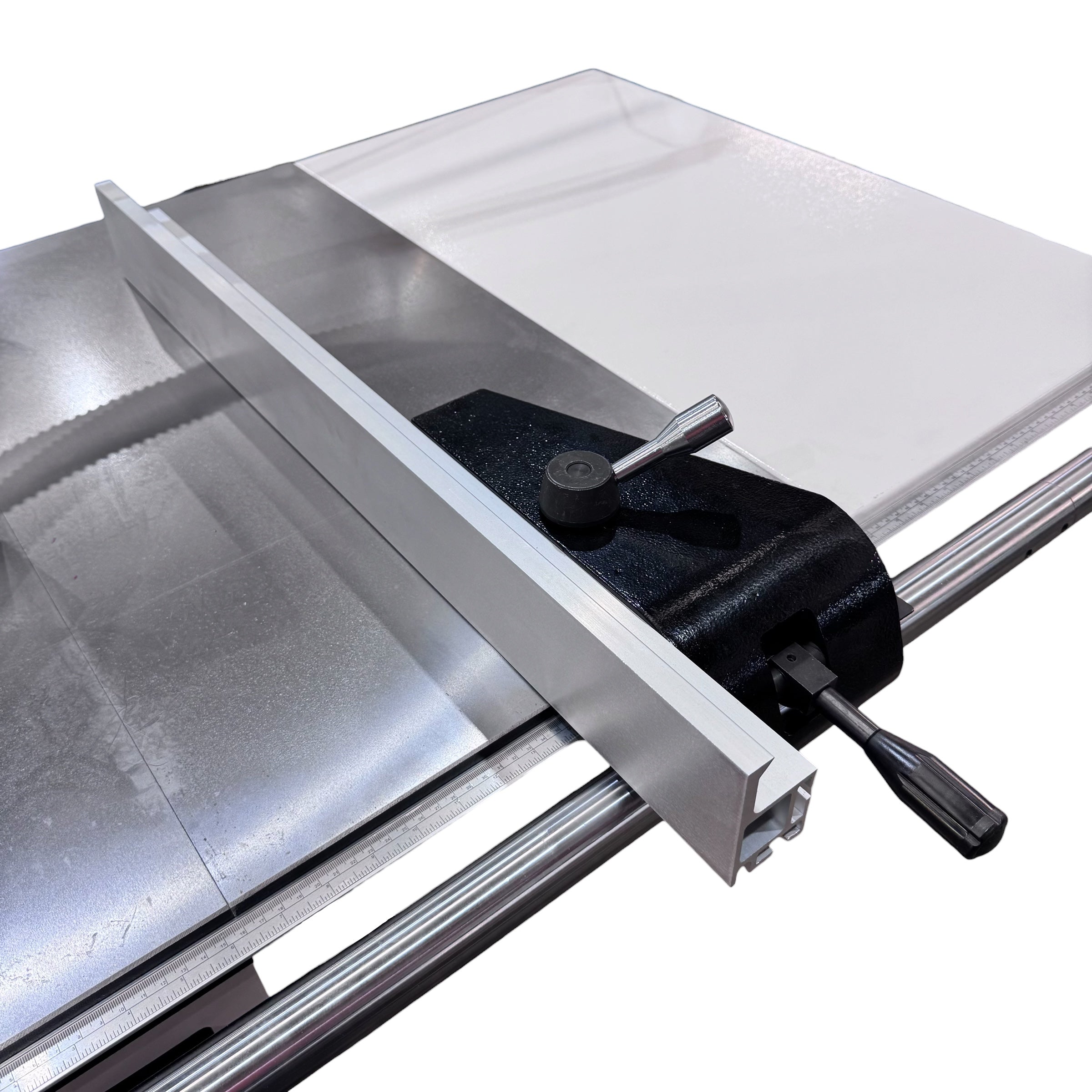

- Maximum Distance, Blade to Rip Fence: 1220mm
- Maximum Cross Cut Length: 2600mm
- Maximum Cross Cut Width: 1350mm

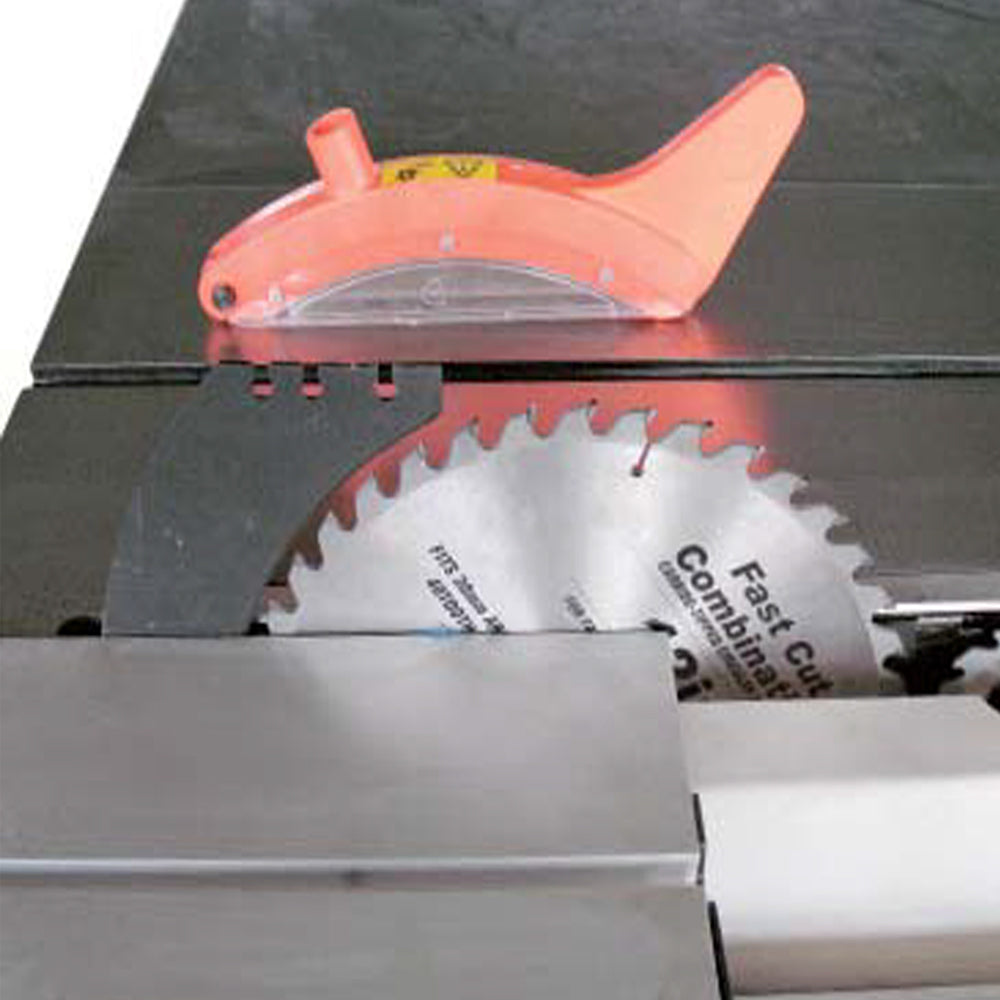

- Saw Blades
- 100mm Dust Hose
- Hose Clamps + fittings etc
- Dust Extractor FM Series Dust Collector

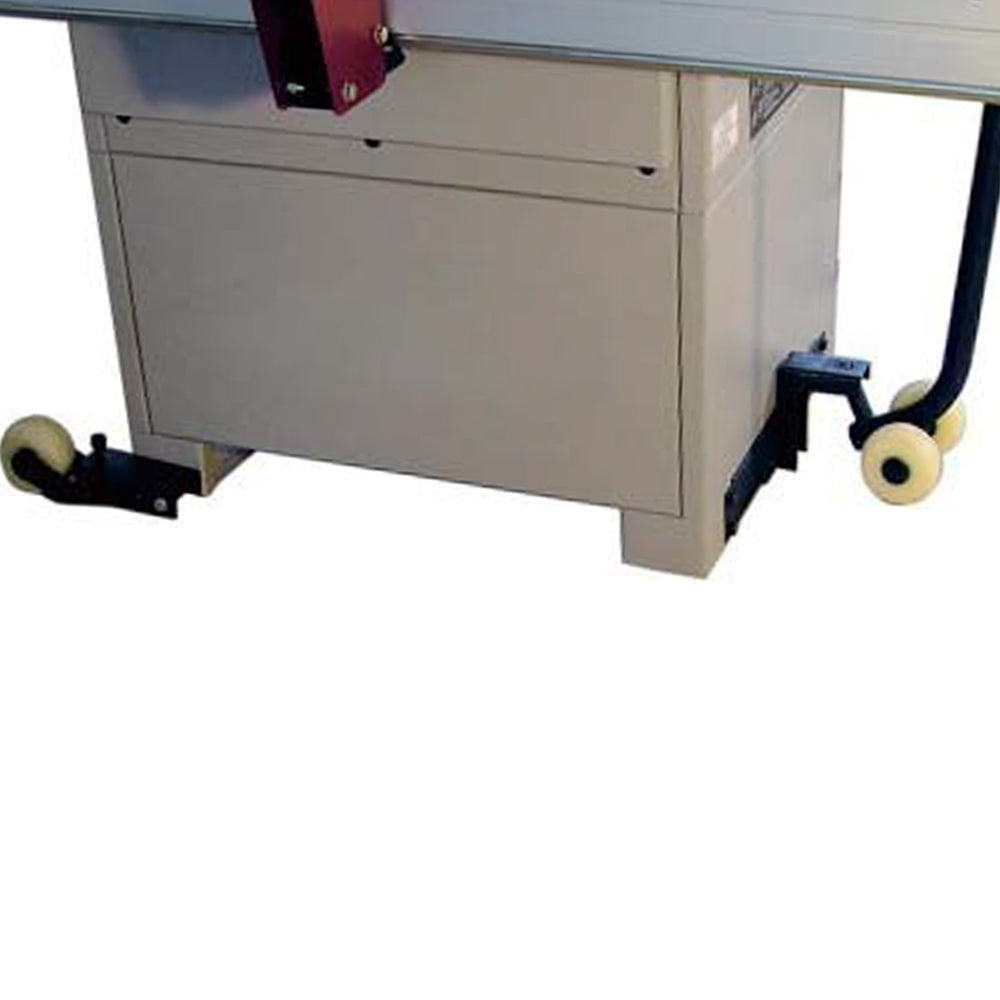

- Optional Mobility Wheel Kit (MW-1)
- Full 12Month Manufacturer's Warranty
- $750 for assembly + delivery (Metro WA)
- Please contact us for other assembly options available throughout Australasia
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase

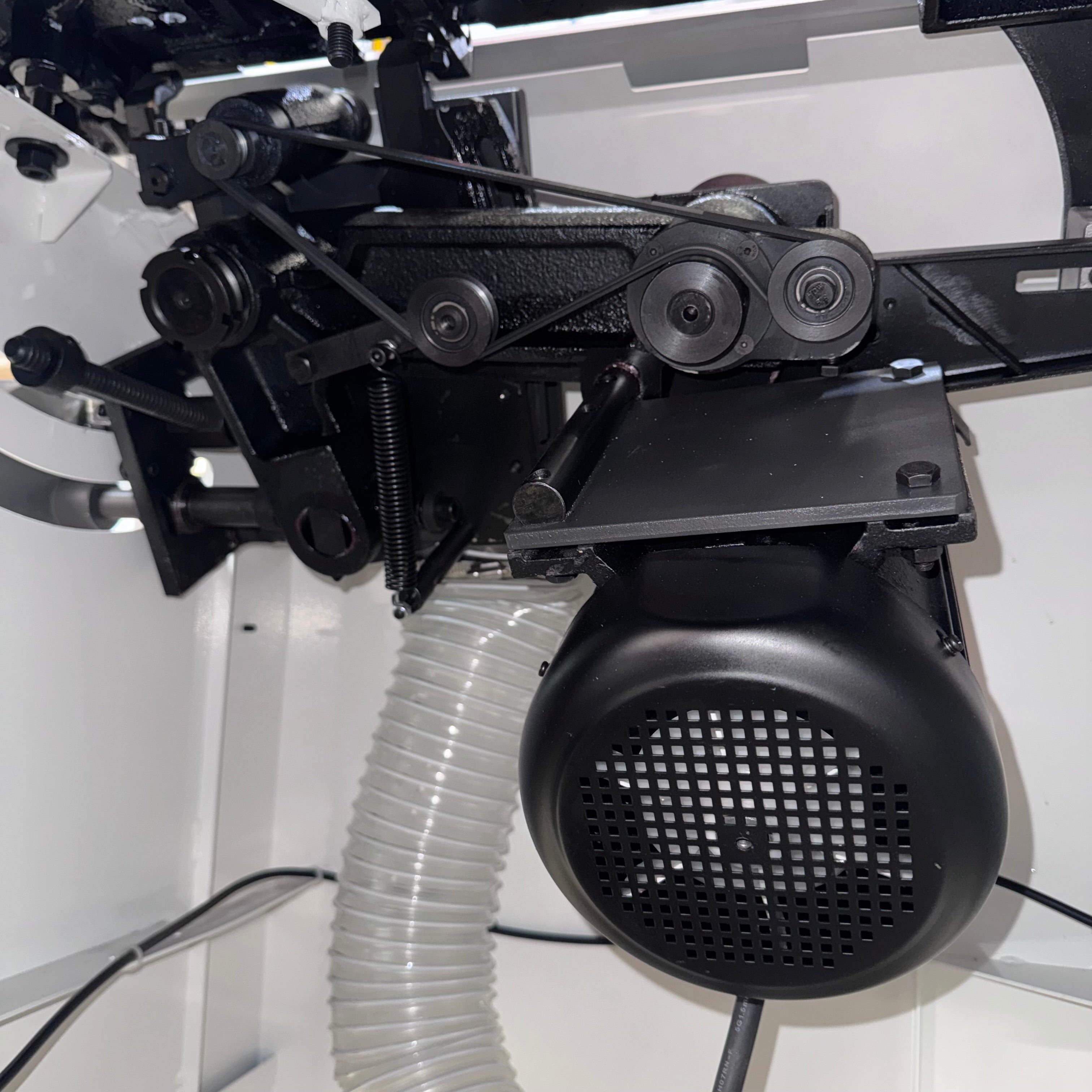

Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Cutting Capacity - Height
100 mm
Technical - Saw
Sliding Table (Cross Cut) Size
2600mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
254 mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
90 mm
Blade (Scoring) - Bore Size
20 mm
Blade (Scoring) - Speed
7500RPM

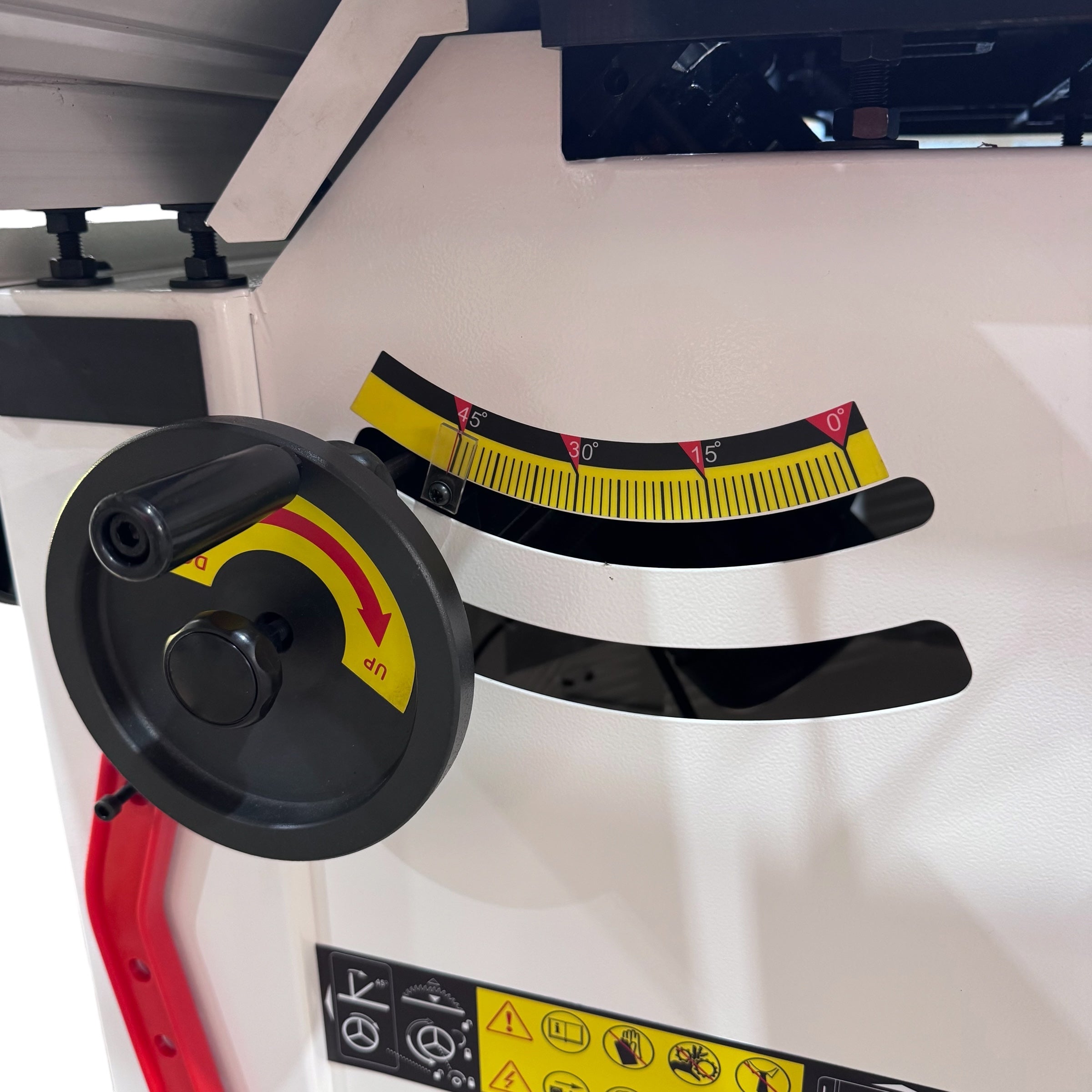

Blade Tilt
90° to 45°
Country of Origin
Manufactured in
China
Workshop (Site) Info
Electrical Connection

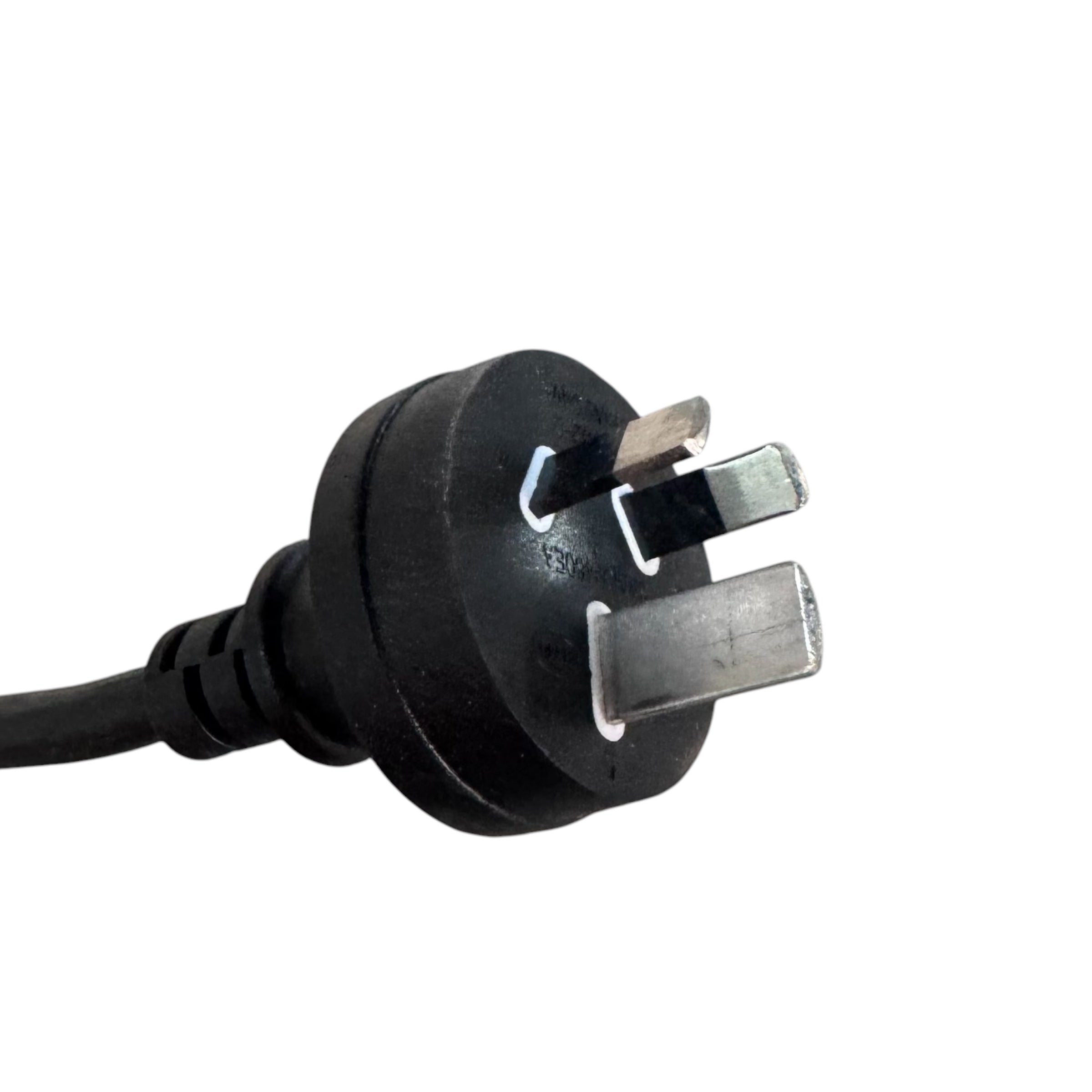

Lead & Plug
Packaging + Shipping
Shipping Length
1220 mm
Shipping Width
765 mm
Shipping Height
1040 mm
Shipping Weight (Gross)
290.0 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
