Description

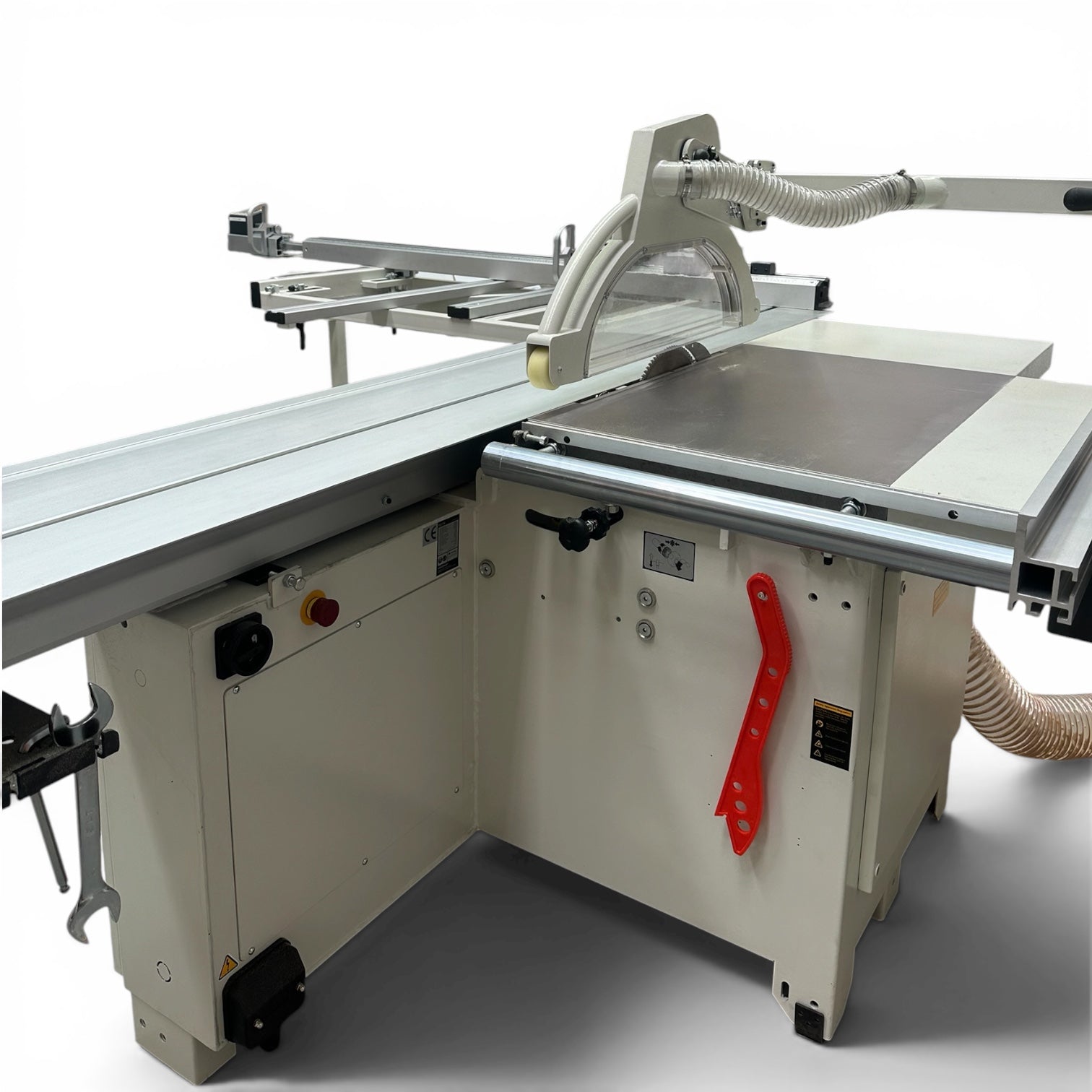

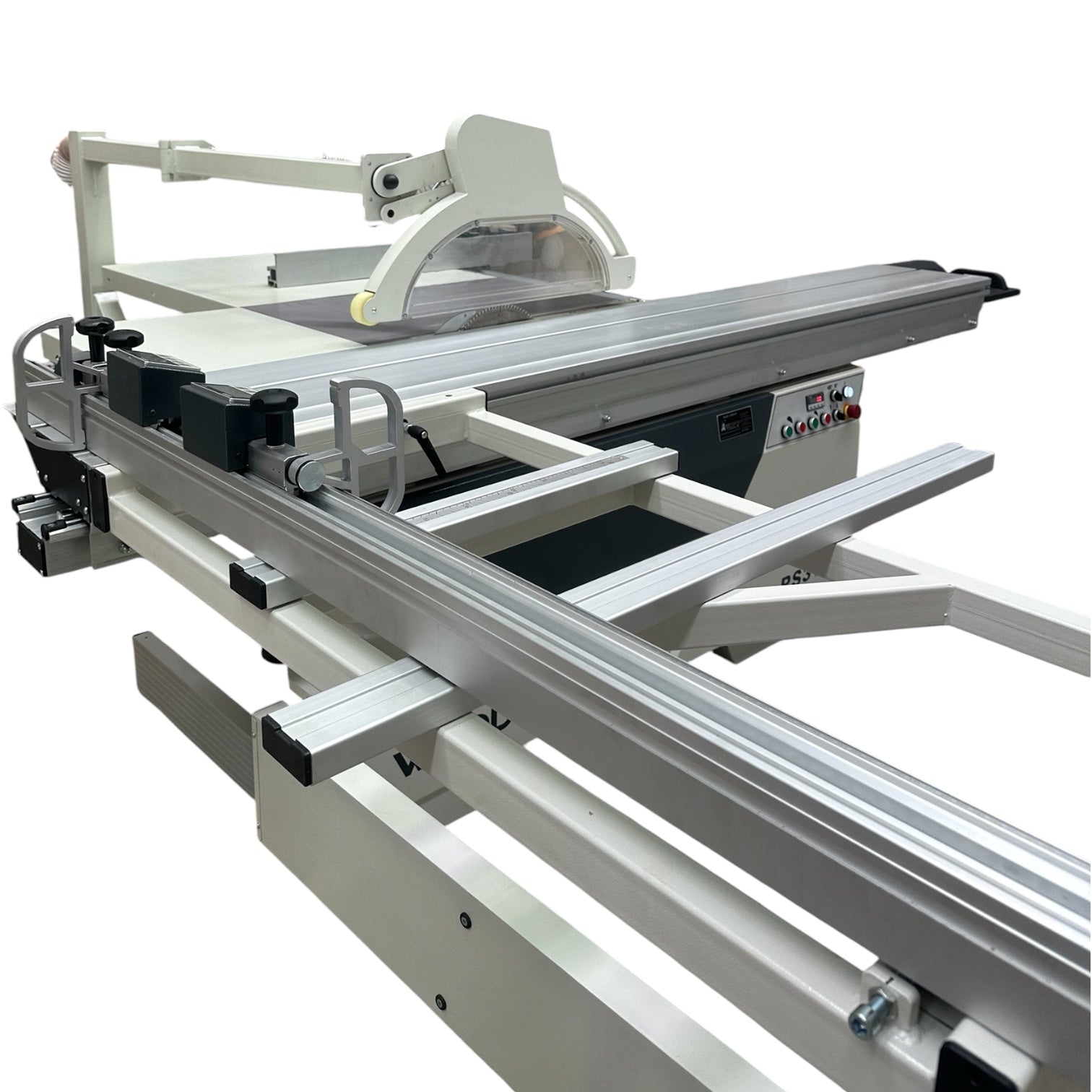

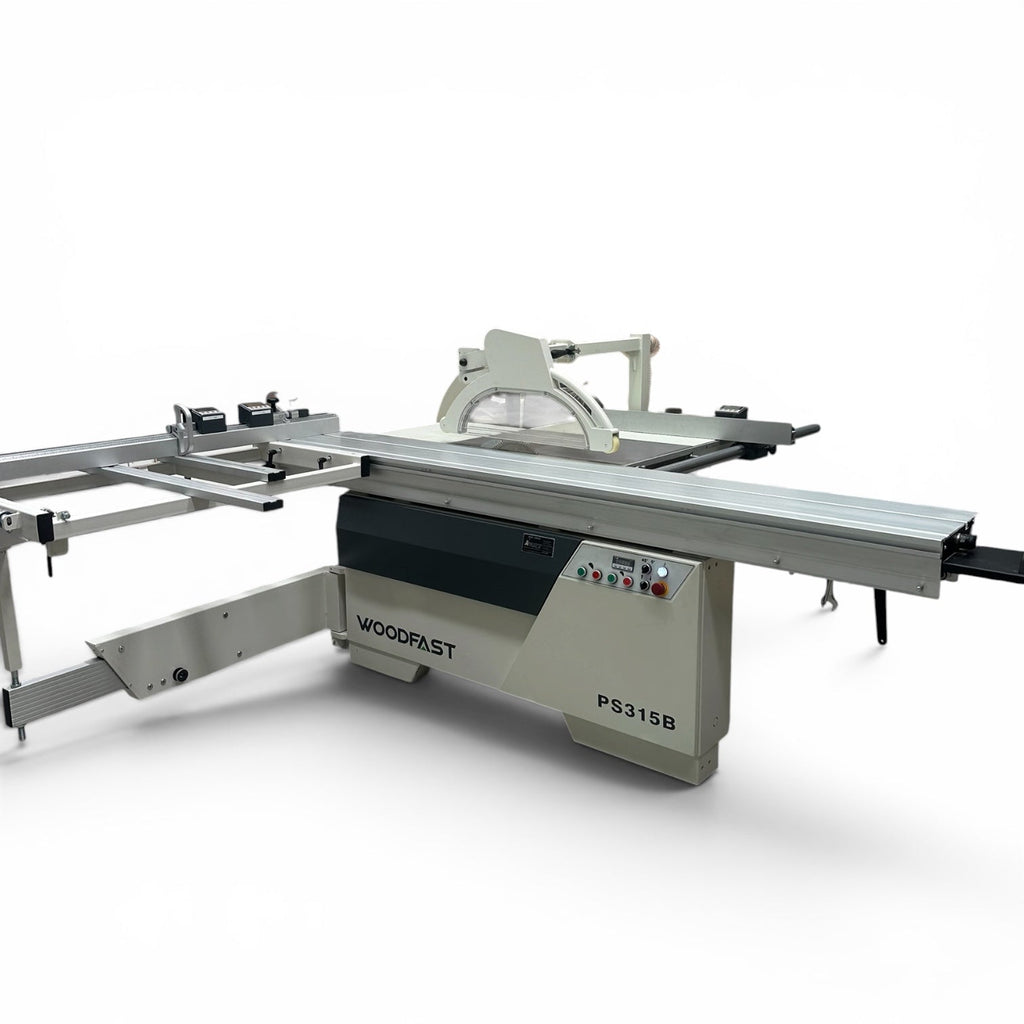

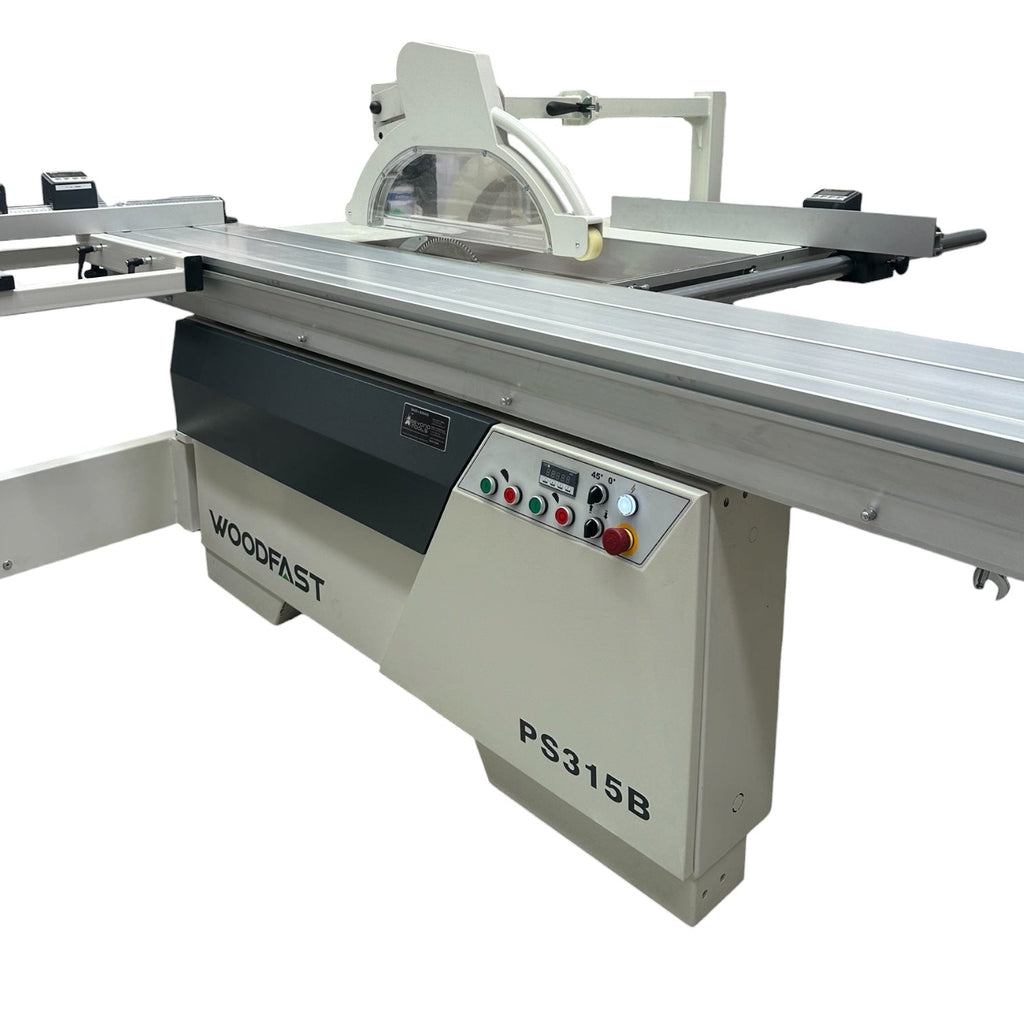

The Woodfast TS315B panel saw is designed for precision, power, and efficiency in a compact yet robust form. Featuring a powerful motor and an extended 2.6m sliding table, this saw ensures accurate and fast cuts, making it perfect for woodworking professionals and serious enthusiasts alike.
Not every workshop requires a large industrial panel saw, but a fully featured, space-saving alternative can be a game-changer. The TS315B is built with a heavy-gauge steel chassis and a durable grey cast iron table, providing exceptional stability and vibration-free operation. Its real panel saw trunnion enhances accuracy, delivering a premium cutting experience.
Features
- Available in 240V (3HP) & 415V (5.5HP) to suit different workshop setups
-

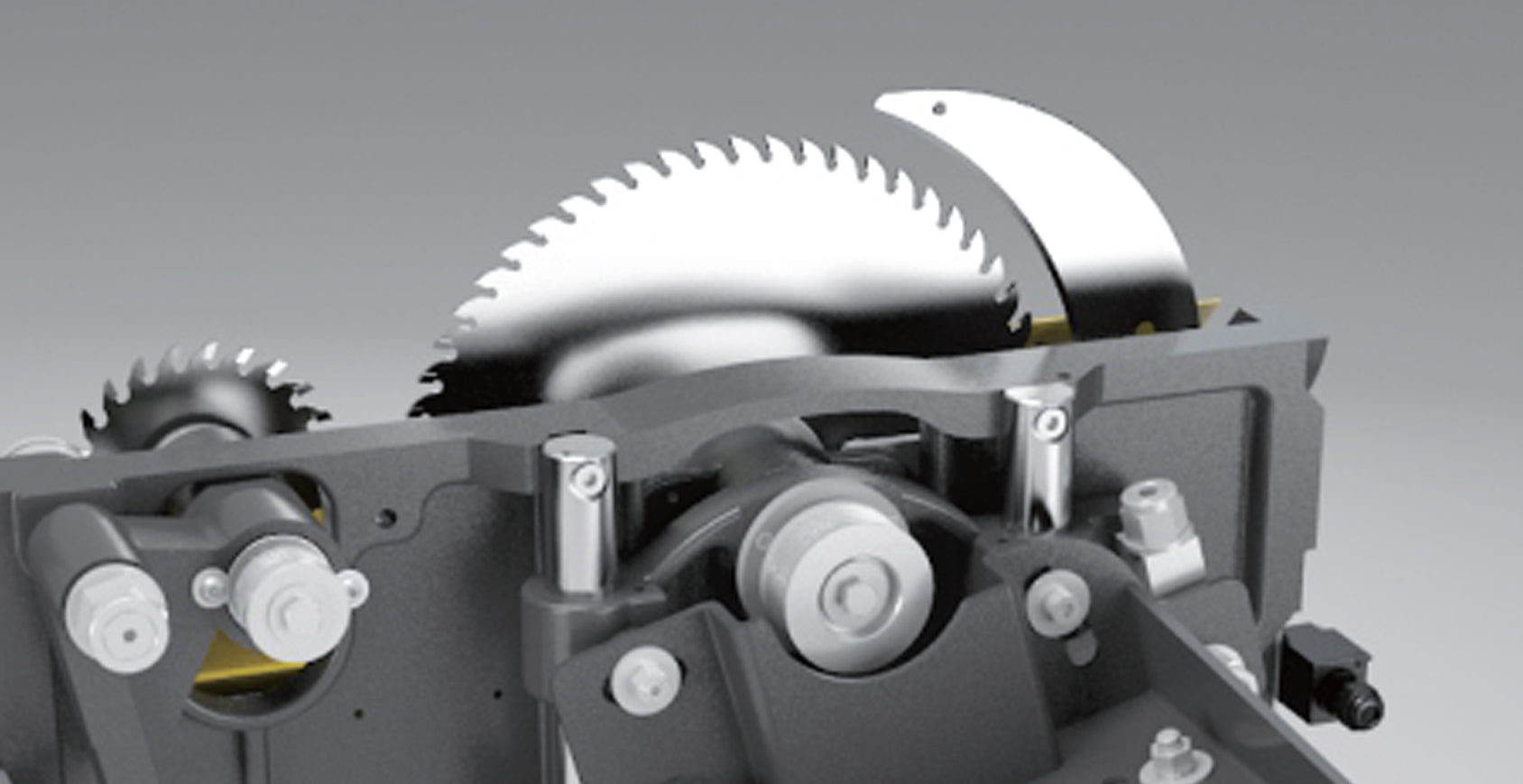

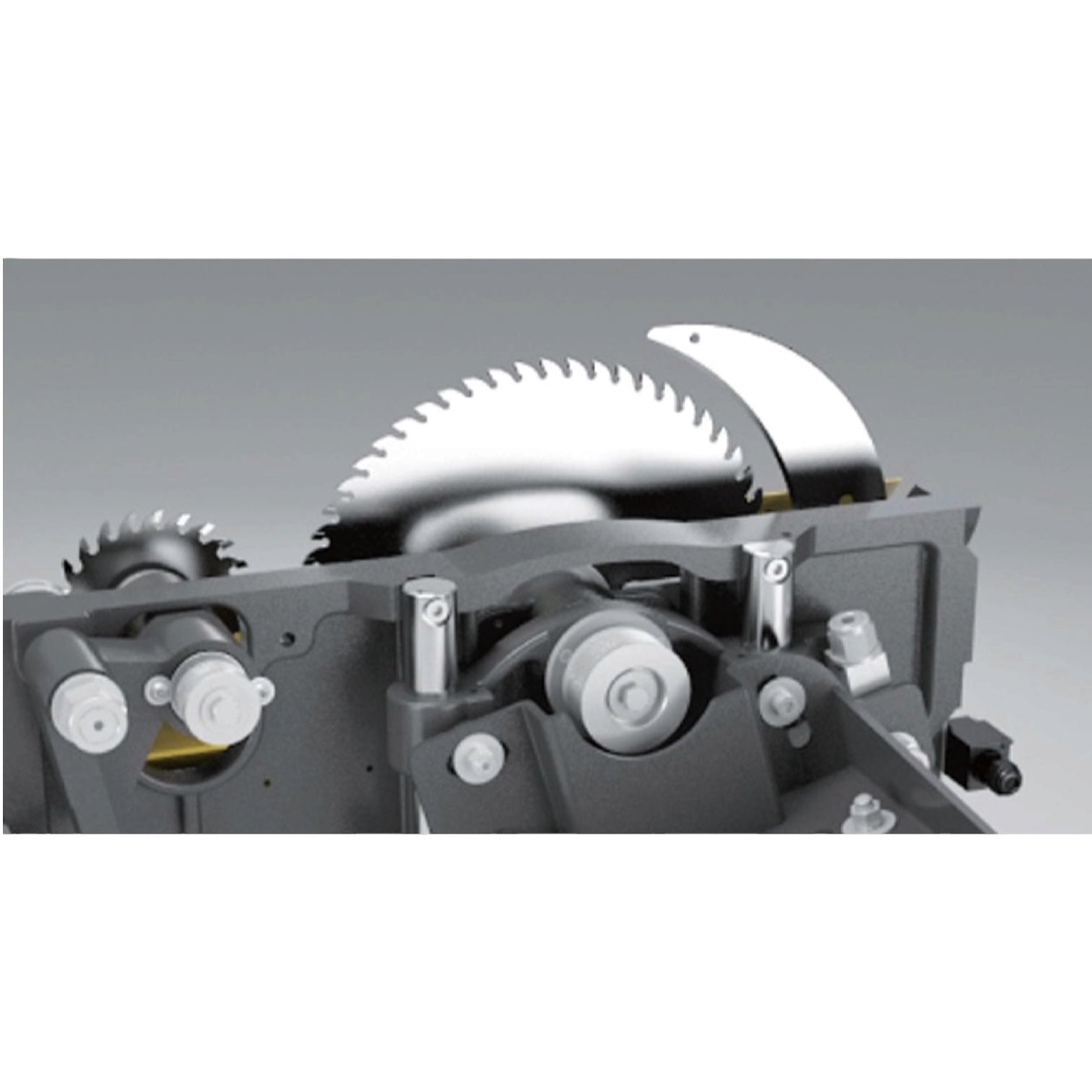

Cast iron saw unit for superior support and reduced vibration

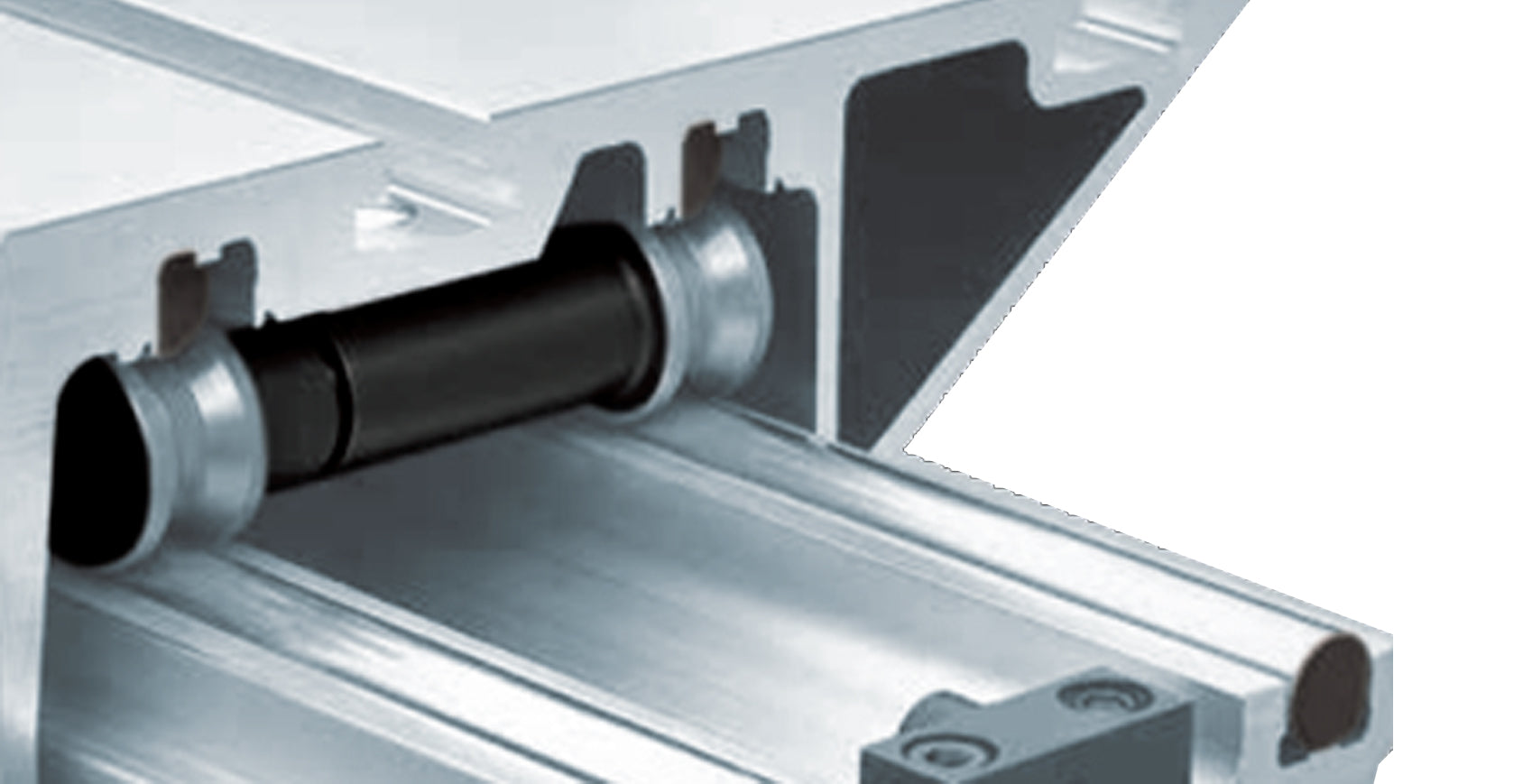

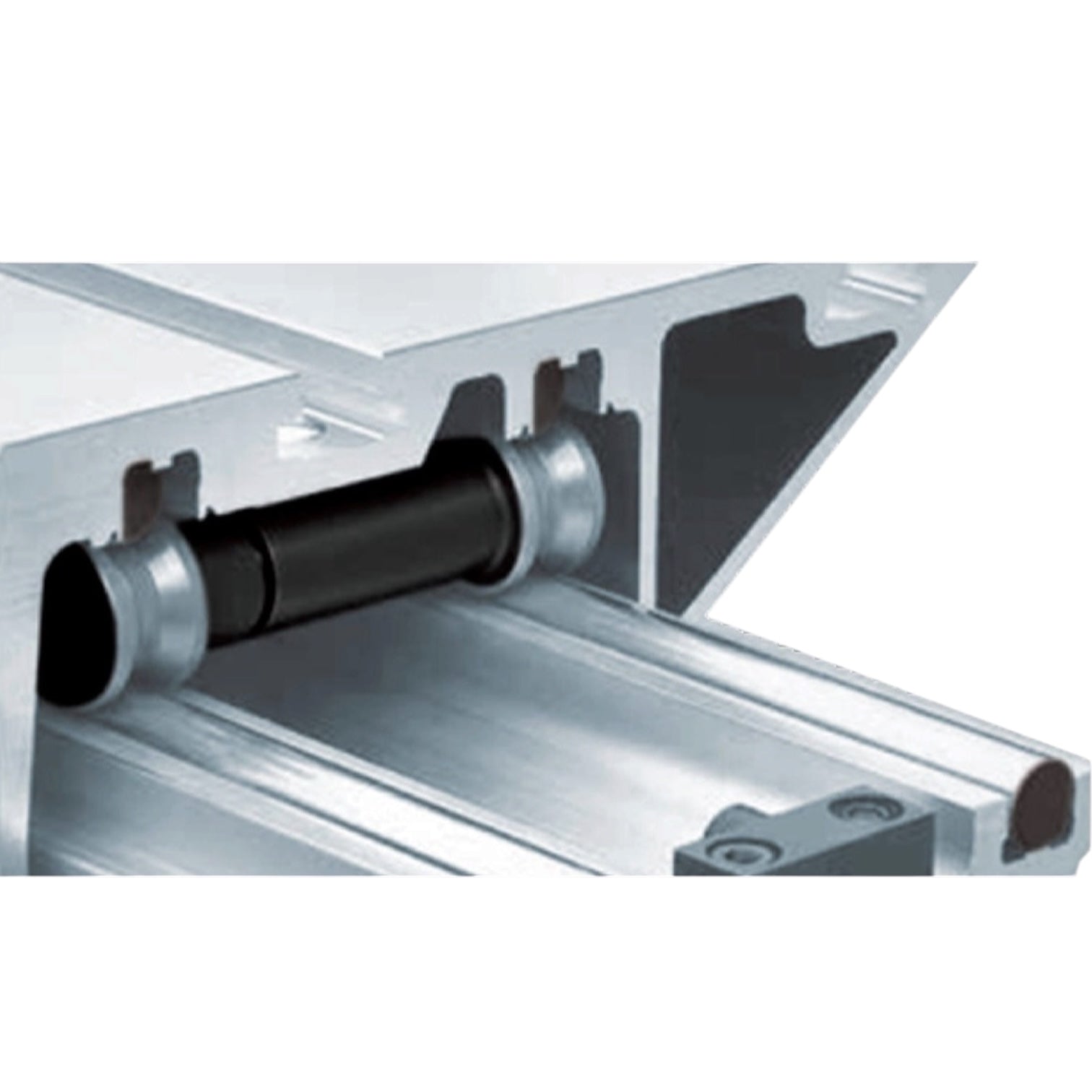

- Ball-bearing rollers on precision-ground prismatic guides for ultra-smooth sliding and cutting
-

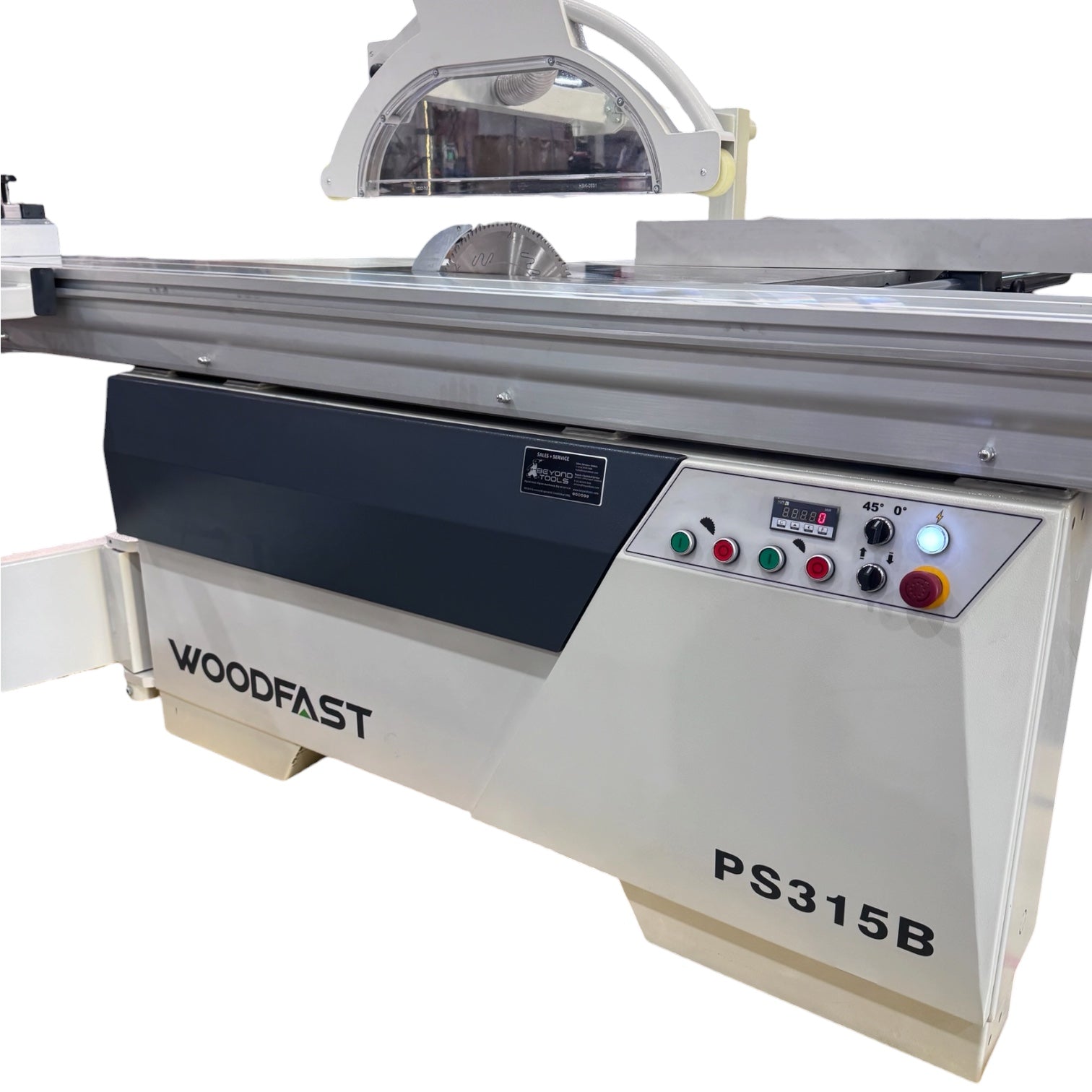

Electric rise & fall with tilting function (0-45°) for ease of adjustment
-
Digital tilt angle readout for increased precision
-

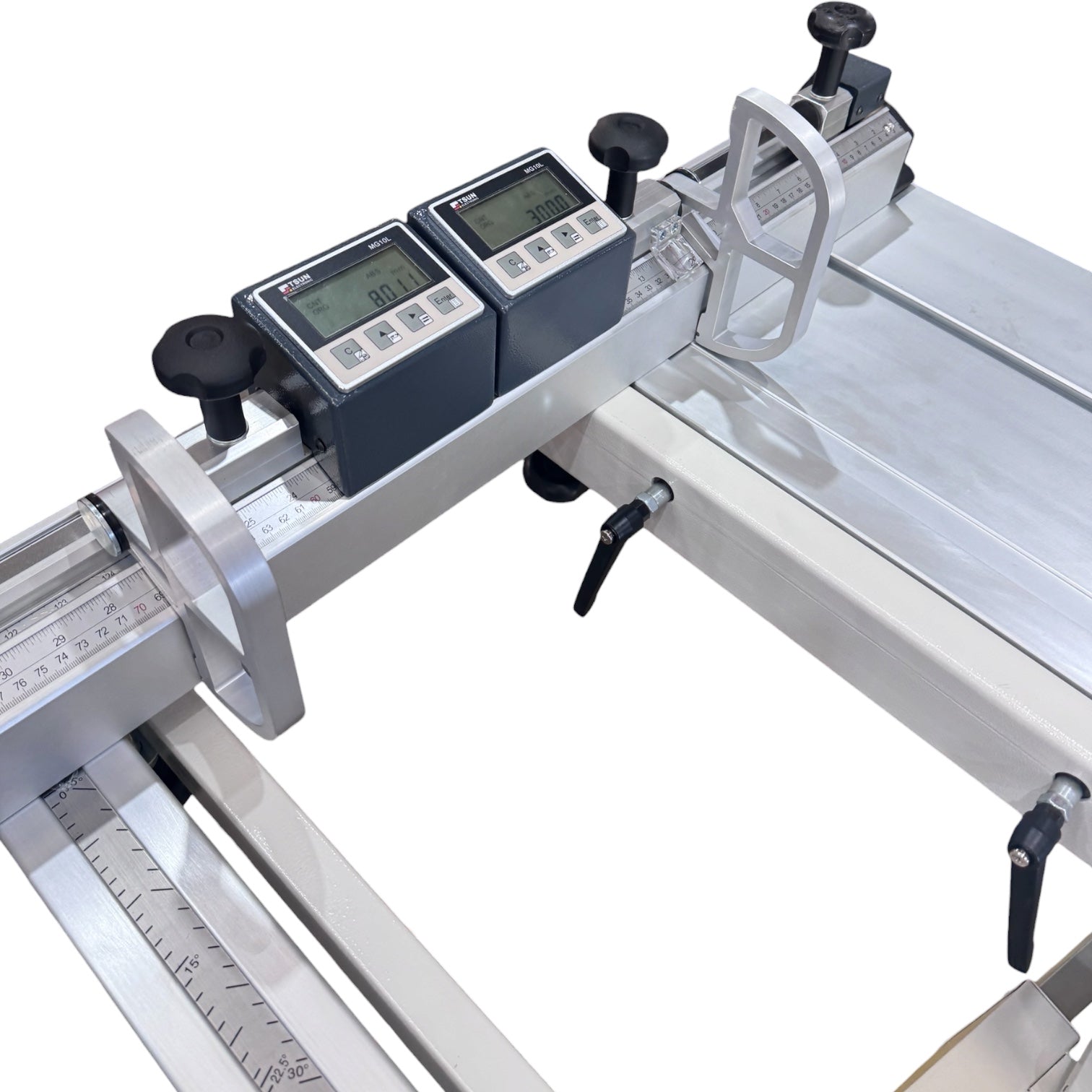

Large sectional cross-cut fence with stops for repeatable accuracy
- Solid cast iron rip fence with aluminium profile mounted to a sturdy 50mm bar
Specifications
- Main Motor Power: 3HP (240V) / 5.5HP (415V)
- Main Blade Speed: 4000 RPM
- Scoring Motor Power: 1HP
- Scoring Blade Speed: 8000 RPM
- Blade Tilt: 0-45°
- Major Table Size: 800mm (530+820mm)
- Sliding Table Size: 2600 x 312mm
- Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
- Maximum Cut Depth: 95mm at 90° / 67mm at 45°
Optional Accessories
- Angled Cutting Device
- 100mm Dust Hose
✔ Hose Clamps + Fittings
✔ FM Series Dust Collector
Additional Information
Model
Type
Panel Saw
SKU
8000851
Part Number
PS315B-240V
Brand
Woodfast
Size
315mm (12")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP / 2200W
Cutting Capacity - Height
80mm
Table Size
2600 x 375mm
Technical - Saw
Sliding Table (Cross Cut) Size
2600mm x 375mm
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
1250mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
120mm
Blade (Scoring) - Bore Size
20mm
Blade (Scoring) - Speed
8000RPM
Blade Tilt
0° to 45°

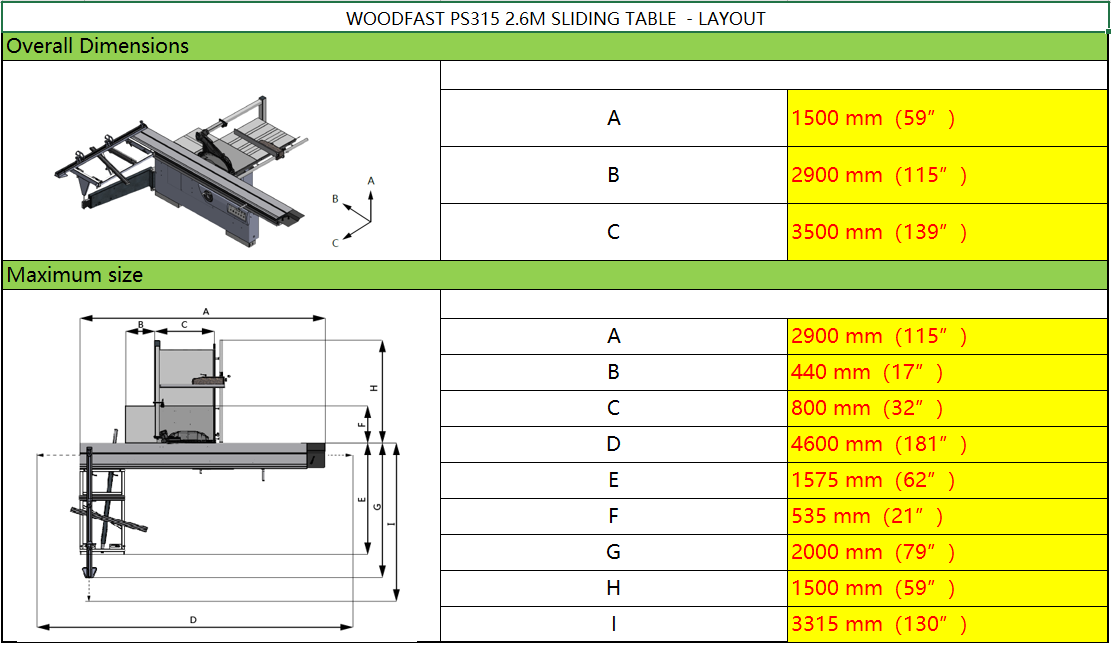

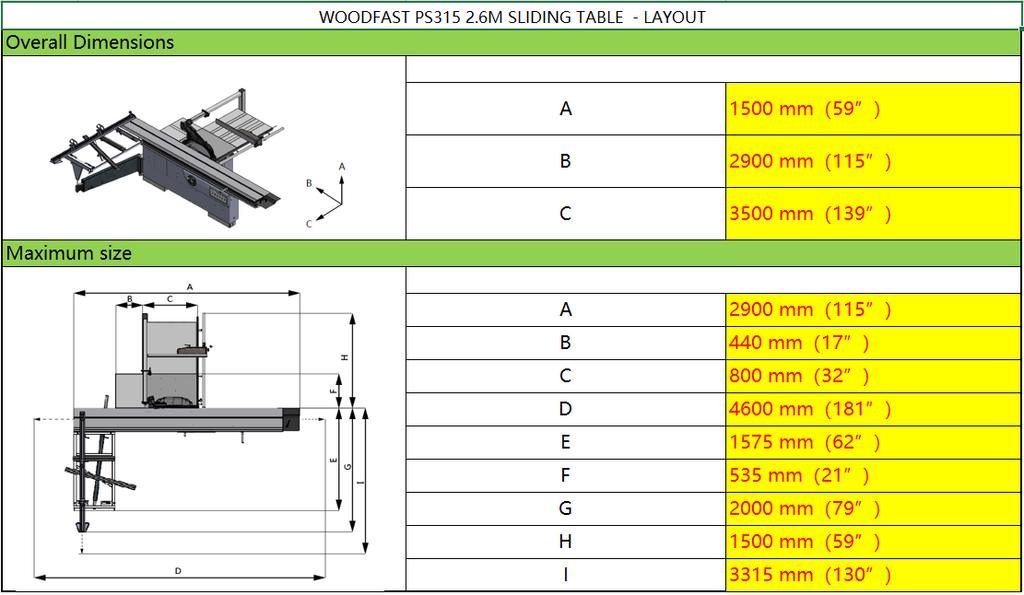

Dimensions
Product Weight (Net Weight)
520kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features

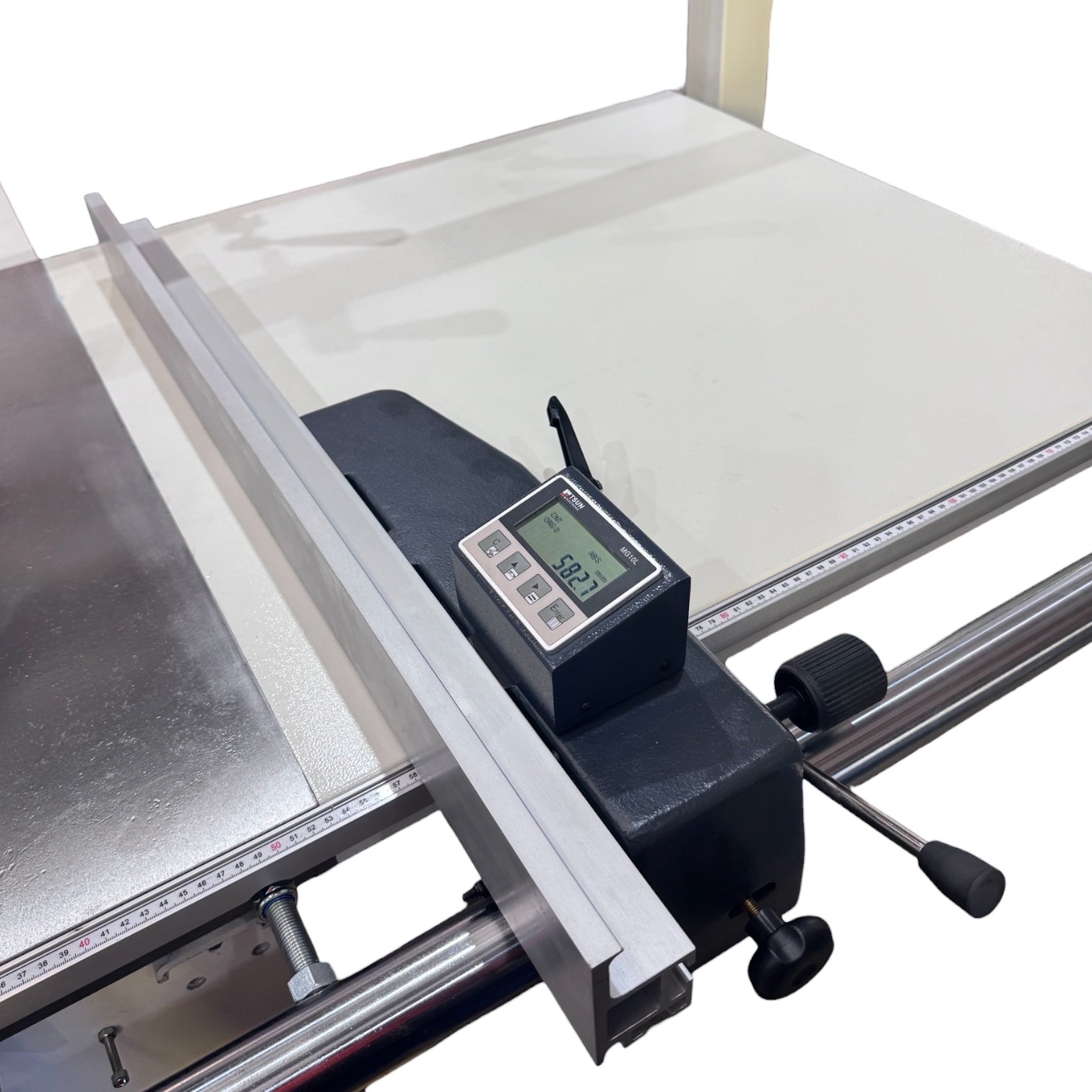

Digital Readout on Rip Fence
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Dust Hose Inlet Diameter
1 x 120mm, 1 x 80mm
Workshop Requirements
Dust Extraction
Spare Parts / Consumables
Spare Parts / Consumables
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Not intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
640kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
2000mm x 1150mm x 1150mm
Carton 2 (L X W X H x KG)
2960mm x 480mm x 210mm
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
