315mm (12") 3HP 1.6m Sliding Table Saw 240V TS315B by Woodfast *Special Order*

WoodfastSKU: 8000849

Price:
Sale price$5,287.00

Status

Available

Description

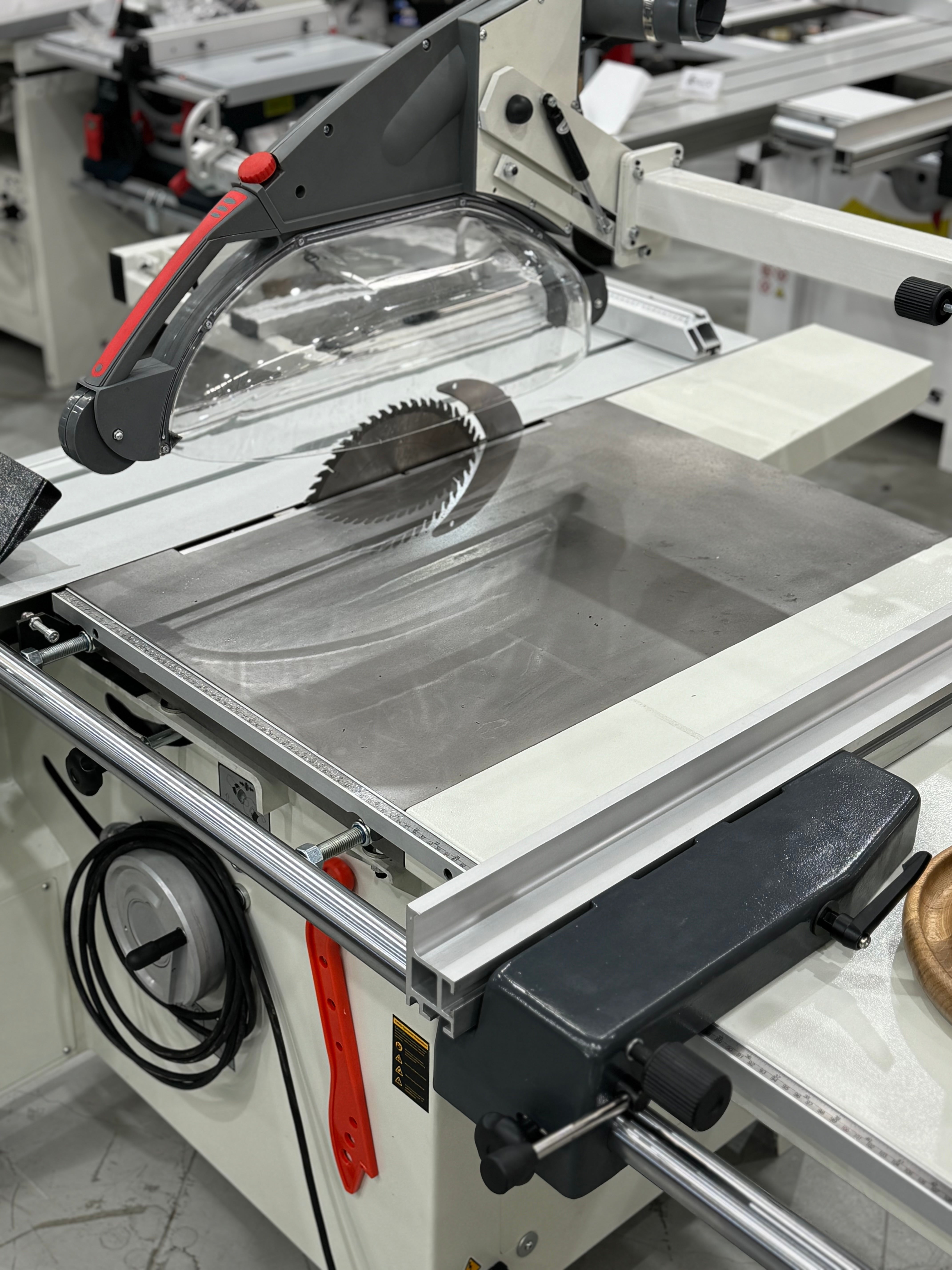

315mm (12") 3HP 1.6m Sliding Table Saw 240V TS315B by Woodfast. It boasts a powerful motor and a long sliding table for precise, fast cuts. Enjoy the improved accuracy and speed—perfect for all types of woodworking projects.

Not every workshop needs a large panel saw dominating the workspace, but a compact, fully featured saws is a tempting alternative. The TS315B is just that, having a robustly constructed chassis in a heavy gauge steel and generous grey cast iron table with real panel saw trunnion, that gives stability and vibration free running.

Features

  • Cast iron saw unit provides extra support and stability for reduced vibration

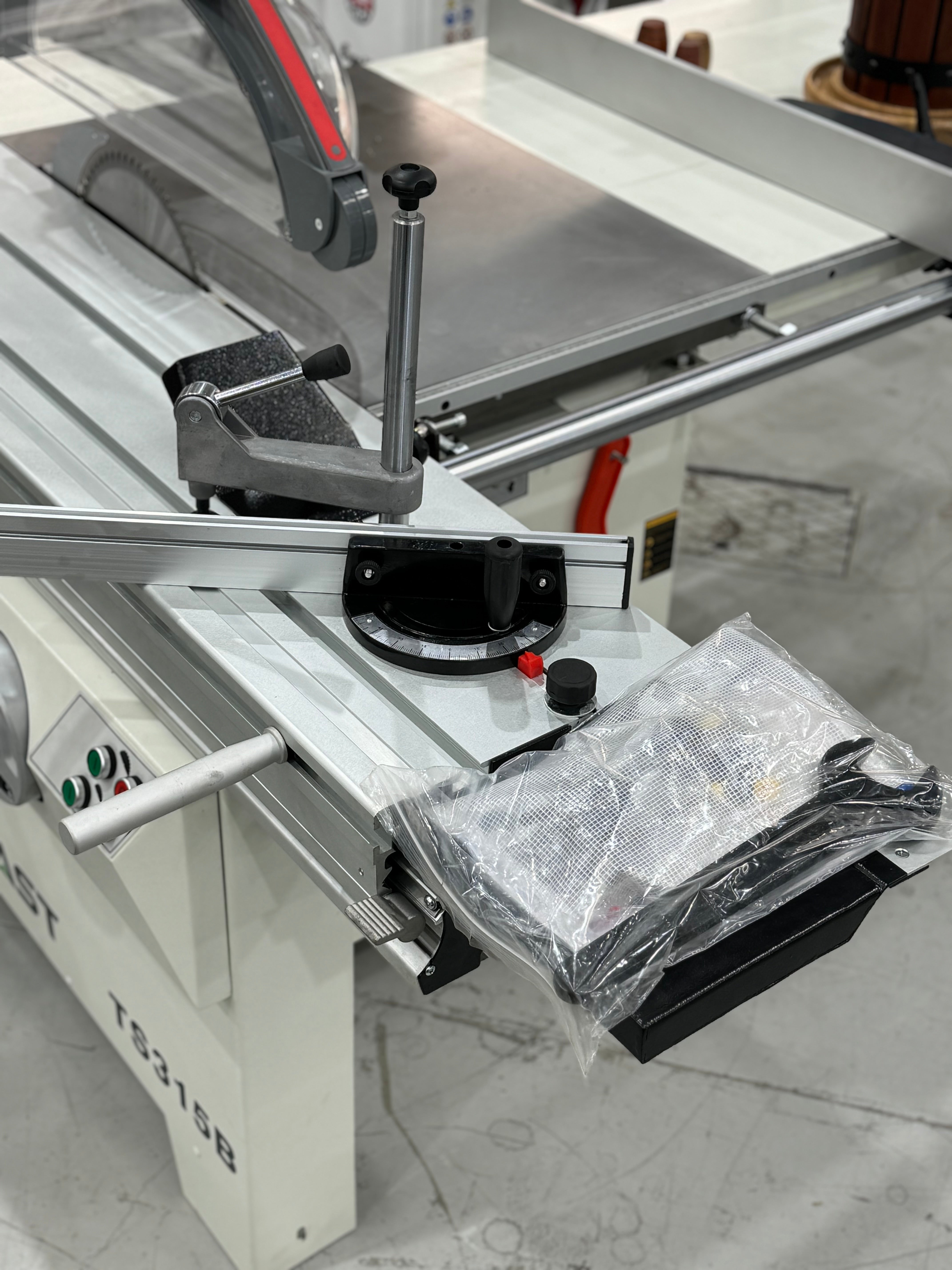

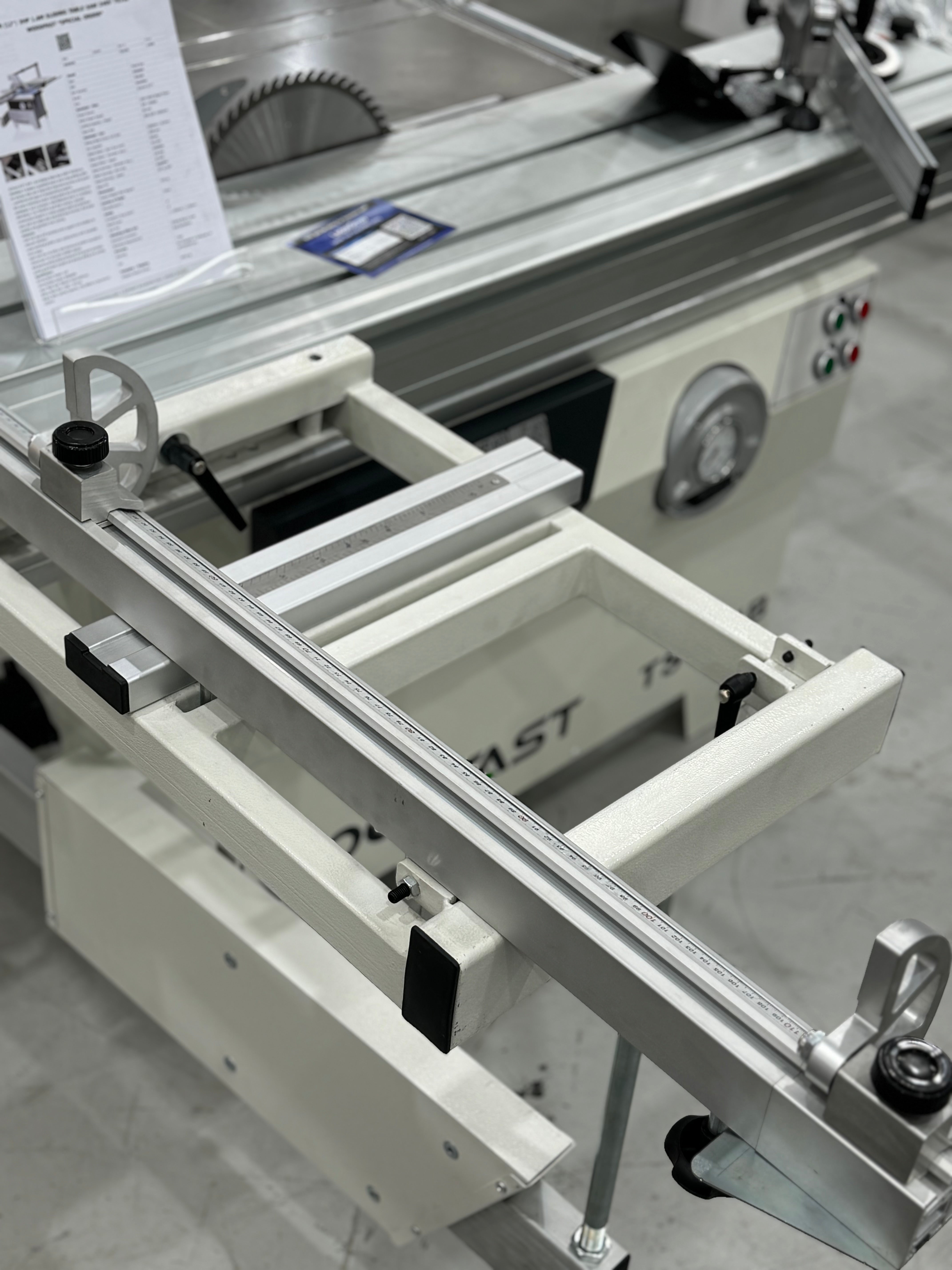

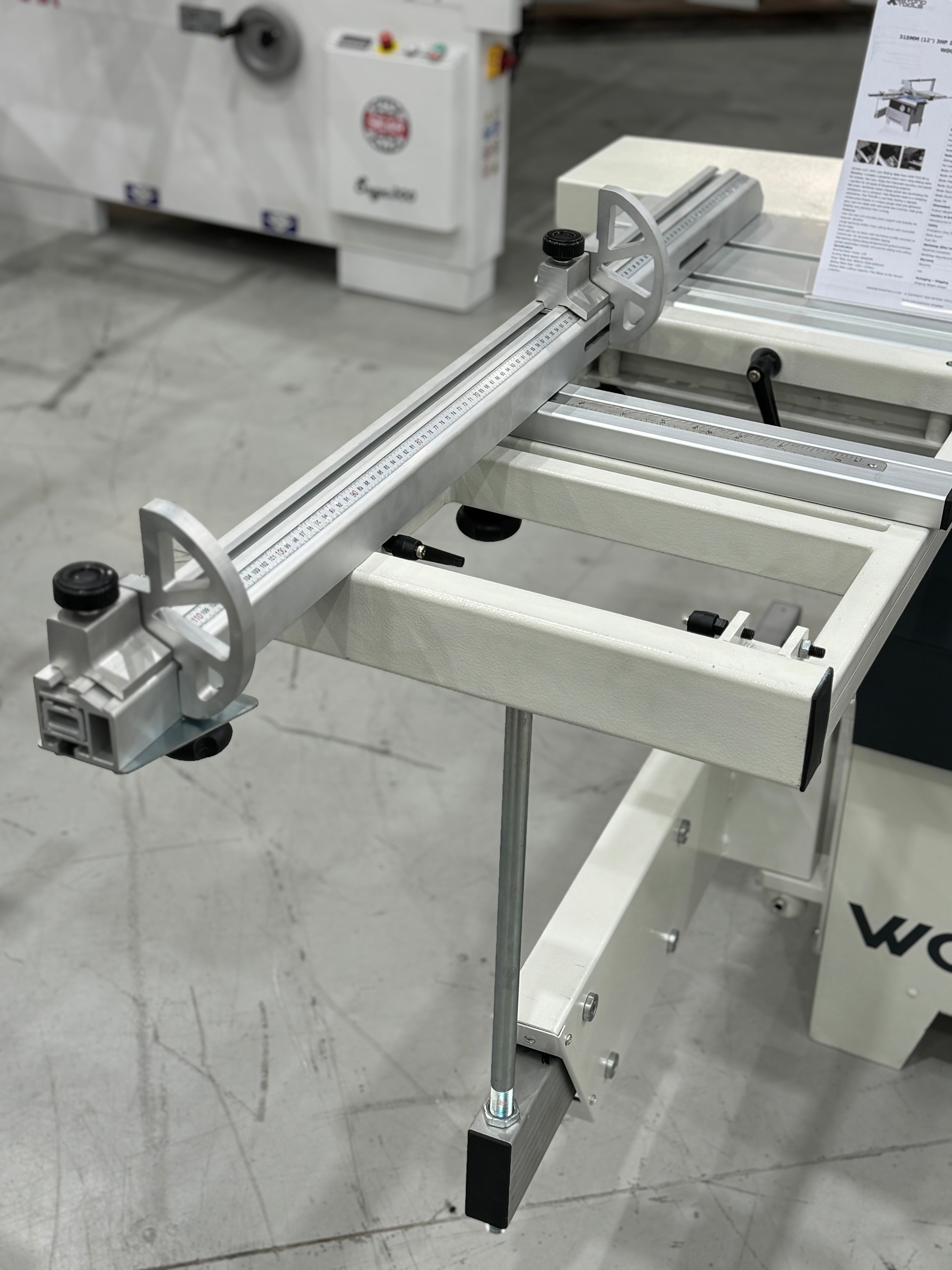

  • Large sectional profile cross cutting fence with reversible fence stops

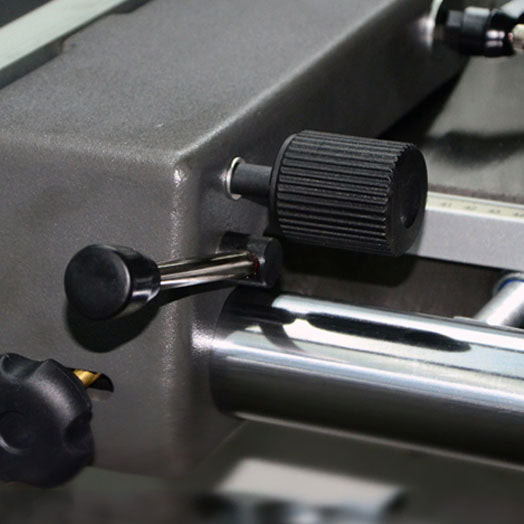

  • Solid cast iron rip fence with aluminium profile mounted to 150mm bar, for accurate reliable ripping

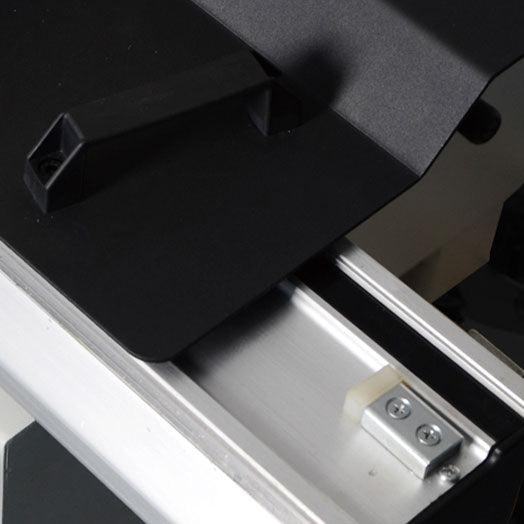

  • Ball bearing sliding along tempered and ground prismatic guides guarantees smooth and precise sliding and cutting.

Specification

  • Scoring Motor Power: 1HP
  • Scoring Blade Speed: 8000RPM
  • Major Table Size: 800mm (530+820mm)

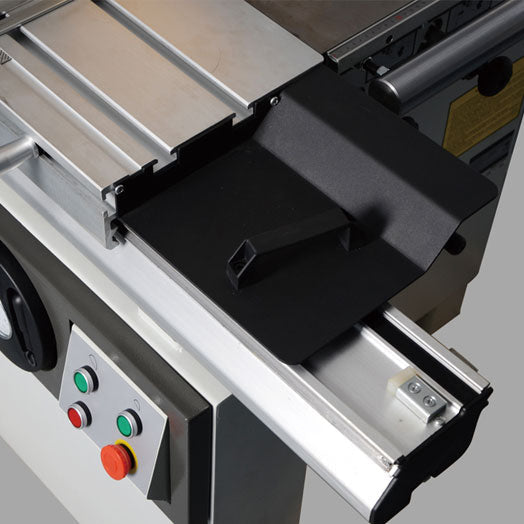

  • Sliding Table Size: 1200 x 312mm
  • Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
  • Maximum Cut Depth: 95mm at 90° / 67mm at 45°

Optional Accessories

  • Angled Cutting Device
  • 100mm Dust Hose
  • Hose Clamps + fittings etc
  • Dust Extractor FM Series Dust Collector

Additional Information

Model
Type
Panel Saw
SKU
8000849
Part Number
TS315B
Brand
Woodfast
Size
315mm (12")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP / 2200W
Cutting Capacity - Height
80mm at 45° (315mm Blade)
Table Size
800 (530 +820)mm
Technical - Saw
Sliding Table (Cross Cut) Size
1200mm x 312mm
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
1250 mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315 mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
120 mm
Blade (Scoring) - Bore Size
20 mm
Blade (Scoring) - Speed
8000RPM
Blade Tilt
0° to 45°

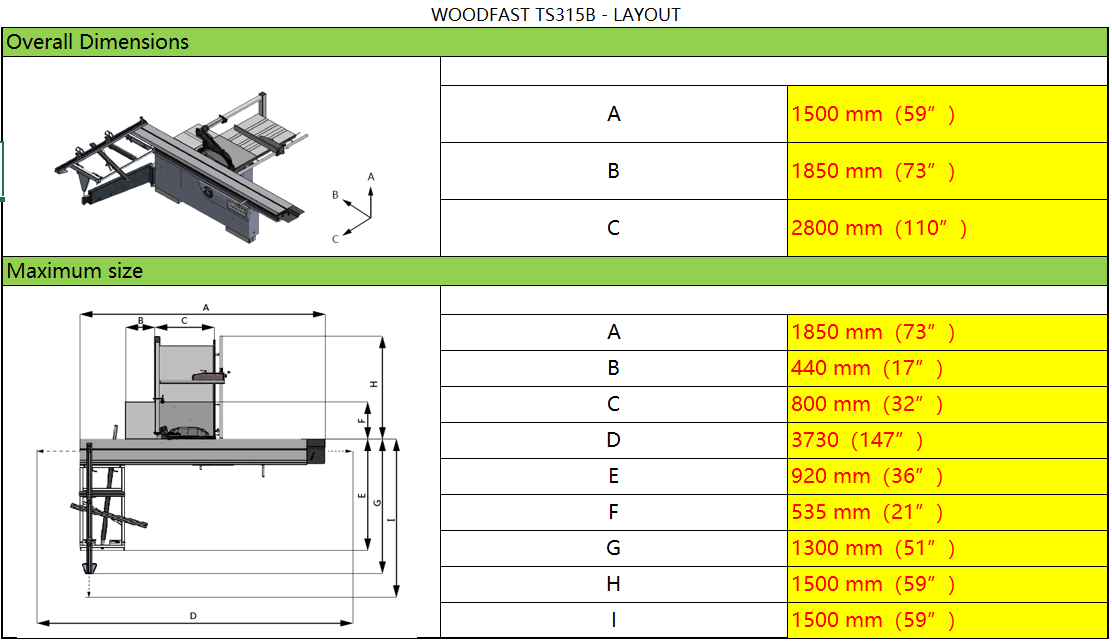

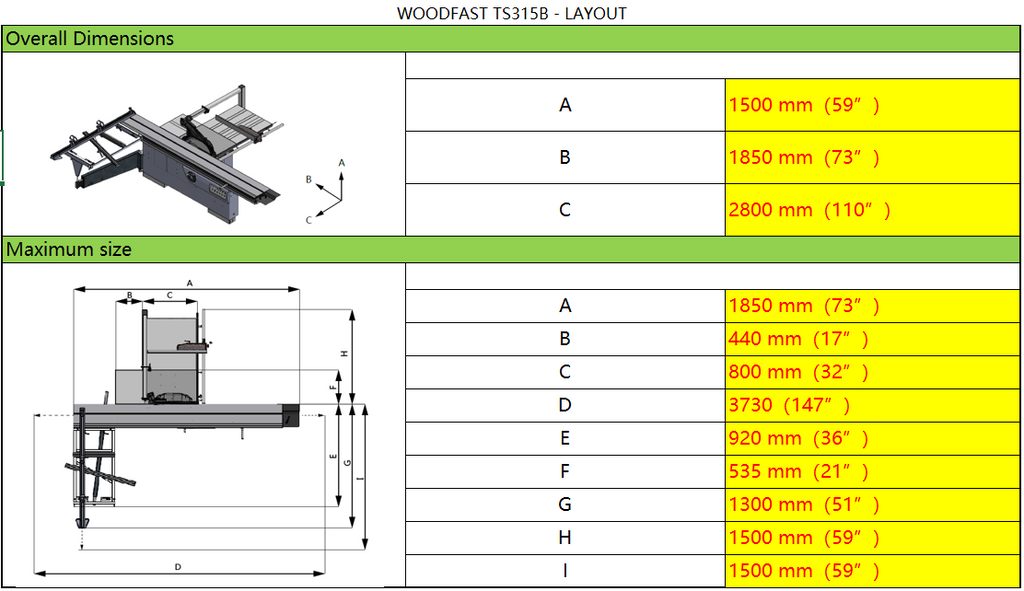

Dimensions
Product Weight (Net Weight)
425 kg
Country of Origin
Manufactured in
China
Safety

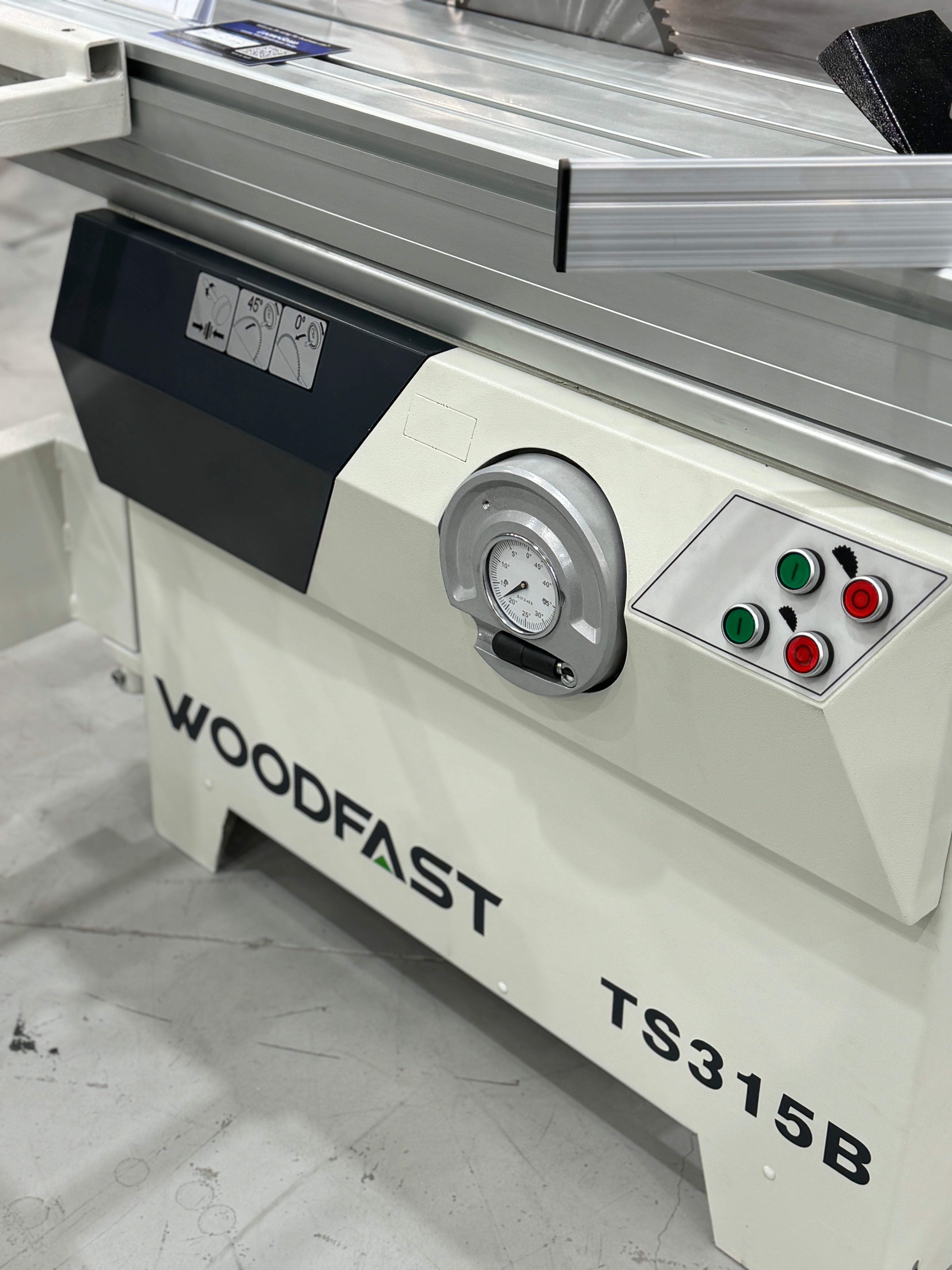

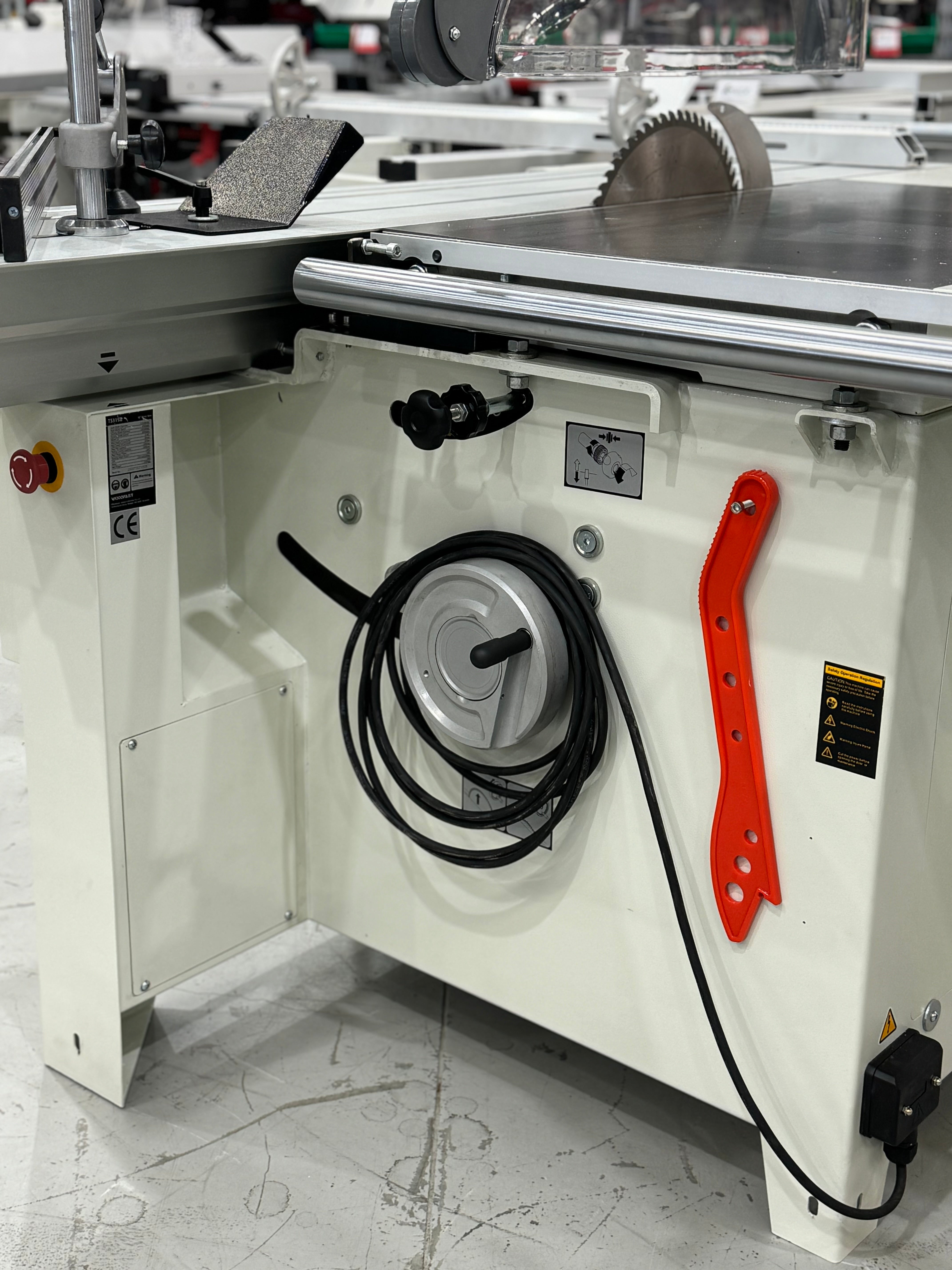

Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.

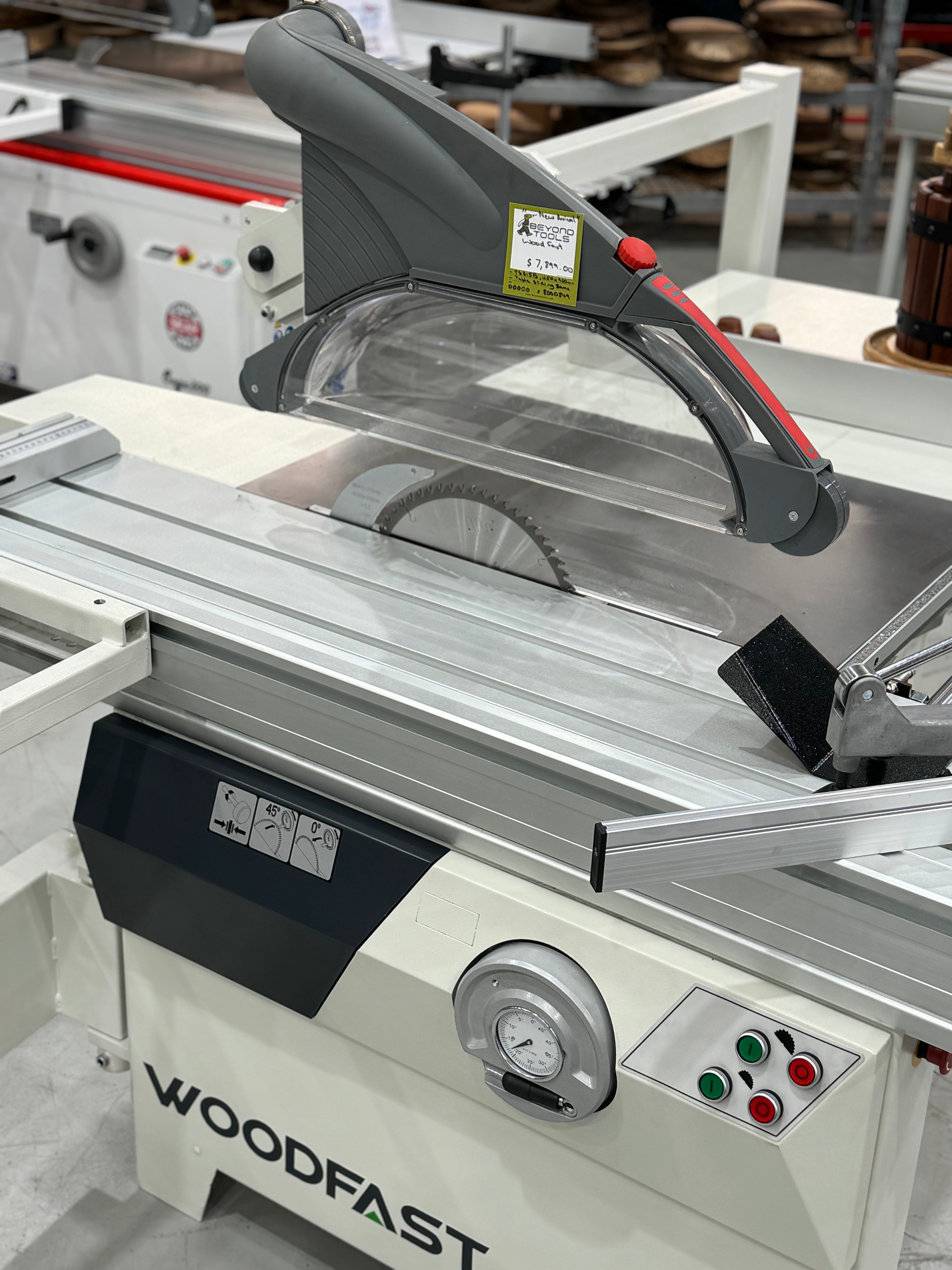

Blade Guard
Dust Port
1 x 100mm, 1 x 80mm
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Workshop Requirements
Dust Extraction
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Use
Not intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
495.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
1310mm x 990mm x 1085mm
Carton 2 (L X W X H x KG)
2000mm x 430mm x 210mm
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
