Type
Planer (Jointer)
SKU
8601513
Part Number
TUNGSTEN300
Brand
ToughCut
Size
300mm (12")
Status
Available
Description

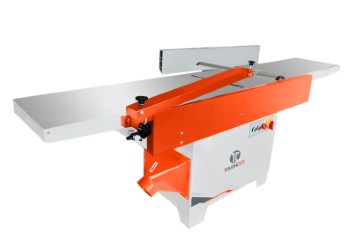

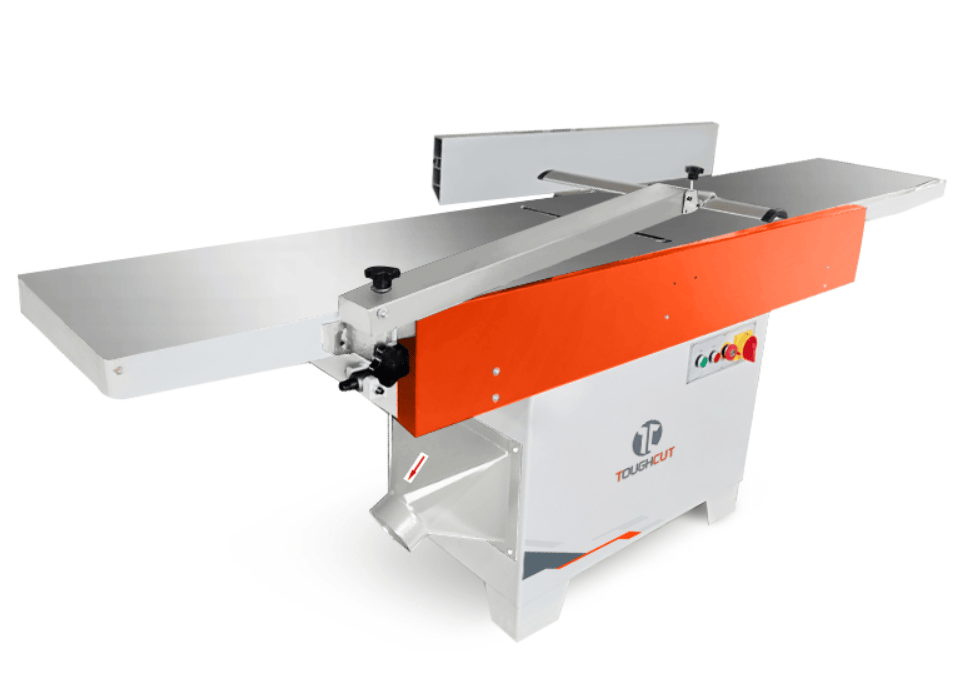

This ToughCut industrial wood surface planer were specially designed for Australian market with European quality. A strong machine body ensures stability in the workplace.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP 2200W
Blade Type
Spiral Head Cutter Block
Technical - Spiral Head Cutter Block
Blade - Cutter Head Block - Diameter
87 mm
Technical - Planer
Planer - Table Size
346mm x 1800mm
Dimensions
Product Length
1840 mm
Product Width
740 mm
Product Height
1010 mm
Product Weight (Net Weight)
300 kg
Safety
Dust Port
Yes
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
