300mm (12") Italian Designed Professional Combination Planer & Thicknesser with Spiral Head Cutter Block 300C 240V by Sicar

SicarSKU: 8601478

Sale price$6,699.00

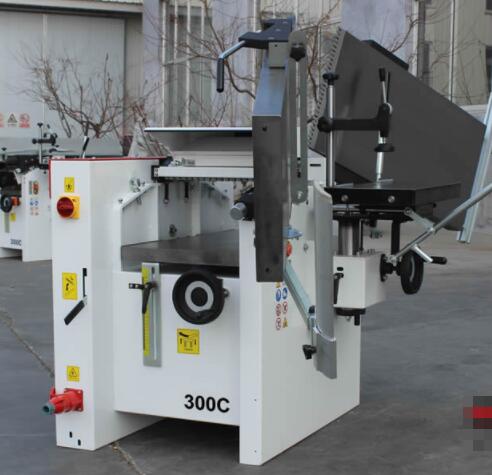

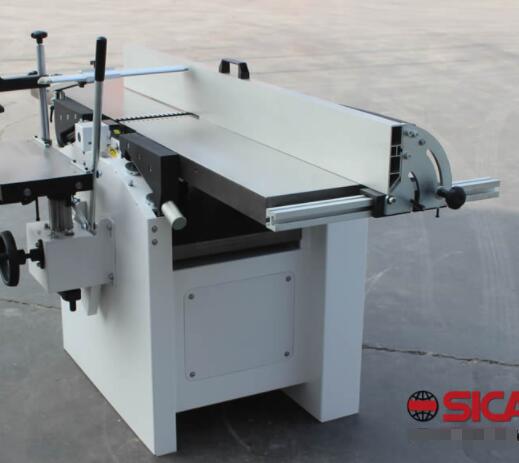

The 300C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own. The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently. Several further options are also available, each machine can therefore be tailored to the users specific needs. Specifications : Planer Working table: 300x1500mm Cutter block diameter: 70mm Cutterblock rotation speed: 5700rpm Max table adjustement: 4mm Thicknesser Working table: 300x660mm Feeding speed: 7m/sec Working height: 4-220mm True Sprial Cutterhead Carbide insert (15x15x2.5mm 30 °ï¼‰ Power 1 Phase 230V 50Hz 2.2KW 3HP Motor Packaging Diamension: 1576x666x1130mm Weight: 300kg Mortiser (Optional) Working table: 250x500mm Longitudinof/Trosversof/Verticol stroke: 205/95/90mm Chuck (M18*1.5-S): 0-16mm

Additional Information

Combination Planer & Thicknesser
Part Number
300CS 240V
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Product Weight (Net Weight)
290 kg
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
