Type
Panel Saw
SKU
8601449
Part Number
SEGA300/240V/2.6M
Brand
Sicar
Status
Available
Description
Specifications
- Main Blade Diameter φ300 x φ30mm
- Main Blade Speed 4500 RPM
- Scoring Blade Diameter φ90 x φ22mm
- Scoring Blade Speed 7000mm
- Mαx Depth of Cut @ 45 ° 75mm
- Max Depth of Cut @ 90 ° 100mm
- Max Rip Capacity 1250mm
- Main Table Size 800x500mm
- Main extend Table Size 800x860mm
- Side extend Table Size 500x500mm
- Dust Extraction Outlet φ120mm
- 1PH Motor Output 3KW 4HP
- Net/Gross Weight 430/500KG
- Mαin Package 1750x1030x1100mm

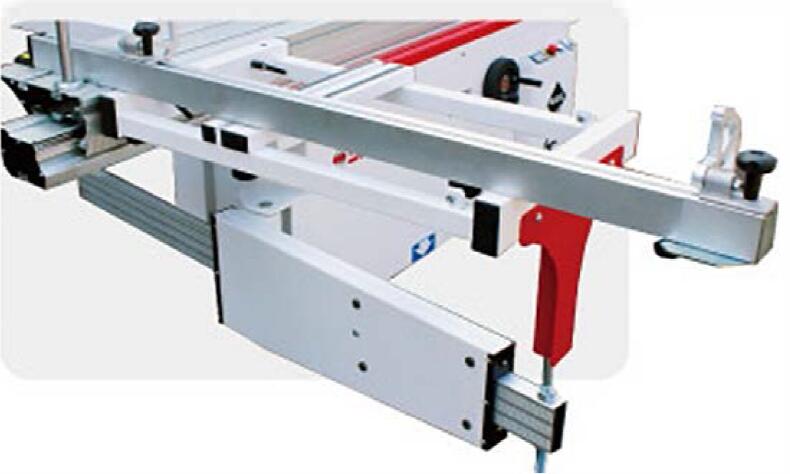

- Sliding Beam Size(W.x L.) 315x2600mm
- CE Style Overhead Guard Included
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
4HP (2.98kW)
Blade - Electric Rise / Fall
No
Cut Max. Depth @ 45°
75mm
Cut Max. Depth @ 90°
100mm
Rip Capacity
1250mm
Technical - Saw
Sliding Table (Cross Cut) Size
2600x315mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
300 mm
Blade (Main) - Speed
4,500RPM
Blade (Scoring) - Diameter (Max.)
90 mm
Blade (Scoring) - Speed
7000
Blade Tilt
0-45°
Dimensions
Product Weight (Net Weight)
430 kg
Safety
Dust Port
1 x 120mm
Workshop (Site) Info
Electrical Connection
15Amp Lead & Plug
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
