Type
Resaw / Sawmill
SKU
8001464
Part Number
SM550HG
Brand
Oltre
Status
Available
Description
Designed for budget minded customers looking at getting into milling (powered by petrol) their own lumber at an exceptional price. The SM550G offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 530mm in diameter and 3.2m in length.
Features
- Works like a real sawmill, whilst being compact.
- The log stays stationary whilst the sawhead passes along its length, slicing boards at the height you choose.
- Log Clamping via fixing plates
- Smooth Sawhead Action
- Crank feed wheel for operator comfort and easy control of moving up and down
- Smooth operation of the sawhead crank handle precisely adjusts the sawhead height - clockwise to raise the sawhead, counter-clockwise to lower the sawhead
- Handle for saw body moving back and forward
- Handle for blade tension
- Coolant system
- Petrol Powered Engine
- Air Cooled, 4 Stroke
- 13HP @ 4000RPM
- Left and right blade guide
- Includes 2m Track + 2m Extension Track (maximum cutting length 3.2m)

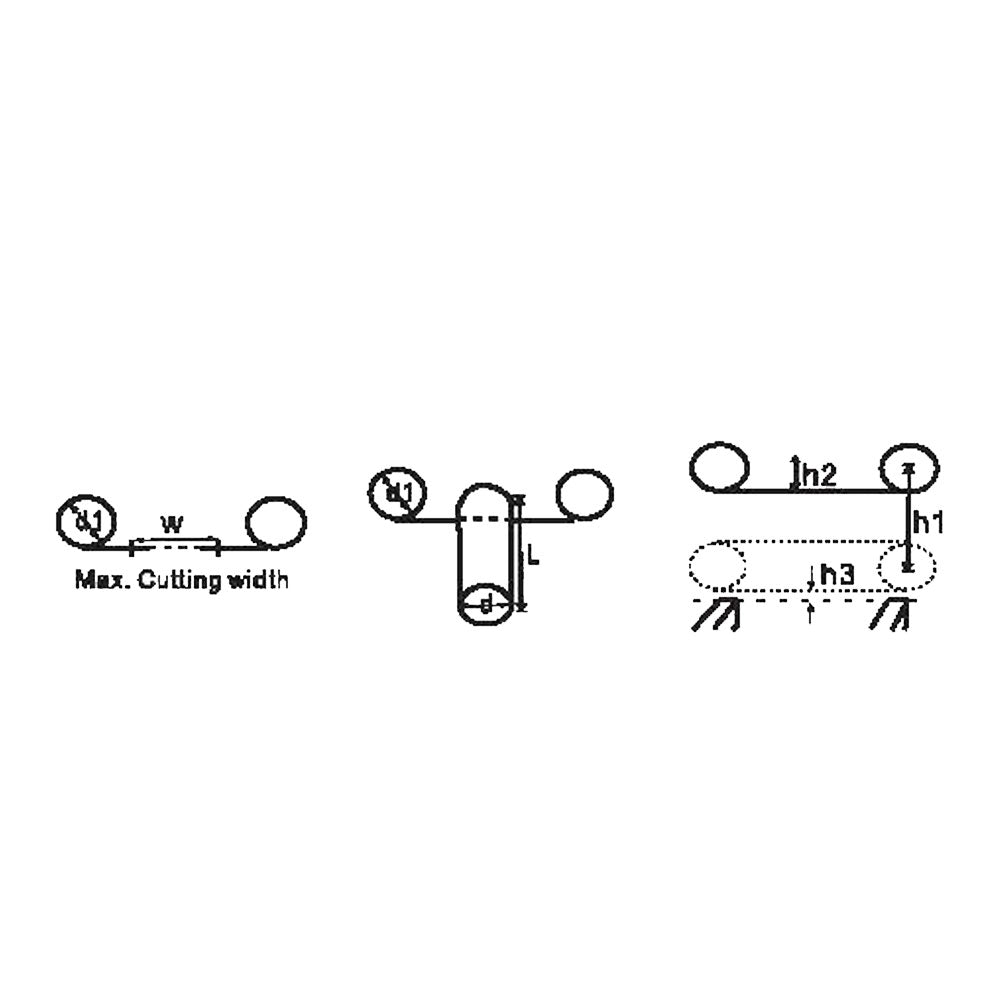

- D Max. = 650mm
- D1 = 475mm
- L Min. = 1050mm
- H1 = 640nn
- H2 = 190mm
- H3 = 105mm
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Petrol
Blade Length
3658 mm
Blade Width
25-32mm
Cutting Capacity - Depth
545mm Max. Cutting Depth of Log (height from base of log to top position of blade)
Cutting Capacity - Width
530mm (21")
Technical - Saw
Blade (Main) - Speed
1200m / min.
Dimensions
Product Weight (Net Weight)
350 kg
Features
Standard Inclusions
3658mm x 32mm x 1.1mm / 22mm pitch
Packaging + Shipping
Shipping Length
2100 mm
Shipping Width
645 mm
Shipping Height
880 mm
Shipping Weight (Gross)
1.48 kg
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
