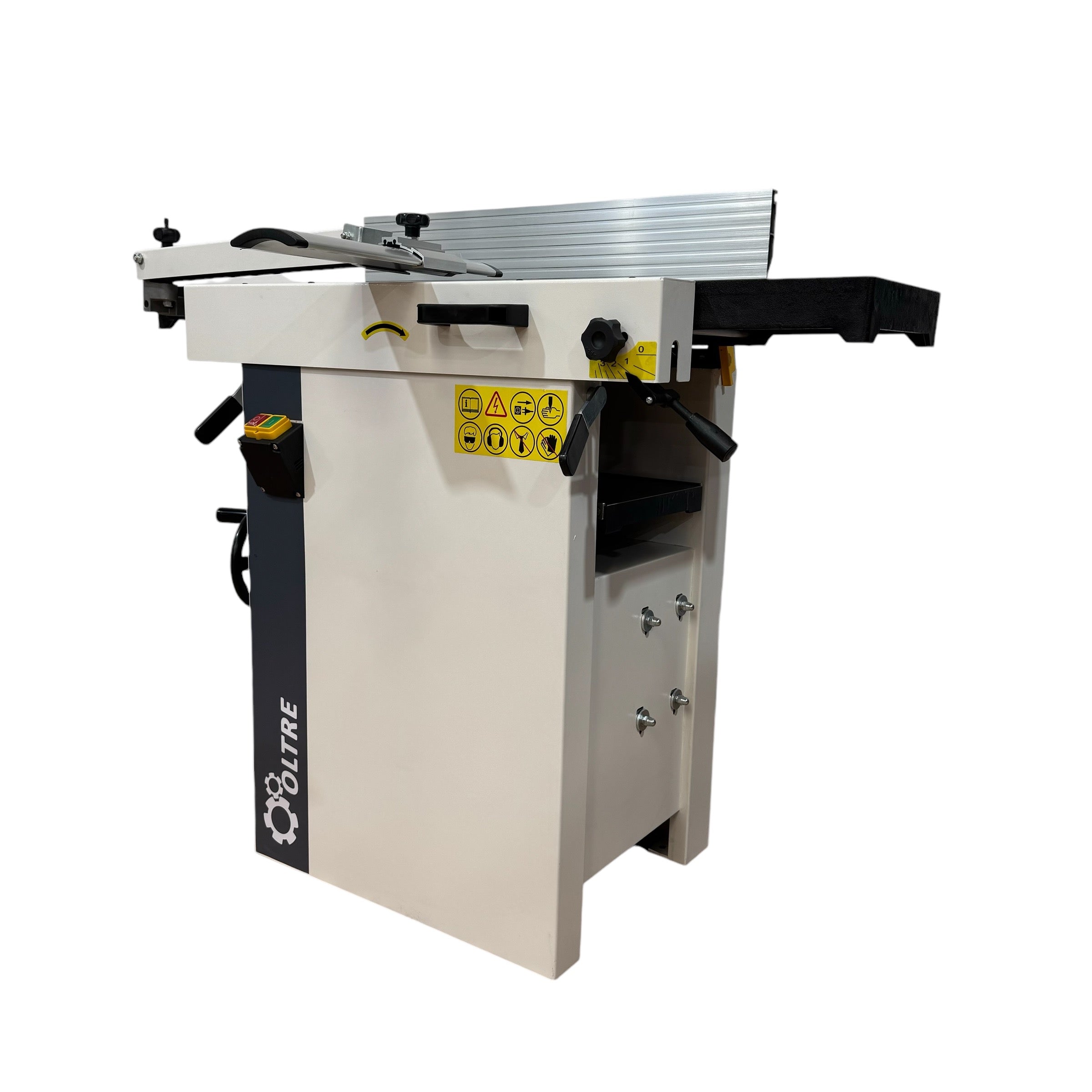

250mm (10") Combination Planer & Thicknesser with Spiral Head Cutter Block 240V OT-PT1001A by Oltre

Save $201.00
OltreSKU: 9501211

Price:
Sale price$1,808.00 Regular price$2,009.00

Status

Available

Description

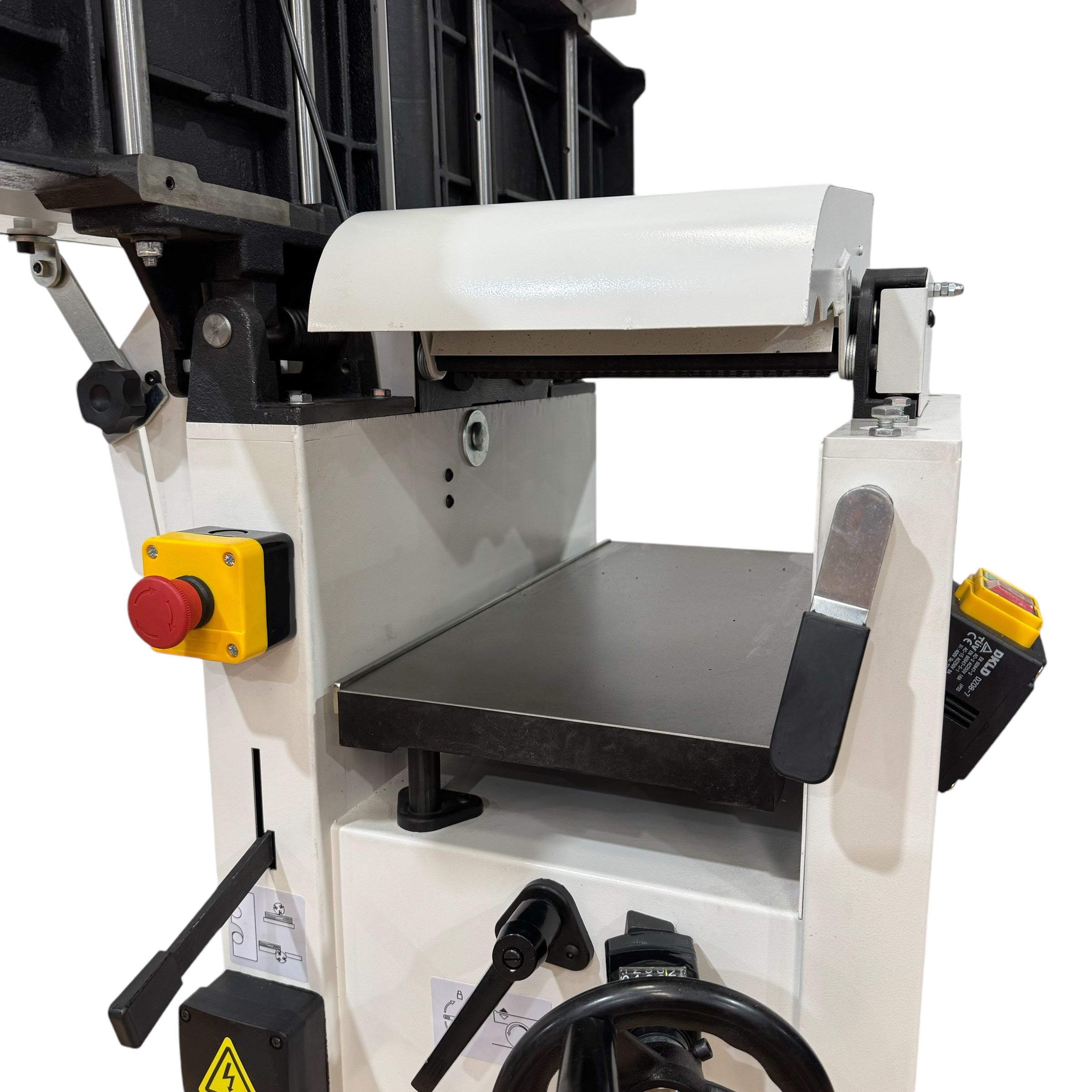

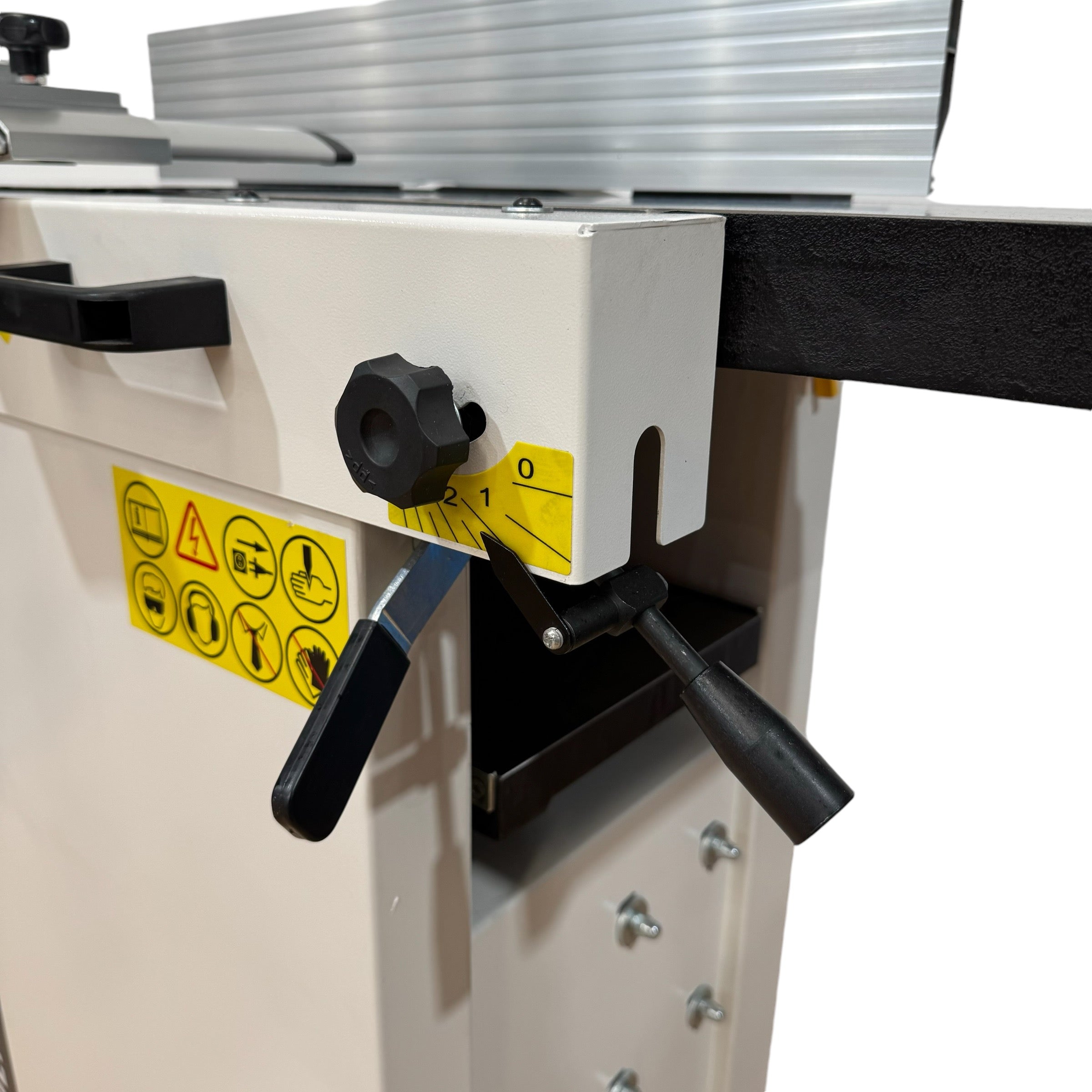

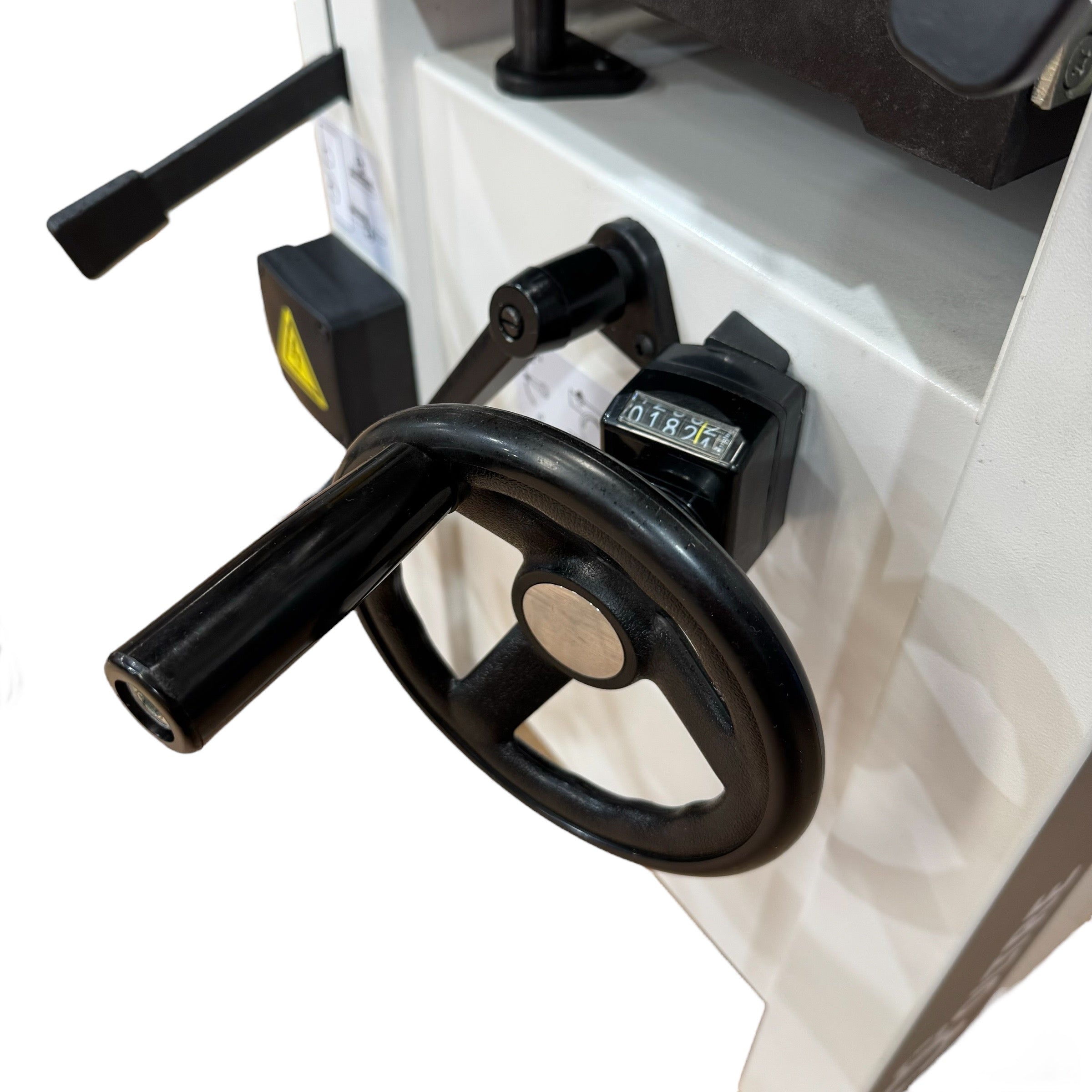

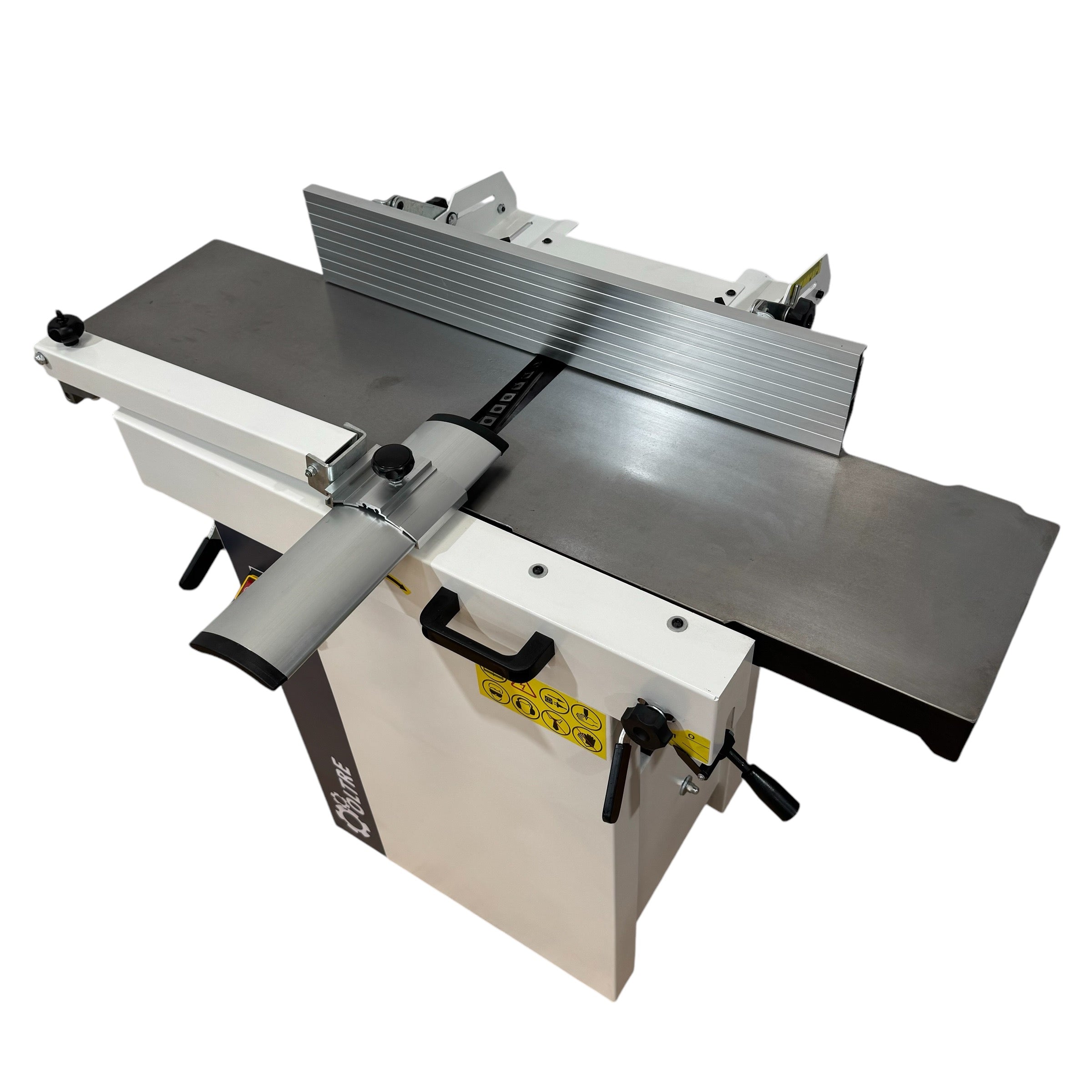

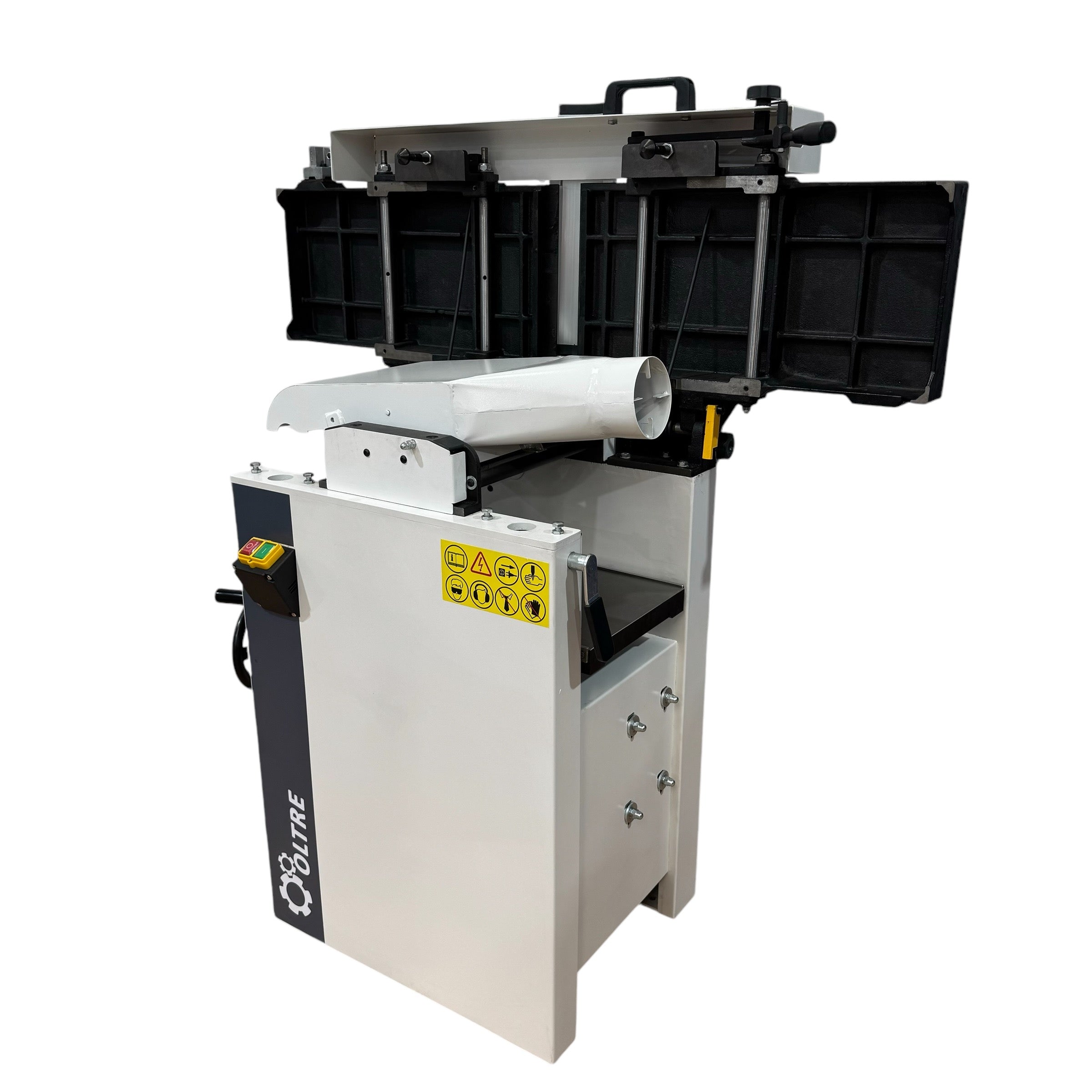

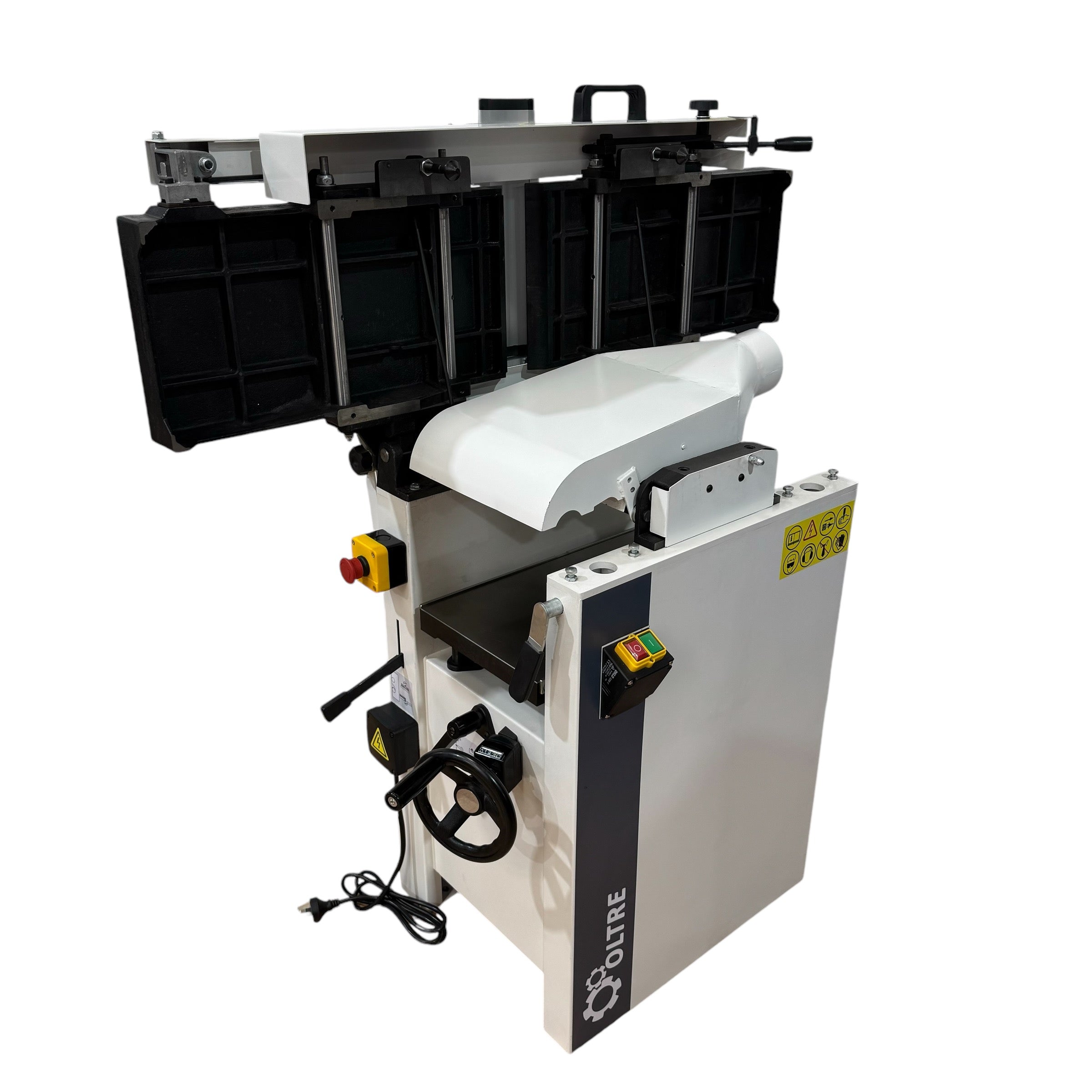

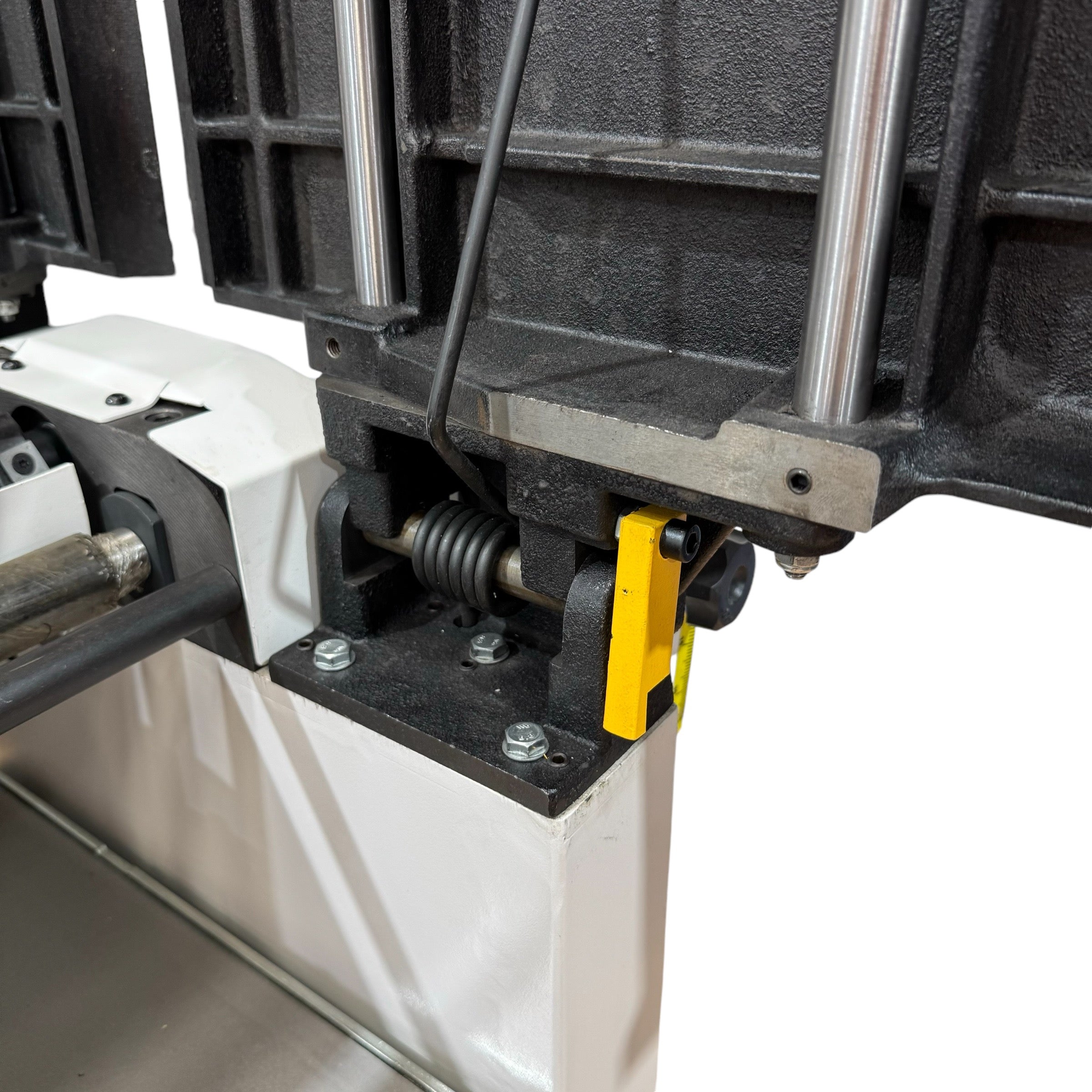

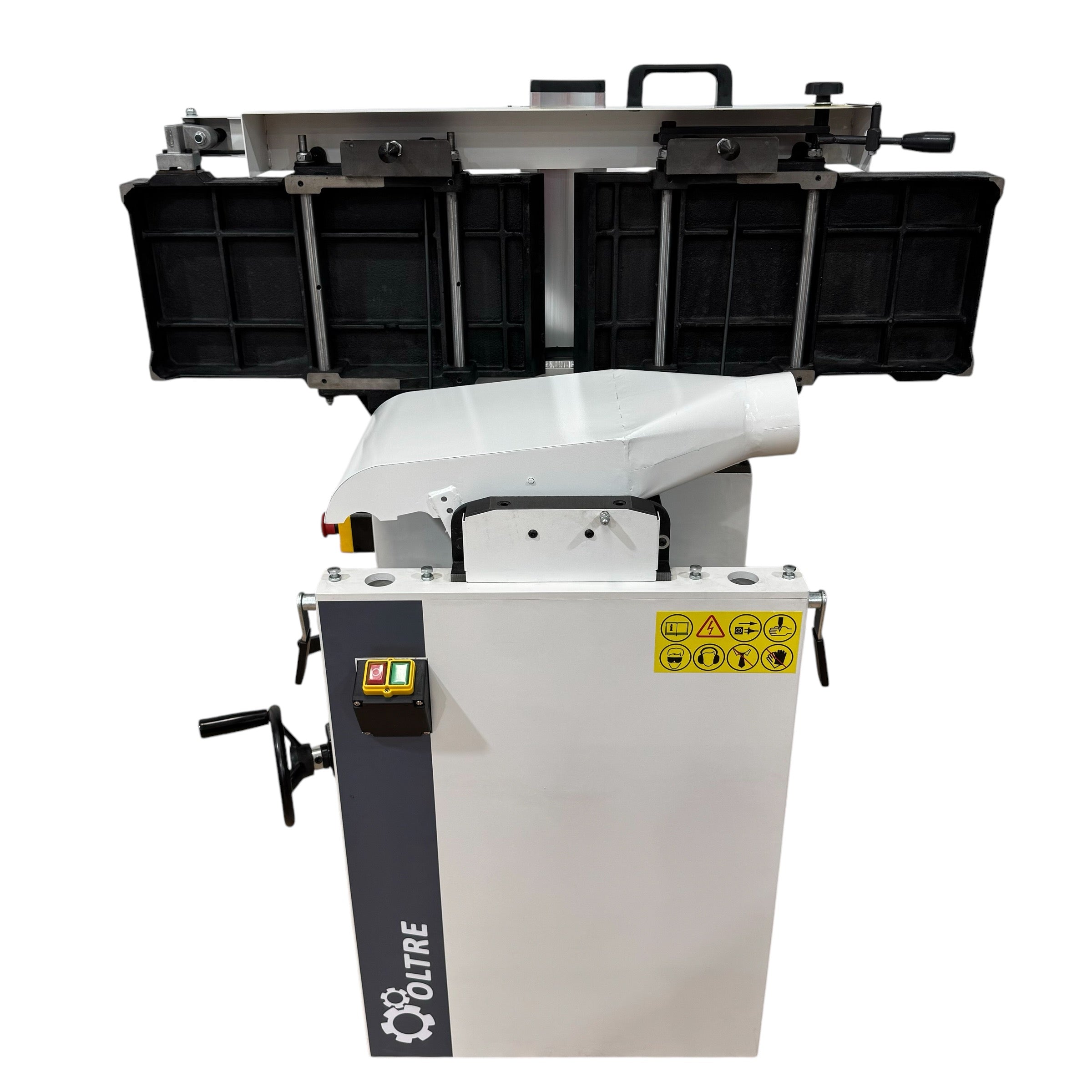

Premium economy machine ideal for home workshops and education environments and small workshops. Oltre means 'Beyond' in Italian and this machine is certainly beyond expectations! Very solidly built with beautifully ground cast iron tables (Jointer 1125x260mm, Thicknesser 545x258mm) it is more than capable of milling rough sawn timber into a Square all Round board ready for that next project. Featuring a 3hp 15am 1ph motor and 44, 15mm x 15mm x 2.5mm carbide knives in its Helical Head this machine will produce a perfect tear-out free finish in the most difficult of Australian Hardwoods. The Jointer has a 260mm maximum width and 1125mm table length. The tables lift easily in one piece for a 10 second change into Thicknesser mode with a capacity of 225mm of depth with a 258 width. It also features a Siko style depth of cut gauge. The roller feed is 5.5m/min with a clean take up. This is a quality machine for the Home Hobbyist or Small workshop.
Features:-

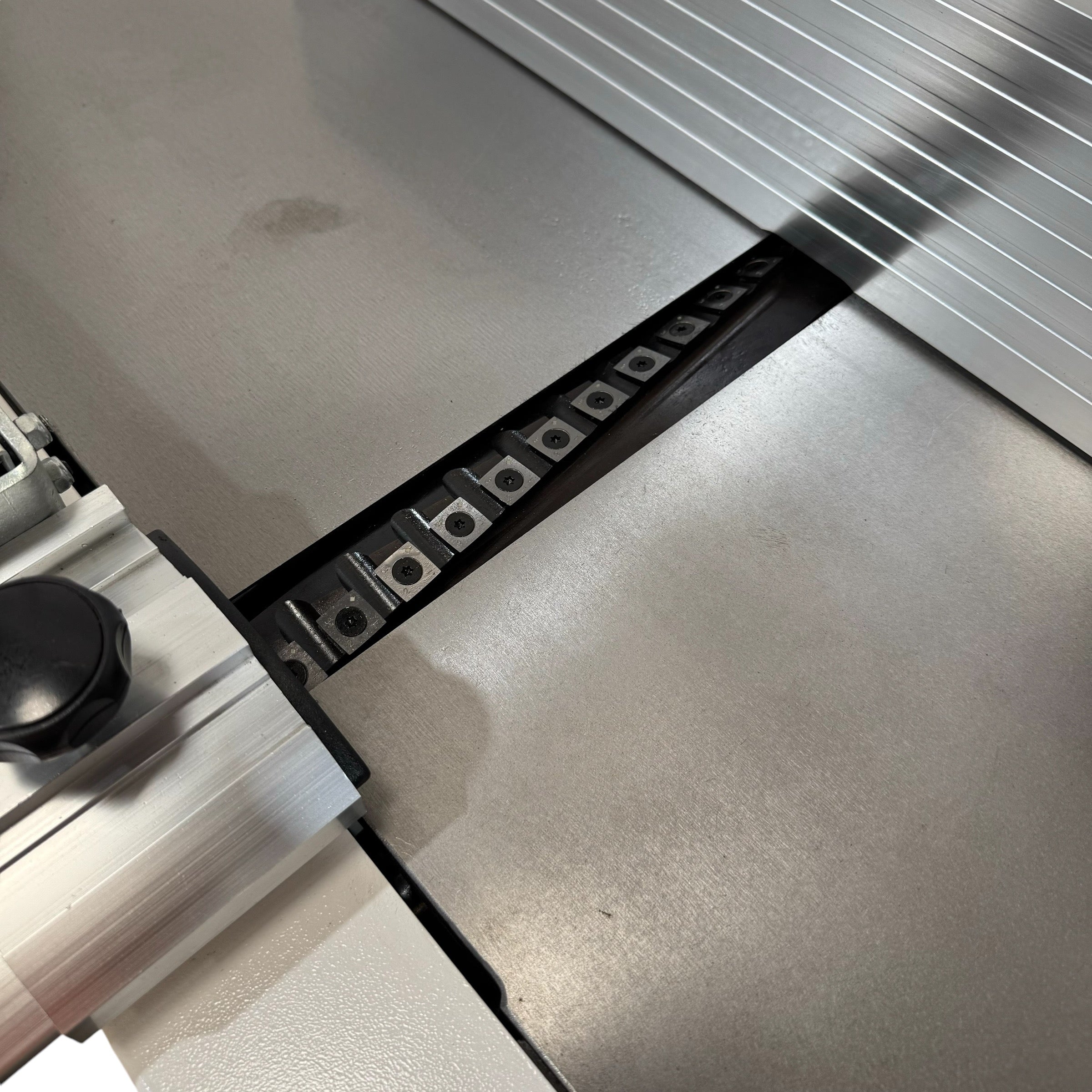

  • Spiral Head Cutter Block for Premium performance with a quieter cut.
Specification:-
  • Planing table size: 250 x 1,050mm
  • Thicknessing table size: 250 x 600mm
  • Feeding block diameter: 40mm
  • Fence tilt: 0 to 45 degrees

Additional Information

Model
Type
Combination Planer & Thicknesser
SKU
9501211
Part Number
OT-PT1001A
Brand
Oltre
Size
250mm (10")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.

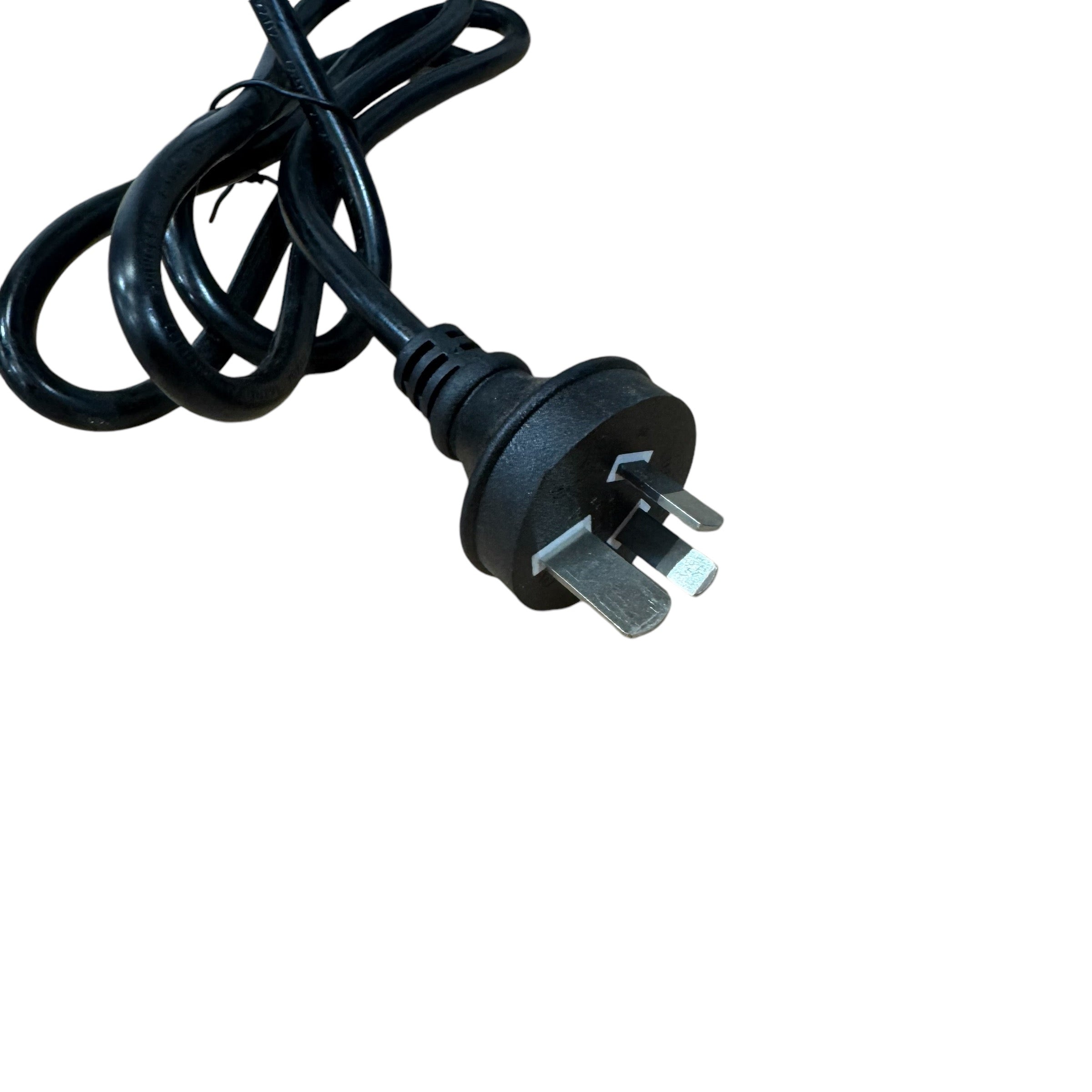

240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
2HP / 1500W
Cutting Capacity - Depth
2.5mm
Cutting Capacity - Height
180 mm
Feed Speed
8m / Min.

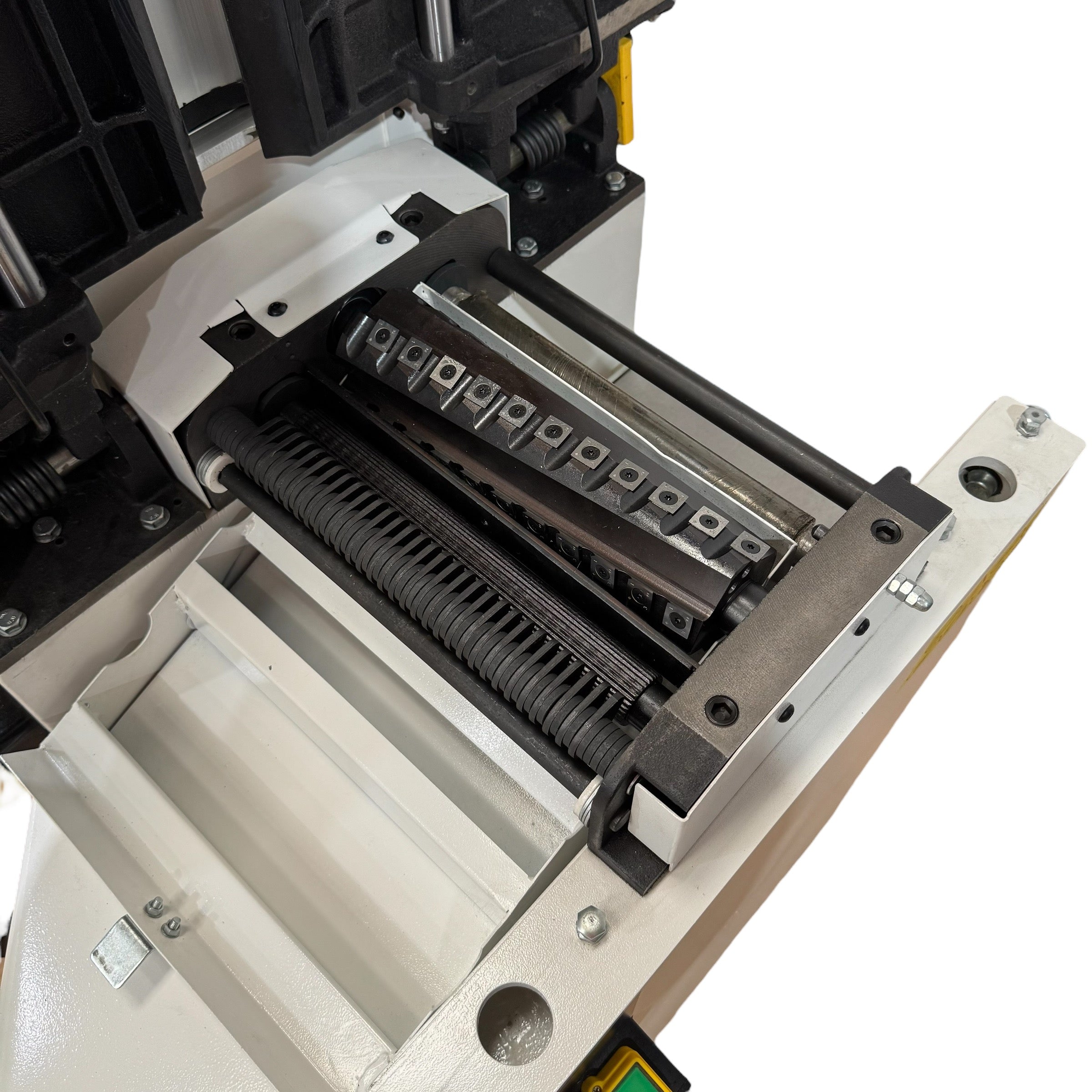

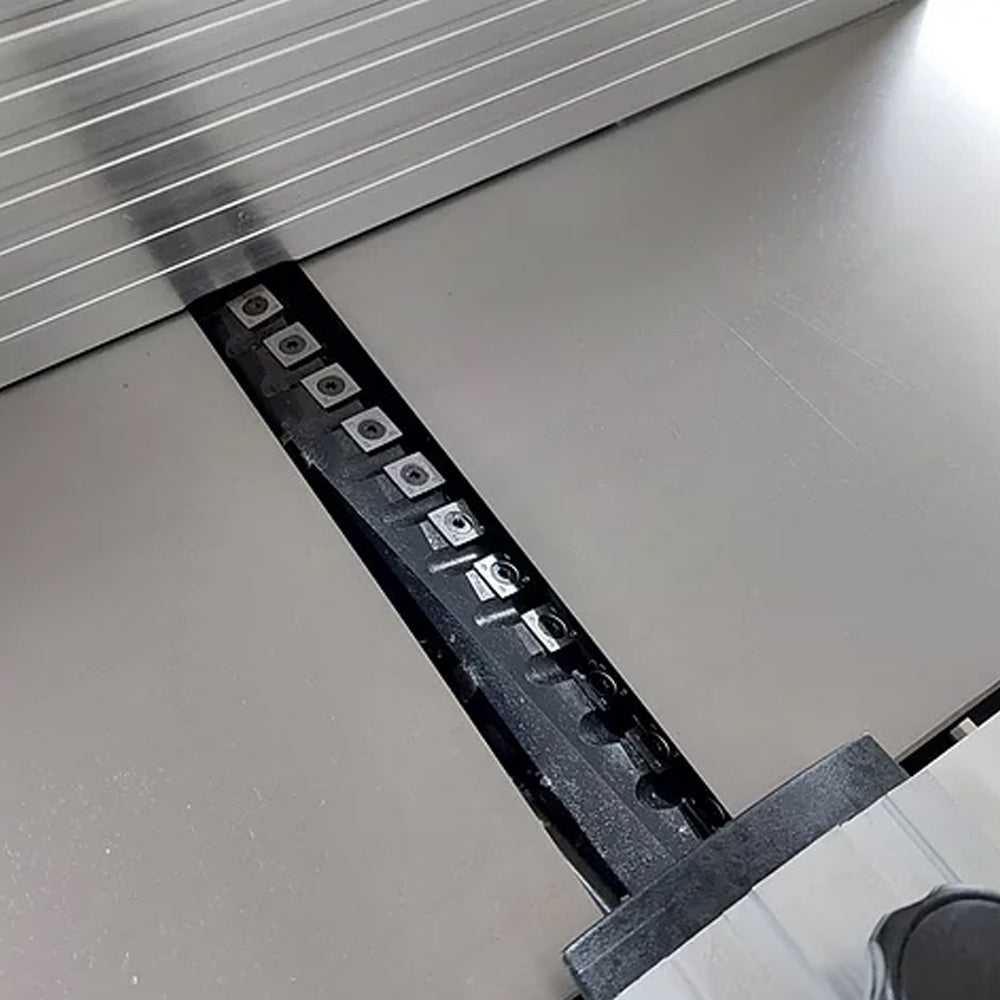

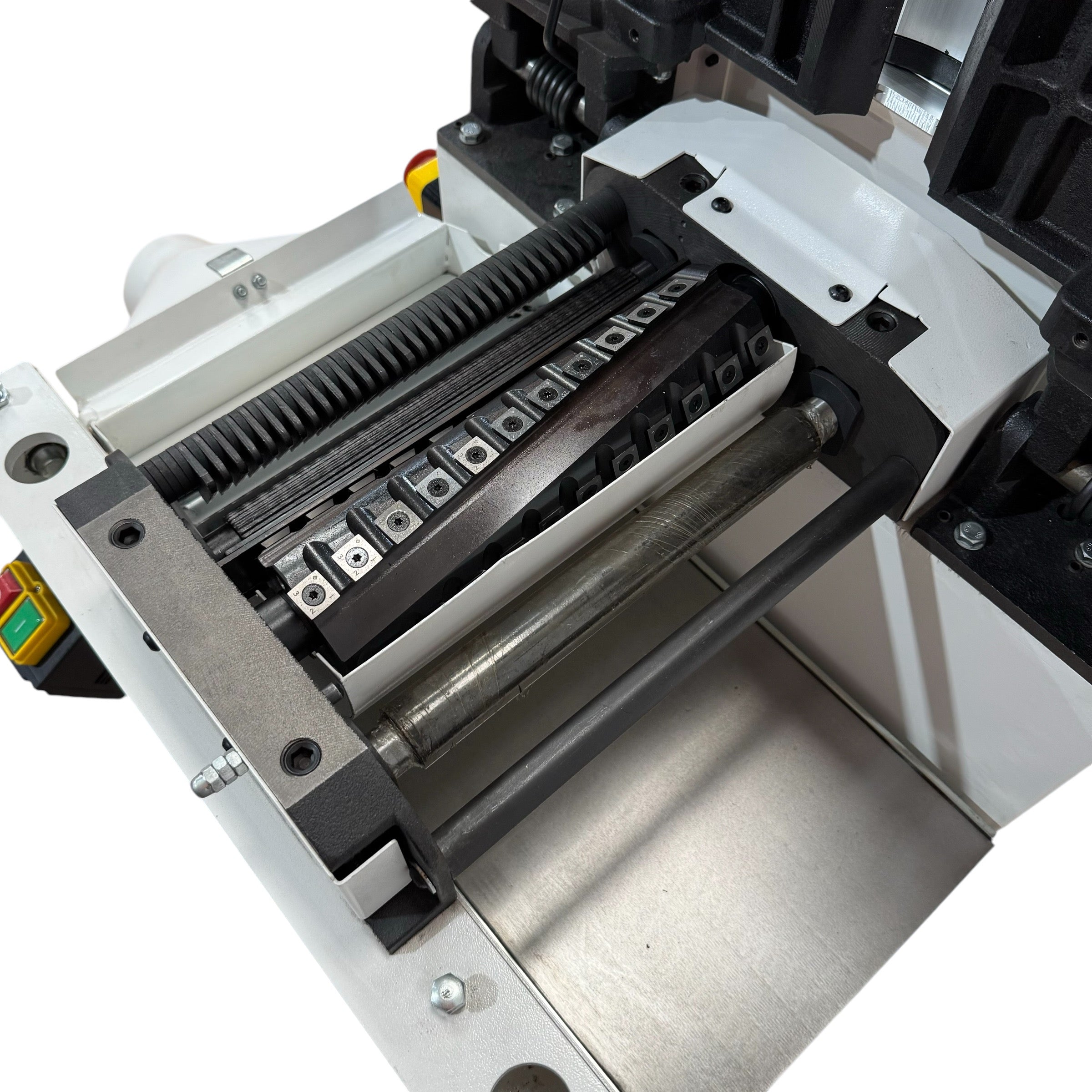

Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
14mm x 14mm x 2mm Square
Blade - Cutter Head Block - Diameter
100 mm
Blade - Cutter Head Block - Rows
7
Blade - Cutter Head Block Speed (RPM)
4000
Blade - Cutter Head Block - No. of Blades / Tips
44
Dimensions
Product Weight (Net Weight)
148 kg
Safety

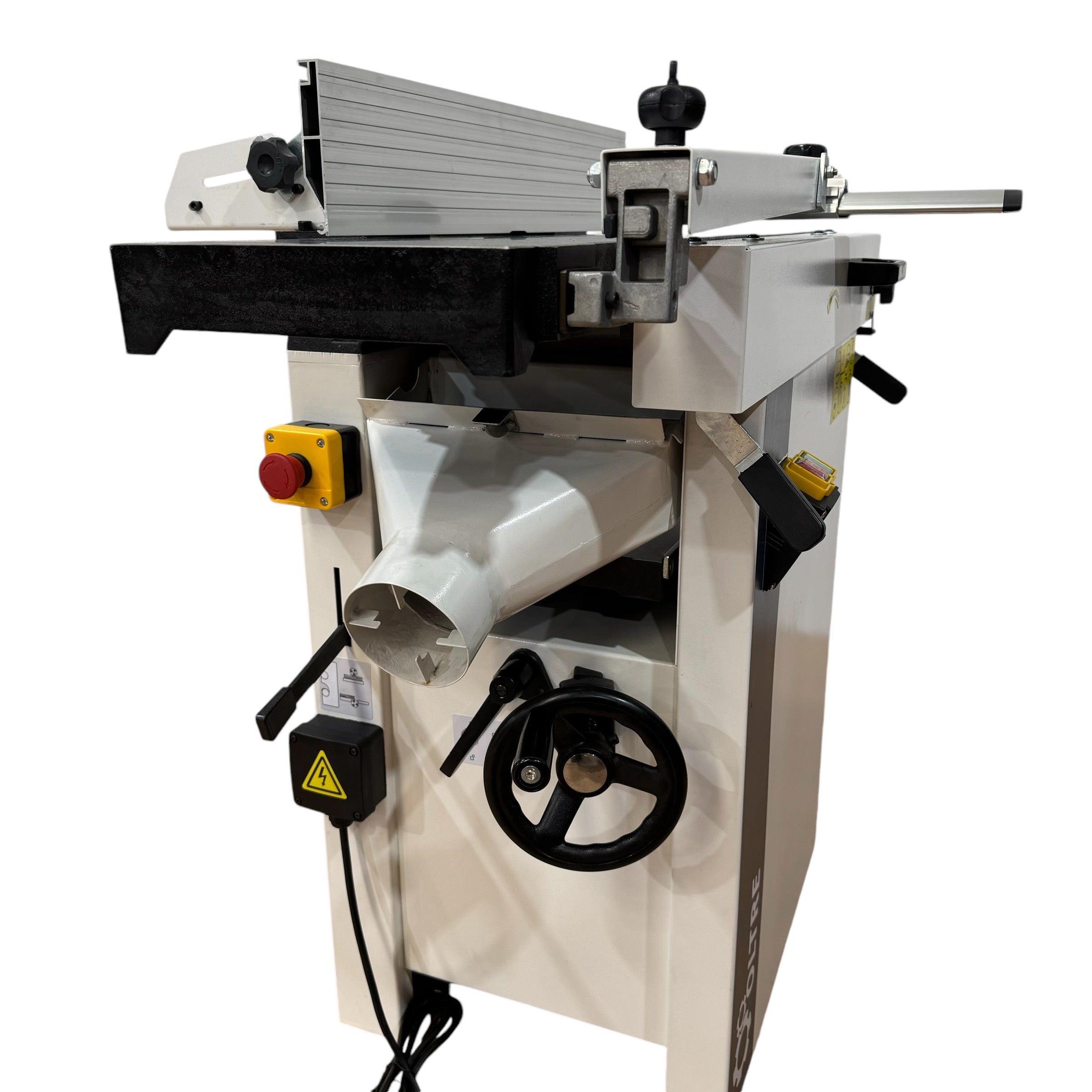

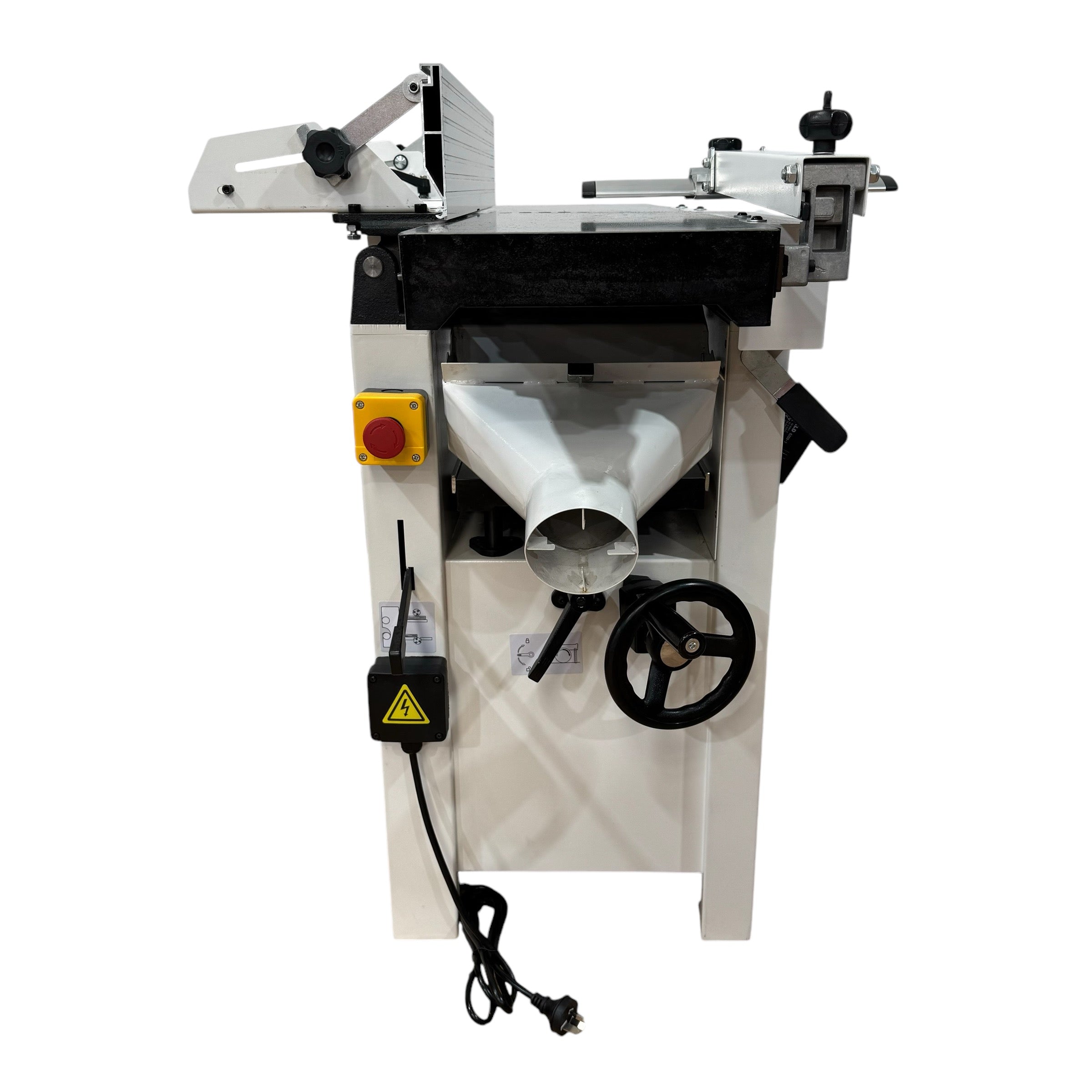

Dust Port
100mm
Packaging + Shipping
Shipping Length
1150 mm
Shipping Width
530 mm
Shipping Height
920 mm
Shipping Weight (Gross)
1.48 kg
