Status
Available
Description
Introducing the Woodfast PT260B Planer Thicknesser - your all-in-one solution for precision woodworking!
This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT260B is built to handle even the toughest woodworking projects.

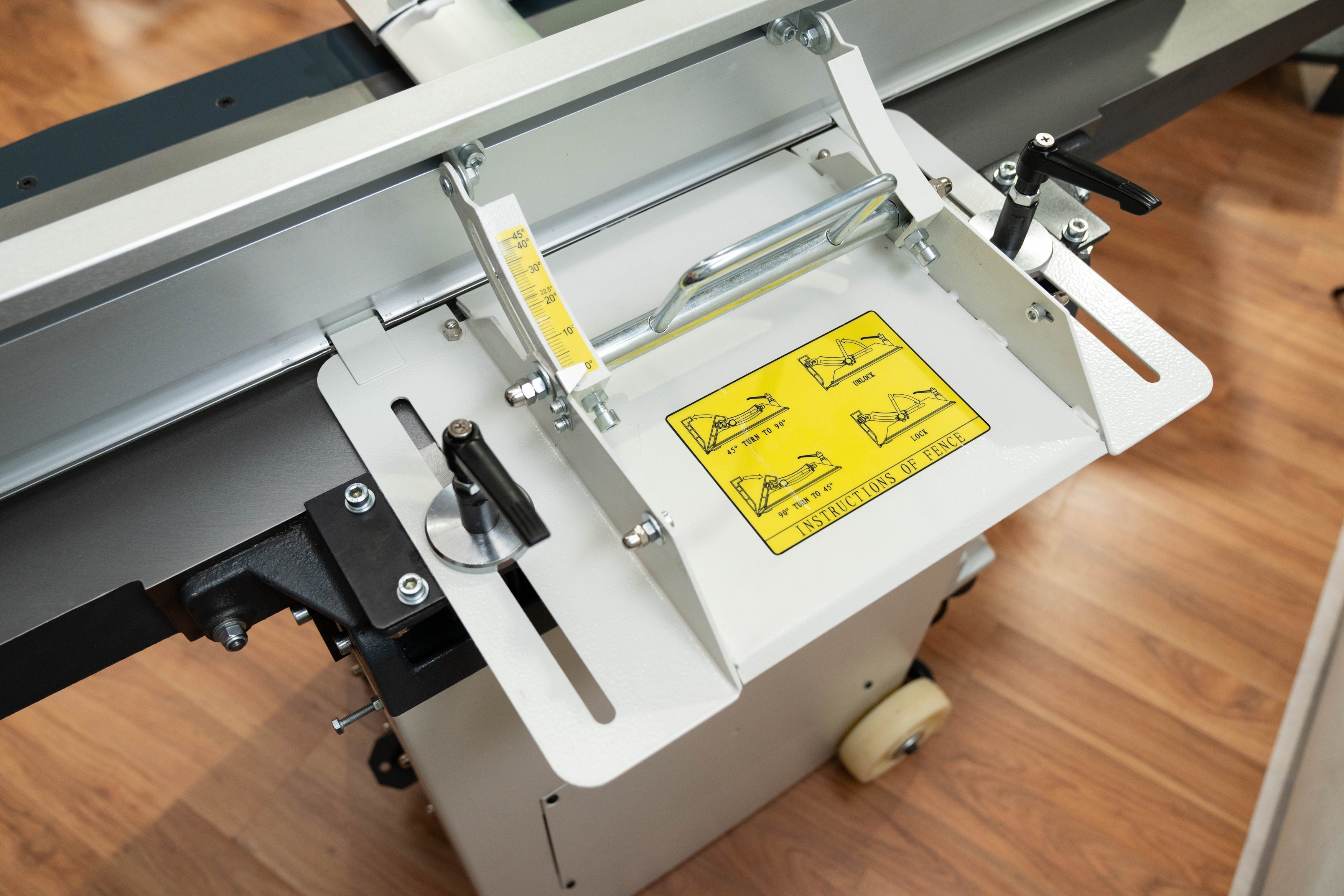

The PT260B has a 260 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.
Feature
- 260mm (10") wide cutting capacity

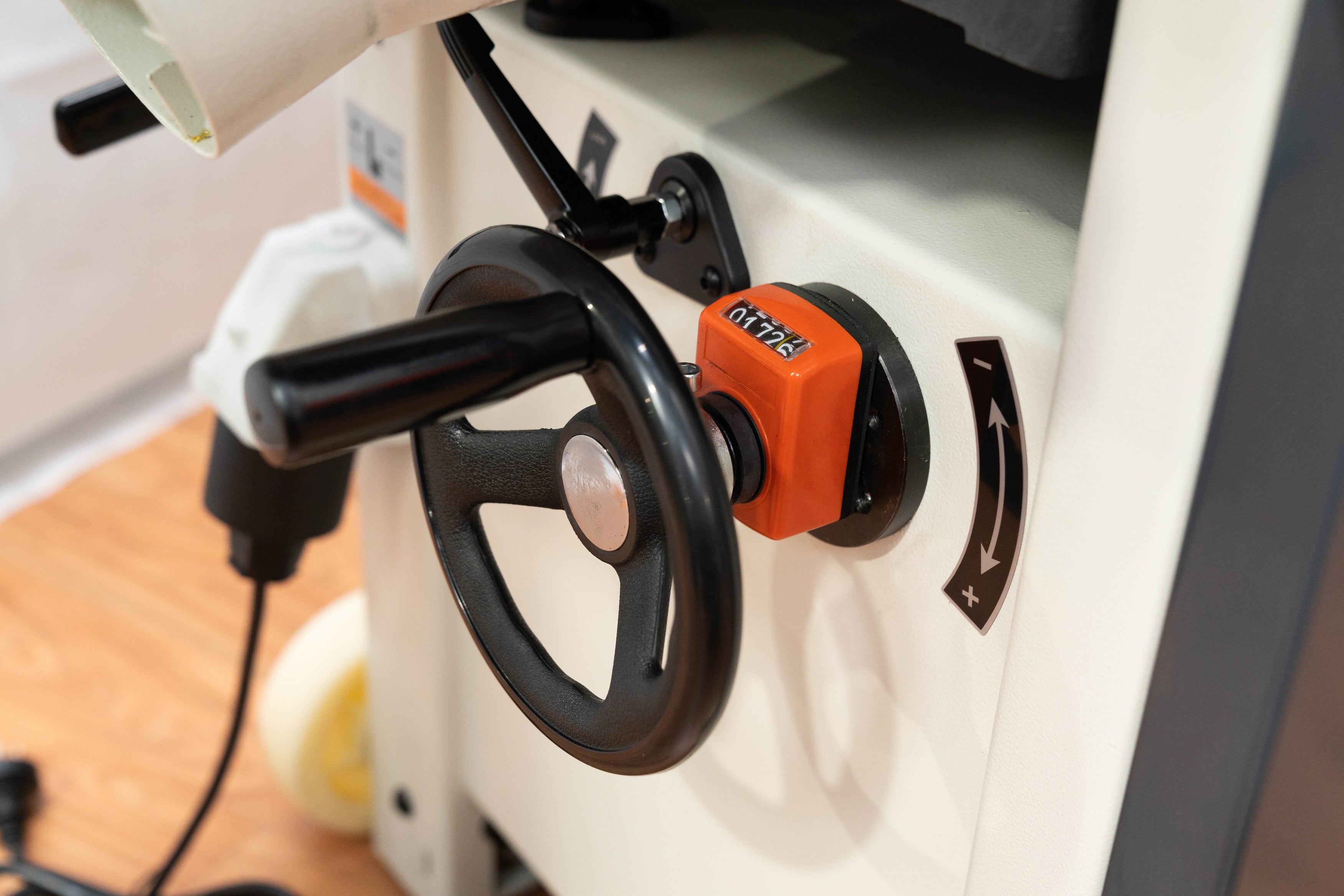

- Automatic material thickness measurement for quick and easy setup via digital height readout.
- Micromillimeter adjustment of material feeding

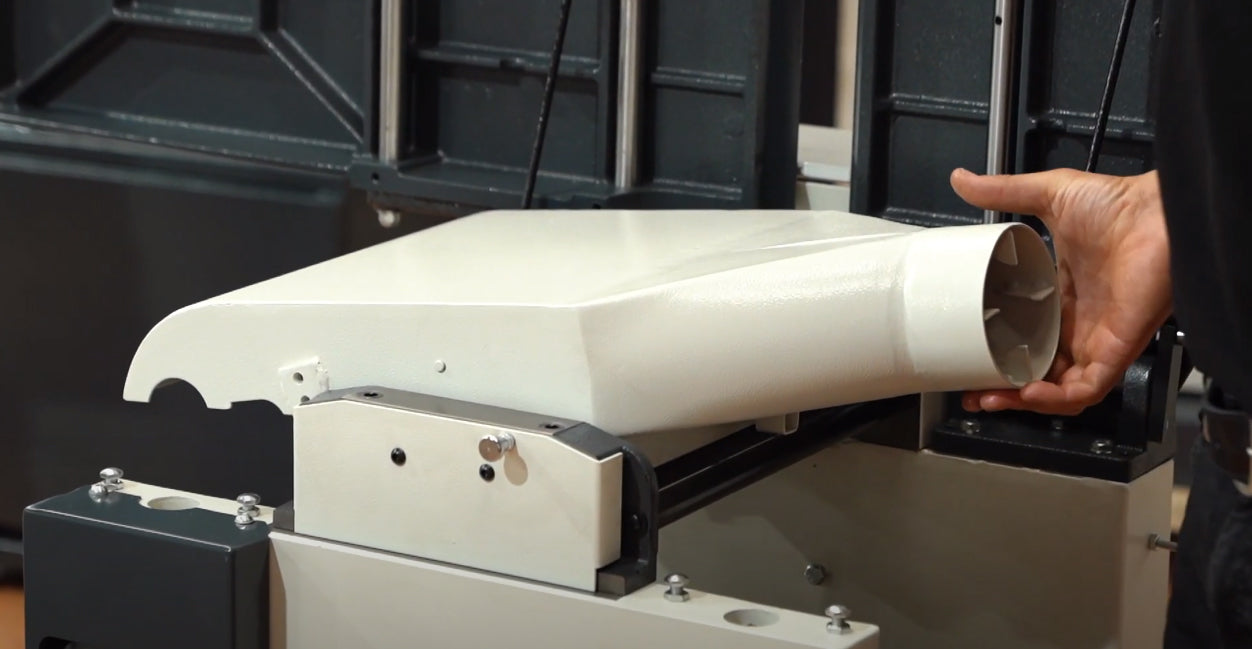

- Large dust collection port for efficient dust extraction

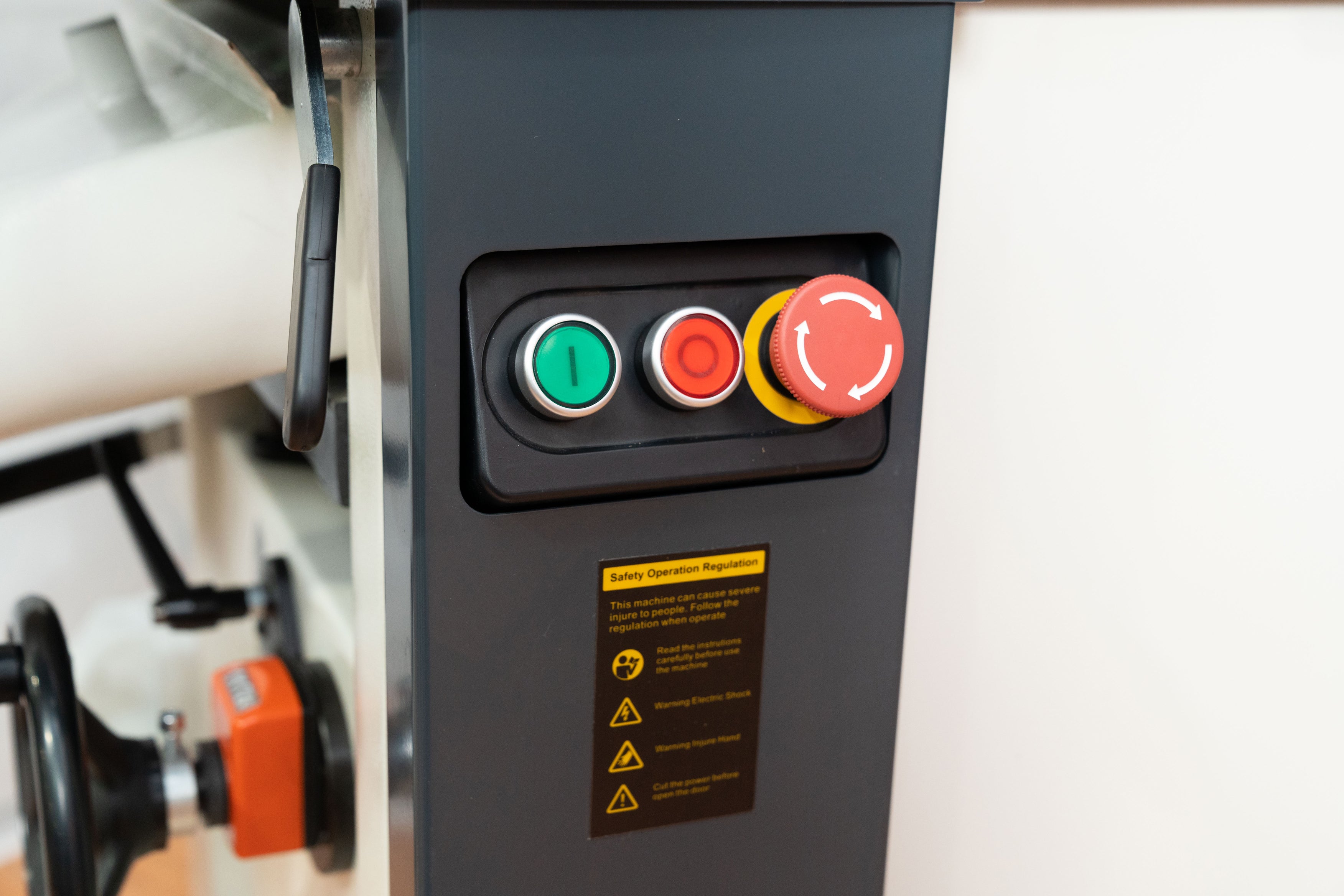

- Emergency Stop

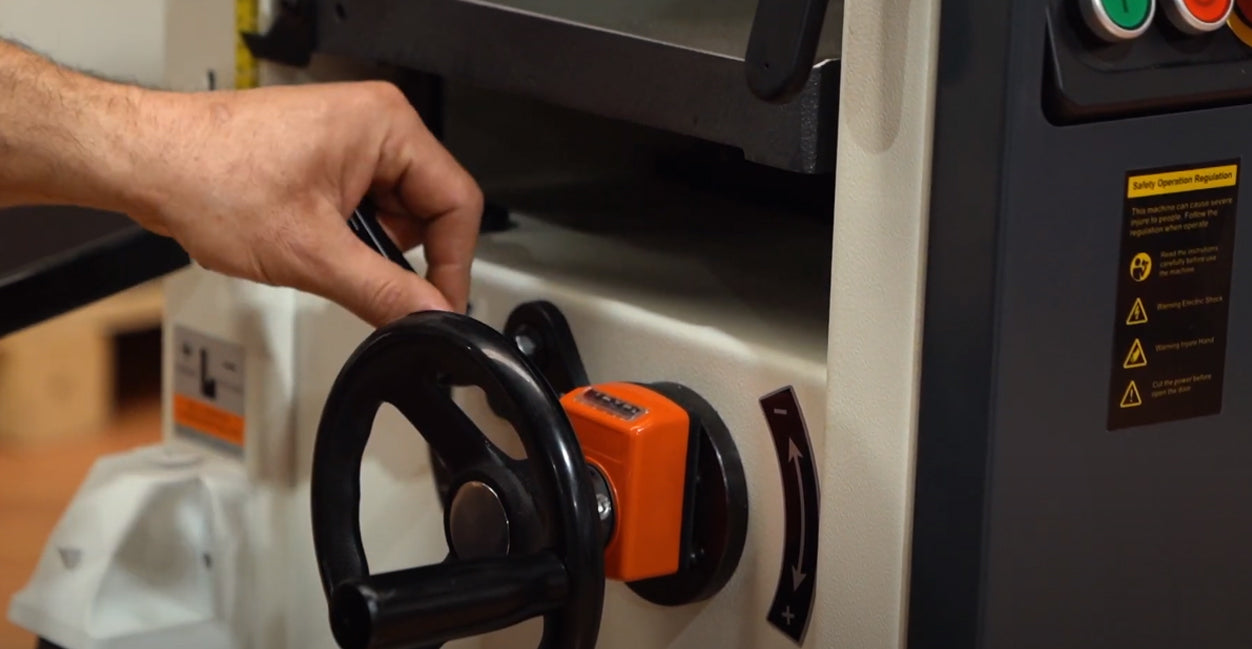

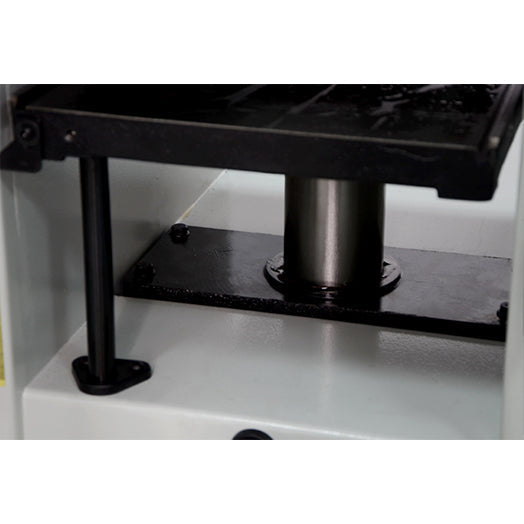

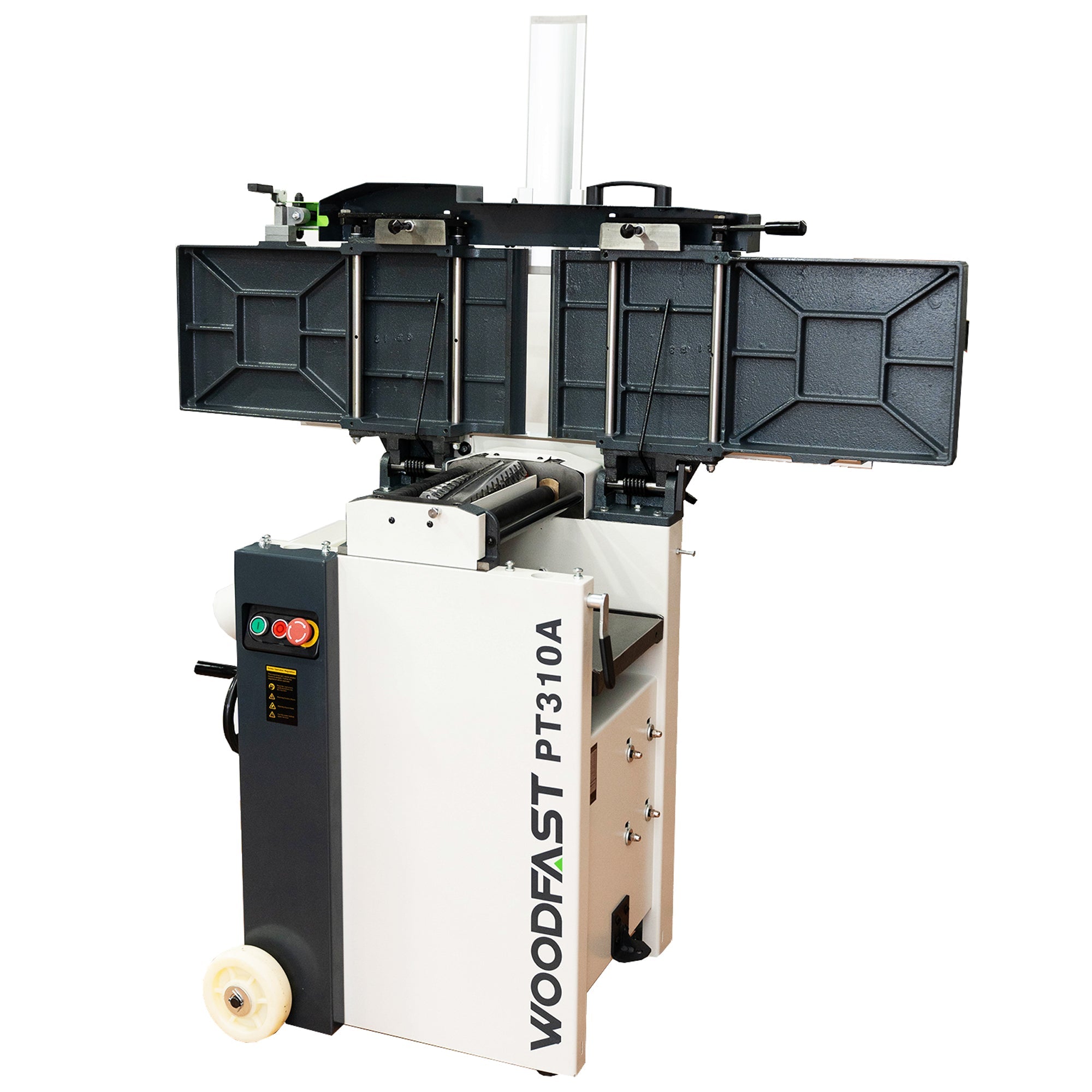

- Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.

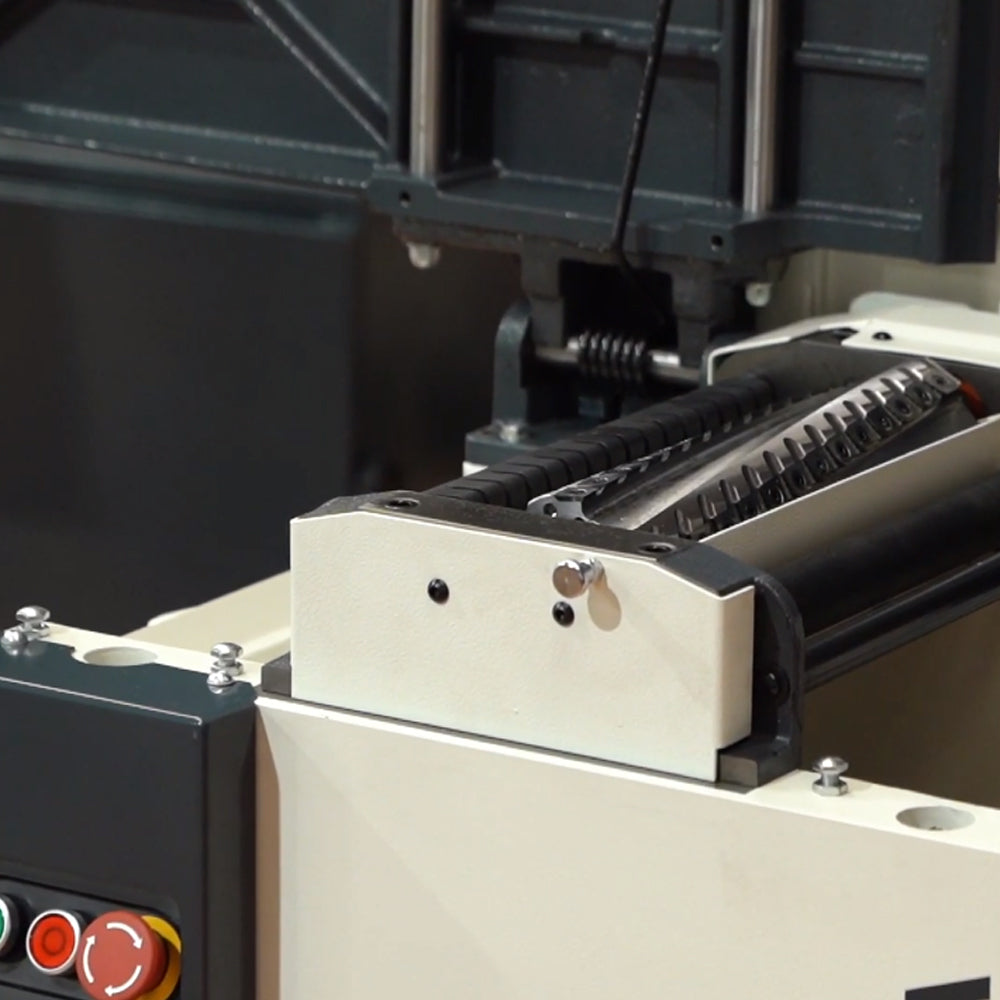

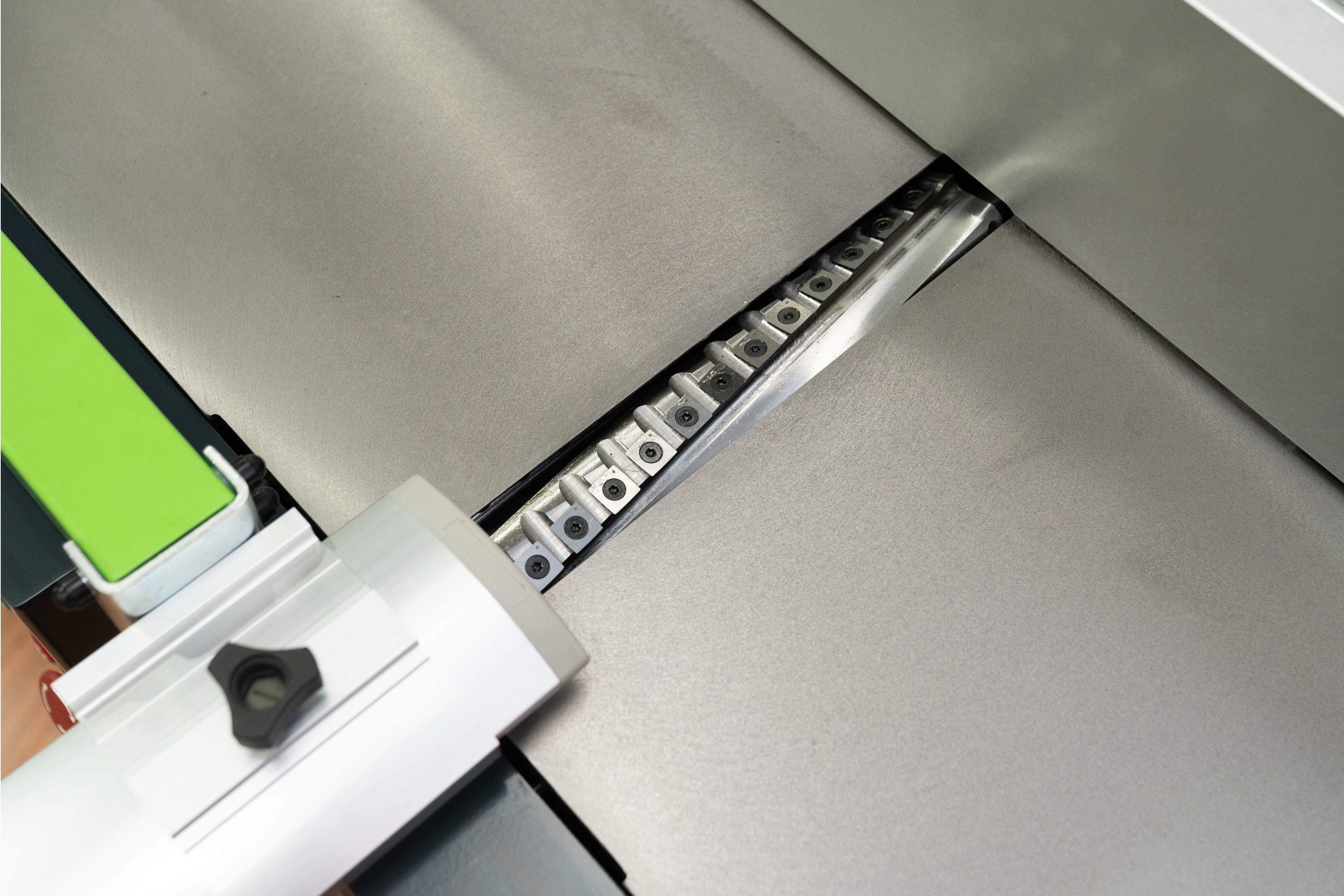

- Spiral Head Cutter Block
- Thicknessing Capacity is 4mm-225mm x 310mm width
- Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration

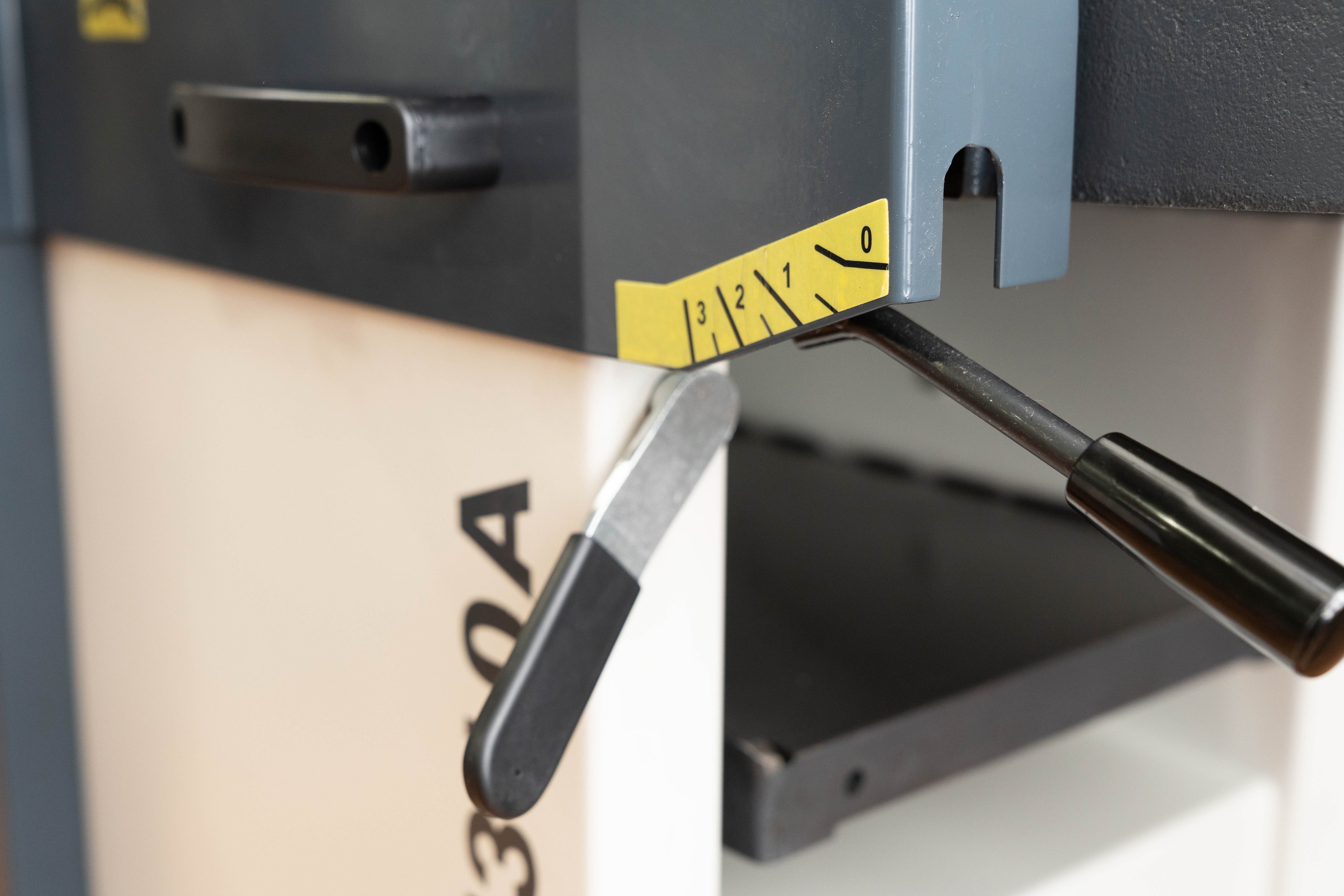

- Feed Rollers On / Off Lever
Specification
- Cutting capacity: 260mm (10") wide
- Maximum cutting depth: 4mm (5/32")
- Table size: 560 x 260mm
- Dust port size: 100mm
Experience the convenience and precision of a combined planer and thicknesser in one machine!
Looking for even versatility in your woodworking projects? Consider upgrading to the Woodfast PT310A or PT410A Planer Thicknesser - the big brothers to the PT260B!
Optional

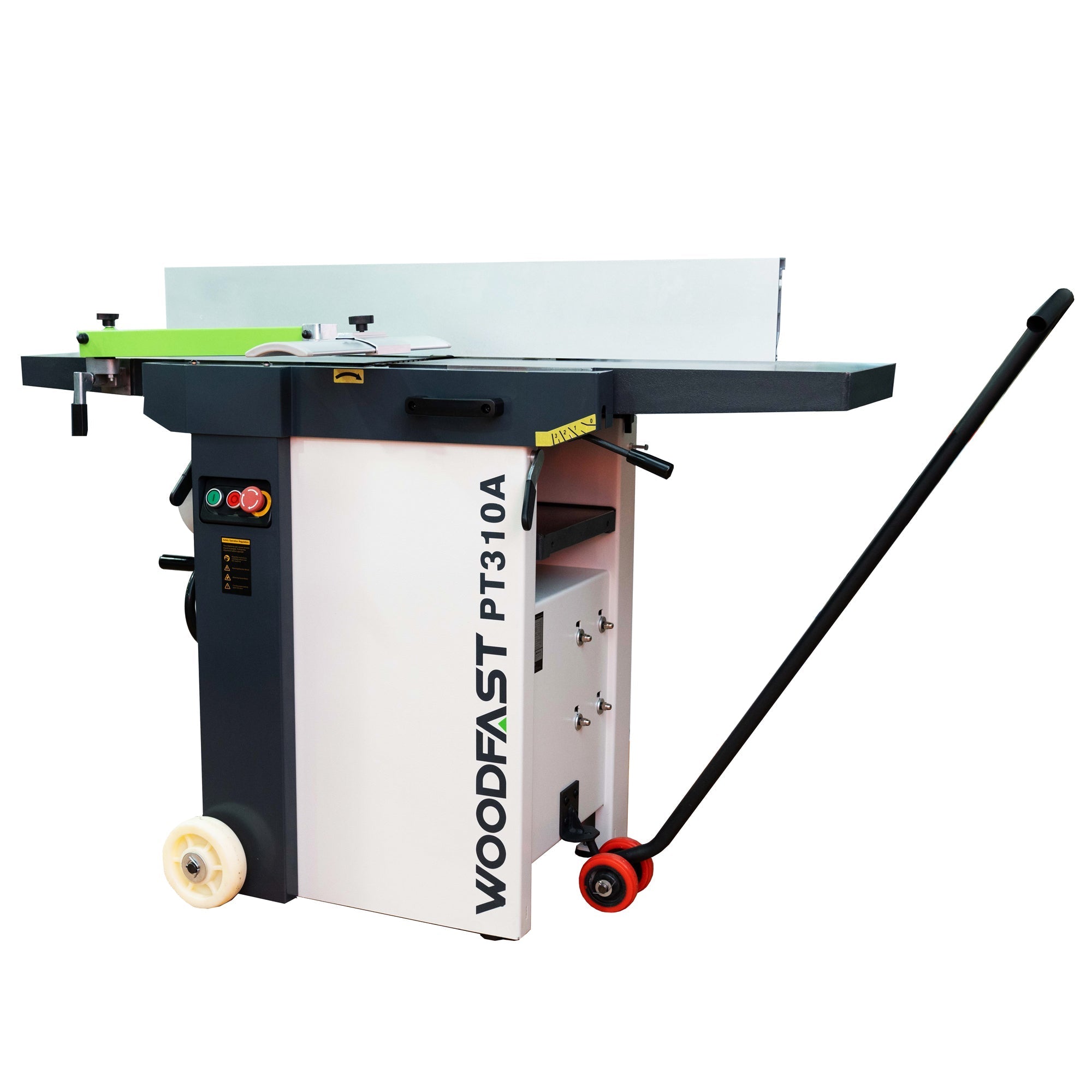

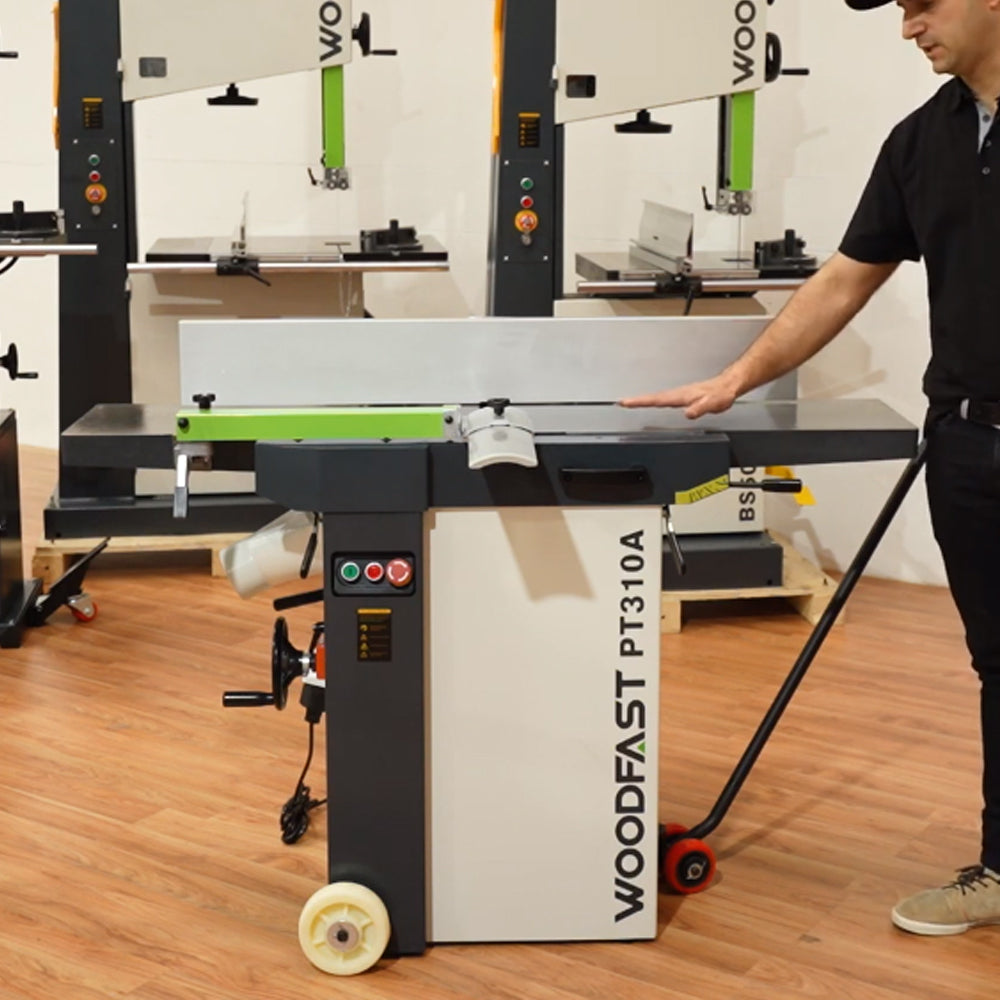

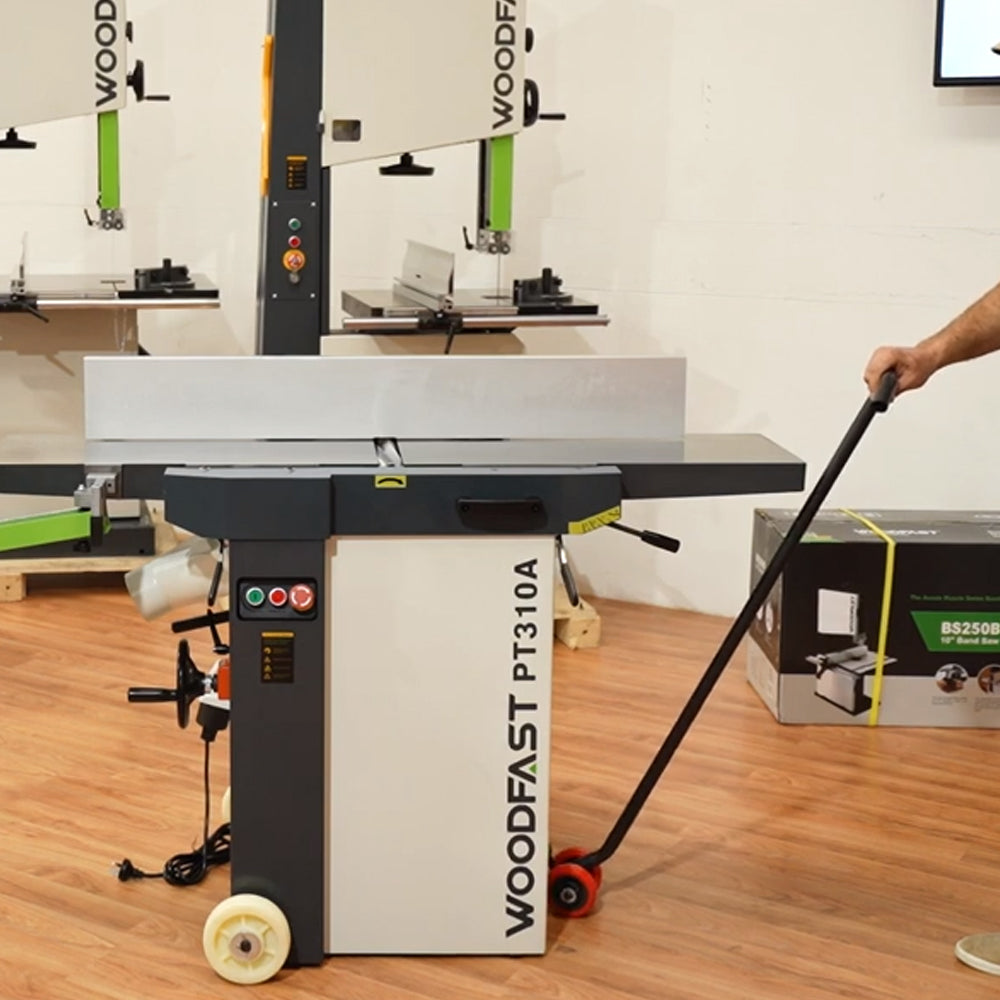

- Mobility Kit (shown pictured - sold separately)
- Outfeed Thicknesser Extension Table
- Digital Readout
Additional Information
Model
Type
Planer / Thicknesser
SKU
8900080
Part Number
PT260B
Brand
Woodfast
Size
260mm (10")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Blade Type
Spiral Head Cutter Block
Cutting Capacity - Height
225mm
Feed Speed
7m / Min.
Table Size
545 x 307mm (Thicknesser)
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
70mm
Blade - Cutter Head Block Speed (RPM)
5500
Blade - Cutter Head Block - No. of Blades / Tips
56
Dimensions
Product Weight (Net Weight)
175kg
Country of Origin
Manufactured in
China
Workshop (Site) Info
Electrical Connection
10 Amp Plug
Other Requirements
Dust Collector
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1480mm
Shipping Width
570mm
Shipping Height
1130mm
Shipping Weight (Gross)
217kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
Brochure
Brochure
https://cdn.shopify.com/s/files/1/0588/3160/1843/files/WOODFAST_PT260B_PLANER_THICKNESSSER_-_JI_MANUAL.pdf?v=1734059522
