Type
Bandsaw
SKU
8000834
Series
Benchtop
Part Number
BS250B
Barcode
735745531150
Brand
Woodfast
Size
250mm (10")
Status
Available
Description

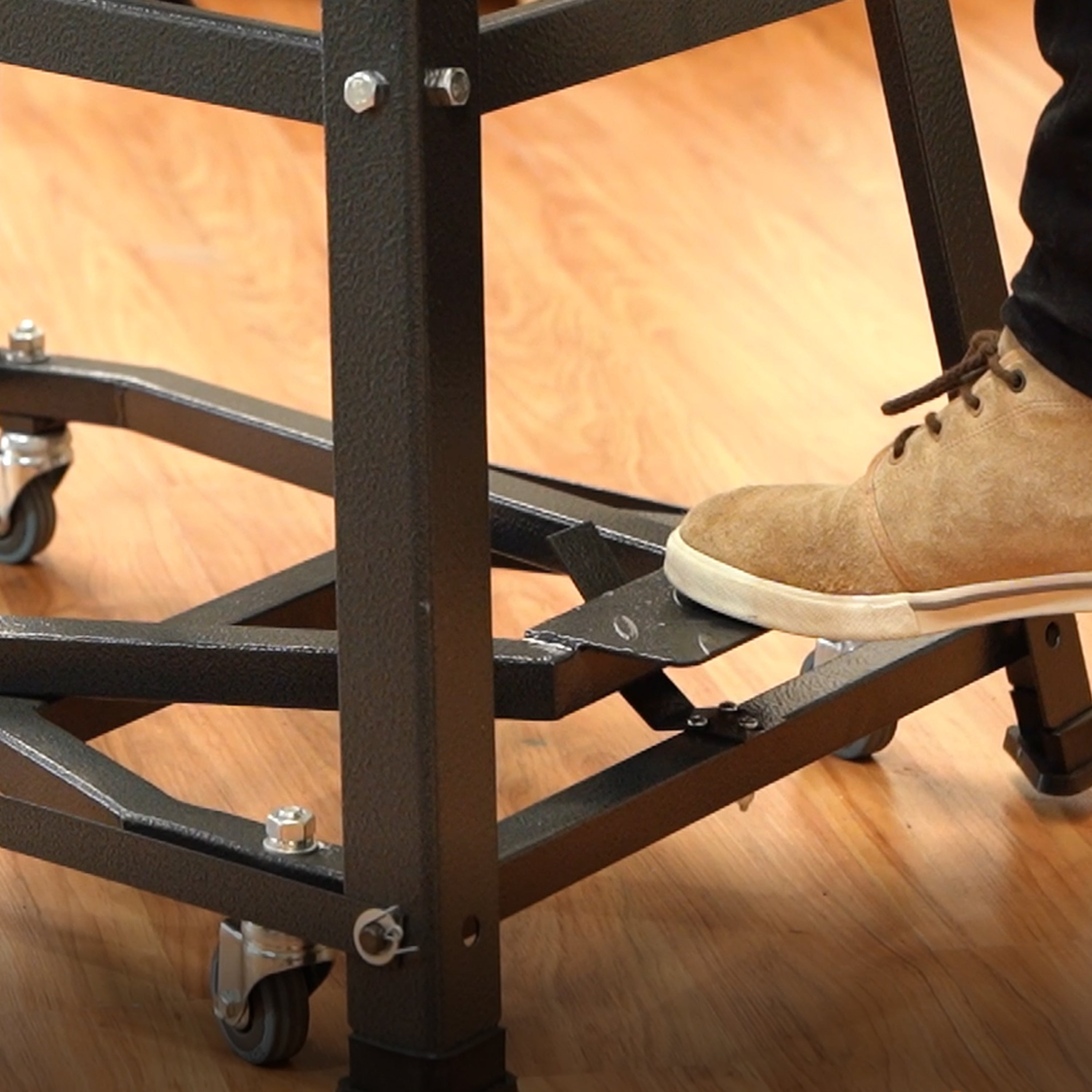

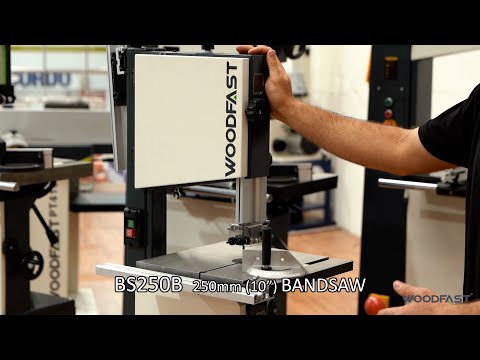

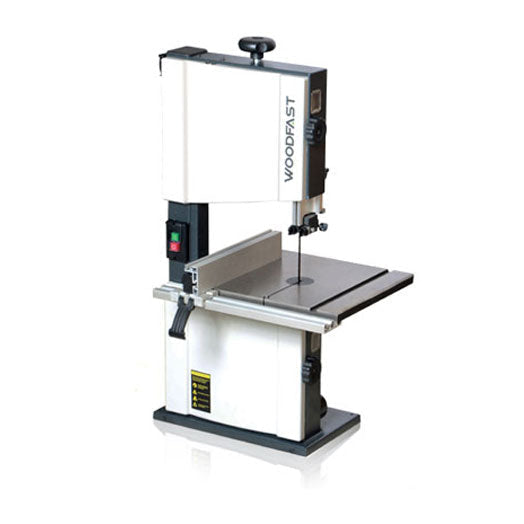

BS250B is an upgraded model with many unique features. This benchtop bandsaw encompasses all the features found on top-quality floor standing machines. It shares the same essential build qualities as its larger cousins such as strong steel frames, dynamically balanced bandwheels, cast iron tables, and a powerful induction motor. It has been designed to offer to the user with space limitations. This is a serious machine in compact form. It is available with an optional stand and mobility kit.
Features

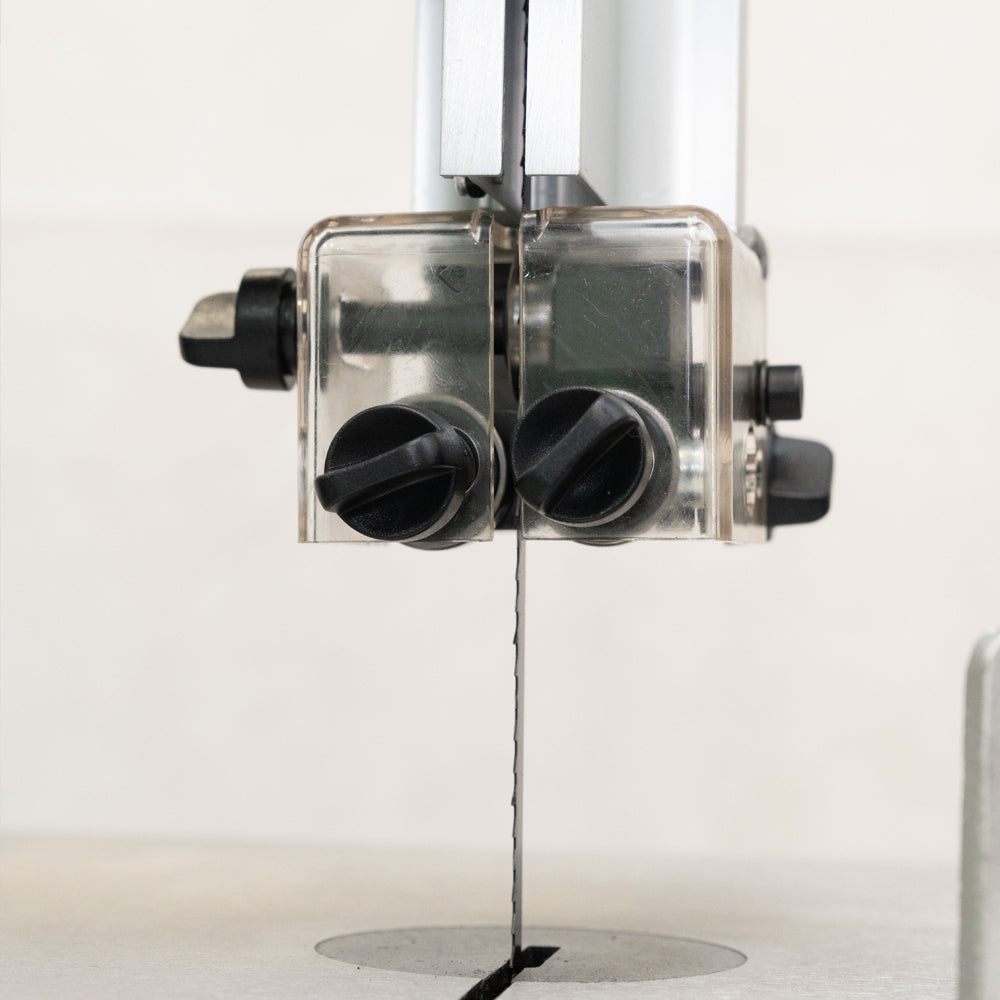

- Spring-Loaded Tool-Less Blade Guide System - Can Be Adjusted Quickly And Easily Without Tools

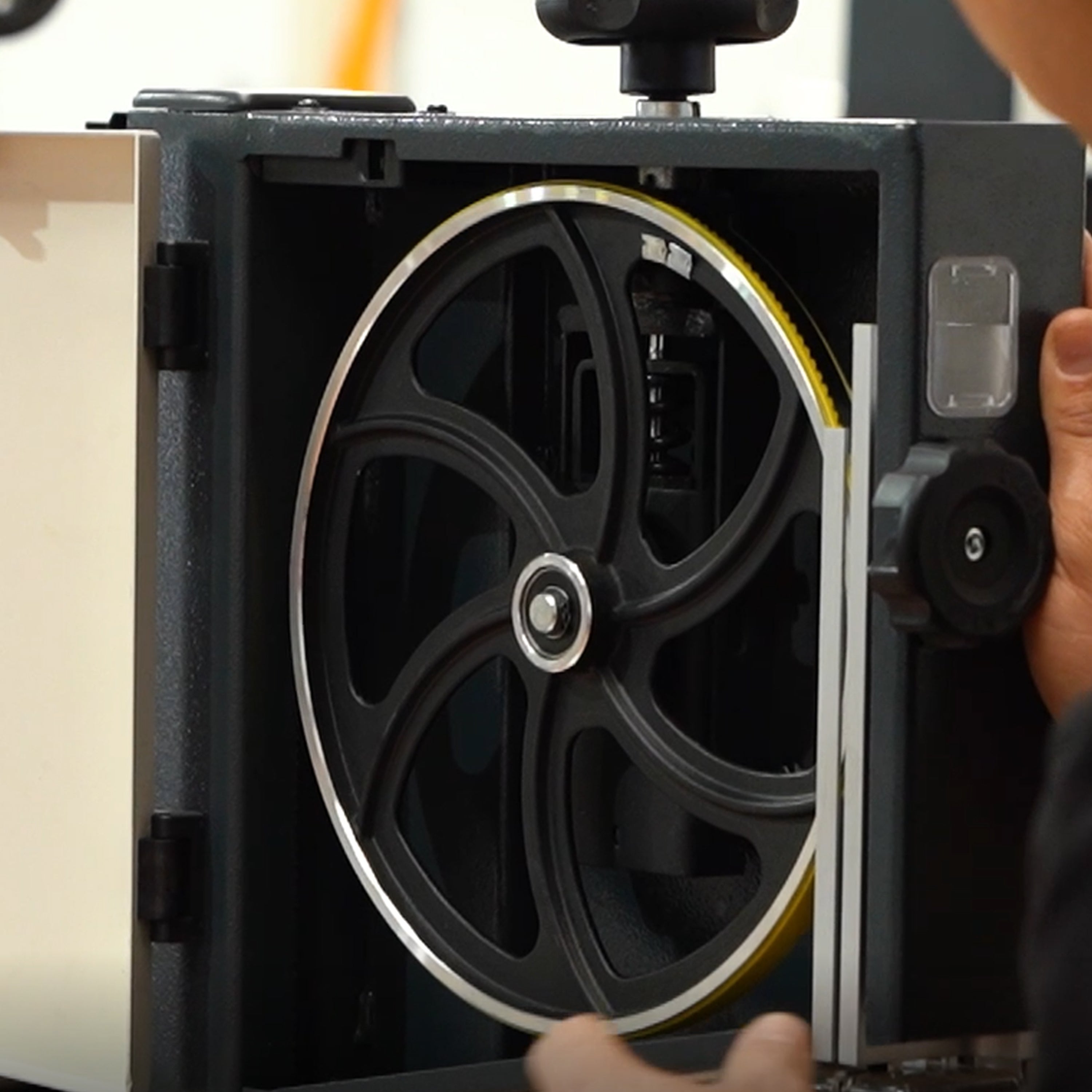

- Cast Aluminium Balanced Bandwheels - with Easy to fit and hard wearing Urethane Bandsaw Tyres

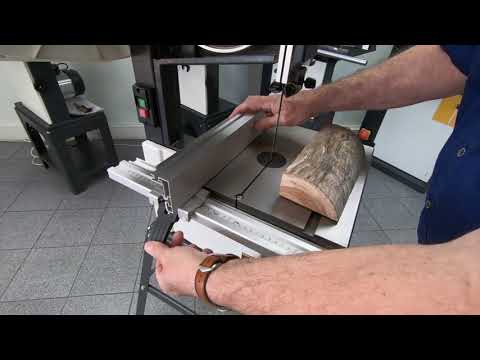

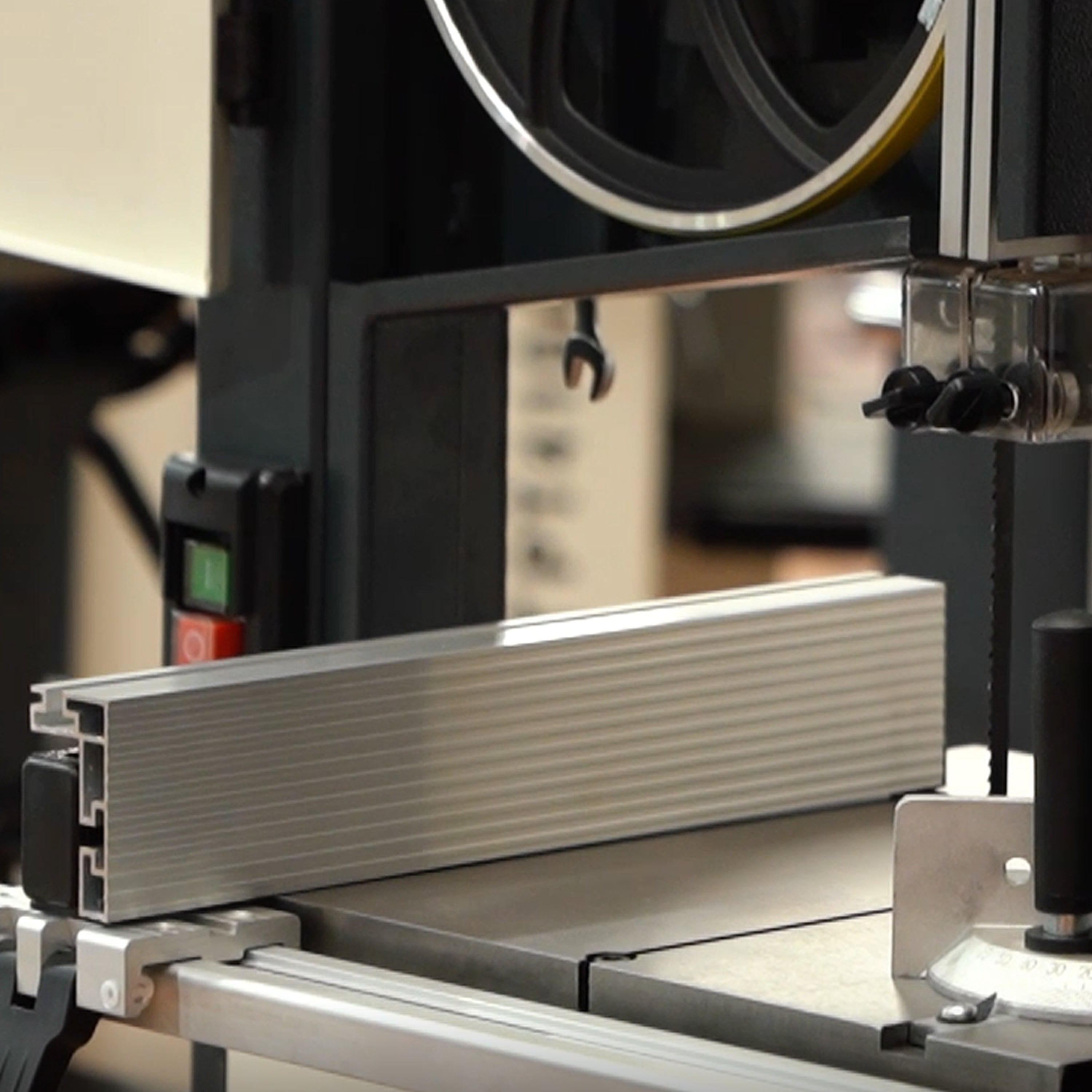

- Adjustable Aluminium Rip Fence Helps Guide The Work Piece For Straight And Accurate Rip Cutting with Cam Lock For Easy And Quick Moveability
- Quick Tensioning Device - Quick Release The Blade Tension After Working And Increase The Blade Life

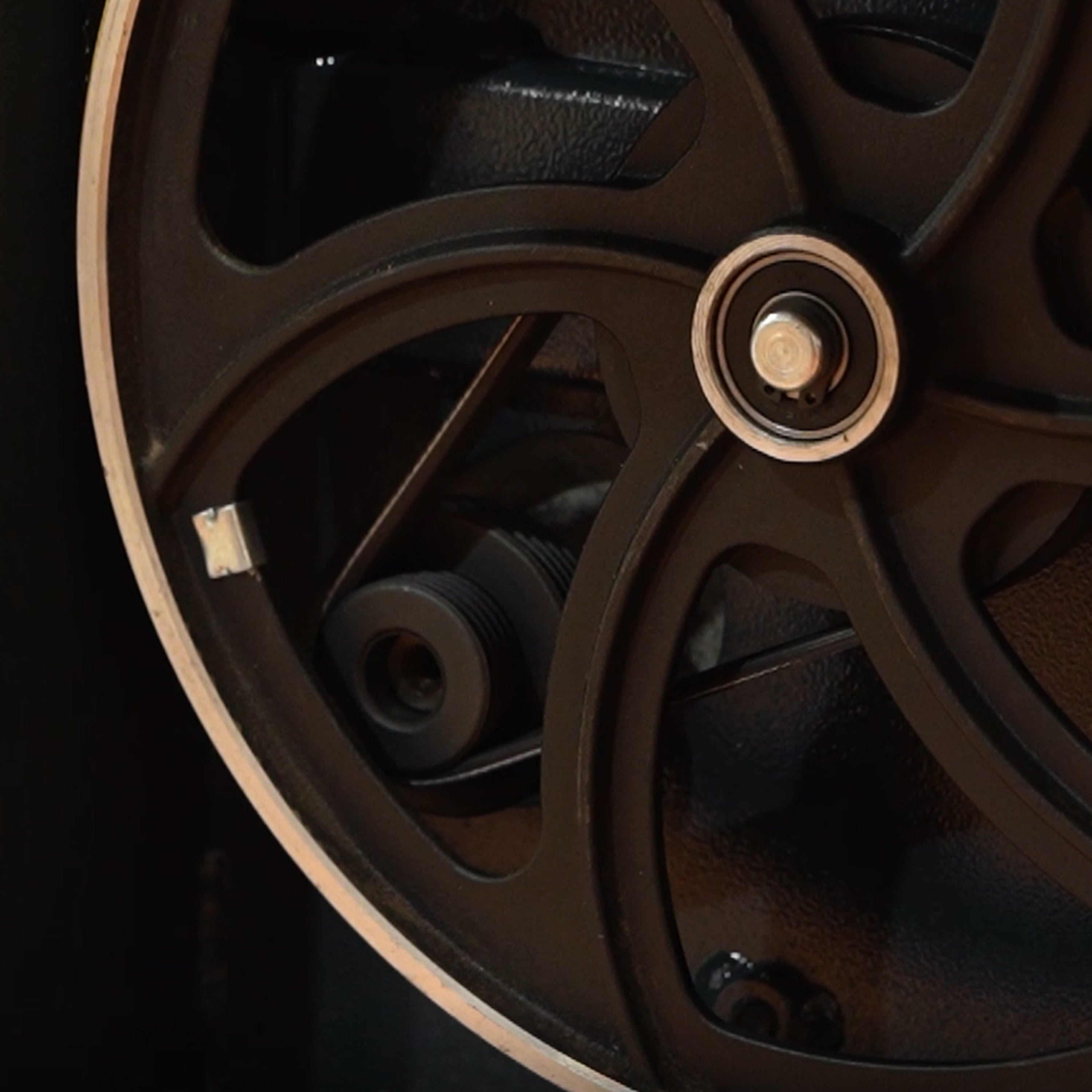

- Two Speed: Run The Blade at Either 460m/Min. Or 1000m/Min. To Meet The Needs Of Any Given Project. The Two Speeds Allows for Cutting of Light Metals.

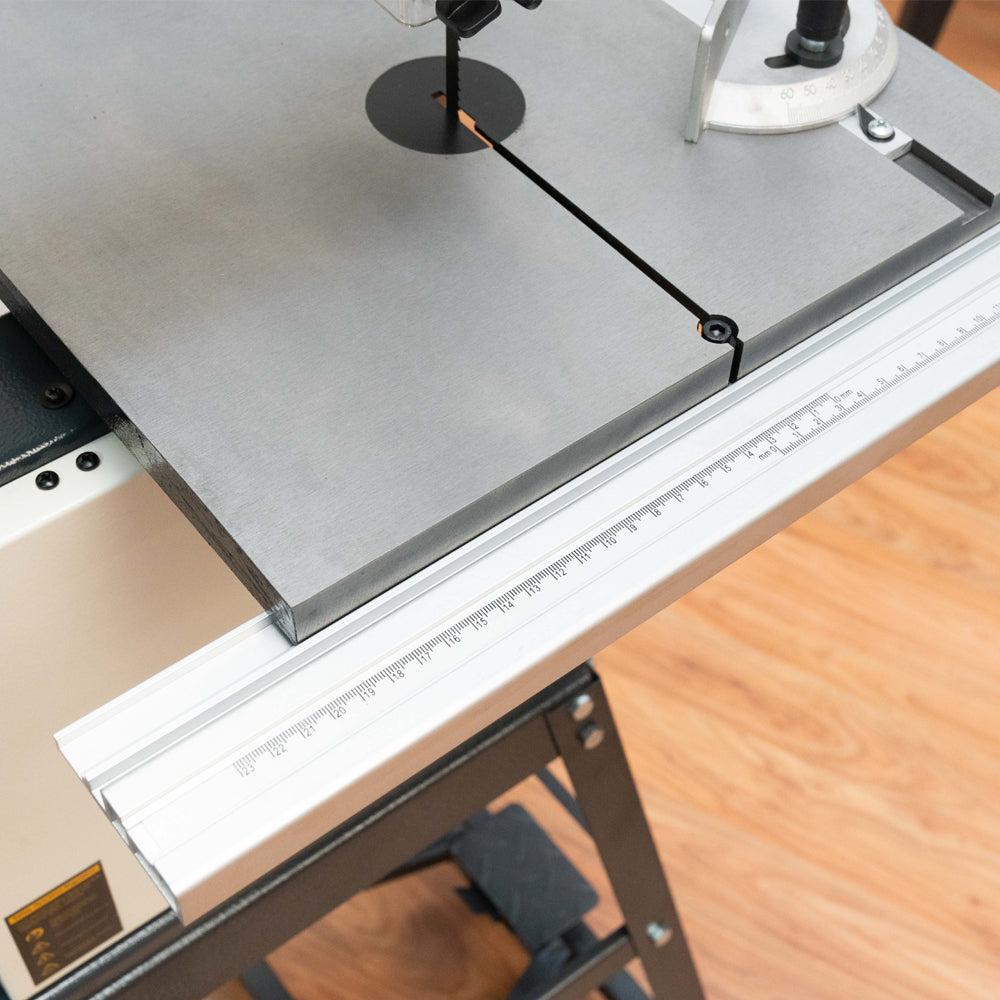

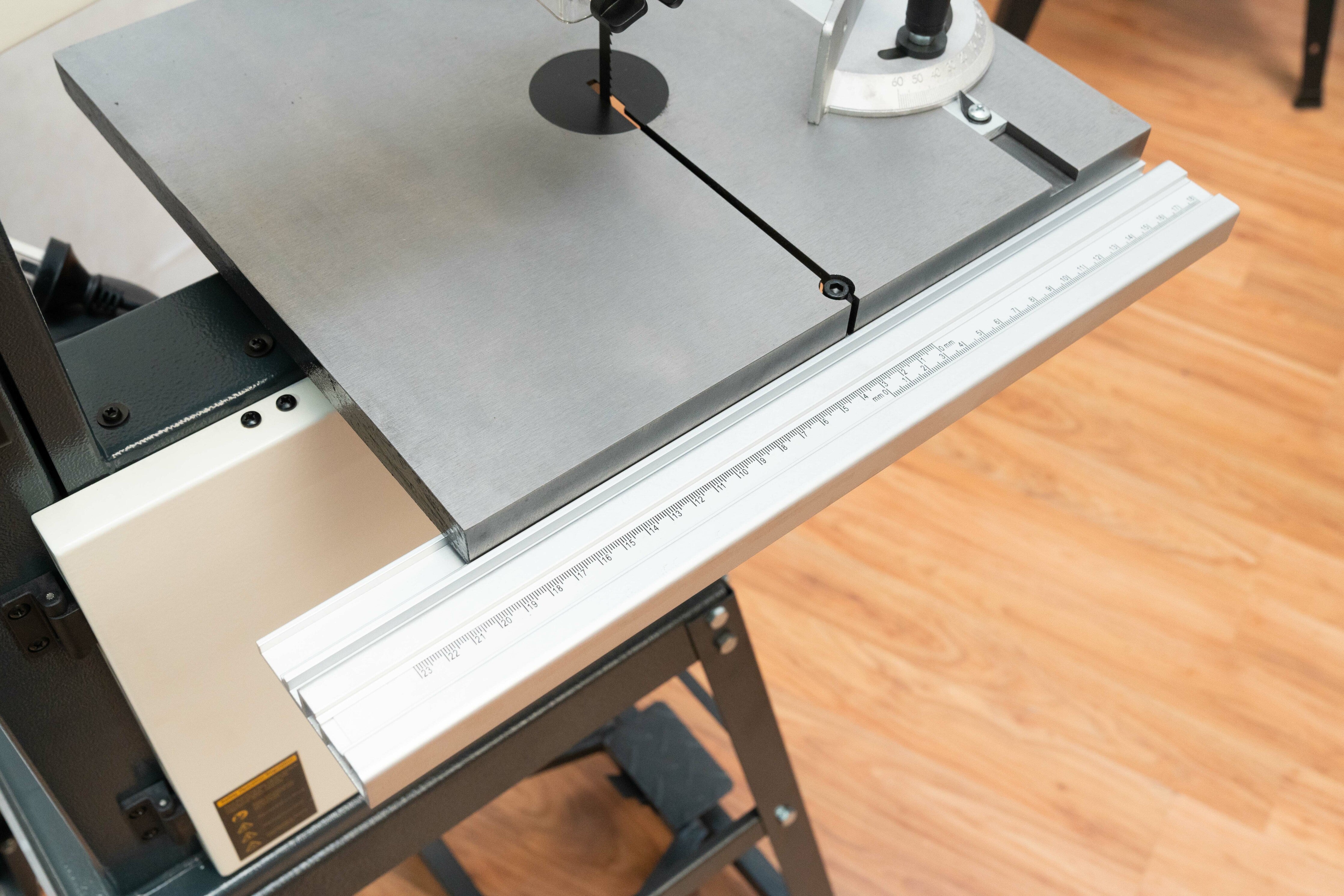

- Tape Measure along Table

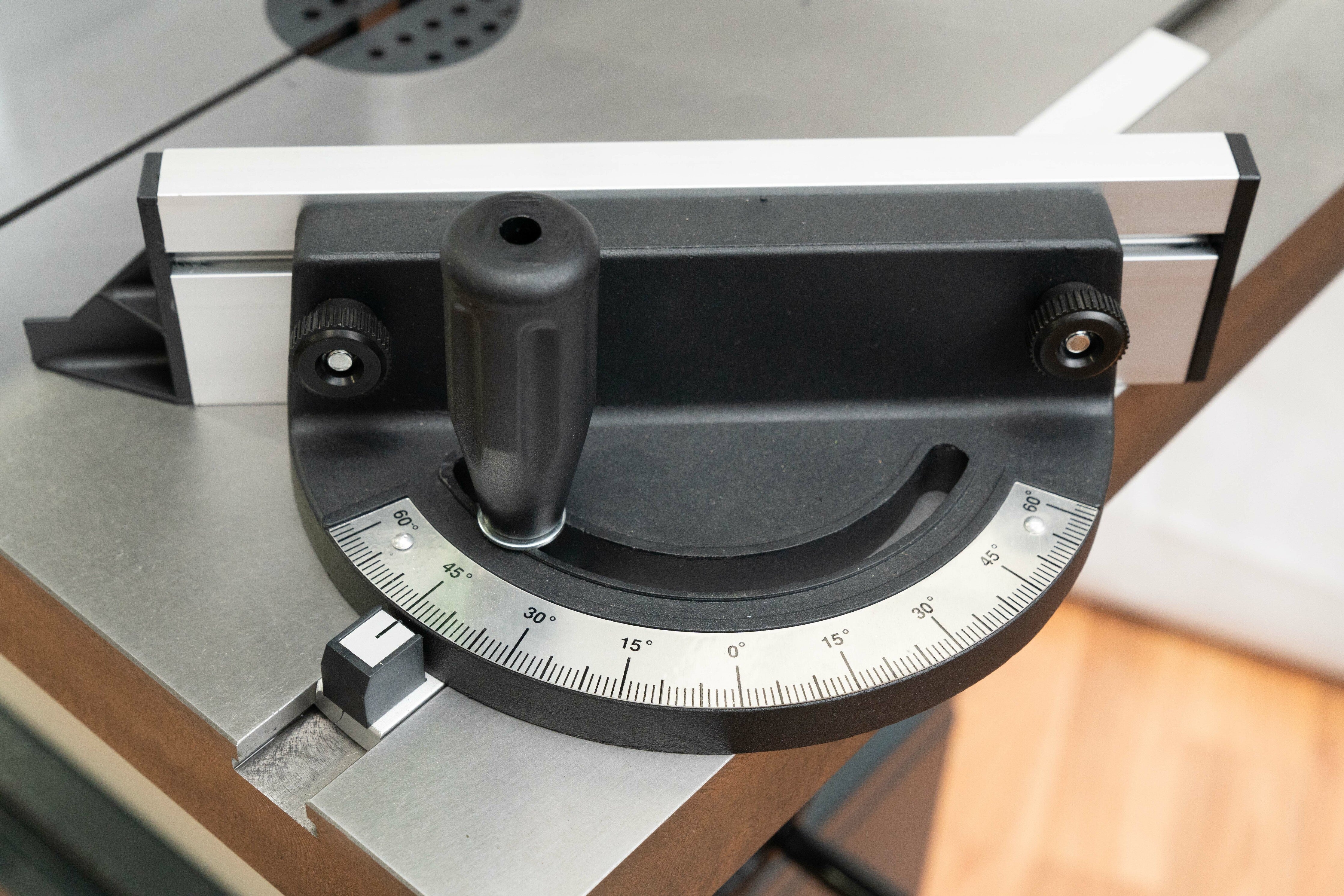

- Mitre Gauge - with T Slot

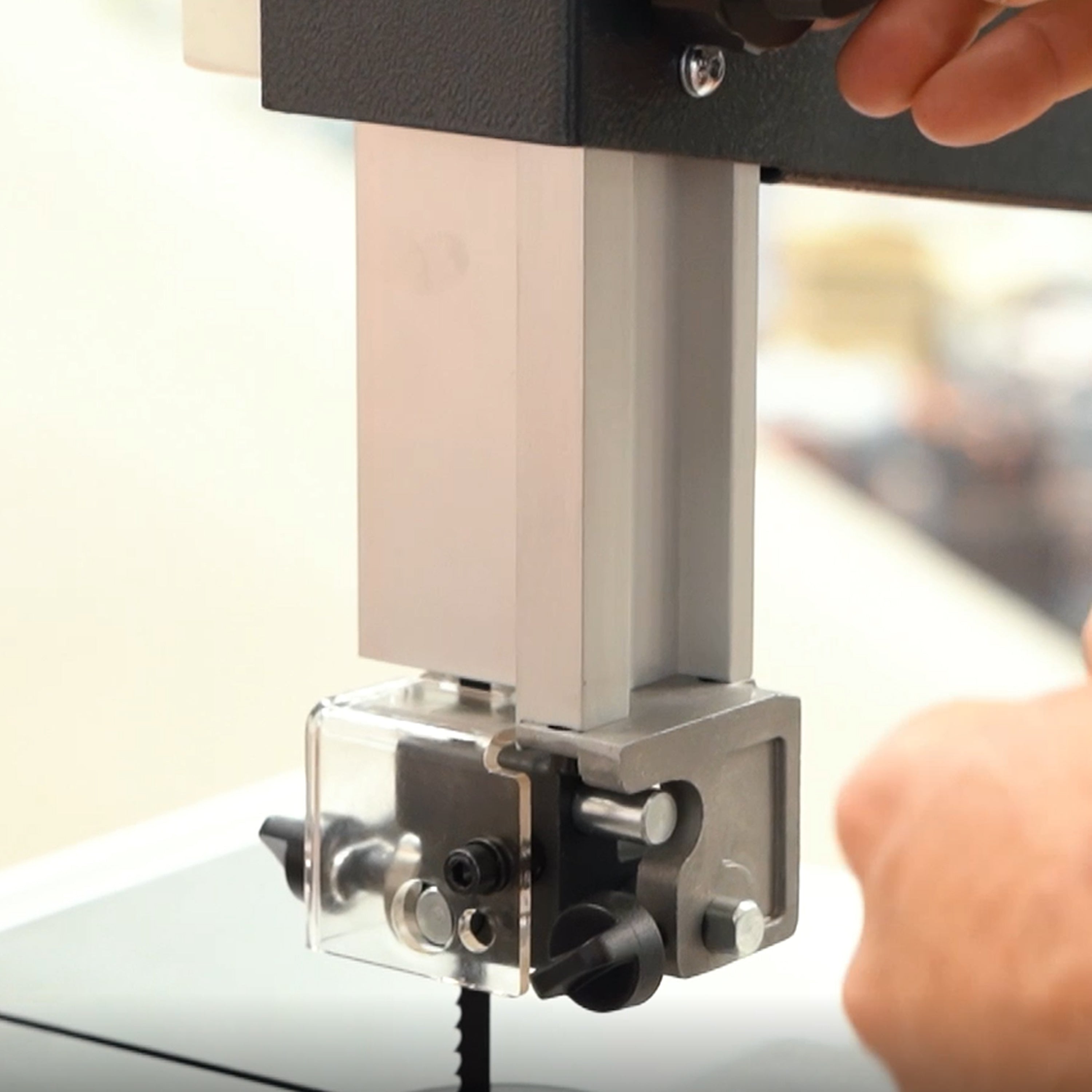

- Rack and Pinion Gear for Height Adjustment
- Floor to Table Height: 1010mm (With Optional Stand)
Additional Safety Features
- Clear Plastic Blade Tool-Less Blade Guide System Cover
- Micro Switch on Each Door - The machine won't operate with the door open
- No Volt Relay Switch - If power is disconnected and then reconnected the machine wont automatically restart.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
0.75HP (0.55kW / 550W)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
370W (0.5HP) (0.37kW)
Bandwheel
Cast Aluminium
Bandwheel Diameter
254 mm
Blade Length
1790 mm
Blade Width
6-13mm
Cutting Capacity - Height
120 mm
Throat Capacity
245 mm
Table Size
350mm x 318mm
Speed Range
1000m/min, 460m/min
Dimensions
Product Length
650 mm
Product Width
500 mm
Product Height
1450 mm
Product Weight (Net Weight)
36 kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.

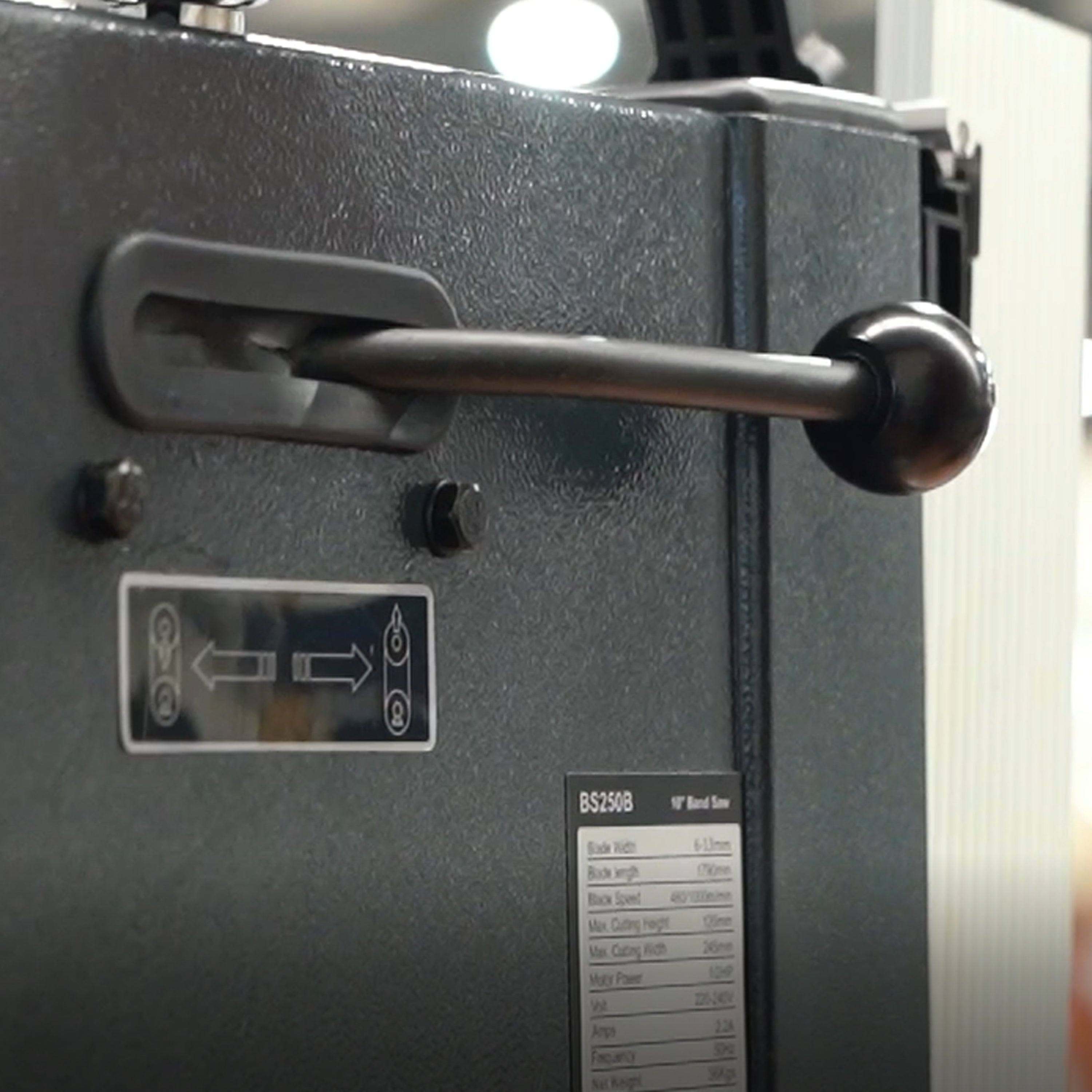

Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk.
De-tensioning your blade will extend the life of your blade.
De-tensioning your blade will extend the life of your blade.
Induction Motor
Table Fence Construction
30 x 60mm Aluminium Rip Fence

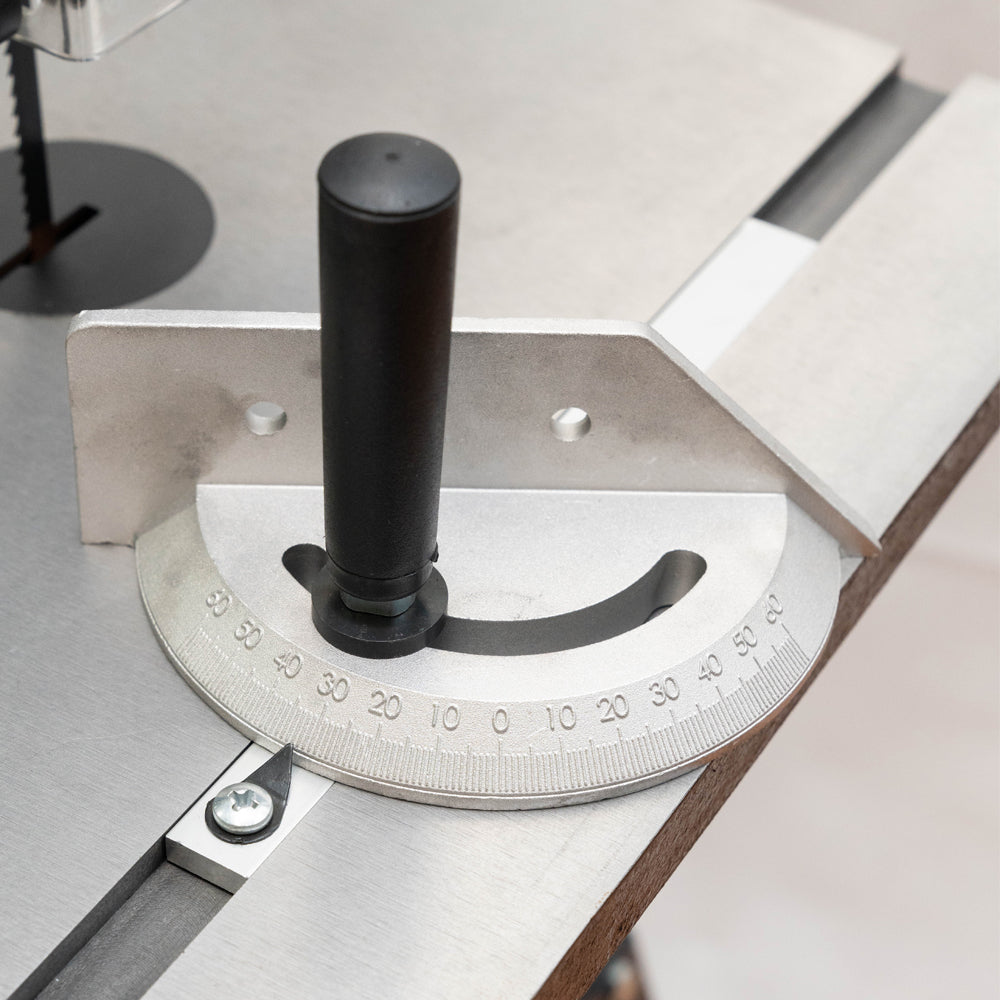

Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.

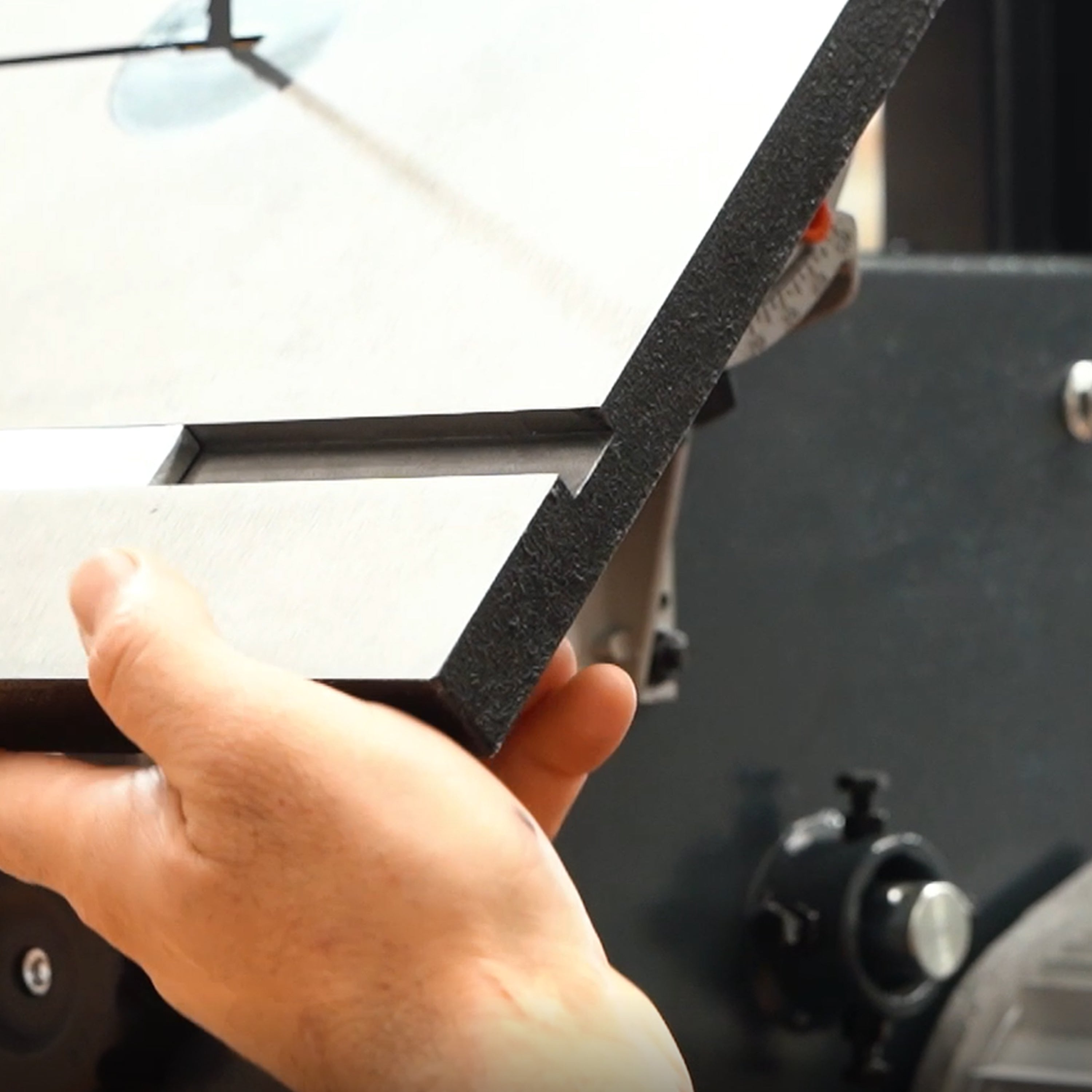

Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
Tool Kit (Fixed to Rear) with Allen Keys and Spanner
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Safety
Safety Switch
Safety Switch
Safety switches are low-wear and low-maintenance when it comes to safe monitoring of doors or safe position monitoring.
Magnetic safety switches on all openings
Blade Guard

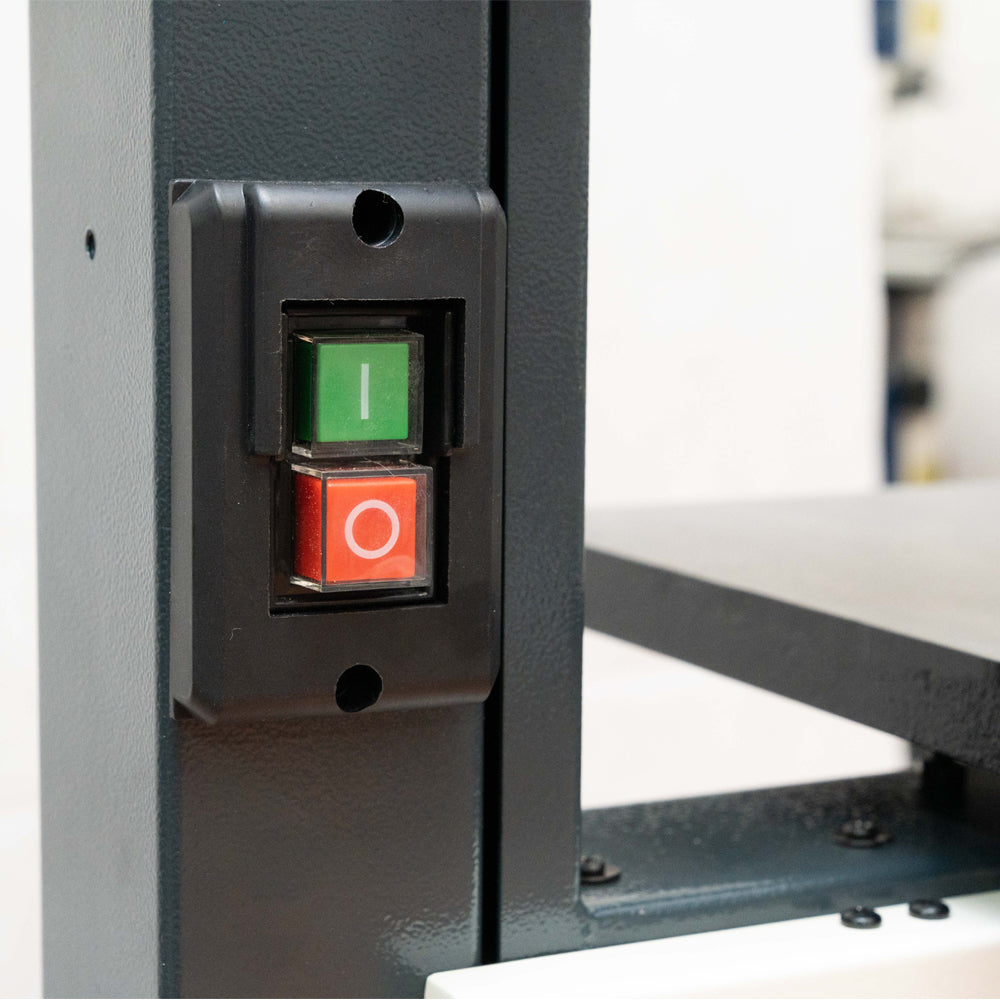

NVR (No Volt Release) Switch
NVR (No Volt Release) Switch
A no volt release (NVR) switch is valuable safety feature for power tools and machinery. If the power is cut, the unit will default to off, so the machinery will not automatically start again when the power is restored.
CE Certified
Dust Port
63.5mm (2-1/2")
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Other Requirements

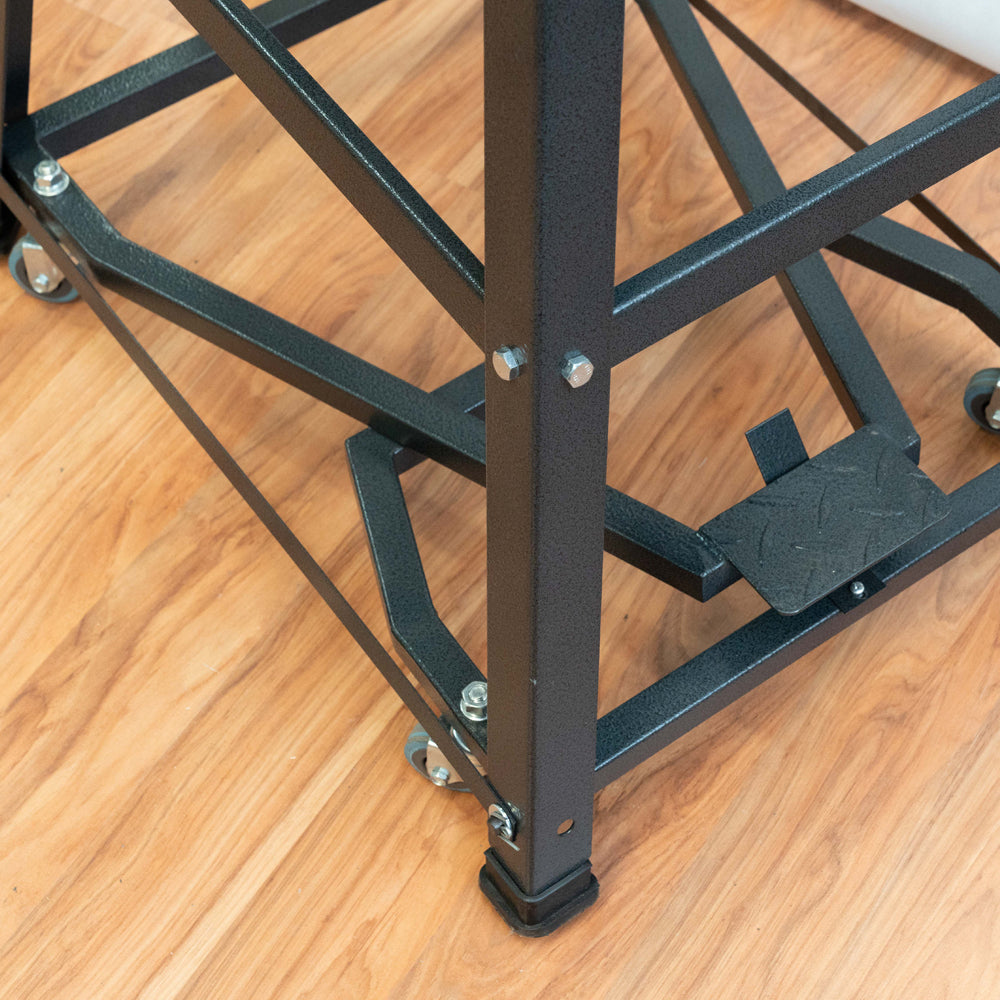

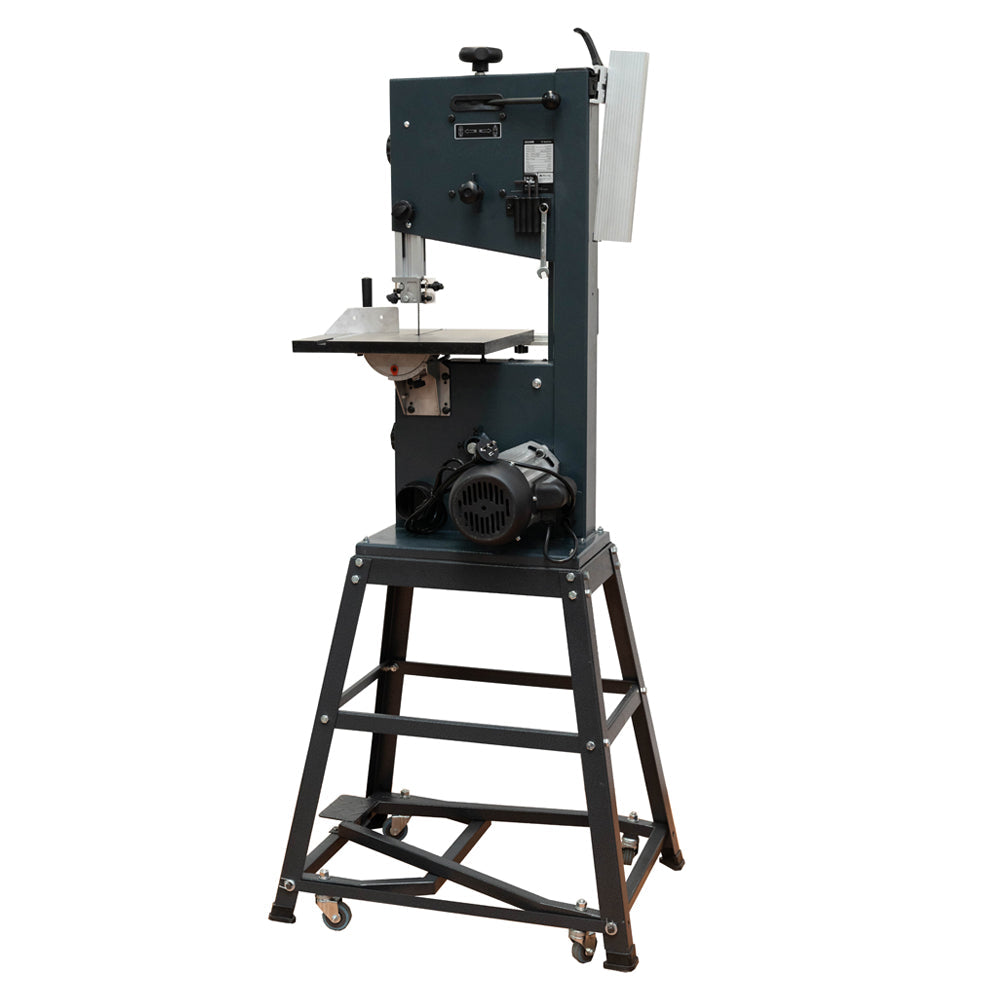

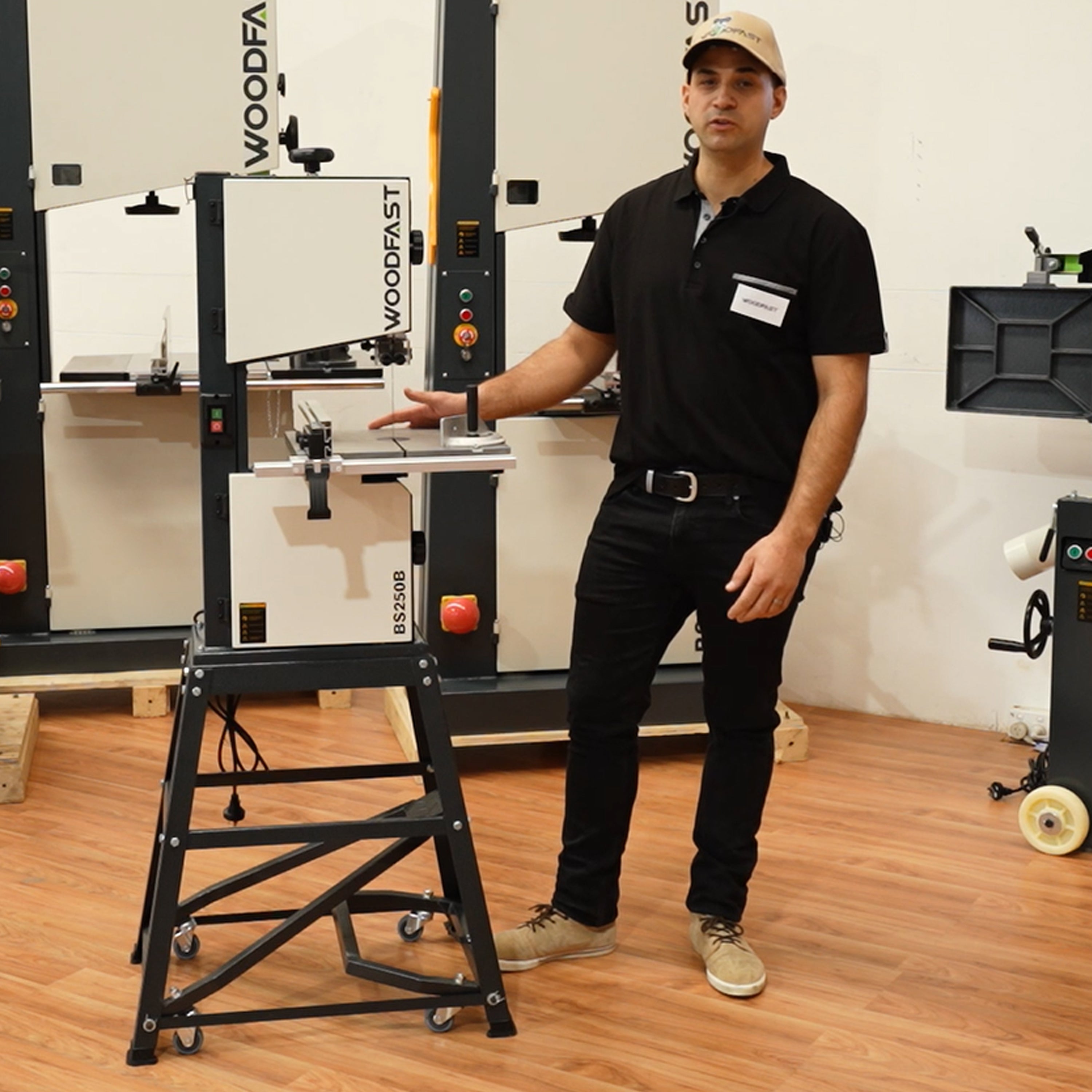

Benchtop or Stand (Pictured - Sold Separately)
Workshop Requirements
Benchtop or Stand (available separately)
Spare Parts / Consumables
Spare Parts / Consumables
Drive Belt 155J 4 Rib suit BS250B / BS250X Bandsaw by Woodfast
1790mm x 10mm x 10TPI Bi-Metal Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 10TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 24TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 4TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 12.5mm x 3TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 12.5mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 3mm x 14TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 6mm x 10TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 6mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 10TPI Bi-Metal Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 10TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 24TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 4TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 10mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 12.5mm x 3TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 12.5mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 3mm x 14TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 6mm x 10TPI HSS Bandsaw Blade suit Wood Cutting
1790mm x 6mm x 6TPI HSS Bandsaw Blade suit Wood Cutting
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years (Home User) or 1 Year (Commercial User)
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Length
910 mm
Shipping Width
330 mm
Shipping Height
460 mm
Shipping Weight (Gross)
39.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Shipping Notes
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
