Type
Planer (Jointer)
SKU
8043144
Brand
Woodfast
Size
200mm (8")
Status
Available
Description

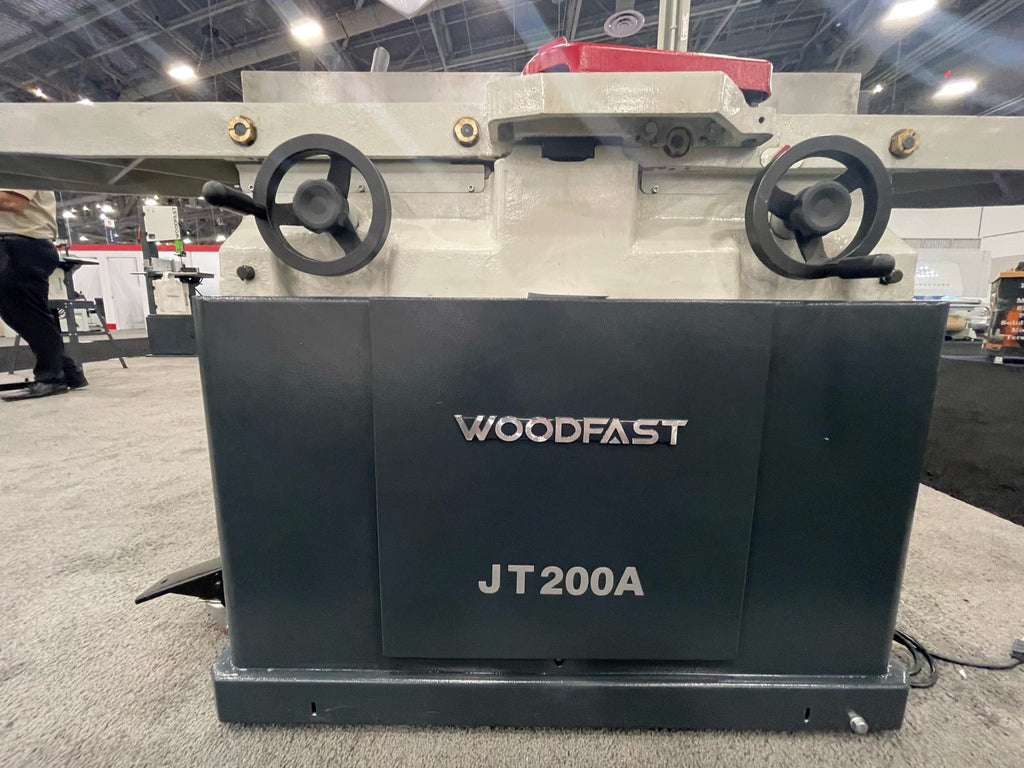

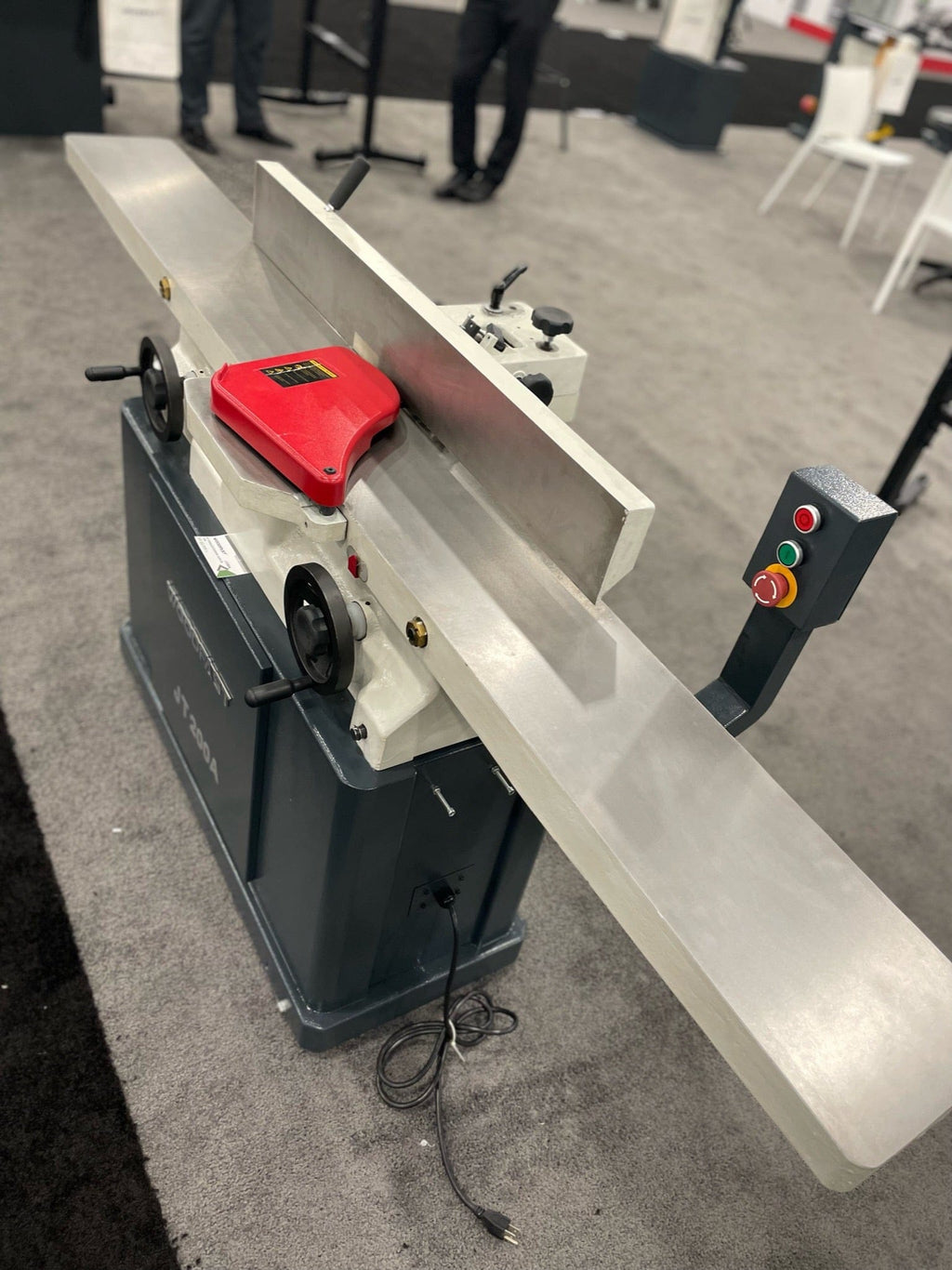

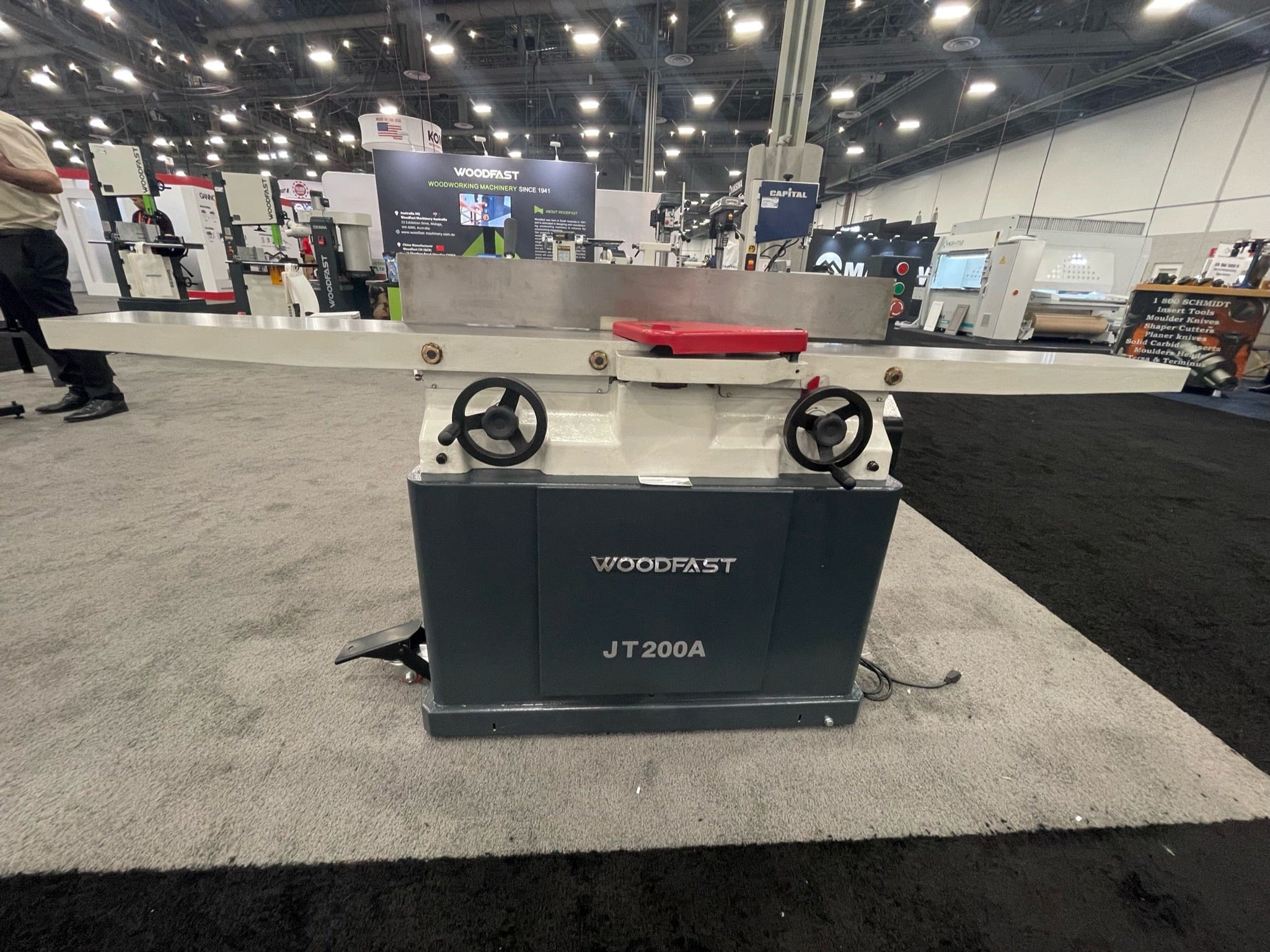

200mm (8") Wood Planer / Jointer with Spiral Head Cutter Block 240V JT200A. This powerful machine provides smooth operation and accuracy in a variety of woodworking tasks, allowing you to plane and join wood with precision.
Features
- Large cast iron tables with a precision machined finish will ensure accuracy.

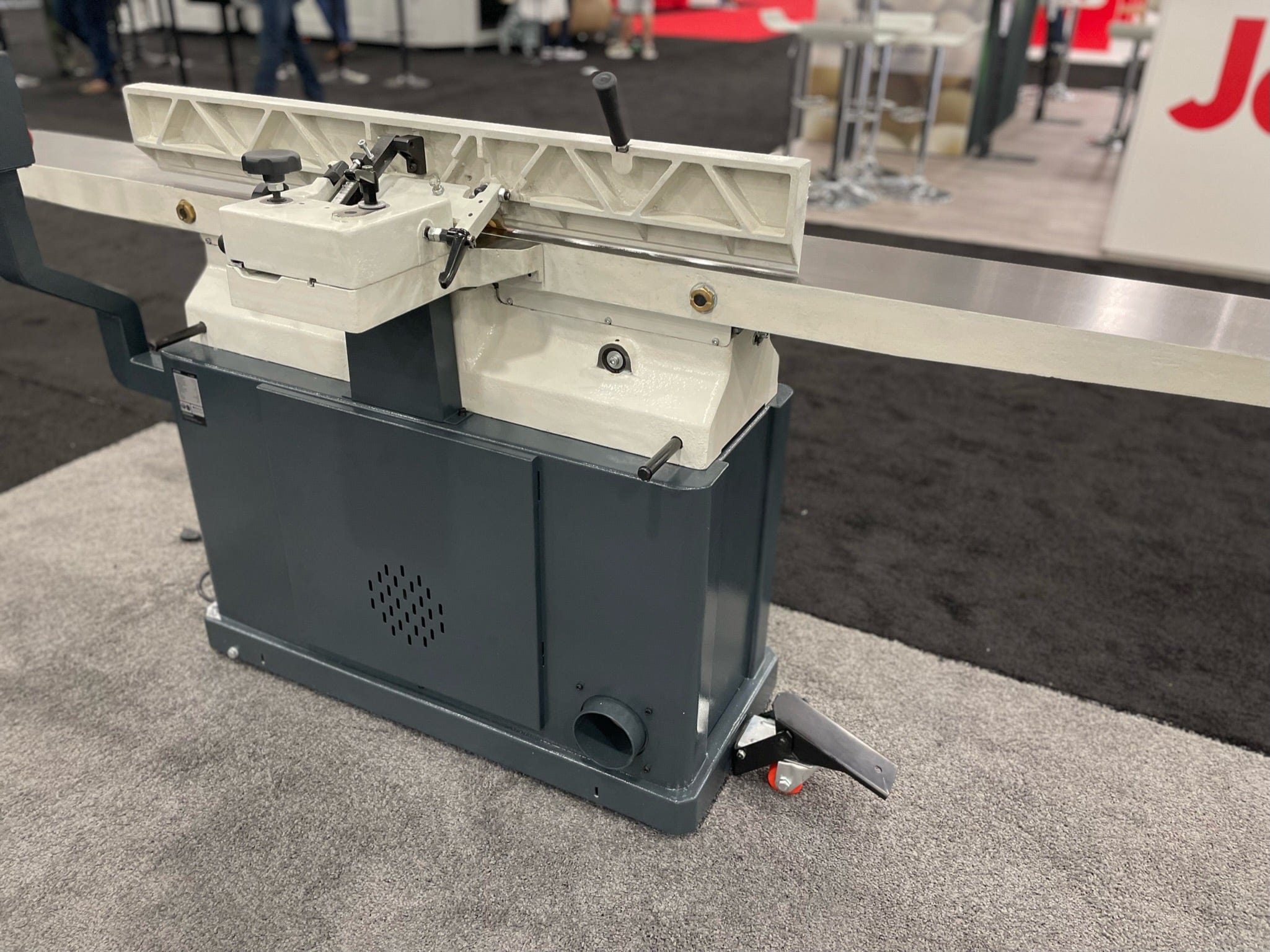

- Centrally mounted large cast iron fence is equipped with 45 degree and 90 degree positive stops.

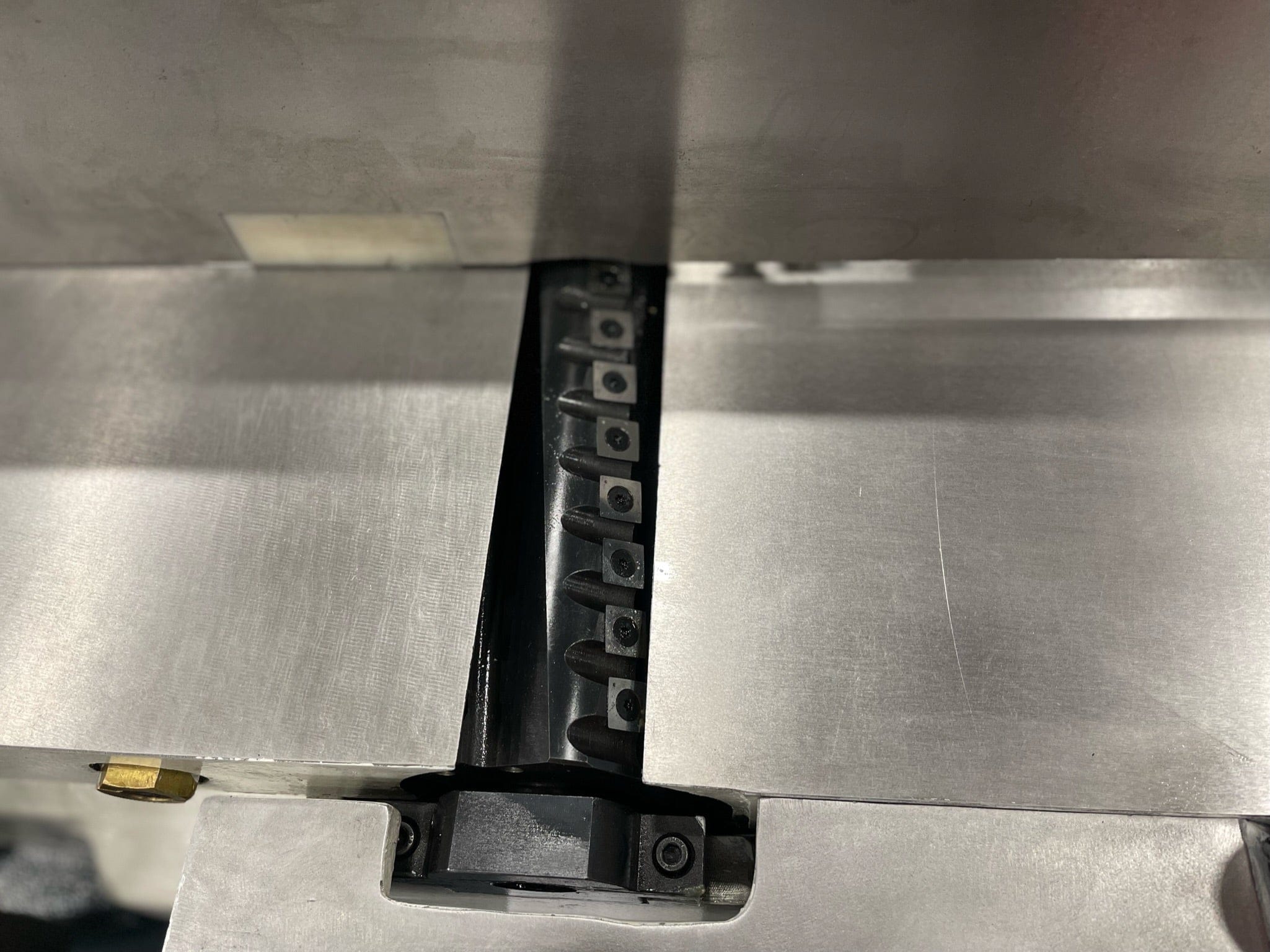

- Heavy Spiral Cutterhead rapidly cuts to produce superior finish.
Additional Information
Model

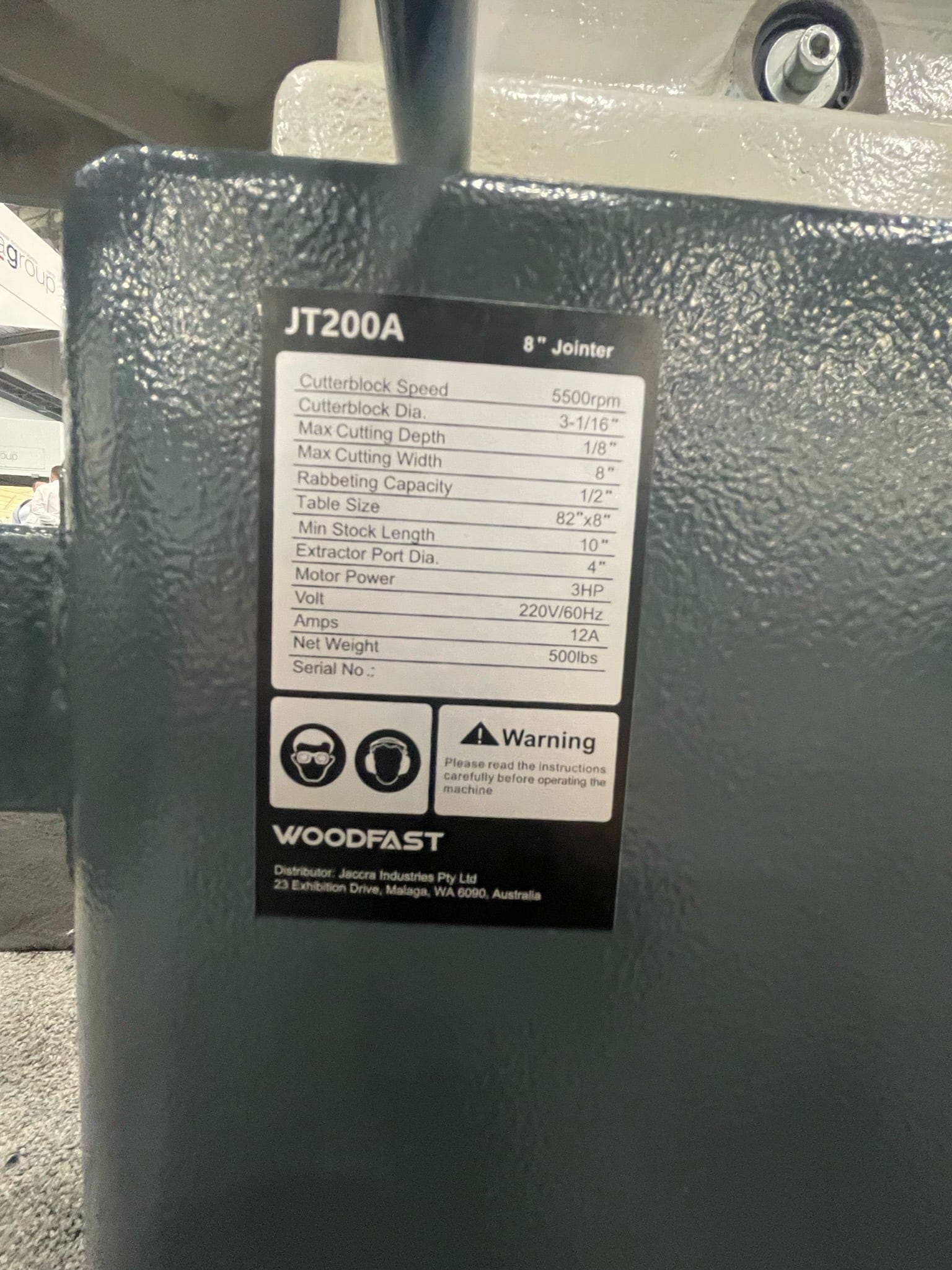

Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Cutting Capacity - Depth
13mm (1/2")
Cutting Capacity - Width
200mm (8")
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
78 mm
Blade - Cutter Head Block - Rows
6
Blade - Cutter Head Block Speed (RPM)
5200
Blade - Cutter Head Block - No. of Blades / Tips
52
Dimensions
Product Weight (Net Weight)
208.48 kg
Country of Origin
Manufactured in
China
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Packaging + Shipping
Shipping Weight (Gross)
250.48 kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
